Harfington Uxcell G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter DC 5V 60mm 1-30L/min SEN-HZ21WI

Uxcell G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter DC 5V 60mm 1-30L/min SEN-HZ21WI

ID:1097678
ID:1097678
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Stable, high temperature, low water pressure start.
  • Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • All materials are in line with SGS testing standards.
  • Flow Range: 1-30L/Min; Maximum Water Pressure: 1.75MPa
About this item
  • Stable, high temperature, low water pressure start.
  • Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • All materials are in line with SGS testing standards.
  • Flow Range: 1-30L/Min; Maximum Water Pressure: 1.75MPa
Specification

Specification

SKU
a18041200ux0140
Product name
Water Flow Sensor
Material
Brass(Shell)
Liquid temperature
Not More Than 60C
External thread diameter
G1/2
Tube length
60mm
Flow range
1-30L/min
Working voltage range
DC5V
Max current
10mA
Maximum water pressure
1.75MPa
Connector
Male SM-3P
Cable length
35cm
Size
60mm x 24mm x 27mm(L*W*H)
Ingress protection rating
IP65
Color
Brass Tone
Net weight
99g
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
1. The Water Flow Sensor is light, nimble outline, small size and easy to install. All materials are in line with SGS testing standards.
2. There is an integrated hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Stable, high temperature, low water pressure start.
4. Can use for Water heaters, credit card machines, water vending machine, flow measurement device.
5. Three wire connection: Red for positive, black for negative, yellow for pulse signal.

Specifications:

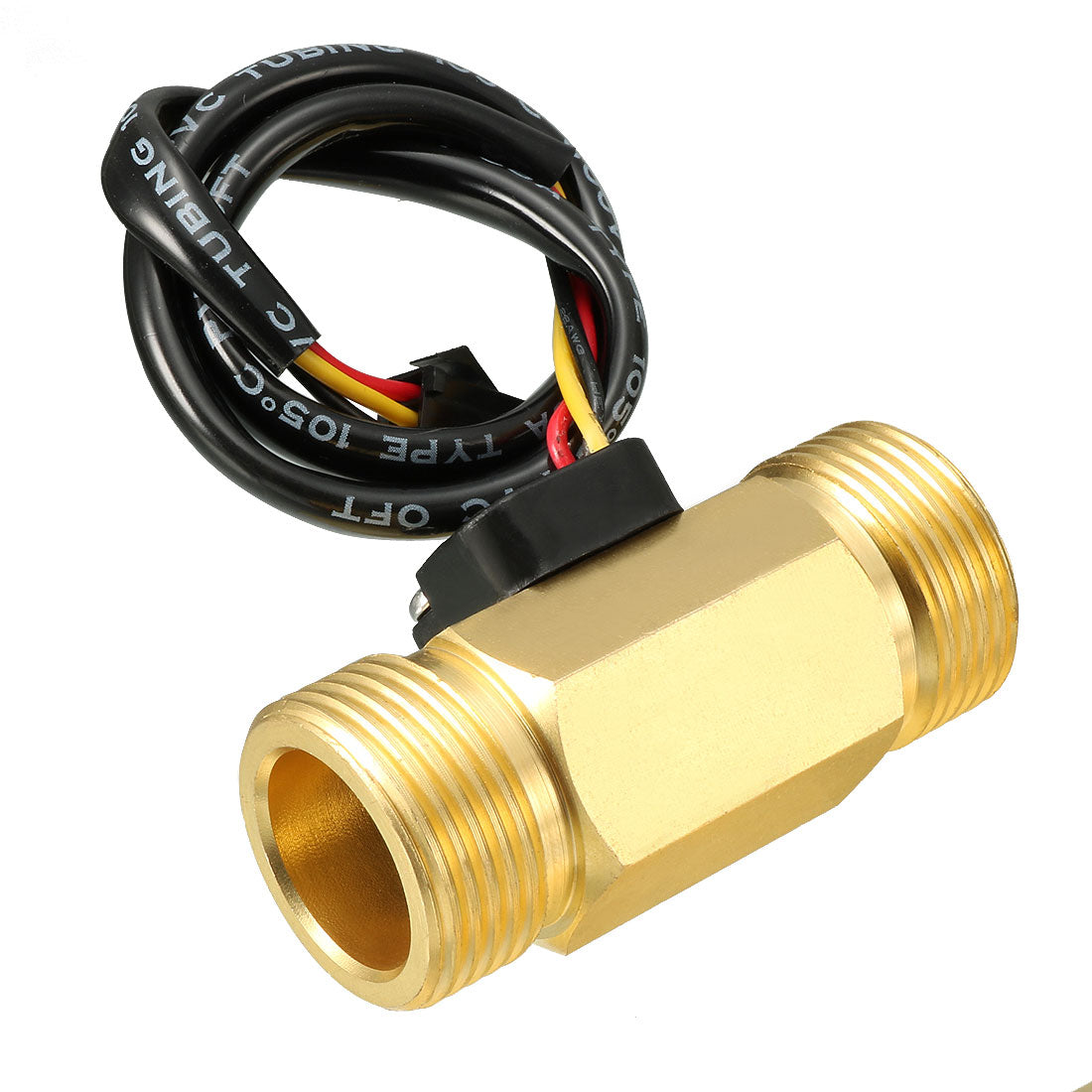

Product Name: Water Flow Sensor
Material: Brass(Shell)
Liquid Temperature: Not More Than 60C

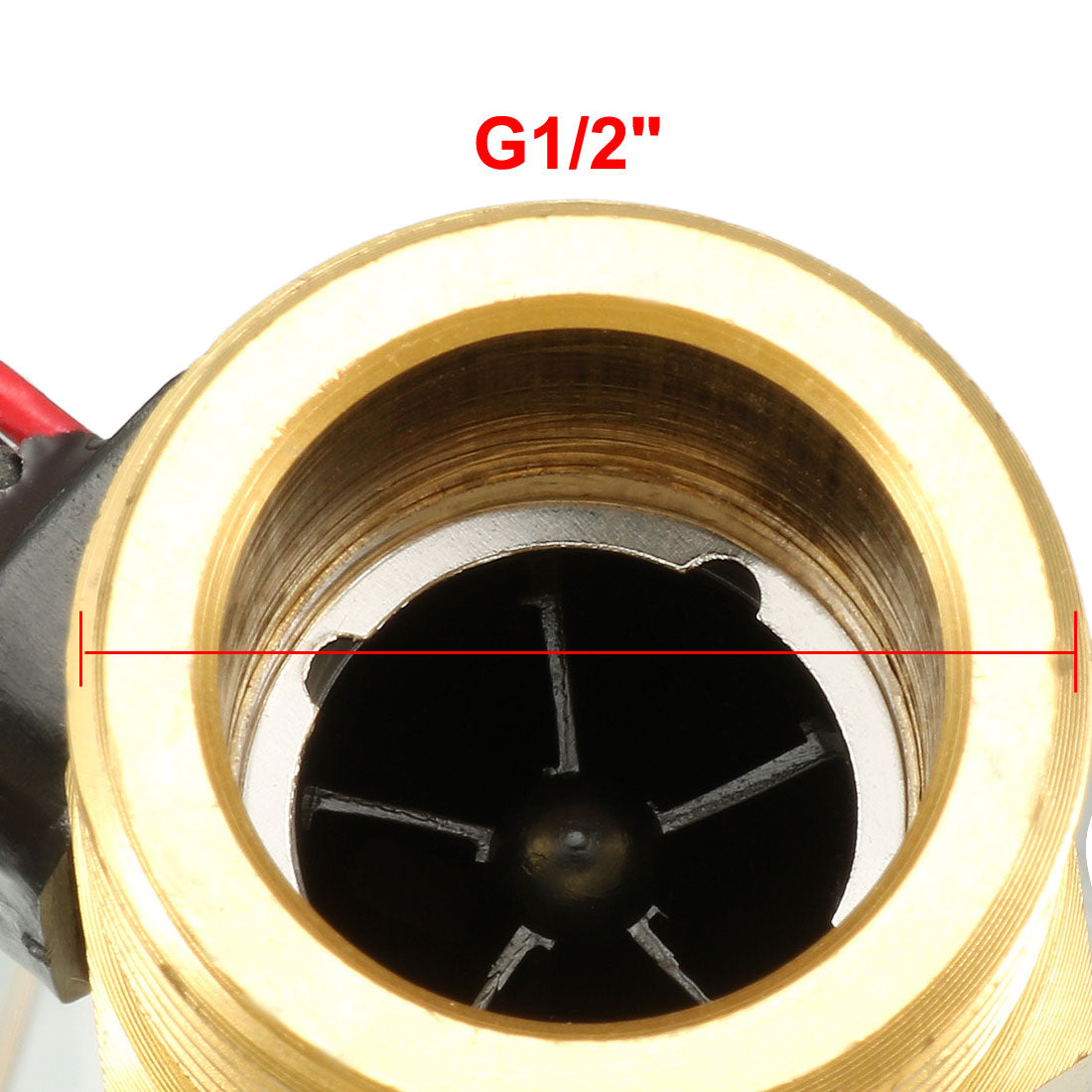

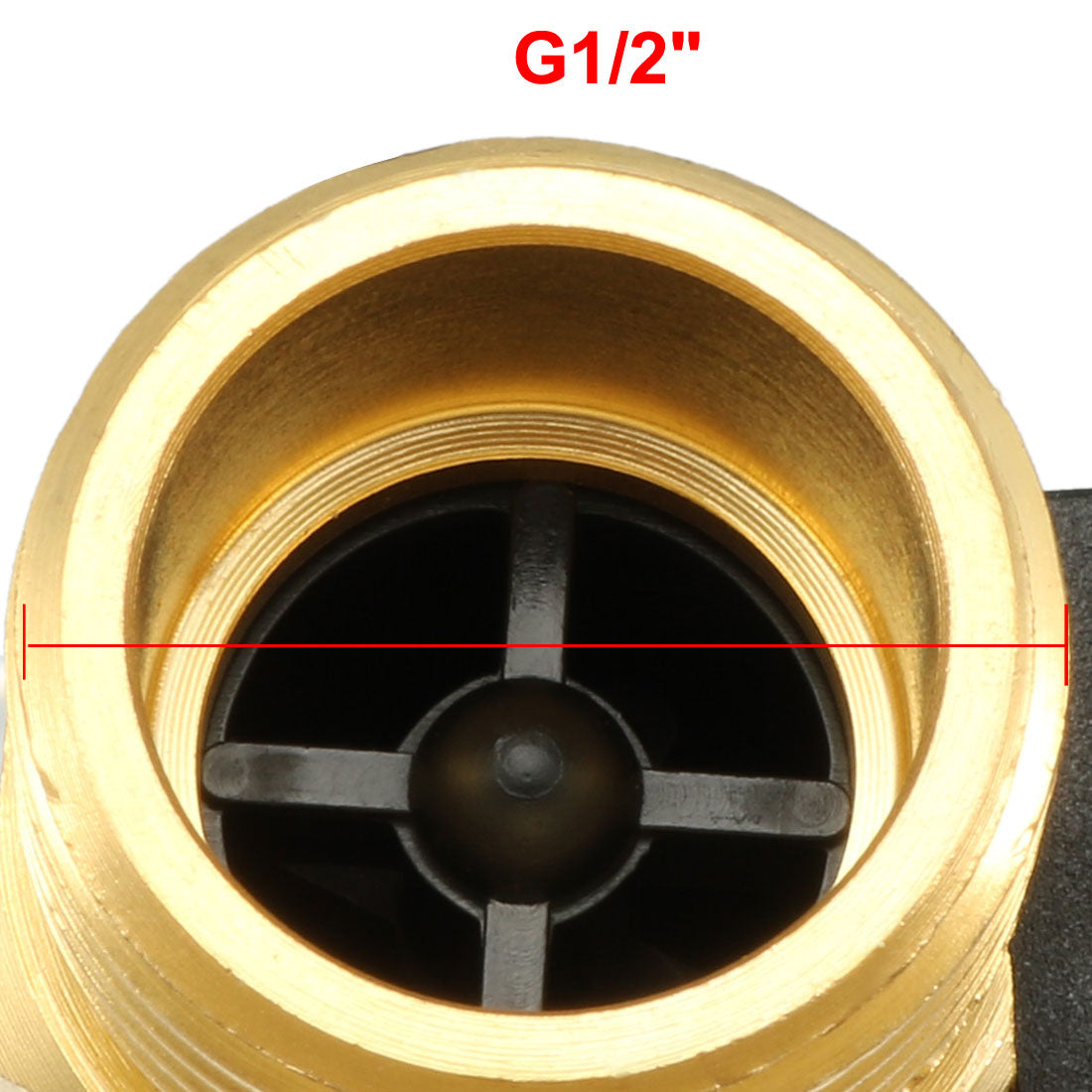

External Thread Diameter: G1/2

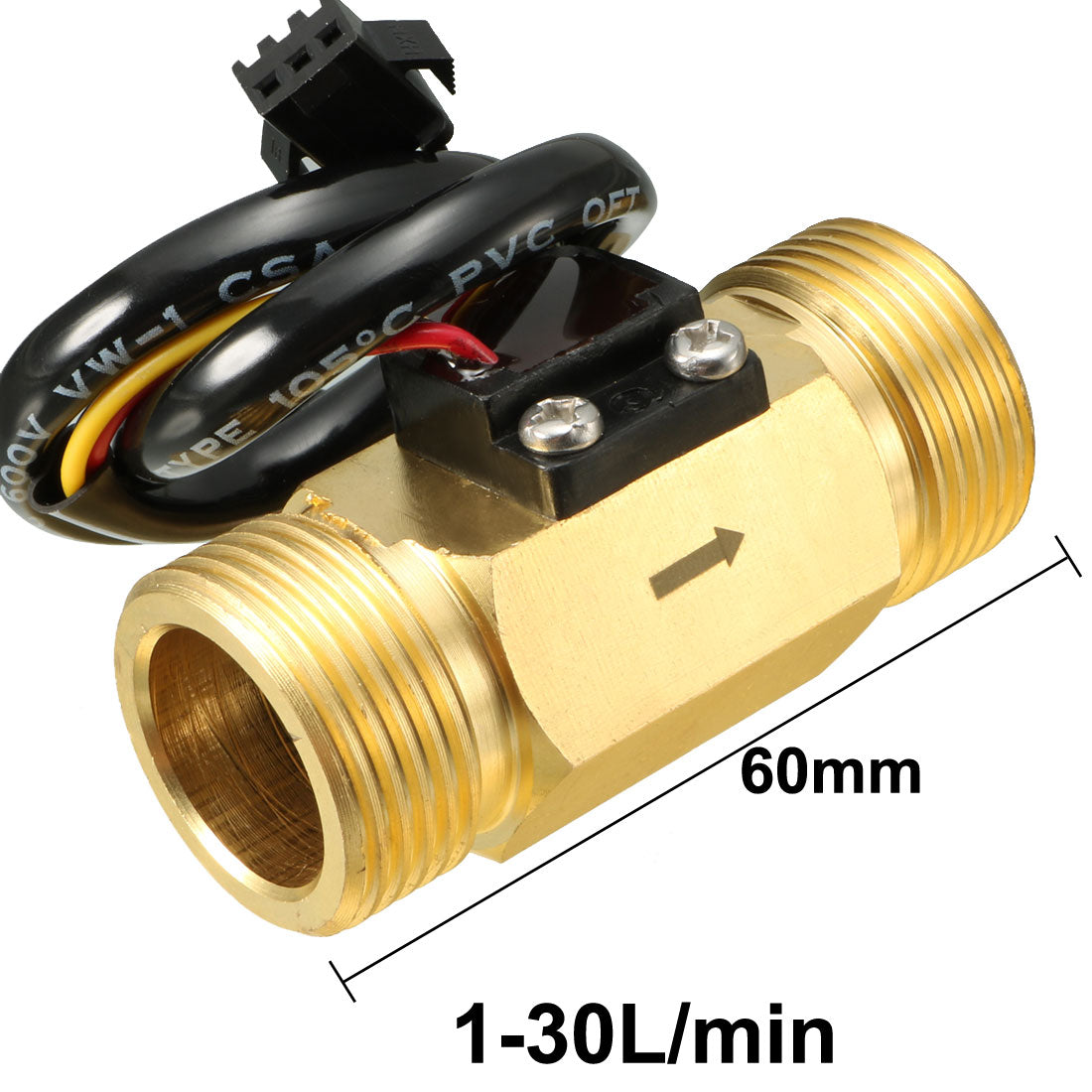

Tube Length: 60mm
Flow Range: 1-30L/min
Working Voltage Range: DC5V
Max Current: 10mA
Maximum Water Pressure: 1.75MPa
Instantaneous Flow Pulse Characteristic F=(10Q-4)+/-10%
The cumulative flow pulse conversion rate 1L WATER=596pulse+/-10%
Connector: Male SM-3P
Cable Length: 35cm
Size: 60mm x 24mm x 27mm(L*W*H)
Ingress Protection Rating: IP65
Color: Brass Tone
Net Weight: 99g

Package Included:
1 x Water Flow Sensor

Note:

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
