Harfington Uxcell 1/4" Hall Effect Water Flow Sensor Switch Flowmeter Fluid Meter DC5V 0.3-4.0L/min SEN-HZ06C

Uxcell 1/4" Hall Effect Water Flow Sensor Switch Flowmeter Fluid Meter DC5V 0.3-4.0L/min SEN-HZ06C

ID:1160220
ID:1160220
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • All materials are in line with SGS testing standards.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure: 1.2MPa, flow range: 0.3-4.0L/min.
About this item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • All materials are in line with SGS testing standards.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure: 1.2MPa, flow range: 0.3-4.0L/min.
Specification

Specification

SKU
a18041200ux0136
Product name
Water Flow Sensor
Material
POM(Shell)
Liquid temperature
Not More Than 60C
Rated voltage
DC 5V
Max current
10mA(DC 5V)
Maximum water pressure
1.2MPa
Connector size
2022-01-04
Ingress protection rating
IP65
Connector
Male XH-3P
Color
White
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.

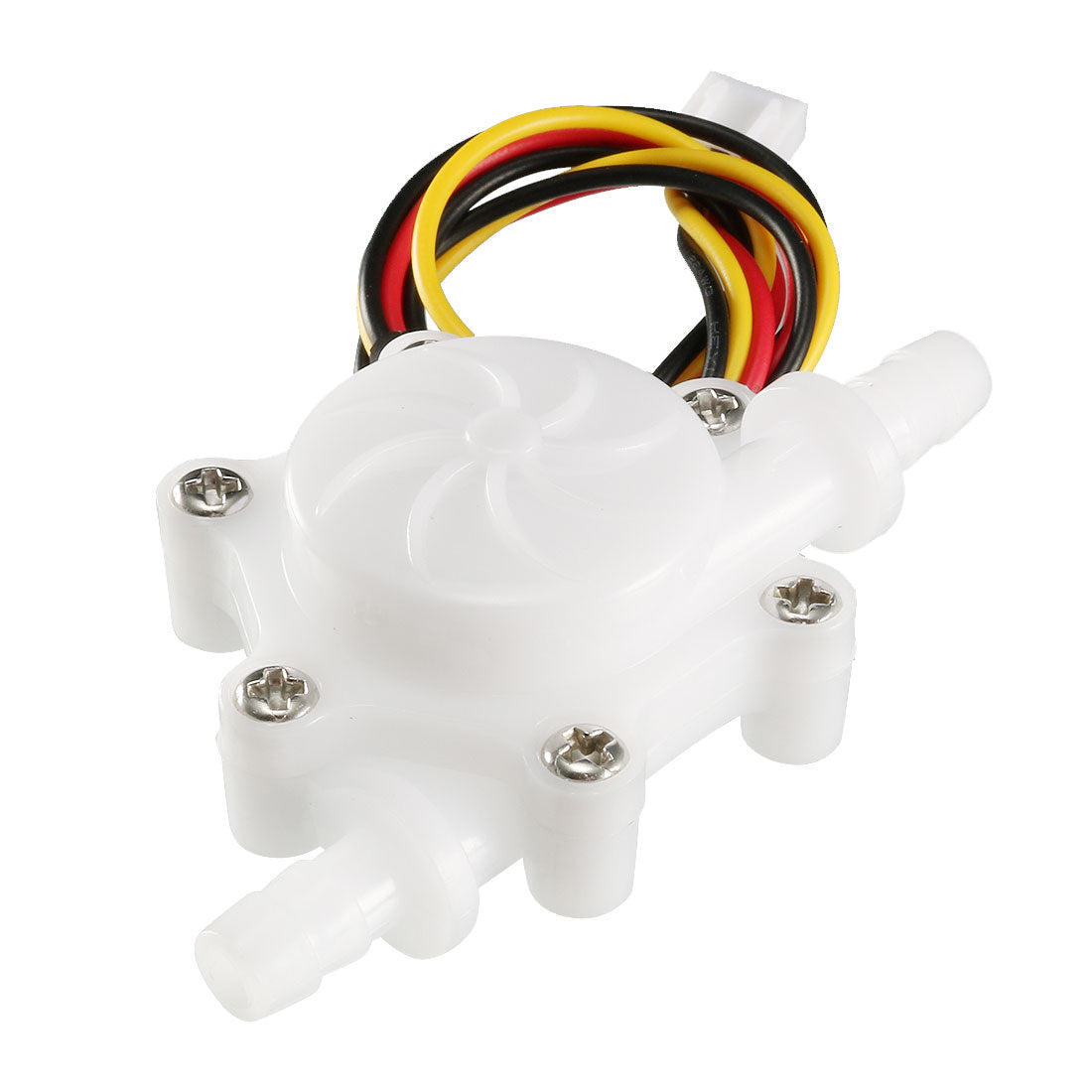

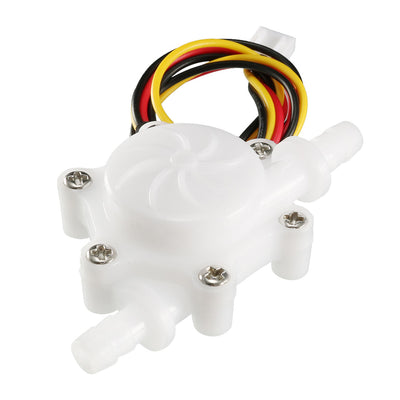

Product Description:
1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part. All materials are in line with SGS testing standards.
2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.


Specifications:

Product Name: Water Flow Sensor
Material: POM(Shell)
Liquid Temperature: Not More Than 60C
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum water pressure: 1.2MPa

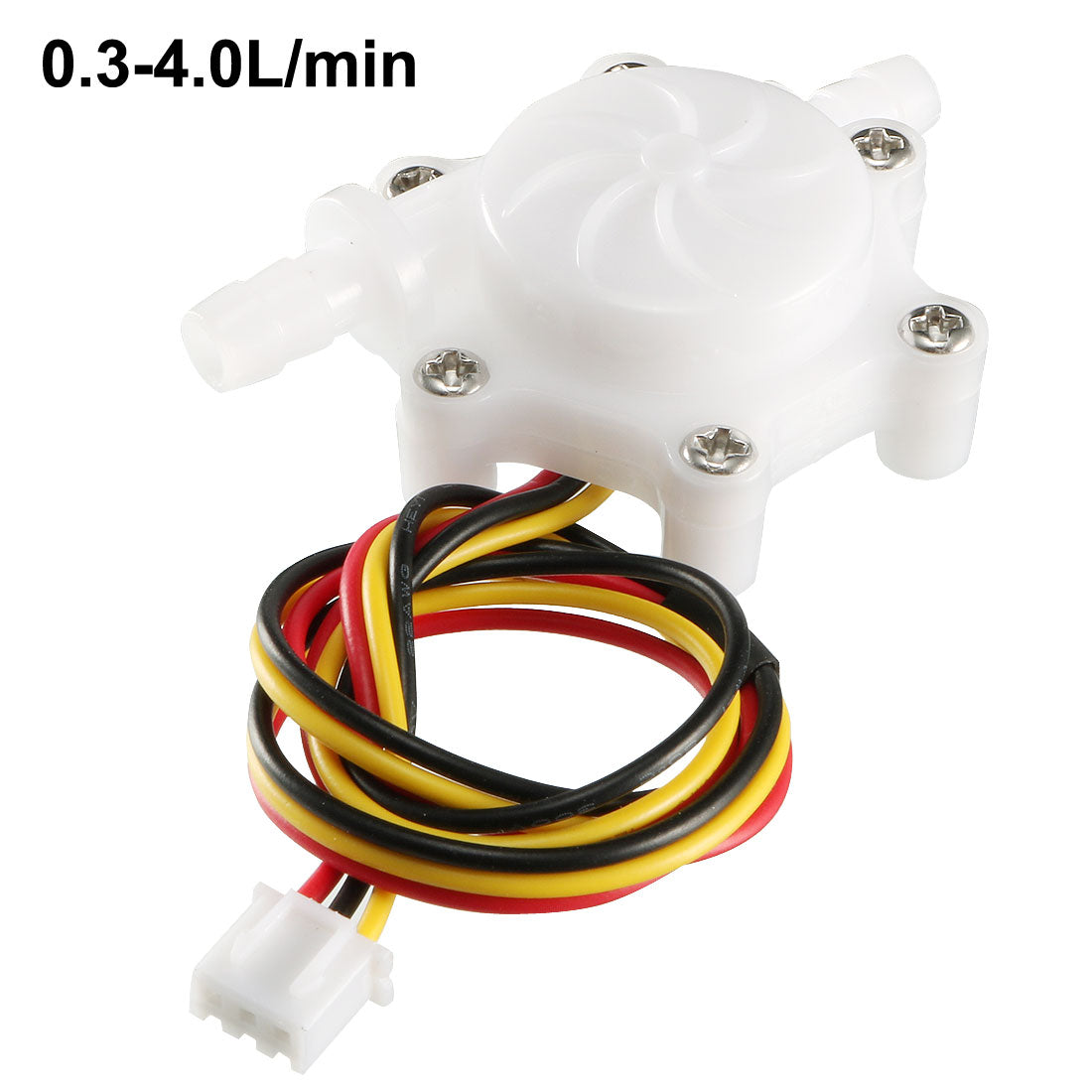

Flow Range: 0.3-4.0L/min

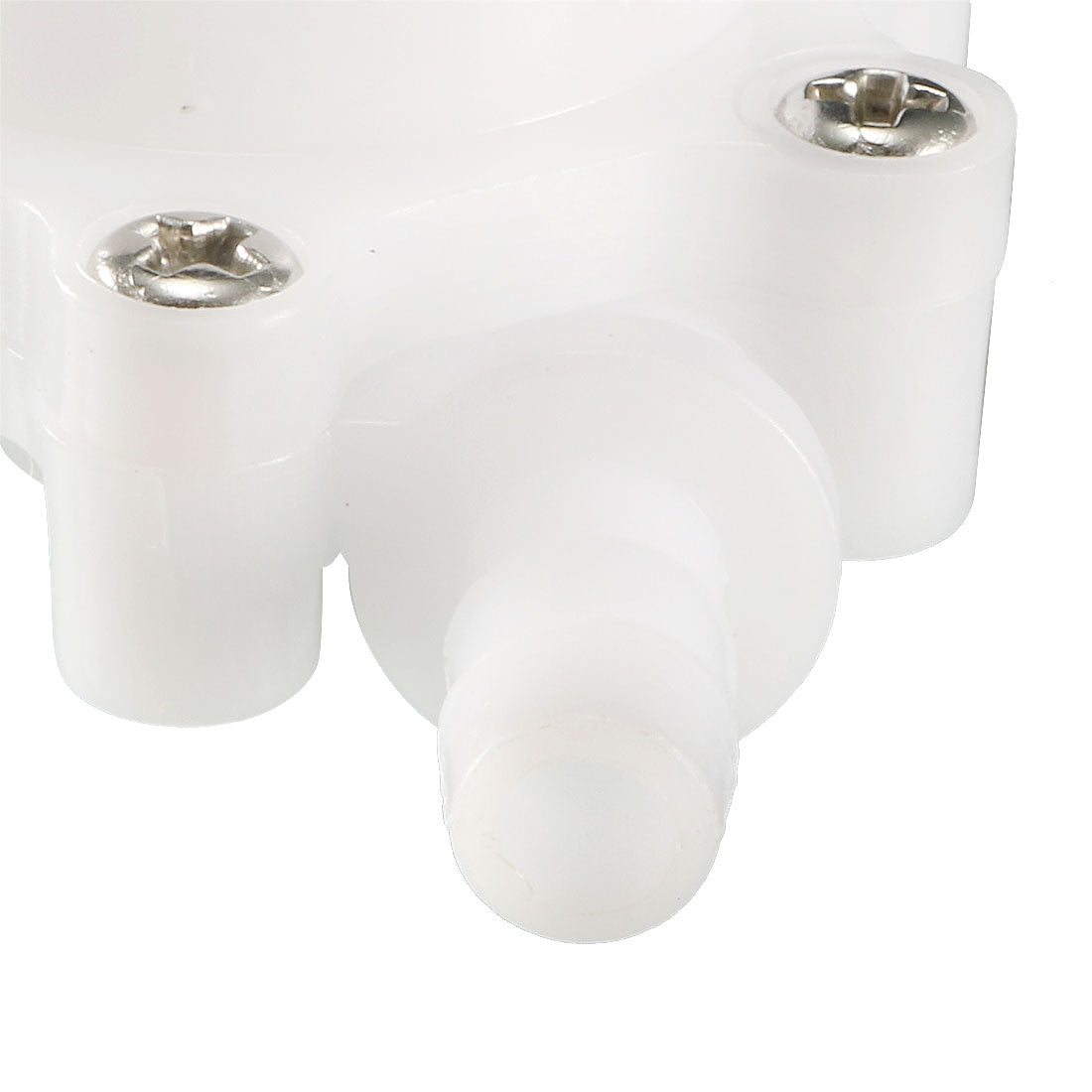

Connector Size: 1/4
Ingress Protection Rating: IP65

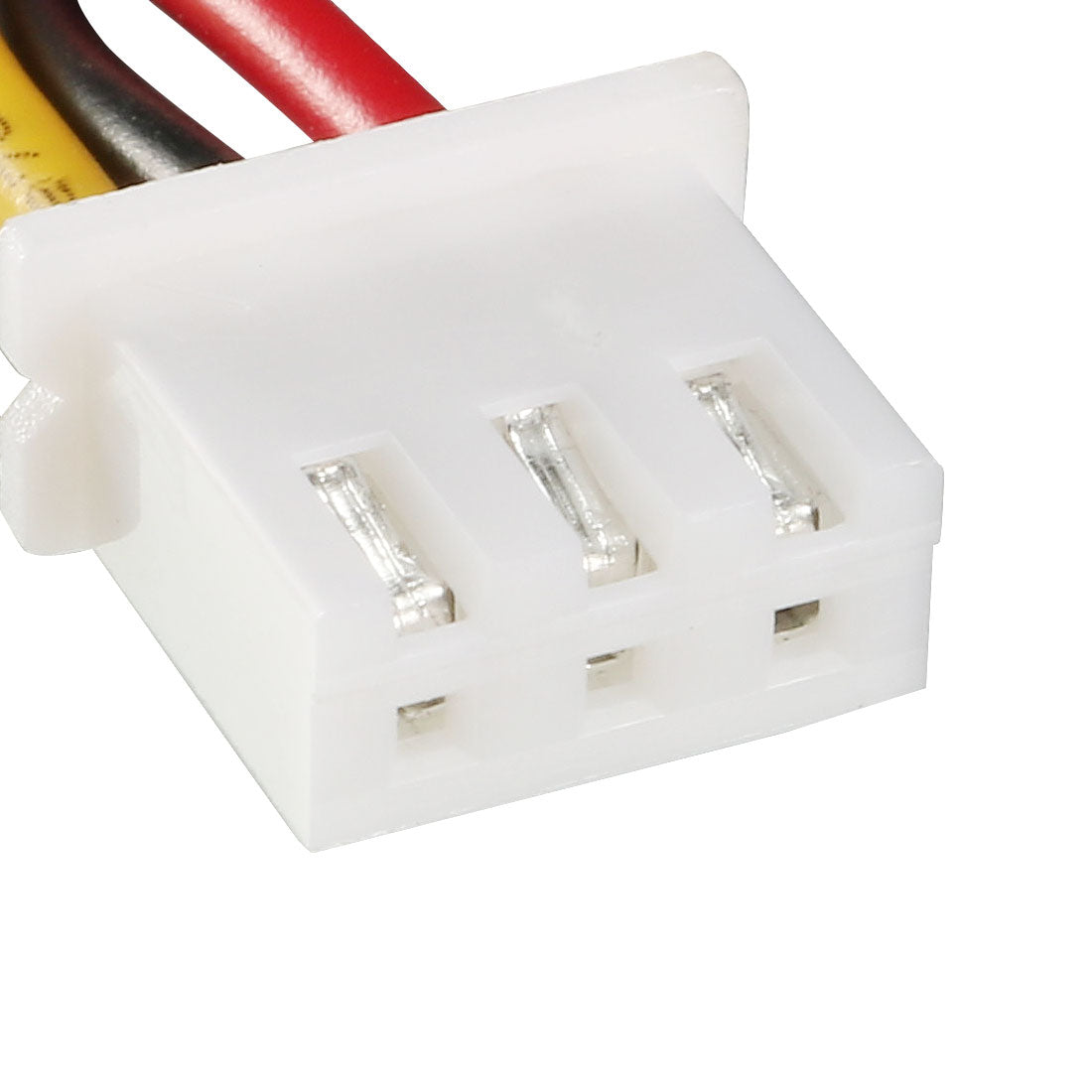

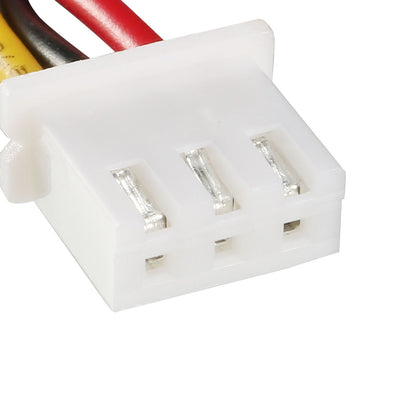

Connector: Male XH-3P
Cable Length: 34cm

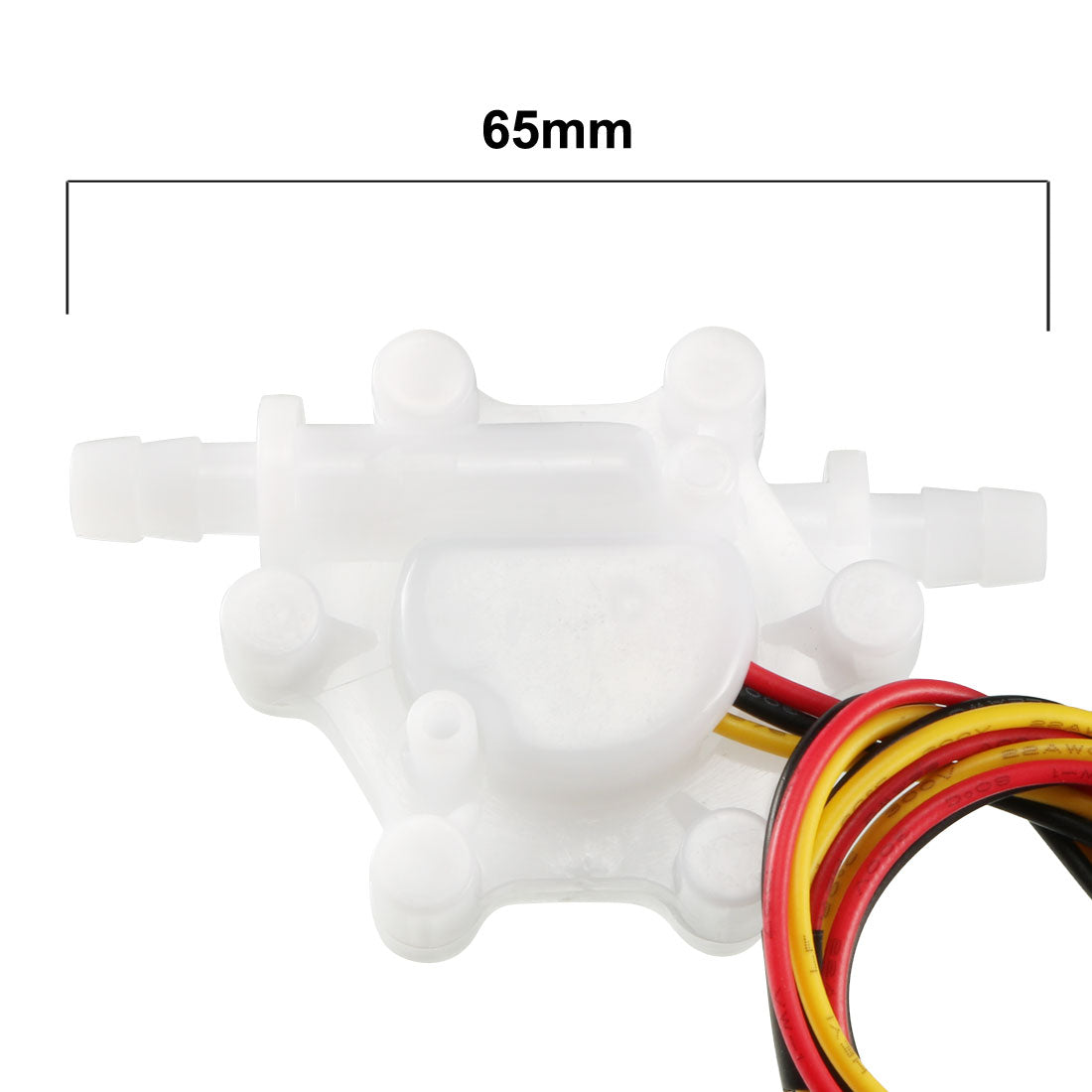

Size: 65mm x 40mm x 24mm(L*W*H)
Color: White
Net Weight: 27g

Package Included:

1 x Water Flow Sensor

Note:

1. Installed in accordance with flow direction in the back of product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
US$8.32 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Dispatch on Oct.15 - Oct.22. Contact us for more precise lead time.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part. All materials are in line with SGS testing standards.
2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.


Specifications:

Product Name: Water Flow Sensor
Material: POM(Shell)
Liquid Temperature: Not More Than 60C
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum water pressure: 1.2MPa
Flow Range: 0.3-4.0L/min
Connector Size: 1/4
Ingress Protection Rating: IP65
Connector: Male XH-3P
Cable Length: 34cm
Size: 65mm x 40mm x 24mm(L*W*H)
Color: White
Net Weight: 27g

Package Included:

1 x Water Flow Sensor

Note:

1. Installed in accordance with flow direction in the back of product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
