Uxcell G1/2" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter 1-30L/min SEN-CL21W

Questions & Answers |
$11.56 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
*Hardware Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • Stable, high temperature, low water pressure start.
  • Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • All materials are in line with SGS testing standards.
  • Flow Range: 1-30L/Min; Maximum Water Pressure: 1.75MPa
  • In stock, ready to ship
Cart
Cart
About This Item
  • Stable, high temperature, low water pressure start.
  • Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • All materials are in line with SGS testing standards.
  • Flow Range: 1-30L/Min; Maximum Water Pressure: 1.75MPa
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 male threaded ports each end. Equipped with filter water entry.

2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.



Specifications:

Product Name: Water Flow Sensor

Material: Brass(Shell)

Liquid Temperature: Not More Than 60C

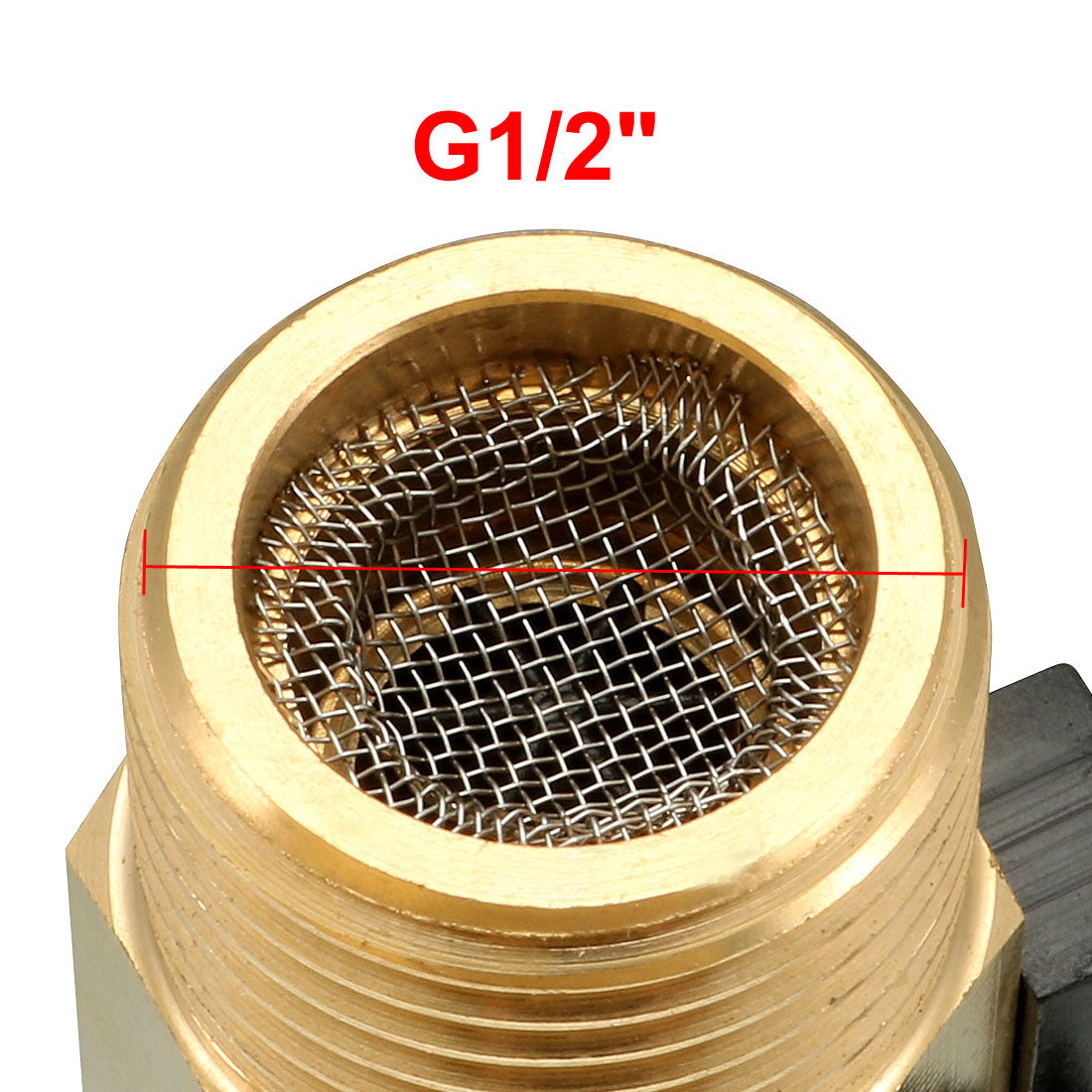

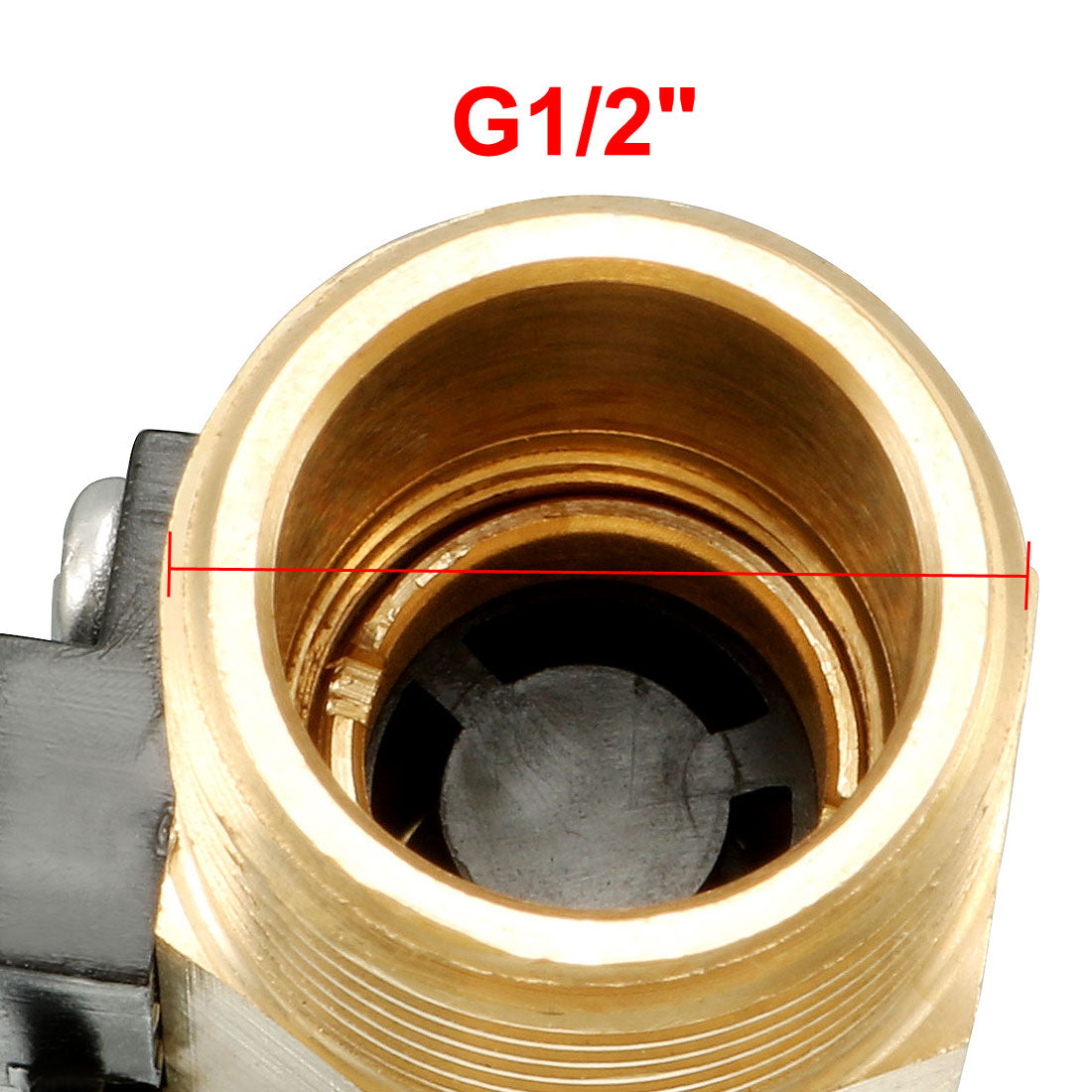

External Thread Diameter: G1/2

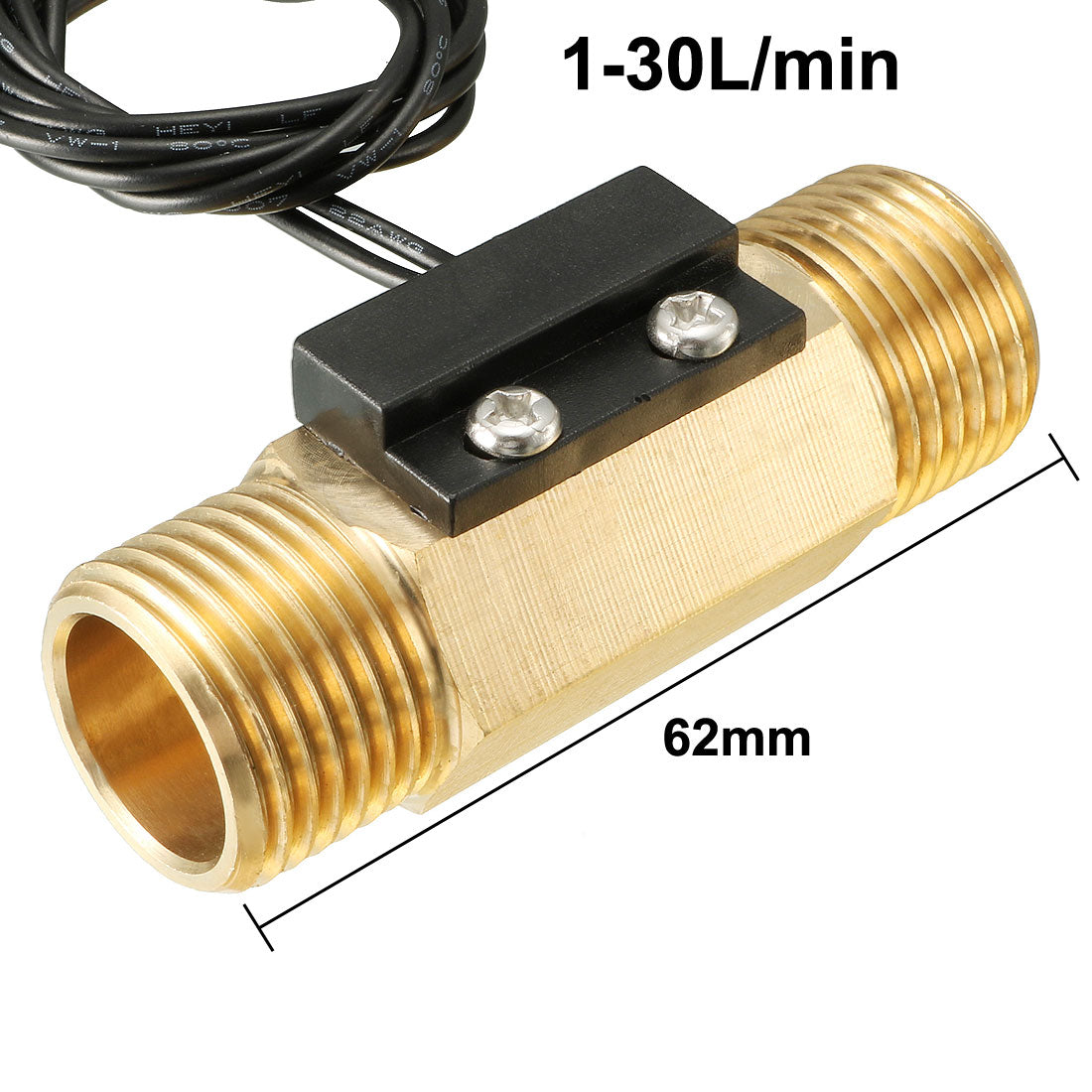

Tube Length: 62mm

Flow Range: 1-30L/min

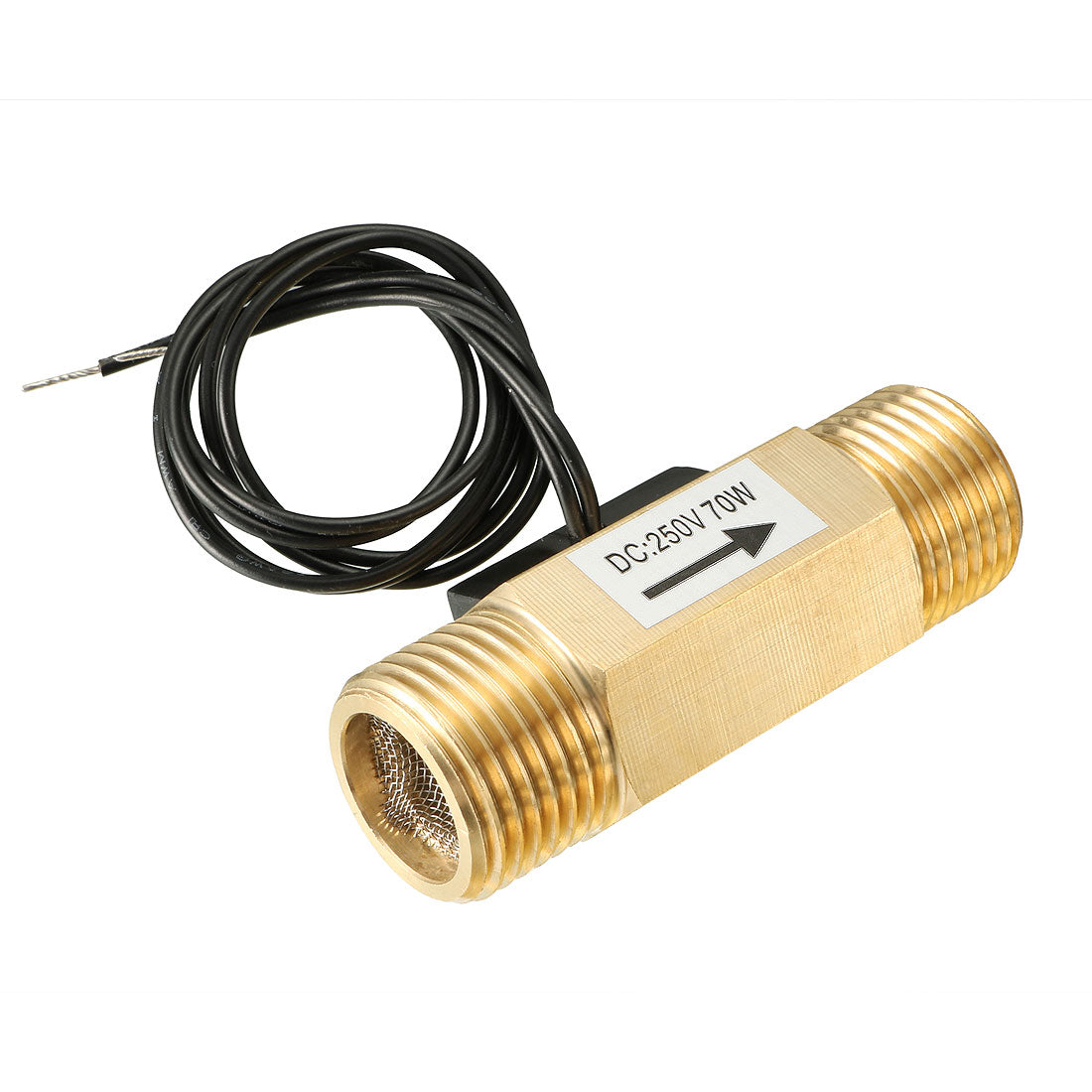

Max Switch Voltage: DC250V

Max Contact Rating: 70W

Max Current: 0.3A

Maximum Water Pressure: 1.75MPa

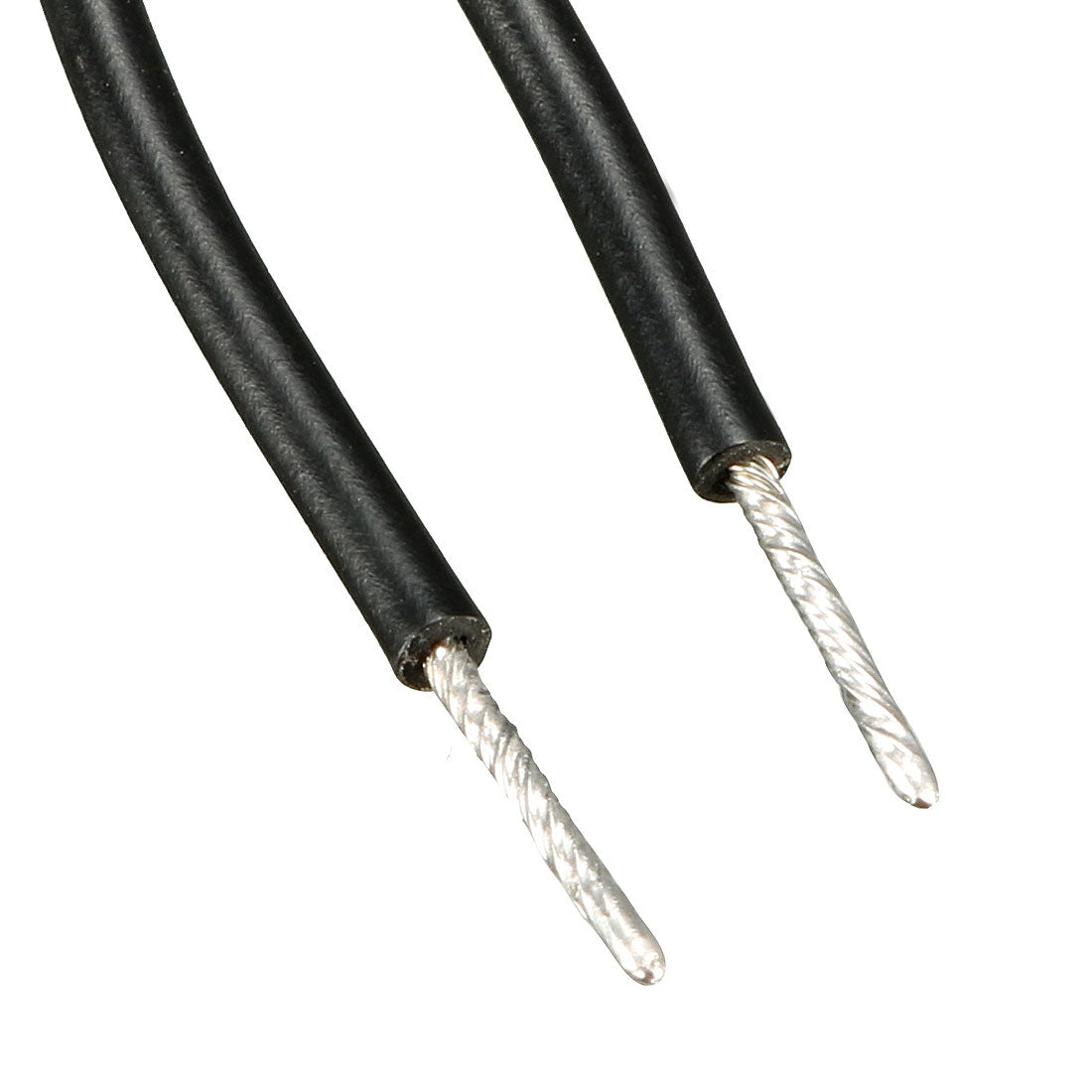

Cable Length: 33cm

Size: 62mm x 24mm x 26mm(L*W*H)

Ingress Protection Rating: IP65

Color: Brass Tone

Net Weight: 114g



Package Included:

1 x Water Flow Sensor



Note:



1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 male threaded ports each end. Equipped with filter water entry.

2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.



Specifications:

Product Name: Water Flow Sensor

Material: Brass(Shell)

Liquid Temperature: Not More Than 60C

External Thread Diameter: G1/2

Tube Length: 62mm

Flow Range: 1-30L/min

Max Switch Voltage: DC250V

Max Contact Rating: 70W

Max Current: 0.3A

Maximum Water Pressure: 1.75MPa

Cable Length: 33cm

Size: 62mm x 24mm x 26mm(L*W*H)

Ingress Protection Rating: IP65

Color: Brass Tone

Net Weight: 114g



Package Included:

1 x Water Flow Sensor



Note:



1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
