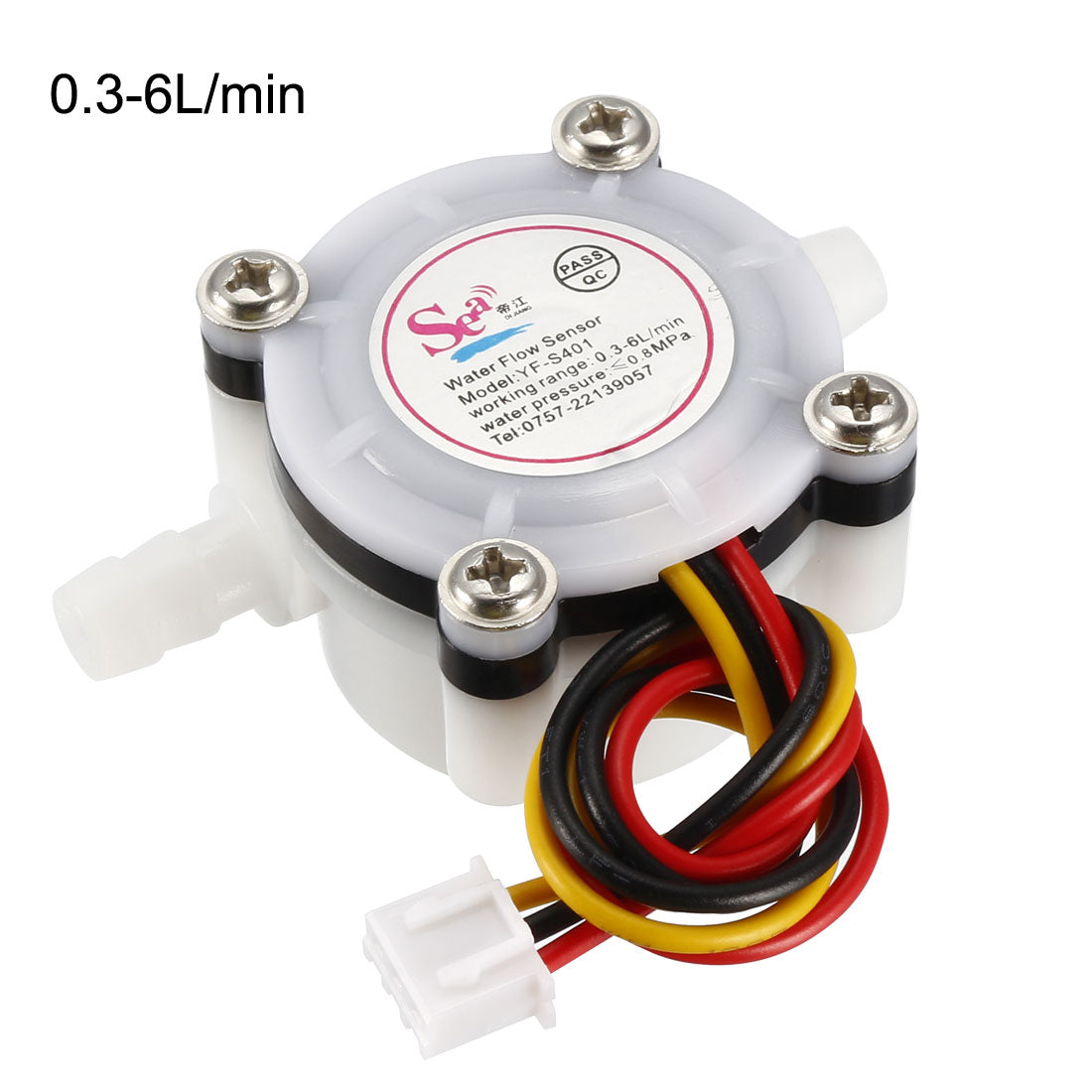

Uxcell 1/4in Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 0.3-6L/min White YF-S401

Questions & Answers |
$8.57 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
*Hardware Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.

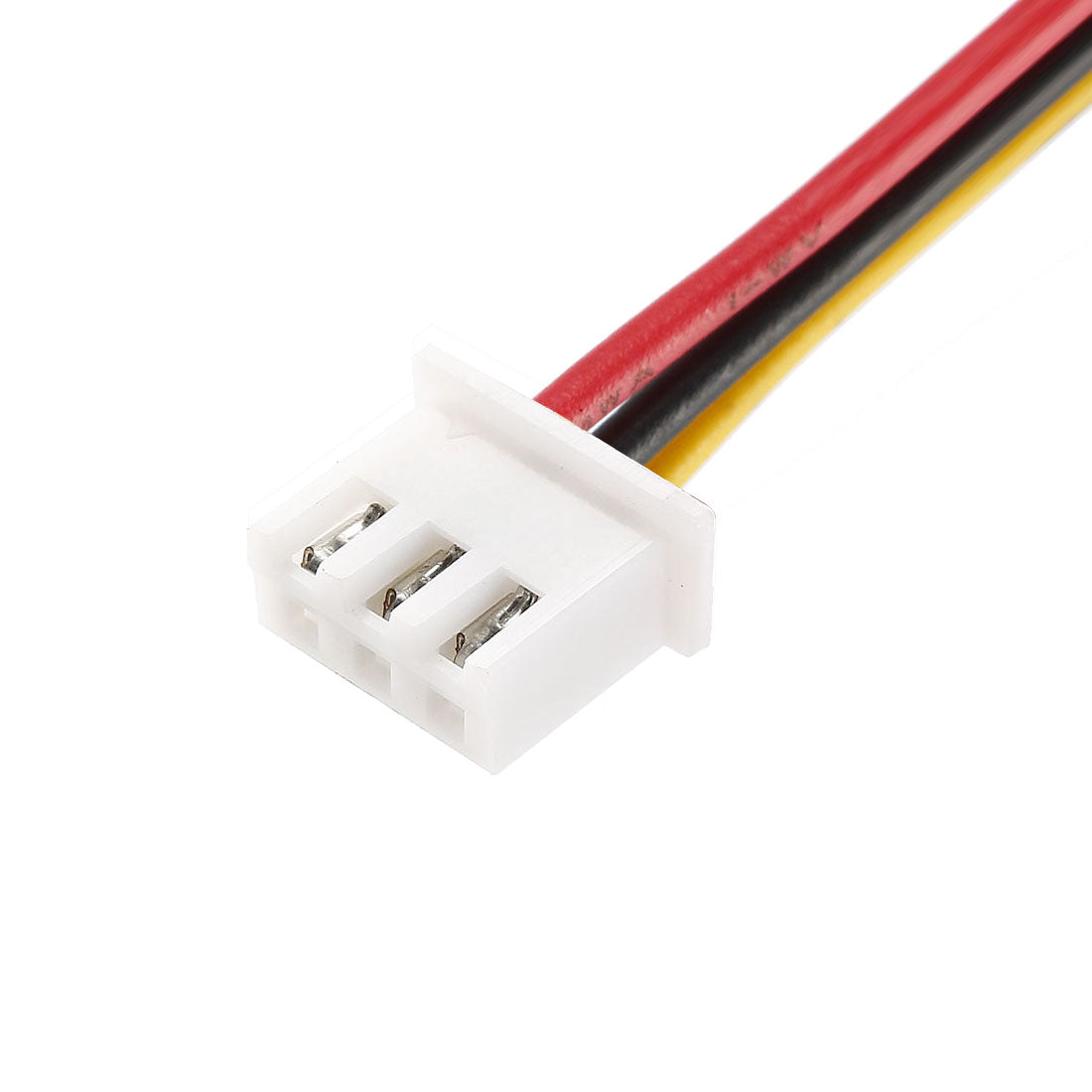

  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:0.8MPa, flow range: 0.3-6L/min
  • Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on.
  • In stock, ready to ship
Cart
Cart
About This Item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:0.8MPa, flow range: 0.3-6L/min
  • Application:water heater thermostat, water purifier, boiler, water dispensers, coffee machines, smart card equipment, the boiler and so on.
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!

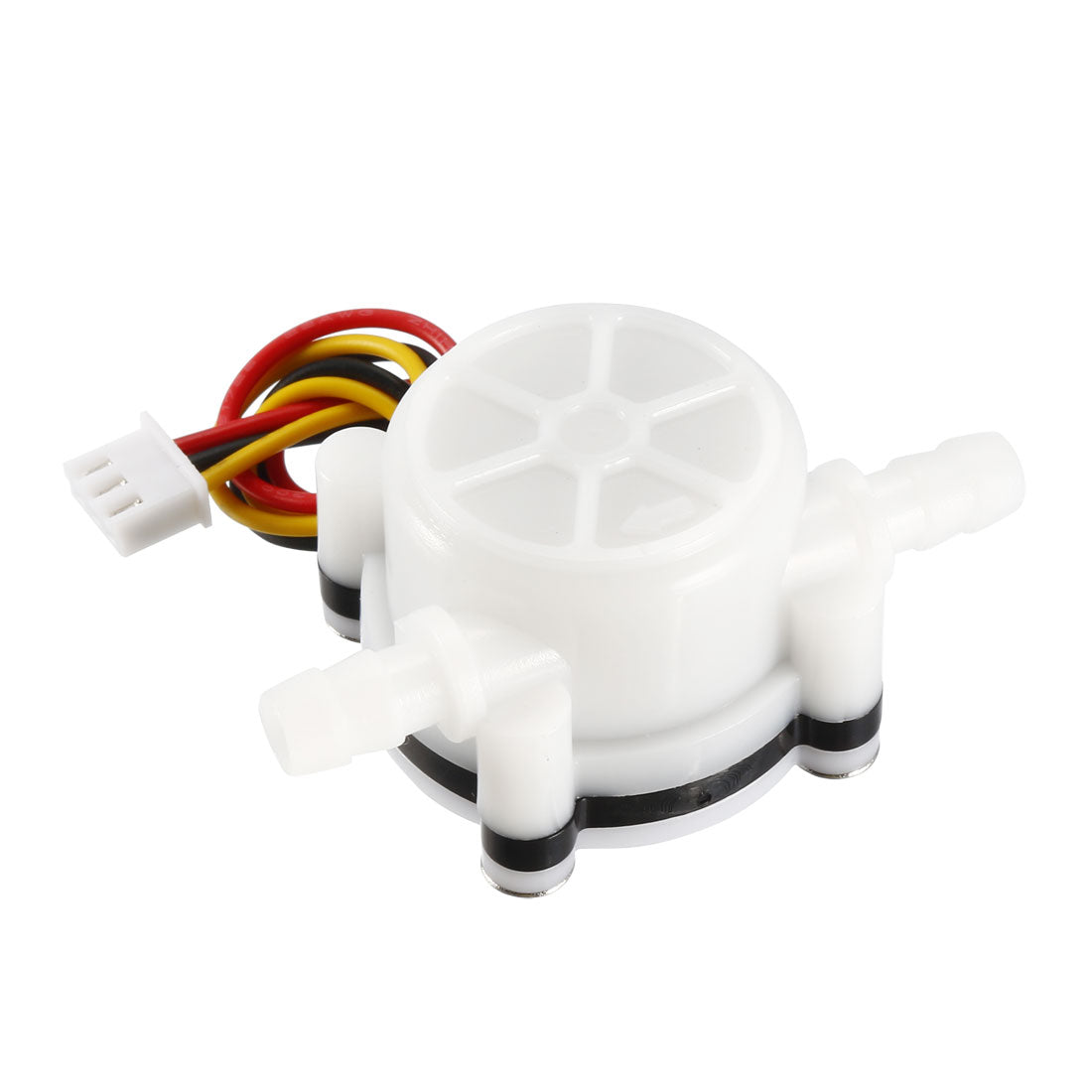

Product Description:

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.

2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.



Specifications:

Product Name: Water Flow Sensor

Material: POM(Shell)

Size: 58mm x 34mm x 27mm / 2.28" x 1.34" x 1.06"(L*W*H)

Cable Length: 140mm / 5.51"

Liquid Temperature: Not More Than 60C

Rated Voltage: DC 5V

Max Current: 10mA(DC 5V)

Maximum water pressure: 0.8MPa

Flow range: 0.3-6L/min

Connector: Male XH-3P

Connector Size: 1/4in

Ingress Protection Rating: IP65

Color: White

Net Weight: 29g



Package Included:

1 x Water Flow Sensor



Note:



1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.

2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.



Specifications:

Product Name: Water Flow Sensor

Material: POM(Shell)

Size: 58mm x 34mm x 27mm / 2.28" x 1.34" x 1.06"(L*W*H)

Cable Length: 140mm / 5.51"

Liquid Temperature: Not More Than 60C

Rated Voltage: DC 5V

Max Current: 10mA(DC 5V)

Maximum water pressure: 0.8MPa

Flow range: 0.3-6L/min

Connector: Male XH-3P

Connector Size: 1/4in

Ingress Protection Rating: IP65

Color: White

Net Weight: 29g



Package Included:

1 x Water Flow Sensor



Note:



1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
