Harfington Uxcell G3/4 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-60L/min Black FS300A

Uxcell G3/4 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-60L/min Black FS300A

ID:
$12.80 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About This Item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Nylon made, explosion-proof, heat and cold resistant.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:1.2MPa, flow range: 1-60L/min.
  • In stock, ready to ship
Cart
Cart
About This Item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Nylon made, explosion-proof, heat and cold resistant.
  • Three wire connection: Red for positive, black for negative, yellow for pulse signal.
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:1.2MPa, flow range: 1-60L/min.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.

2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.



Specifications:

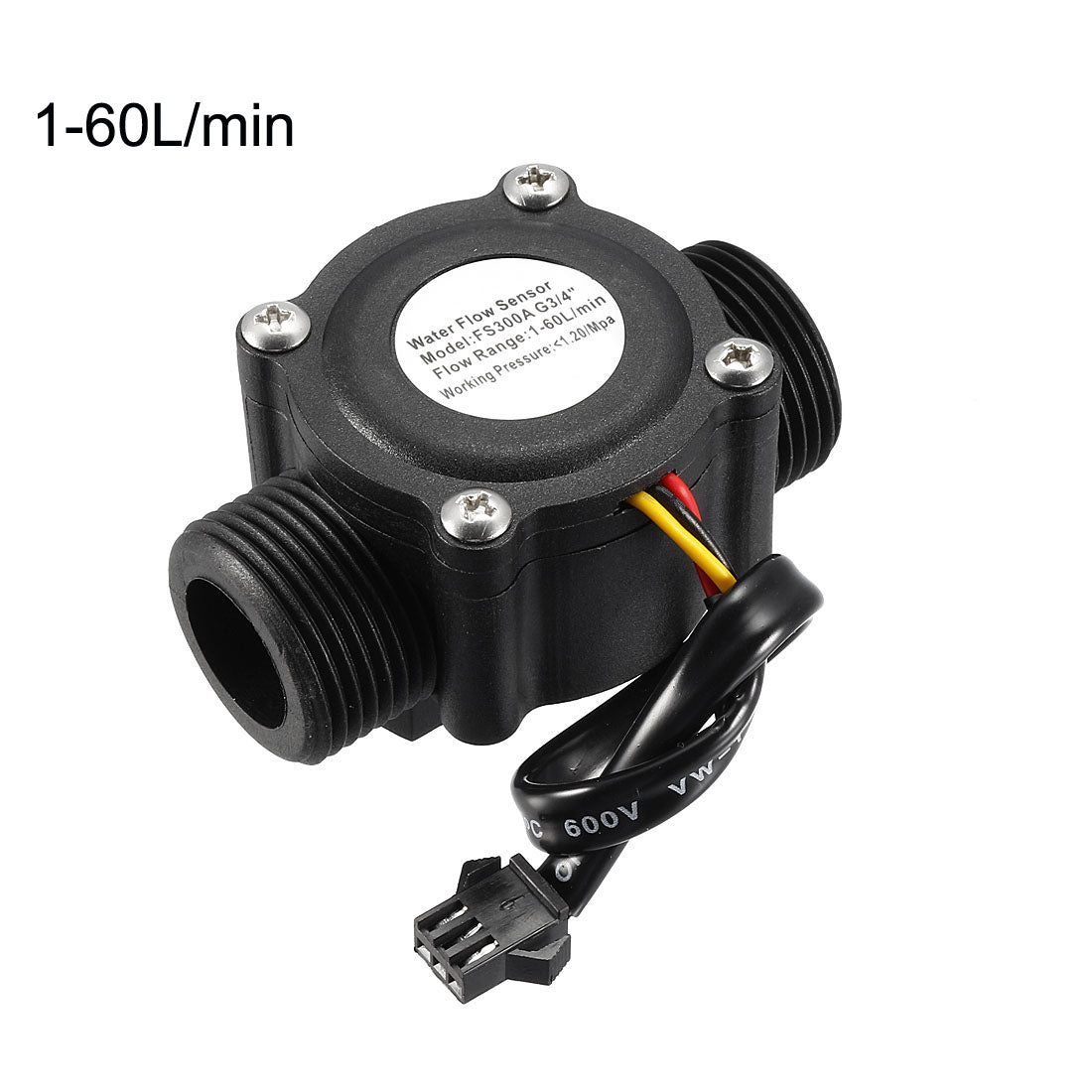

Product Name: Water Flow Sensor

Material: Nylon(Shell)

Size: 66mm x 42mm x 38mm / 2.6" x 1.65" x 1.5"(L*W*H)

Cable Length: 150mm / 5.91"

Liquid Temperature: Not More Than 60C

Rated Voltage: DC 5V

Max Current: 10mA(DC 5V)

Maximum water pressure: 1.2MPa

Flow range: 1-60L/min

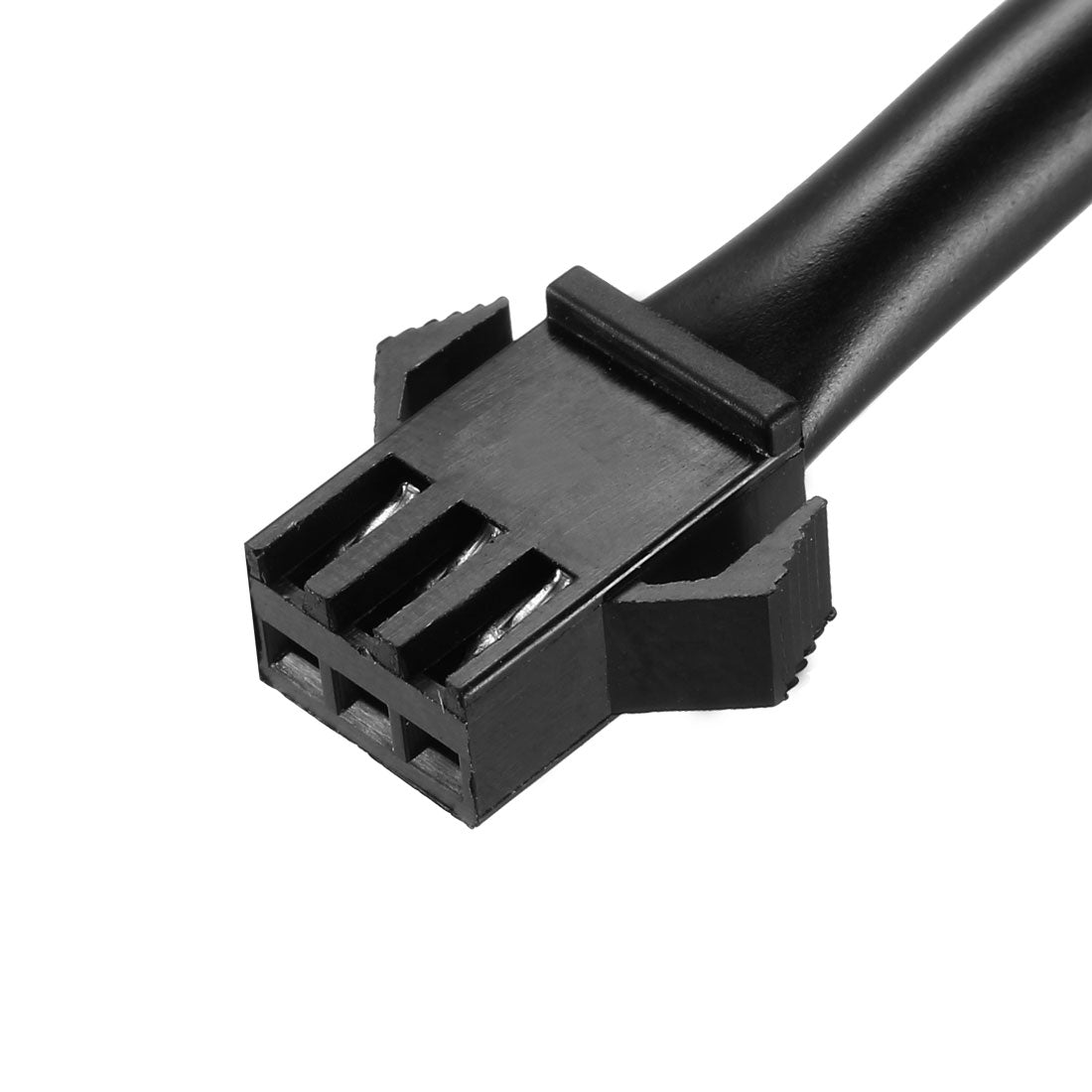

Connector: Male SM-3P

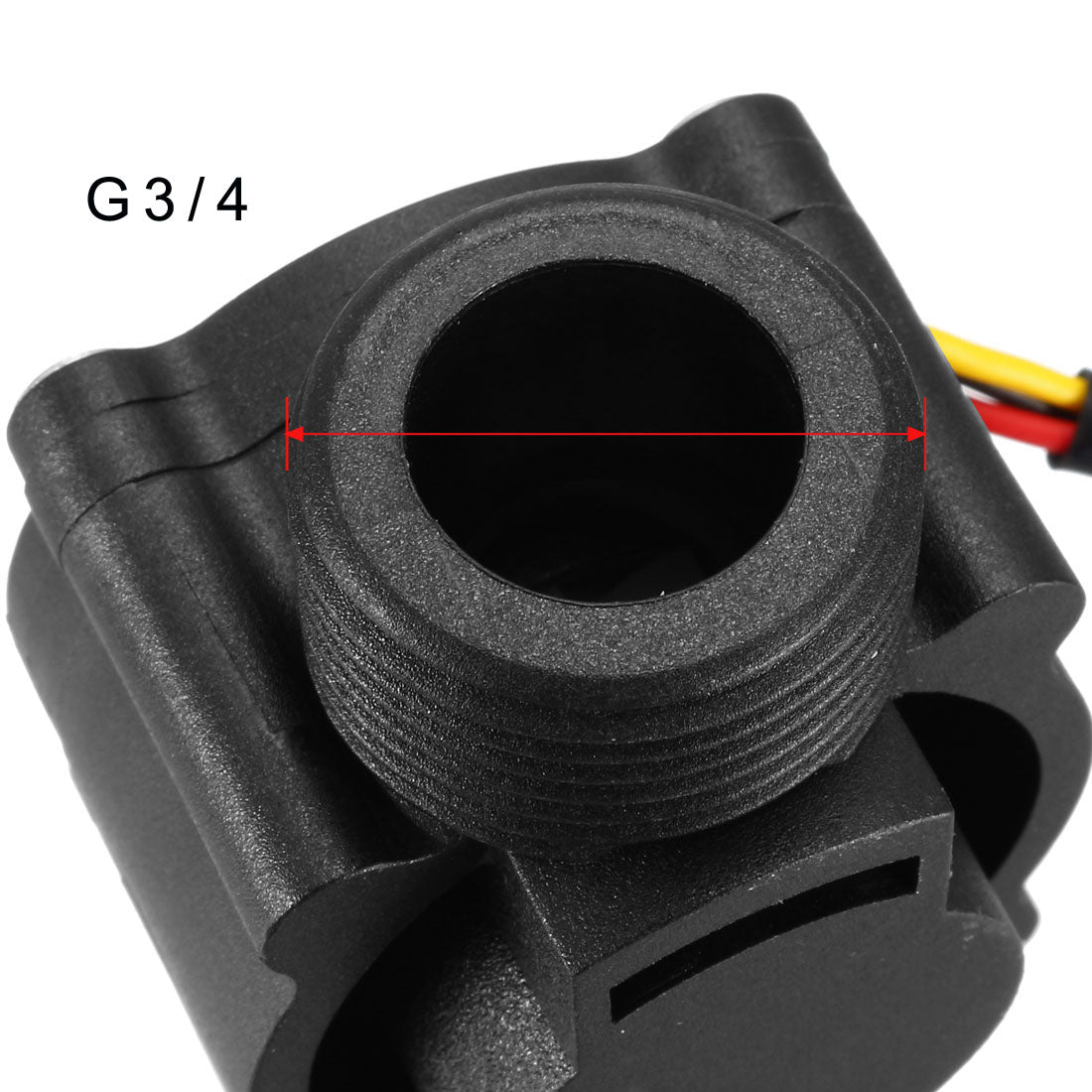

External Thread Diameter: G3/4

Ingress Protection Rating: IP65

Color: Black

Net Weight: 70g



Package Included:

1 x Water Flow Sensor



Note:

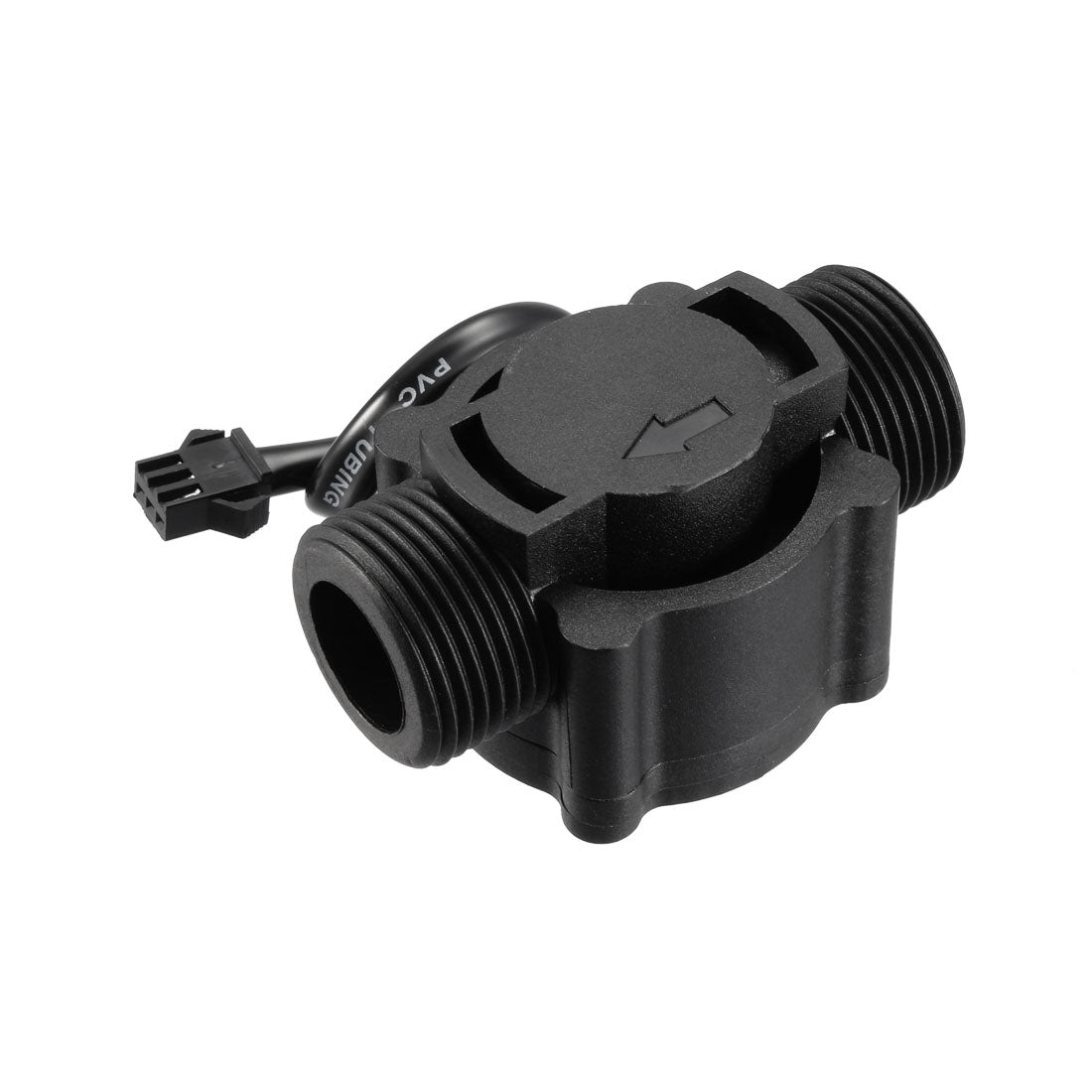

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
