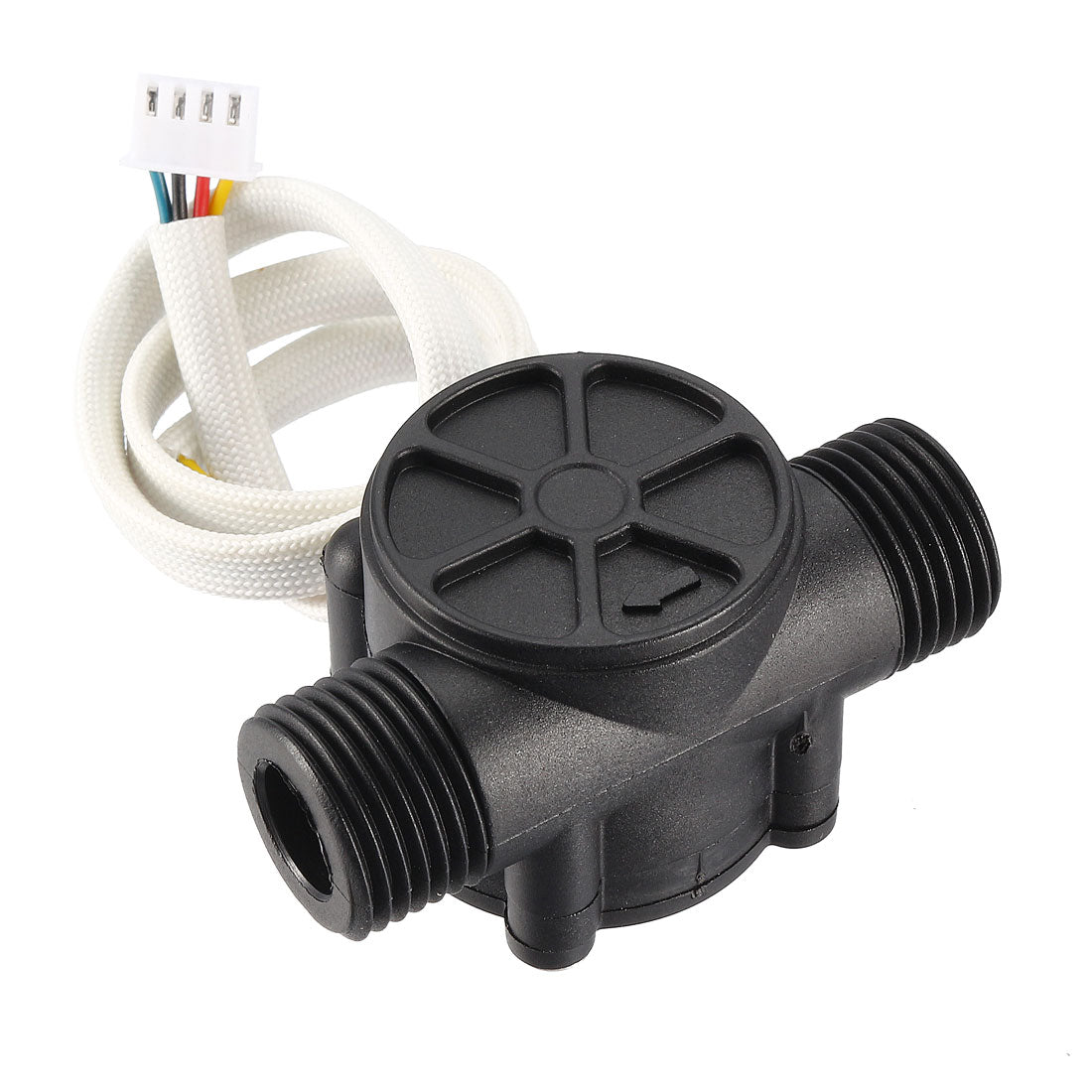

Harfington G1/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L/min Black YF-S201 4 Wire

G1/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter DC5V 1-30L/min Black YF-S201 4 Wire

ID:
$16.39 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Nylon made, explosion-proof, heat and cold resistant.
  • Four wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:1.75MPa, flow range: 1-30L/min.
  • In stock, ready to ship
Cart
Cart
About this item
  • Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
  • Nylon made, explosion-proof, heat and cold resistant.
  • Four wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).
  • The water flow sensor is applied for water heater, and can be used as flow switch.
  • Maximum water pressure:1.75MPa, flow range: 1-30L/min.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.

2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

3. Four wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).



Specifications:

Product Name: Water Flow Sensor

Material: Nylon(Shell)

Size: 62mm x 36mm x 34mm / 2.44" x 1.42" x 1.34"(L*W*H)

Cable Length: 390mm / 15.35"

Liquid Temperature: Not More Than 60C

Rated Voltage: DC 5V

Max Current: 10mA(DC 5V)

Maximum water pressure: 1.75MPa

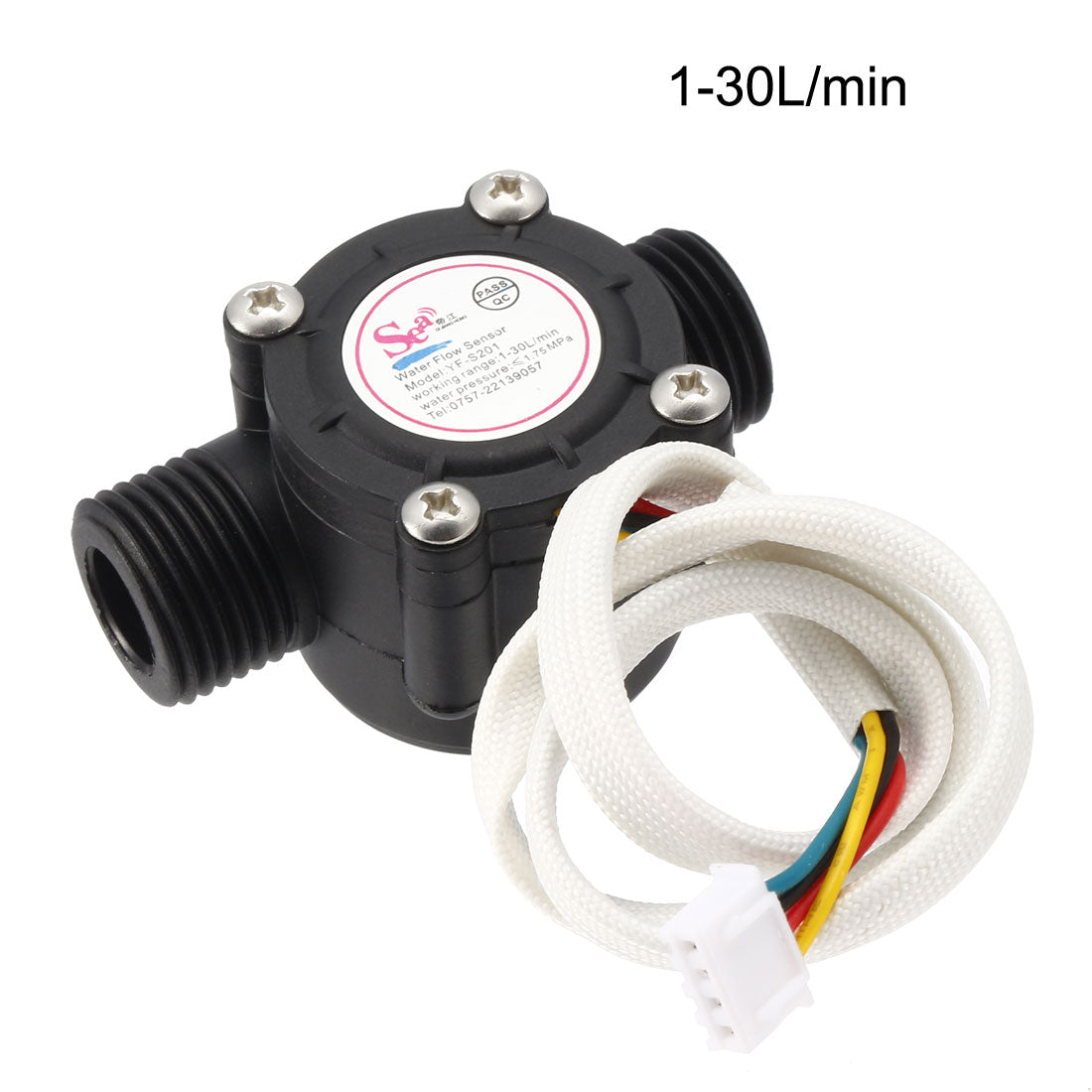

Flow range: 1-30L/min

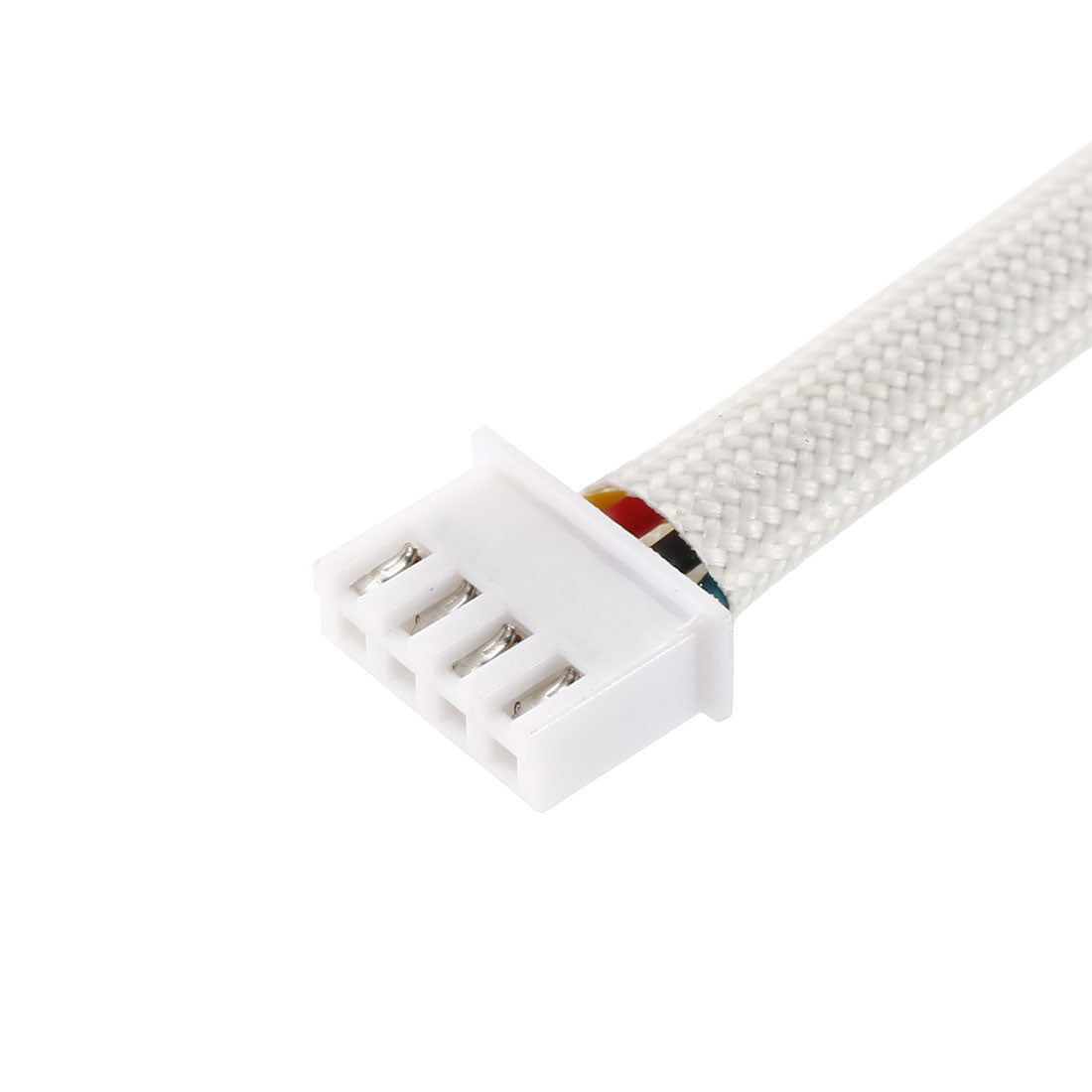

Connector: Male XH-4P

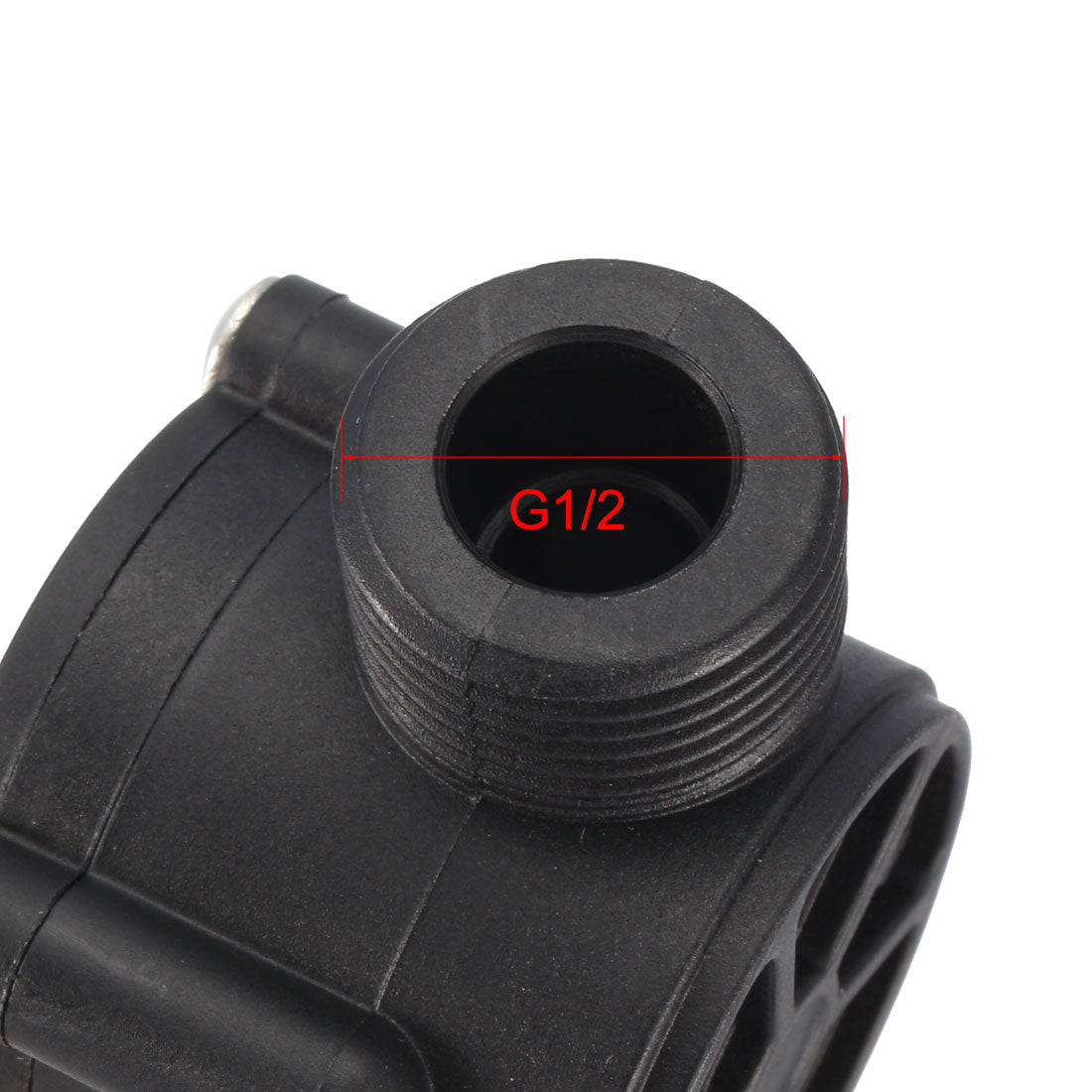

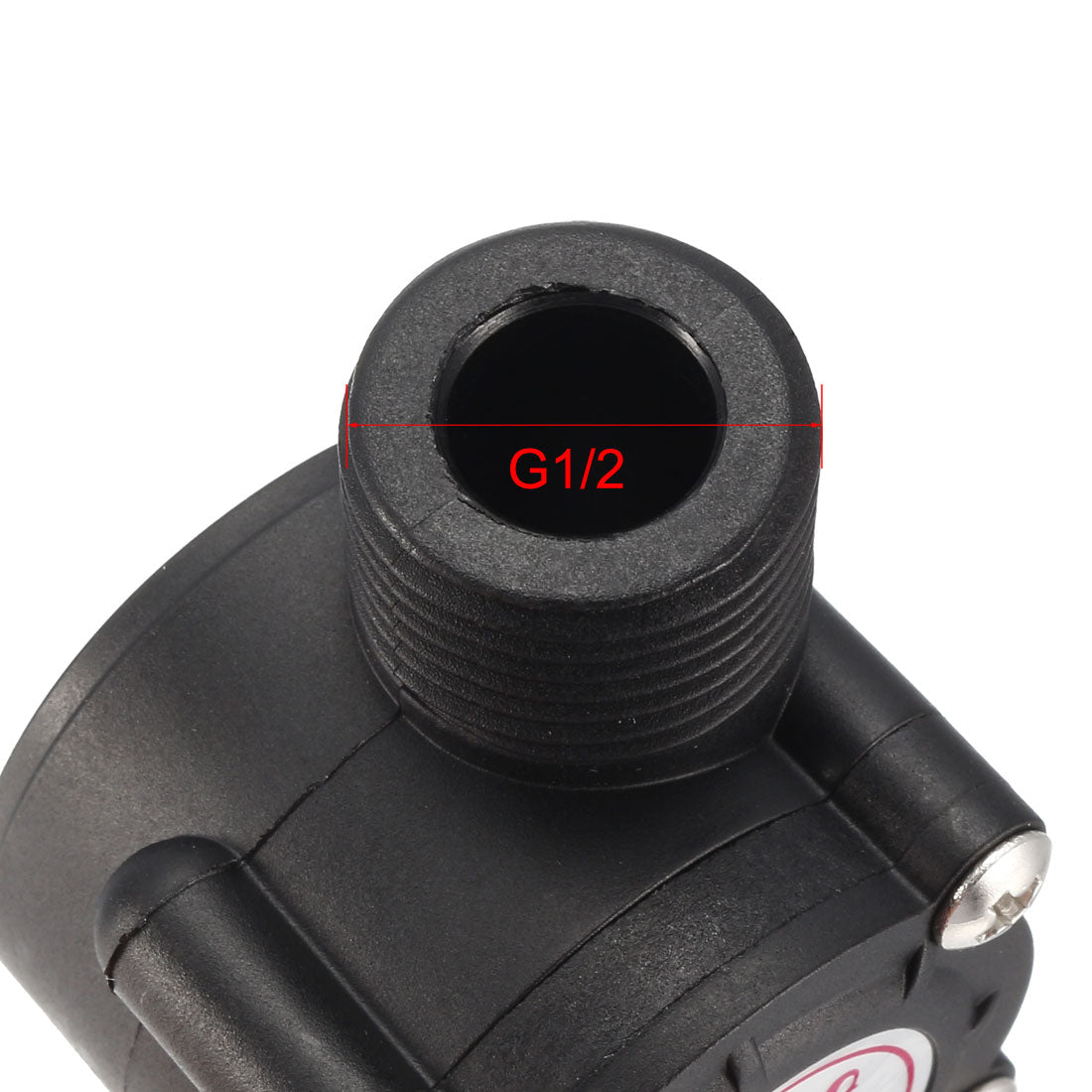

External Thread Diameter: G1/2

Ingress Protection Rating: IP65

Color: Black

Net Weight: 58g



Package Included:

1 x Water Flow Sensor



Note:



1. Installed in accordance with flow direction in the product, otherwise there is no signal output.

2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
