Harfington Uxcell E-Clip Circlip - 300Pcs 15-Size External Retaining Shaft Snap Ring Carbon Steel Black Assortment Kit

Uxcell E-Clip Circlip - 300Pcs 15-Size External Retaining Shaft Snap Ring Carbon Steel Black Assortment Kit

ID:1107543
ID:1107543
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Set Includes: 15 Sizes(Metric): 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm.Totally: 300Pcs.
  • Material: Made of Carbon steel, Surface treatment: Blackening. providing good resistance to corrosion and high temperature.
  • Features: The spring metal clip features 3 prongs that give it an E shape which fits in a groove on the metal shaft assembly.
  • Application: These E-Clips are retaining rings that fit into a machined groove of a shaft to secure items.
  • Application: E-Clip Circlip uses for appliance repairs, bearing, gears, pulleys, and various repair projects.
About this item
  • Set Includes: 15 Sizes(Metric): 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm.Totally: 300Pcs.
  • Material: Made of Carbon steel, Surface treatment: Blackening. providing good resistance to corrosion and high temperature.
  • Features: The spring metal clip features 3 prongs that give it an E shape which fits in a groove on the metal shaft assembly.
  • Application: These E-Clips are retaining rings that fit into a machined groove of a shaft to secure items.
  • Application: E-Clip Circlip uses for appliance repairs, bearing, gears, pulleys, and various repair projects.
Specification

Specification

SKU
a20111100ux0435
Material
Carbon Steel
Color
Black
Sizes
ID x OD x Thickness
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  • E-clips, also known as "e-rings," are used to secure parts onto a shaft. They fit into grooves in the side of the shaft for a snug fit. E-clips come in different types depending on specific application needs.
Specifications:
Material: Carbon Steel
Color: Black

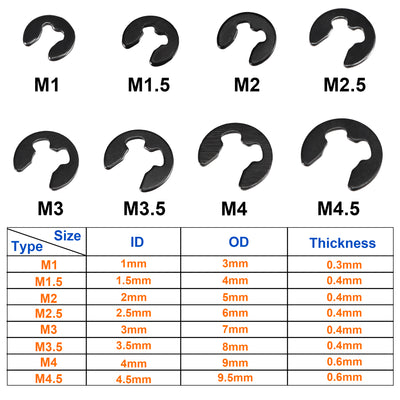

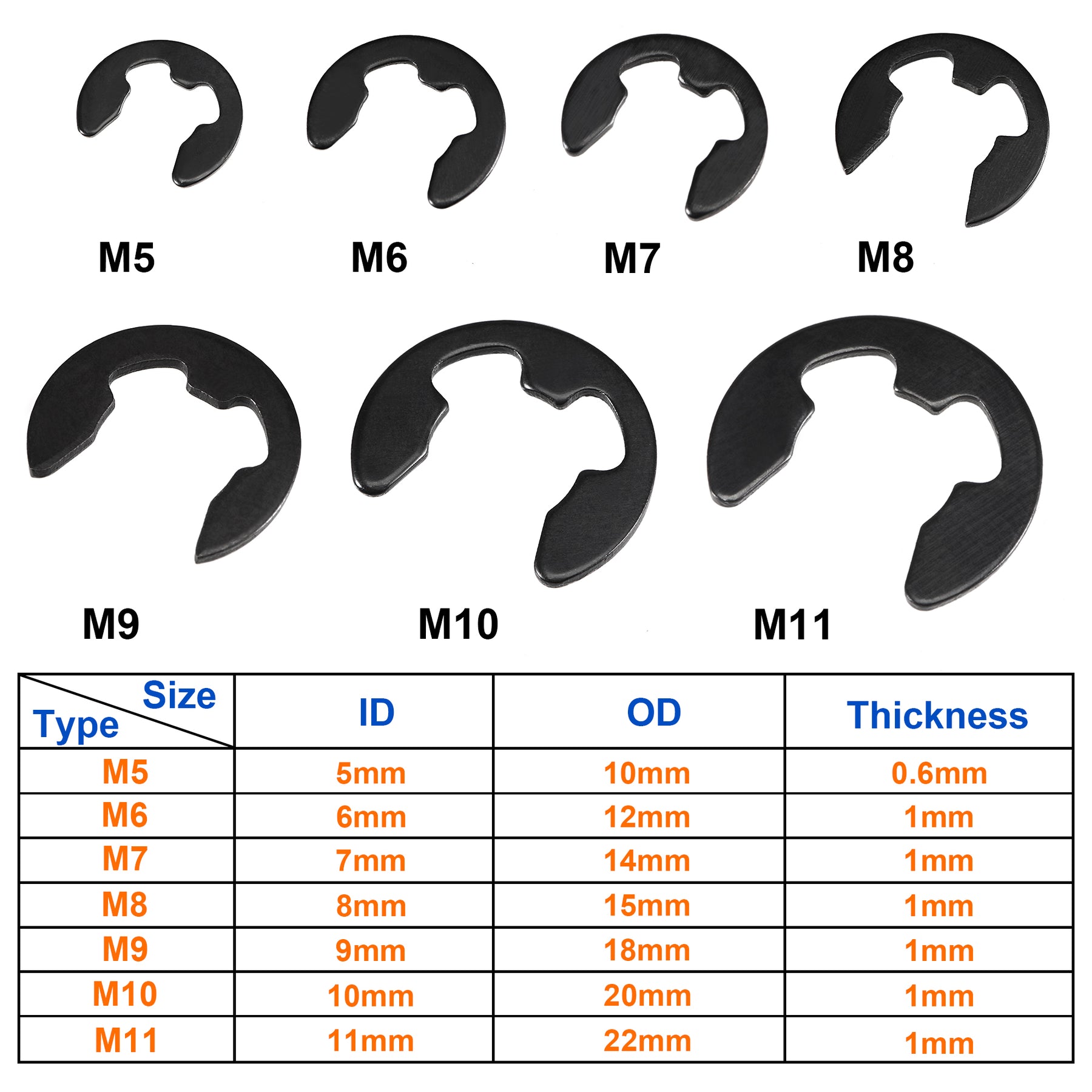

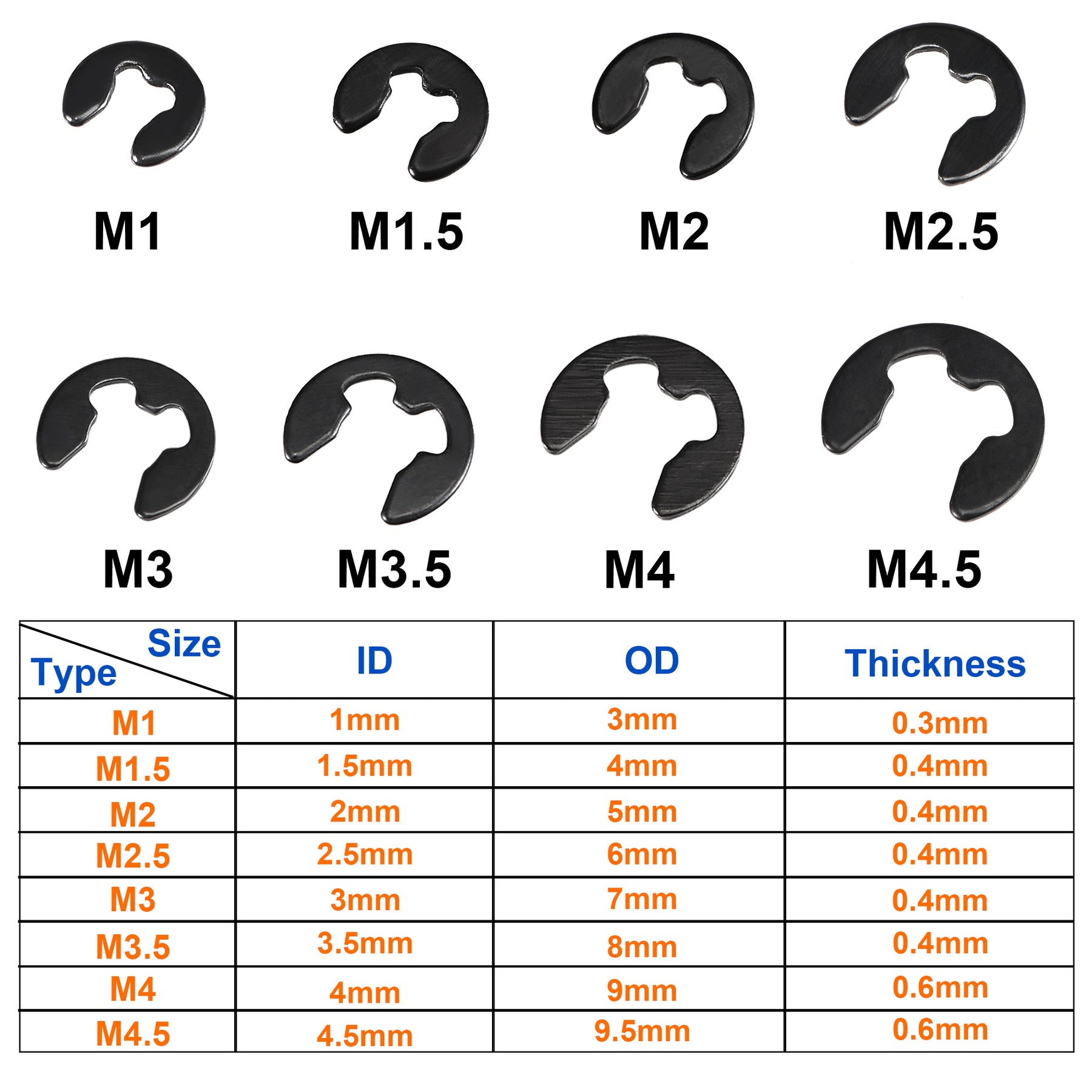

Sizes:  (ID x OD x Thickness)
<1> 1mm ------ 1 x 3 x 0.3mm
<2> 1.5mm ------ 1.5 x 4 x 0.4mm
<3> 2mm ------ 2 x 5 x 0.4mm
<4> 2.5mm ------ 2.5 x 6 x 0.4mm
<5> 3mm ------ 3 x 7 x 0.4mm
<6> 3.5mm ------ 3.5 x 8 x 0.4mm
<7> 4mm  ------ 4 x 9 x 0.6mm
<8> 4.5mm ------ 4.5 x 9.5 x 0.6mm
<9> 5mm ------ 5 x 10 x 0.6mm
<10> 6mm -------- 6 x 12 x 1mm
<11>7mm ------ 7 x 14 x 1mm
<12> 8mm ------ 8 x 15 x 1mm
<13> 9mm ------ 9 x 18 x 1mm
<14> 10mm ------ 10 x 20 x 1mm
<15> 11mm ------ 11 x 22 x 1mm

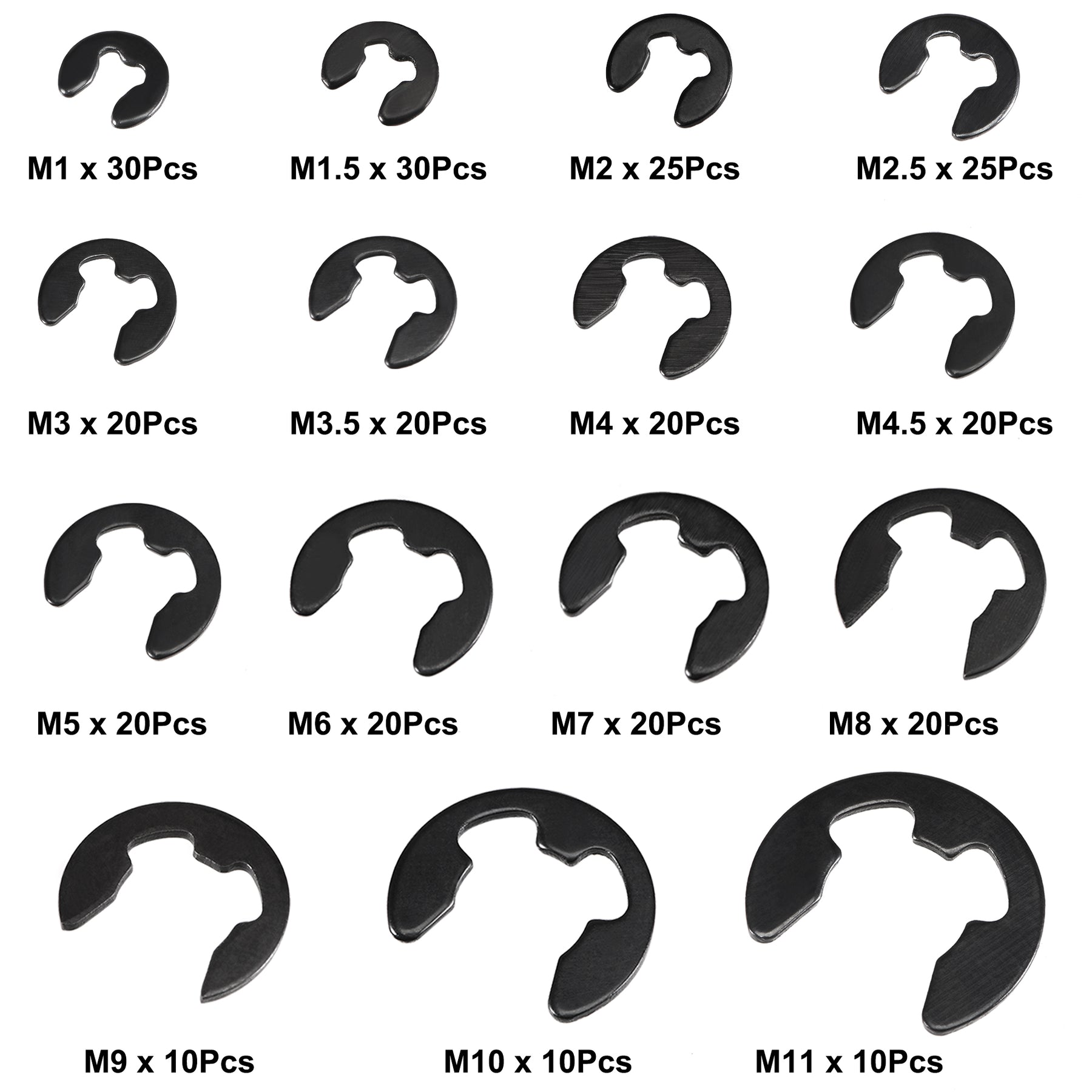

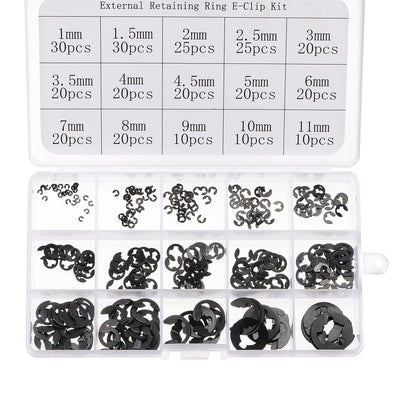

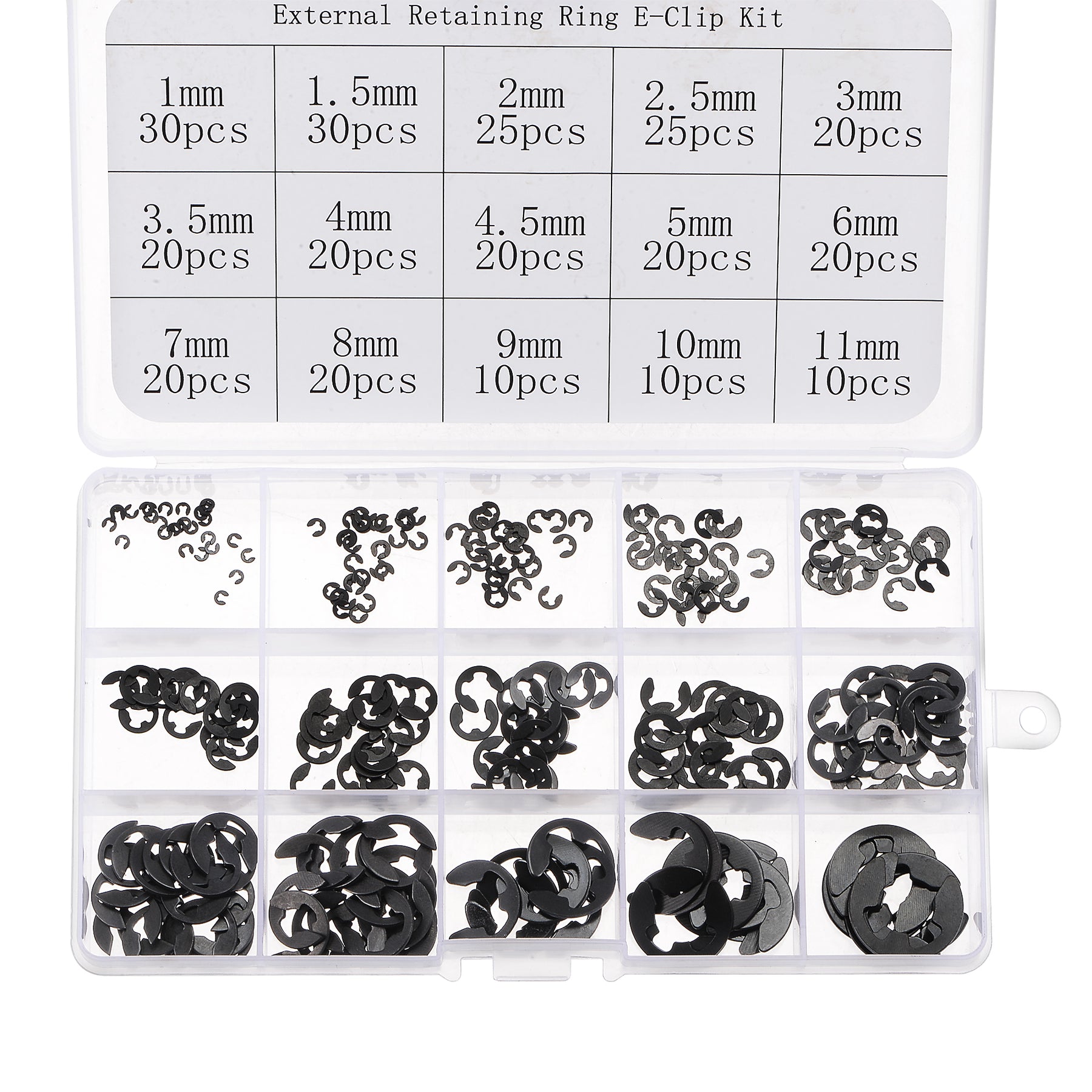

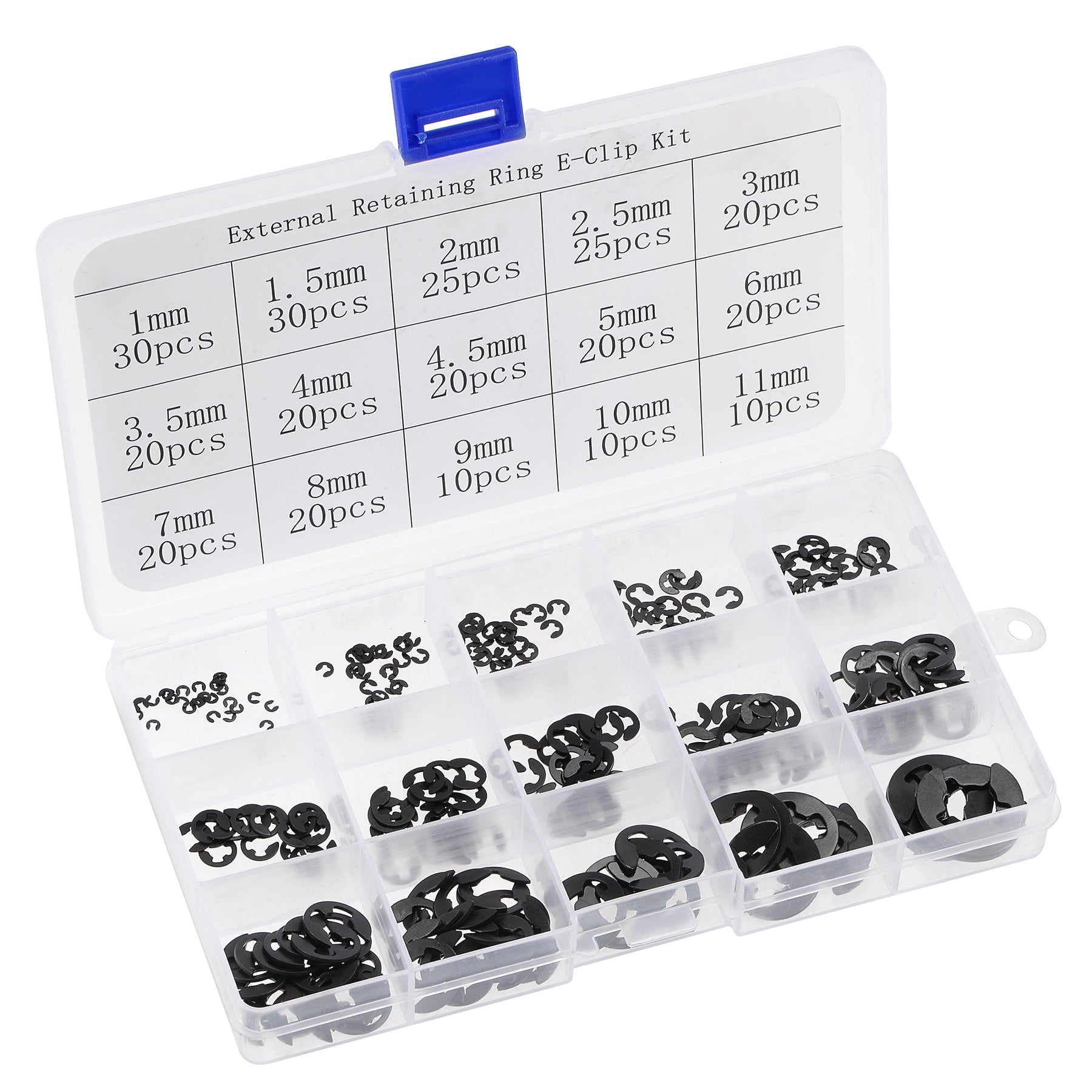

Package Includes:
<1> 1mm ------ 30pcs
<2> 1.5mm ------ 30pcs
<3> 2mm ------ 25pcs
<4> 2.5mm ------ 25pcs
<5> 3mm ------ 20pcs
<6> 3.5mm ------ 20pcs
<7> 4mm  ------ 20pcs
<8> 4.5mm ------ 20pcs
<9> 5mm ------ 20pcs
<10> 6mm -------- 20pcs
<11>7mm ------ 20pcs
<12> 8mm ------ 20pcs
<13> 9mm ------ 10pcs
<14> 10mm ------ 10pcs
<15> 11mm ------ 10pcs
US$11.70 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Description:
  • E-clips, also known as "e-rings," are used to secure parts onto a shaft. They fit into grooves in the side of the shaft for a snug fit. E-clips come in different types depending on specific application needs.
Specifications:
Material: Carbon Steel
Color: Black
Sizes:  (ID x OD x Thickness)
<1> 1mm ------ 1 x 3 x 0.3mm
<2> 1.5mm ------ 1.5 x 4 x 0.4mm
<3> 2mm ------ 2 x 5 x 0.4mm
<4> 2.5mm ------ 2.5 x 6 x 0.4mm
<5> 3mm ------ 3 x 7 x 0.4mm
<6> 3.5mm ------ 3.5 x 8 x 0.4mm
<7> 4mm  ------ 4 x 9 x 0.6mm
<8> 4.5mm ------ 4.5 x 9.5 x 0.6mm
<9> 5mm ------ 5 x 10 x 0.6mm
<10> 6mm -------- 6 x 12 x 1mm
<11>7mm ------ 7 x 14 x 1mm
<12> 8mm ------ 8 x 15 x 1mm
<13> 9mm ------ 9 x 18 x 1mm
<14> 10mm ------ 10 x 20 x 1mm
<15> 11mm ------ 11 x 22 x 1mm

Package Includes:
<1> 1mm ------ 30pcs
<2> 1.5mm ------ 30pcs
<3> 2mm ------ 25pcs
<4> 2.5mm ------ 25pcs
<5> 3mm ------ 20pcs
<6> 3.5mm ------ 20pcs
<7> 4mm  ------ 20pcs
<8> 4.5mm ------ 20pcs
<9> 5mm ------ 20pcs
<10> 6mm -------- 20pcs
<11>7mm ------ 20pcs
<12> 8mm ------ 20pcs
<13> 9mm ------ 10pcs
<14> 10mm ------ 10pcs
<15> 11mm ------ 10pcs
