Harfington Uxcell E-Clip 300Pcs External Retaining Ring Washer Carbon Steel Size: 1mm to 11mm

Uxcell E-Clip 300Pcs External Retaining Ring Washer Carbon Steel Size: 1mm to 11mm

ID:1083483
ID:1083483
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Set Includes: 15 Sizes(Metric): 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm.Totally: 300Pcs.
  • Material: Made of Carbon steel, Surface treatment: Blackening. providing good resistance to corrosion and high temperature.
  • Features: The spring metal clip features 3 prongs that give it an E shape which fits in a groove on the metal shaft assembly.
  • Application: These E-Clips are retaining rings that fit into a machined groove of a shaft to secure items.
  • Application: E-Clip Circlip uses for appliance repairs, bearing, gears, pulleys, and various repair projects.
About this item
  • Set Includes: 15 Sizes(Metric): 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm.Totally: 300Pcs.
  • Material: Made of Carbon steel, Surface treatment: Blackening. providing good resistance to corrosion and high temperature.
  • Features: The spring metal clip features 3 prongs that give it an E shape which fits in a groove on the metal shaft assembly.
  • Application: These E-Clips are retaining rings that fit into a machined groove of a shaft to secure items.
  • Application: E-Clip Circlip uses for appliance repairs, bearing, gears, pulleys, and various repair projects.
Specification

Specification

SKU
a20111100ux0437
Material
Carbon Steel
Color
Black
Sizes
ID x OD x Thickness
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  • E-clips, also known as "e-rings," are used to secure parts onto a shaft. They fit into grooves in the side of the shaft for a snug fit. E-clips come in different types depending on specific application needs.
Specifications:
Material: Carbon Steel
Color: Black

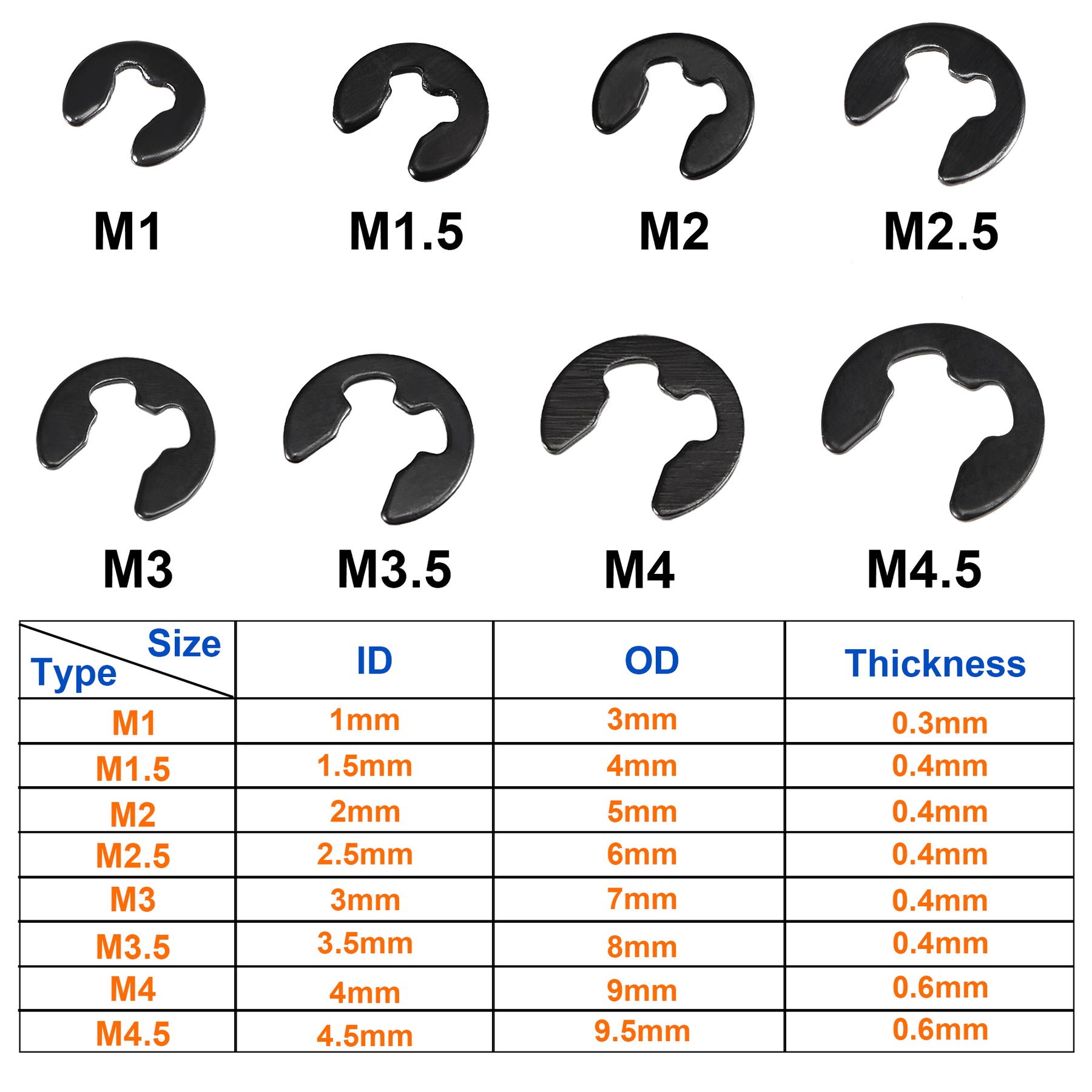

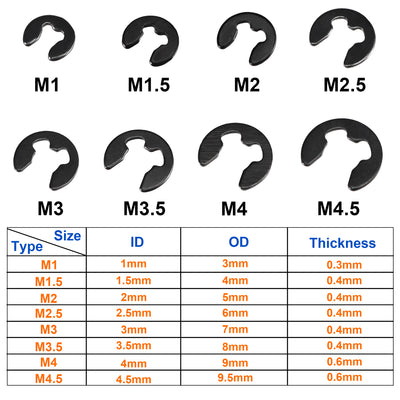

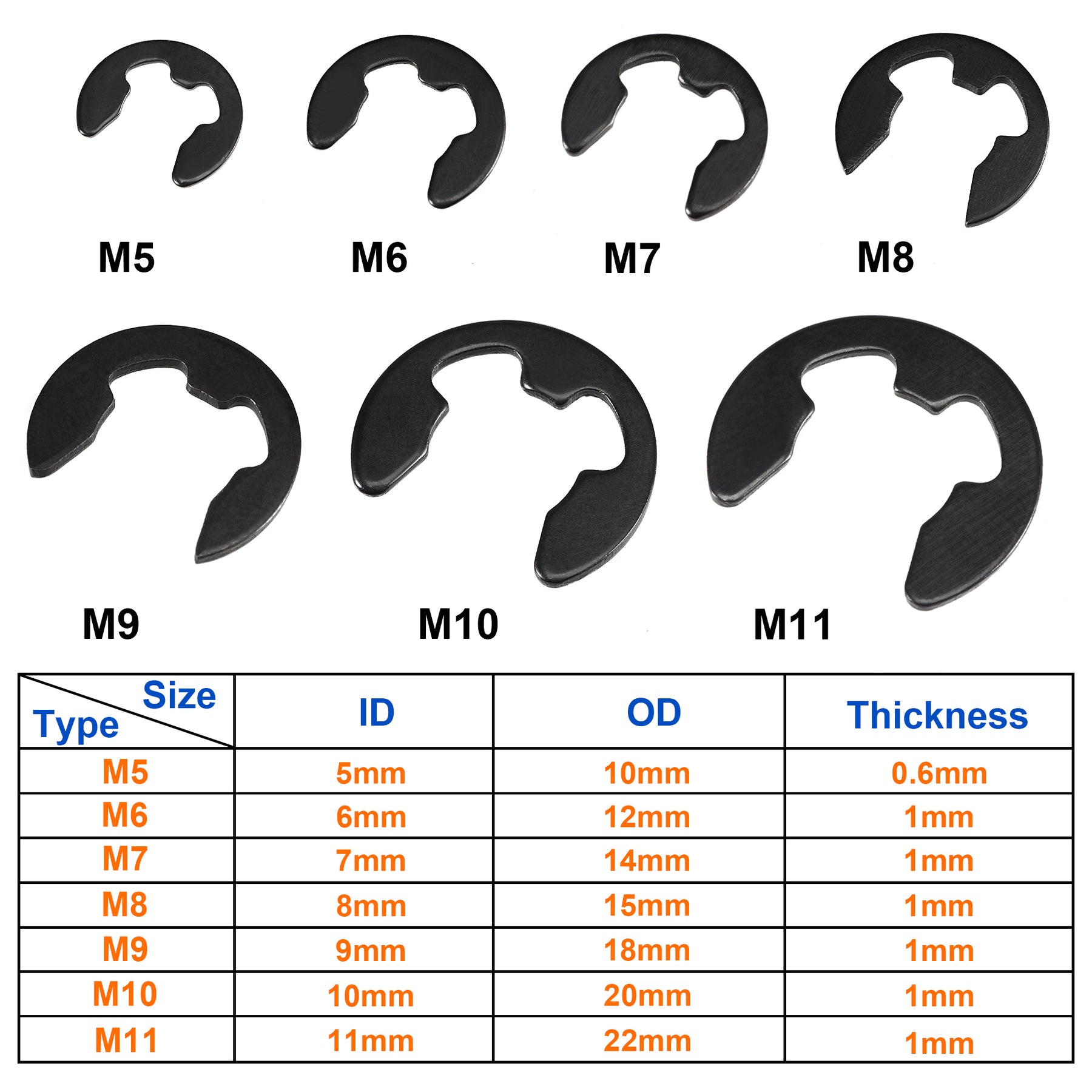

Sizes:  (ID x OD x Thickness)
<1> 1mm ------ 1 x 3 x 0.3mm
<2> 1.5mm ------ 1.5 x 4 x 0.4mm
<3> 2mm ------ 2 x 5 x 0.4mm
<4> 2.5mm ------ 2.5 x 6 x 0.4mm
<5> 3mm ------ 3 x 7 x 0.4mm
<6> 3.5mm ------ 3.5 x 8 x 0.4mm
<7> 4mm  ------ 4 x 9 x 0.6mm
<8> 4.5mm ------ 4.5 x 9.5 x 0.6mm
<9> 5mm ------ 5 x 10 x 0.6mm
<10> 6mm -------- 6 x 12 x 1mm
<11>7mm ------ 7 x 14 x 1mm
<12> 8mm ------ 8 x 15 x 1mm
<13> 9mm ------ 9 x 18 x 1mm
<14> 10mm ------ 10 x 20 x 1mm
<15> 11mm ------ 11 x 22 x 1mm

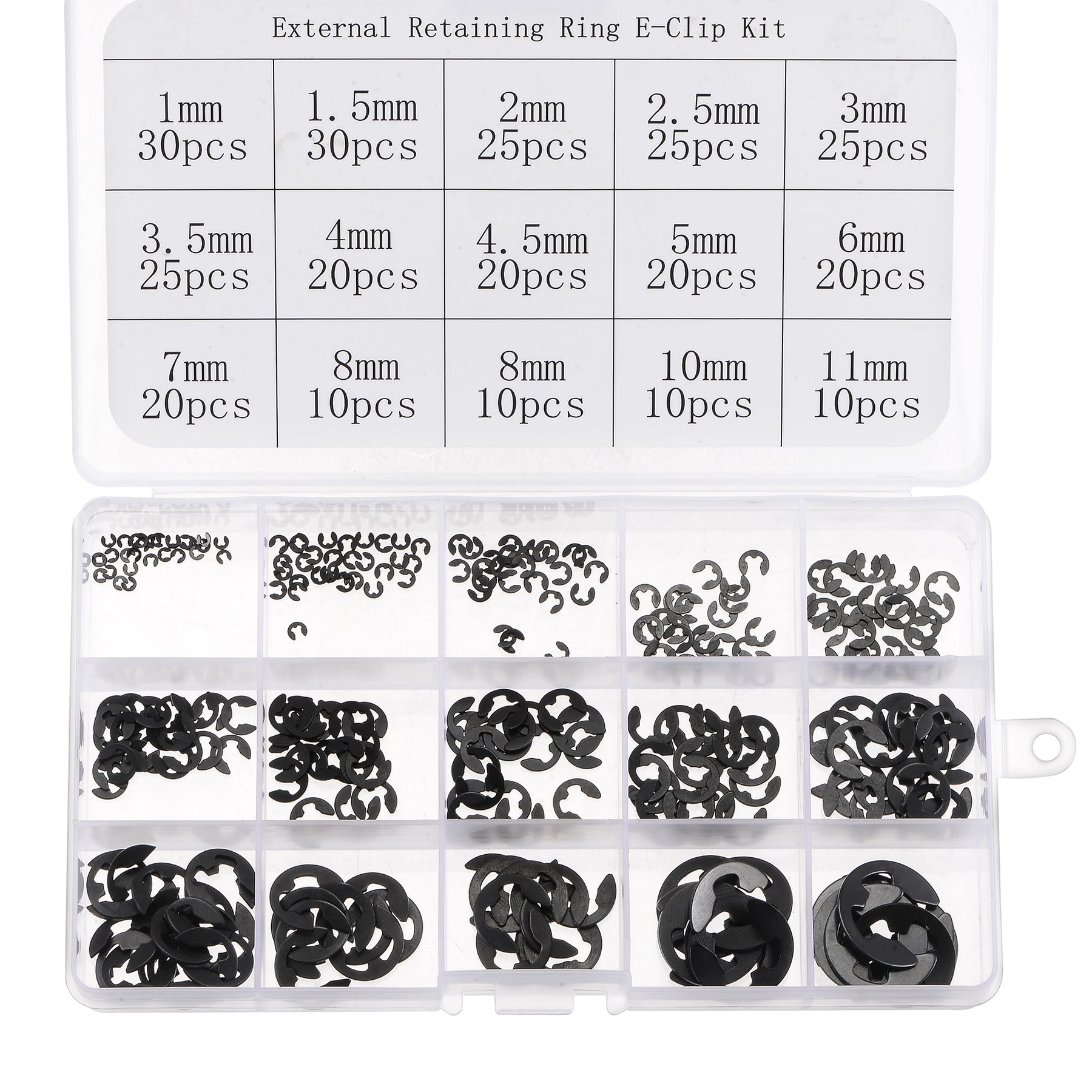

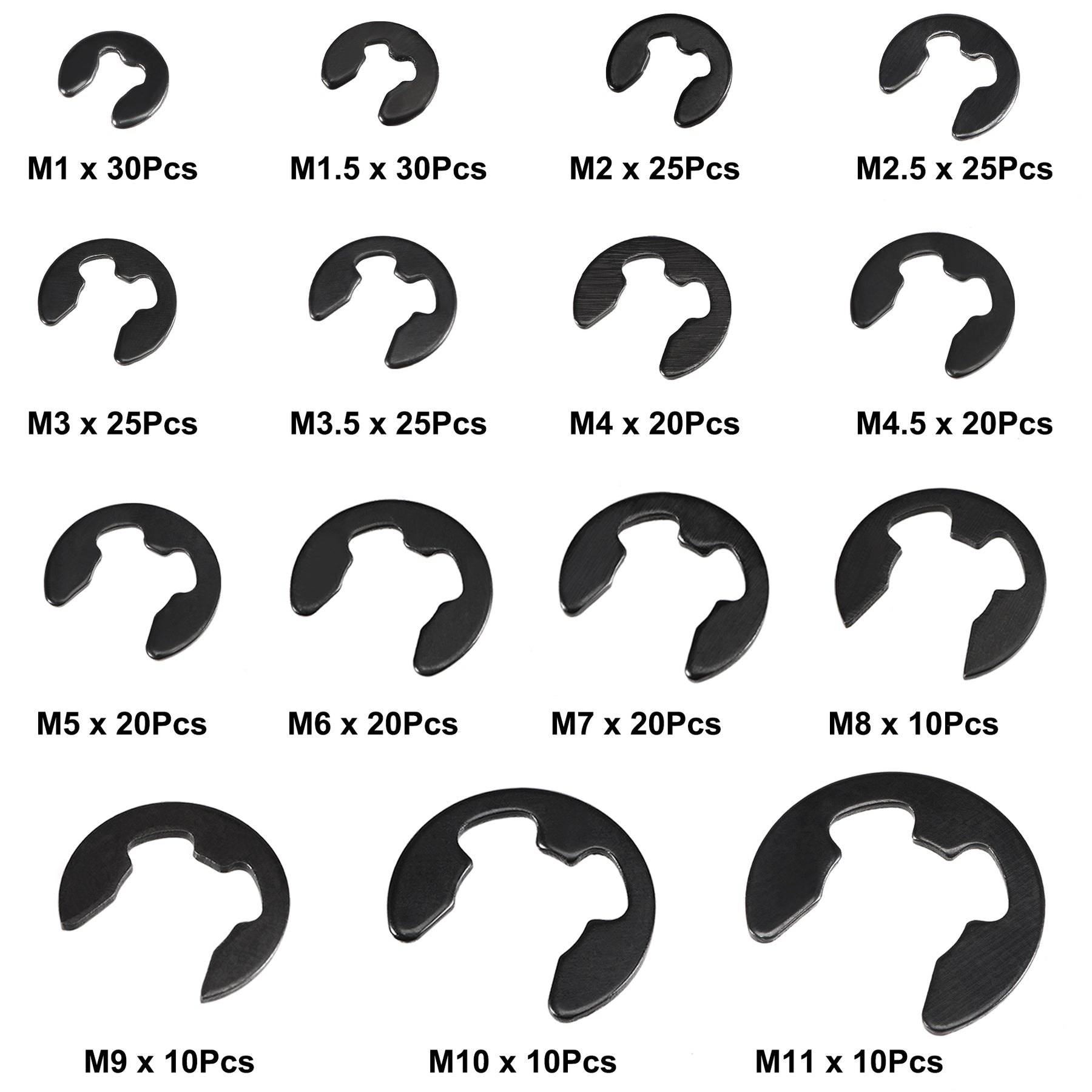

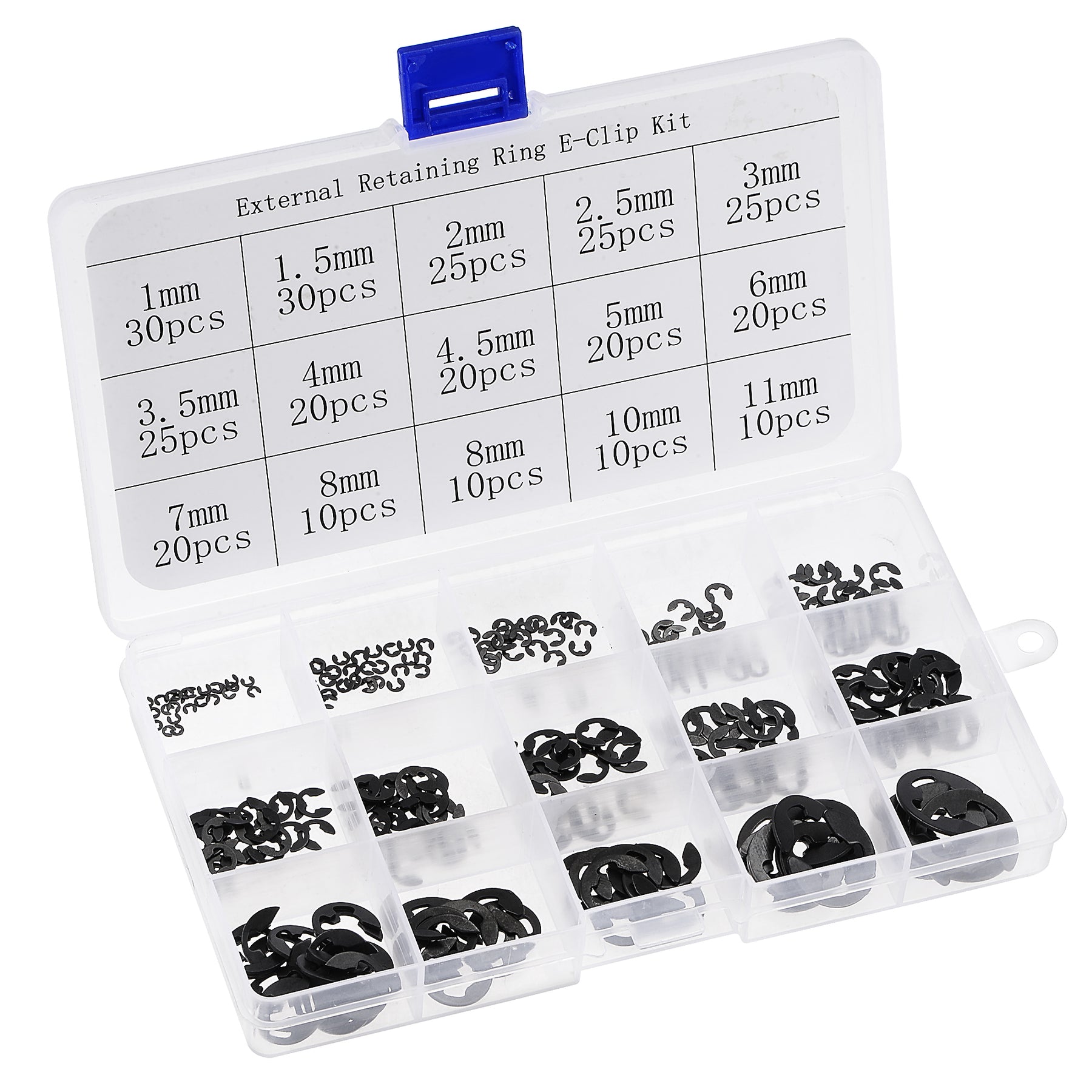

Package Includes:
<1> 1mm ------ 30pcs
<2> 1.5mm ------ 30pcs
<3> 2mm ------ 25pcs
<4> 2.5mm ------ 25pcs
<5> 3mm ------ 25pcs
<6> 3.5mm ------ 25pcs
<7> 4mm  ------ 20pcs
<8> 4.5mm ------ 20pcs
<9> 5mm ------ 20pcs
<10> 6mm -------- 20pcs
<11>7mm ------ 20pcs
<12> 8mm ------ 10pcs
<13> 9mm ------ 10pcs
<14> 10mm ------ 10pcs
<15> 11mm ------ 10pcs
US$11.45 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Dispatch in 24 hours. Contact us for more quantity.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell E-Clip 300Pcs External Retaining Ring Washer Carbon Steel Size: 1mm to 11mm 1083483 US$11.45
Products Title ID Price Qty
Uxcell E-Clip 300Pcs External Retaining Ring Washer Carbon Steel Size: 1mm to 11mm 1083483 US$11.45
Uxcell E-Clip 400Pcs 15-Size External Retaining Ring Carbon Steel Set Size: 1mm to 11mm 1052661 US$13.14
Uxcell E-Clip 300Pcs 15-Size External Retaining Ring Carbon Steel Set Size: 1mm to 14mm 1083481 US$11.23
Uxcell E-Clip Circlip - 400Pcs 1/1.5/2/2.5/3/3.5/4/ 4.5/5/6/7/8/9/10/11mm External Retaining Shaft Snap Ring Carbon Steel Assortment Set 1083482 US$13.37
Uxcell E-Clip Circlip 400Pcs 15-Size External Retaining Shaft Snap Ring Carbon Steel 1083485 US$13.14
Uxcell E-Clip 300Pcs 15-Size External Retaining Ring Carbon Steel Set Size: 1mm to 11mm 1087683 US$11.37
Uxcell E-Clip Circlip - 400Pcs 15-Size External Retaining Shaft Snap Ring Washer Carbon Steel Assortment Set - Size: 1mm to 11mm 1114177 US$13.04
Uxcell E-Clip Circlip - 300Pcs 15-Size External Retaining Shaft Snap Ring Washer Carbon Steel Assortment Kit 1070681 US$12.05
Uxcell E-Clip Circlip - 300Pcs 15-Size External Retaining Shaft Snap Ring Carbon Steel Black Assortment Kit 1107543 US$11.70
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Description:
  • E-clips, also known as "e-rings," are used to secure parts onto a shaft. They fit into grooves in the side of the shaft for a snug fit. E-clips come in different types depending on specific application needs.
Specifications:
Material: Carbon Steel
Color: Black
Sizes:  (ID x OD x Thickness)
<1> 1mm ------ 1 x 3 x 0.3mm
<2> 1.5mm ------ 1.5 x 4 x 0.4mm
<3> 2mm ------ 2 x 5 x 0.4mm
<4> 2.5mm ------ 2.5 x 6 x 0.4mm
<5> 3mm ------ 3 x 7 x 0.4mm
<6> 3.5mm ------ 3.5 x 8 x 0.4mm
<7> 4mm  ------ 4 x 9 x 0.6mm
<8> 4.5mm ------ 4.5 x 9.5 x 0.6mm
<9> 5mm ------ 5 x 10 x 0.6mm
<10> 6mm -------- 6 x 12 x 1mm
<11>7mm ------ 7 x 14 x 1mm
<12> 8mm ------ 8 x 15 x 1mm
<13> 9mm ------ 9 x 18 x 1mm
<14> 10mm ------ 10 x 20 x 1mm
<15> 11mm ------ 11 x 22 x 1mm

Package Includes:
<1> 1mm ------ 30pcs
<2> 1.5mm ------ 30pcs
<3> 2mm ------ 25pcs
<4> 2.5mm ------ 25pcs
<5> 3mm ------ 25pcs
<6> 3.5mm ------ 25pcs
<7> 4mm  ------ 20pcs
<8> 4.5mm ------ 20pcs
<9> 5mm ------ 20pcs
<10> 6mm -------- 20pcs
<11>7mm ------ 20pcs
<12> 8mm ------ 10pcs
<13> 9mm ------ 10pcs
<14> 10mm ------ 10pcs
<15> 11mm ------ 10pcs
