Harfington Uxcell 2 Pcs Needle Roller Bearings, 8mm Bore 14mm OD 12mm Width Chrome Steel Needles, One Way Clutch Bearing

Uxcell 2 Pcs Needle Roller Bearings, 8mm Bore 14mm OD 12mm Width Chrome Steel Needles, One Way Clutch Bearing

ID:1079999
ID:1079999
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

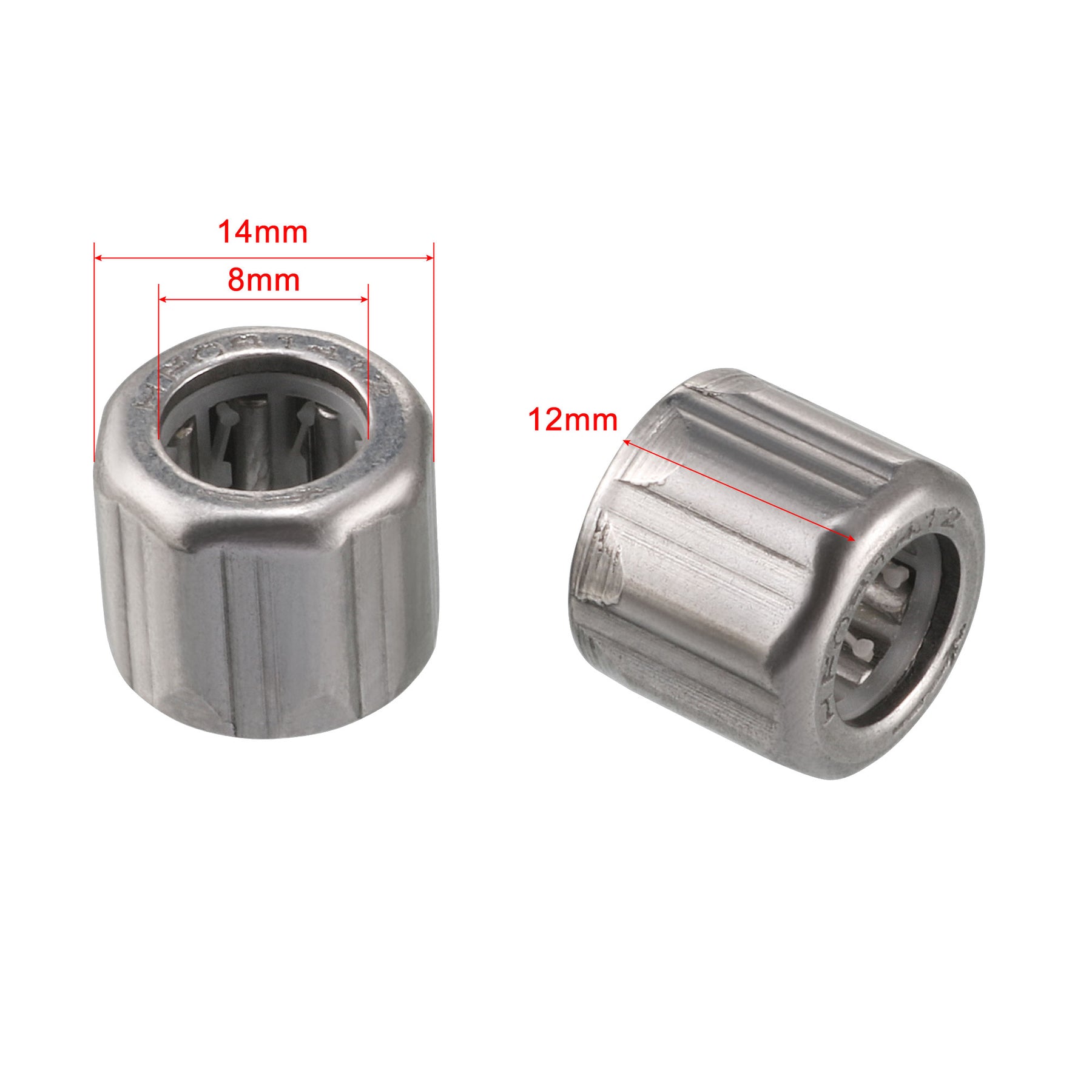

  • Size: (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm)
  • ST14 steel drawn cup, GCr15 needle rollers one way clutch
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
About this item
  • Size: (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm)
  • ST14 steel drawn cup, GCr15 needle rollers one way clutch
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
Specification

Specification

SKU
a19032000ux0816
Bore diameter (fw)
8mm
Outside diameter (d)
14mm
Torque
5N*m
Rotating shaft limiting speed
16000rpm
Number of pack
2 Pcs
Brand
Uxcell
Model
HF081412
I.D.
8mm
O.D.
14mm
Width
12mm
Needle Roller Material
GCr15
Drawn Cup Material
ST14 Steel
Torque(N*m)
5
Rotating Shaft Limiting Speed(RPM)
16000
Rotating Outer Ring Limiting Speed(RPM)
12000
Pkg.Qty.
2
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specification:

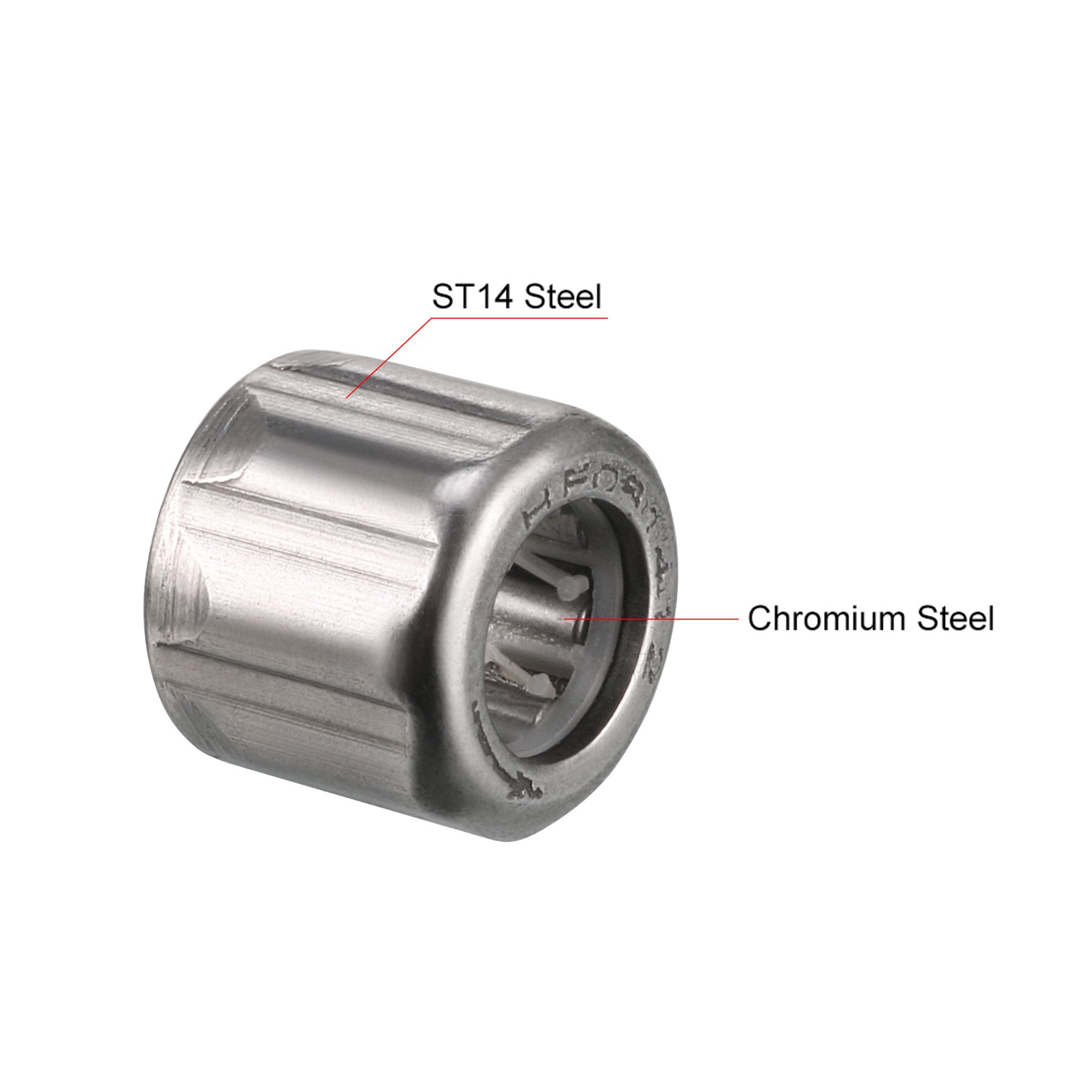

Drawn Cup Material: ST14 Steel
Needle Roller Material: Chromium Steel (GCr15)
Bore Diameter (Fw): 8mm
Outside Diameter (D): 14mm
Width: 12mm
Torque: 5N*m
Rotating Shaft Limiting Speed: 16000rpm
Rotating Outer Ring Limiting Speed: 12000rpm

Package Content:
2  x Needle Roller Bearing

Description:
1. Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
2. These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
3. Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
US$7.85 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

Specification:
Drawn Cup Material: ST14 Steel
Needle Roller Material: Chromium Steel (GCr15)
Bore Diameter (Fw): 8mm
Outside Diameter (D): 14mm
Width: 12mm
Torque: 5N*m
Rotating Shaft Limiting Speed: 16000rpm
Rotating Outer Ring Limiting Speed: 12000rpm

Package Content:
2  x Needle Roller Bearing

Description:
1. Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
2. These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
3. Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
