Harfington Uxcell Needle Roller Bearings, One Way Bearing, 8mm Bore 14mm OD 12mm Width

Uxcell Needle Roller Bearings, One Way Bearing, 8mm Bore 14mm OD 12mm Width

ID:
$6.51 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About This Item

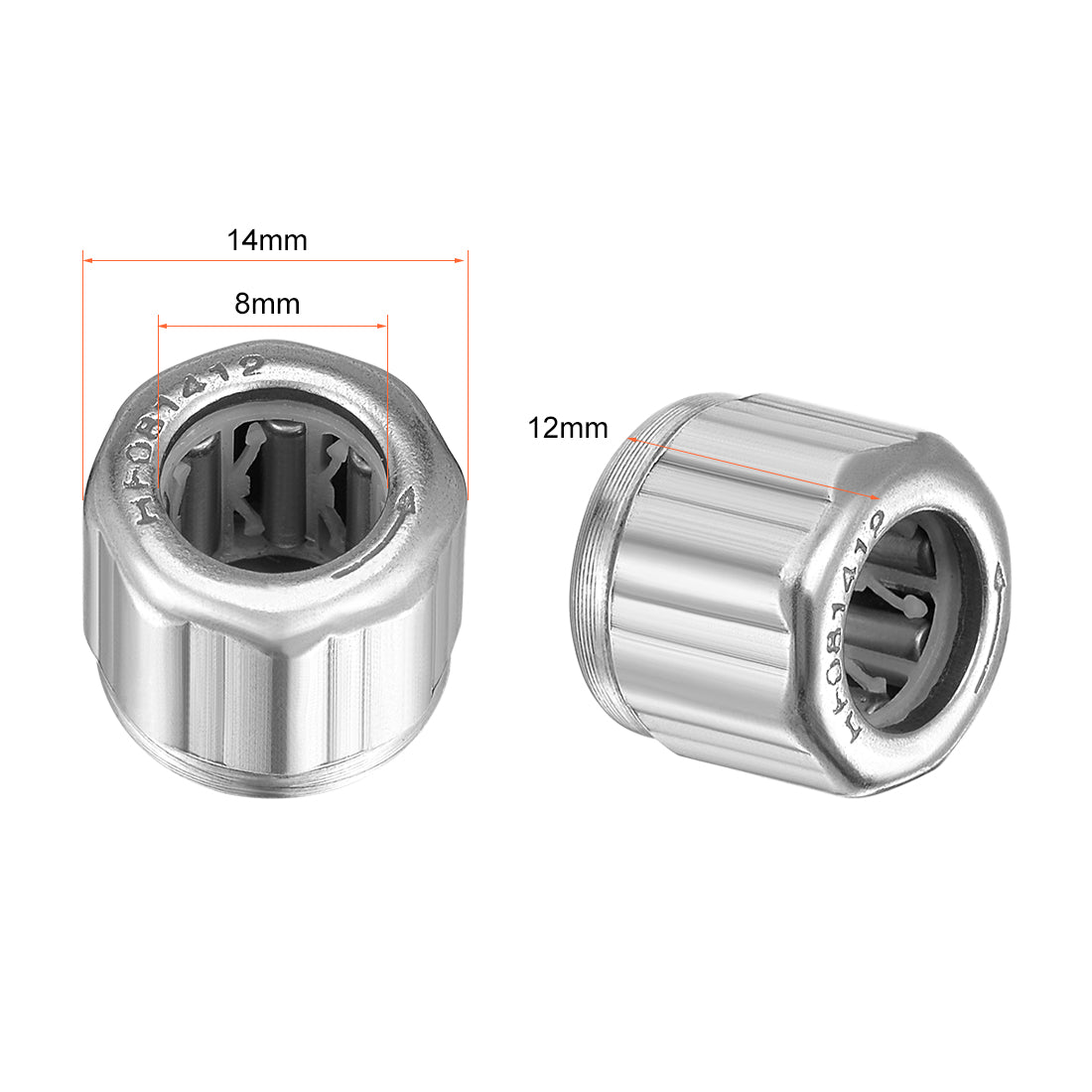

  • Size: (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm)
  • ST14 steel drawn cup, GCr15 needle rollers one way clutch
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
  • In stock, ready to ship
Cart
Cart
About This Item
  • Size: (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm)
  • ST14 steel drawn cup, GCr15 needle rollers one way clutch
  • Good heat tolerance, high load carrying capacity and stiffness
  • Low cross section, enable downsizing and suit for use in restricted mounting spaces
  • Pre-Lubricated. Good running properties
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

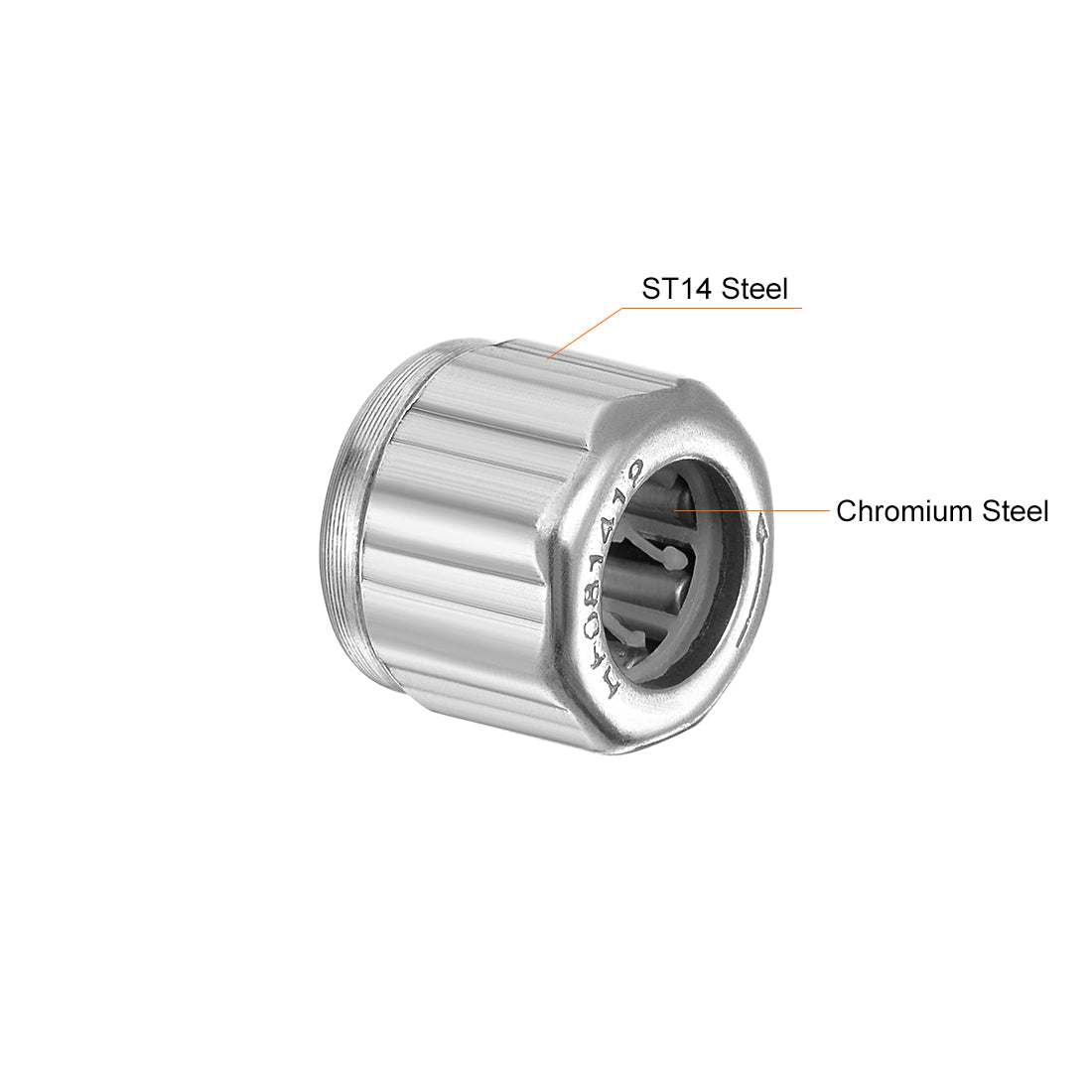

Drawn Cup Material: ST14 Steel

Needle Roller Material: Chromium Steel (GCr15)

Bore Diameter (Fw): 8mm

Outside Diameter (D): 14mm

Width: 12mm

Torque: 5N*m

Rotating Shaft Limiting Speed: 16000rpm

Rotating Outer Ring Limiting Speed: 12000rpm

Number of Pack: 1 Pcs

Description:

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.

-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.

-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Specification:

Drawn Cup Material: ST14 Steel

Needle Roller Material: Chromium Steel (GCr15)

Bore Diameter (Fw): 8mm

Outside Diameter (D): 14mm

Width: 12mm

Torque: 5N*m

Rotating Shaft Limiting Speed: 16000rpm

Rotating Outer Ring Limiting Speed: 12000rpm

Number of Pack: 1 Pcs

Description:

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.

-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.

-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

-NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
