Harfington Uxcell Jack Nuts, Threaded Insert Nut Carbon Steel Zinc-plated Rivet Nuts

Uxcell Jack Nuts, Threaded Insert Nut Carbon Steel Zinc-plated Rivet Nuts

ID:1383994
ID:1383994
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
5
NumberOfItems
About this item
  • Rod Diameter(Drill Hole Size): 12mm / 0.47"; Rivet Plate Thickness: 0-5mm / 0"-0.2"; Package Included: 5pcs x Rivet nuts
  • Material: Jack nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.
  • Easy to use: Drill a suitable hole according to the size, then insert the jack nut with a tool to pull the bolt so that it expands and binds firmly to the substrate. The expanded head of the nut is larger and can be securely fastened to the plate, it has good load-bearing capacity.
  • Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.
  • Thread Diameter: M6; Pitch: 1mm; Total Length: 18.6mm / 0.73"; Head Size: 16 x 2mm / 0.63" x 0.08"(D*T)
About this item
  • Rod Diameter(Drill Hole Size): 12mm / 0.47"; Rivet Plate Thickness: 0-5mm / 0"-0.2"; Package Included: 5pcs x Rivet nuts
  • Material: Jack nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.
  • Easy to use: Drill a suitable hole according to the size, then insert the jack nut with a tool to pull the bolt so that it expands and binds firmly to the substrate. The expanded head of the nut is larger and can be securely fastened to the plate, it has good load-bearing capacity.
  • Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.
  • Thread Diameter: M6; Pitch: 1mm; Total Length: 18.6mm / 0.73"; Head Size: 16 x 2mm / 0.63" x 0.08"(D*T)
Specification

Specification

SKU
a23041100ux0121
Brand
Uxcell
Pkg.Qty
5
Material
Carbon Steel, Zinc Plated
Color
Black
Thread Dia.
M6
System of Measurement
Metric
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:

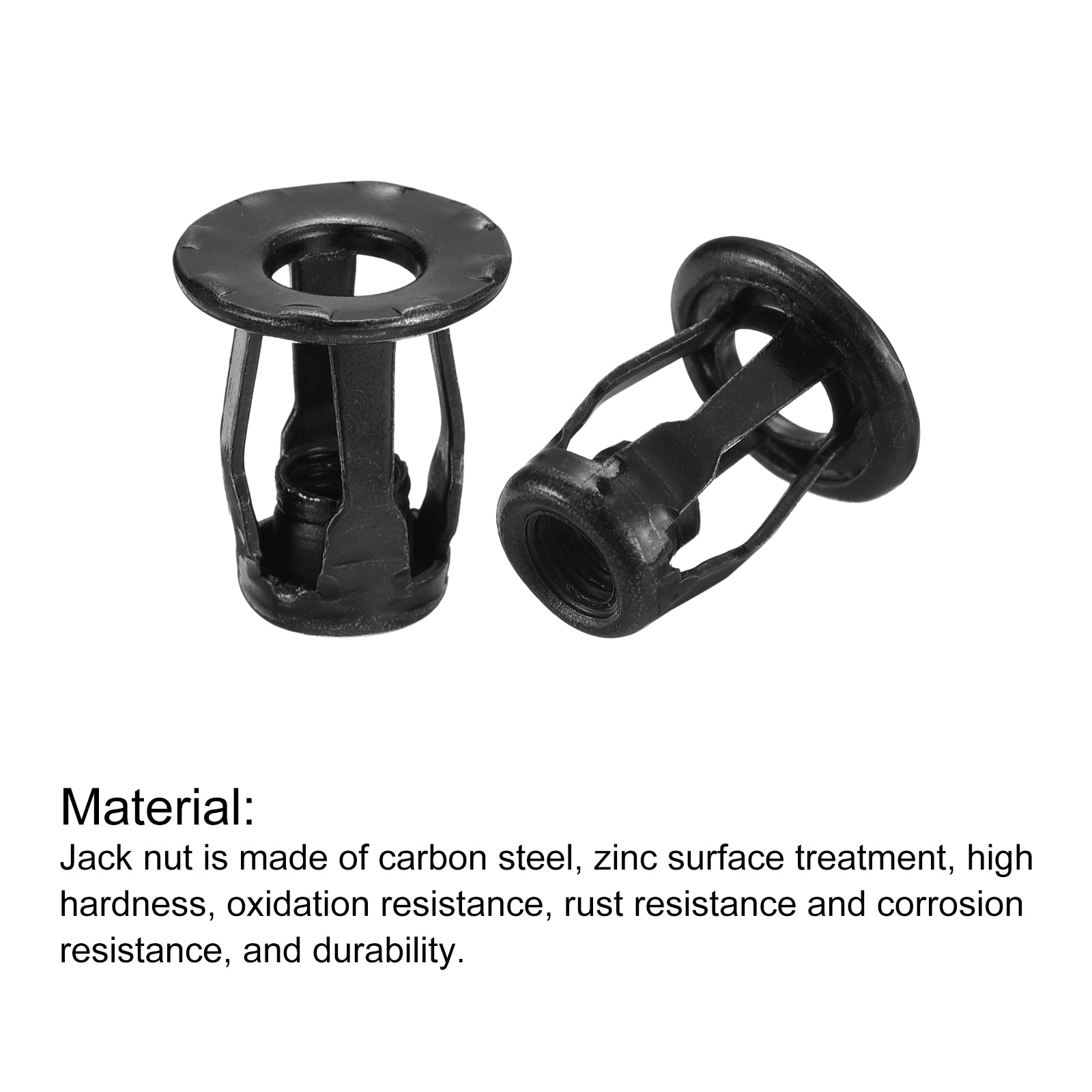

1. Material: Jack nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.

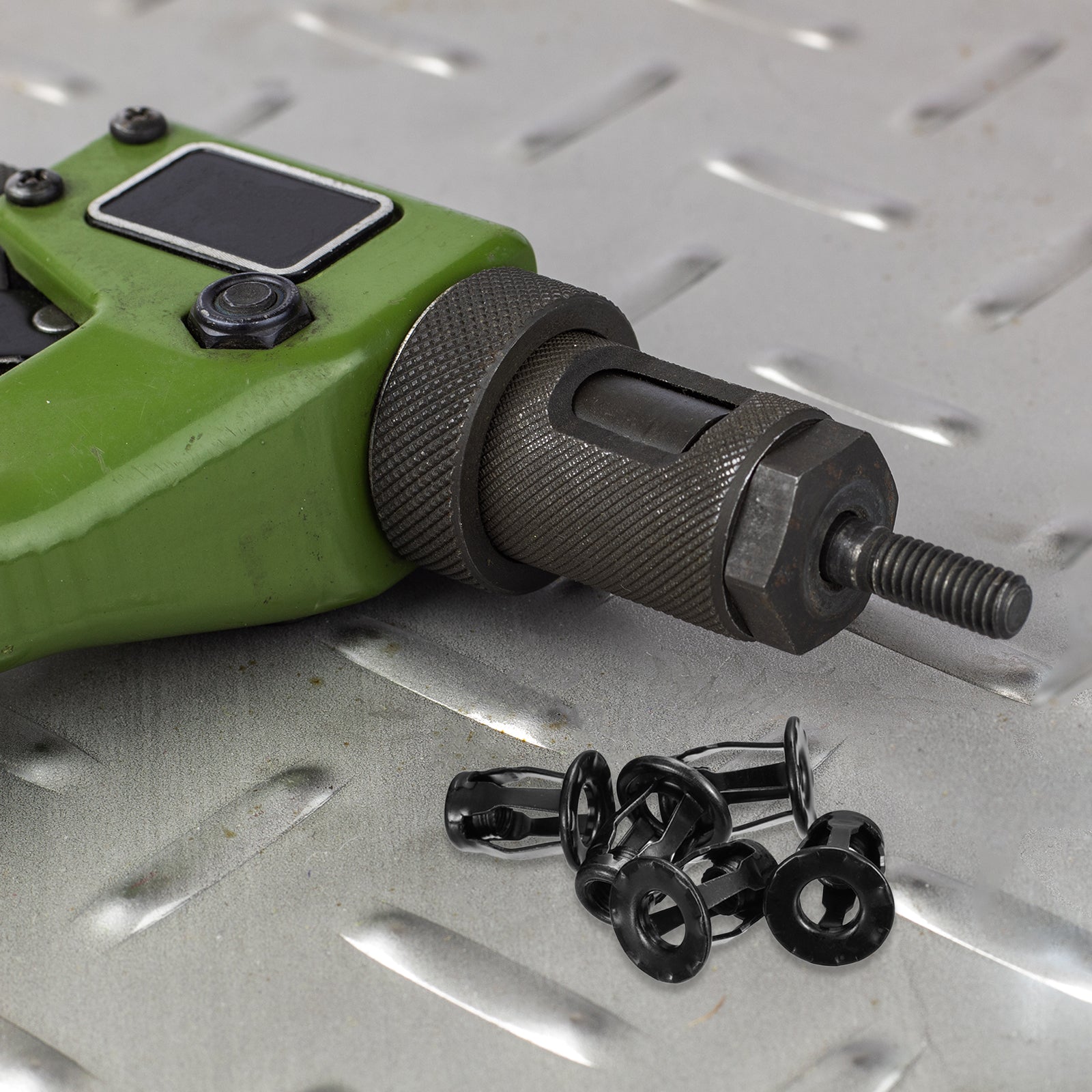

2. Easy to use: Drill a suitable hole according to the size, then insert the jack nut with a tool to pull the bolt so that it expands and binds firmly to the substrate.  The expanded head of the nut is larger and can be securely fastened to the plate, it has good load-bearing capacity.
3. Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.

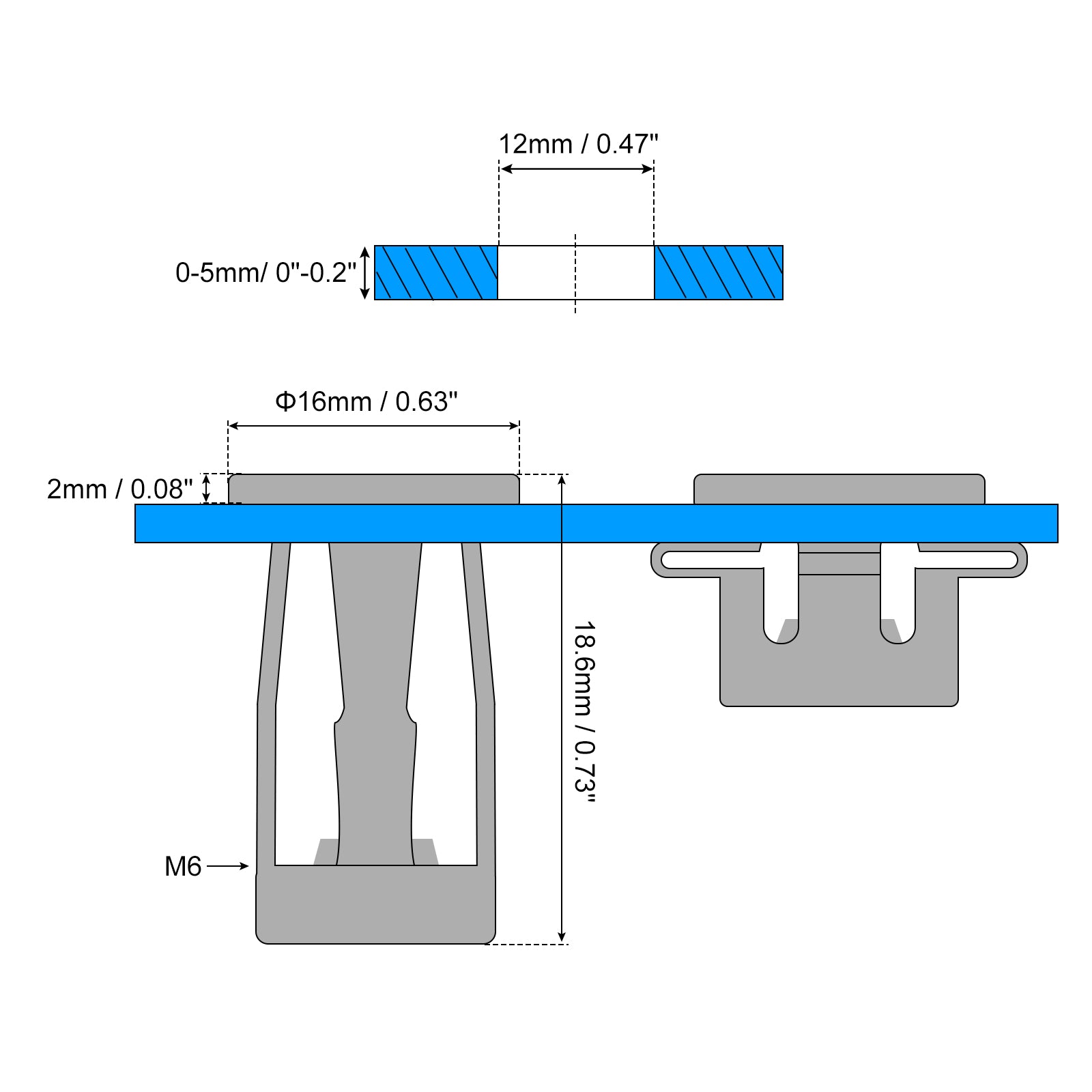

Specifications:
Material: Carbon Steel
Finish: Zinc plated
Performance Grade: 4.8
Thread Diameter: M6
Pitch: 1mm
Total Length: 18.6mm / 0.73"
Head Size: 16 x 2mm / 0.63" x 0.08"(D*T)
Rod Diameter(Drill Hole Size): 12mm / 0.47"
Rivet Plate Thickness: 0-5mm / 0"-0.2"

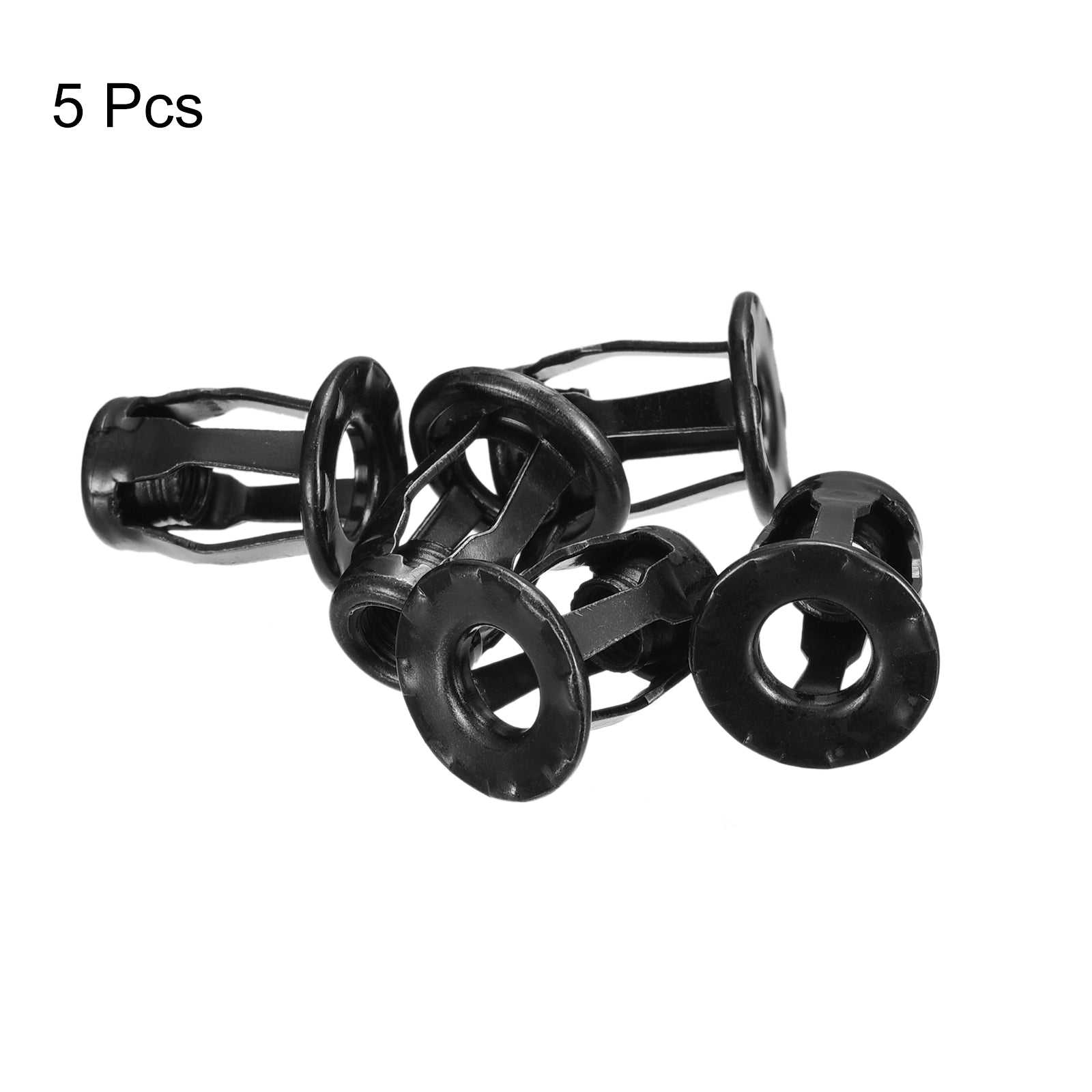

Package Included:
5pcs x Rivet nuts
US$6.57 US$1.31/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Thread Dia. Pkg.Qty ID Price Qty
Products Thread Dia. Pkg.Qty ID Price Qty
M4 5 1384000 US$6.47
M4 5 1383999 US$6.38
M4 10 1383992 US$7.79
M4 10 1384004 US$7.62
M6 5 1383996 US$6.57
M6 10 1384002 US$7.97
M6 10 1383995 US$7.97
M5 5 1383983 US$6.47
M5 10 1384001 US$7.79
M8 5 1383986 US$7.44
M8 10 1384003 US$9.69
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Description:
1. Material: Jack nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.
2. Easy to use: Drill a suitable hole according to the size, then insert the jack nut with a tool to pull the bolt so that it expands and binds firmly to the substrate.  The expanded head of the nut is larger and can be securely fastened to the plate, it has good load-bearing capacity.
3. Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.

Specifications:
Material: Carbon Steel
Finish: Zinc plated
Performance Grade: 4.8
Thread Diameter: M6
Pitch: 1mm
Total Length: 18.6mm / 0.73"
Head Size: 16 x 2mm / 0.63" x 0.08"(D*T)
Rod Diameter(Drill Hole Size): 12mm / 0.47"
Rivet Plate Thickness: 0-5mm / 0"-0.2"

Package Included:
5pcs x Rivet nuts
