Harfington Uxcell Multi-Grip Rivet Nuts, Pre-Bulbed Shank Flat Head Threaded Insert Nut Carbon Steel Plus Nuts

Uxcell Multi-Grip Rivet Nuts, Pre-Bulbed Shank Flat Head Threaded Insert Nut Carbon Steel Plus Nuts

ID:
$6.28 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
M5
SizeName
5
NumberOfItems
About this item

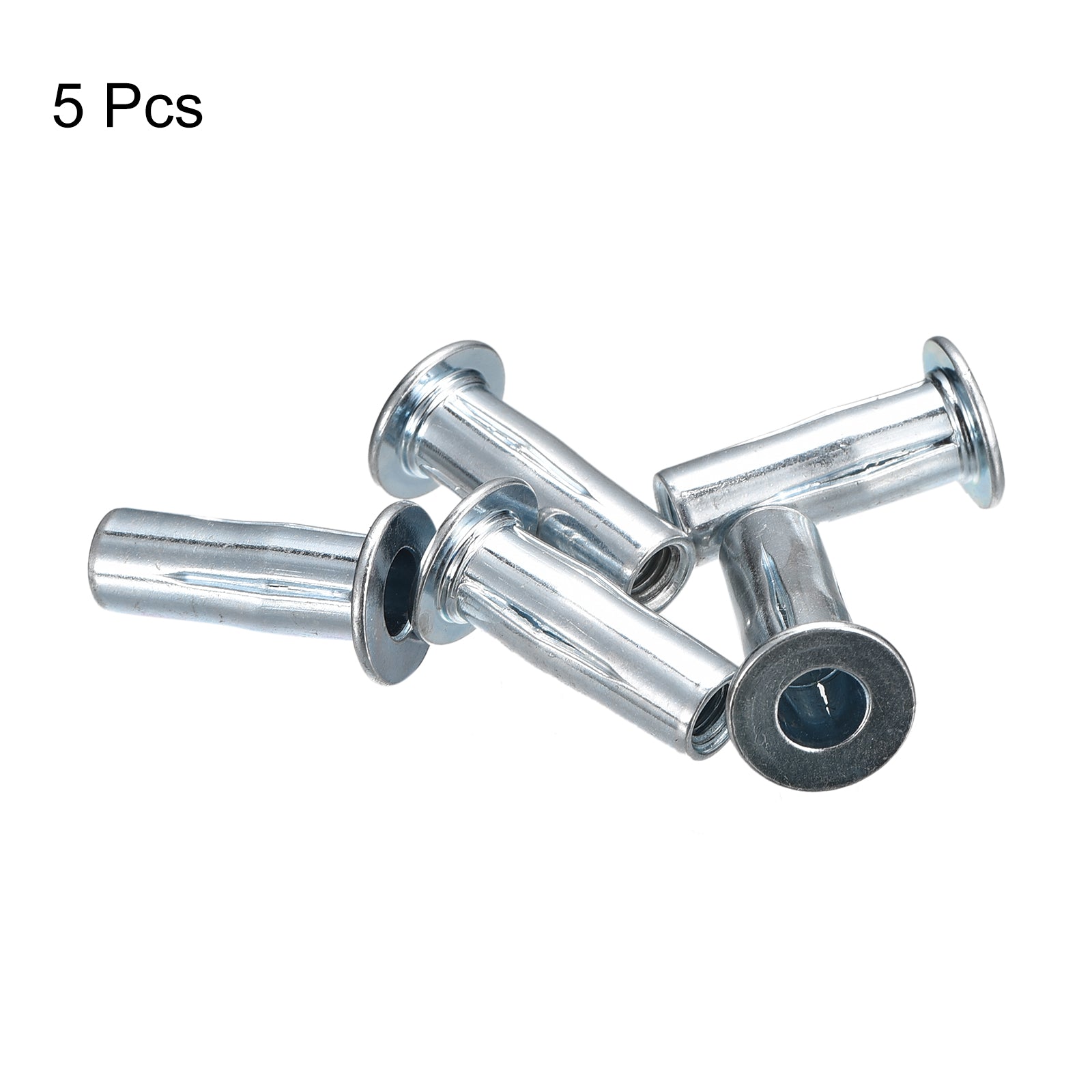

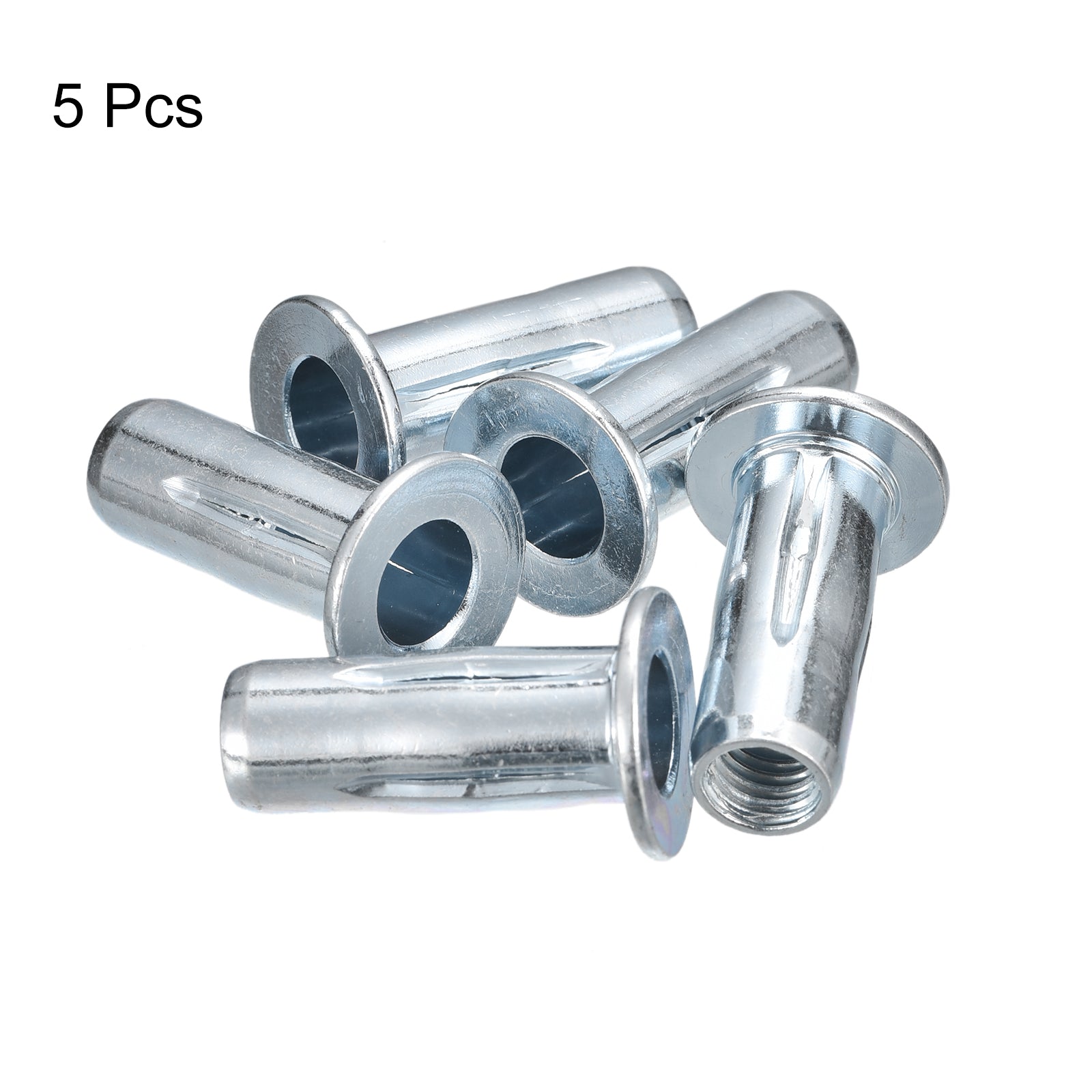

  • Rod Diameter(Drill Hole Size): 7.5mm / 0.3"; Length after Riveting: 9.6mm / 0.38"; Rivet Plate Thickness: 0.5-4.5mm / 0.02"-0.18"; Package Included: 5pcs x Rivet nuts

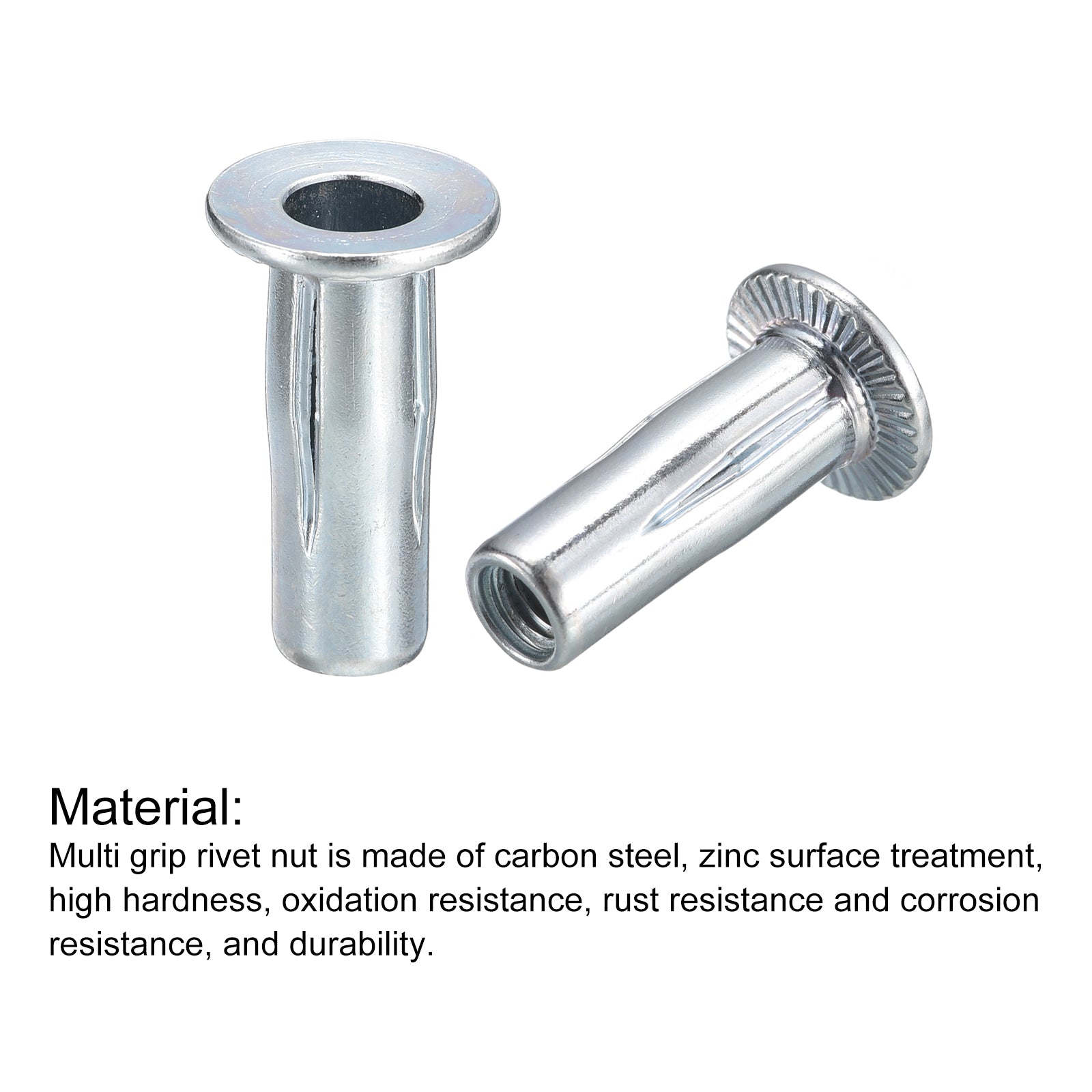

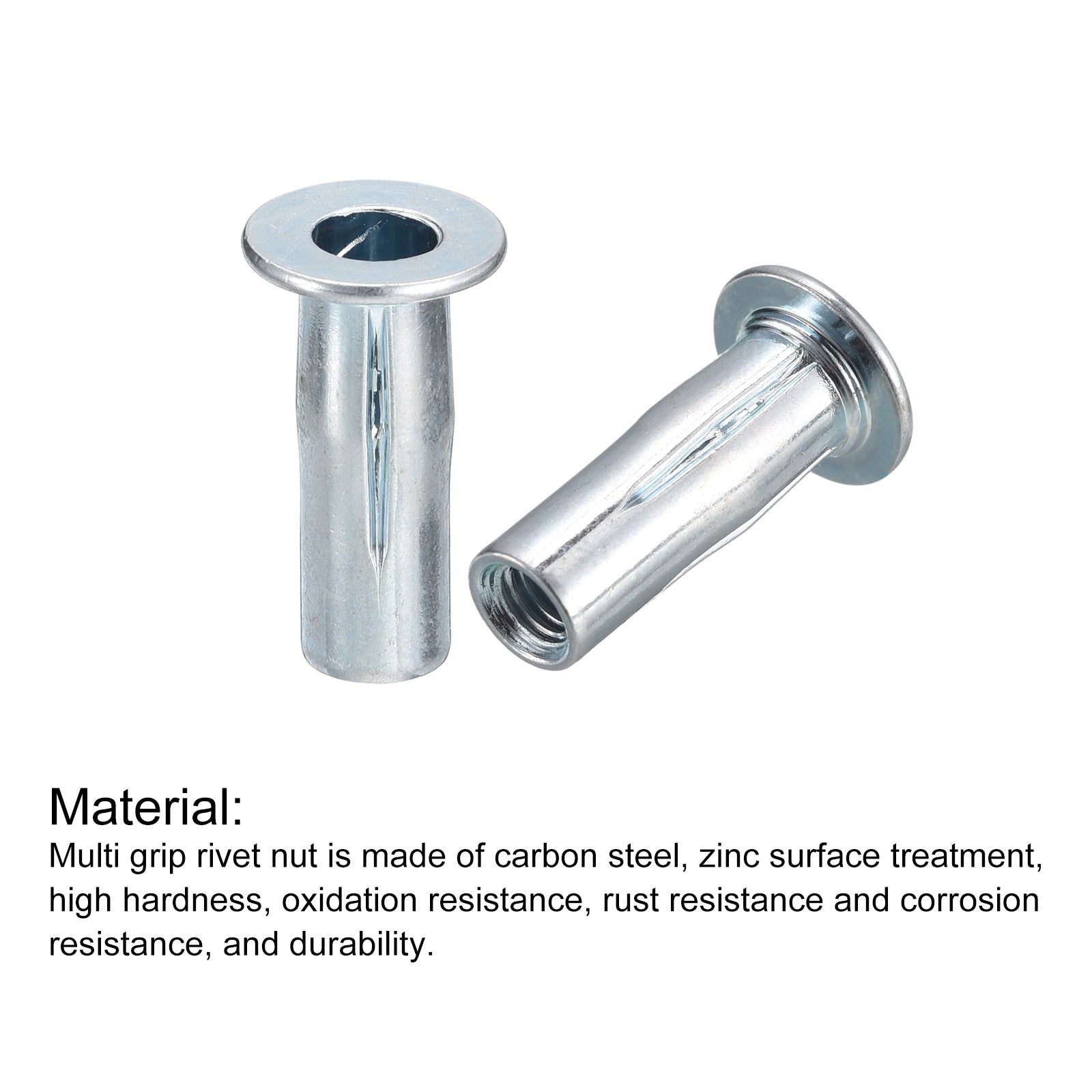

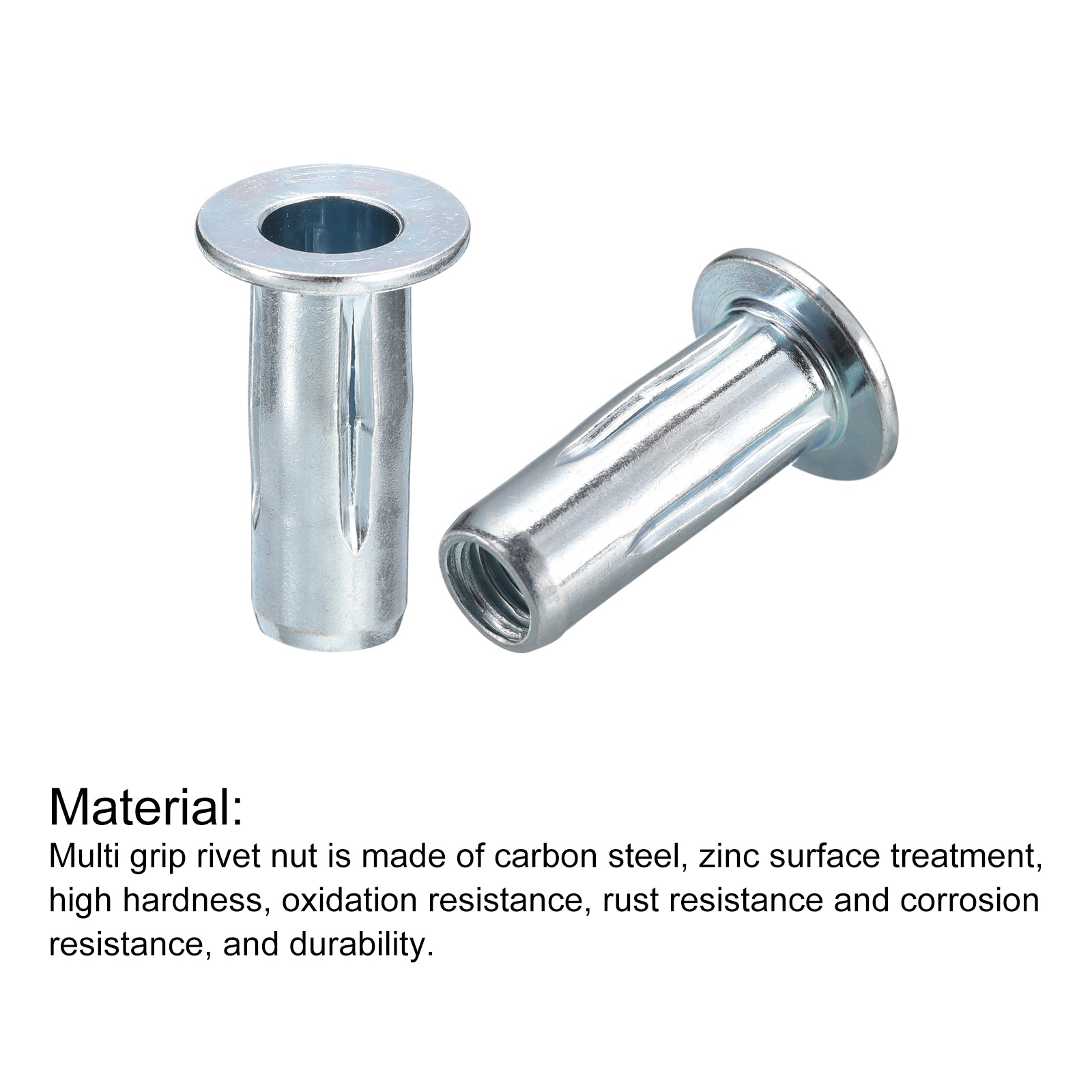

  • Material: Multi grip rivet nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.

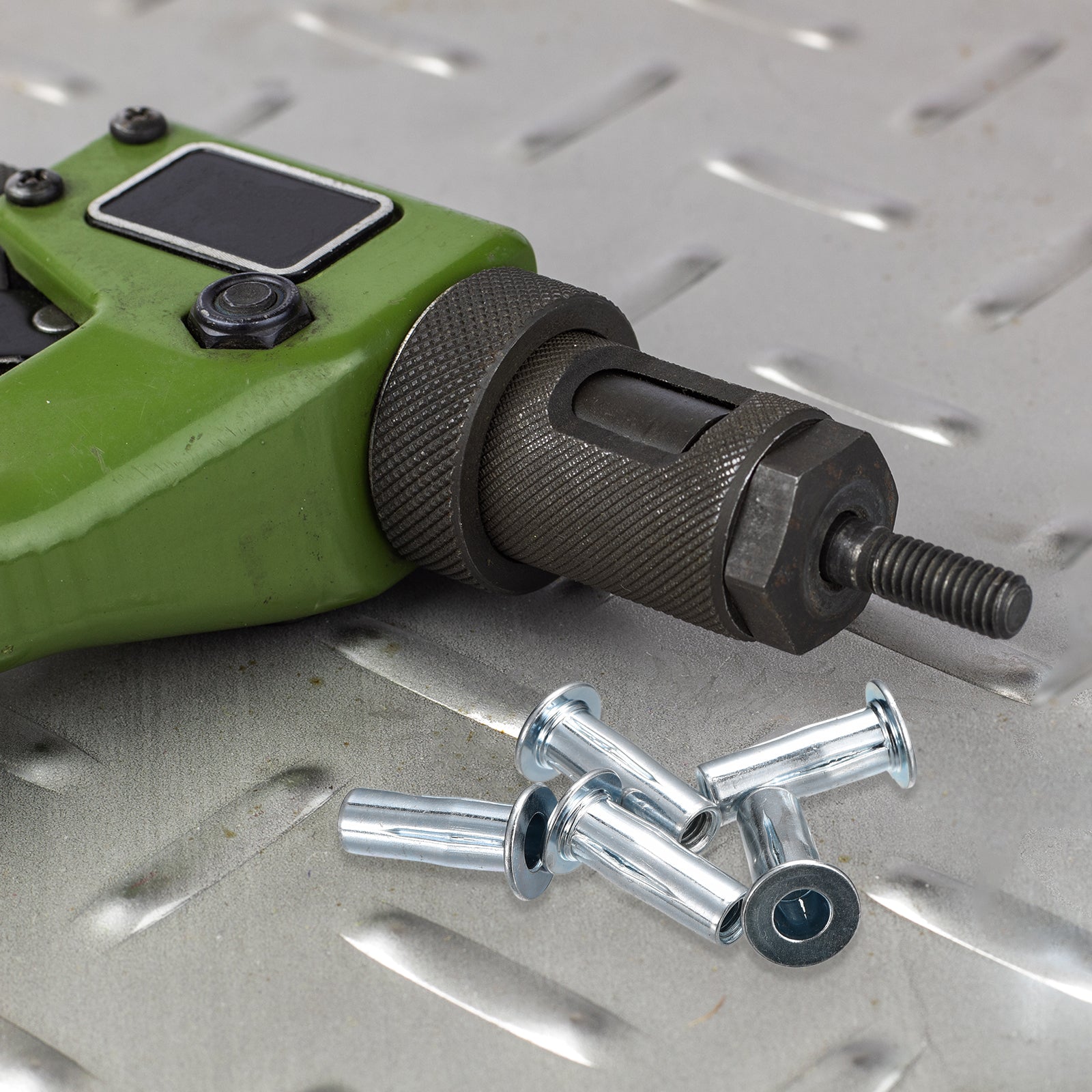

  • Easy to use: Drill a suitable hole according to the size, then insert the jack nut with a tool to pull the bolt so that it expands and binds firmly to the substrate. The expanded head of the nut is larger and can be securely fastened to the plate, it has good load-bearing capacity.
  • Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.
  • Thread Diameter: M5; Pitch: 0.8mm; Total Length: 22mm / 0.87"; Head Size: 12.7 x 1mm / 0.5" x 0.04"(D*T)
  • In stock, ready to ship
Cart
Cart
About this item
  • Rod Diameter(Drill Hole Size): 7.5mm / 0.3"; Length after Riveting: 9.6mm / 0.38"; Rivet Plate Thickness: 0.5-4.5mm / 0.02"-0.18"; Package Included: 5pcs x Rivet nuts
  • Material: Multi grip rivet nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.
  • Easy to use: Drill a suitable hole according to the size, then insert the jack nut with a tool to pull the bolt so that it expands and binds firmly to the substrate. The expanded head of the nut is larger and can be securely fastened to the plate, it has good load-bearing capacity.
  • Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.
  • Thread Diameter: M5; Pitch: 0.8mm; Total Length: 22mm / 0.87"; Head Size: 12.7 x 1mm / 0.5" x 0.04"(D*T)
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
Description:
1. Material: Multi grip rivet nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.
2. Easy to use: Drill a suitable hole according to the size, then insert the pre-bulbed rivet nut and tighten the locking nut with the rivet tool.
3. Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.

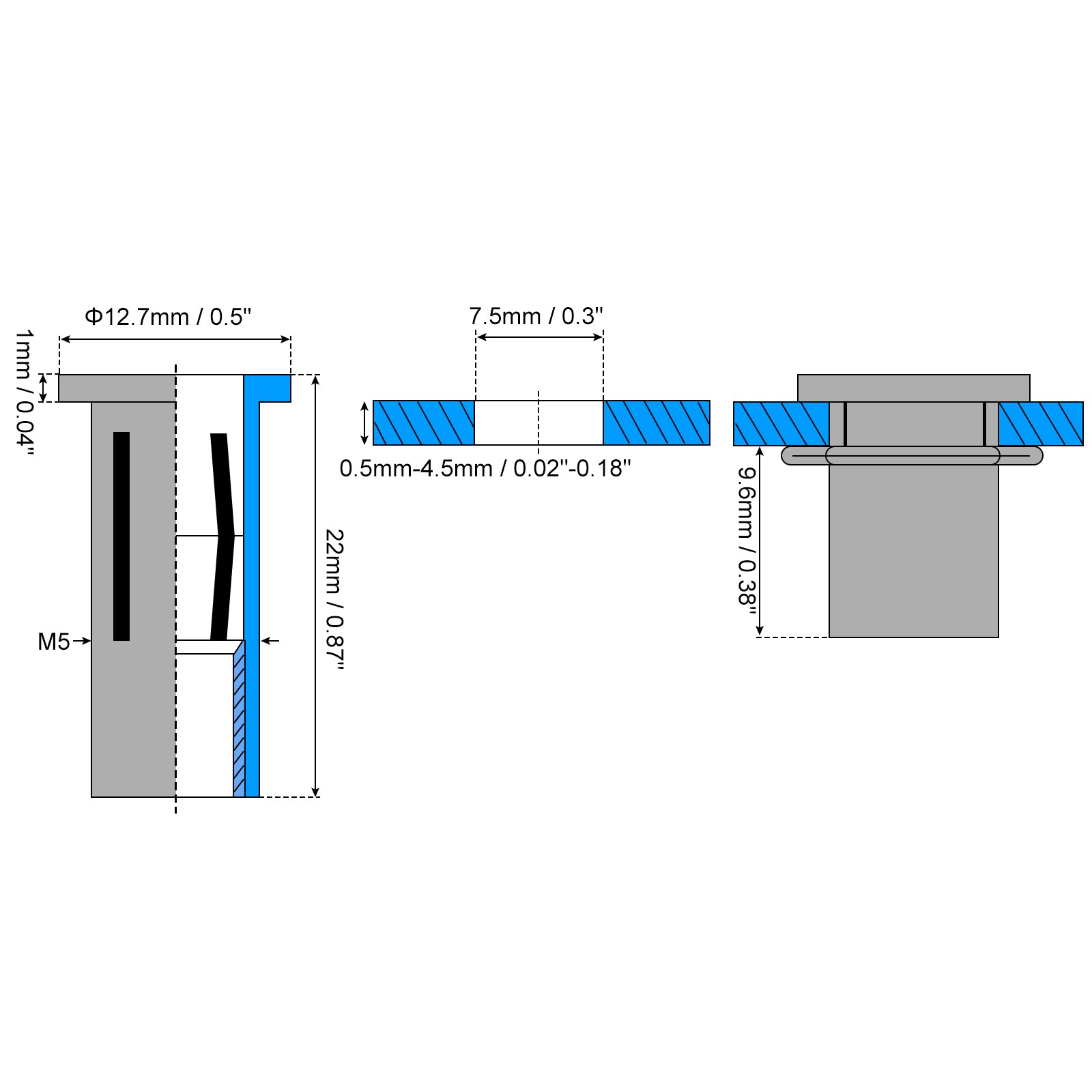

Specifications:
Material: Carbon Steel
Finish: Zinc plated
Performance Grade: 4.8
Thread Diameter: M5
Pitch: 0.8mm
Total Length: 22mm / 0.87"
Head Size: 12.7 x 1mm / 0.5" x 0.04"(D*T)
Rod Diameter(Drill Hole Size): 7.5mm / 0.3"
Length after Riveting: 9.6mm / 0.38"
Rivet Plate Thickness: 0.5-4.5mm / 0.02"-0.18"

Package Included:

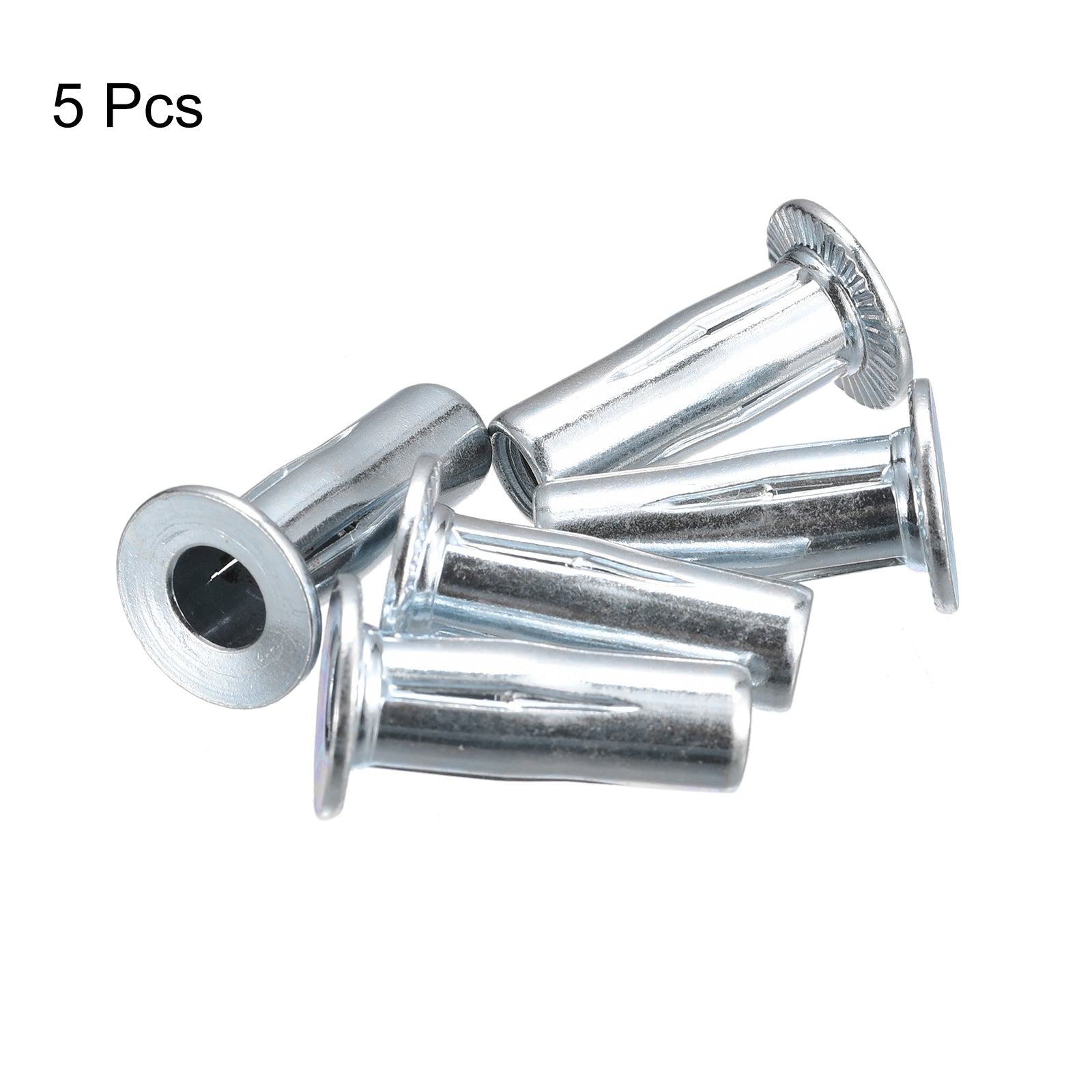

5pcs x Rivet nuts
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$6.28 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $30 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:
1. Material: Multi grip rivet nut is made of carbon steel, zinc surface treatment, high hardness, oxidation resistance, rust resistance and corrosion resistance, and durability.
2. Easy to use: Drill a suitable hole according to the size, then insert the pre-bulbed rivet nut and tighten the locking nut with the rivet tool.
3. Application: Rivet nuts can be firmly fixed on thin sheet metal to provide tight screw locking force, such as sheet metal or non-metallic materials, plastics, wood, etc. Widely used in industry, construction, furniture, electrical appliances, equipment, and so on.

Specifications:
Material: Carbon Steel
Finish: Zinc plated
Performance Grade: 4.8
Thread Diameter: M5
Pitch: 0.8mm
Total Length: 22mm / 0.87"
Head Size: 12.7 x 1mm / 0.5" x 0.04"(D*T)
Rod Diameter(Drill Hole Size): 7.5mm / 0.3"
Length after Riveting: 9.6mm / 0.38"
Rivet Plate Thickness: 0.5-4.5mm / 0.02"-0.18"

Package Included:
5pcs x Rivet nuts
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
