Harfington 4mm Shank 1.5mm x 10mm Solid Carbide 3 Flutes Square End Mill Milling Cutter

4mm Shank 1.5mm x 10mm Solid Carbide 3 Flutes Square End Mill Milling Cutter

ID:1310055
ID:1310055
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

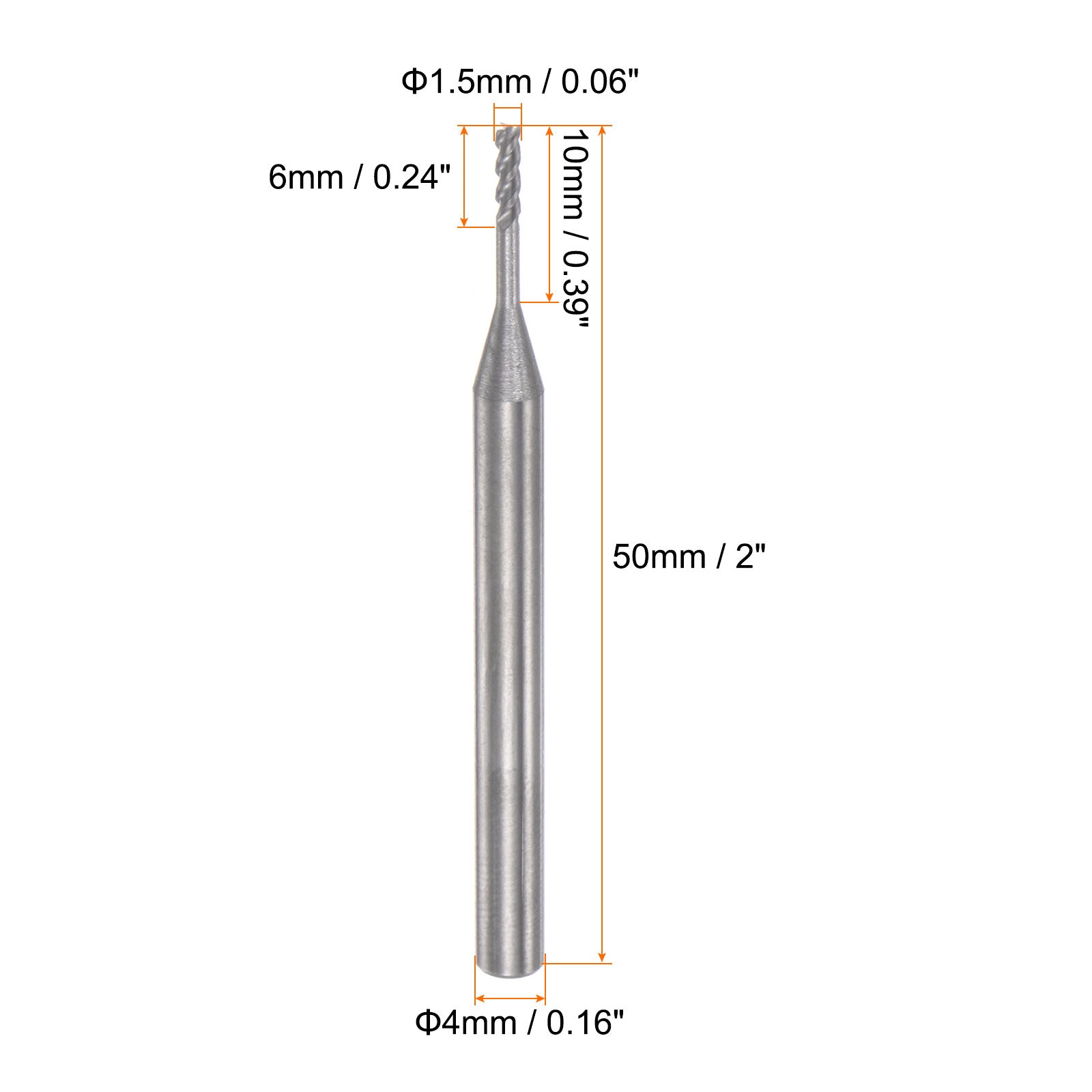

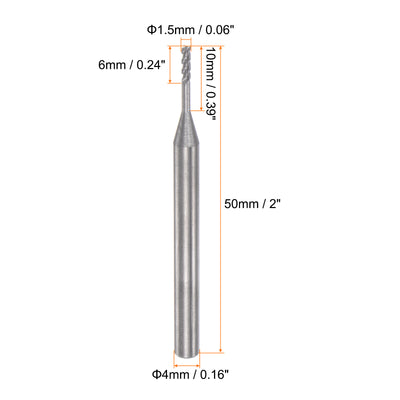

  • Size - Cutting diameter: 1.5mm / 0.06"; effective cutting length: 10mm / 0.39"; cutting edge length: 6mm / 0.24"; shank diameter: 4mm / 0.16"; overall length: 50mm / 2"; cutting hardness (max.): HRC55; number of flutes: 3 flutes; end cut type: square end
  • Material - Made of super fine grain carbide, the end mill cutter has high hardness (HRC92), high strength, wear resistance, and bending resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel.
  • Features - Square end cut, 3-flute design, large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness.
  • Applications - Suitable for cutting stainless steel, carbon steel, malleable cast iron, alloy steel, die steel, tool steel etc.. The end mill has an extended neck (long reach) that provides additional reach and clearance for machining deep or hard-to-reach areas.
  • Note - Use on CNC machining centers, CNC machine tools, precision engraving machines and other equipment. The longer the length of the tool clamped by the chuck, the better. Select an appropriate feed rate and cutting speed to improve the tool life.
About this item
  • Size - Cutting diameter: 1.5mm / 0.06"; effective cutting length: 10mm / 0.39"; cutting edge length: 6mm / 0.24"; shank diameter: 4mm / 0.16"; overall length: 50mm / 2"; cutting hardness (max.): HRC55; number of flutes: 3 flutes; end cut type: square end
  • Material - Made of super fine grain carbide, the end mill cutter has high hardness (HRC92), high strength, wear resistance, and bending resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel.
  • Features - Square end cut, 3-flute design, large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness.
  • Applications - Suitable for cutting stainless steel, carbon steel, malleable cast iron, alloy steel, die steel, tool steel etc.. The end mill has an extended neck (long reach) that provides additional reach and clearance for machining deep or hard-to-reach areas.
  • Note - Use on CNC machining centers, CNC machine tools, precision engraving machines and other equipment. The longer the length of the tool clamped by the chuck, the better. Select an appropriate feed rate and cutting speed to improve the tool life.
Specification

Specification

SKU
a22091700ux0651
Pkg.Qty
1
Material
Carbide,Titanium Coated
Cutting Dia.
4mm
Cutting Flute Length
6mm
Shank Dia.
4mm
Overall Length
50mm
Cutting Flute Quantity
3
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. Made of super fine grain carbide, the end mill has high hardness (HRC92), high strength, wear resistance, and bending resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel. The passivation treatment greatly increases corrosion resistance and wear resistance.

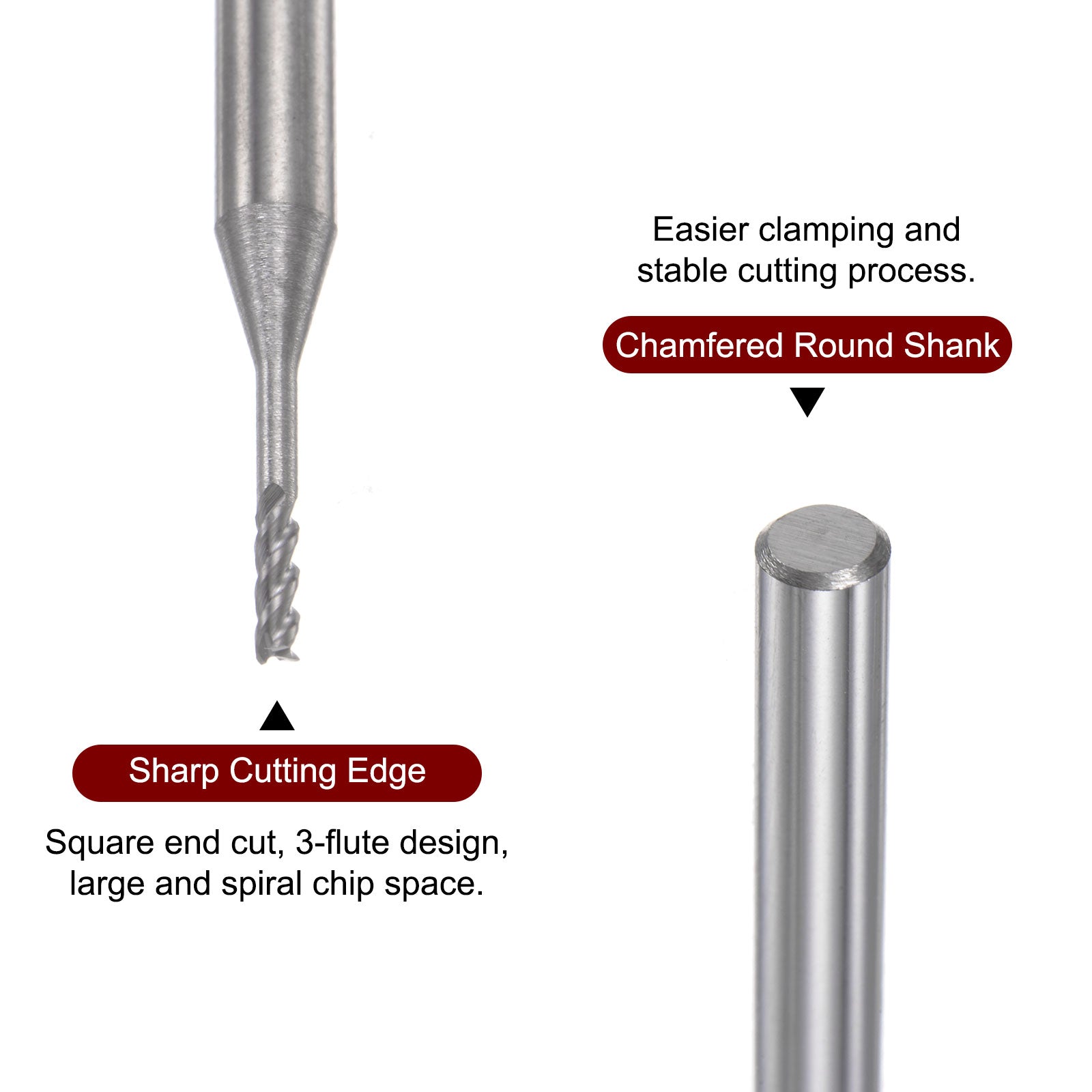

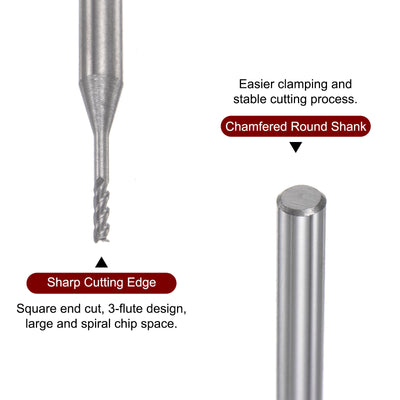

  2. Features square end cut, 3-flute design, large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. Designed with the base substrate without any coatings, good for general purpose milling.

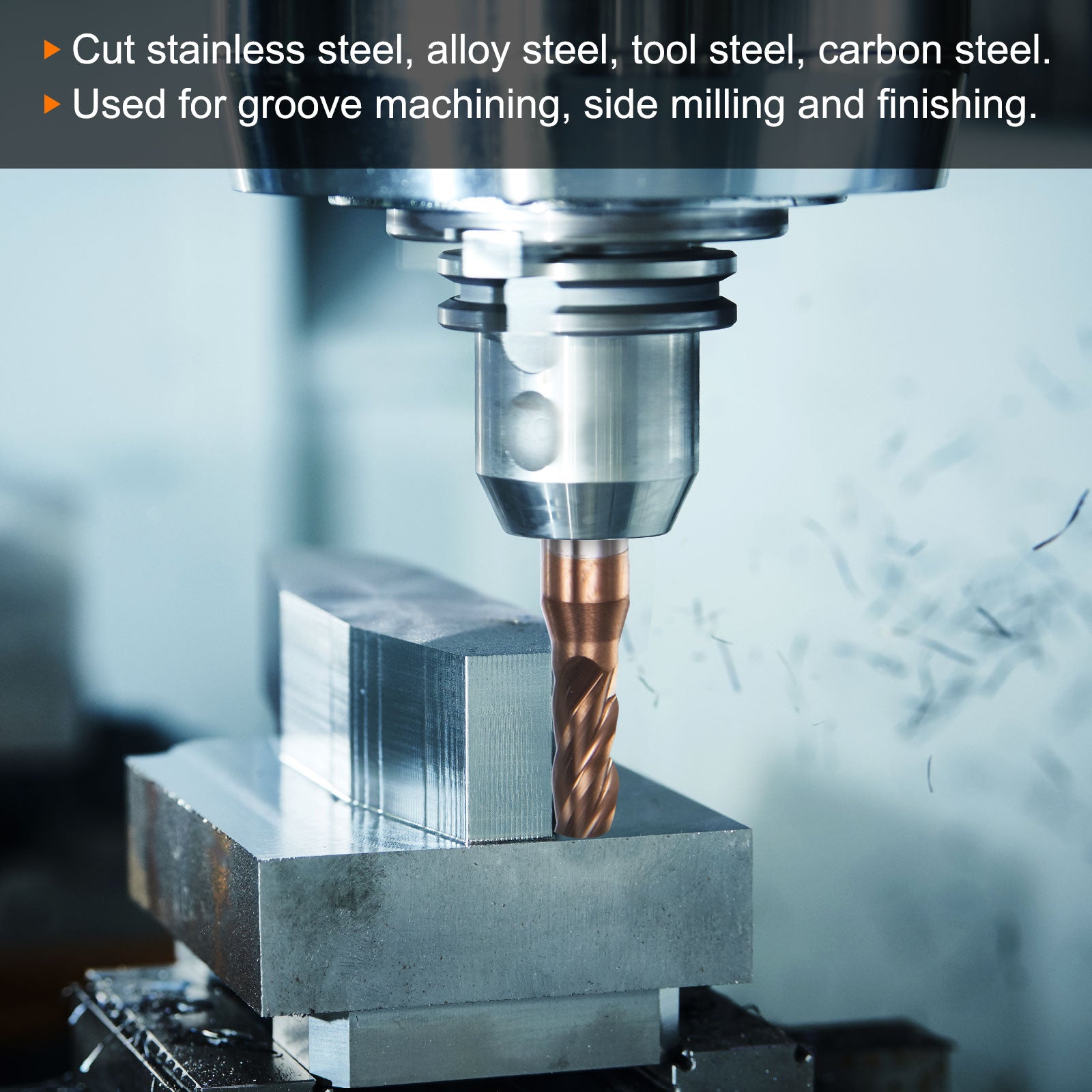

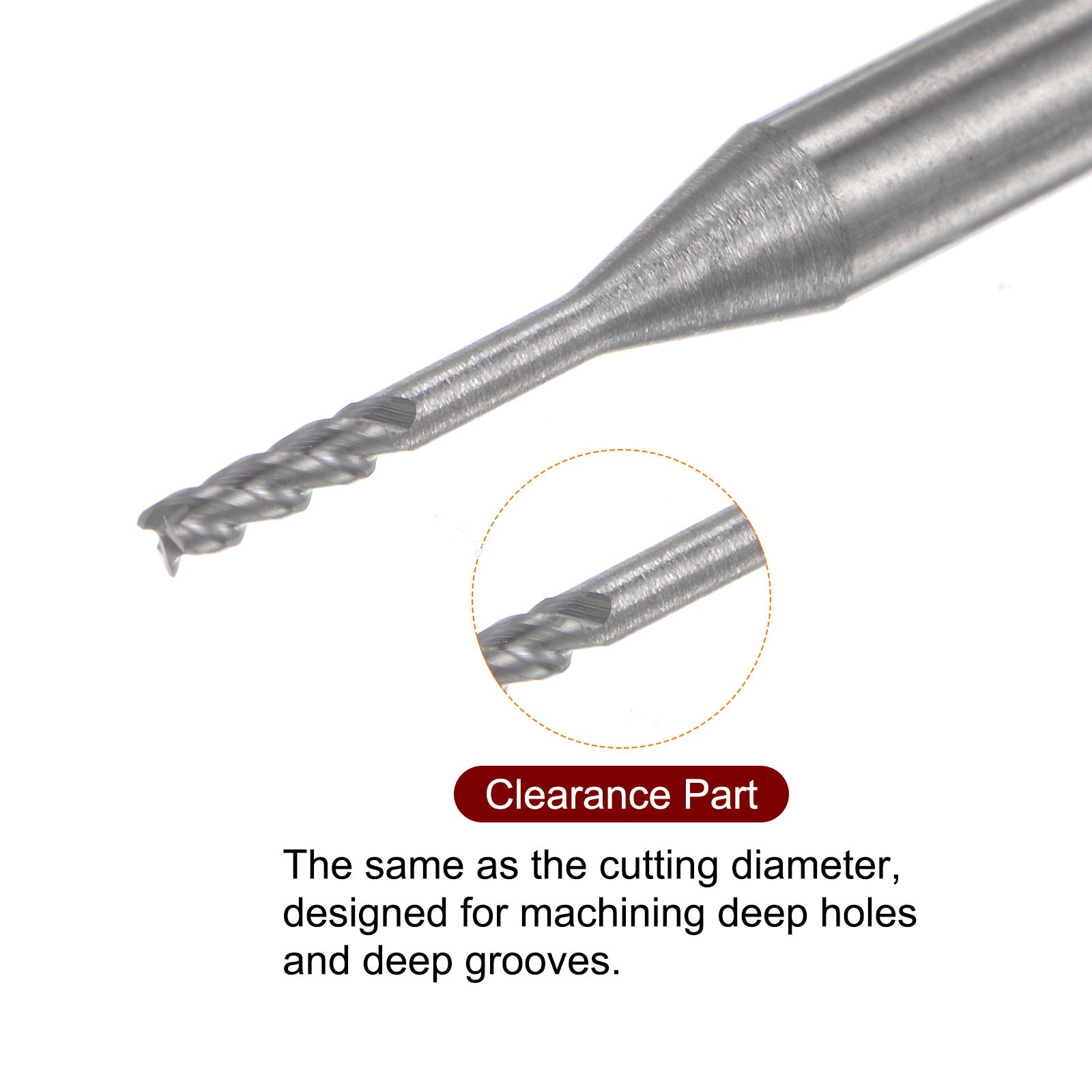

  3. Suitable for cutting stainless steel, carbon steel, malleable cast iron, alloy steel, die steel, tool steel etc.. The clearance part is the same as the cutting diameter, specially designed for machining deep holes and deep grooves. Used for groove machining, side milling and finishing.
  4. Use on CNC machining centers, CNC machine tools, precision engraving machines and other equipment. Universal chamfered round shank for easier clamping and stable cutting process.The longer the length of the tool clamped by the chuck, the better.
  5. Notice: If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life. Combined with the material to be processed, select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
US$8.86 US$8.86/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Cutting Dia. Cutting Flute Length Shank Dia. Overall Length Cutting Flute Quantity Material Pkg.Qty ID Price Qty
4mm 6mm 4mm 50mm 3 Carbide,Titanium Coated 1 1310055 US$8.86
Products Cutting Dia. Cutting Flute Length Shank Dia. Overall Length Cutting Flute Quantity Material Pkg.Qty ID Price Qty
4mm 6mm 4mm 50mm 3 Carbide,Titanium Coated 1 1310055 US$8.86
18mm 3mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218328 US$10.72
4mm 3mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218341 US$10.72
4mm 3mm 4mm 50mm 4 Carbide,Titanium Coated 1 1309987 US$8.86
4mm 3mm 4mm 50mm 4 Carbide,Titanium Coated 1 1309988 US$8.86
4mm 3mm 4mm 50mm 3 Carbide,Titanium Coated 1 1310048 US$8.86
4mm 6mm 4mm 50mm 2 Carbide,Titanium Coated 1 1310027 US$8.86
4mm 6mm 4mm 50mm 2 Carbide,Titanium Coated 1 1310035 US$8.86
4mm 6mm 4mm 50mm 3 Carbide,Titanium Coated 1 1309970 US$8.86
4mm 6mm 4mm 50mm 4 Carbide,Titanium Coated 1 1310006 US$8.86
4mm 7mm 4mm 50mm 2 Carbide,Titanium Coated 1 1310031 US$8.86
4mm 7mm 4mm 50mm 2 Carbide,Titanium Coated 1 1310025 US$8.86
4mm 4mm 4mm 50mm 2 Carbide,Titanium Coated 1 1310033 US$8.86
4mm 4mm 4mm 50mm 2 Carbide,Titanium Coated 1 1310016 US$8.86
4mm 9mm 4mm 50mm 4 Carbide,Titanium Coated 1 1310010 US$8.86
12mm 3mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218332 US$10.72
12mm 3mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218327 US$10.72
20mm 4mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218355 US$10.72
20mm 10mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218378 US$10.72
20mm 3mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218352 US$10.72
2mm 1mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218377 US$10.72
3mm 1mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218383 US$10.72
3mm 2mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218402 US$10.72
6mm 1mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218386 US$10.72
8mm 2mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218403 US$10.72
8mm 5mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218350 US$10.72
16mm 6mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218346 US$10.72
25mm 7mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218373 US$10.72
25mm 4mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218338 US$10.72
25mm 3mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218359 US$10.72
10mm 2mm 4mm 50mm 2 Carbide,Titanium Plated 1 1218325 US$10.72
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

  1. Made of super fine grain carbide, the end mill has high hardness (HRC92), high strength, wear resistance, and bending resistance. With good milling and cutting performance, carbide can run at higher speed than high-speed steel. The passivation treatment greatly increases corrosion resistance and wear resistance.
  2. Features square end cut, 3-flute design, large and spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. Designed with the base substrate without any coatings, good for general purpose milling.
  3. Suitable for cutting stainless steel, carbon steel, malleable cast iron, alloy steel, die steel, tool steel etc.. The clearance part is the same as the cutting diameter, specially designed for machining deep holes and deep grooves. Used for groove machining, side milling and finishing.
  4. Use on CNC machining centers, CNC machine tools, precision engraving machines and other equipment. Universal chamfered round shank for easier clamping and stable cutting process.The longer the length of the tool clamped by the chuck, the better.
  5. Notice: If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life. Combined with the material to be processed, select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
