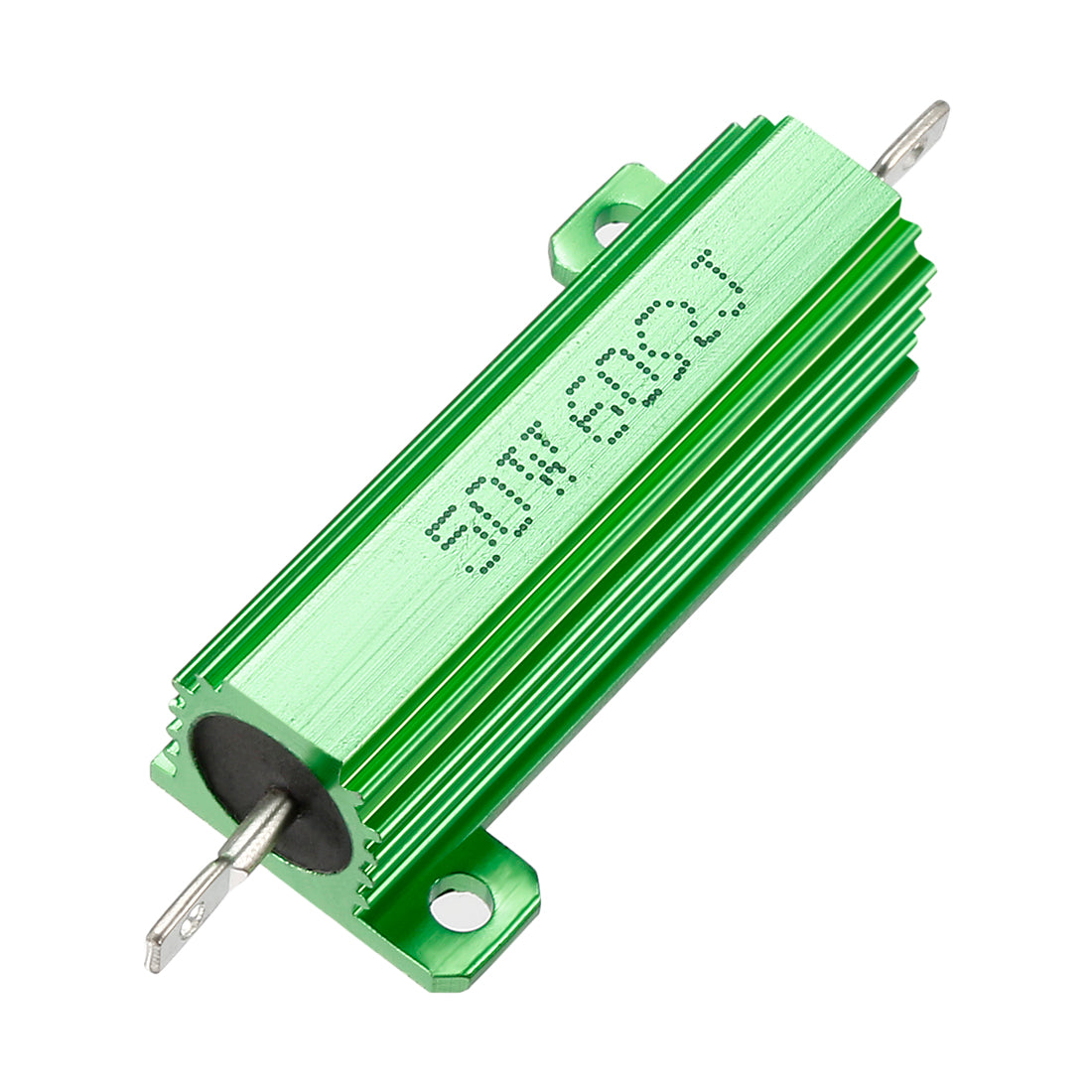

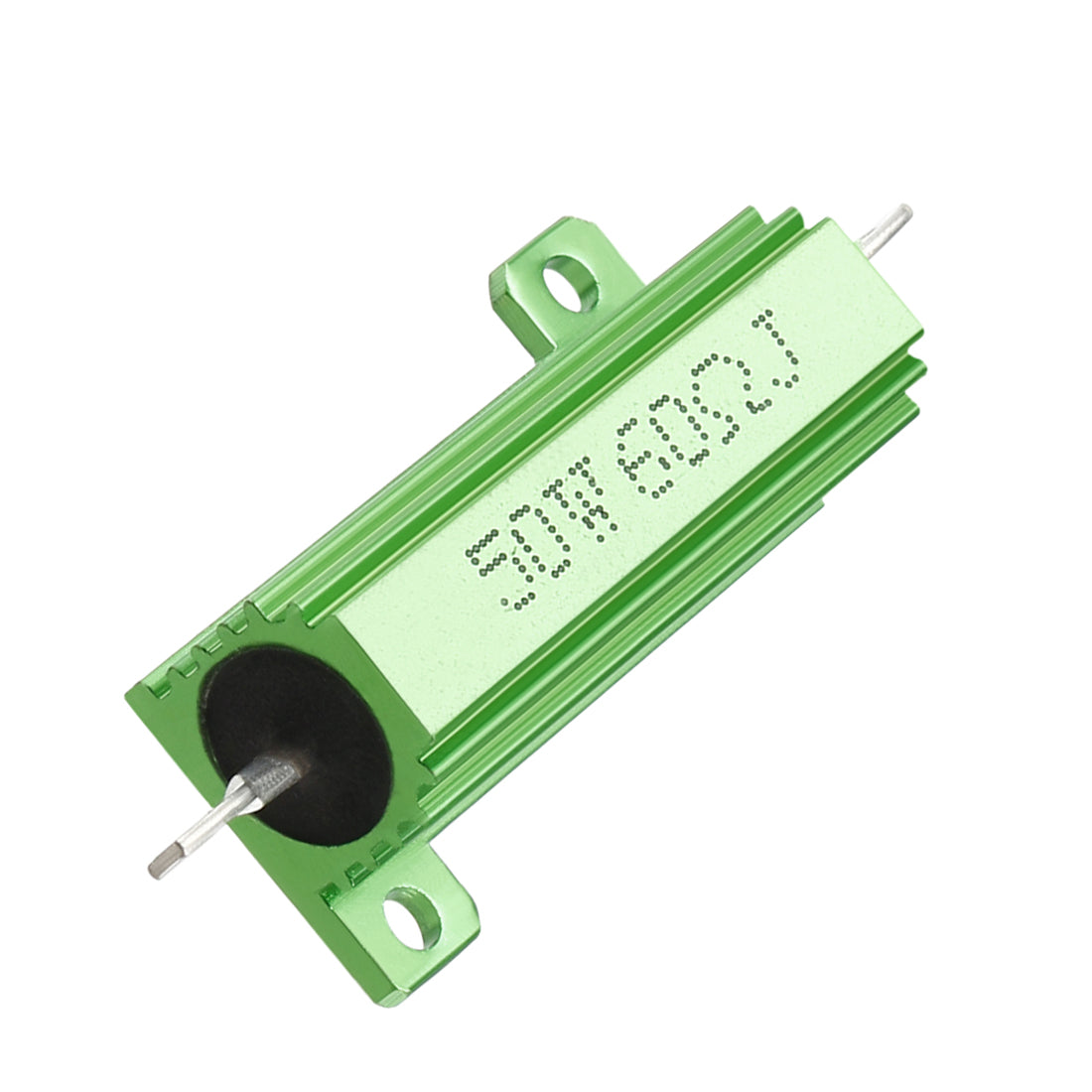

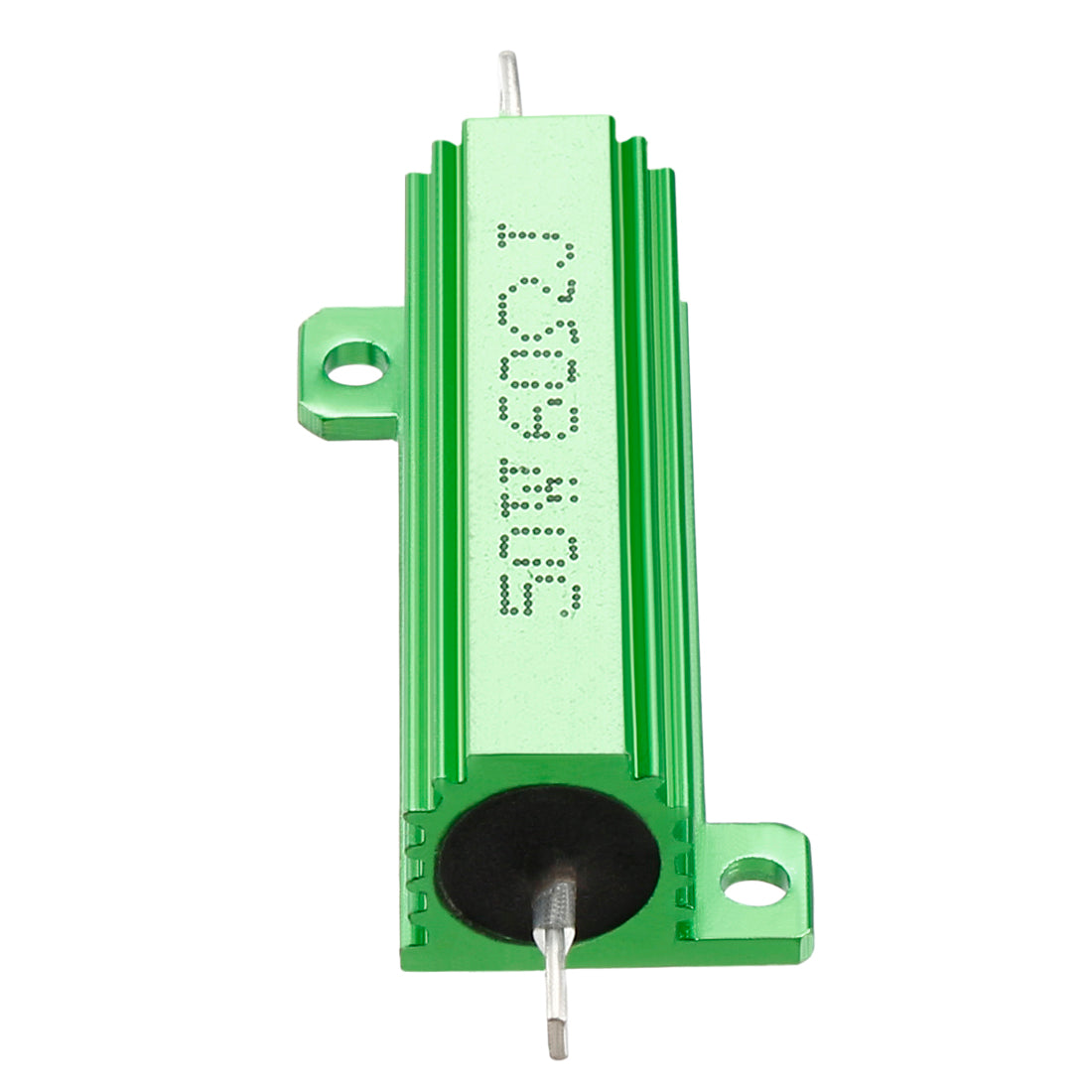

Harfington Uxcell 50W 60 Ohm 5% Aluminum Housing Resistor Screw  Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs

Uxcell 50W 60 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs

ID:1174831
ID:1174831
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 50 Watt and 60 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
  • Aluminum Housed. An insulated cover on the wounded wires would suppress the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 50W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
  • Board length 1.96 inches(49.8mm) with two 3.5mm mounting hole, and 2 terminals for a connection.
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
About this item
  • 50 Watt and 60 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
  • Aluminum Housed. An insulated cover on the wounded wires would suppress the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 50W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
  • Board length 1.96 inches(49.8mm) with two 3.5mm mounting hole, and 2 terminals for a connection.
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

50 Watt 60 Ohm Aluminum Case Resistor with 5% Tolerance

Power: 50W

Resistance: 60 ohm

Tolerance: 5%

Connection Type: Rods

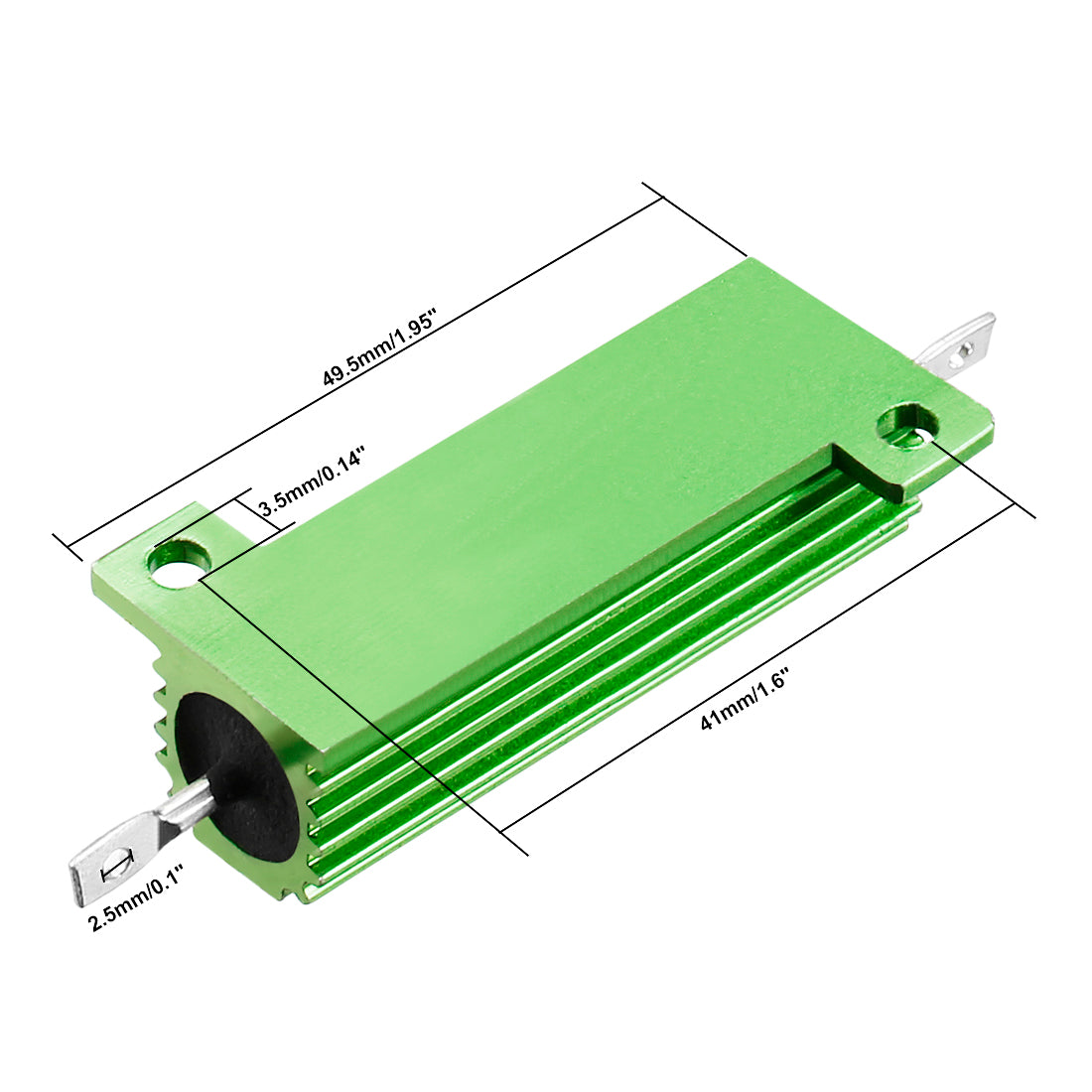

Board Length: 49.8mm

Mounting Hole Diameter: 3.5mm

Distance Between Mounting Hole: 41mm

Materials: Nickel Alloys Wire Wound Resistor with Aluminum Case

Color: Green

Package Content: 1 pcs 50W 60 ohm Aluminum Resistor

Suggestion:

a. The load resistor will get huge hot, please don't touch it when the resistor is working.Because alumnium resistor is a braking device which transfers Electric energy to Thermal energy.This is a normal physical phenomenon.

b. The load resistor should be mounted on metal board, not on flammable board such as plastic board,rubber,paper,wood and etc.

c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.
  • If you choose a 30% increase in rated power, you must add a heat sink device.
  • If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.

d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.

US$6.58 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 50W 60 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1174831 US$6.45
Products Title ID Price Qty
Uxcell 50W 60 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1174831 US$6.45
Uxcell 2 Pcs Aluminum Case Resistor 100W 22 Ohm Wirewound Green for LED Replacement Converter 100W 22RJ 1159649 US$7.49
Uxcell 50W 6.8 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 Pcs 1160170 US$7.98
Uxcell 50W 2k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1160171 US$7.83
Uxcell 50W 3.9k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1160173 US$7.89
Uxcell 50W 7.5 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1157676 US$6.58
Uxcell 50W 1.8 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1157691 US$7.83
Uxcell 50W 1.5k Ohm 5% Aluminum Housing Resistor Screw Tap Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1174839 US$7.88
Uxcell 2 Pcs Aluminum Case Resistor 100W 10 Ohm Wirewound Green for LED Replacement Converter 100W 10RJ 1089432 US$6.81
Uxcell Aluminum Case Resistor 100W 60 Ohm Wirewound Green for LED Replacement Converter 1109635 US$6.78
Uxcell 50W 820 Ohm 5% Aluminum Housing Resistor Screw Tap Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 Pcs 1109714 US$8.02
Uxcell Aluminum Case Resistor 100W 10K Ohm Wirewound Green for LED Replacement Converter 100W 10KRJ 1072508 US$6.76
Uxcell 2 Pcs Aluminum Case Resistor 100W 800 Ohm Wirewound Green for LED Replacement Converter 100W 800RJ 1085237 US$8.56
Uxcell Aluminum Case Resistor 100W 33 Ohm Wirewound Green for LED Replacement Converter 100W 33RJ 1080732 US$6.76
Uxcell 50W 22 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1207072 US$7.98
Uxcell 2 Pcs Aluminum Case Resistor 100W 120 Ohm Wirewound Green for LED Replacement Converter 100W 120RJ 1109634 US$8.56
Uxcell 50W 40 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105292 US$7.52
Uxcell 50W 60 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1109717 US$7.89
Uxcell 50W 20k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1207073 US$8.03
Uxcell Aluminum Case Resistor 100W 1 Ohm Wirewound Green for LED Replacement Converter 100W 1RJ 1113211 US$6.78
Uxcell 50W 2 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105284 US$7.89
Uxcell 50W 10k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105288 US$7.83
Uxcell 50W 12 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105299 US$7.83
Uxcell 2 Pcs Aluminum Case Resistor 100W 4.5 Ohm Wirewound Green for LED Replacement Converter 100W 4.5RJ 1093637 US$8.62
Uxcell Aluminum Case Resistor 100W 4.5 Ohm Wirewound Green for LED Replacement Converter 100W 4.5RJ 1174547 US$6.83
Uxcell 50W 6 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1174825 US$5.25
Uxcell 50W 30k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1174829 US$8.06
Uxcell 50W 0.2 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1174835 US$7.86
Uxcell 50W 3.9 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1174837 US$7.83
Uxcell 2 Pcs Aluminum Case Resistor 100W 300 Ohm Wirewound Green for LED Replacement Converter 100W 300RJ 1097495 US$6.83
Uxcell 50W 25k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1097659 US$7.83
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

50 Watt 60 Ohm Aluminum Case Resistor with 5% Tolerance

Power: 50W

Resistance: 60 ohm

Tolerance: 5%

Connection Type: Rods

Board Length: 49.8mm

Mounting Hole Diameter: 3.5mm

Distance Between Mounting Hole: 41mm

Materials: Nickel Alloys Wire Wound Resistor with Aluminum Case

Color: Green

Package Content: 1 pcs 50W 60 ohm Aluminum Resistor

Suggestion:

a. The load resistor will get huge hot, please don't touch it when the resistor is working.Because alumnium resistor is a braking device which transfers Electric energy to Thermal energy.This is a normal physical phenomenon.

b. The load resistor should be mounted on metal board, not on flammable board such as plastic board,rubber,paper,wood and etc.

c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.
  • If you choose a 30% increase in rated power, you must add a heat sink device.
  • If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.

d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.
