Harfington Worm Gear Set 1 Module 1:20 Reduction Rate(Gear-8mm Bore, Rod 8mm Bore)

Worm Gear Set 1 Module 1:20 Reduction Rate(Gear-8mm Bore, Rod 8mm Bore)

ID:
$14.79 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

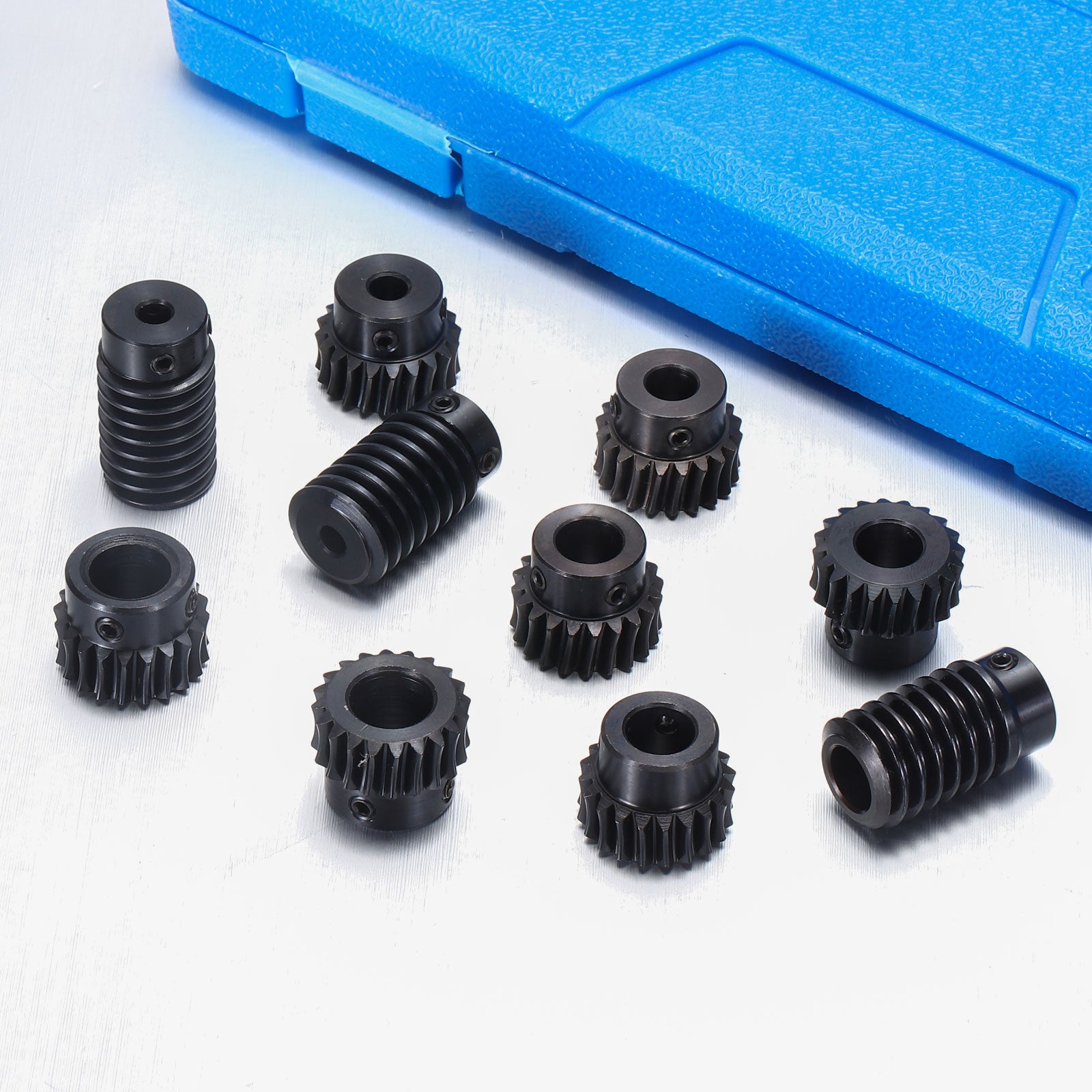

  • Package Includes: 1 set alloy steel worm gear set, 1:20 reduction rate, 1 module 20 teeth, 8mm gear bore, and 8mm rod bore.
  • Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems
  • Feature: The worm gear set features high-precision transmission with a transmission ratio of 1:20, ensuring smooth and precise power transmission. The gear has a step design for easy installation and positioning, reducing installation errors
  • Installation: Align the gear holes and worm with the axis and fix them with fixings (such as keys or pins). Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening
  • Application: Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions
  • In stock, ready to ship
Cart
Cart
About this item
  • Package Includes: 1 set alloy steel worm gear set, 1:20 reduction rate, 1 module 20 teeth, 8mm gear bore, and 8mm rod bore.
  • Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems
  • Feature: The worm gear set features high-precision transmission with a transmission ratio of 1:20, ensuring smooth and precise power transmission. The gear has a step design for easy installation and positioning, reducing installation errors
  • Installation: Align the gear holes and worm with the axis and fix them with fixings (such as keys or pins). Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening
  • Application: Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Descriptions:
  • Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems.
  • Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:30, ensuring smooth and precise power transmission. The B-type gear with single-head screw-lock hollow cylindrical worm design provides reliable performance.
  • Installation - Align the gear holes and worm with the axis and fix them with fixings. Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.
  • Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.
Specifications:
  • Modulus: 1
  • Gear Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4
  • Worm Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4
  • Gear Hole: 8mm (0.31")
  • Worm Hole: 8mm (0.31")
  • Gear Tooth Count: 20 Teeth
  • Worm Total Length: 32mm (1.26")
  • Worm Outer Diameter: 18mm (0.71")
  • Gear Thickness: 10mm (0.39")
  • Gear Outer Diameter: 22.8mm (0.9")
  • Center Distance: 18mm (0.71")
  • Rotation: Right
Package Includes: 1 Set x Worm Gear Set
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$14.79 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Descriptions:
  • Material - The gears and worm are made of 5140 alloy steel with a blackened oxidized surface, featuring high strength, rust prevention, good toughness, wear and torsion resistance, and strong load-bearing capacity, ensuring stable operation in mechanical transmission systems.
  • Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:30, ensuring smooth and precise power transmission. The B-type gear with single-head screw-lock hollow cylindrical worm design provides reliable performance.
  • Installation - Align the gear holes and worm with the axis and fix them with fixings. Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.
  • Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.
Specifications:
  • Modulus: 1
  • Gear Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4
  • Worm Material: Alloy Steel (ASTM/SAE):5140/(ISO):41Cr4
  • Gear Hole: 8mm (0.31")
  • Worm Hole: 8mm (0.31")
  • Gear Tooth Count: 20 Teeth
  • Worm Total Length: 32mm (1.26")
  • Worm Outer Diameter: 18mm (0.71")
  • Gear Thickness: 10mm (0.39")
  • Gear Outer Diameter: 22.8mm (0.9")
  • Center Distance: 18mm (0.71")
  • Rotation: Right
Package Includes: 1 Set x Worm Gear Set
