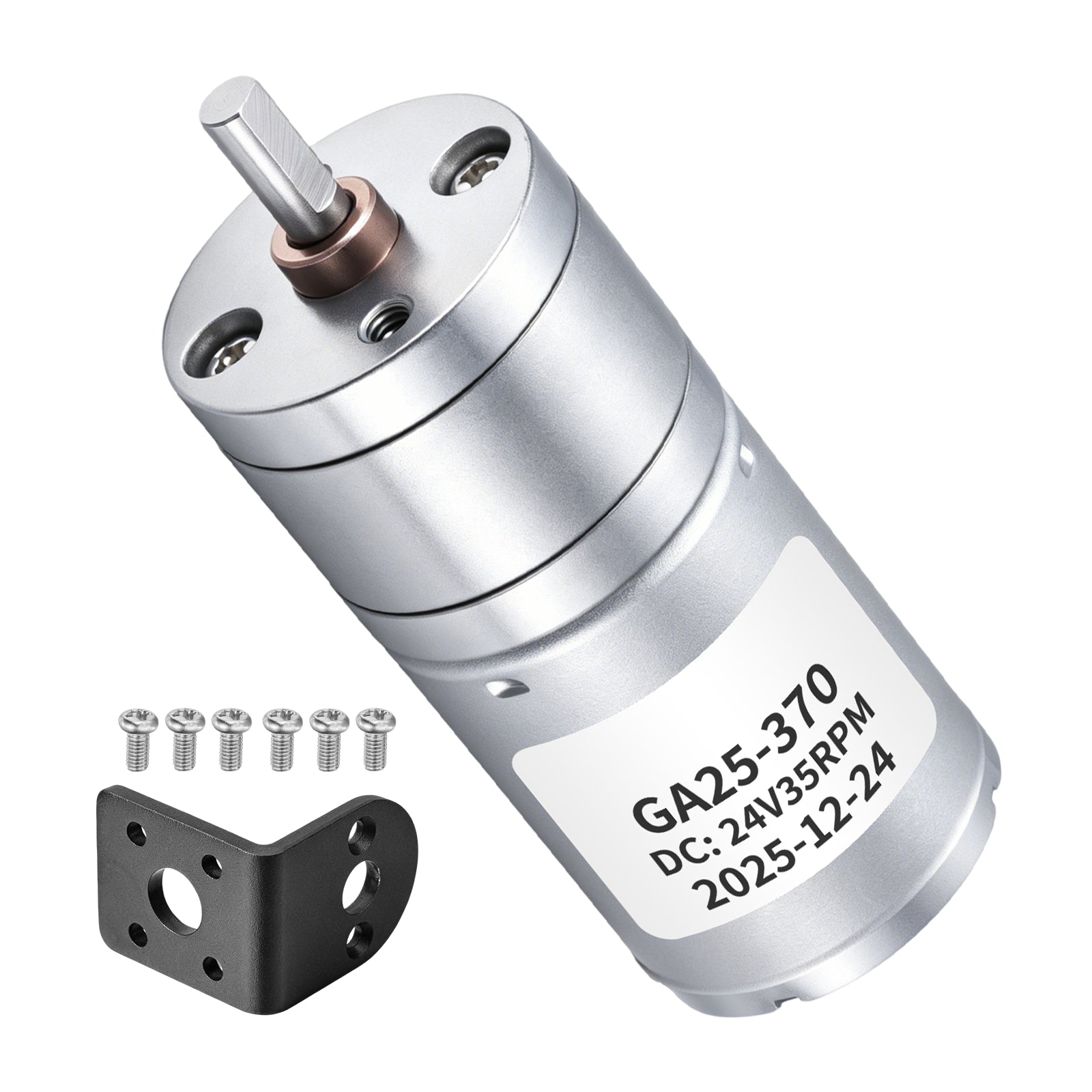

Harfington DC 24V 35RPM Gear Motor High Torque Micro Speed Reduction Geared Motor

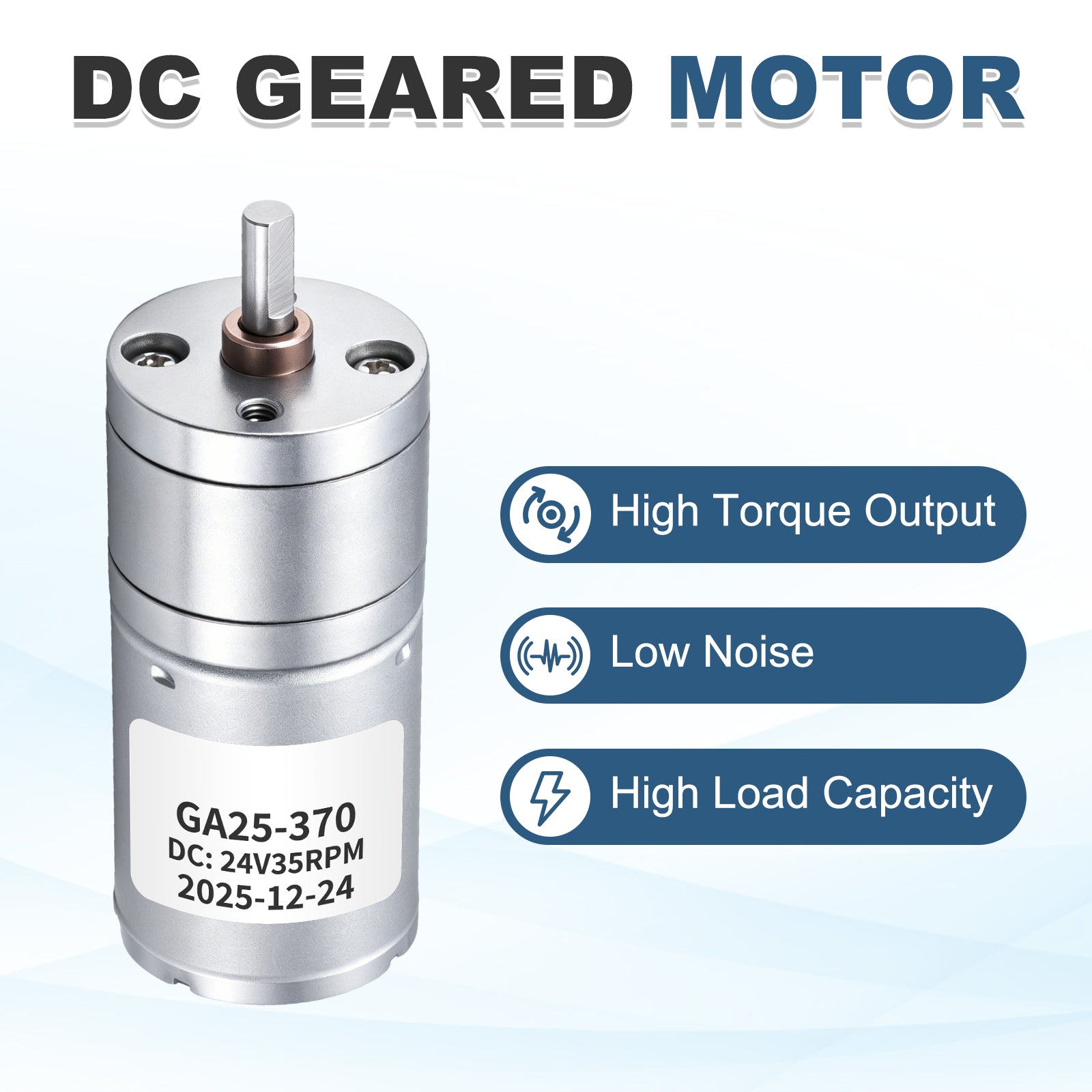

DC 24V 35RPM Gear Motor High Torque Micro Speed Reduction Geared Motor

ID:
$10.82 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • A DC geared motor is a standard type of motor that converts the high-speed rotation of an electric motor into a low-speed, high-torque output. It features a D-shaped output shaft for easy connection to mechanical components and ensures stable operation in various working environments. DC geared motors are widely used in various mechanical applications such as robots, DIY electronics, automatic doors, and vending machines.
  • Reduction Ratio: 1:171; Power: 3.6W; Rated voltage: DC 24 V; Rated Speed: 35RPM±10%; Shaft Size: 10 x 4mm / 0.39 x 0.16 Inch (LxDia); Overall Motor Dimensions: 71 x 25 x 55mm / 2.8 x 0.98 x 2.17 Inch (LxWxH); Motor Diameter: 25mm / 0.98 Inch; Bracket Size: 32.5 x 26 x 33.5mm / 1.28 x 1.02 x 1.32 Inch (LxWxH); Output Shaft Type: Center D-axis; Color: Silver Gray; Package Contents: 1pcs Gear Motor and Bracket, 6 x M3 Screws
  • This DC geared motor boasts advantages such as high torque, low noise, robust construction, and strong load capacity. Its sealed design protects internal components from dust and debris, reducing maintenance and replacement frequency. The D-shaped output shaft offers excellent toughness and shock resistance, improving bearing quality and extending motor lifespan.
  • This hermetically sealed DC geared motor is easy to install. Simply connect a suitable power source to the motor leads, align the bracket with the pre-drilled holes on the motor, and then secure it with screws. The D-shaped output shaft can be directly connected to gears, pulleys, or other transmission components to transmit torque to the target mechanical structure.
  • Before connecting to the power supply, please confirm the motor's rated voltage to prevent damage. Regularly inspect and maintain the motor.
  • In stock, ready to ship
Cart
Cart
About this item
  • A DC geared motor is a standard type of motor that converts the high-speed rotation of an electric motor into a low-speed, high-torque output. It features a D-shaped output shaft for easy connection to mechanical components and ensures stable operation in various working environments. DC geared motors are widely used in various mechanical applications such as robots, DIY electronics, automatic doors, and vending machines.
  • Reduction Ratio: 1:171; Power: 3.6W; Rated voltage: DC 24 V; Rated Speed: 35RPM±10%; Shaft Size: 10 x 4mm / 0.39 x 0.16 Inch (LxDia); Overall Motor Dimensions: 71 x 25 x 55mm / 2.8 x 0.98 x 2.17 Inch (LxWxH); Motor Diameter: 25mm / 0.98 Inch; Bracket Size: 32.5 x 26 x 33.5mm / 1.28 x 1.02 x 1.32 Inch (LxWxH); Output Shaft Type: Center D-axis; Color: Silver Gray; Package Contents: 1pcs Gear Motor and Bracket, 6 x M3 Screws
  • This DC geared motor boasts advantages such as high torque, low noise, robust construction, and strong load capacity. Its sealed design protects internal components from dust and debris, reducing maintenance and replacement frequency. The D-shaped output shaft offers excellent toughness and shock resistance, improving bearing quality and extending motor lifespan.
  • This hermetically sealed DC geared motor is easy to install. Simply connect a suitable power source to the motor leads, align the bracket with the pre-drilled holes on the motor, and then secure it with screws. The D-shaped output shaft can be directly connected to gears, pulleys, or other transmission components to transmit torque to the target mechanical structure.
  • Before connecting to the power supply, please confirm the motor's rated voltage to prevent damage. Regularly inspect and maintain the motor.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
A DC geared motor is a standard type of motor that converts the high-speed rotation of an electric motor into a low-speed, high-torque output. It features a D-shaped output shaft for easy connection to mechanical components and ensures stable operation in various working environments. DC geared motors are widely used in various mechanical applications such as robots, DIY electronics, automatic doors, and vending machines.

What will I get?

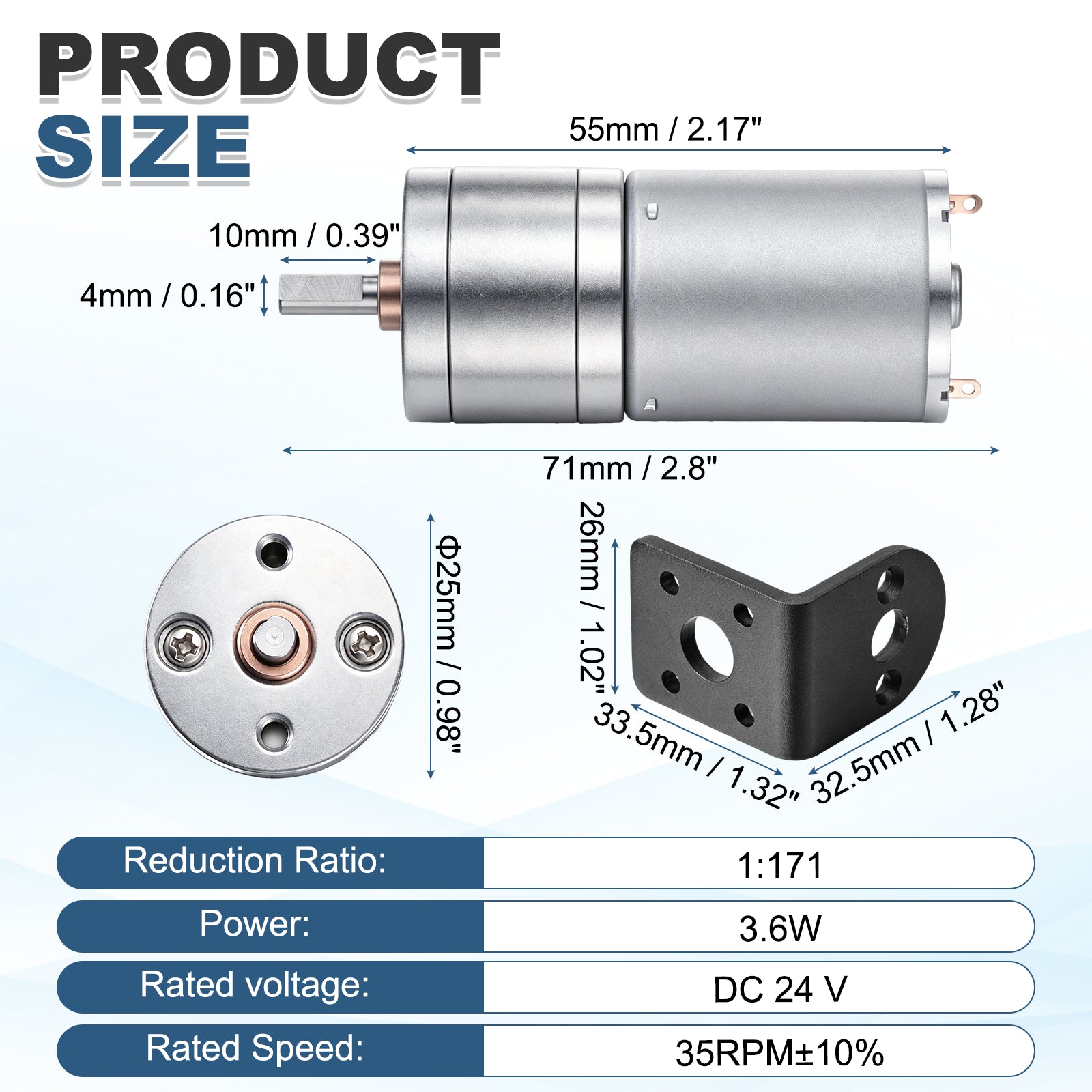

Reduction Ratio: 1:171
Power: 3.6W
Rated voltage: DC 24 V
Rated Speed: 35RPM±10%
Shaft Size: 10 x 4mm / 0.39 x 0.16 Inch (LxDia)
Overall Motor Dimensions: 71 x 25 x 55mm / 2.8 x 0.98 x 2.17 Inch (LxWxH)
Motor Diameter: 25mm / 0.98 Inch
Bracket Size: 32.5 x 26 x 33.5mm / 1.28 x 1.02 x 1.32 Inch (LxWxH)
Output Shaft Type: Center D-axis
Color: Silver Gray
Package Contents: 1pcs Gear Motor and Bracket, 6 x M3 Screws

Are there any advantages of this product?

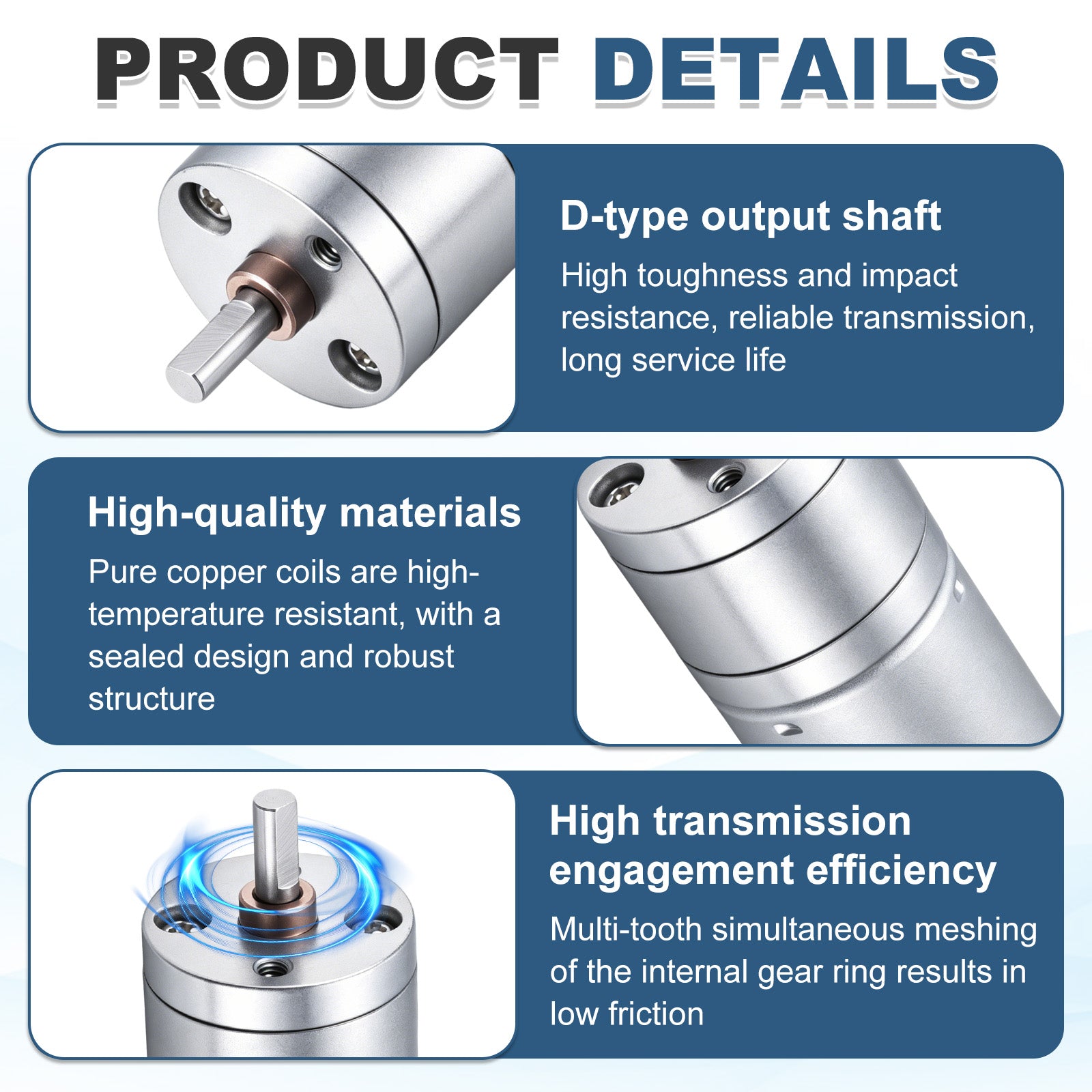

This DC geared motor boasts advantages such as high torque, low noise, robust construction, and strong load capacity. Its sealed design protects internal components from dust and debris, reducing maintenance and replacement frequency. The D-shaped output shaft offers excellent toughness and shock resistance, improving bearing quality and extending motor lifespan.

How to use it?

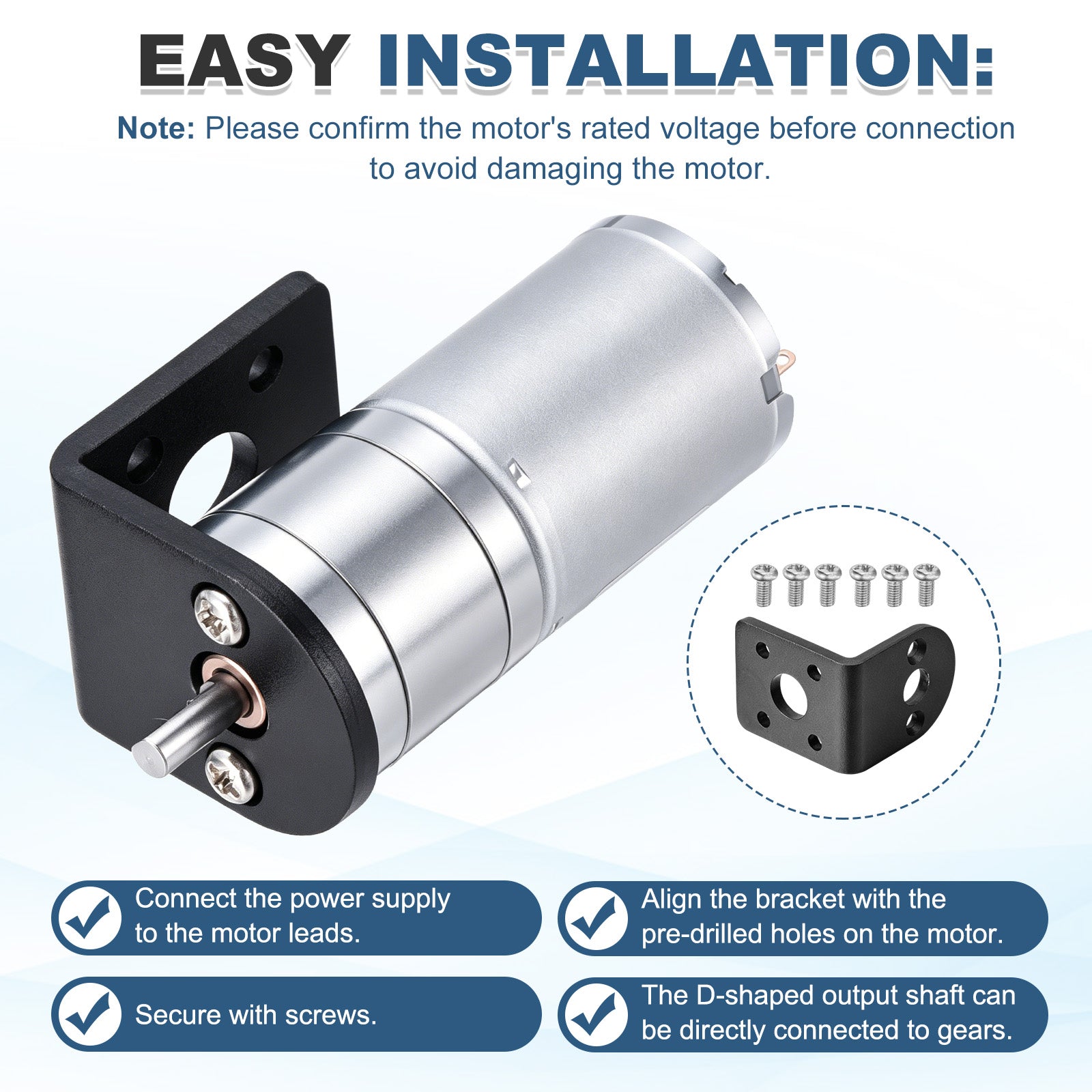

This hermetically sealed DC geared motor is easy to install. Simply connect a suitable power source to the motor leads, align the bracket with the pre-drilled holes on the motor, and then secure it with screws. The D-shaped output shaft can be directly connected to gears, pulleys, or other transmission components to transmit torque to the target mechanical structure.

What should I notice?
Before connecting to the power supply, please confirm the motorDs rated voltage to prevent damage. Regularly inspect and maintain the motor.
