Harfington 5pcs Metric Straight Fluted Thread Milling Taps Set M3 M4 M5 M6 M8 M35 HSS, Blue

5pcs Metric Straight Fluted Thread Milling Taps Set M3 M4 M5 M6 M8 M35 HSS, Blue

ID:
$12.57 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

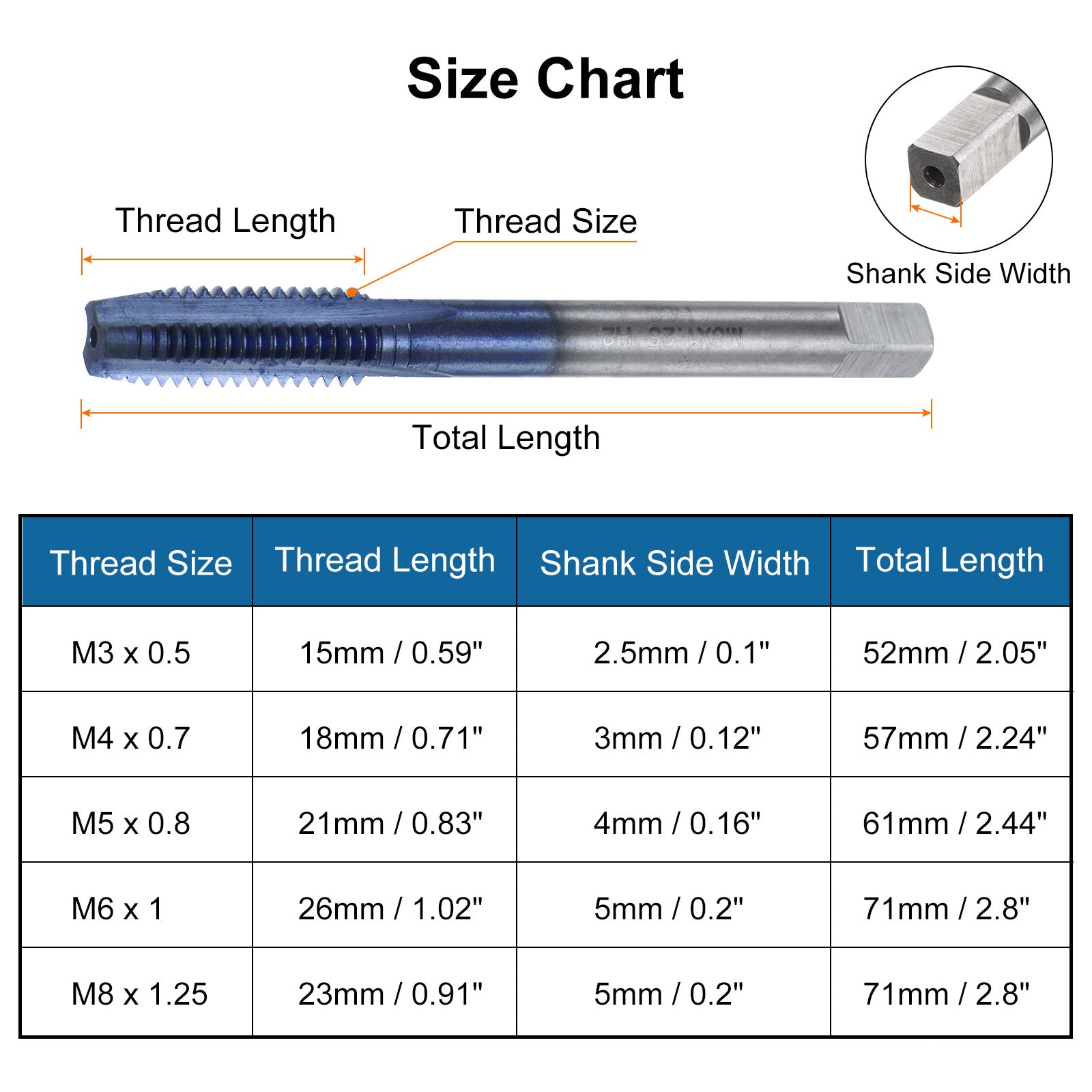

  • Size - thread size: m3 x 0.5 / m4 x 0.7 / m5 x 0.8 / m6 x 1 / m8 x 1.25 ; thread length: 15mm (0.59") / 18mm (0.71") / 21mm (0.83") / 26mm (1.02") / 23mm (0.91") ; total length: 52mm (2.05") / 57mm (2.24") / 62mm (2.44") / 71mm (2.8") / 71mm (2.8") ; shank side width: 2.5mm (0.1") / 3mm (0.12") / 4mm (0.16") / 5mm (0.2") / 5mm (0.2")

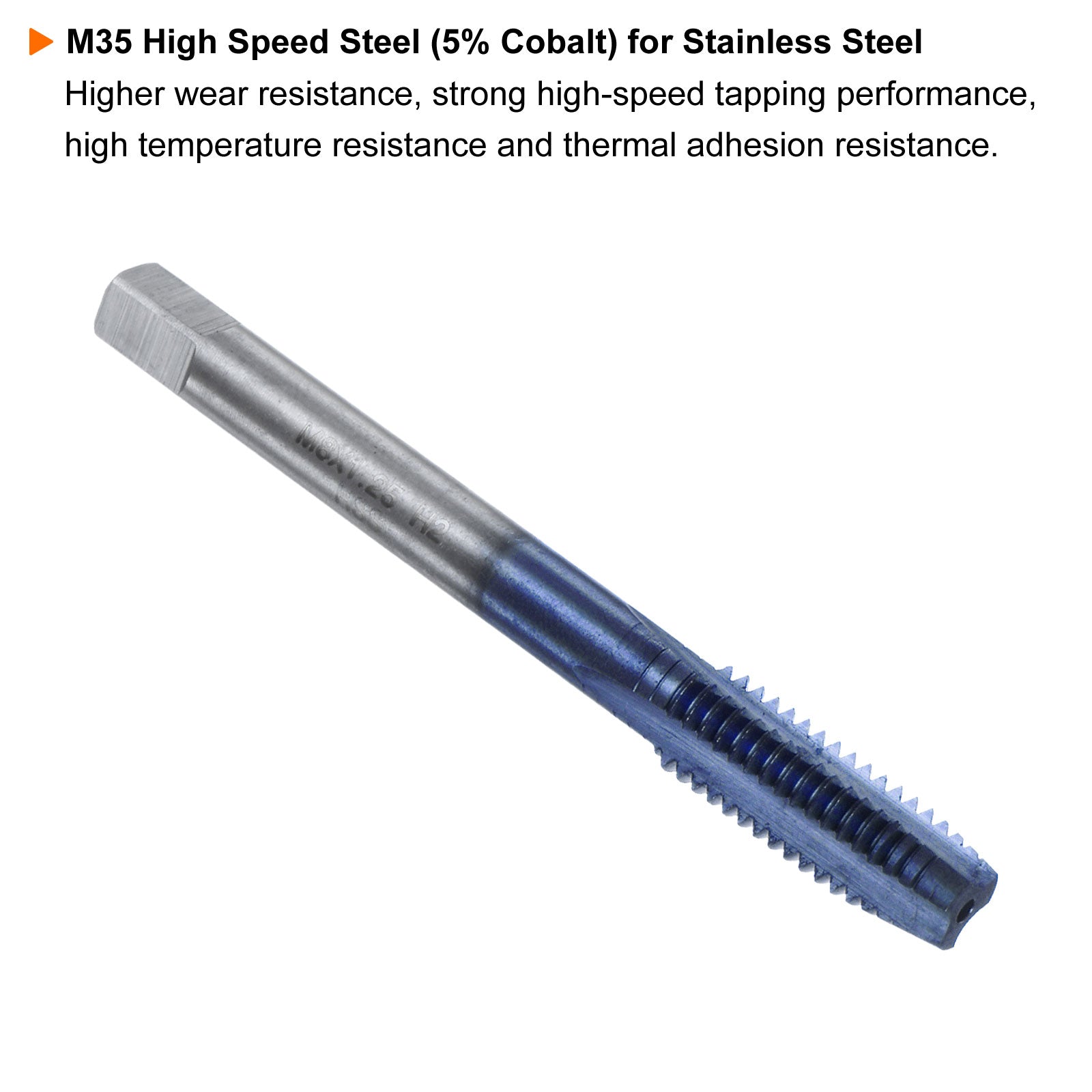

  • Material - Thread milling taps is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength, and heat resistance, allowing for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2). The titanium nitride coating provides increased hardness, wear resistance, and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation during the tapping process.

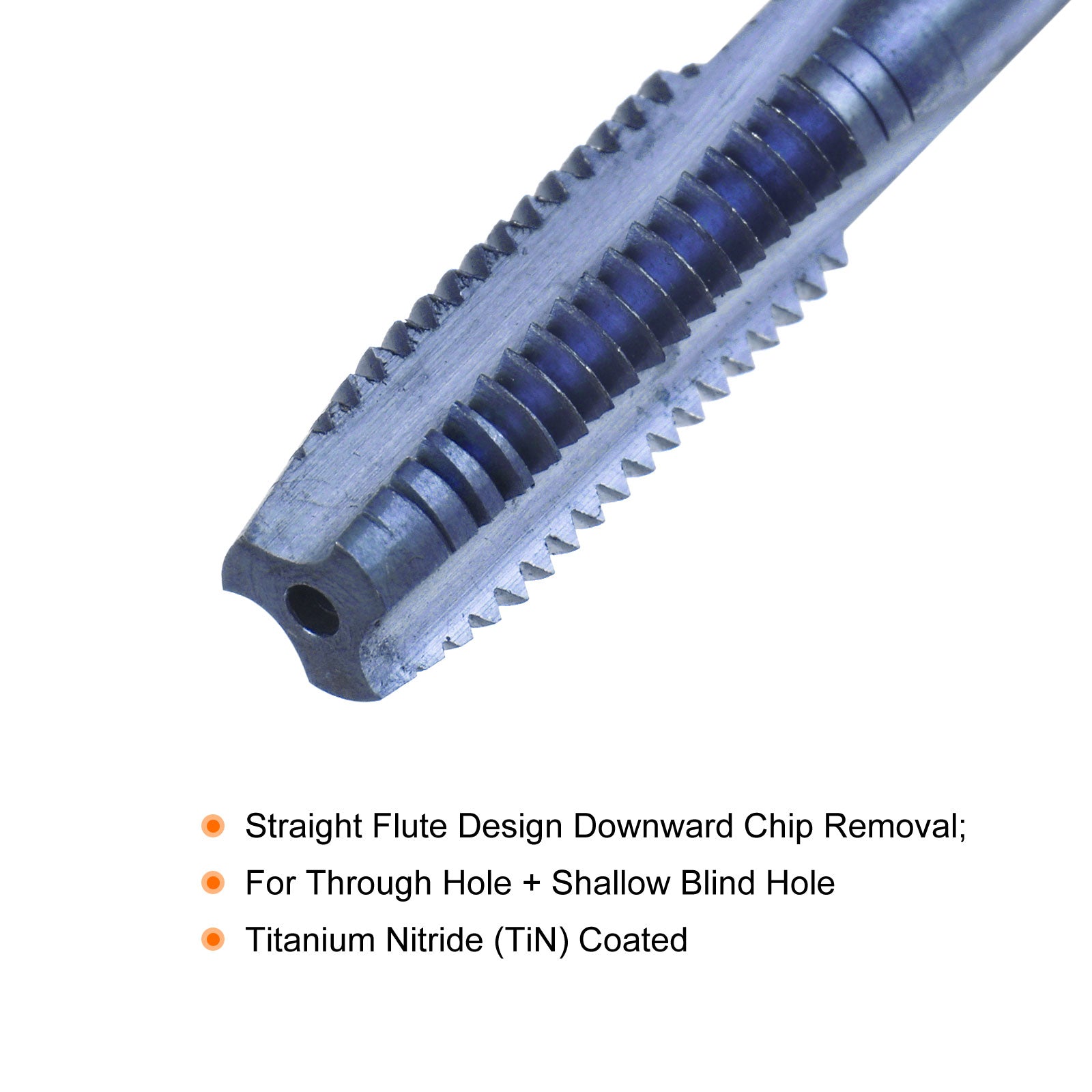

  • Feature - Straight fluted taps have a good effect on processing materials with high hardness, materials that are prone to tool wear, through and blind holes with short tapping depths. The 4 straight flute design of the tap allows for efficient chip removal during the threading process.
  • Application - Thread milling taps are versatile tools used for creating precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.

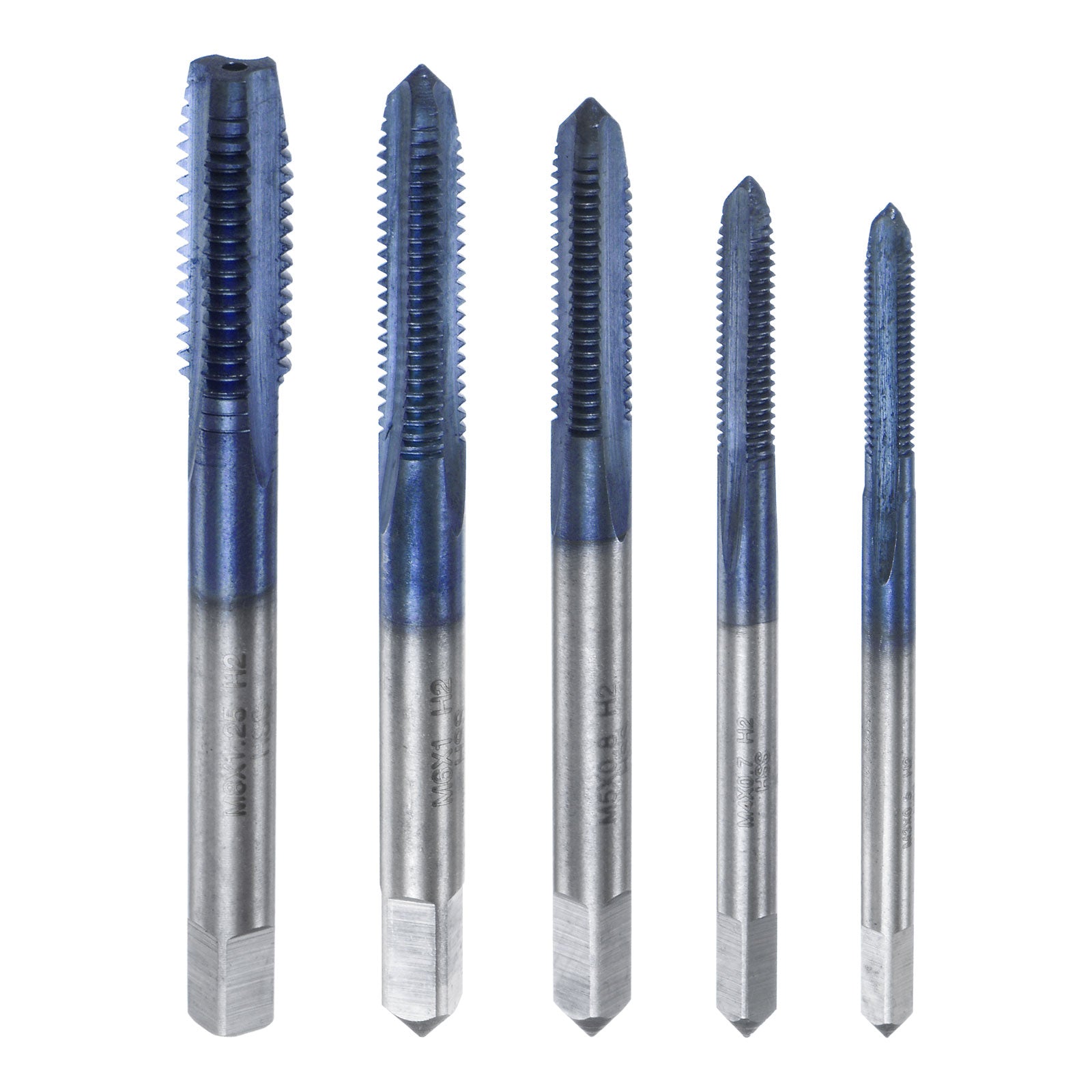

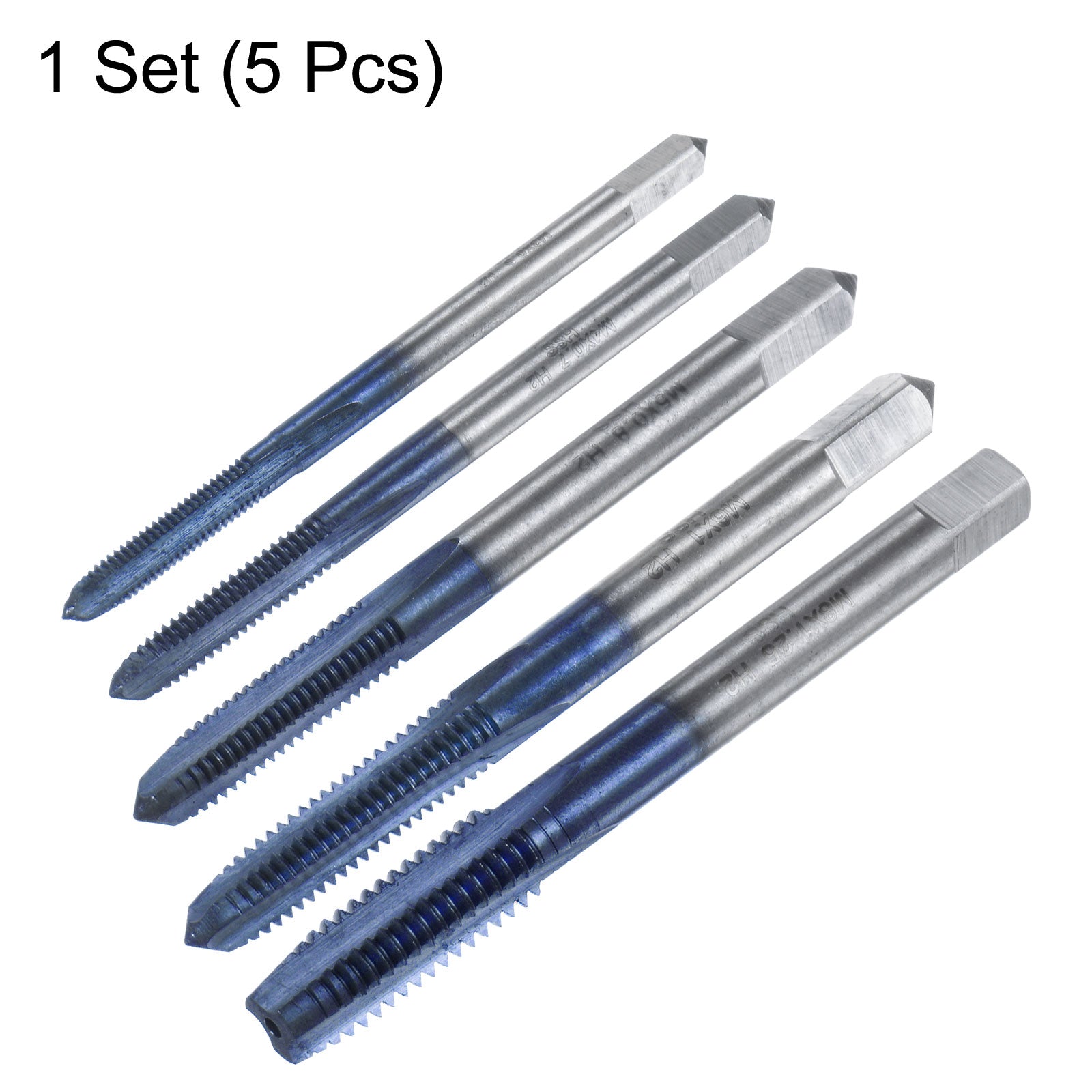

  • Package Content - 1pcs x thread milling taps m3 x 0.5 + 1pcs x thread milling taps m4 x 0.7 + 1pcs x thread milling taps m5 x 0.8 + 1pcs x thread milling taps m6 x 1 + 1pcs x thread milling taps m8 x 1.25
  • In stock, ready to ship
Cart
Cart
About this item
  • Size - thread size: m3 x 0.5 / m4 x 0.7 / m5 x 0.8 / m6 x 1 / m8 x 1.25 ; thread length: 15mm (0.59") / 18mm (0.71") / 21mm (0.83") / 26mm (1.02") / 23mm (0.91") ; total length: 52mm (2.05") / 57mm (2.24") / 62mm (2.44") / 71mm (2.8") / 71mm (2.8") ; shank side width: 2.5mm (0.1") / 3mm (0.12") / 4mm (0.16") / 5mm (0.2") / 5mm (0.2")
  • Material - Thread milling taps is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength, and heat resistance, allowing for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2). The titanium nitride coating provides increased hardness, wear resistance, and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation during the tapping process.
  • Feature - Straight fluted taps have a good effect on processing materials with high hardness, materials that are prone to tool wear, through and blind holes with short tapping depths. The 4 straight flute design of the tap allows for efficient chip removal during the threading process.
  • Application - Thread milling taps are versatile tools used for creating precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.
  • Package Content - 1pcs x thread milling taps m3 x 0.5 + 1pcs x thread milling taps m4 x 0.7 + 1pcs x thread milling taps m5 x 0.8 + 1pcs x thread milling taps m6 x 1 + 1pcs x thread milling taps m8 x 1.25
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. Thread milling taps is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength, and heat resistance, allowing for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2). The titanium nitride (TiN) coating provides increased hardness, wear resistance, and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation during the tapping process.
  2. Straight fluted taps have a good effect on processing materials with high hardness, materials that are prone to tool wear, through and blind holes with short tapping depths. The 4 straight flute design of the tap allows for efficient chip removal during the threading process.
  3. Thread milling taps are versatile tools used for creating precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.
  4. Secure the workpiece in a stable position and ensure it is properly aligned and apply lubrication. Rotate the tap clockwise while applying moderate downward pressure, ensuring it is perpendicular to the workpiece and Control speed.
  5. Note: It is not recommended to use hand or electric drill tapping. Not recommended for tapping material over 30 HRC.
