Harfington Spiral Flute Drill Tap M10 x 1.5 M35 High Speed Steel(HSS) Metric Screw,Blue

Spiral Flute Drill Tap M10 x 1.5 M35 High Speed Steel(HSS) Metric Screw,Blue

ID:
$8.60 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

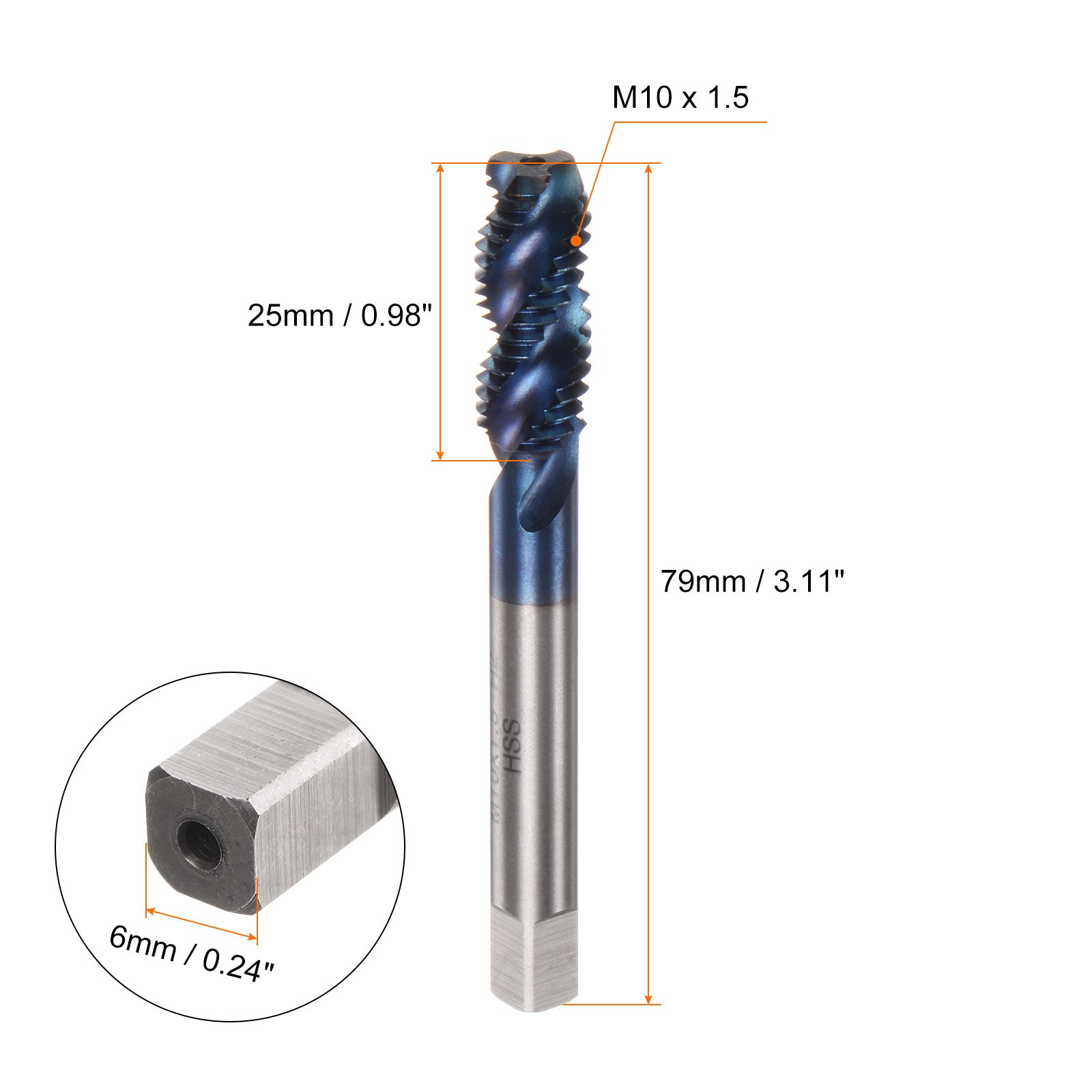

  • Size - thread size: m10 x 1.5 ; thread length: 25mm / 0.98"shank side width: 6mm / 0.24" ; total length: 79mm / 3.11"

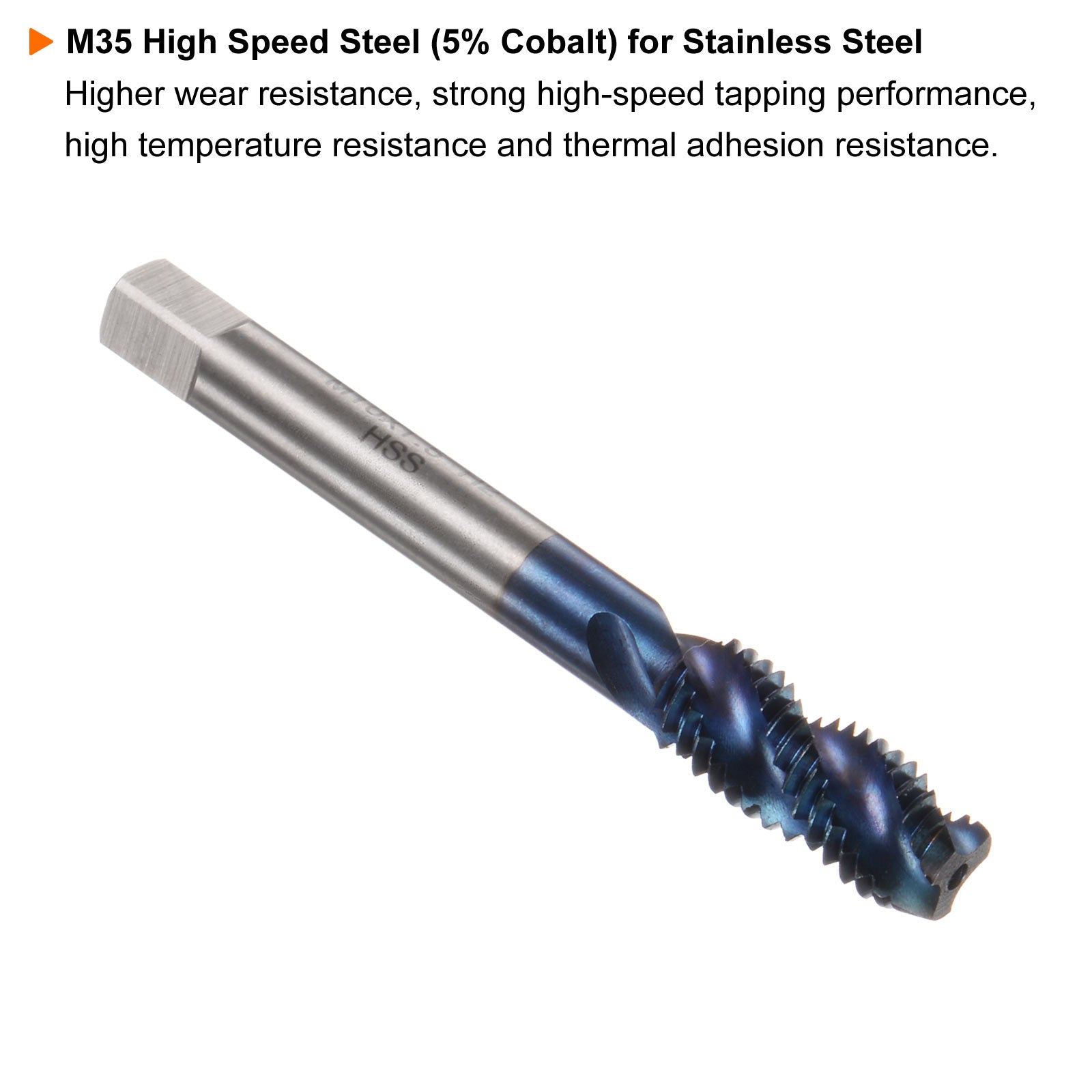

  • Material - Spiral Flute Drill Tap is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength and heat resistance for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2).The titanium nitride (TiN) coating provides increased hardness, wear resistance and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation.

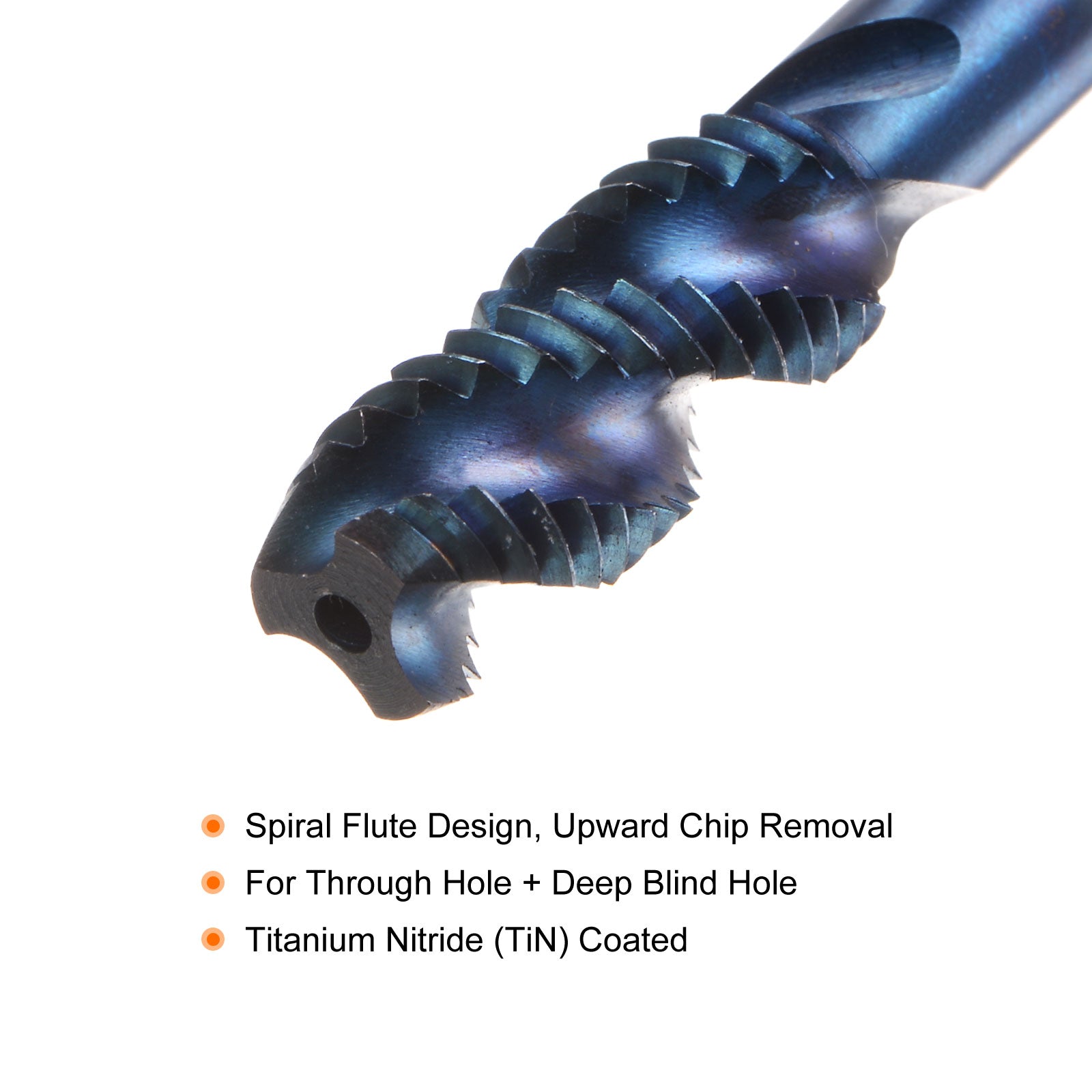

  • Feature - Spiral flute drill thread tapping tool specially designed for thread cutting of standard size screws discharge chips upward quickly in a spiral shape, which provides clear and tidy without burrs for efficient threading, especially important when tapping blind holes.

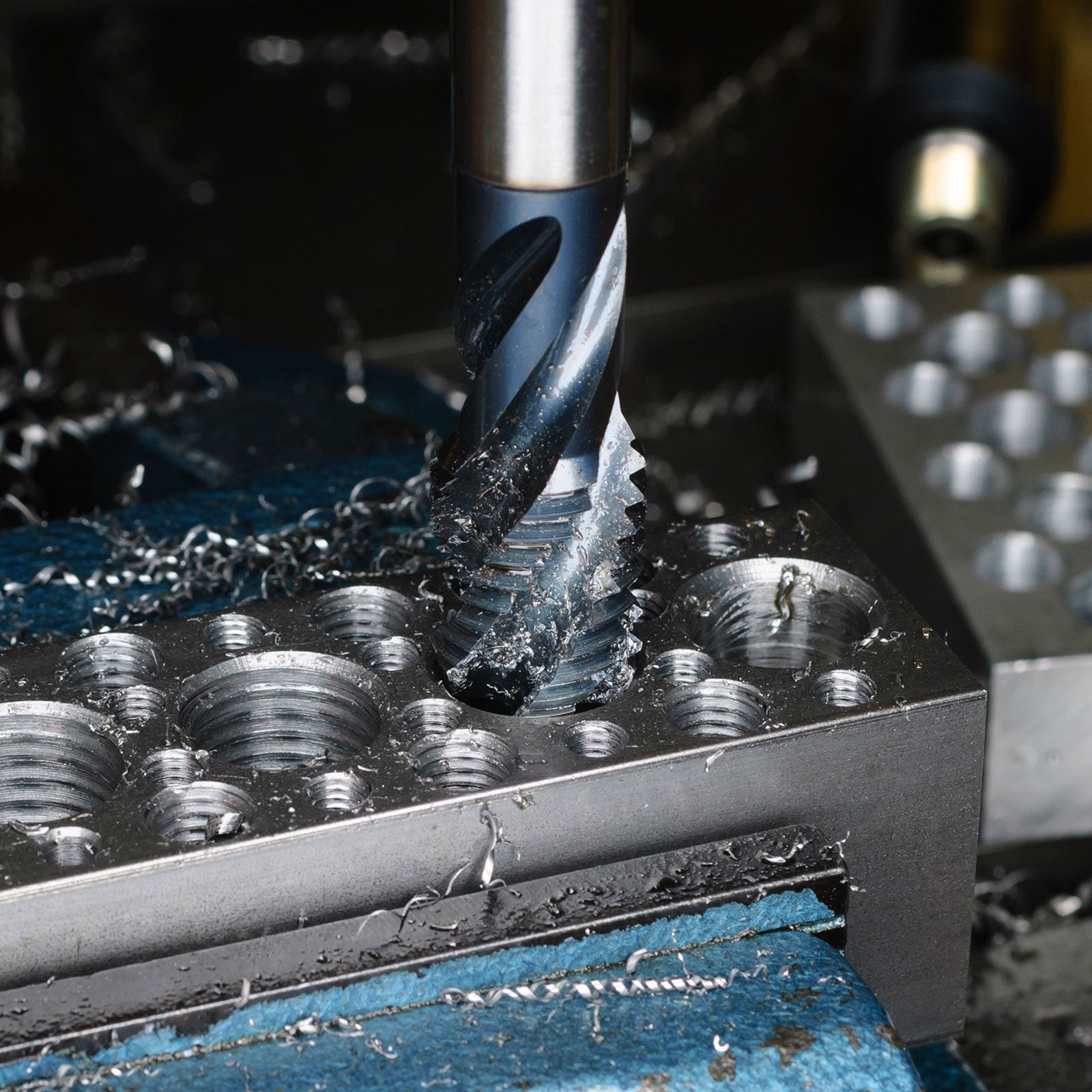

  • Application - Spiral flute tap are most commonly used for tapping blind holes and recommended use in metals that result in curled or brushed chips (aluminum, brass, copper, stainless steel, steel, etc) for creating precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.
  • Package Content - 1pcs x m10 x 1.5 spiral flute drill tap
  • In stock, ready to ship
Cart
Cart
About this item
  • Size - thread size: m10 x 1.5 ; thread length: 25mm / 0.98"shank side width: 6mm / 0.24" ; total length: 79mm / 3.11"
  • Material - Spiral Flute Drill Tap is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength and heat resistance for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2).The titanium nitride (TiN) coating provides increased hardness, wear resistance and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation.
  • Feature - Spiral flute drill thread tapping tool specially designed for thread cutting of standard size screws discharge chips upward quickly in a spiral shape, which provides clear and tidy without burrs for efficient threading, especially important when tapping blind holes.
  • Application - Spiral flute tap are most commonly used for tapping blind holes and recommended use in metals that result in curled or brushed chips (aluminum, brass, copper, stainless steel, steel, etc) for creating precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.
  • Package Content - 1pcs x m10 x 1.5 spiral flute drill tap
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Descriptions:
  1. Spiral Point Tap is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength, and heat resistance, allowing for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2).The titanium nitride (TiN) coating provides increased hardness, wear resistance, and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation during the tapping process.
  2. Spiral point taps shoot the chips cut by the angular cutting edge forward and allow effective chip evacuation without chip clogging and produce clean threads. The 3 flute design with high flexural strength is the most efficient and cost-effective when tapping a through hole.
  3. Metric spiral tip tap drill bits are perfect for through-hole applications, cutting continuously curled materials, holes with axial grooves in the inner wall, and high-speed machining for metals (aluminum, brass, copper, stainless steel, steel, etc.) to create precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.
  4. Secure the workpiece in a stable position and ensure it is properly aligned and apply lubrication. Rotate the tap clockwise while applying moderate downward pressure, ensuring it is perpendicular to the workpiece and Control speed.
  5. Note: It is not recommended to use hand or electric drill tapping. Not recommended for tapping material over 30 HRC.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$8.60 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Descriptions:
  1. Spiral Point Tap is made from M35 High Speed Steel with 5% cobalt, which increases hardness, strength, and heat resistance, allowing for efficient and reliable cutting performance. The hardness of HSS M35 after heat treatment is higher than HSS 6542 (M2).The titanium nitride (TiN) coating provides increased hardness, wear resistance, and lubricity, which extends the tool's lifespan and helps reduce friction, prevents galling, and enhances chip evacuation during the tapping process.
  2. Spiral point taps shoot the chips cut by the angular cutting edge forward and allow effective chip evacuation without chip clogging and produce clean threads. The 3 flute design with high flexural strength is the most efficient and cost-effective when tapping a through hole.
  3. Metric spiral tip tap drill bits are perfect for through-hole applications, cutting continuously curled materials, holes with axial grooves in the inner wall, and high-speed machining for metals (aluminum, brass, copper, stainless steel, steel, etc.) to create precise and durable internal threads in metalworking industries and applications, ensuring accurate results on ordinary lathes, drilling machines, and tapping machines.
  4. Secure the workpiece in a stable position and ensure it is properly aligned and apply lubrication. Rotate the tap clockwise while applying moderate downward pressure, ensuring it is perpendicular to the workpiece and Control speed.
  5. Note: It is not recommended to use hand or electric drill tapping. Not recommended for tapping material over 30 HRC.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
