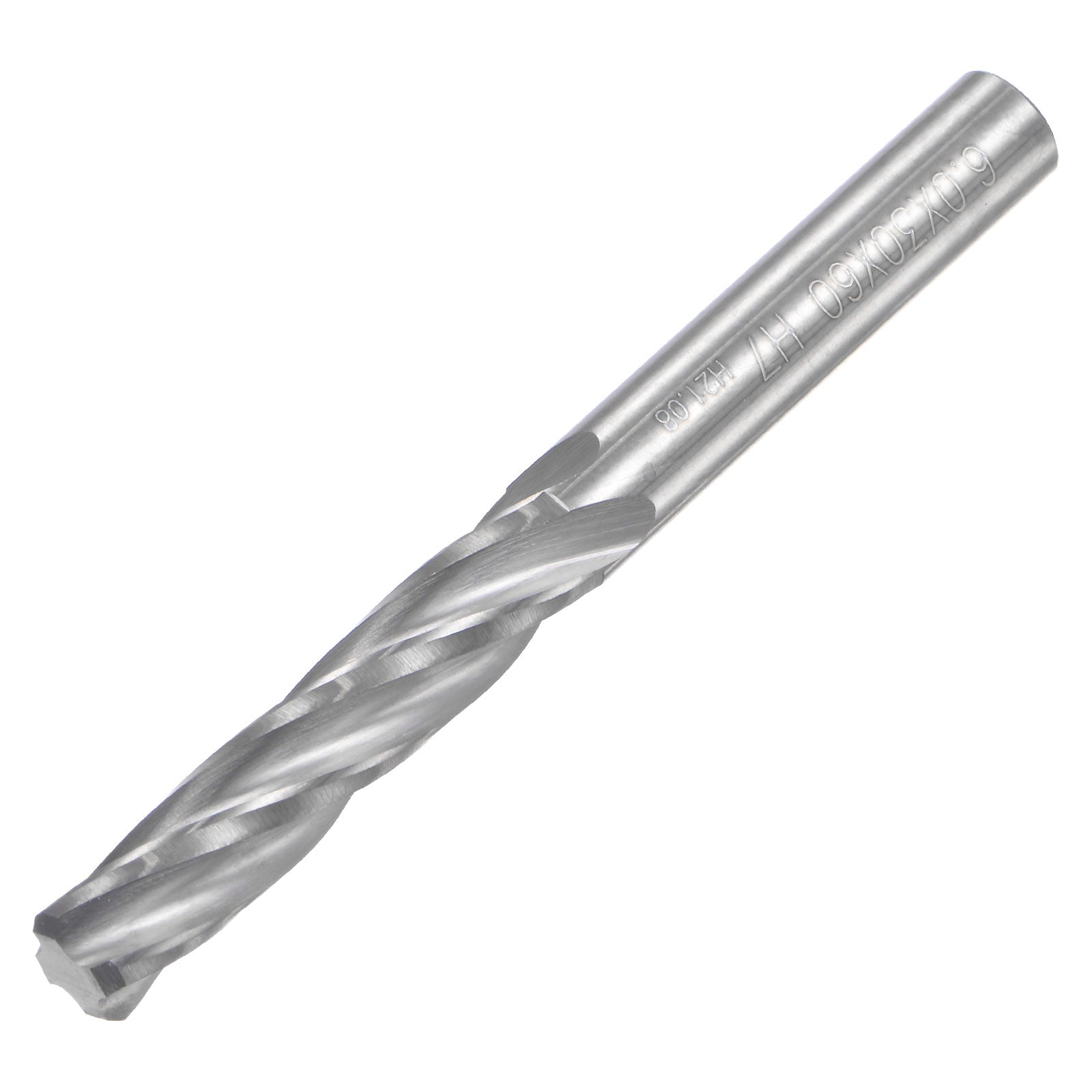

Harfington 6mm C3/ K10 Tungsten Carbide 4 Spiral Flutes Lathe Machine Chucking Reamer

6mm C3/ K10 Tungsten Carbide 4 Spiral Flutes Lathe Machine Chucking Reamer

ID:
$12.11 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Chucking Reamers: Cutting Diameter: 6mm / 0.24"; Accuracy Class: H7; Cutting Hardness (Max.): HRC45. C3/ K10 tungsten carbide tool is with high hardness (HRC92), good toughness, wear resistance, high heat resistance, and anti-sticking. For most general purpose applications.

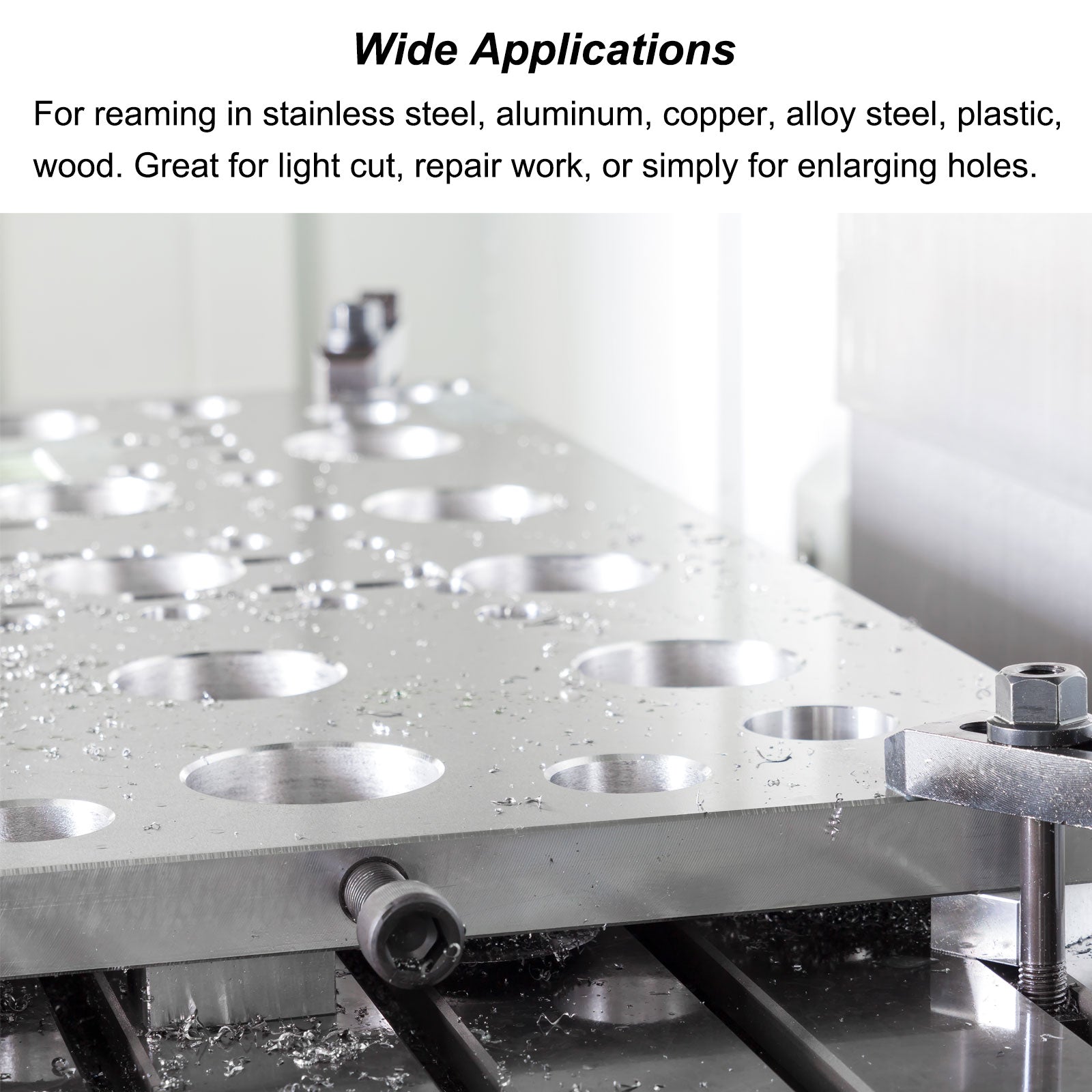

  • Wide Applications: Widely used for processing, and bore machining. Designed for accurate reaming in stainless steel, aluminum, cast iron, copper, alloy steel, die steel, tool steel, plastic, wood. Great for light cut, repair work, or simply for enlarging holes.

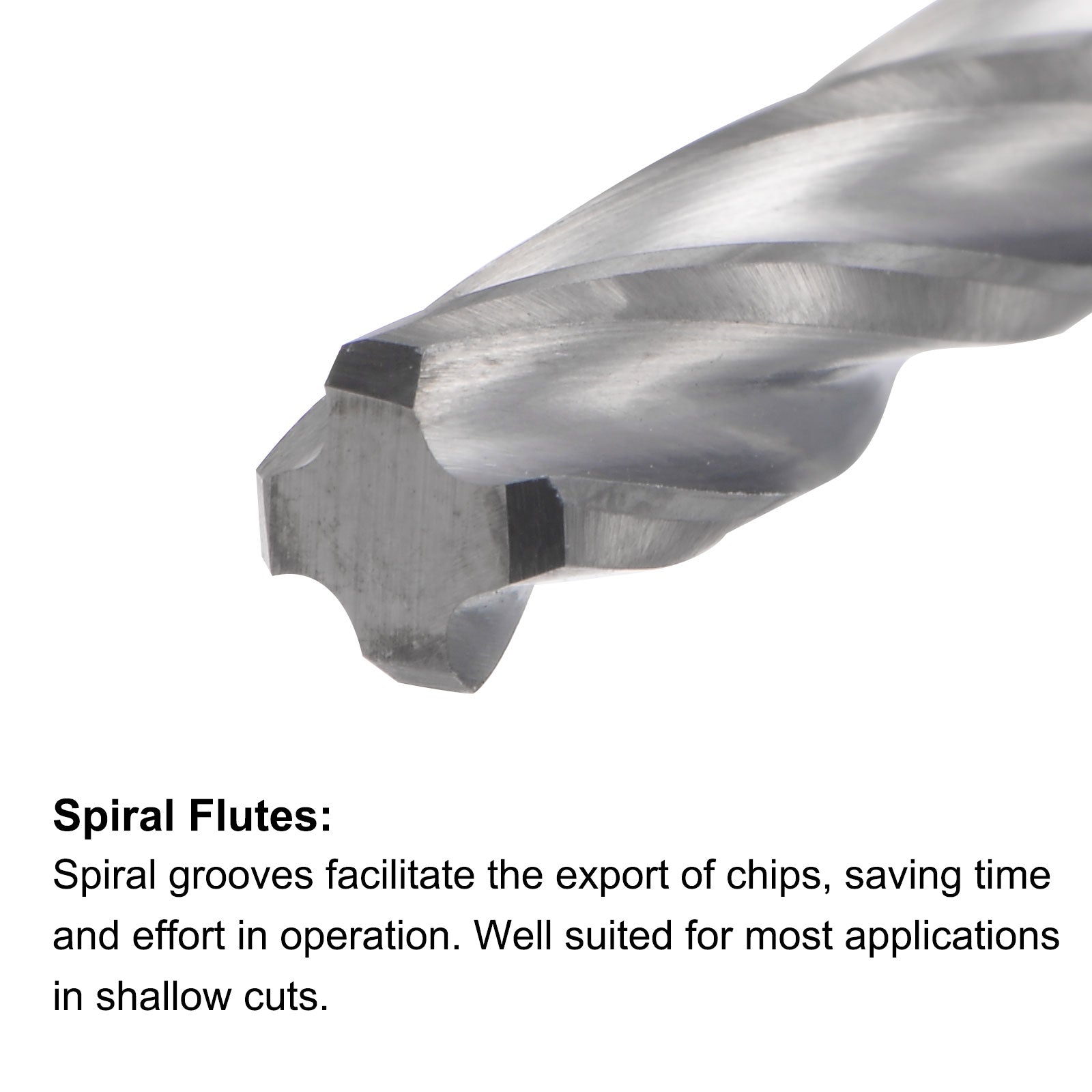

  • Spiral Flutes: Spiral grooves facilitate the export of chips, saving time and effort in operation. Well suited for most applications in shallow cuts. Suitable for use in through holes or blind holes without interruption, such as keyways.
  • Easy to Use: Use on all types of equipment including screw machines, turret lathes, drill presses and machining centers. Always keep reamers clean, and used with machine oil for long service use.
  • Round Shank: Round shank can be used with a wide variety of tool holding systems. Should held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications.
  • In stock, ready to ship
Cart
Cart
About this item
  • Chucking Reamers: Cutting Diameter: 6mm / 0.24"; Accuracy Class: H7; Cutting Hardness (Max.): HRC45. C3/ K10 tungsten carbide tool is with high hardness (HRC92), good toughness, wear resistance, high heat resistance, and anti-sticking. For most general purpose applications.
  • Wide Applications: Widely used for processing, and bore machining. Designed for accurate reaming in stainless steel, aluminum, cast iron, copper, alloy steel, die steel, tool steel, plastic, wood. Great for light cut, repair work, or simply for enlarging holes.
  • Spiral Flutes: Spiral grooves facilitate the export of chips, saving time and effort in operation. Well suited for most applications in shallow cuts. Suitable for use in through holes or blind holes without interruption, such as keyways.
  • Easy to Use: Use on all types of equipment including screw machines, turret lathes, drill presses and machining centers. Always keep reamers clean, and used with machine oil for long service use.
  • Round Shank: Round shank can be used with a wide variety of tool holding systems. Should held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

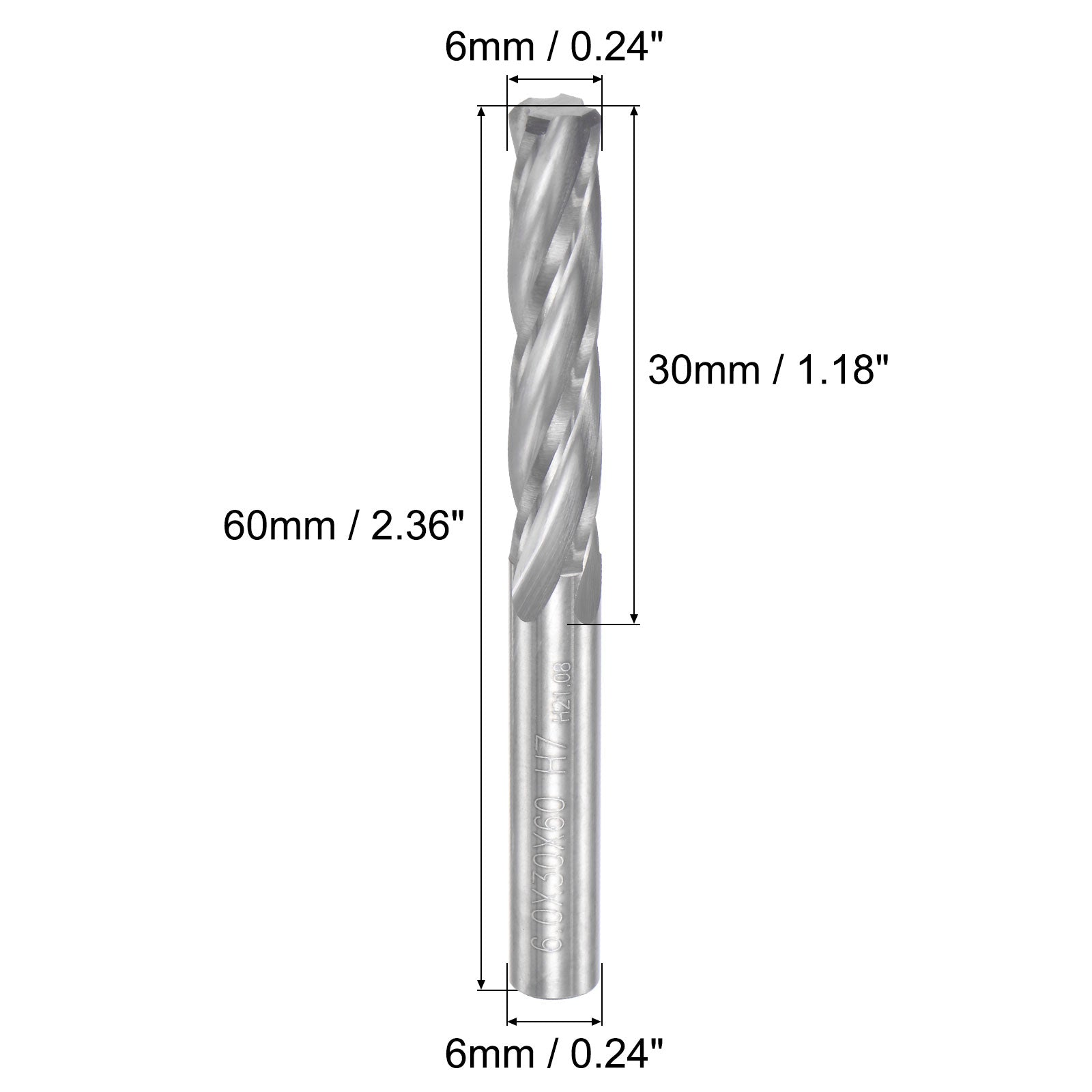

  • Cutting Diameter: 6mm / 0.24"
  • Cutting Flute Length: 30mm / 1.18"
  • Shank Diameter: 6mm / 0.24"
  • Total Length: 60mm / 2.36"
  • Accuracy Class: H7
  • Number of Flutes: 4 Flutes
  • Style: Spiral Flutes
  • Material: C3/ K10 Tungsten Carbide
  • Cutting Hardness (Max.): HRC45
  • Package Included: 1pcs x Chucking Reamer

Description:

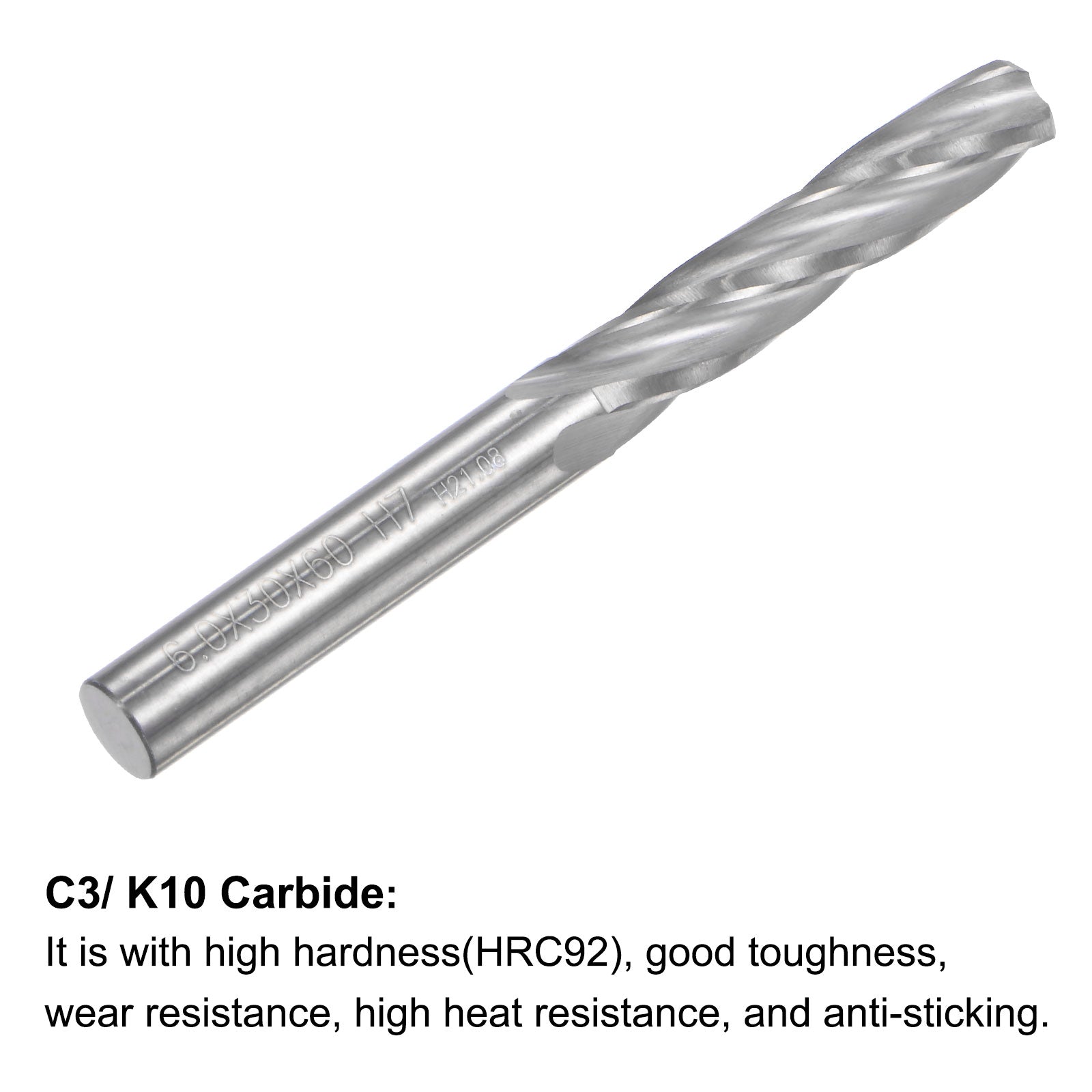

  1. Made from C3/ K10 tungsten carbide, it is with high hardness(HRC92), good toughness, wear resistance, high heat resistance, and anti-sticking. Perfect for most general purpose applications.
  2. Widely used for processing, and bore machining. Designed for accurate reaming in stainless steel, aluminum, cast iron, copper, alloy steel, die steel, tool steel, plastic, wood, etc.. Great for light cut, repair work, or simply for enlarging holes.
  3. Spiral groove facilitates the export of chips, saving time and effort in operation. Well suited for most applications in shallow cuts. Suitable for use in through holes or holes without interruption, such as keyways.
  4. Use on all types of equipment including screw machines, turret lathes, drill presses and machining centers. Always keep reamers clean, and used with machine oil for long service use.
  5. Round shank can be used with a wide variety of tool holding systems. Should held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$12.11 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Cutting Diameter: 6mm / 0.24"
  • Cutting Flute Length: 30mm / 1.18"
  • Shank Diameter: 6mm / 0.24"
  • Total Length: 60mm / 2.36"
  • Accuracy Class: H7
  • Number of Flutes: 4 Flutes
  • Style: Spiral Flutes
  • Material: C3/ K10 Tungsten Carbide
  • Cutting Hardness (Max.): HRC45
  • Package Included: 1pcs x Chucking Reamer

Description:
  1. Made from C3/ K10 tungsten carbide, it is with high hardness(HRC92), good toughness, wear resistance, high heat resistance, and anti-sticking. Perfect for most general purpose applications.
  2. Widely used for processing, and bore machining. Designed for accurate reaming in stainless steel, aluminum, cast iron, copper, alloy steel, die steel, tool steel, plastic, wood, etc.. Great for light cut, repair work, or simply for enlarging holes.
  3. Spiral groove facilitates the export of chips, saving time and effort in operation. Well suited for most applications in shallow cuts. Suitable for use in through holes or holes without interruption, such as keyways.
  4. Use on all types of equipment including screw machines, turret lathes, drill presses and machining centers. Always keep reamers clean, and used with machine oil for long service use.
  5. Round shank can be used with a wide variety of tool holding systems. Should held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
