Harfington Die Spring, 30mm OD 50mm Free Length 65Mn 1765N Load Capacity Red 2pcs

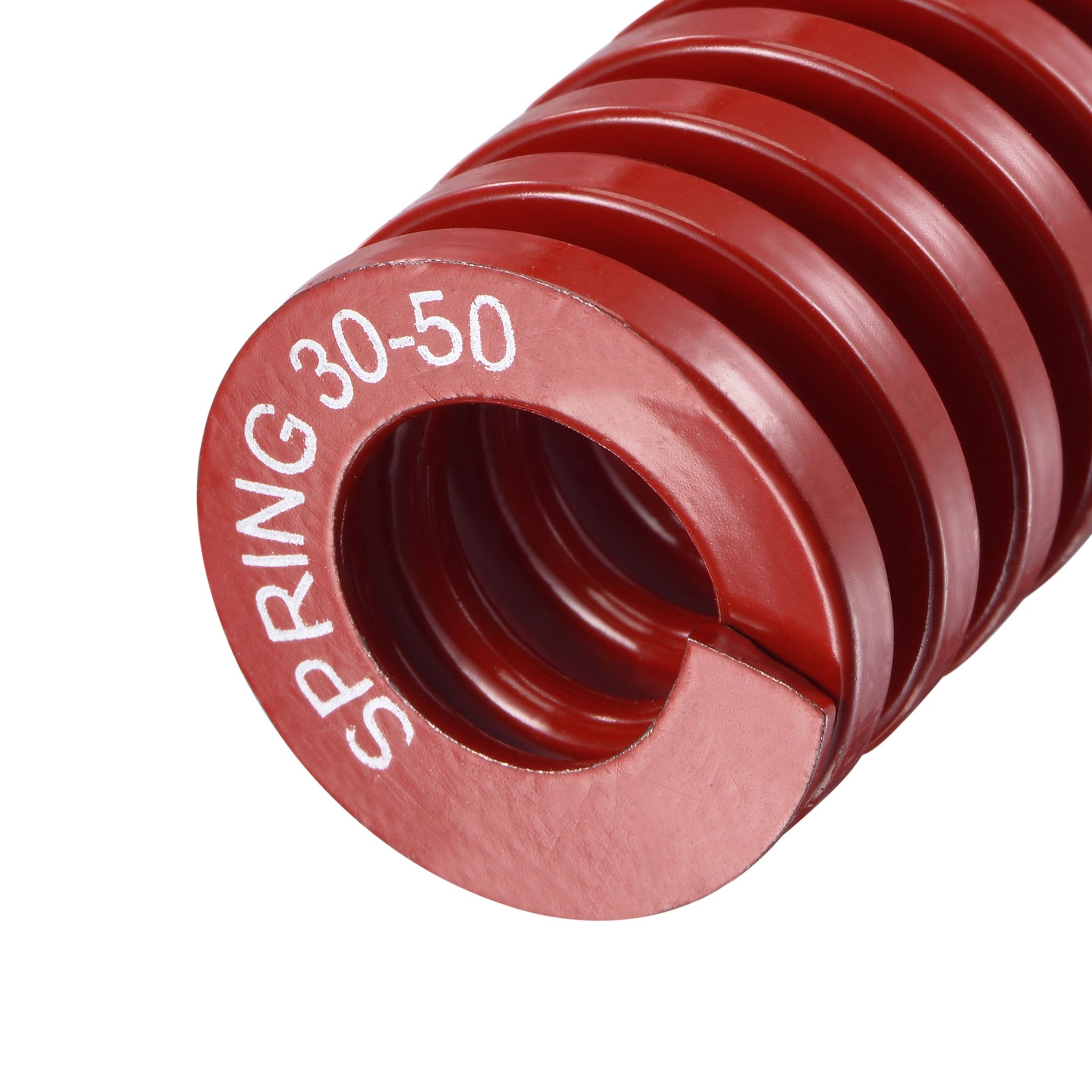

Die Spring, 30mm OD 50mm Free Length 65Mn 1765N Load Capacity Red 2pcs

ID:
$11.12 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

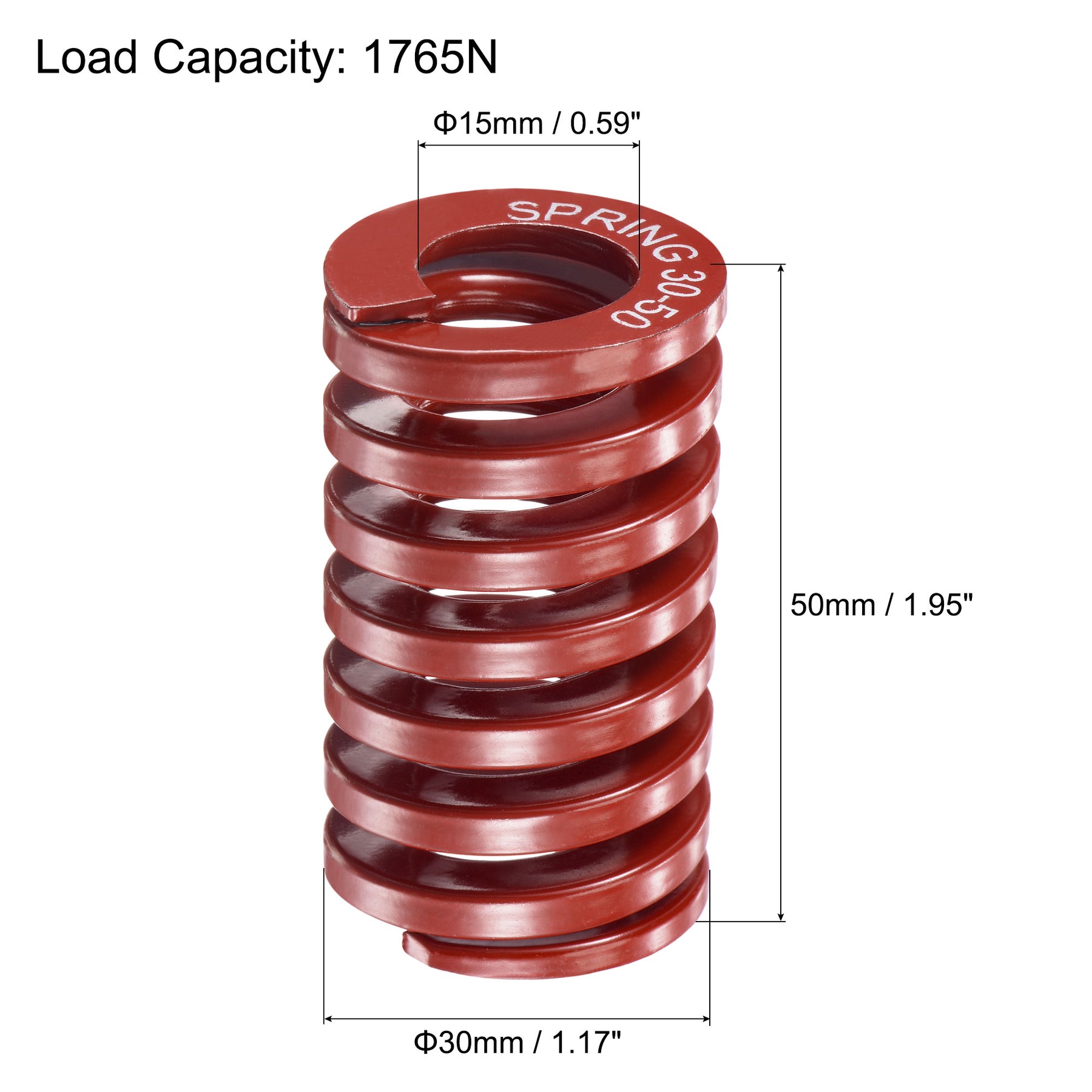

  • Hole Diameter (OD) : 30mm/1.17"; Rod Diameter (Inner Dia) : 15mm/0.59"; Free Length: 50mm/1.95"

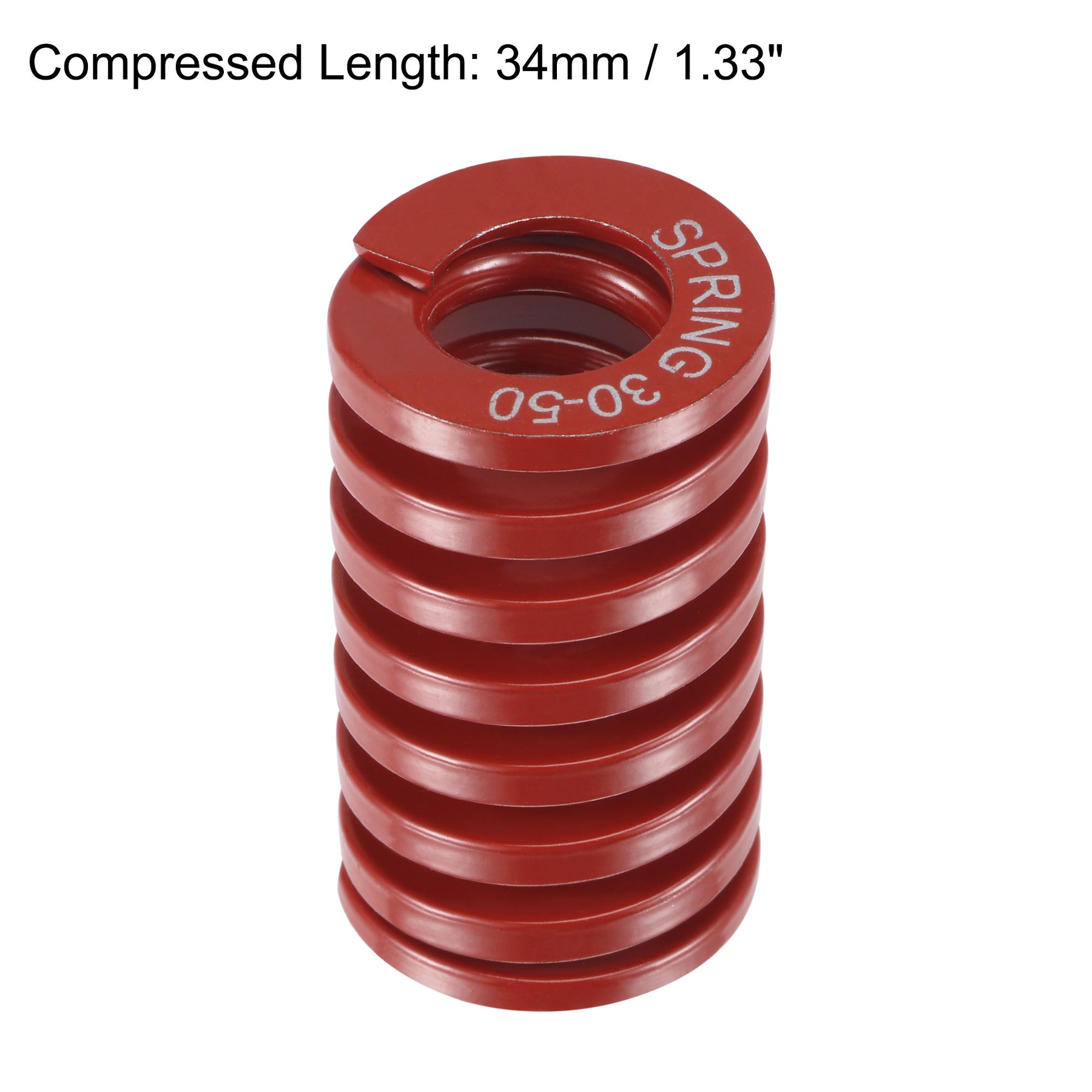

  • 34mm/1.33" Compressed Length; 1765N Load Capacity; 110.31 N/mm Spring Rate; Color: Red
  • Material: The spring is made of alloy steel 65Mn, which is durable and reusable
  • Application: Used in maintenance and replacement of various equipment, such as stamping , die machinery, printers and etc.
  • How to use: Put the spring into the pre-holes or set it into the outside of the support rod, select the right size as needed;
  • In stock, ready to ship
Cart
Cart
About this item
  • Hole Diameter (OD) : 30mm/1.17"; Rod Diameter (Inner Dia) : 15mm/0.59"; Free Length: 50mm/1.95"
  • 34mm/1.33" Compressed Length; 1765N Load Capacity; 110.31 N/mm Spring Rate; Color: Red
  • Material: The spring is made of alloy steel 65Mn, which is durable and reusable
  • Application: Used in maintenance and replacement of various equipment, such as stamping , die machinery, printers and etc.
  • How to use: Put the spring into the pre-holes or set it into the outside of the support rod, select the right size as needed;
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • Specification:
  • Product Name:   Compression die spring
  • Load Type:   Light Load
  • Color:   Red
  • Hole Diameter(Outer Diameter): 30mm/1.17"
  • Rod Diameter(inner Diameter):  15mm/0.59"
  • Free Length:   50mm/1.95" (+/- 2mm)
  • Max compression rate: 32%
  • Material:   65Mn

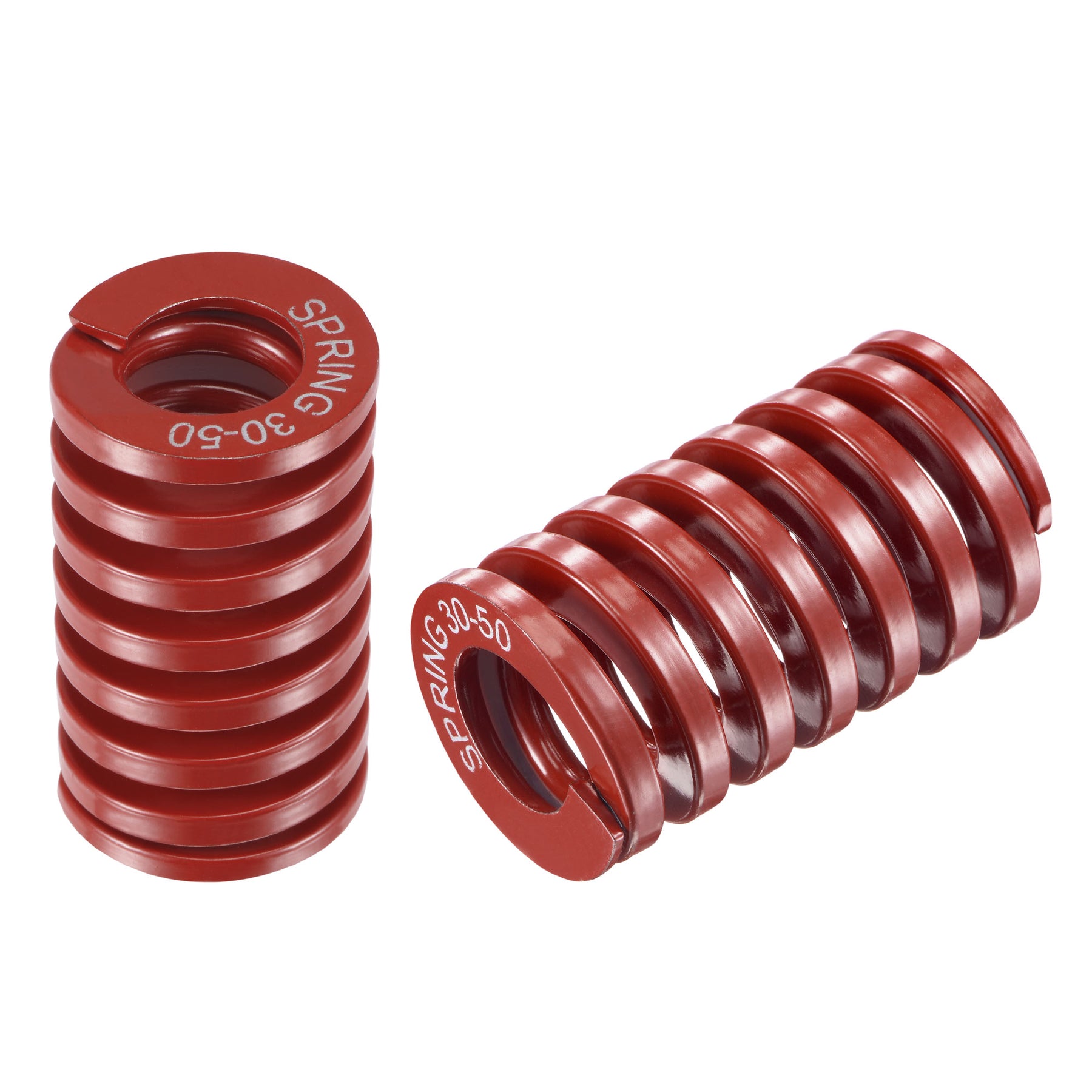

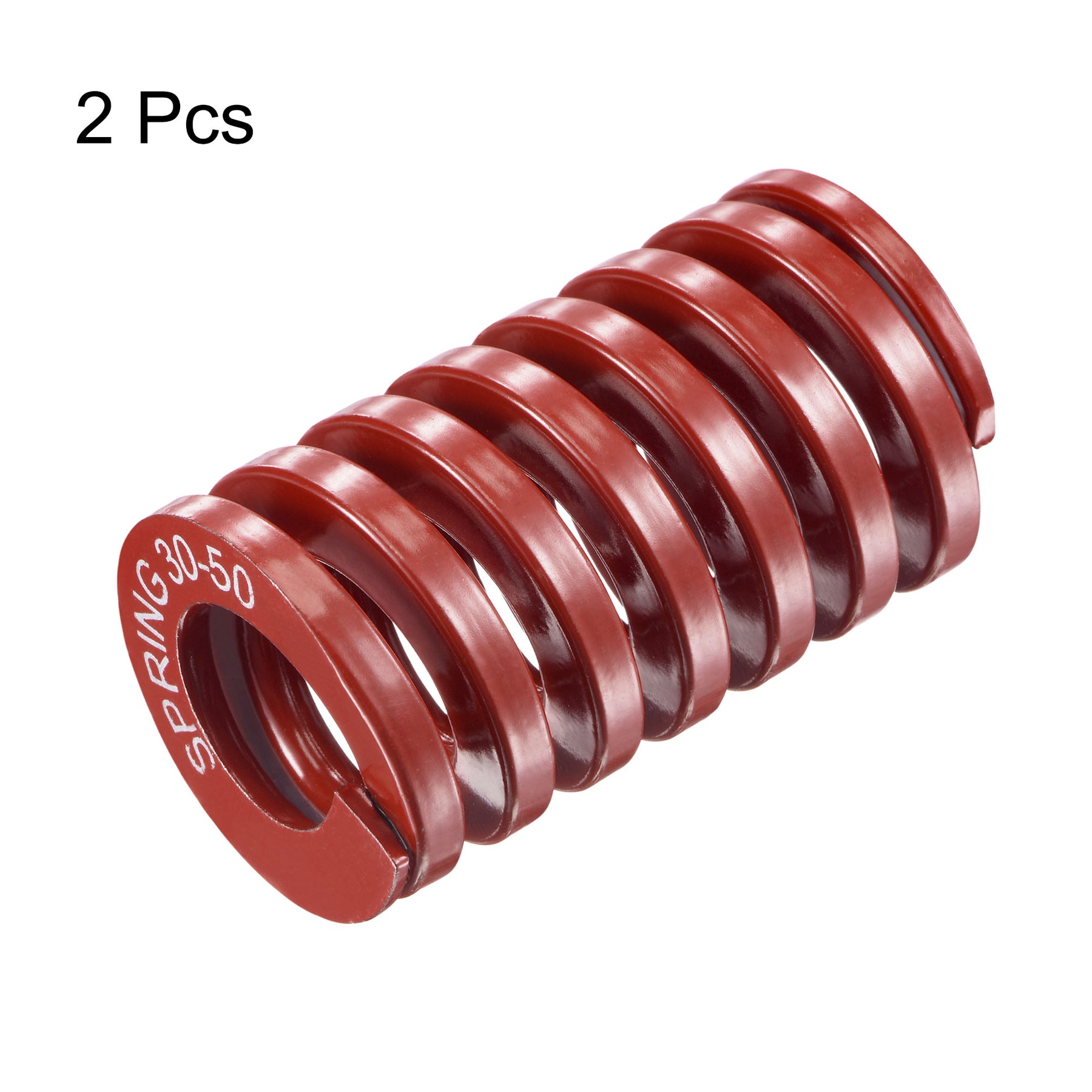

  • Package Content:   2 x compression die spring
  • The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.
  • In addition, because die springs are well suited for high-stress applications, they are also suitable for a variety of other applications as well.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$11.12 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

  • Specification:
  • Product Name:   Compression die spring
  • Load Type:   Light Load
  • Color:   Red
  • Hole Diameter(Outer Diameter): 30mm/1.17"
  • Rod Diameter(inner Diameter):  15mm/0.59"
  • Free Length:   50mm/1.95" (+/- 2mm)
  • Max compression rate: 32%
  • Material:   65Mn
  • Package Content:   2 x compression die spring
  • The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.
  • In addition, because die springs are well suited for high-stress applications, they are also suitable for a variety of other applications as well.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
