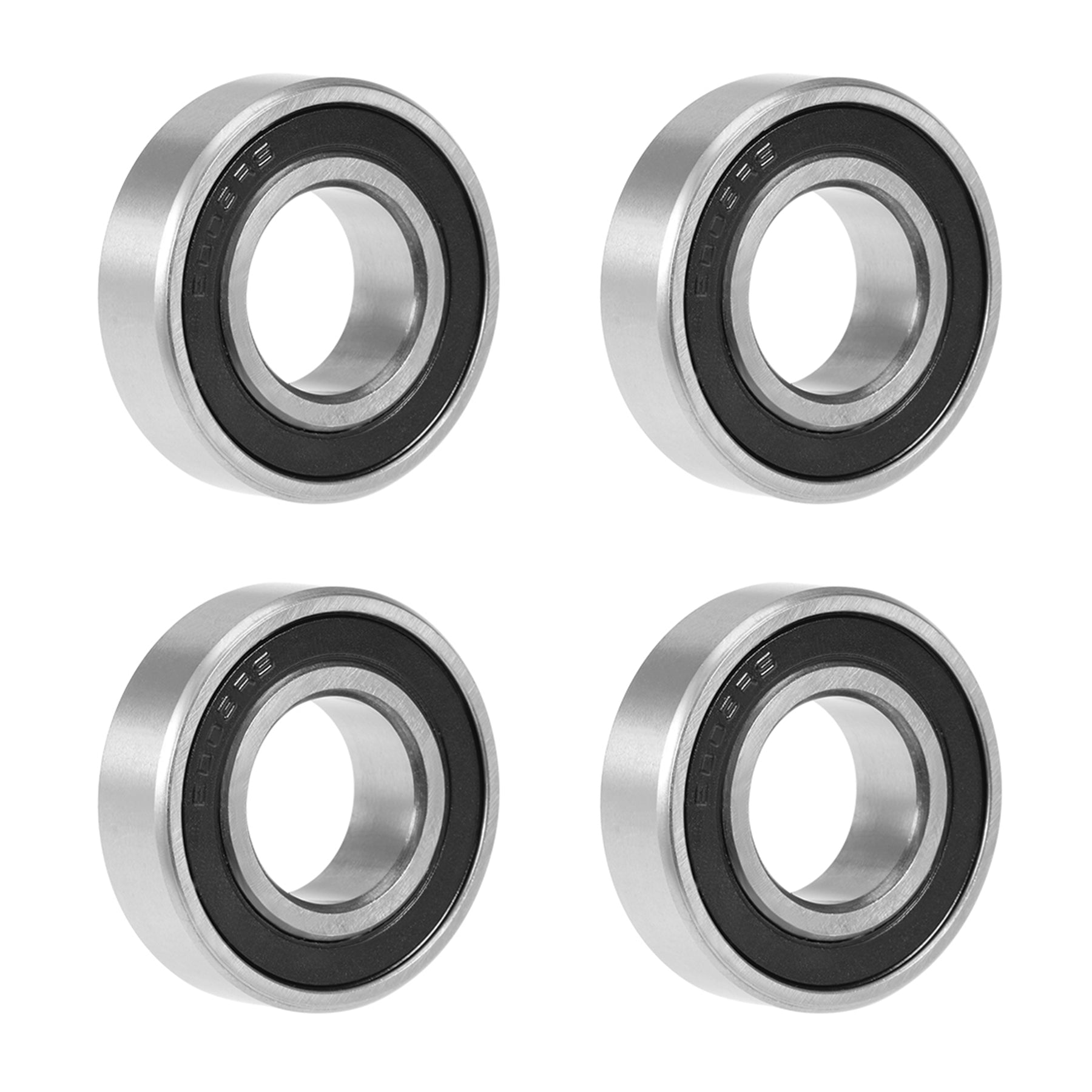

Harfington 4pcs 6003-2RS Deep Groove Ball Bearing 17x35x10mm Double Sealed Chrome Bearing

4pcs 6003-2RS Deep Groove Ball Bearing 17x35x10mm Double Sealed Chrome Bearing

ID:
$13.73 Regular price
/
About this item

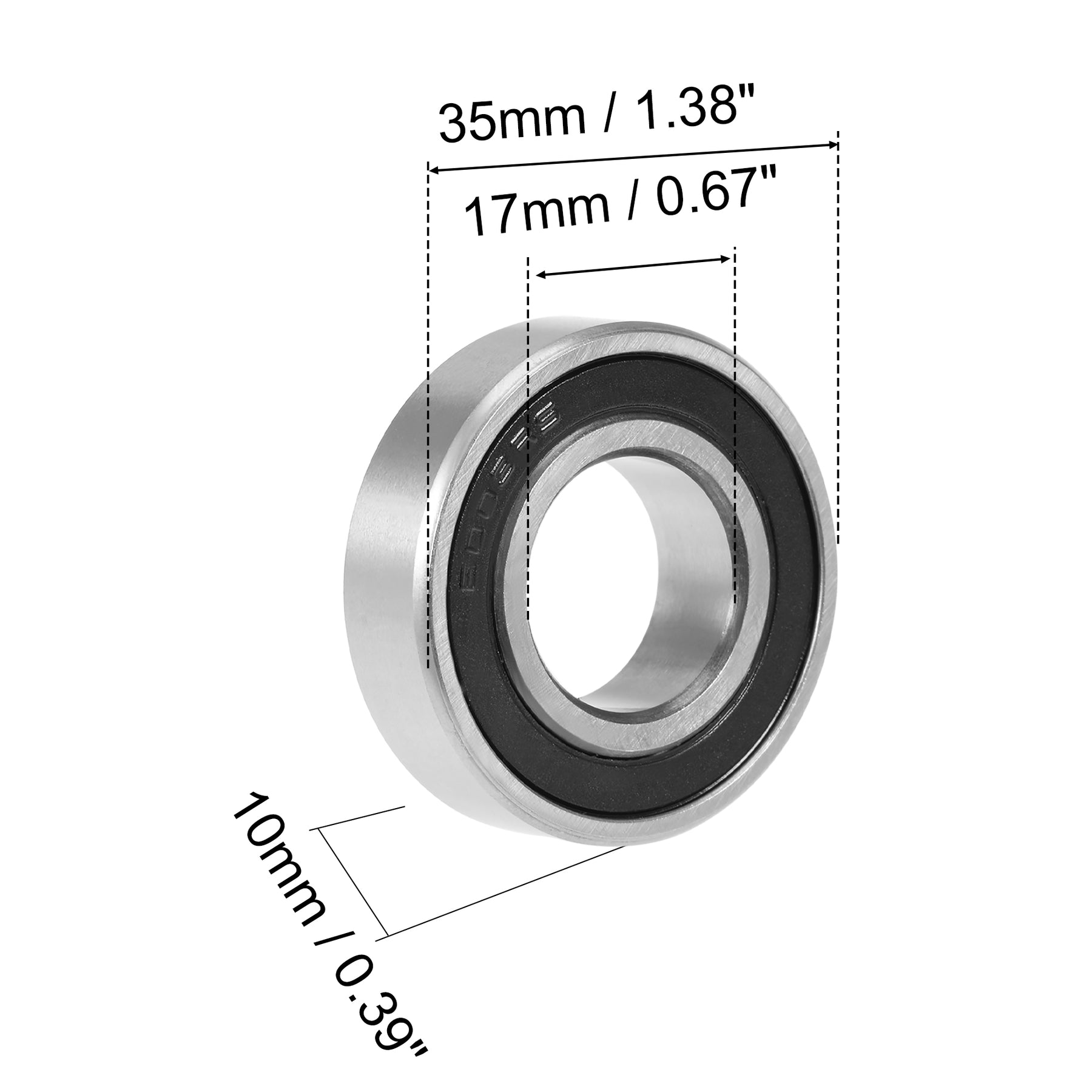

  • [Size] 6003-2RS. Inner Diameter (d): 17mm / 0.67", Outer Diameter (D): 35mm / 1.38", Thickness (B): 10mm / 0.39"
  • [Material] Made of Carbon Steel material features good anti-rust and corrosion resistance. Smooth surface, high hardness, high load capacity, wear-resistant.
  • [Function] Bushings can be used for different purposes such as positioning, wear, and vibration damping, or to isolate the shaft from special media to increase shaft life. Smooth and low noise
  • [Application] They can also be used to reduce drilling or to replace worn original bushings on wheels. ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • [Package Contents] 4 x Ball Bearing
  • In stock, ready to ship
Cart
Cart
About this item
  • [Size] 6003-2RS. Inner Diameter (d): 17mm / 0.67", Outer Diameter (D): 35mm / 1.38", Thickness (B): 10mm / 0.39"
  • [Material] Made of Carbon Steel material features good anti-rust and corrosion resistance. Smooth surface, high hardness, high load capacity, wear-resistant.
  • [Function] Bushings can be used for different purposes such as positioning, wear, and vibration damping, or to isolate the shaft from special media to increase shaft life. Smooth and low noise
  • [Application] They can also be used to reduce drilling or to replace worn original bushings on wheels. ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • [Package Contents] 4 x Ball Bearing
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.

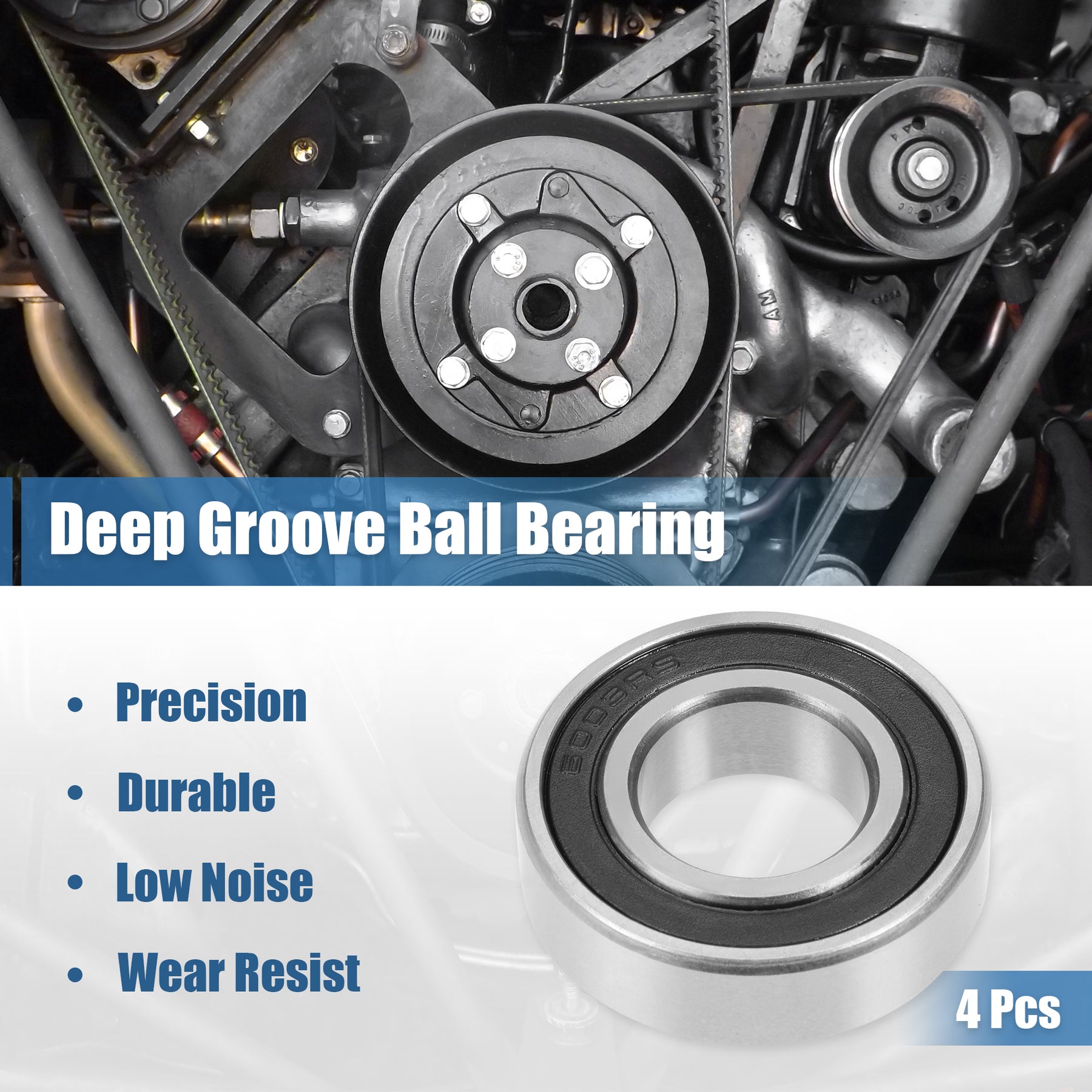

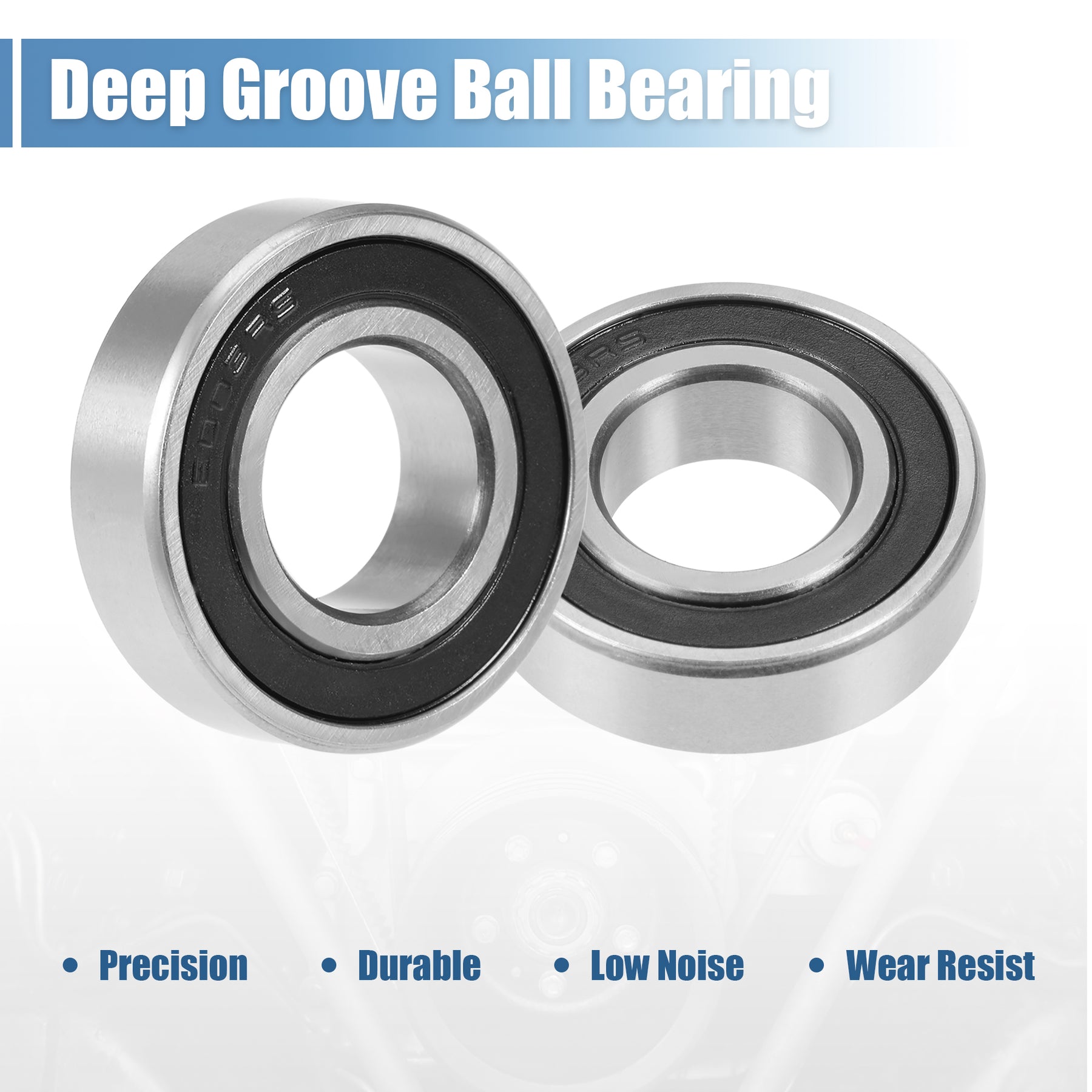

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact performance.

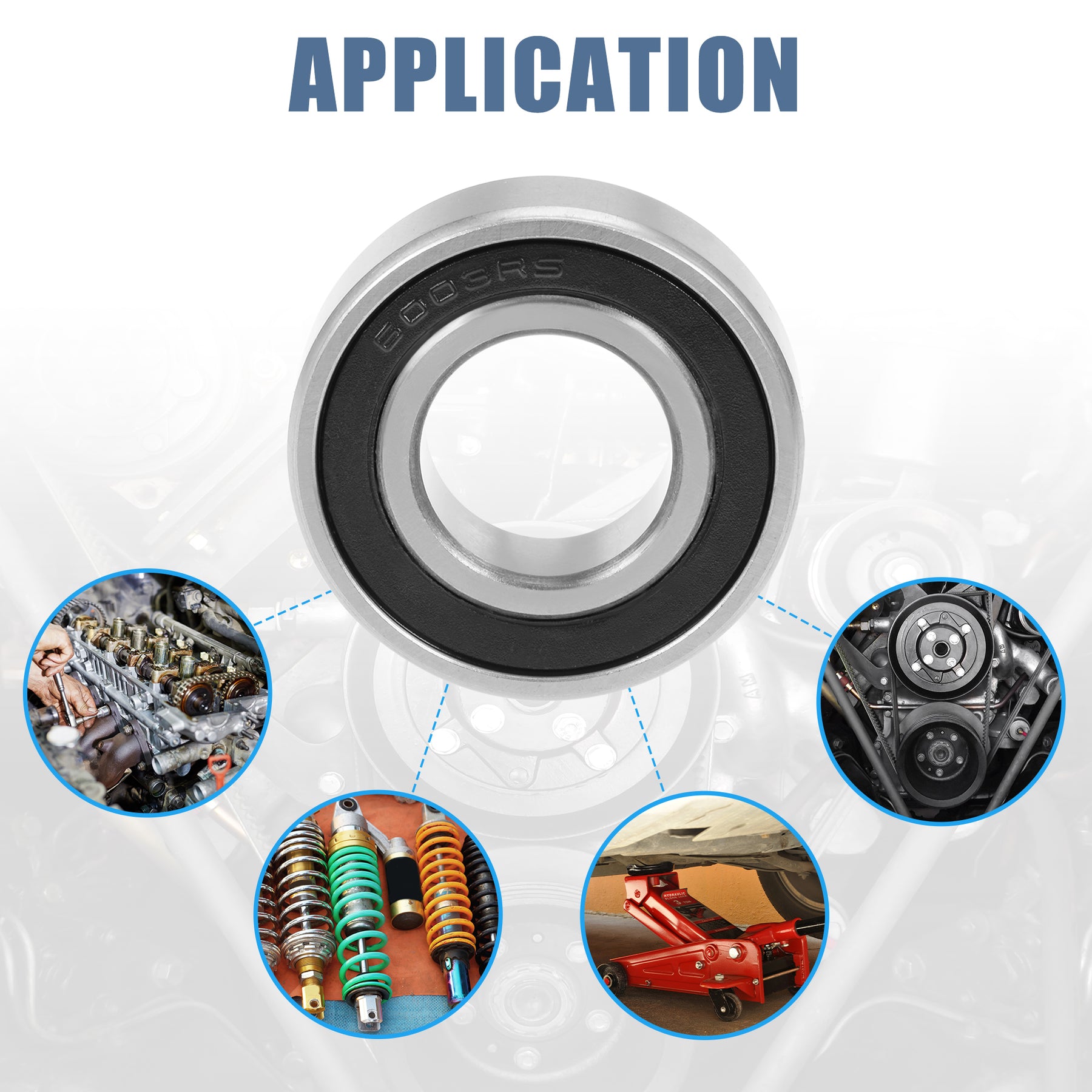

  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

  • Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

  • Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

  • Model: 6003-2RS

  • Sealed Type: Double Sealed

  • Inner Race/Outer Race Material: Chrome Steel (GCr15)

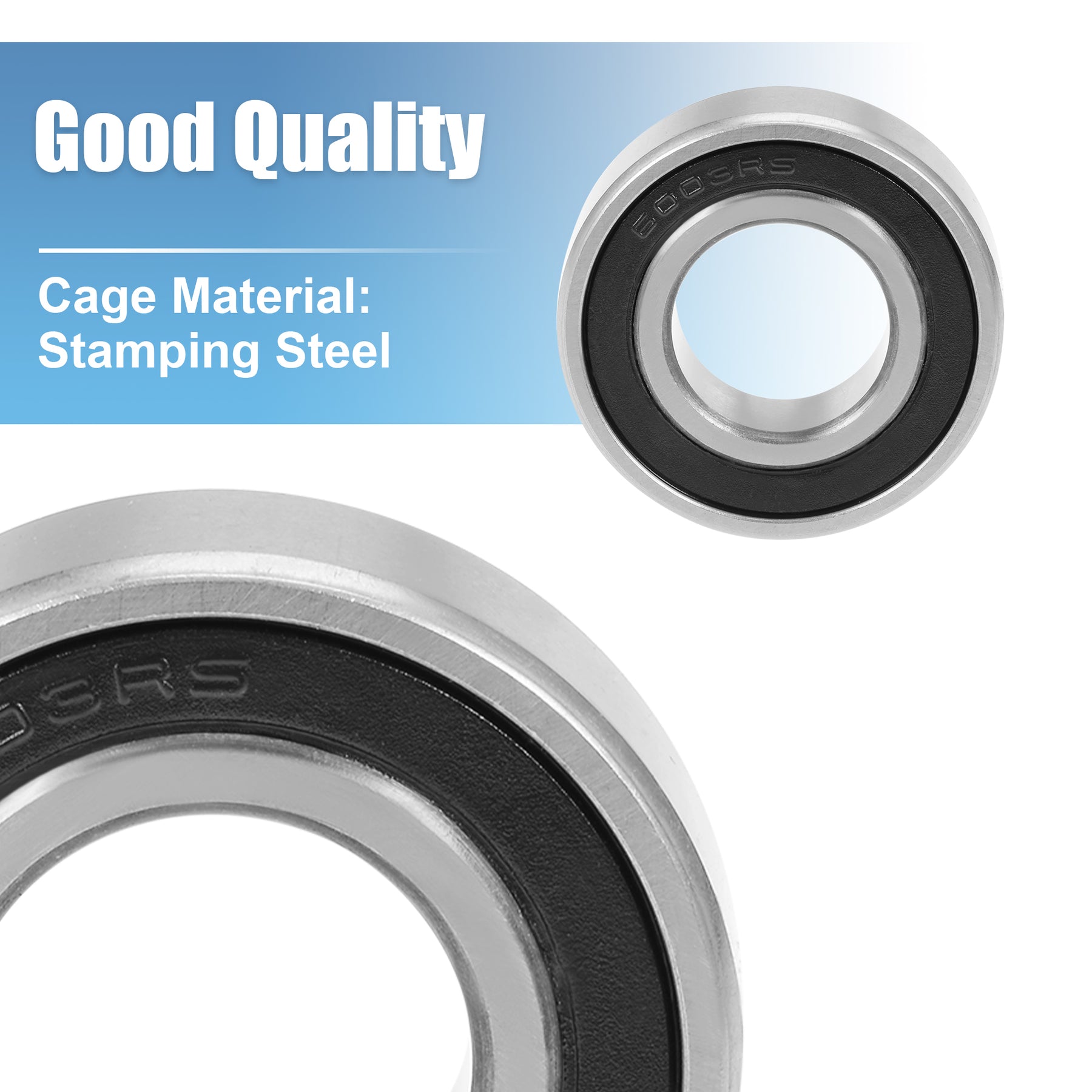

  • Cage Material: Stamping Steel

  • Inner Diameter (d): 17mm

  • Outer Diameter (D): 35mm

  • Thickness (B): 10mm

  • Dynamic Load Rating (Cr): 6.00kN

  • Static Load Rating (Cor): 3.25kN

  • Accuracy Class: P0 (ABEC-1)

  • Noise Level: Z1

  • Number of Pack: 4 Pcs
