Harfington 2 Set 20 Pin 3.81mm Pitch Pluggable PCB Screw Terminal Block, 300V 8A, Green

2 Set 20 Pin 3.81mm Pitch Pluggable PCB Screw Terminal Block, 300V 8A, Green

ID:
$11.28 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • This pluggable screw terminal block connector provides a solderless, reusable interface for securely connecting wires directly to a circuit board. These pluggable terminal blocks are suitable for plug wires. This connector is designed for low-voltage, low-current applications and typical DIY electronic environments.

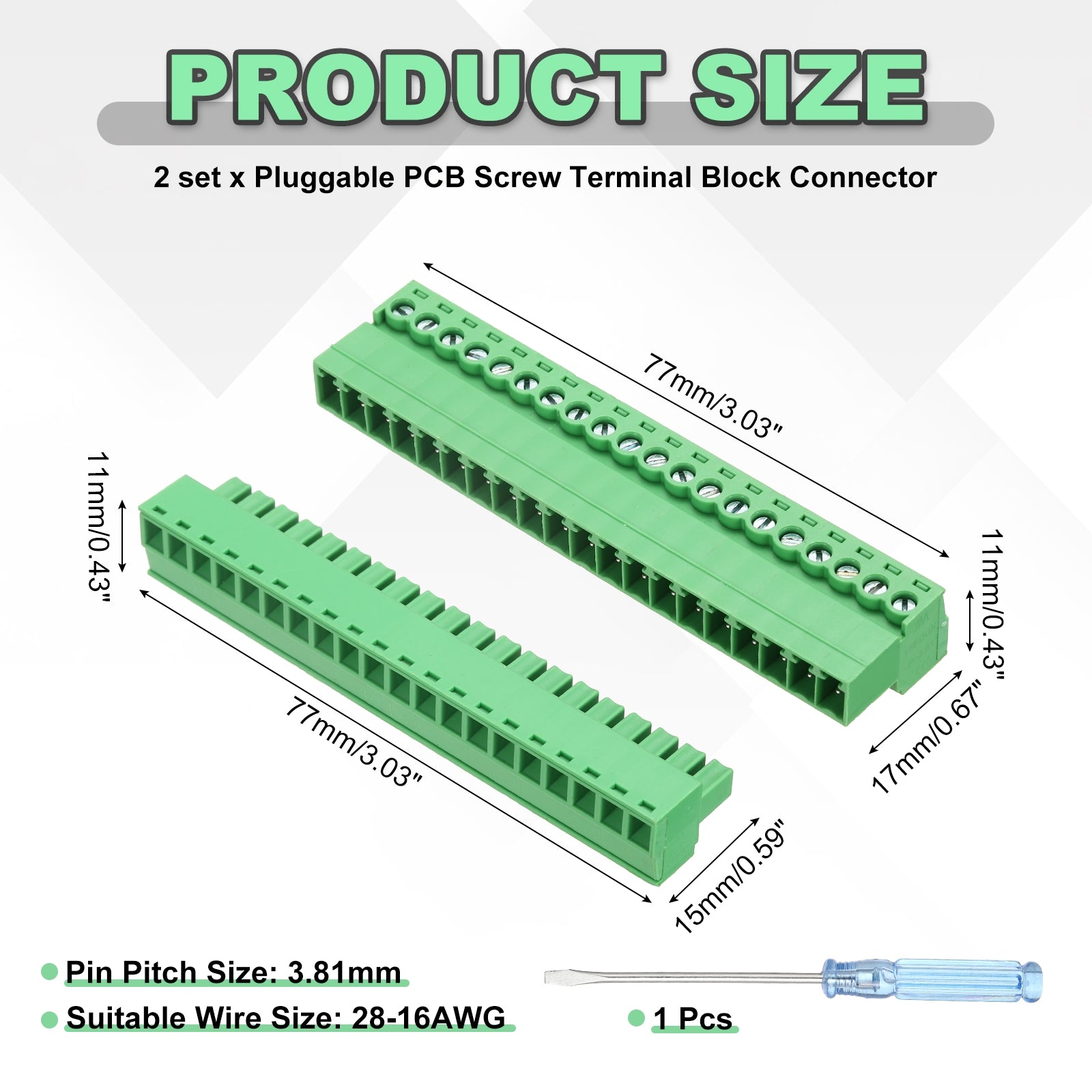

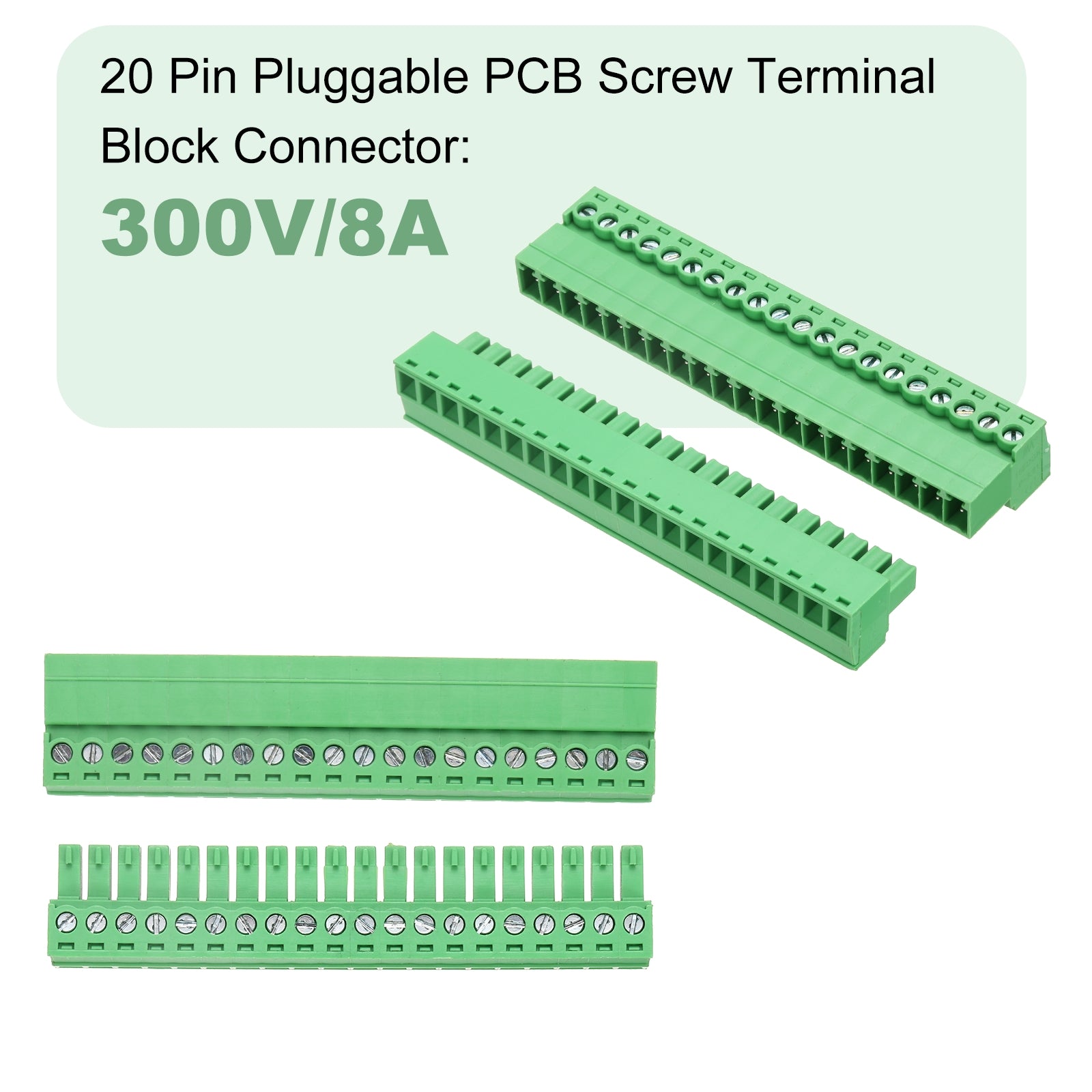

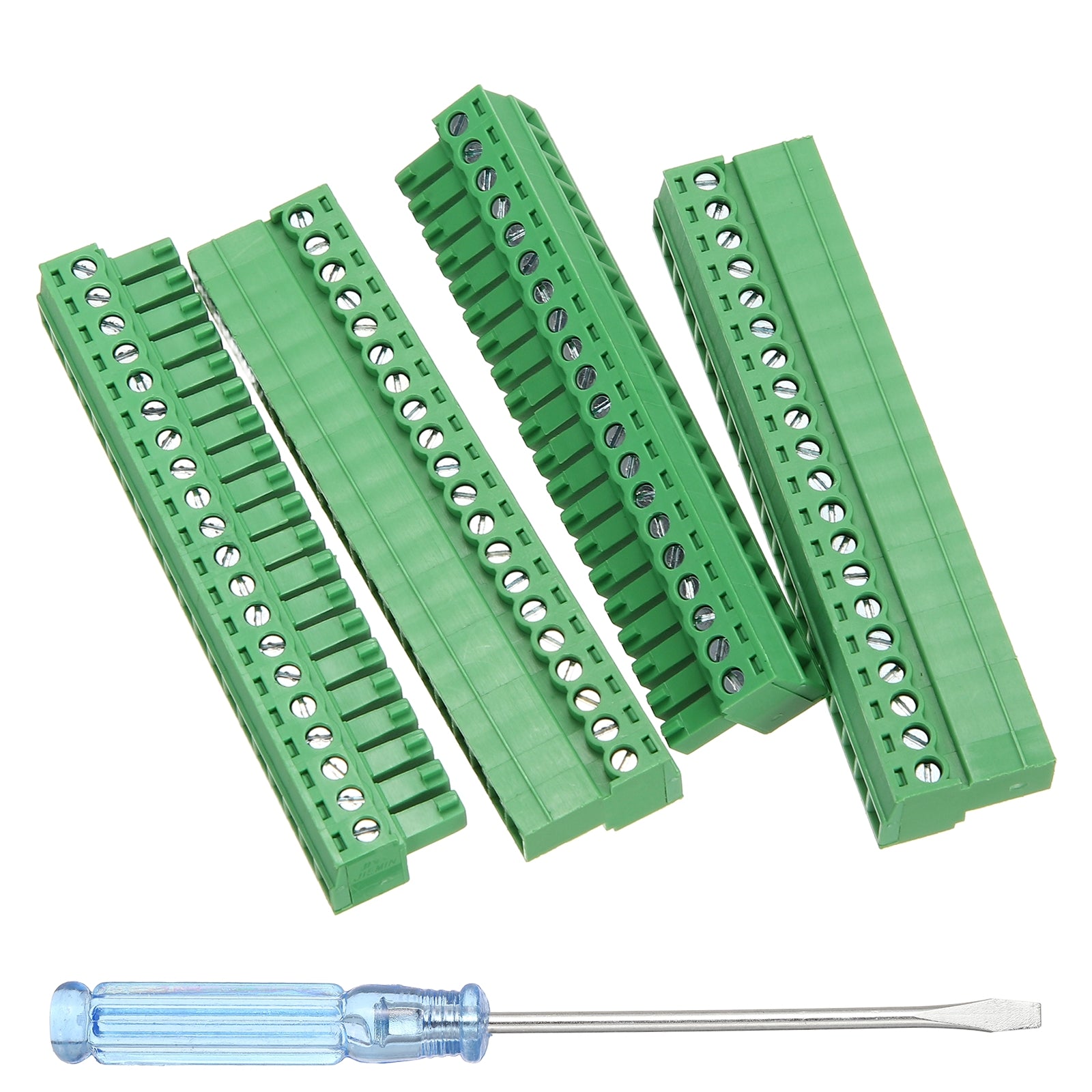

  • Pluggable PCB Screw Terminal Block Connector; Model: JM15EDGKP-3.81; Package includes: 2 sets with 1x wrench, each set includes 1x Male, 1x Female; Type: 20 Pin; Material: Cooper, Nickel, PVC; Maximum Voltage/Current: 300V/8A; Pin Pitch Size: 3.81mm; Male Connector Size: 17x77x11mm / 0.67x3.03x0.43 inch (LxWxH); Female Connector Size: 15x77x11mm / 0.59x3.03x0.43 inch (LxWxH); Suitable Wire Size: 28-16AWG; Color: Green.
  • These pluggable PCB terminal blocks offer a secure screw-down connection that is both stable and easy to modify without soldering. Our connector's pluggable design simplifies circuit assembly and maintenance. Our PCB terminal block mounts feature flame-retardant and heat-resistant housing material, which allows for safe and long-term use.

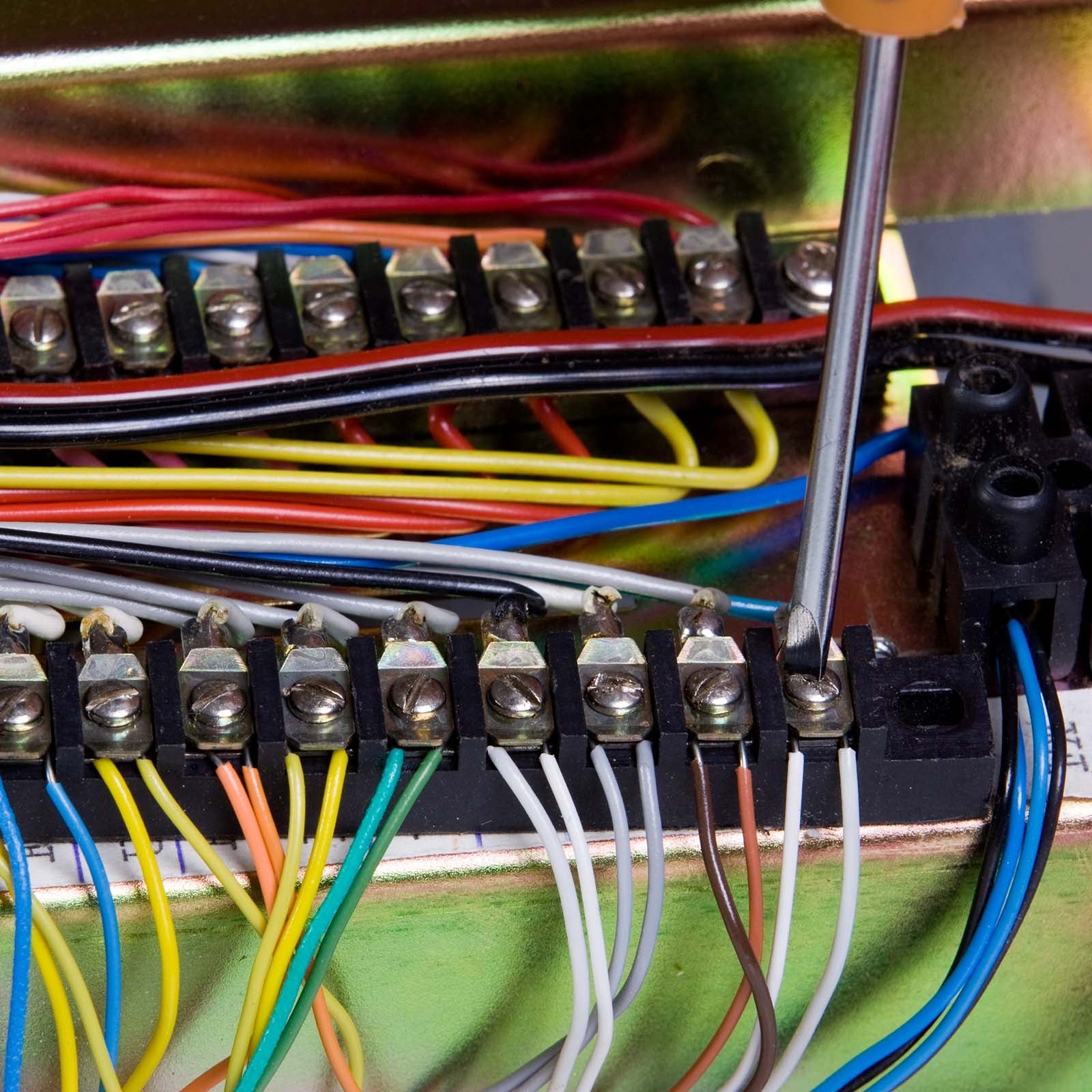

  • First, mount the screw terminal block type mount piece onto your PCB. Then, insert the stripped end of your wire into the appropriate terminal and use a small screwdriver to tighten the clamping screw firmly. Finally, connect the corresponding plug piece to complete the secure, detachable wiring interface.
  • Ensure the wire gauge matches the connector's specifications for a proper fit. Avoid over-tightening the terminal screws, as this could damage the wire or the connector housing. Avoid using over the maximum voltage or current.
  • In stock, ready to ship
Cart
Cart
About this item
  • This pluggable screw terminal block connector provides a solderless, reusable interface for securely connecting wires directly to a circuit board. These pluggable terminal blocks are suitable for plug wires. This connector is designed for low-voltage, low-current applications and typical DIY electronic environments.
  • Pluggable PCB Screw Terminal Block Connector; Model: JM15EDGKP-3.81; Package includes: 2 sets with 1x wrench, each set includes 1x Male, 1x Female; Type: 20 Pin; Material: Cooper, Nickel, PVC; Maximum Voltage/Current: 300V/8A; Pin Pitch Size: 3.81mm; Male Connector Size: 17x77x11mm / 0.67x3.03x0.43 inch (LxWxH); Female Connector Size: 15x77x11mm / 0.59x3.03x0.43 inch (LxWxH); Suitable Wire Size: 28-16AWG; Color: Green.
  • These pluggable PCB terminal blocks offer a secure screw-down connection that is both stable and easy to modify without soldering. Our connector's pluggable design simplifies circuit assembly and maintenance. Our PCB terminal block mounts feature flame-retardant and heat-resistant housing material, which allows for safe and long-term use.
  • First, mount the screw terminal block type mount piece onto your PCB. Then, insert the stripped end of your wire into the appropriate terminal and use a small screwdriver to tighten the clamping screw firmly. Finally, connect the corresponding plug piece to complete the secure, detachable wiring interface.
  • Ensure the wire gauge matches the connector's specifications for a proper fit. Avoid over-tightening the terminal screws, as this could damage the wire or the connector housing. Avoid using over the maximum voltage or current.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
This pluggable screw terminal block connector provides a solderless, reusable interface for securely connecting wires directly to a circuit board. These pluggable terminal blocks are suitable for plug wires. This connector is designed for low-voltage, low-current applications and typical DIY electronic environments.

What will I get?
Pluggable PCB Screw Terminal Block Connector;
Model: JM15EDGKP-3.81;
Package includes: 2 sets with 1x wrench, each set includes 1x Male, 1x Female;
Type: 20 Pin;
Material: Cooper, Nickel, PVC;
Maximum Voltage/Current: 300V/8A;
Pin Pitch Size: 3.81mm;
Male Connector Size: 17x77x11mm / 0.67x3.03x0.43 inch (LxWxH);
Female Connector Size: 15x77x11mm / 0.59x3.03x0.43 inch (LxWxH);
Suitable Wire Size: 28-16AWG;
Color: Green.

Are there any advantages of the product?
These pluggable PCB terminal blocks offer a secure screw-down connection that is both stable and easy to modify without soldering. Our connector's pluggable design simplifies circuit assembly and maintenance. Our PCB terminal block mounts feature flame-retardant and heat-resistant housing material, which allows for safe and long-term use.

How to use it?
First, mount the screw terminal block type mount piece onto your PCB. Then, insert the stripped end of your wire into the appropriate terminal and use a small screwdriver to tighten the clamping screw firmly. Finally, connect the corresponding plug piece to complete the secure, detachable wiring interface.

What should I notice?
Ensure the wire gauge matches the connector's specifications for a proper fit. Avoid over-tightening the terminal screws, as this could damage the wire or the connector housing. Avoid using over the maximum voltage or current.
