Harfington Air Conditioner AC Compressor Clutch Kit for Ford Explorer Flex for Lincoln MKS

Air Conditioner AC Compressor Clutch Kit for Ford Explorer Flex for Lincoln MKS

ID:
$91.02 Regular price
/
About this item

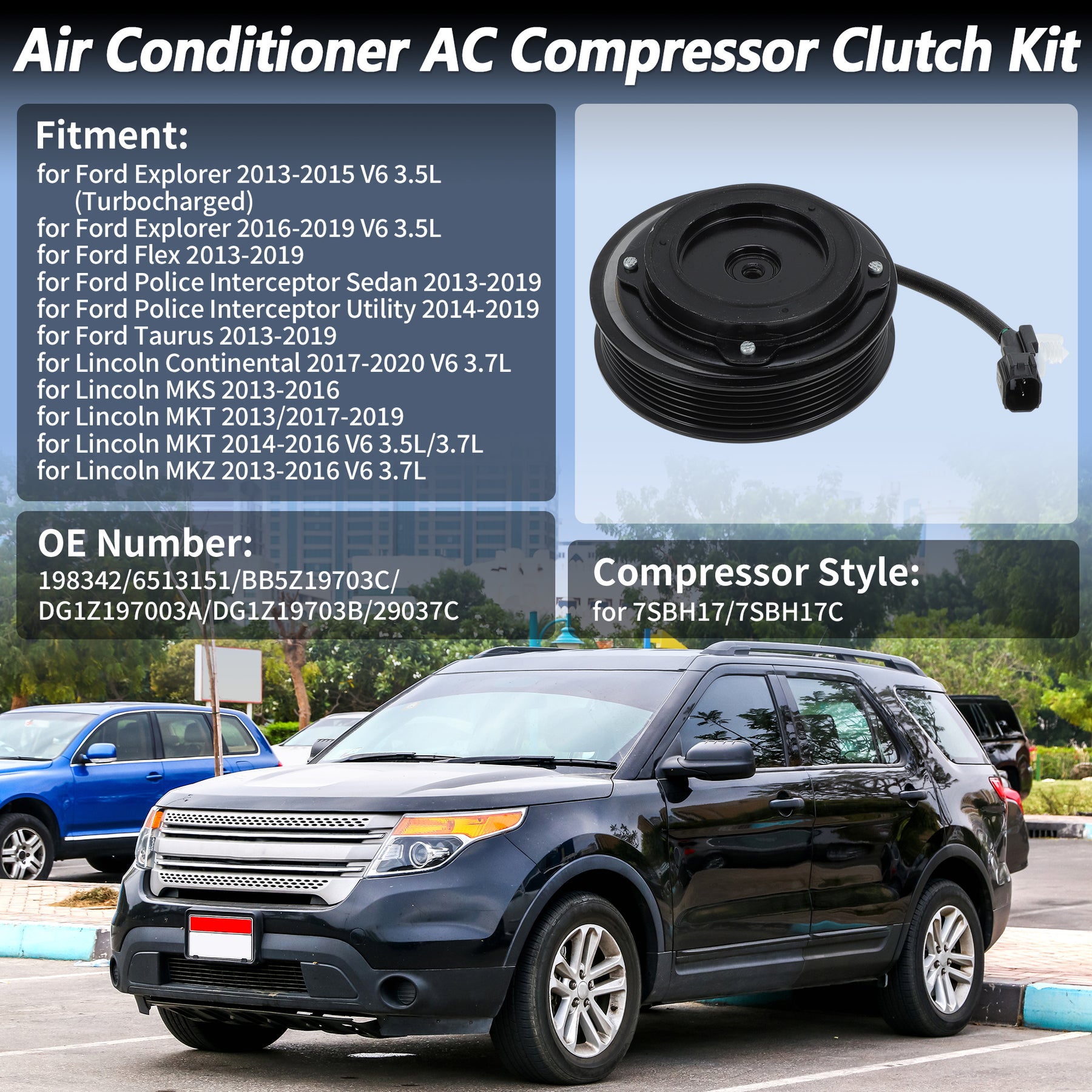

  • [Fitment] This AC Compressor Clutch suit for Ford Explorer 13-15(Turbocharged), for Ford Explorer 16-19, for Ford Flex 13-19, for Ford Police Interceptor Sedan 13-19, for Ford Police Interceptor Utility 14-19, for Ford Taurus 13-19, for Lincoln for Continental 17-20, for Lincoln MKS 13-16, for Lincoln MKT 2013/17-19, for Lincoln MKT 14-16, for Lincoln MKZ 13-16, OE Number:198342/6513151/BB5Z19703C/DG1Z197003A/DG1Z19703B/29037C.Please confirm car make model year engine before purchase.

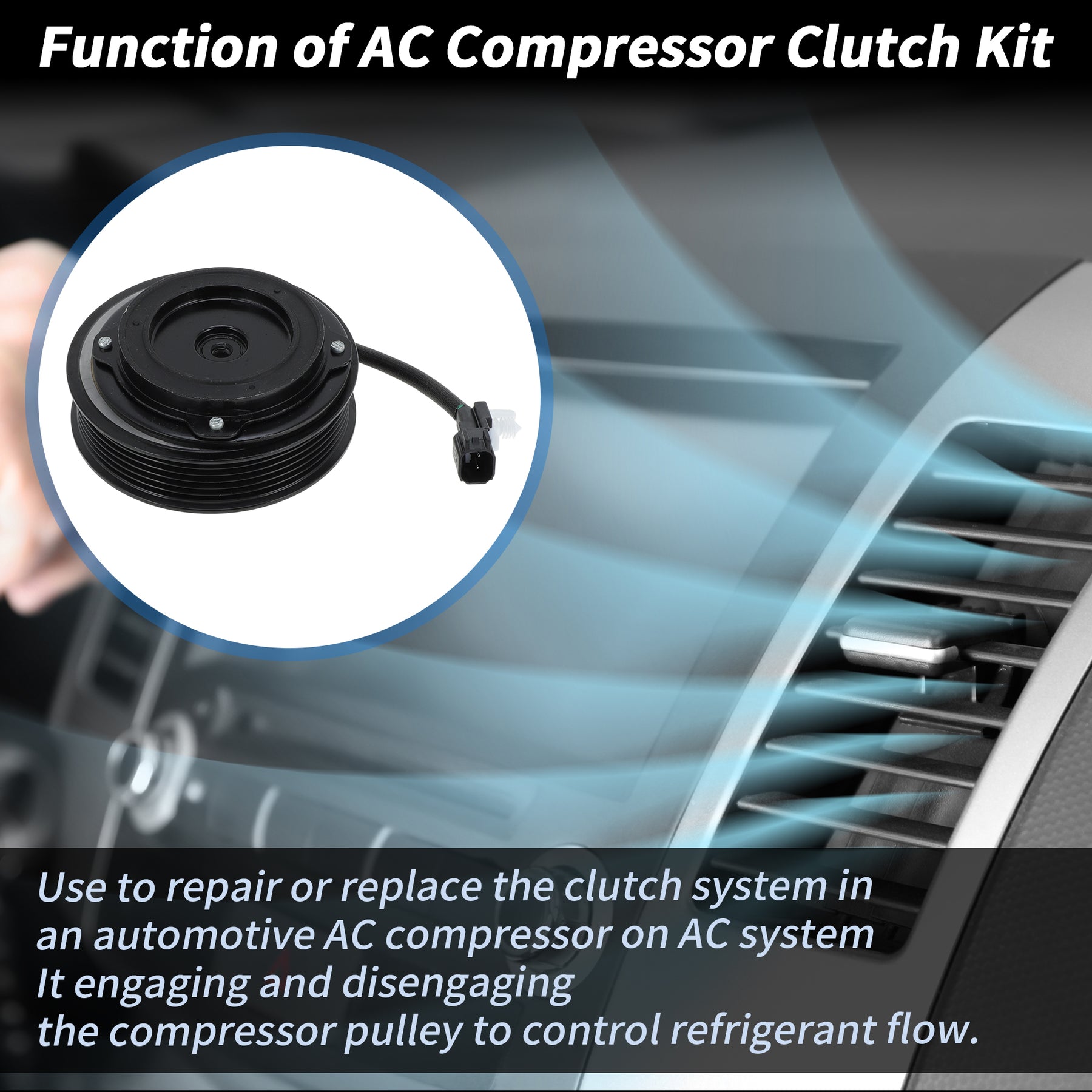

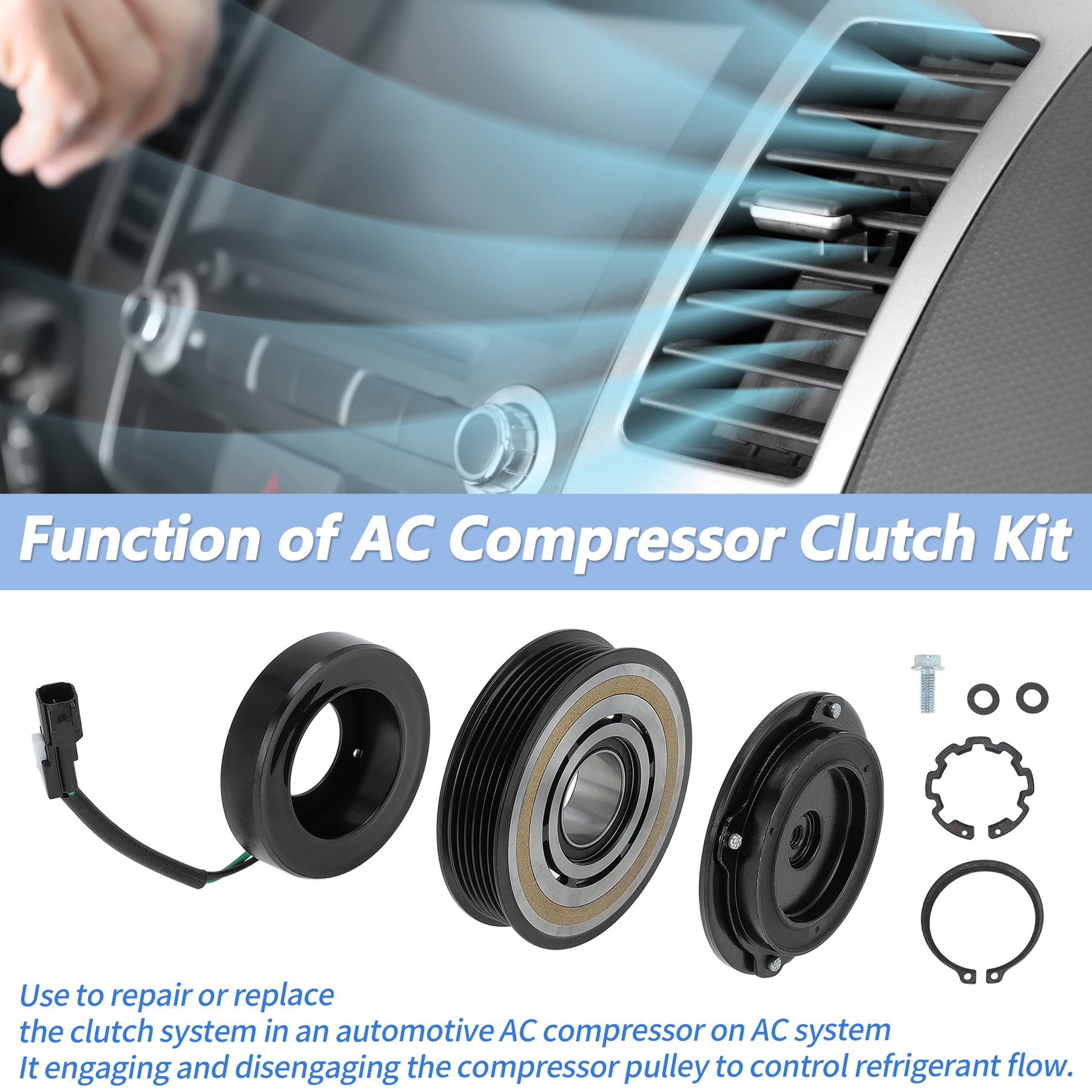

  • [Function& Specification] Compressor Style: for 7SBH17/7SBH17C, Pulley Groove Quantity: 6, Voltage: 12V, Pin: 2, Pulley Diameter (MM): . Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).

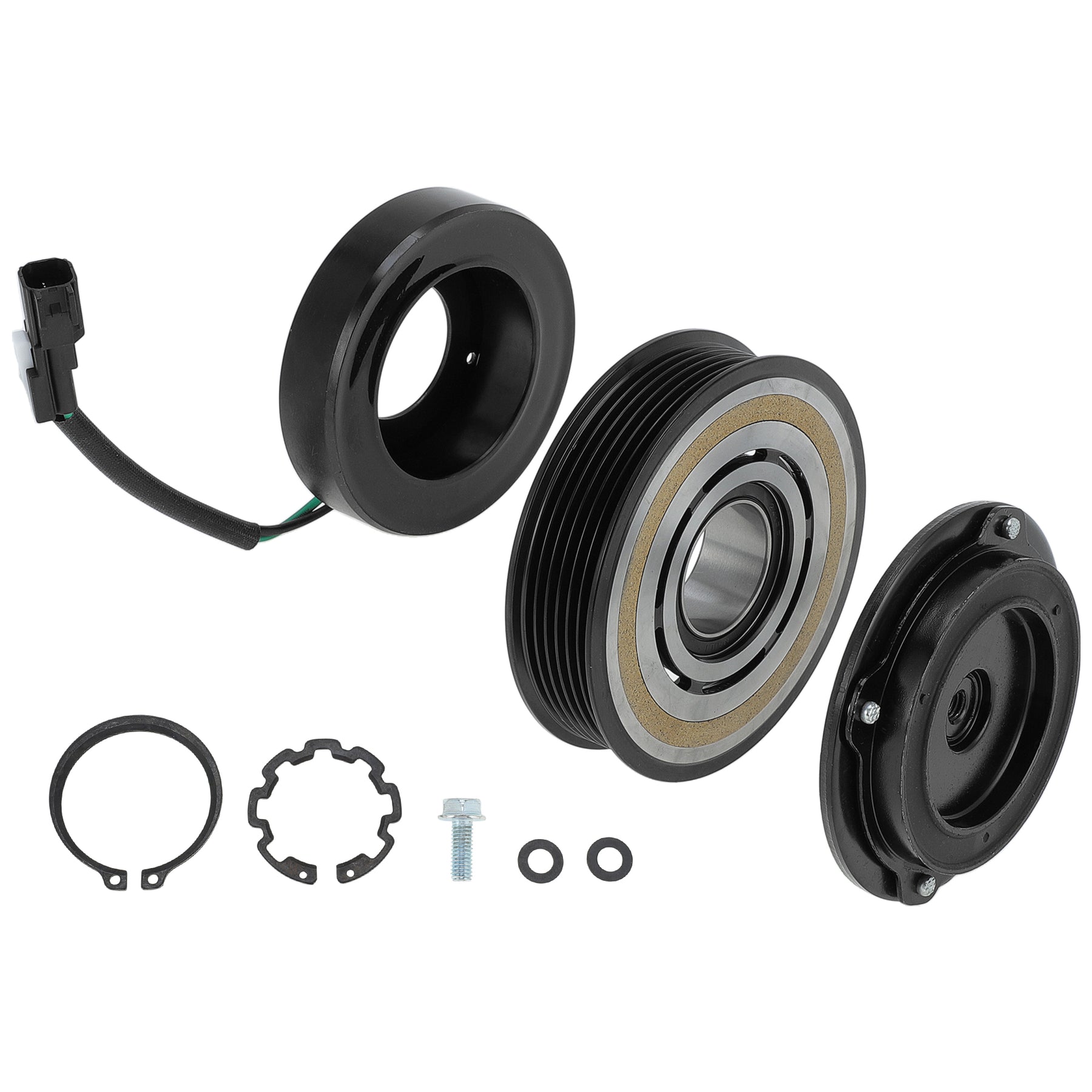

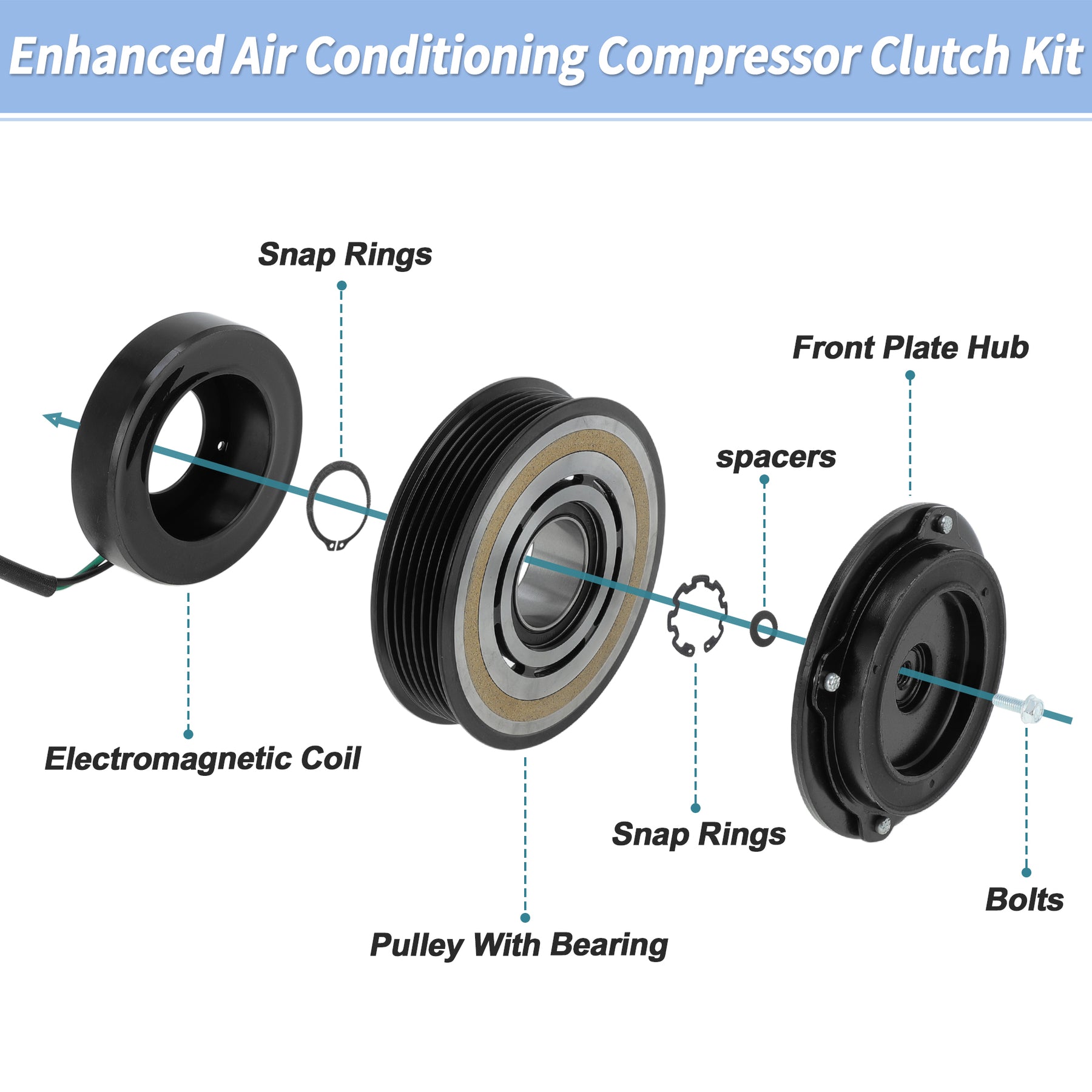

  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 2x Snap Ringss, 2x Shims, 1x Bolt. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Fitment] This AC Compressor Clutch suit for Ford Explorer 13-15(Turbocharged), for Ford Explorer 16-19, for Ford Flex 13-19, for Ford Police Interceptor Sedan 13-19, for Ford Police Interceptor Utility 14-19, for Ford Taurus 13-19, for Lincoln for Continental 17-20, for Lincoln MKS 13-16, for Lincoln MKT 2013/17-19, for Lincoln MKT 14-16, for Lincoln MKZ 13-16, OE Number:198342/6513151/BB5Z19703C/DG1Z197003A/DG1Z19703B/29037C.Please confirm car make model year engine before purchase.
  • [Function& Specification] Compressor Style: for 7SBH17/7SBH17C, Pulley Groove Quantity: 6, Voltage: 12V, Pin: 2, Pulley Diameter (MM): . Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).
  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 2x Snap Ringss, 2x Shims, 1x Bolt. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
OE Number:
  • 198342/6513151/BB5Z19703C/DG1Z197003A/DG1Z19703B/29037C
Fitment
  • for Ford Explorer 2013-2015 V6 3.5L (Turbocharged), for Ford Explorer 2016-2019 V6 3.5L, for Ford Flex 2013-2019, for Ford Police Interceptor Sedan 2013-2019, for Ford Police Interceptor Utility 2014-2019, for Ford Taurus 2013-2019, for Lincoln for Continental 2017-2020 V6 3.7L, for Lincoln MKS 2013-2016, for Lincoln MKT 2013/2017-2019, for Lincoln MKT 2014-2016 V6 3.5L/3.7L, for Lincoln MKZ 2013-2016 V6 3.7L
Specifications
  • Pin:2
  • Material: Steel
  • Compressor Style: for 7SBH17/7SBH17C
  • Pulley Groove Quantity: 6
  • Voltage: 12V
  • Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 2x Snap Ringss, 2x Shims, 1x Bolt
  • This is a non-OEM product, accessory only!
Feature
  • Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.
  • Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
  • Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
  • Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
  • Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$91.02 Regular price
/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

OE Number:
  • 198342/6513151/BB5Z19703C/DG1Z197003A/DG1Z19703B/29037C
Fitment
  • for Ford Explorer 2013-2015 V6 3.5L (Turbocharged), for Ford Explorer 2016-2019 V6 3.5L, for Ford Flex 2013-2019, for Ford Police Interceptor Sedan 2013-2019, for Ford Police Interceptor Utility 2014-2019, for Ford Taurus 2013-2019, for Lincoln for Continental 2017-2020 V6 3.7L, for Lincoln MKS 2013-2016, for Lincoln MKT 2013/2017-2019, for Lincoln MKT 2014-2016 V6 3.5L/3.7L, for Lincoln MKZ 2013-2016 V6 3.7L
Specifications
  • Pin:2
  • Material: Steel
  • Compressor Style: for 7SBH17/7SBH17C
  • Pulley Groove Quantity: 6
  • Voltage: 12V
  • Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 2x Snap Ringss, 2x Shims, 1x Bolt
  • This is a non-OEM product, accessory only!
Feature
  • Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.
  • Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
  • Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
  • Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
  • Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
