Harfington Air Conditioner AC Compressor Clutch Kit for Ford E150 E250 E350 F150 F250 F350

Air Conditioner AC Compressor Clutch Kit for Ford E150 E250 E350 F150 F250 F350

ID:
$97.92 Regular price
/
About this item

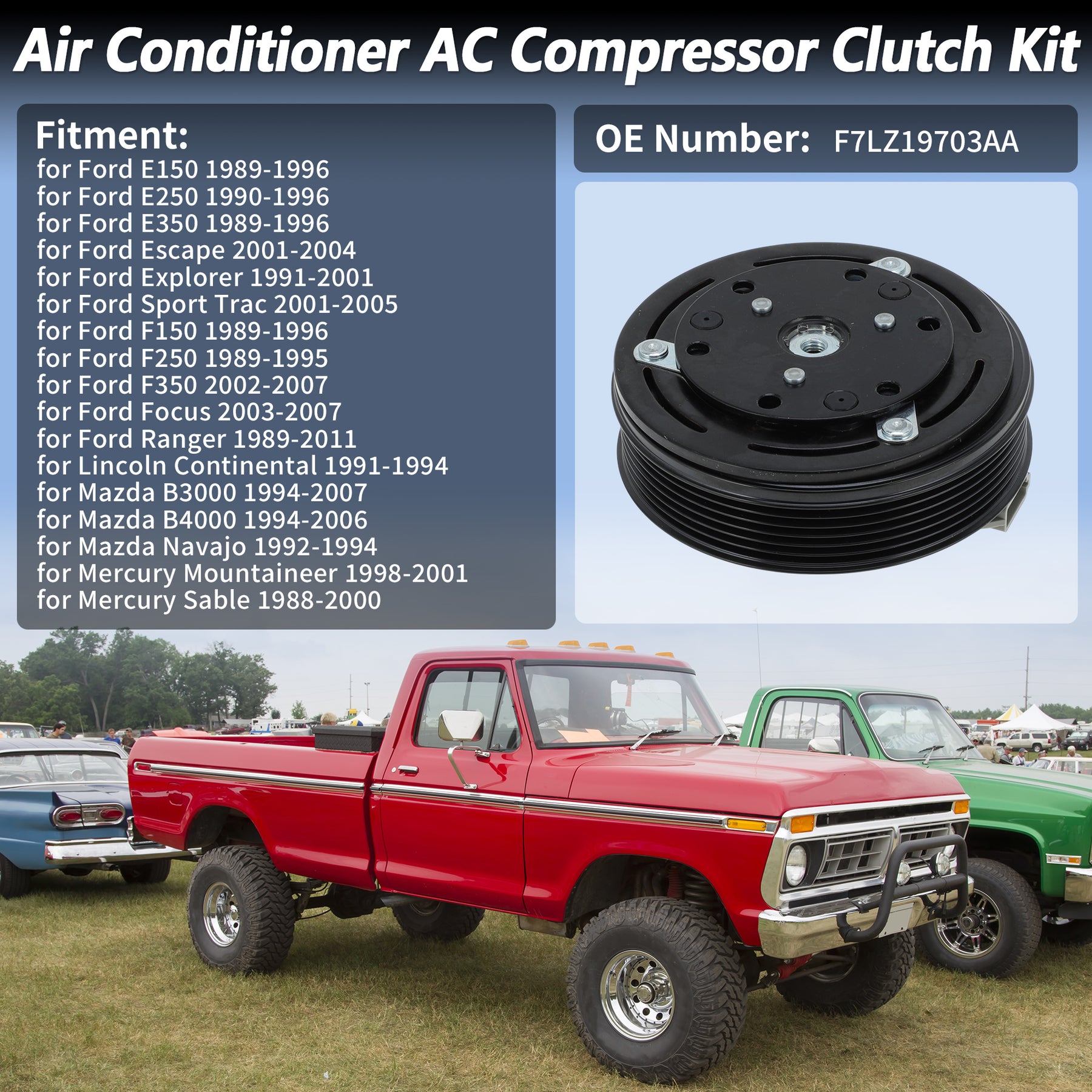

  • [Fitment] This AC Compressor Clutch suit for Ford E150 1989-1996,for Ford E250 90-96,for Ford E350 89-96,for Ford Escape 01-04,for Ford Explorer 91-01,for Ford Sport Trac 01-05,for Ford F150 89-96,for Ford F250 89-95,for Ford F350 02-07,for Ford Focus 03-07,for Ford for Ranger 89-11,for Lincoln for Continental 91-94,for Mazda B3000 94-07,for Mazda B4000 94-06,for Mercury for Mountaineer 98-01,for Mercury Sable 88-00,OE Number:F7LZ19703AA.Please confirm car make model year engine before purchase.

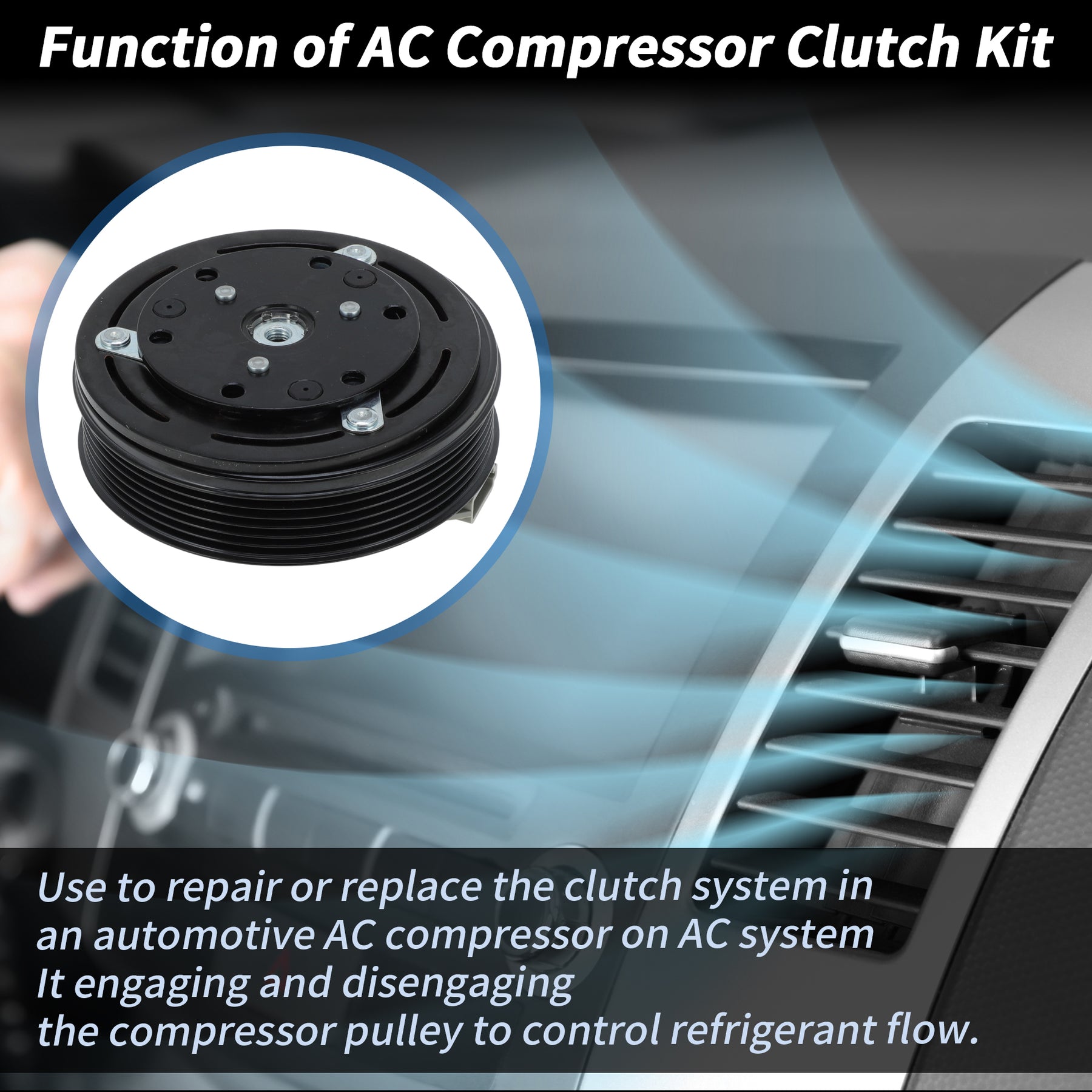

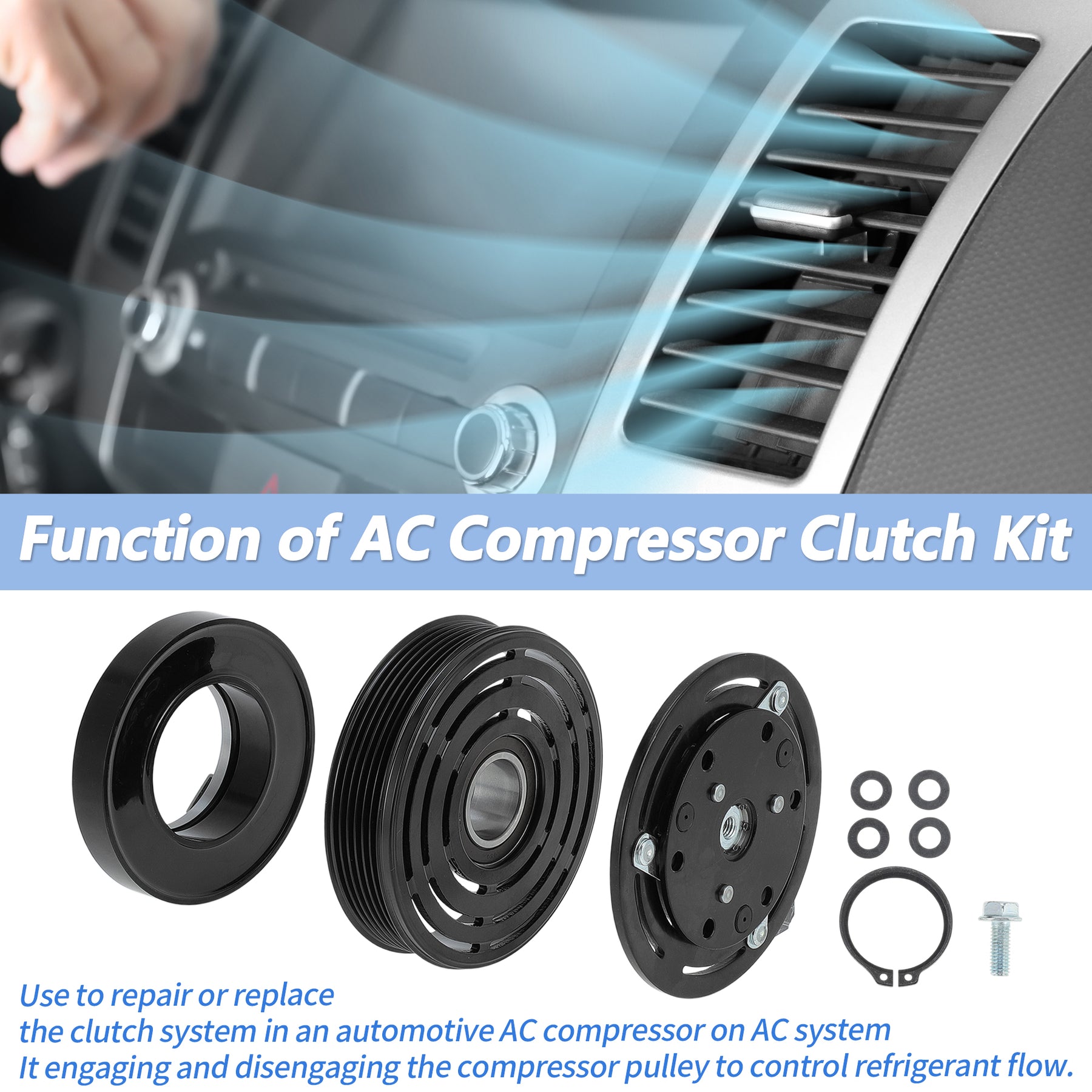

  • [Function& Specification]Pulley Groove Quantity: 6, Voltage: 12V, Pin: 2, Pulley Diameter (MM): 130mm/5.1". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.

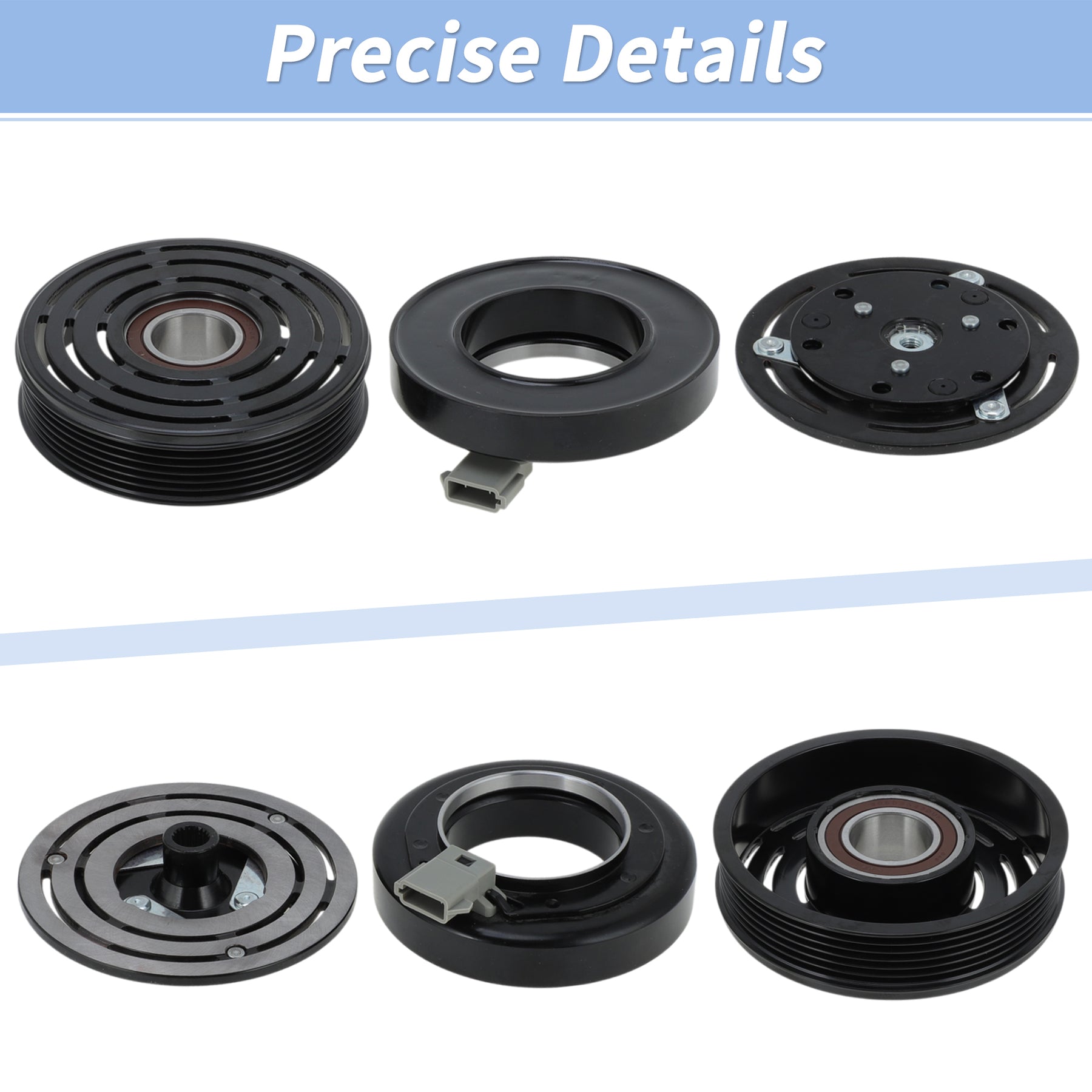

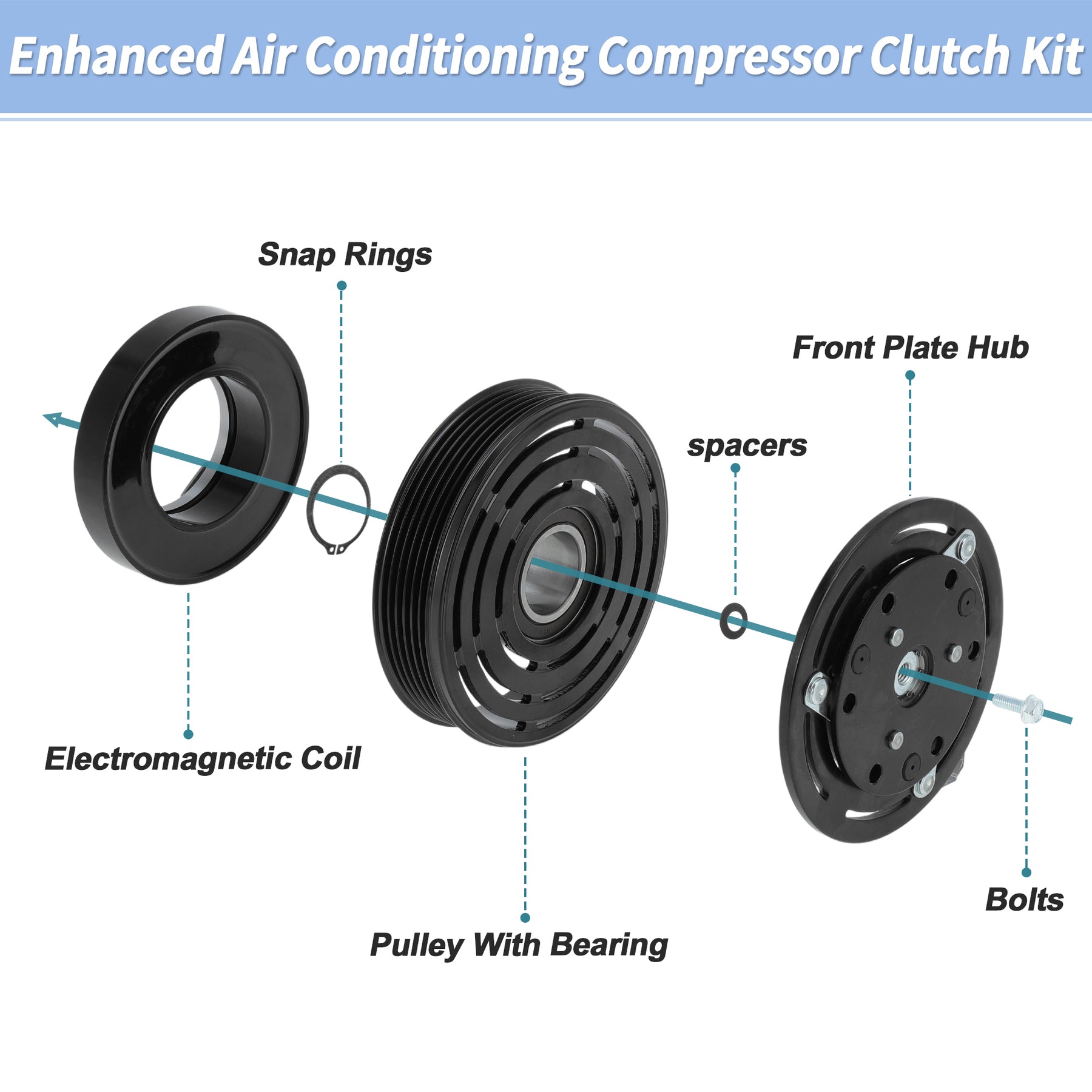

  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).

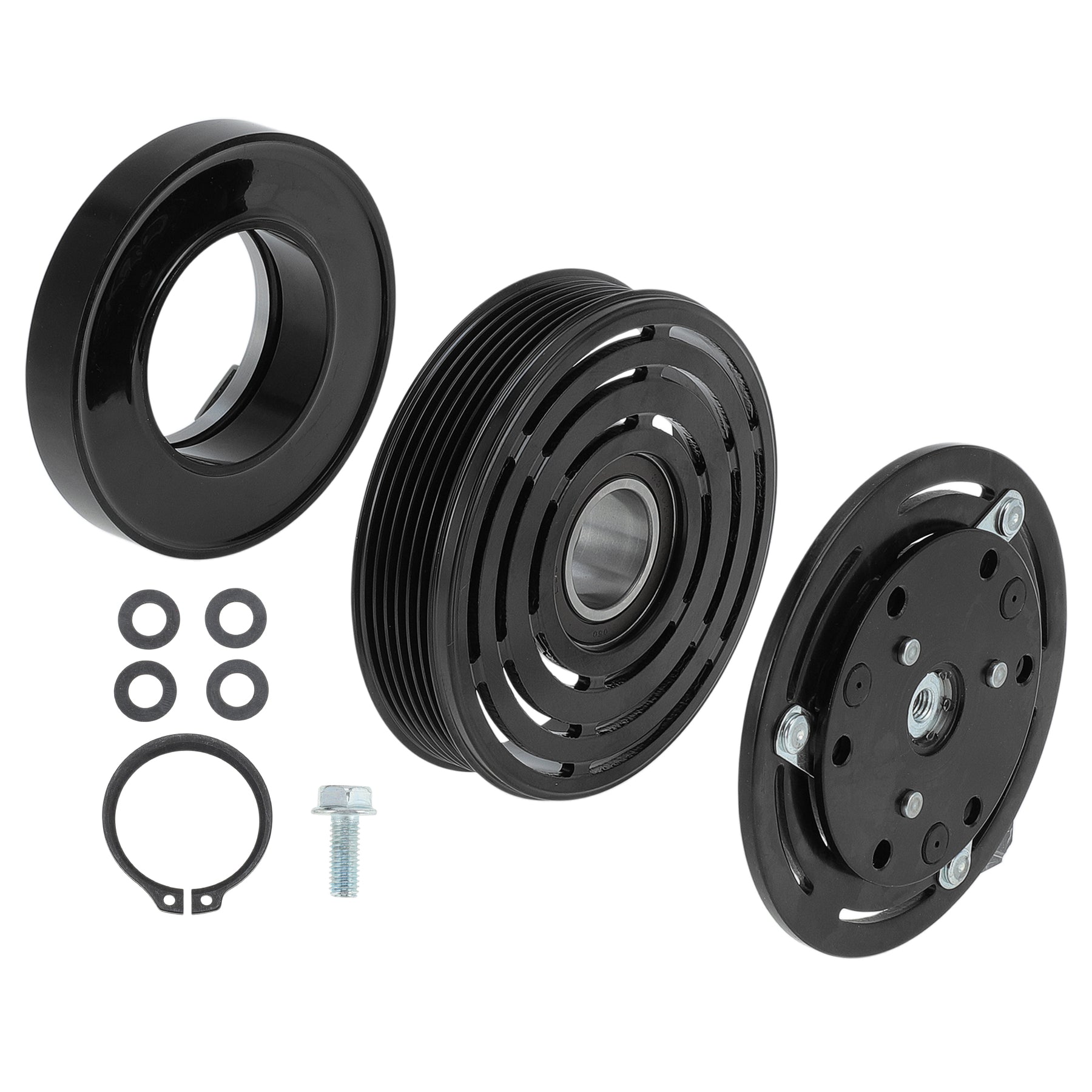

  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 4x Shims, 1x Bolt. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Fitment] This AC Compressor Clutch suit for Ford E150 1989-1996,for Ford E250 90-96,for Ford E350 89-96,for Ford Escape 01-04,for Ford Explorer 91-01,for Ford Sport Trac 01-05,for Ford F150 89-96,for Ford F250 89-95,for Ford F350 02-07,for Ford Focus 03-07,for Ford for Ranger 89-11,for Lincoln for Continental 91-94,for Mazda B3000 94-07,for Mazda B4000 94-06,for Mercury for Mountaineer 98-01,for Mercury Sable 88-00,OE Number:F7LZ19703AA.Please confirm car make model year engine before purchase.
  • [Function& Specification]Pulley Groove Quantity: 6, Voltage: 12V, Pin: 2, Pulley Diameter (MM): 130mm/5.1". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).
  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 4x Shims, 1x Bolt. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
OE Number:
  • F7LZ19703AA
Fitment
  • for Ford E150 1989-1996
  • for Ford E250 1990-1996
  • for Ford E350 1989-1996
  • for Ford Escape 2001-2004
  • for Ford Explorer 1991-2001
  • for Ford Sport Trac 2001-2005
  • for Ford F150 1989-1996
  • for Ford F250 1989-1995
  • for Ford F350 2002-2007
  • for Ford Focus 2003-2007
  • for Ford for Ranger 1989-2011
  • for Lincoln for Continental 1991-1994
  • for Mazda B3000 1994-2007
  • for Mazda B4000 1994-2006
  • for Mazda Navajo 1992-1994
  • for Mercury Mountaineer 1998-2001
  • for Mercury Sable 1988-2000
Specifications
  • Pin:2
  • Material: Steel
  • Pulley Groove Quantity: 6
  • Voltage: 12V
  • Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 4x Shims, 1x Bolt
  • This is a non-OEM product, accessory only!
Feature
  • Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.
  • Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
  • Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
  • Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
  • Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$97.92 Regular price
/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

OE Number:
  • F7LZ19703AA
Fitment
  • for Ford E150 1989-1996
  • for Ford E250 1990-1996
  • for Ford E350 1989-1996
  • for Ford Escape 2001-2004
  • for Ford Explorer 1991-2001
  • for Ford Sport Trac 2001-2005
  • for Ford F150 1989-1996
  • for Ford F250 1989-1995
  • for Ford F350 2002-2007
  • for Ford Focus 2003-2007
  • for Ford for Ranger 1989-2011
  • for Lincoln for Continental 1991-1994
  • for Mazda B3000 1994-2007
  • for Mazda B4000 1994-2006
  • for Mazda Navajo 1992-1994
  • for Mercury Mountaineer 1998-2001
  • for Mercury Sable 1988-2000
Specifications
  • Pin:2
  • Material: Steel
  • Pulley Groove Quantity: 6
  • Voltage: 12V
  • Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 4x Shims, 1x Bolt
  • This is a non-OEM product, accessory only!
Feature
  • Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.
  • Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
  • Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
  • Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
  • Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
