Harfington 2mm Radius 4mm Shank 100mm Length AlTiN Coated P05 Carbide Ball Nose End Mill

2mm Radius 4mm Shank 100mm Length AlTiN Coated P05 Carbide Ball Nose End Mill

ID:
$14.83 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • ★ Ball Nose End Mill Size --- The milling cutter with 2mm / 0.08" cutting radius; 4mm / 0.16" cutting diameter; 8mm / 0.31" cutting length; 4mm / 0.16" shank diameter; 100mm / 4" total length; HRC45 cutting hardness; 2 flutes; ball nose end cut.

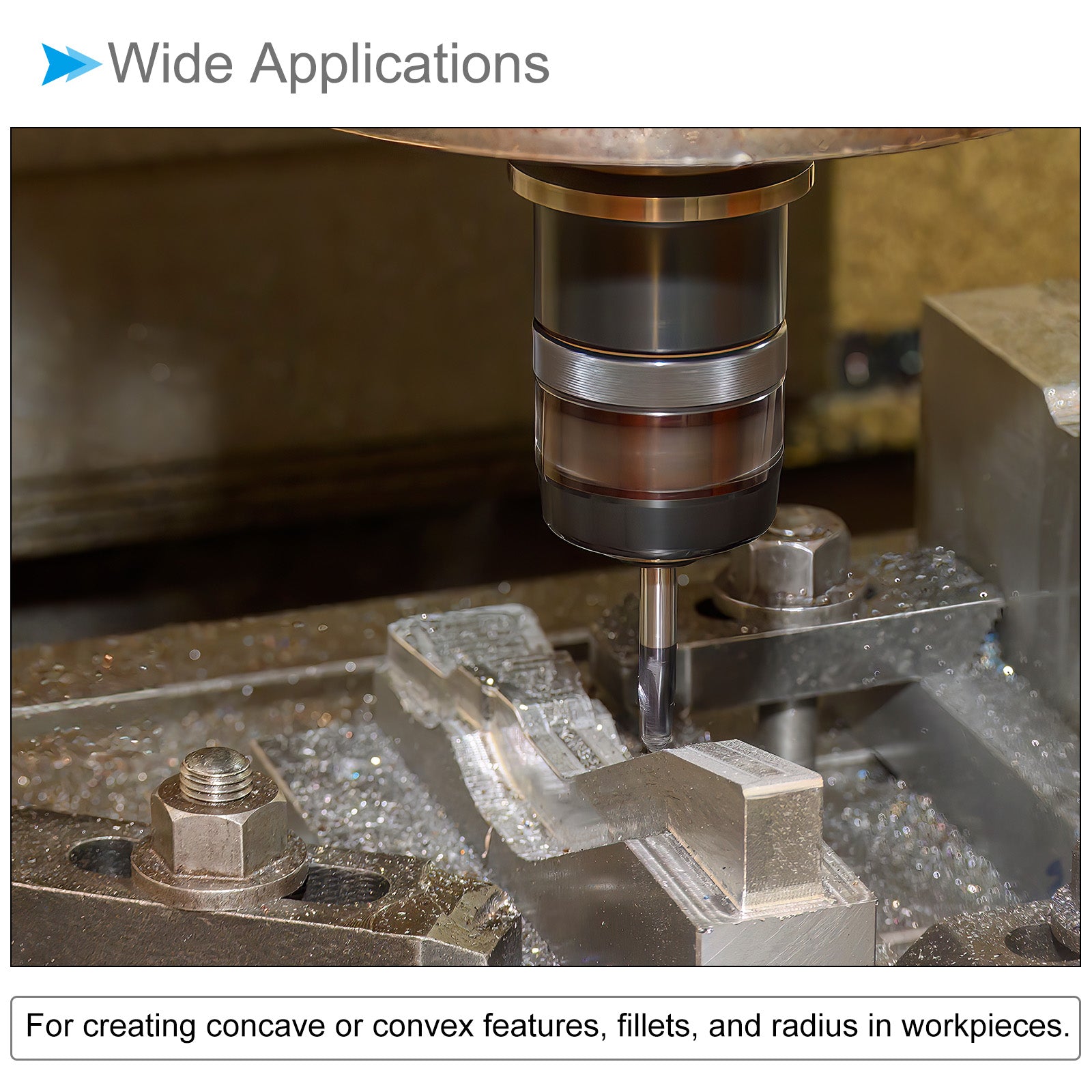

  • ★ Wide Applications --- The ball nose end mill is suitable for creating concave or convex features, fillets, and radius in workpieces, and for roughing or finishing stainless steel, carbon steel, alloy steel, hardened steels, cast iron, aluminum, and copper.

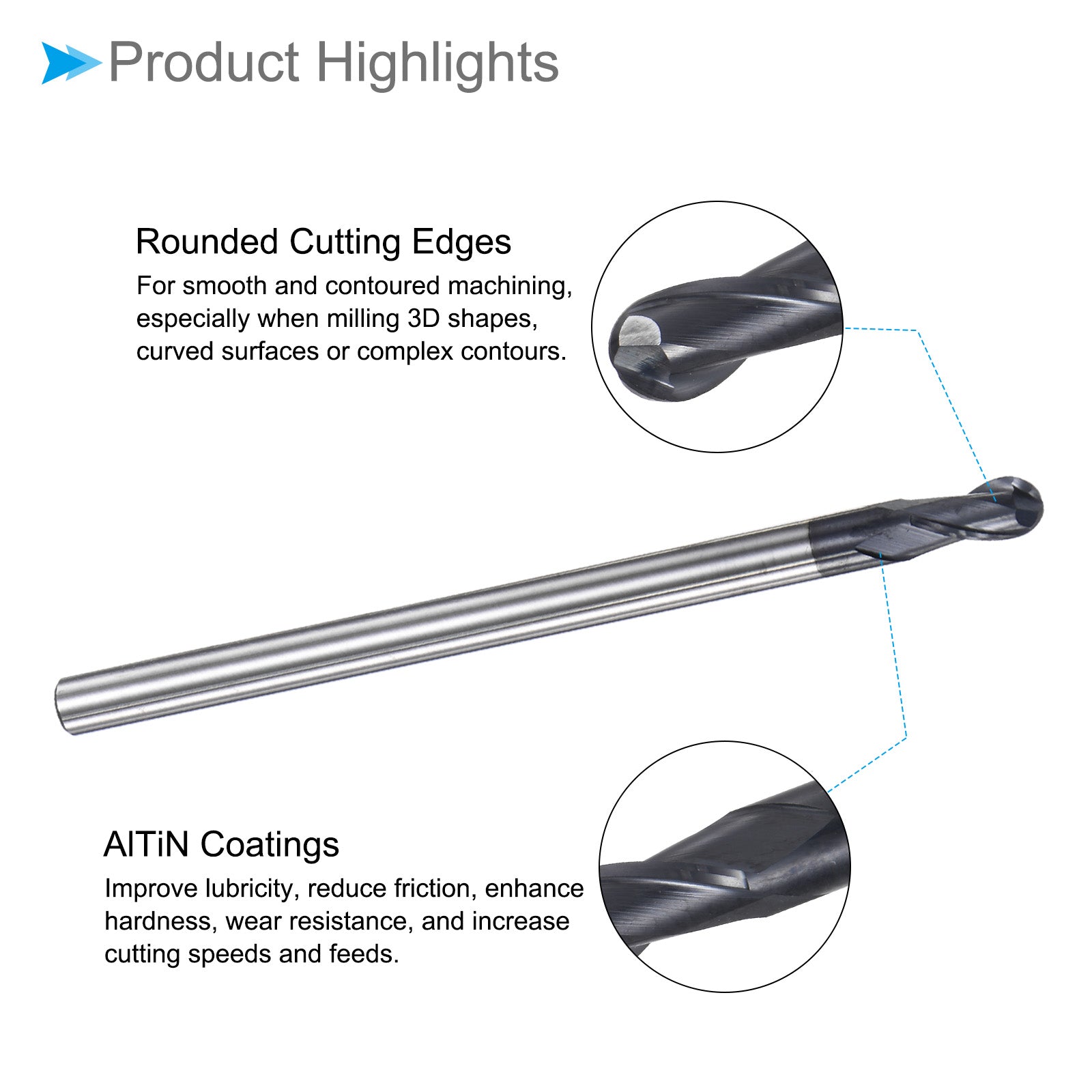

  • ★Ball Nose Cut --- The end mill has rounded cutting edges that resemble a ball or hemisphere for smooth and contoured machining, especially when milling 3D shapes, curved surfaces or complex contours. Flutes help facilitate efficient chip evacuation and provide stability during the cutting process.
  • ★ Carbide & AlTiN Coated --- P05 tungsten carbide provides high hardness, wear resistance, high strength, and good heat resistance. AlTiN coatings improve lubricity, reduce friction, and enhance hardness, wear resistance and overall tool life, and increase cutting speeds and feeds. It also helps minimize built-up edge formation, and contributes to a smoother surface finish.
  • ★ Useful Tips --- Works with CNC milling, router and engraving machines. Use an appropriate lubricant to improve chip evacuation, and overall performance. Adjust the parameters based on the workpiece material, desired surface finish, and machine capabilities. Ensure that the tool is properly seated and the spindle is rigid to minimize tool deflection.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ Ball Nose End Mill Size --- The milling cutter with 2mm / 0.08" cutting radius; 4mm / 0.16" cutting diameter; 8mm / 0.31" cutting length; 4mm / 0.16" shank diameter; 100mm / 4" total length; HRC45 cutting hardness; 2 flutes; ball nose end cut.
  • ★ Wide Applications --- The ball nose end mill is suitable for creating concave or convex features, fillets, and radius in workpieces, and for roughing or finishing stainless steel, carbon steel, alloy steel, hardened steels, cast iron, aluminum, and copper.
  • ★Ball Nose Cut --- The end mill has rounded cutting edges that resemble a ball or hemisphere for smooth and contoured machining, especially when milling 3D shapes, curved surfaces or complex contours. Flutes help facilitate efficient chip evacuation and provide stability during the cutting process.
  • ★ Carbide & AlTiN Coated --- P05 tungsten carbide provides high hardness, wear resistance, high strength, and good heat resistance. AlTiN coatings improve lubricity, reduce friction, and enhance hardness, wear resistance and overall tool life, and increase cutting speeds and feeds. It also helps minimize built-up edge formation, and contributes to a smoother surface finish.
  • ★ Useful Tips --- Works with CNC milling, router and engraving machines. Use an appropriate lubricant to improve chip evacuation, and overall performance. Adjust the parameters based on the workpiece material, desired surface finish, and machine capabilities. Ensure that the tool is properly seated and the spindle is rigid to minimize tool deflection.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

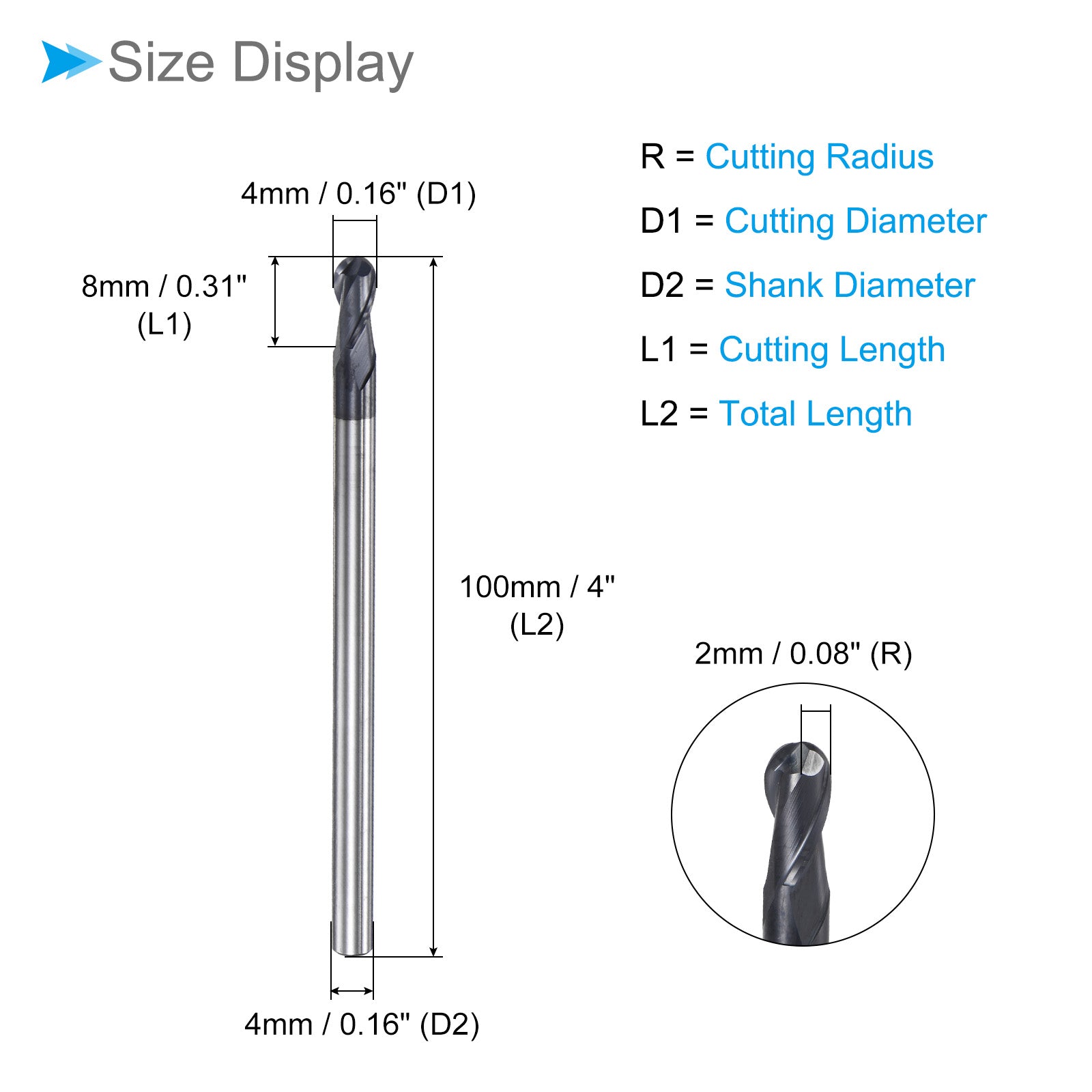

Attributes:
* Cutting Radius: 2mm / 0.08"
* Cutting Diameter: 4mm / 0.16"
* Cutting Length: 8mm / 0.31"
* Shank Diameter: 4mm / 0.16"
* Total Length: 100mm / 4"
* Material: P05 Tungsten Carbide
* Finish: AlTiN Coated
* End Cut Type: Ball Nose
* Cutting Hardness: HRC45
* Flute Design: 2 Flutes

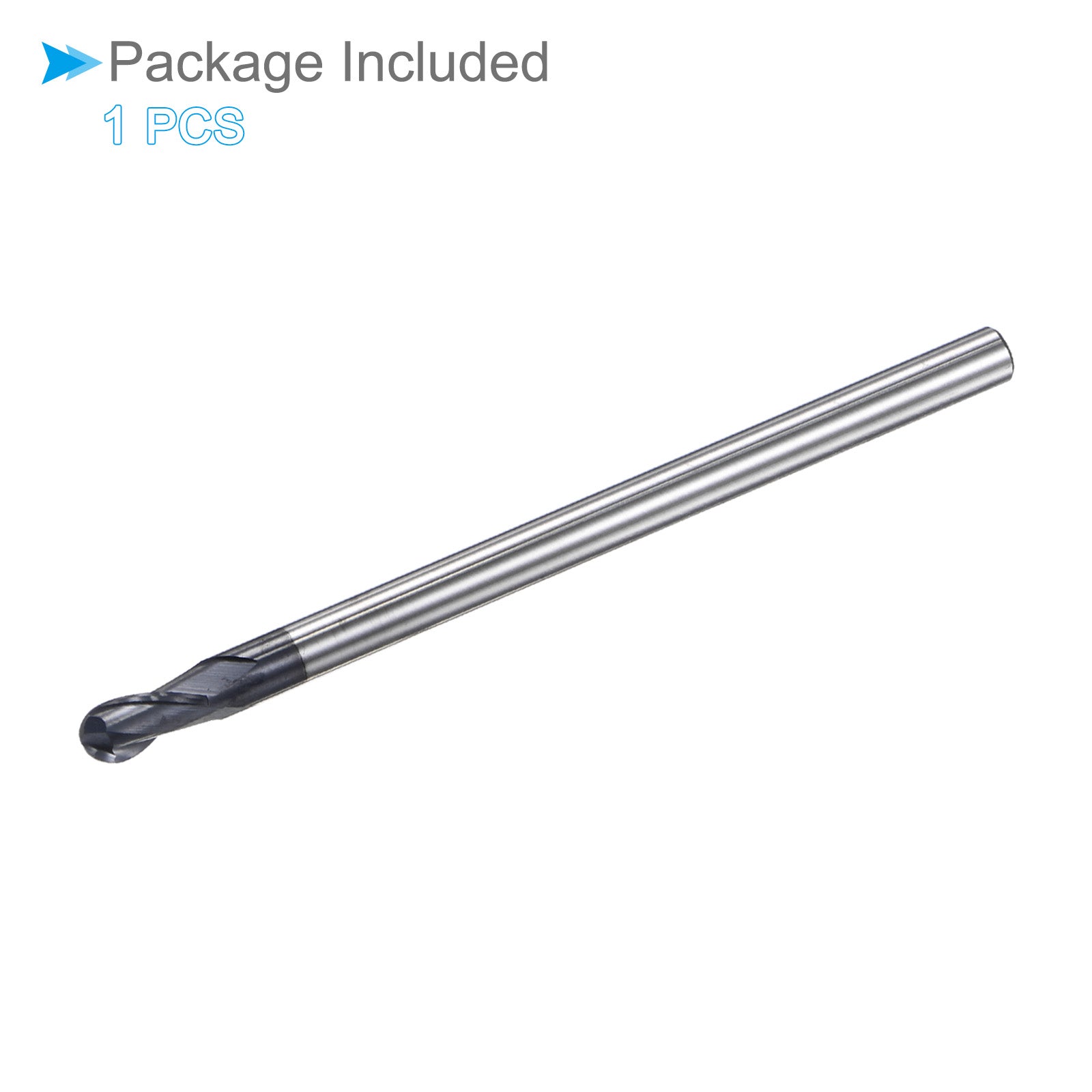

What Is Included:
* 1 Piece x Ball Nose End Mill

Applications & Features:
--- The ball nose end mill is suitable for creating concave or convex features, fillets, and radius in workpieces, and for roughing or finishing stainless steel, carbon steel, alloy steel, hardened steels, cast iron, aluminum, and copper. The end mill works with CNC milling machines, router machines, and engraving machines.
--- The end mill has rounded cutting edges that resemble a ball or hemisphere for smooth and contoured machining, especially when milling 3D shapes, curved surfaces or complex contours. Flutes help facilitate efficient chip evacuation and provide stability during the cutting process.
--- The P05 tungsten carbide provides excellent hardness, wear resistance, good toughness, high strength, and good heat resistance. AlTiN coatings improve lubricity, reduce friction, and enhance hardness, wear resistance and overall tool life, and increase cutting speeds and feeds. It also helps minimize built-up edge formation, and contributes to a smoother surface finish.

Useful Tips:
--- Use an appropriate coolant or lubricant to improve chip evacuation, and overall performance. Adjust the parameters based on the workpiece material, desired surface finish, and machine capabilities. Ensure that the tool is properly seated and the spindle is rigid to minimize tool deflection.
