Harfington 0.5mm Radius 6mm Shank 30 Degree Carbide Tapered Ball Nose End Mill Cutter

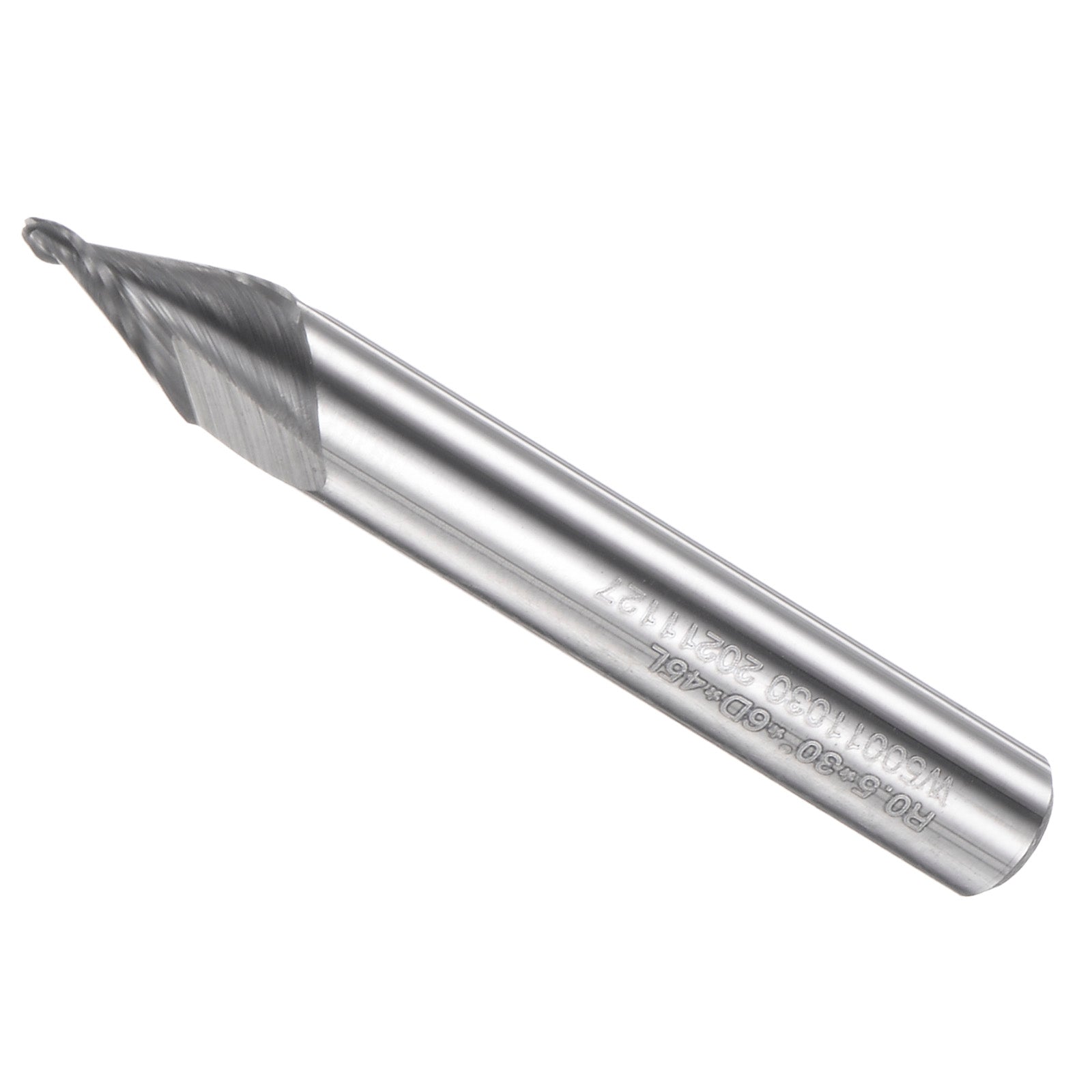

0.5mm Radius 6mm Shank 30 Degree Carbide Tapered Ball Nose End Mill Cutter

ID:
$13.26 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • ★ Tapered Ball Nose End Mill Size --- The milling cutter with 30 degree cutting angle; 0.5mm / 0.02" cutting radius; 1mm / 0.04" cutting diameter; 10mm / 0.39" cutting length; 6mm / 0.24" shank diameter; 45mm / 1.8" total length; HRC42 cutting hardness; 2 flutes; tapered ball nose end cut.

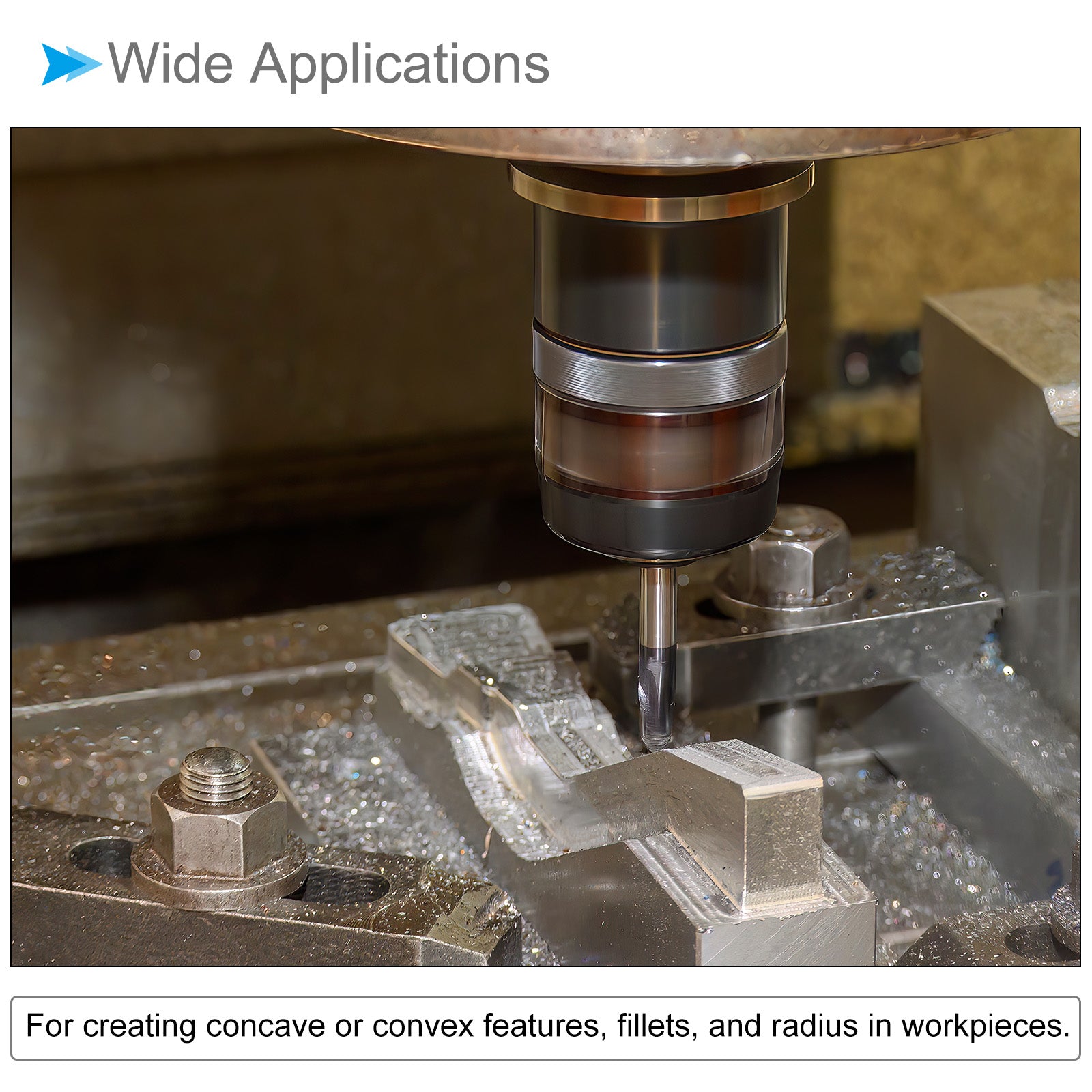

  • ★ Wide Applications --- The ball nose end mill is suitable for creating concave or convex features, fillets, and radius in workpieces, and for roughing or finishing stainless steel, cast iron, and non-ferrous metals, aluminum, plastic, and wood.

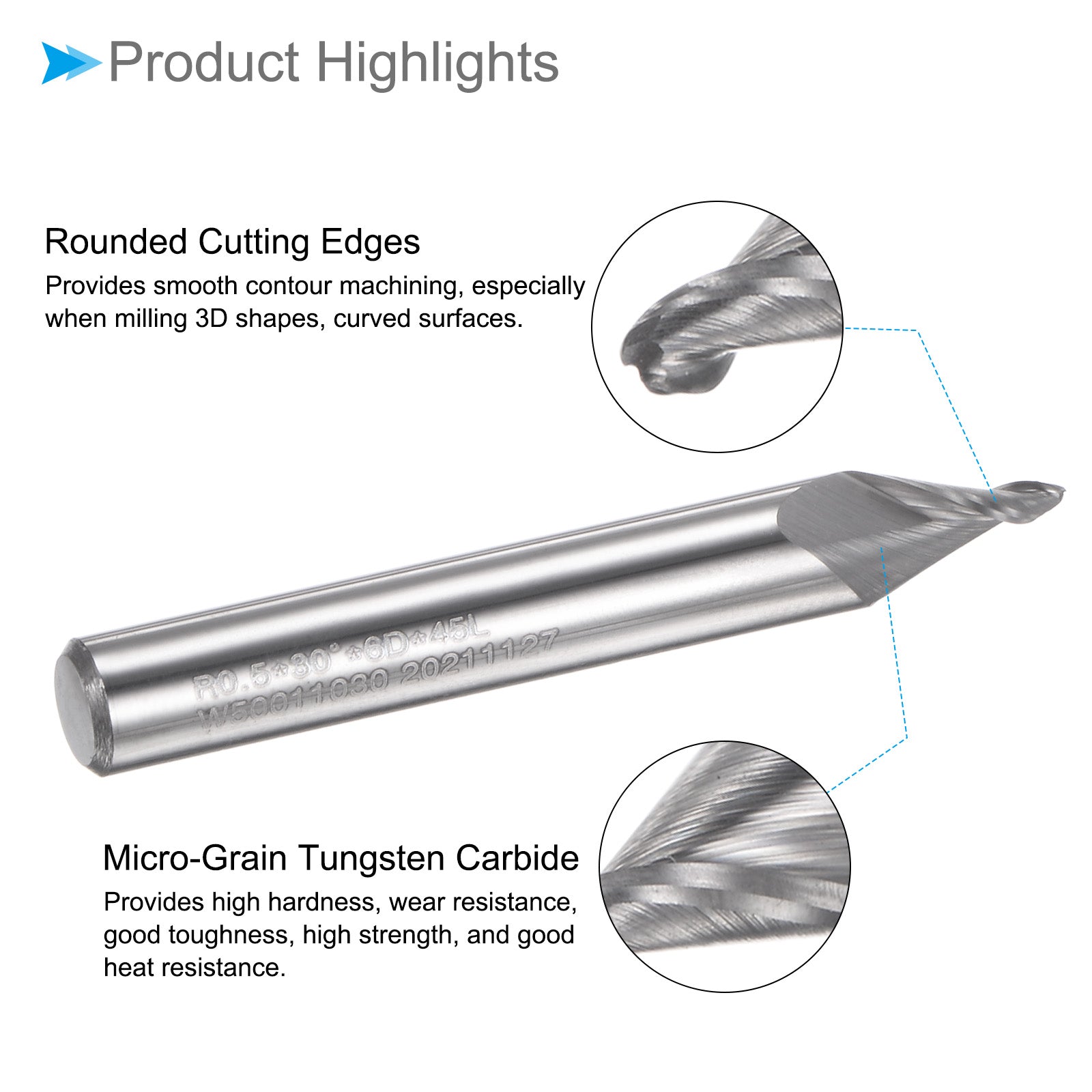

  • ★Ball Nose Cut --- The end mill has rounded cutting edges that resemble a ball or hemisphere for smooth and contoured machining, especially when milling 3D shapes, curved surfaces or complex contours. Flutes help facilitate efficient chip evacuation and provide stability during the cutting process.
  • ★ Carbide & Uncoated --- 0.6um micro-grain tungsten carbide provides high hardness (HRC92), wear resistance, high strength, and good heat resistance. Designed without additional coatings, it is commonly used in a variety of general purpose milling applications.
  • ★ Useful Tips --- Works with CNC milling, router and engraving machines. Use an appropriate lubricant to improve chip evacuation, and overall performance. Adjust the parameters based on the workpiece material, desired surface finish, and machine capabilities. Ensure that the tool is properly seated and the spindle is rigid to minimize tool deflection.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ Tapered Ball Nose End Mill Size --- The milling cutter with 30 degree cutting angle; 0.5mm / 0.02" cutting radius; 1mm / 0.04" cutting diameter; 10mm / 0.39" cutting length; 6mm / 0.24" shank diameter; 45mm / 1.8" total length; HRC42 cutting hardness; 2 flutes; tapered ball nose end cut.
  • ★ Wide Applications --- The ball nose end mill is suitable for creating concave or convex features, fillets, and radius in workpieces, and for roughing or finishing stainless steel, cast iron, and non-ferrous metals, aluminum, plastic, and wood.
  • ★Ball Nose Cut --- The end mill has rounded cutting edges that resemble a ball or hemisphere for smooth and contoured machining, especially when milling 3D shapes, curved surfaces or complex contours. Flutes help facilitate efficient chip evacuation and provide stability during the cutting process.
  • ★ Carbide & Uncoated --- 0.6um micro-grain tungsten carbide provides high hardness (HRC92), wear resistance, high strength, and good heat resistance. Designed without additional coatings, it is commonly used in a variety of general purpose milling applications.
  • ★ Useful Tips --- Works with CNC milling, router and engraving machines. Use an appropriate lubricant to improve chip evacuation, and overall performance. Adjust the parameters based on the workpiece material, desired surface finish, and machine capabilities. Ensure that the tool is properly seated and the spindle is rigid to minimize tool deflection.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

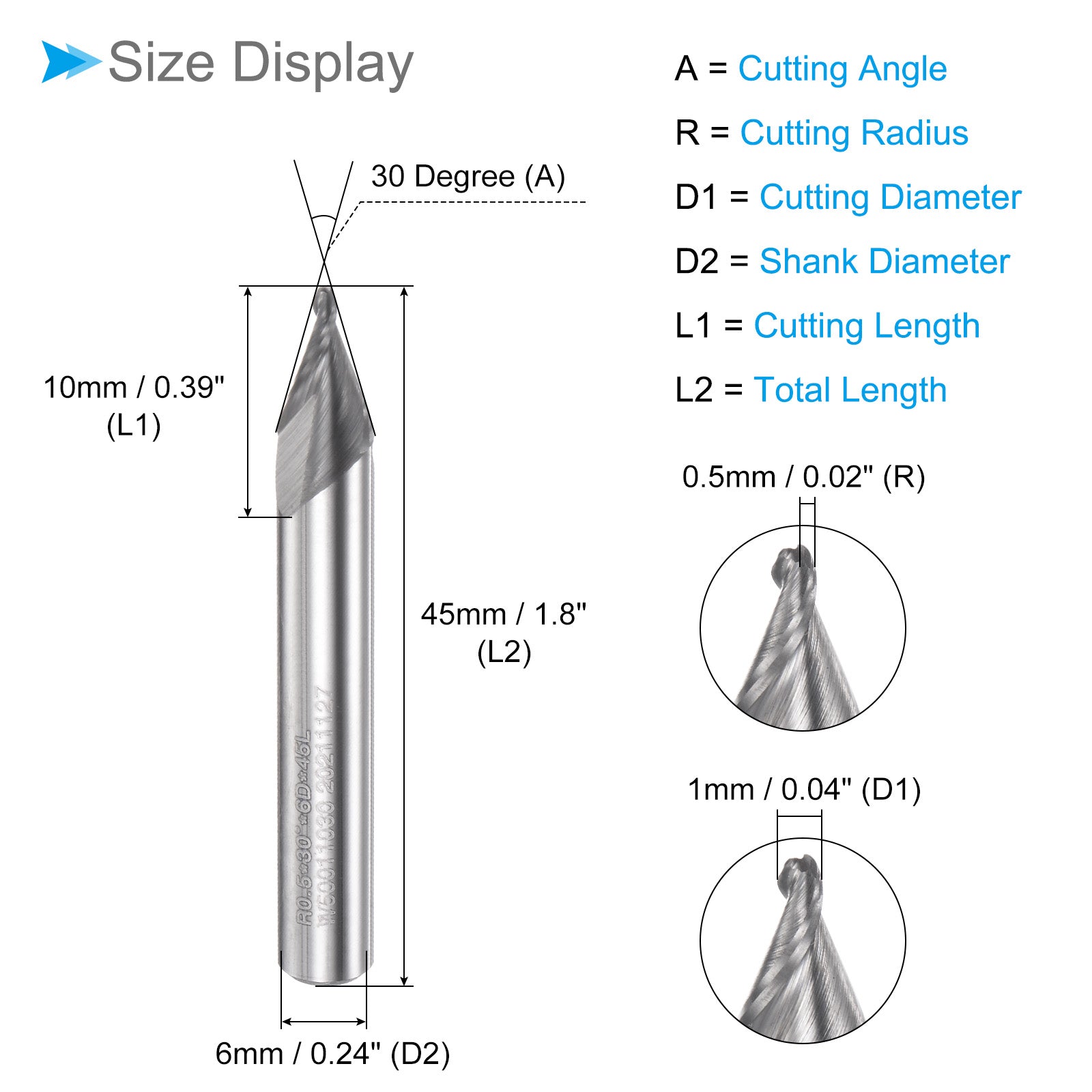

Attributes:
* Cutting Angle: 30 Degree
* Cutting Radius: 0.5mm / 0.02"
* Cutting Diameter: 1mm / 0.04"
* Cutting Length: 10mm / 0.39"
* Shank Diameter: 6mm / 0.24"
* Total Length: 45mm / 1.8"
* Material: 0.6um Micro-grain Tungsten Carbide
* Finish: Uncoated
* End Cut Type: Tapered Ball Nose
* Cutting Hardness: HRC42
* Flute Design: 2 Flutes

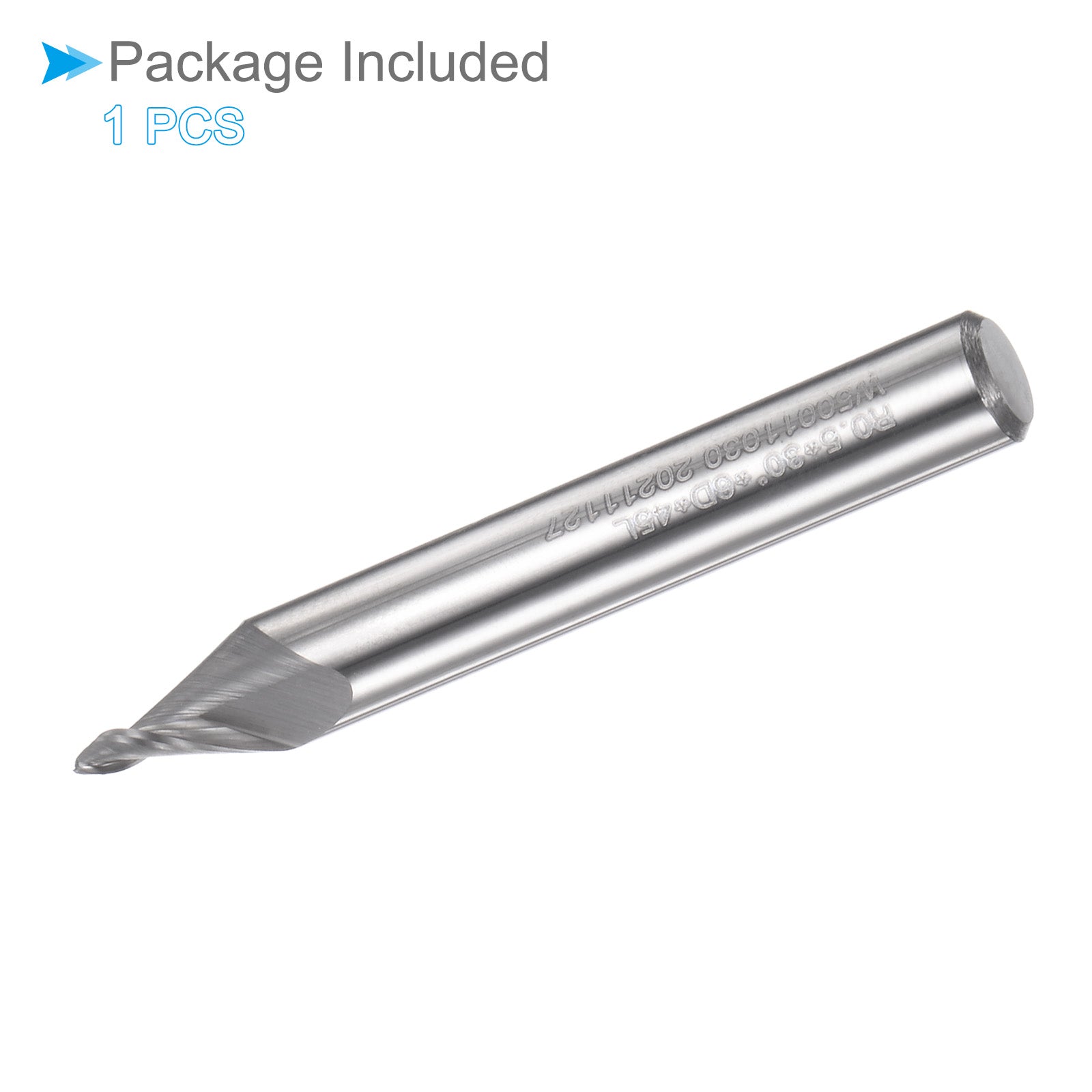

What Is Included:
* 1 Piece x Tapered Ball Nose End Mill

Applications & Features:
--- The tapered ball nose end mill is suitable for creating concave or convex features, fillets, and radius in workpieces, and for roughing or finishing stainless steel, cast iron, and non-ferrous metals, aluminum, plastic, and wood. The end mill works with CNC milling machines, router machines, and engraving machines.
--- The end mill has rounded cutting edges that resemble a ball or hemisphere for smooth and contoured machining, especially when milling 3D shapes, curved surfaces or complex contours. Flutes help facilitate efficient chip evacuation and provide stability during the cutting process.
--- The 0.6um micro-grain tungsten carbide provides high hardness (HRC92), wear resistance, good toughness, high strength, and good heat resistance. Designed without additional coatings, it is commonly used in a variety of general purpose milling applications.

Useful Tips:
--- Use an appropriate coolant or lubricant to improve chip evacuation, and overall performance. Adjust the parameters based on the workpiece material, desired surface finish, and machine capabilities. Ensure that the tool is properly seated and the spindle is rigid to minimize tool deflection.
