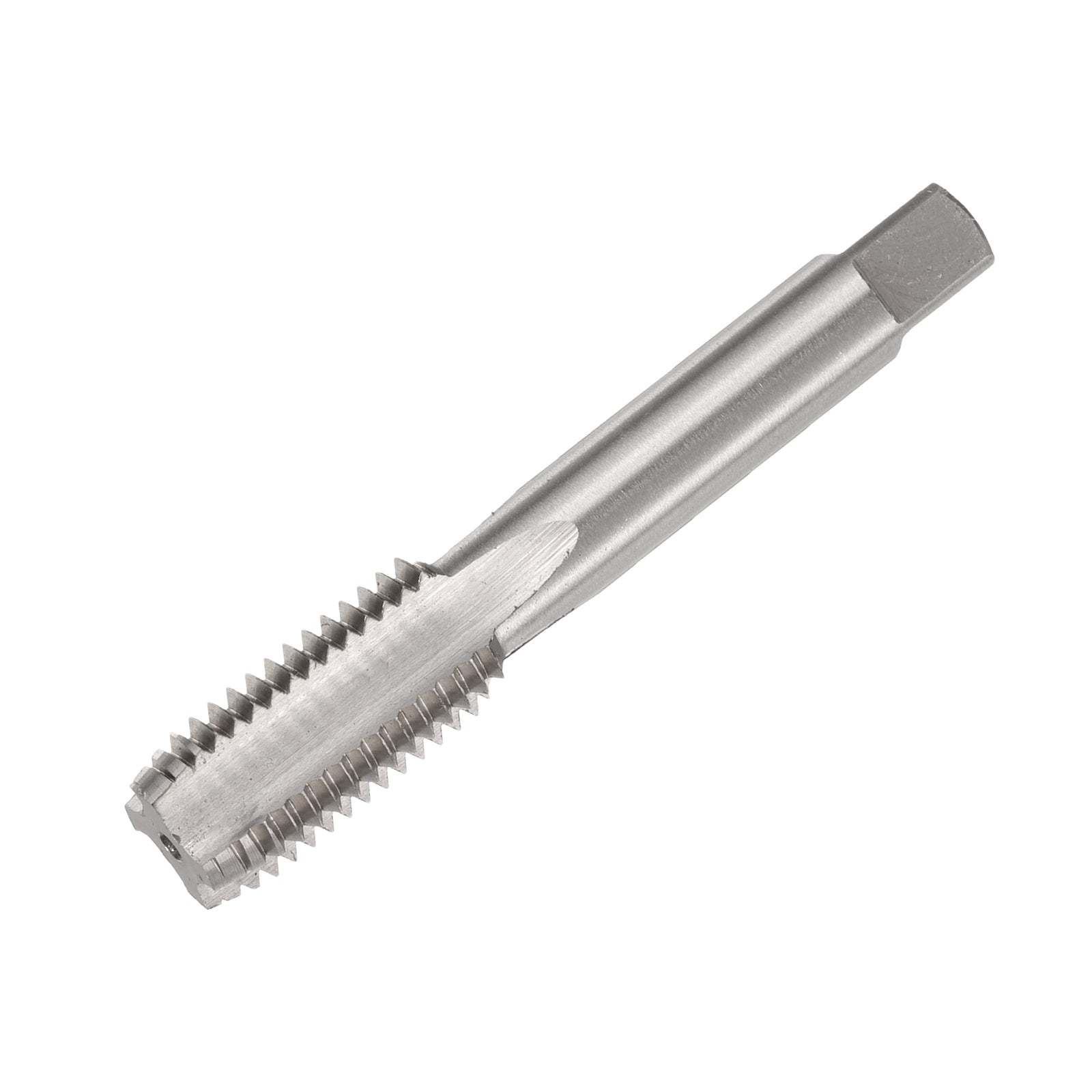

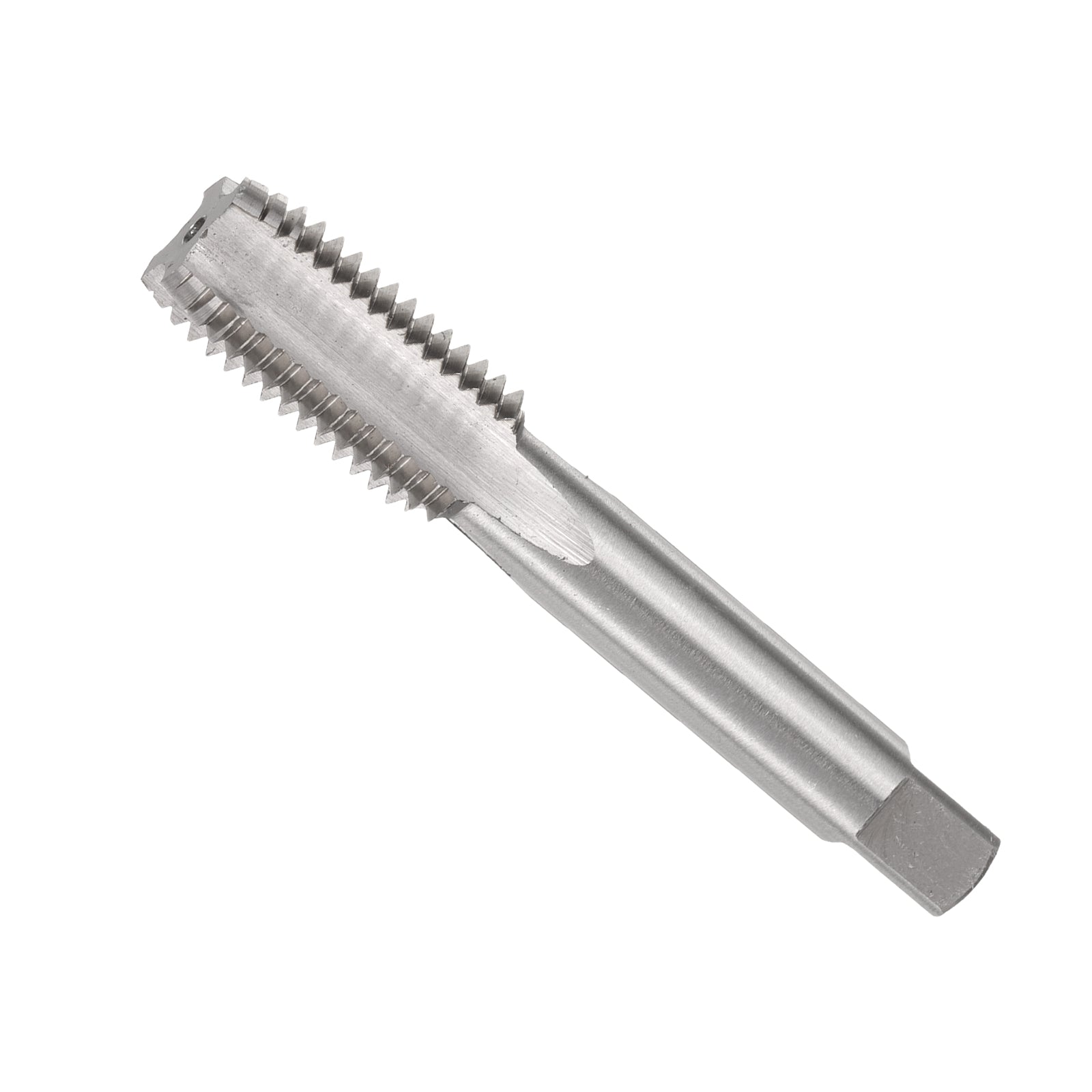

Harfington M20 x 2.5 B2 Spiral Point Thread Tap High Speed Steel Tapping Threading Tool

M20 x 2.5 B2 Spiral Point Thread Tap High Speed Steel Tapping Threading Tool

ID:
$13.89 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Spiral Point Tap Size: Thread Size: M20 x 2.5, Shank Side Width: 11mm / 0.43 inch, Thread Length: 40mm / 1.6 inch, Total Length: 111mm / 4.4 inch, Accuracy: B2
  • 6542 (M2) High Speed Steel: Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Uncoated taps only have a base substrate, which is very suitable for a wide range of applications.
  • Features: Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping. The grooves on the tap facilitate the removal of chips and debris from the hole.
  • Applications: Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.
  • Tips: It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.
  • In stock, ready to ship
Cart
Cart
About this item
  • Spiral Point Tap Size: Thread Size: M20 x 2.5, Shank Side Width: 11mm / 0.43 inch, Thread Length: 40mm / 1.6 inch, Total Length: 111mm / 4.4 inch, Accuracy: B2
  • 6542 (M2) High Speed Steel: Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Uncoated taps only have a base substrate, which is very suitable for a wide range of applications.
  • Features: Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping. The grooves on the tap facilitate the removal of chips and debris from the hole.
  • Applications: Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.
  • Tips: It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
  1. Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Uncoated taps only have a base substrate, which is very suitable for a wide range of applications.

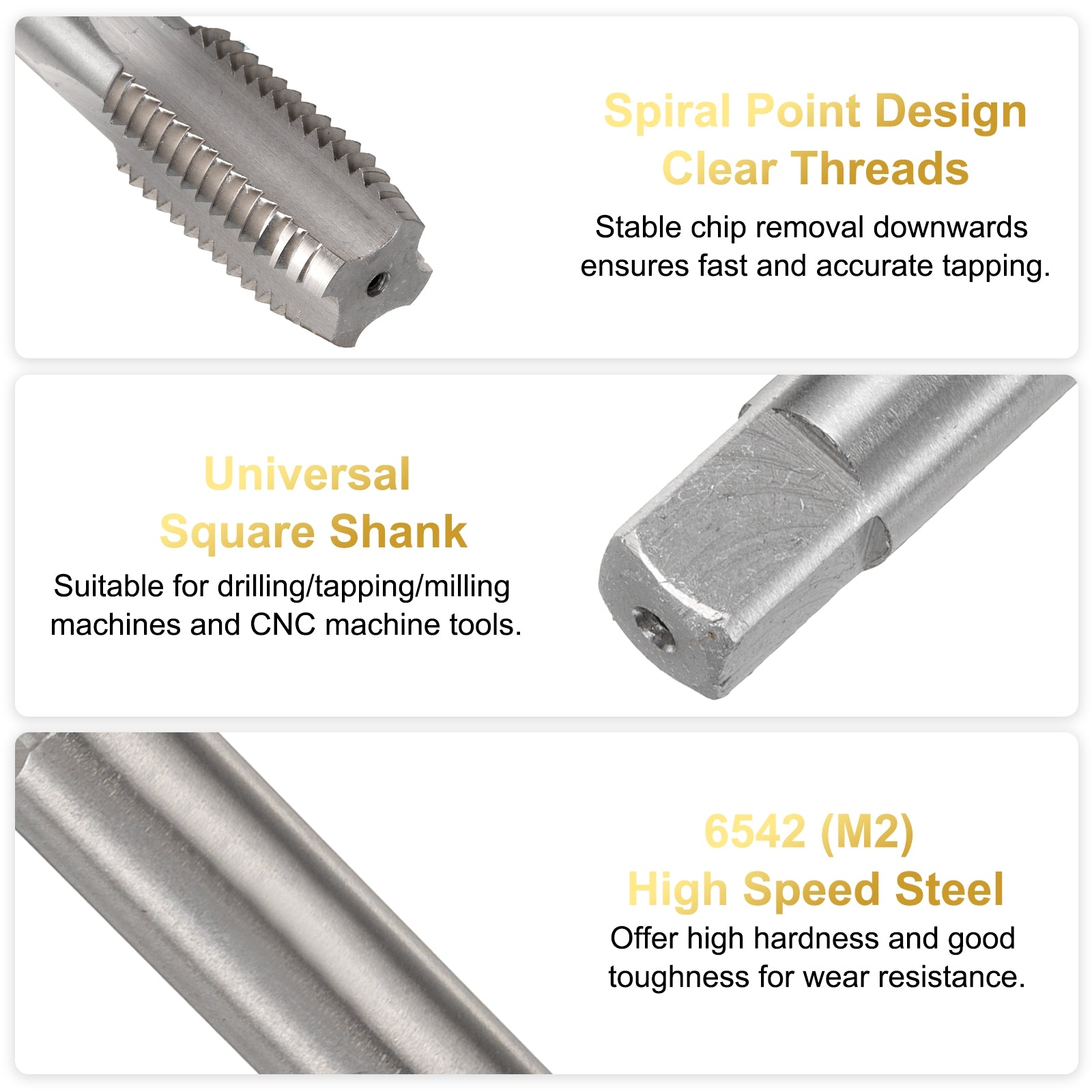

  2. Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping.
  3. Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. The grooves on the tap facilitate the removal of chips and debris from the hole.

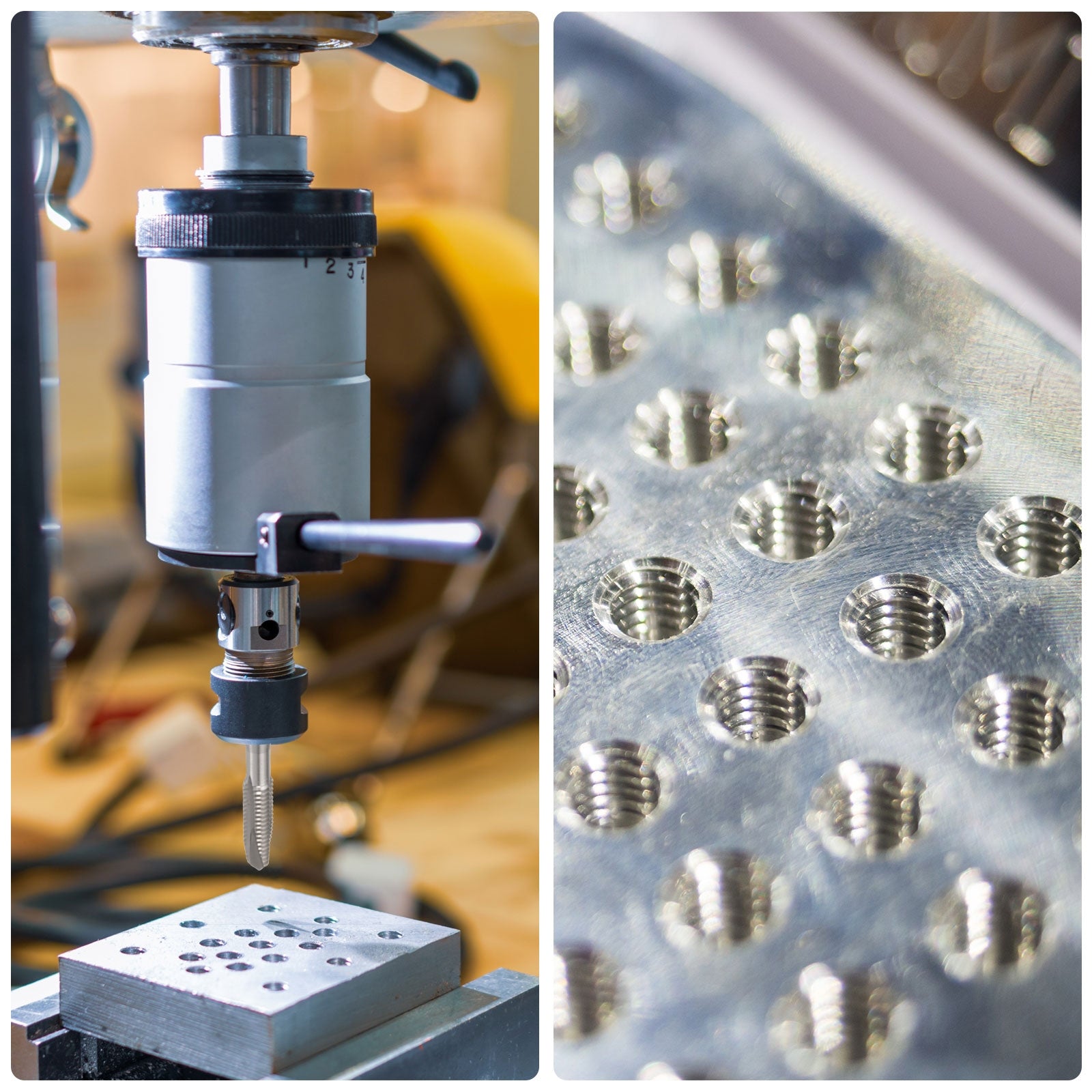

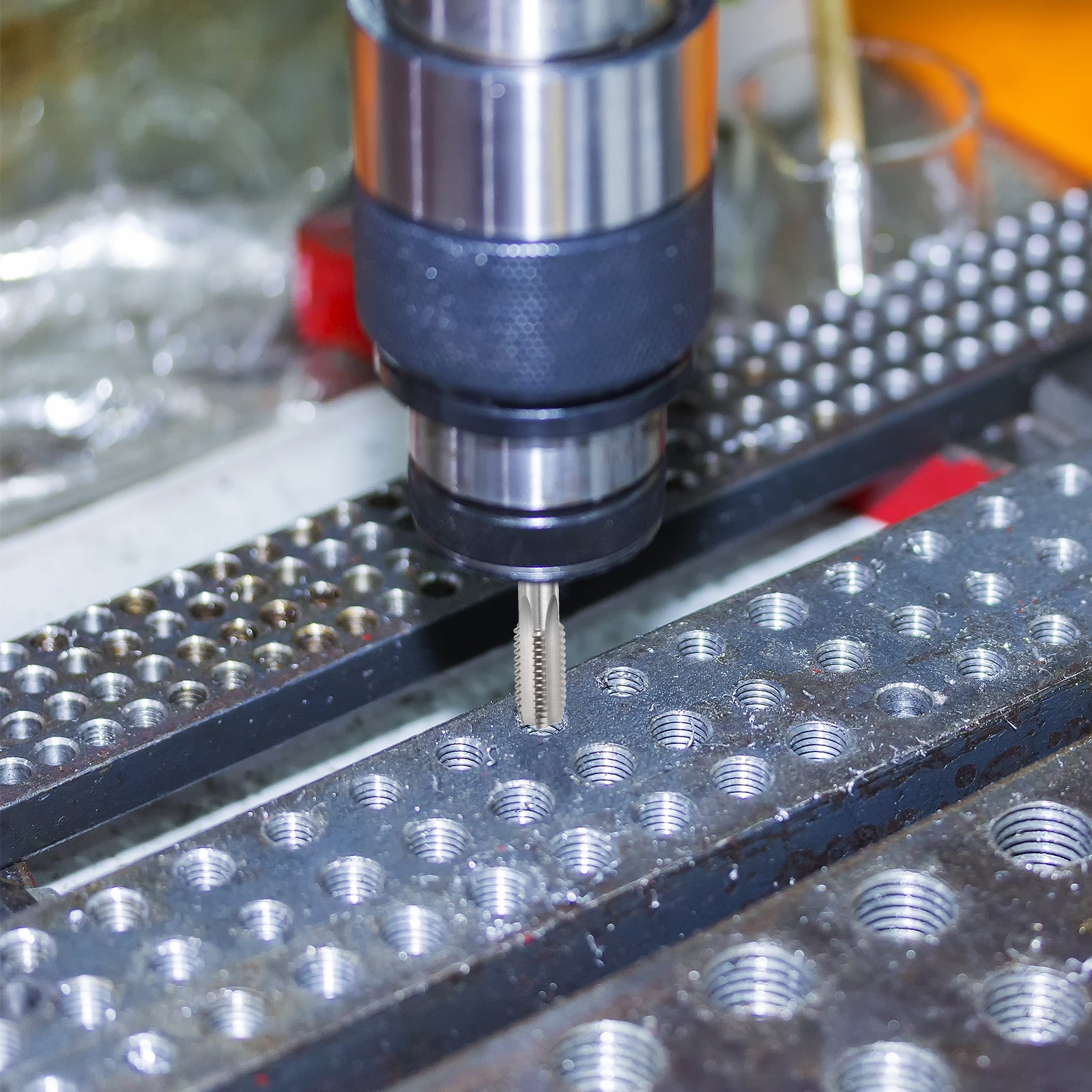

  4. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. The speed is controlled according to the hardness of the material. The higher the hardness, the slower the speed. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.
  5. It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.

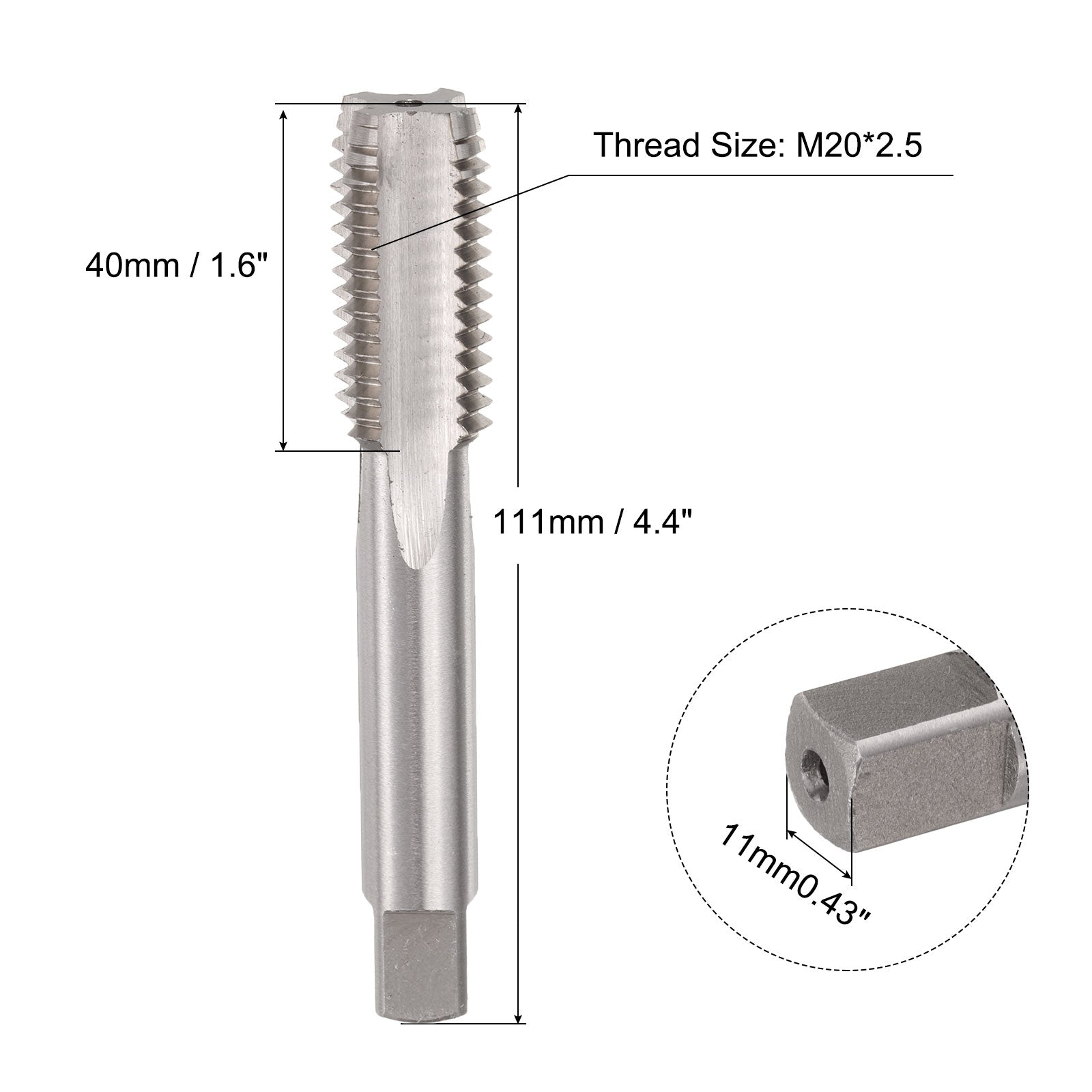

Specification:
  • Thread Size: M20 x 2.5
  • Shank Side Width: 11mm / 0.43 inch
  • Thread Length: 40mm / 1.6 inch
  • Total Length: 111mm / 4.4 inch
  • Accuracy: B2
  • Material: HSS 6542 (High Speed Steel 6542)
  • Finish: Uncoated
Package Content:
1pcs x Spiral Point Thread Tap
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$13.89 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:
  1. Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Uncoated taps only have a base substrate, which is very suitable for a wide range of applications.
  2. Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping.
  3. Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. The grooves on the tap facilitate the removal of chips and debris from the hole.
  4. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. The speed is controlled according to the hardness of the material. The higher the hardness, the slower the speed. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.
  5. It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.
Specification:
  • Thread Size: M20 x 2.5
  • Shank Side Width: 11mm / 0.43 inch
  • Thread Length: 40mm / 1.6 inch
  • Total Length: 111mm / 4.4 inch
  • Accuracy: B2
  • Material: HSS 6542 (High Speed Steel 6542)
  • Finish: Uncoated
Package Content:
1pcs x Spiral Point Thread Tap
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
