Harfington FPC FFC PCB Converter Board 45P 0.5mm on Socket Side, Back 1.0mm, to DIP 2.54mm for LCD 3D Printer Camera DVD TV Laptop Pack of 4

FPC FFC PCB Converter Board 45P 0.5mm on Socket Side, Back 1.0mm, to DIP 2.54mm for LCD 3D Printer Camera DVD TV Laptop Pack of 4

ID:1477032
ID:1477032
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • FPC/FFC Extension Board often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors and other DIY projects, etc.
  • Product Type: PCB Support; Pin Count: 45 Pins; FPC Socket Side Pitch: 0.5 mm; FPC Back Side Pitch: 1.0 mm; DIP Pitch: 2.54 mm; Overall Size: 60x26x3.5mm/2.36x1.02x0.14-inch(L*W*T)
  • Extension board for PCB connection. The board can be used with the ultra thin flat flexible ribbon cable, can save much space for your connecting.
  • Steps of installation: 1. Flip-up the black interface; 2. Insert into your flat cable(here is not included); 3. Test to finish.
  • The PCB board is just an extension board. All size above is measured by manual, please allow +/-0.1 inch error.
About this item
  • FPC/FFC Extension Board often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors and other DIY projects, etc.
  • Product Type: PCB Support; Pin Count: 45 Pins; FPC Socket Side Pitch: 0.5 mm; FPC Back Side Pitch: 1.0 mm; DIP Pitch: 2.54 mm; Overall Size: 60x26x3.5mm/2.36x1.02x0.14-inch(L*W*T)
  • Extension board for PCB connection. The board can be used with the ultra thin flat flexible ribbon cable, can save much space for your connecting.
  • Steps of installation: 1. Flip-up the black interface; 2. Insert into your flat cable(here is not included); 3. Test to finish.
  • The PCB board is just an extension board. All size above is measured by manual, please allow +/-0.1 inch error.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
FPC/FFC Converter Board often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors and other DIY projects, etc.

What will I get?
The FPC/FFC board we provide here, is in the size of:
Board Type: Double Sided with Single Flat Cable Socket
Product Type: PCB Support

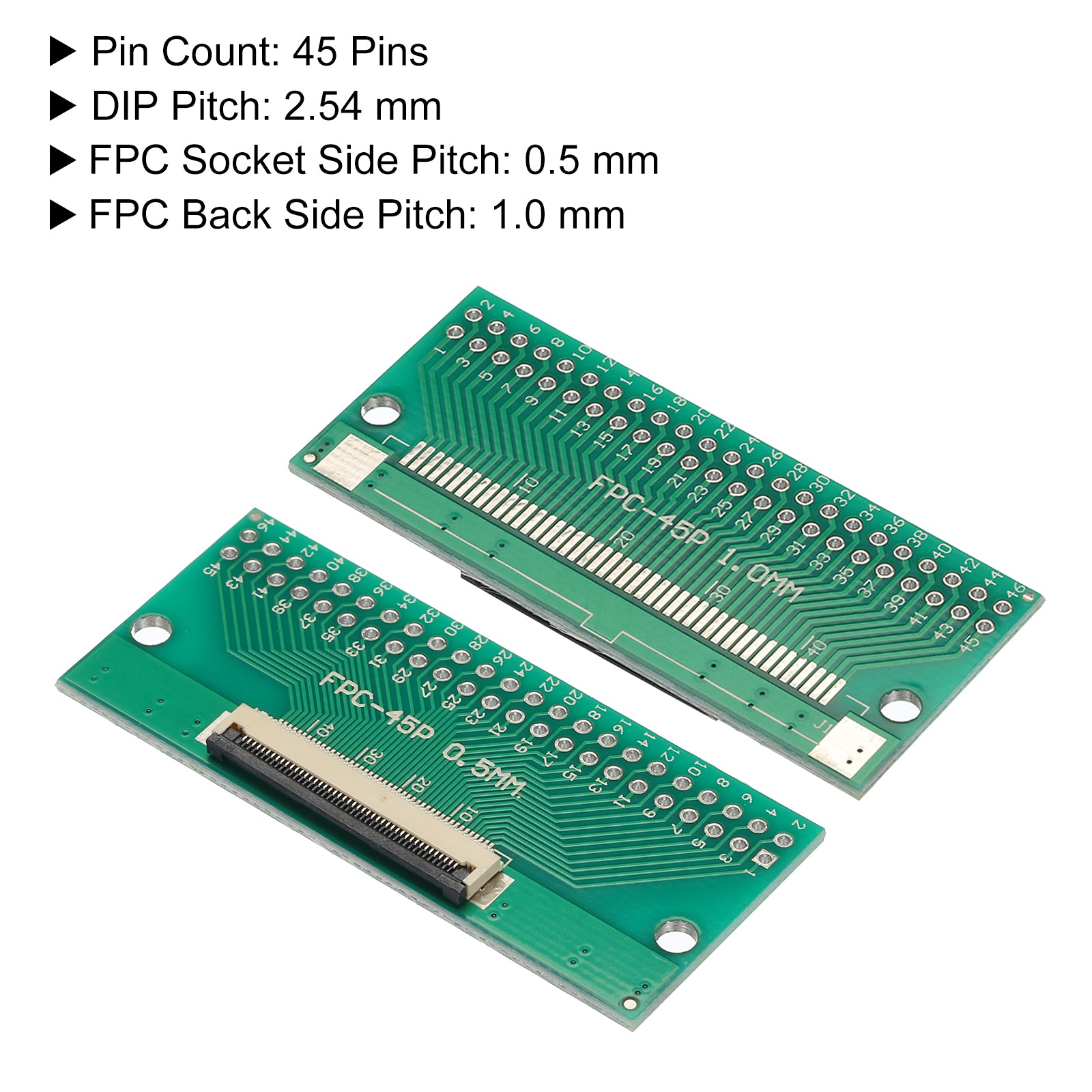

Pin Count: 45P
FPC Socket Side Pitch: 0.5 mm
FPC Back Side Pitch: 1.0 mm
DIP Pitch: 2.54 mm

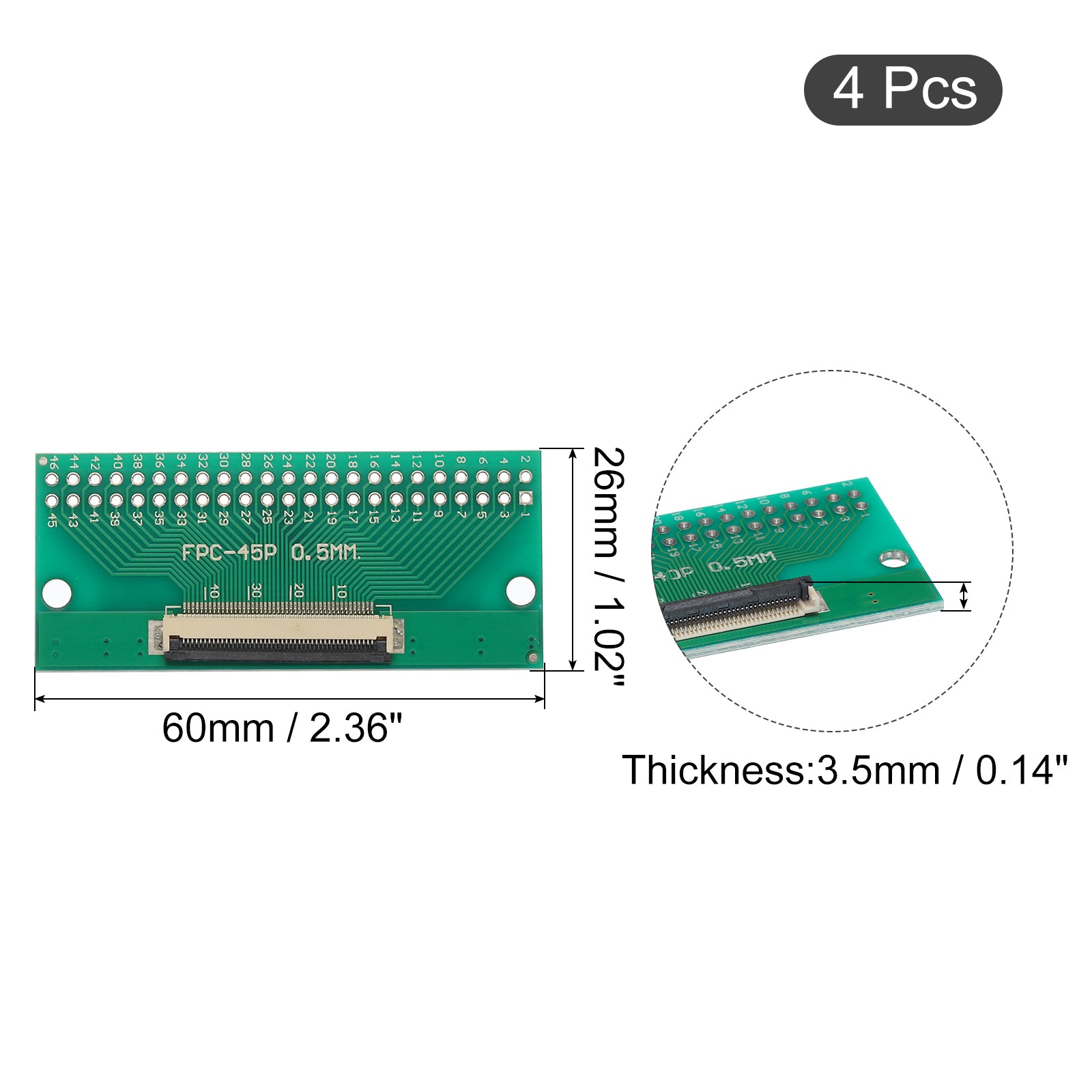

Overall Size: 60*26*3.5mm(L*W*T)

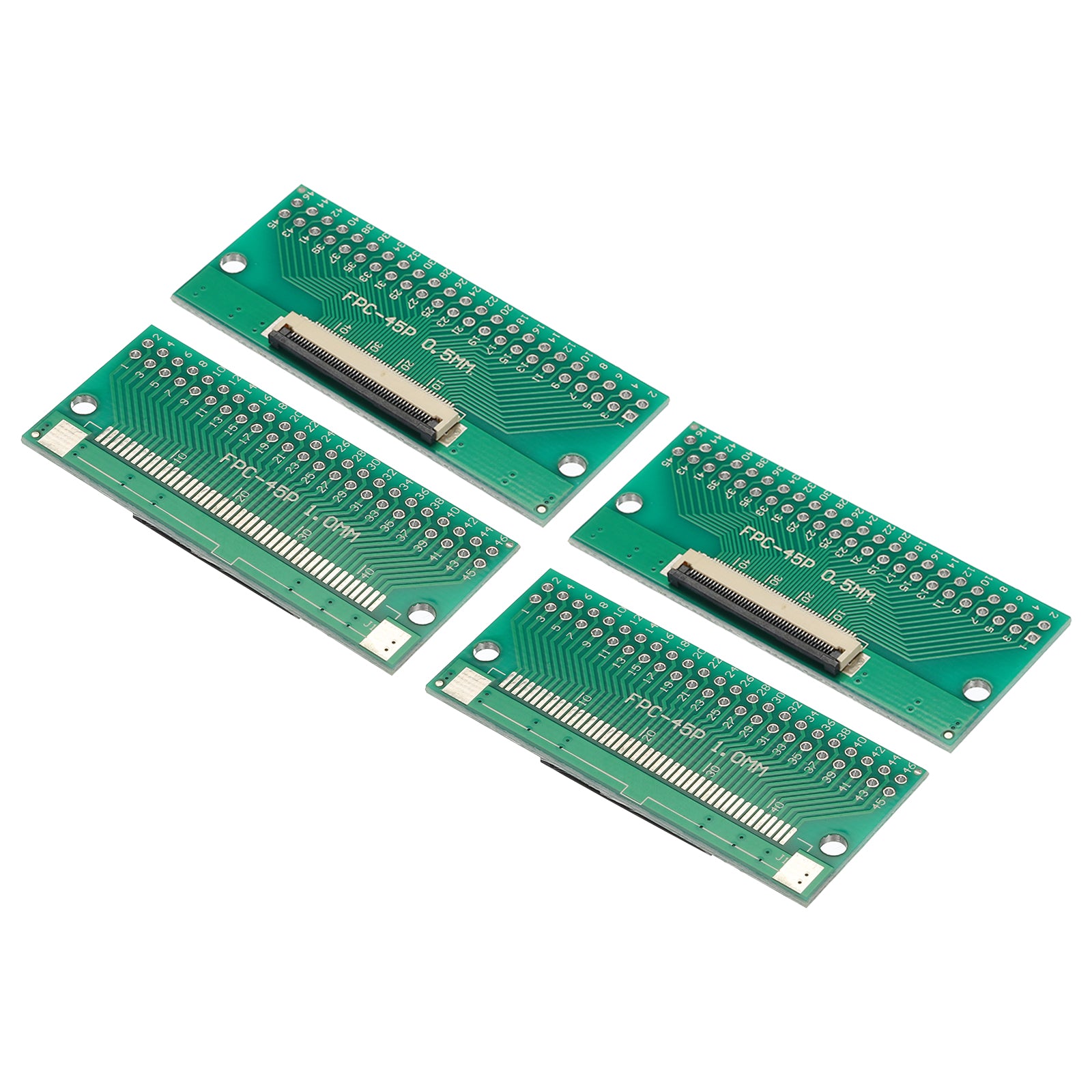

In the package of: 4 x FPC/FFC Board

Is there any advantages of the product?

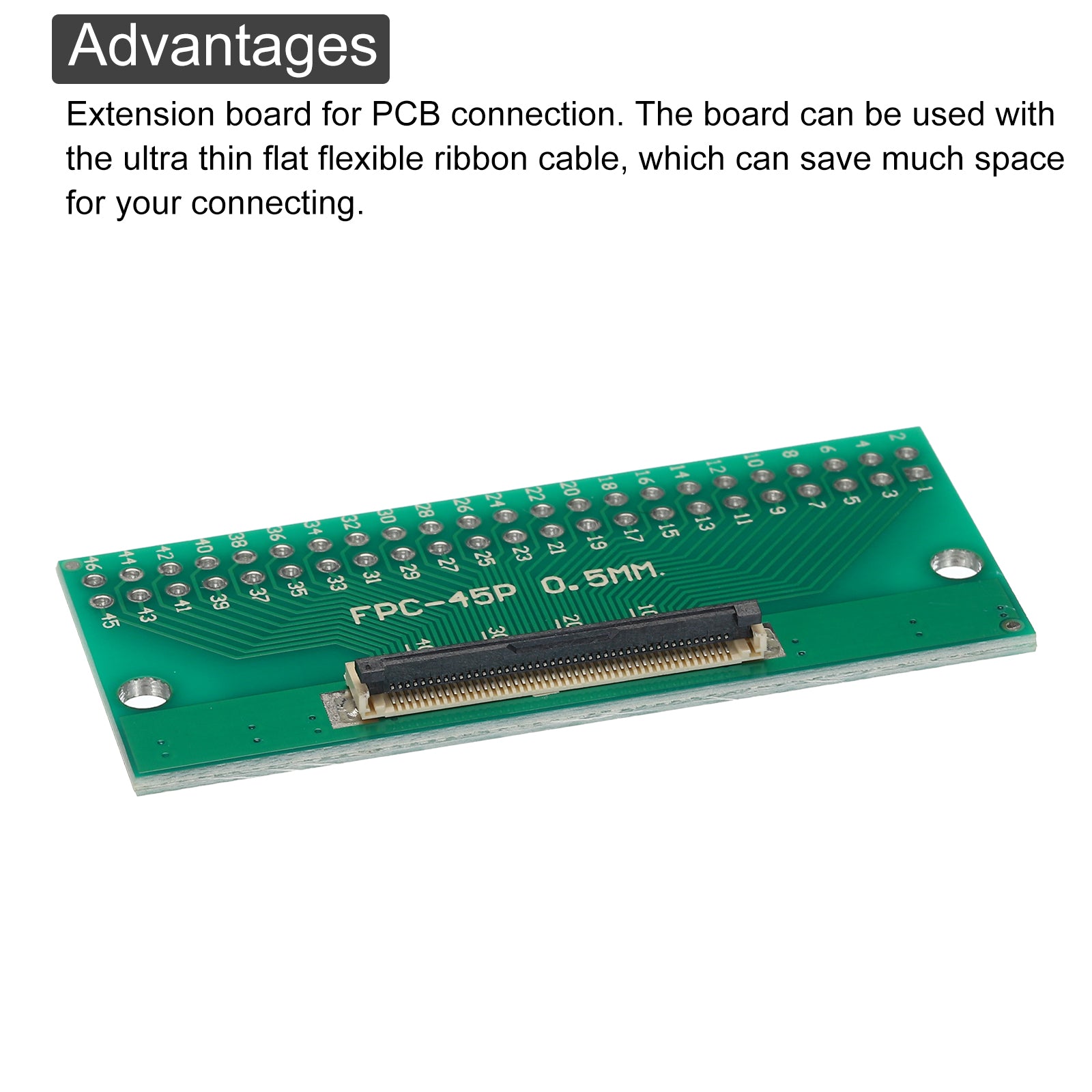

Converter board for PCB connection. The board can be used with the ultra thin flat flexible ribbon cable, can save much space for your connecting.

How to use it?
Steps of installations: 1. Flip-up the black interface ; 2.Insert into your flat cable(here is not included); 3.Test to finish.

What should  I notice?
The PCB board is just a convert board. All size above is measured by manual, please allow +/-0.1 inch error.
