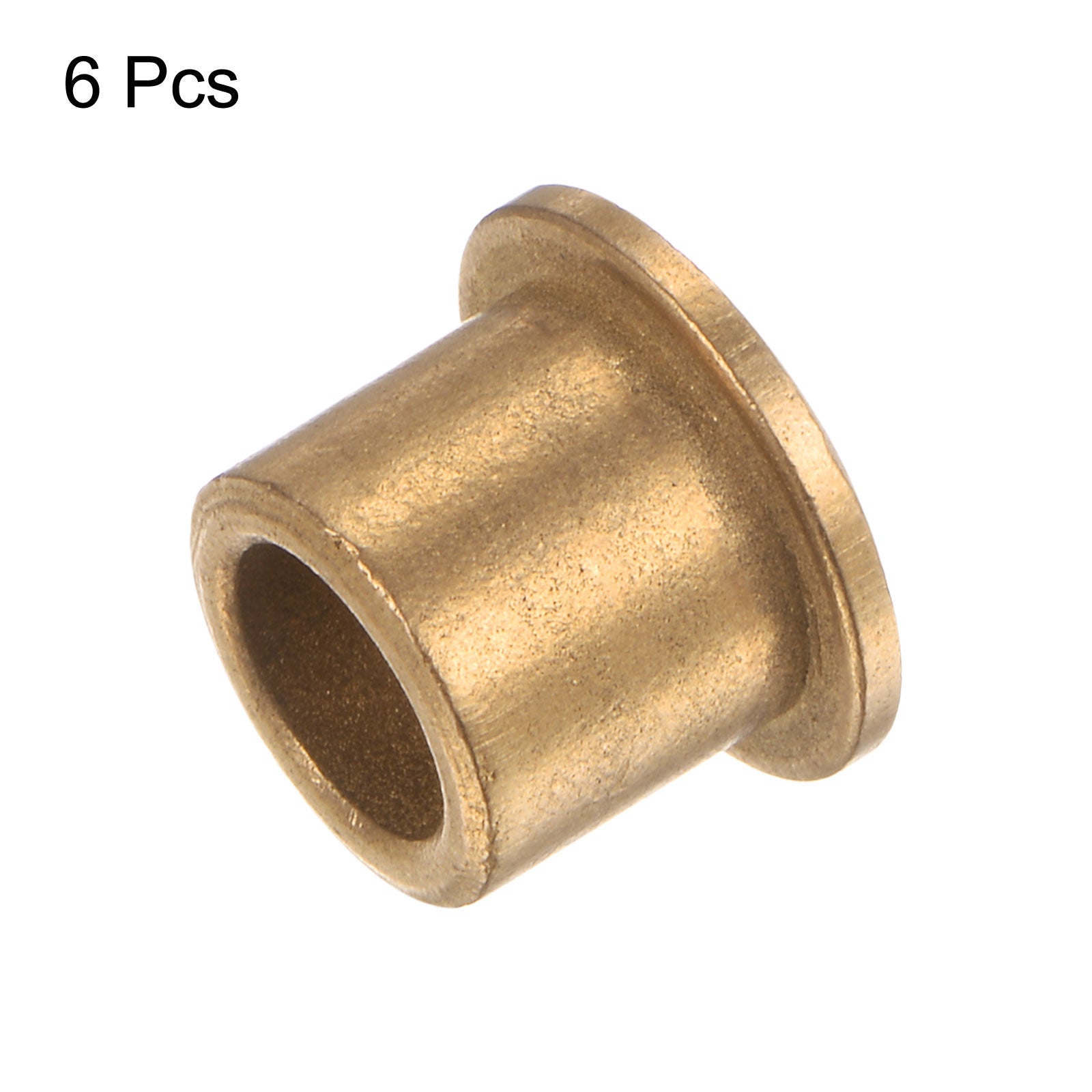

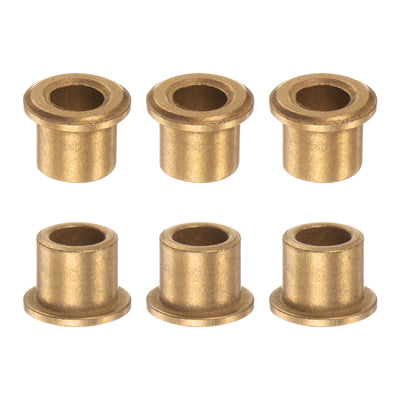

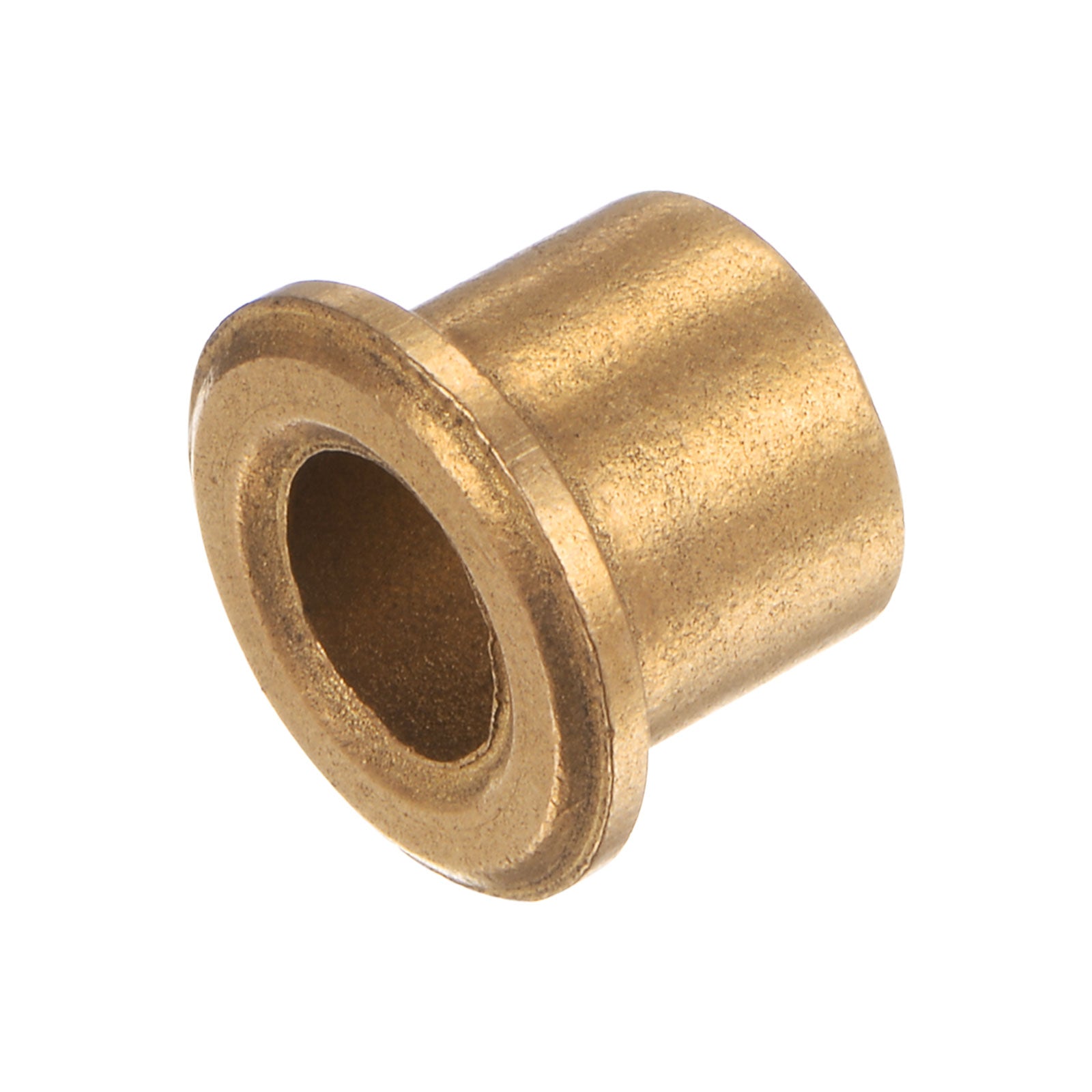

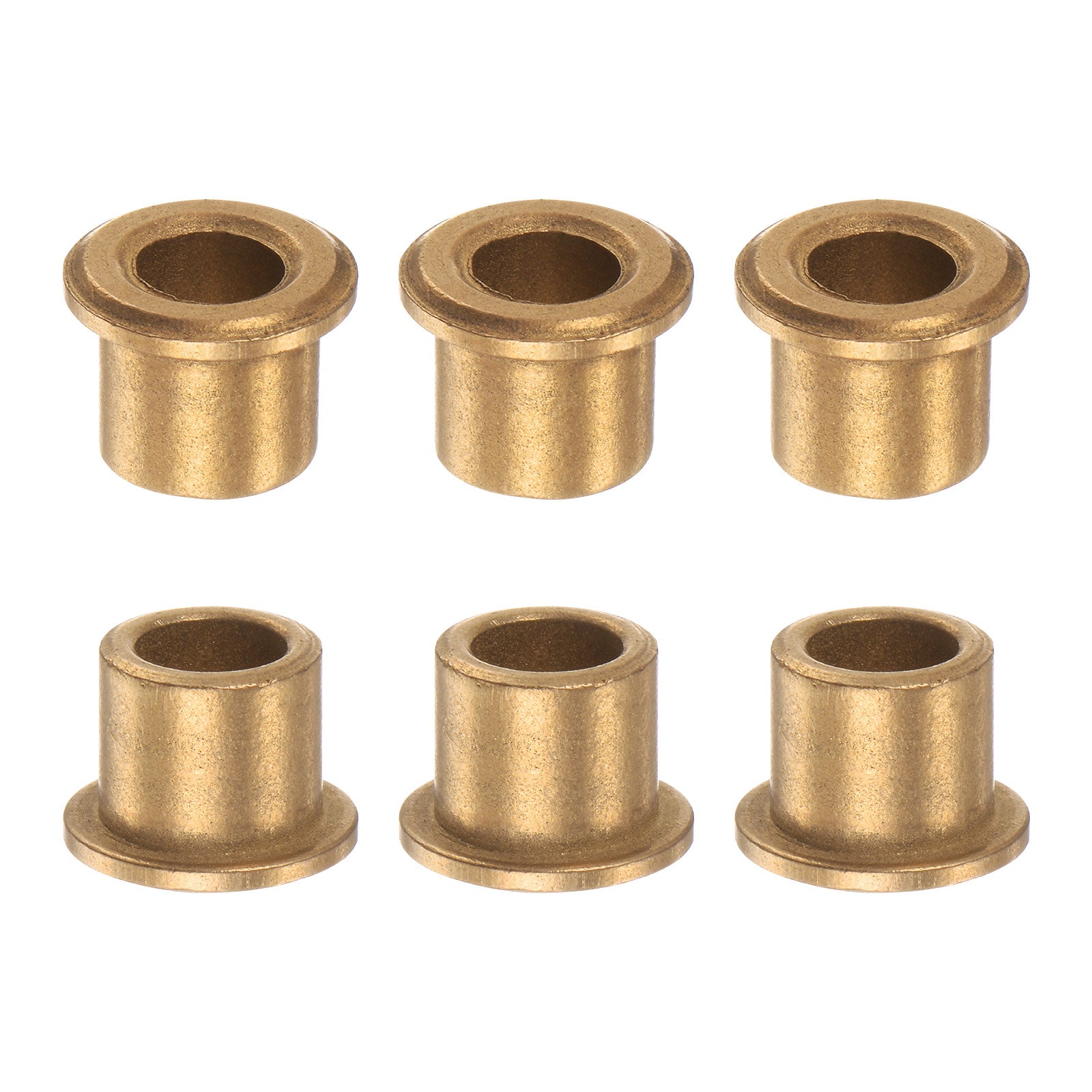

Harfington 6pcs Flange Bearing Sleeve 8mm x 12mm x 12mm Bronze Self Lubricating Bushings

6pcs Flange Bearing Sleeve 8mm x 12mm x 12mm Bronze Self Lubricating Bushings

ID:1455014
ID:1455014
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

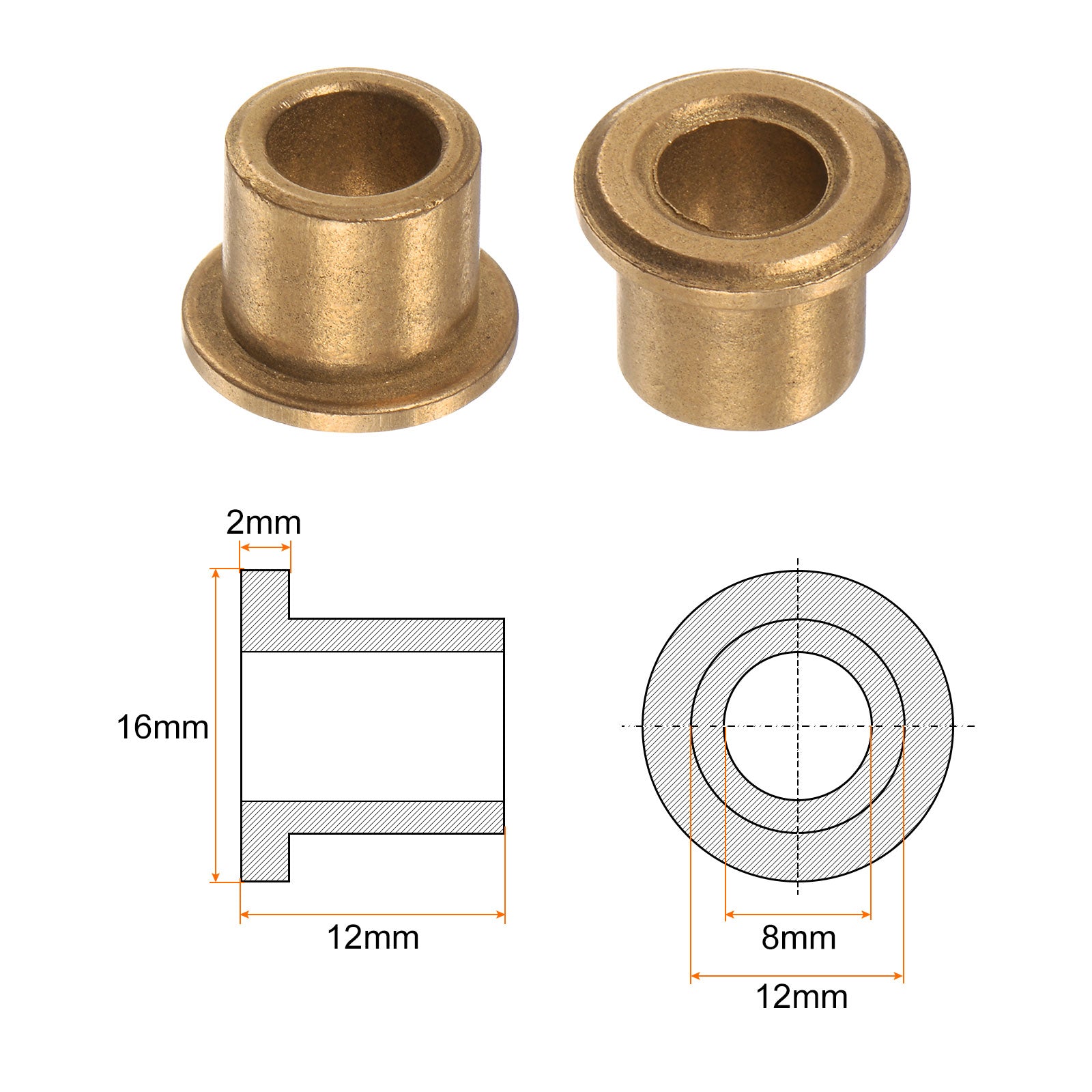

  • Size - Bore Diameter: 8mm, Outer Diameter: 12mm, Total Length: 12mm, Flange Diameter: 16mm, Flange Thickness: 2mm. Coefficient of Friction: 0.12-0.18.
  • Material - Made of bronze, with good load capacity. Corrosion and wear resistance, can be used for a long time.
  • Feature - Self-lubricating bushings can effectively reduce equipment friction, vibration, and noise to improve the performance of mechanical equipment. The design of flange structure with shoulder cover can prevent falling off, easy to use.
  • Application - Used in various industrial equipment such as electrical equipment, household equipment, printing presses and machine tools, etc.
  • Note - The bushing should be pressed in with a flat head tool to ensure that the sleeve bearing can be evenly stressed.
About this item
  • Size - Bore Diameter: 8mm, Outer Diameter: 12mm, Total Length: 12mm, Flange Diameter: 16mm, Flange Thickness: 2mm. Coefficient of Friction: 0.12-0.18.
  • Material - Made of bronze, with good load capacity. Corrosion and wear resistance, can be used for a long time.
  • Feature - Self-lubricating bushings can effectively reduce equipment friction, vibration, and noise to improve the performance of mechanical equipment. The design of flange structure with shoulder cover can prevent falling off, easy to use.
  • Application - Used in various industrial equipment such as electrical equipment, household equipment, printing presses and machine tools, etc.
  • Note - The bushing should be pressed in with a flat head tool to ensure that the sleeve bearing can be evenly stressed.
Specification

Specification

SKU
a23080300ux0377
Material
Carbon steel,Bronze Sintered,Composite Coated
Size(BD*OD*TL)
8mm*12mm*12mm
Flange Dia.
16mm
Flange Thickness
2mm
Pkg.Qty
6
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. Made of bronze, with good load capacity. Corrosion and wear resistance, can be used for a long time.
  2. Self-lubricating bushings can effectively reduce equipment friction, vibration, and noise to improve the performance of mechanical equipment. The design of flange structure with shoulder cover can prevent falling off, easy to use.
  3. Used in various industrial equipment such as electrical equipment, household equipment, printing presses and machine tools, etc.
  4. The bushing should be pressed in with a flat head tool to ensure that the sleeve bearing can be evenly stressed.


US$8.94 US$1.49/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Material Size(BD*OD*TL) Flange Dia. Flange Thickness Pkg.Qty ID Price Qty
Carbon steel,Bronze Sintered,Composite Coated 8mm*12mm*12mm 16mm 2mm 6 1455014 US$8.94
Products Material Size(BD*OD*TL) Flange Dia. Flange Thickness Pkg.Qty ID Price Qty
Carbon steel,Bronze Sintered,Composite Coated 8mm*12mm*12mm 16mm 2mm 6 1455014 US$8.94
Carbon steel,Bronze Sintered,Composite Coated 4mm*8mm*6mm 12mm 2mm 6 1454994 US$7.55
Carbon steel,Bronze Sintered,Composite Coated 12mm*16mm*15mm 20mm 2mm 2 1455026 US$7.82
Carbon steel,Bronze Sintered,Composite Coated 8mm*12mm*10mm 16mm 2mm 6 1455033 US$8.60
Carbon steel,Bronze Sintered,Composite Coated 14mm*20mm*16mm 26mm 3mm 2 1455043 US$8.14
Carbon steel,Bronze Sintered,Composite Coated 10mm*16mm*10mm 22mm 3mm 6 1455050 US$10.64
Carbon steel,Bronze Sintered,Composite Coated 3/4"*7/8"*3/4" / / 4 1448908 US$5.48
Carbon steel,Bronze Sintered,Composite Coated 5mm*9mm*10mm 13mm 2mm 2 1454977 US$6.14
Carbon steel,Bronze Sintered,Composite Coated 6mm*10mm*6mm 14mm 2mm 6 1454982 US$7.97
Carbon steel,Bronze Sintered,Composite Coated 6mm*10mm*8mm 14mm 2mm 6 1454987 US$7.97
Carbon steel,Bronze Sintered,Composite Coated 6mm*10mm*8mm 14mm 2mm 8 1455006 US$9.02
Carbon steel,Bronze Sintered,Composite Coated 4mm*8mm*10mm 12mm 2mm 8 1454998 US$8.05
Carbon steel,Bronze Sintered,Composite Coated 4mm*8mm*10mm 12mm 2mm 6 1455030 US$7.55
Carbon steel,Bronze Sintered,Composite Coated 4mm*8mm*4mm 12mm 2mm 6 1455021 US$7.32
Carbon steel,Bronze Sintered,Composite Coated 16mm*20mm*12mm 25mm 2mm 2 1455022 US$7.73
Carbon steel,Bronze Sintered,Composite Coated 8mm*12mm*12mm 16mm 2mm 8 1455027 US$10.33
Carbon steel,Bronze Sintered,Composite Coated 16mm*20mm*20mm 25mm 2mm 2 1455048 US$8.46
Carbon Steel,Bronze Sintered,Composite Coated 22*25*25mm 32mm 1.5mm 1 1014043 US$5.67
Carbon Steel,Bronze Sintered,Composite Coated 22*25*25mm 32mm 1.5mm 2 1014044 US$6.45
Carbon Steel,Bronze Sintered,Composite Coated 22*25*10mm 32mm 1.5mm 2 1014057 US$5.77
Carbon Steel,Bronze Sintered,Composite Coated 40*44.5*15mm 53mm 2mm 2 1223677 US$7.24
Carbon Steel,Bronze Sintered,Composite Coated 25*28*20mm 35mm 1.5mm 1 1014042 US$5.61
Carbon Steel,Bronze Sintered,Composite Coated 35*39.5*35mm 47mm 2mm 2 1223688 US$8.82
Carbon Steel,Bronze Sintered,Composite Coated 35*39.5*35mm 47mm 2mm 1 1223687 US$6.67
Carbon Steel,Bronze Sintered,Composite Coated 20*23*20mm 30mm 1.5mm 2 1014054 US$6.24
Carbon Steel,Bronze Sintered,Composite Coated 20*23*20mm 30mm 1.5mm 1 1014056 US$5.43
Carbon Steel,Bronze Sintered,Composite Coated 20*23*10mm 29mm 1.5mm 2 1014064 US$5.61
Carbon Steel,Bronze Sintered,Composite Coated 40*44.5*40mm 53mm 2mm 2 1223680 US$9.22
Carbon Steel,Bronze Sintered,Composite Coated 25*28*30mm 35mm 1.5mm 2 1014029 US$7.31
Carbon Steel,Bronze Sintered,Composite Coated 20*23*15mm 30mm 1.5mm 2 1014058 US$5.76
Carbon Steel,Bronze Sintered,Composite Coated 25*28*25mm 35mm 1.5mm 2 1014031 US$6.89
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

  1. Made of bronze, with good load capacity. Corrosion and wear resistance, can be used for a long time.
  2. Self-lubricating bushings can effectively reduce equipment friction, vibration, and noise to improve the performance of mechanical equipment. The design of flange structure with shoulder cover can prevent falling off, easy to use.
  3. Used in various industrial equipment such as electrical equipment, household equipment, printing presses and machine tools, etc.
  4. The bushing should be pressed in with a flat head tool to ensure that the sleeve bearing can be evenly stressed.
