Harfington Uxcell #25 Chain Roller Sprocket 5mm Bore 1/4" Pitch 12 Tooth Type B Sprocket 2Pcs

Uxcell #25 Chain Roller Sprocket 5mm Bore 1/4" Pitch 12 Tooth Type B Sprocket 2Pcs

ID:1437143
ID:1437143
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

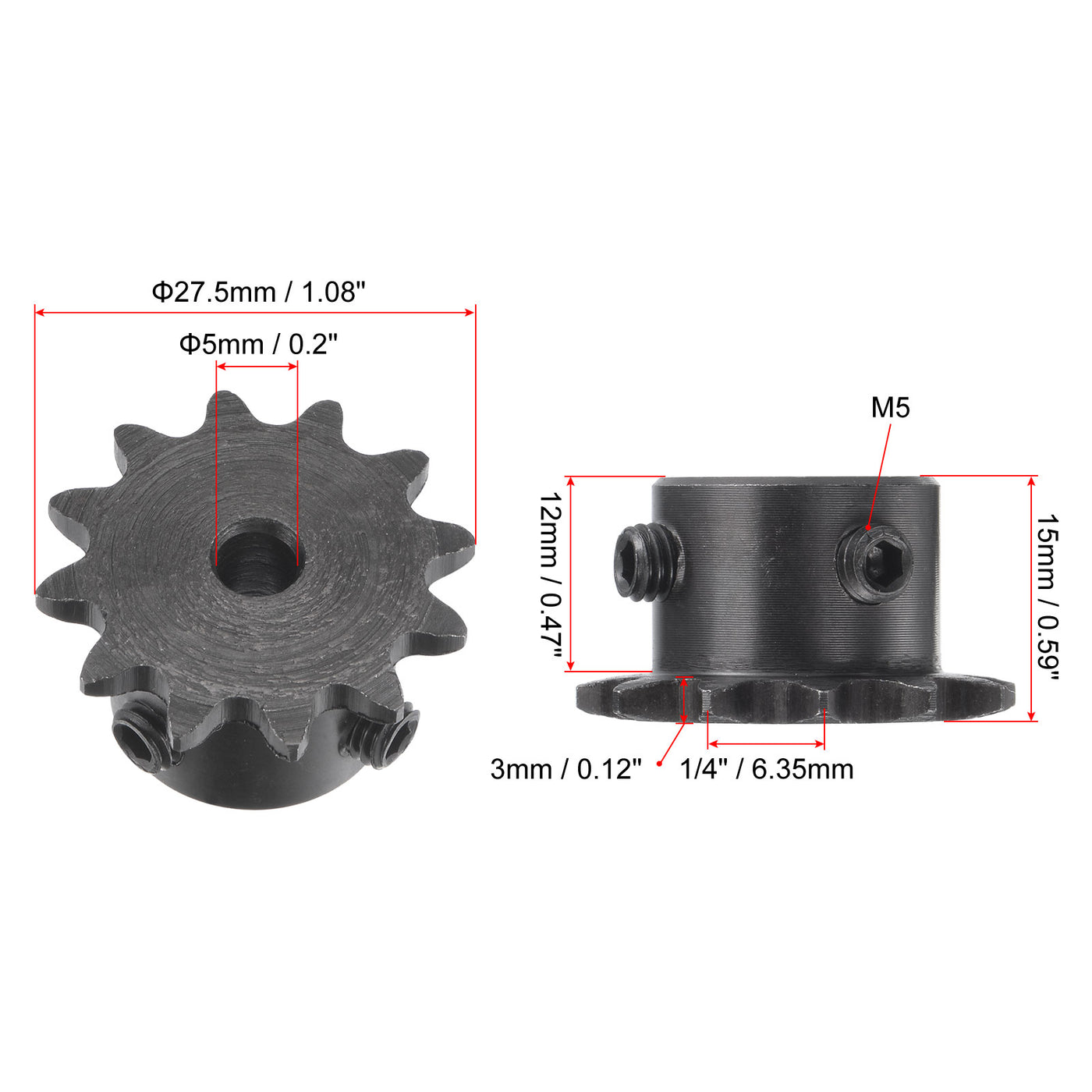

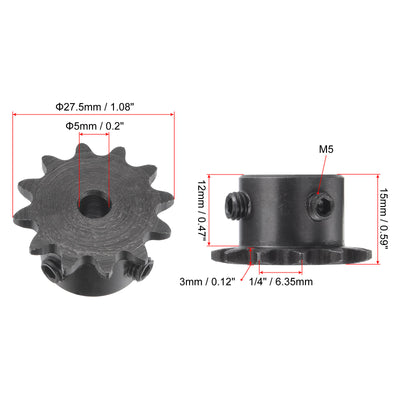

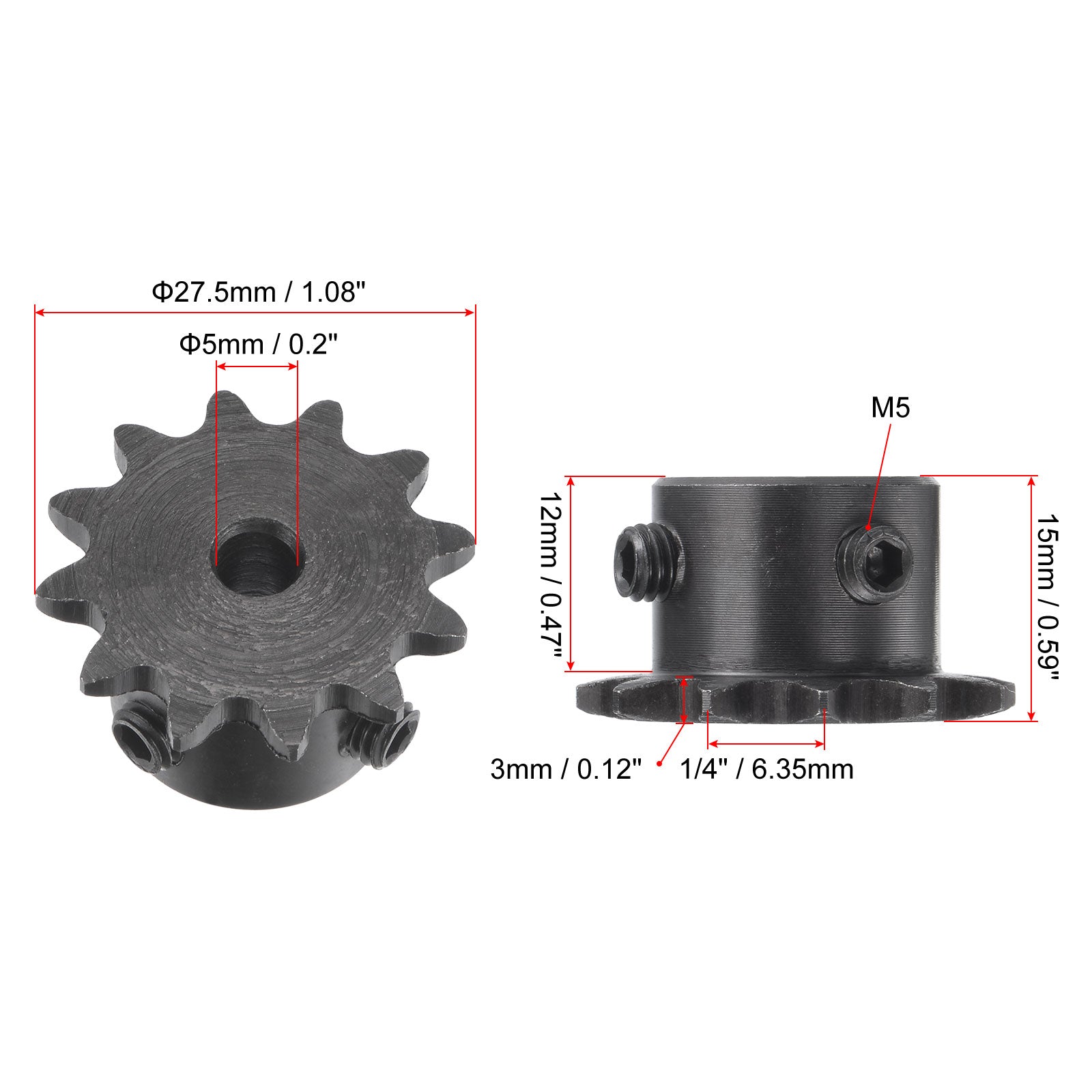

  • Specifications: Number of Teeth: 12, Outside Diameter: 27.5mm / 1.08-inch, Bump Width: 12mm / 0.47-inch, Total Width: 15mm / 0.59-inch, Bore Diameter: 5mm / 0.2-inch, Pitch: 1/4-inch / 6.35mm, Tooth Width: 3mm / 0.12-inch, Set Screw Size: M5, 2 x Chain Sprocket, 4 x Set Screws
  • Chain Sprockets are normally mounted in a fixed position on a fixed shaft. Round hole with 2pcs Set Screws at 90 degrees. The shaft can be fixed well, which is convenient to use.
  • The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.

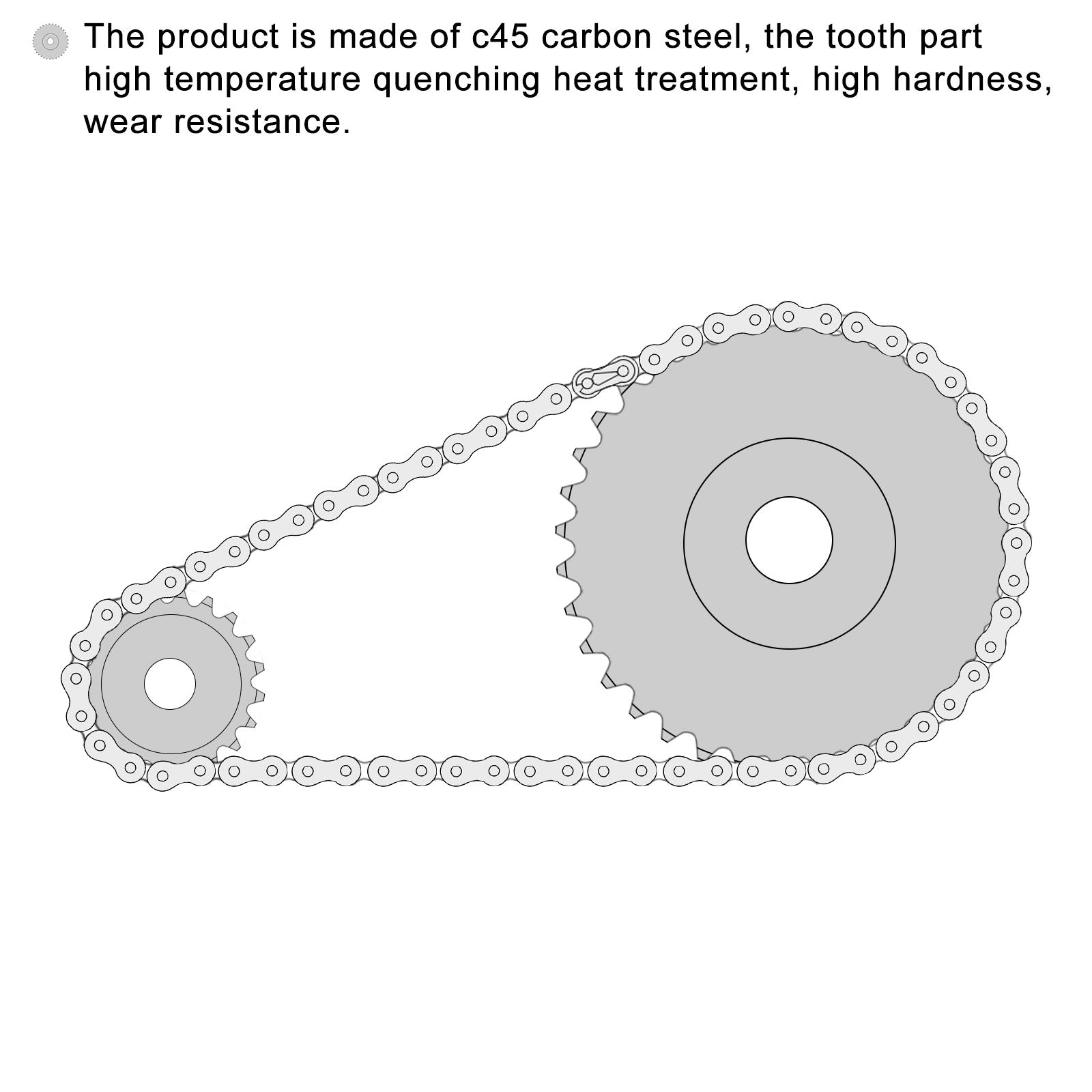

  • The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use. Fully black oxide coated, rust resistance.

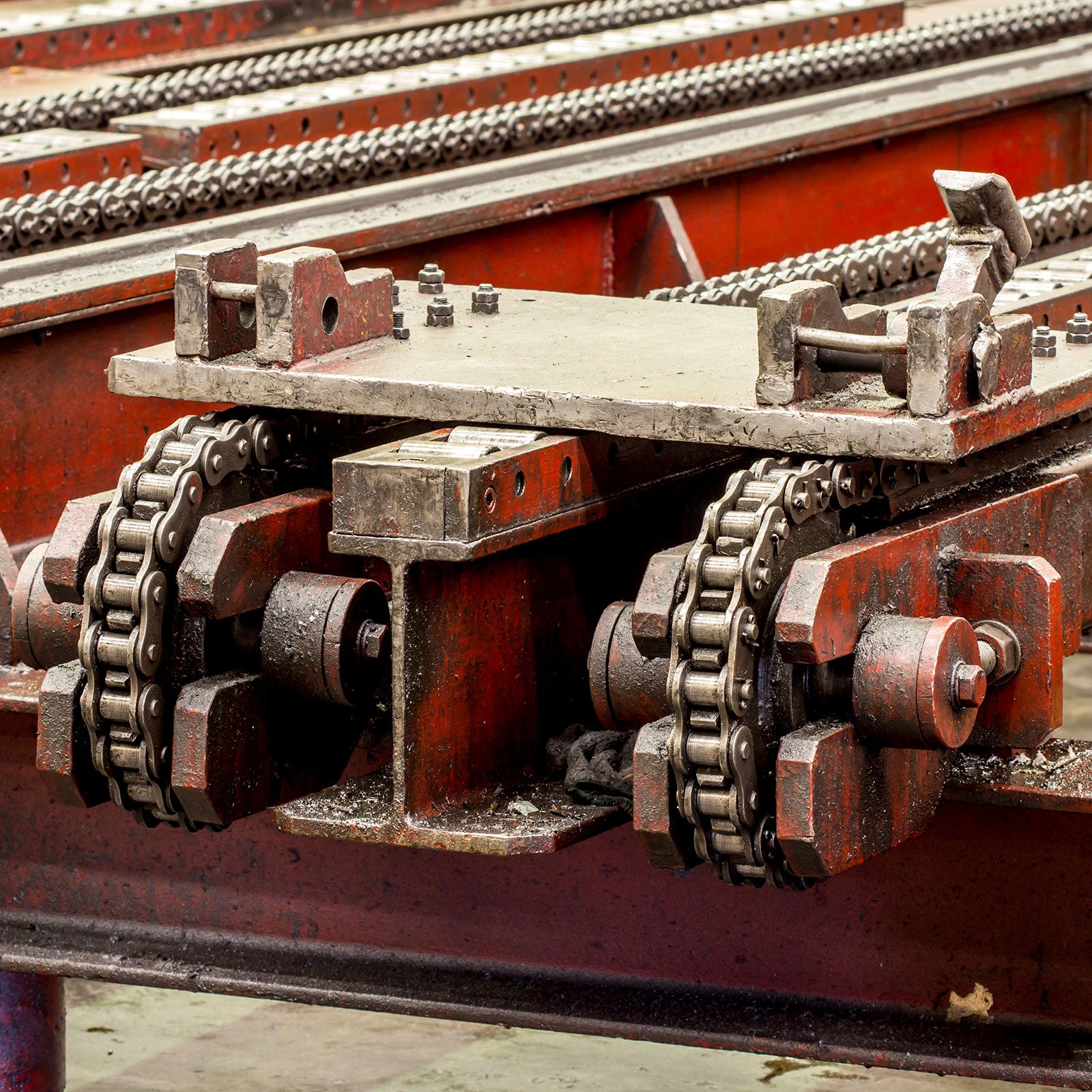

  • Widely used in milling machine, drilling machine or other machinery transmission occasions.
About this item
  • Specifications: Number of Teeth: 12, Outside Diameter: 27.5mm / 1.08-inch, Bump Width: 12mm / 0.47-inch, Total Width: 15mm / 0.59-inch, Bore Diameter: 5mm / 0.2-inch, Pitch: 1/4-inch / 6.35mm, Tooth Width: 3mm / 0.12-inch, Set Screw Size: M5, 2 x Chain Sprocket, 4 x Set Screws
  • Chain Sprockets are normally mounted in a fixed position on a fixed shaft. Round hole with 2pcs Set Screws at 90 degrees. The shaft can be fixed well, which is convenient to use.
  • The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
  • The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use. Fully black oxide coated, rust resistance.
  • Widely used in milling machine, drilling machine or other machinery transmission occasions.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Features:
1. Chain Sprockets are normally mounted in a fixed position on a fixed shaft. Round hole with 2pcs Set Screws at 90 degrees. The shaft can be fixed well, which is convenient to use.
2. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
3. The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use. Fully black oxide coated, rust resistance.
4. Widely used in milling machine, drilling machine or other machinery transmission occasions.

Specifications:
Material: C45 carbon steel
Finish: Black Oxide
Number of Teeth: 12
Outside Diameter: 27.5mm / 1.08-inch
Bump Width: 12mm / 0.47-inch
Total Width: 15mm / 0.59-inch
Bore Diameter: 5mm / 0.2-inch
Pitch: 1/4-inch / 6.35mm
Tooth Width: 3mm / 0.12-inch

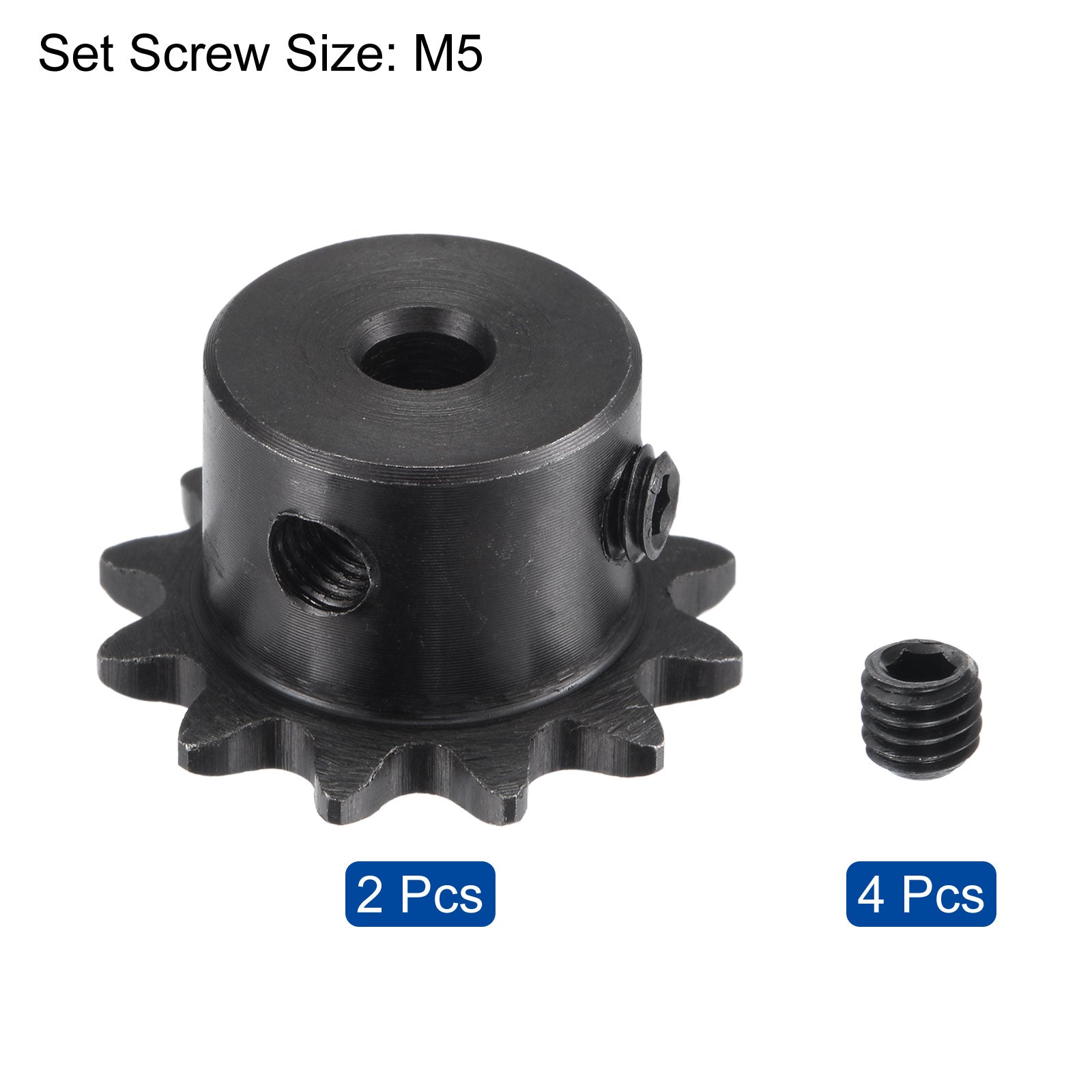

Set Screw Size: M5

Package Content:

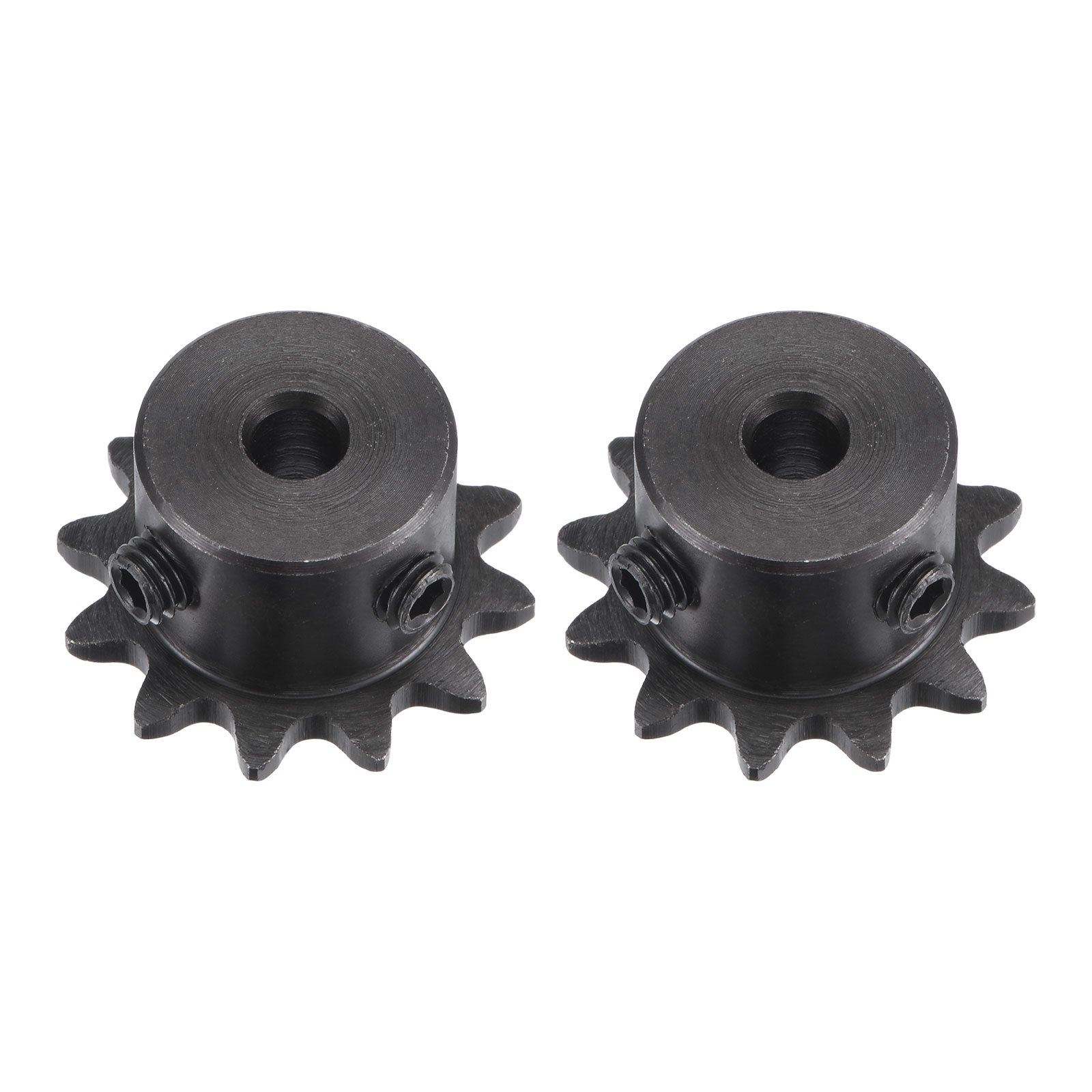

2 x Chain Sprocket
4 x Set Screws
