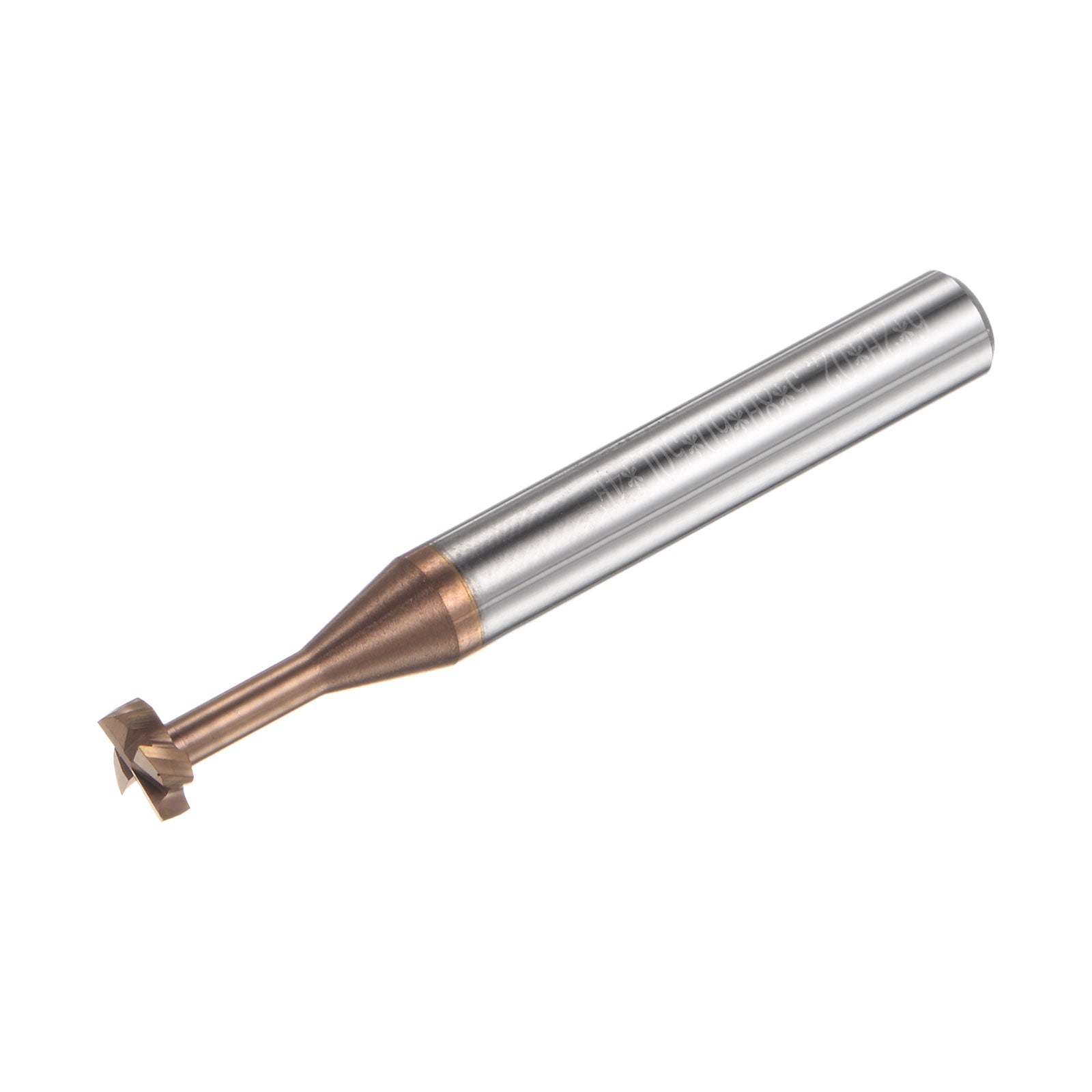

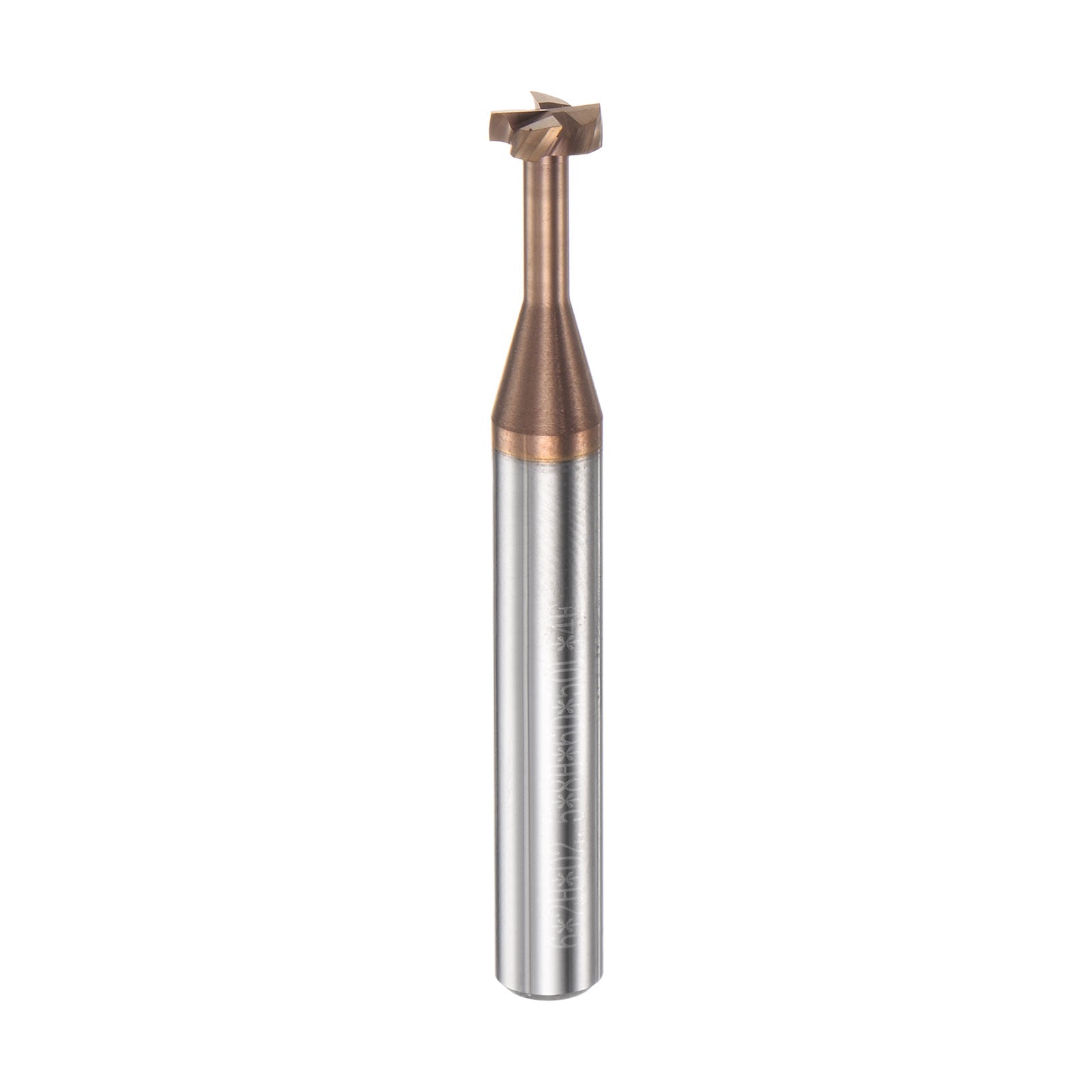

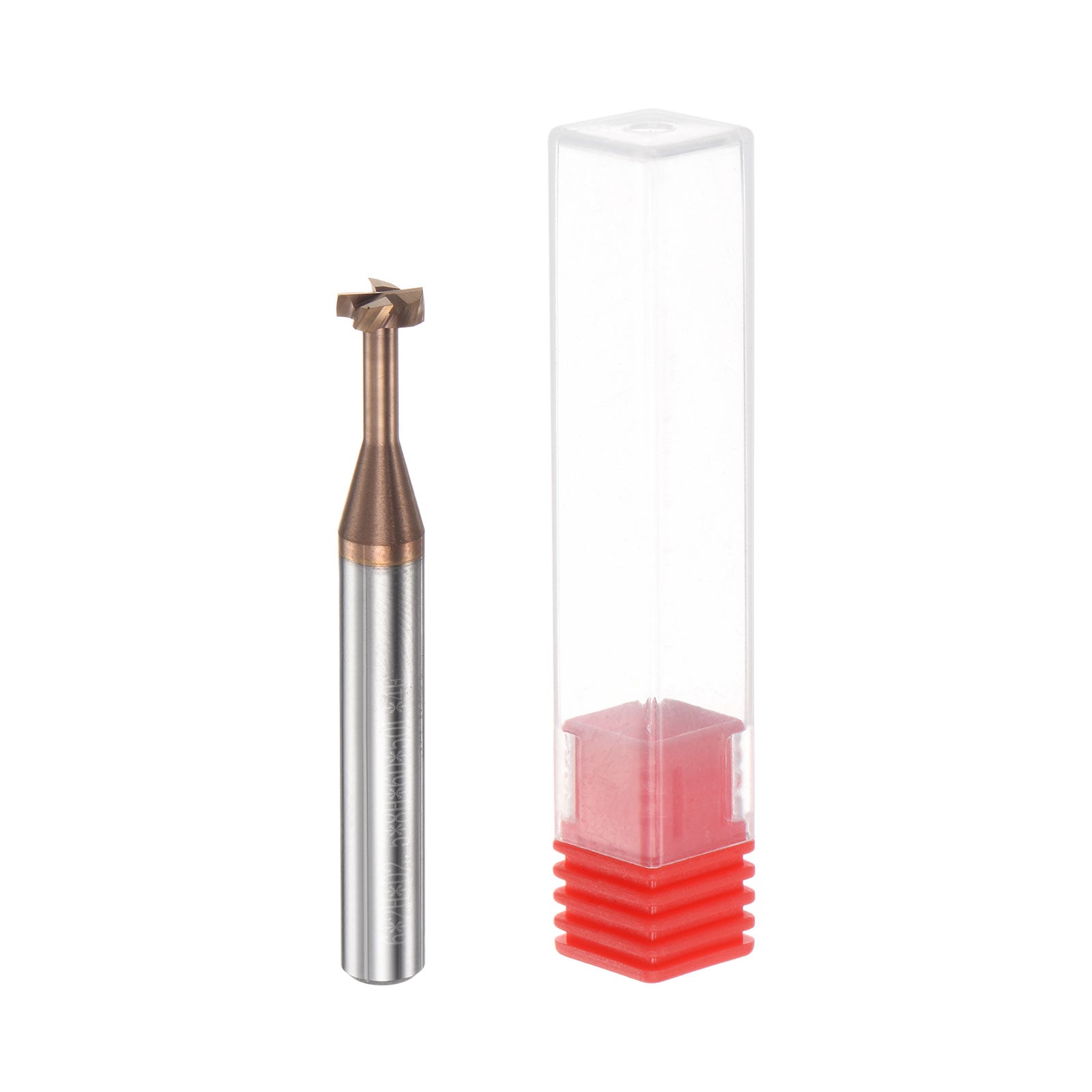

Harfington 6mm x 2mm Titanium Coated Carbide T Slot End Mill Cutter for Stainless Steel

6mm x 2mm Titanium Coated Carbide T Slot End Mill Cutter for Stainless Steel

ID:1341326
ID:1341326
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

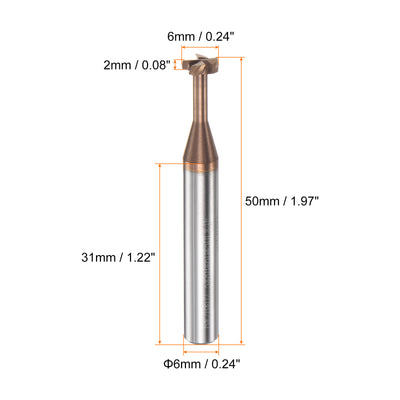

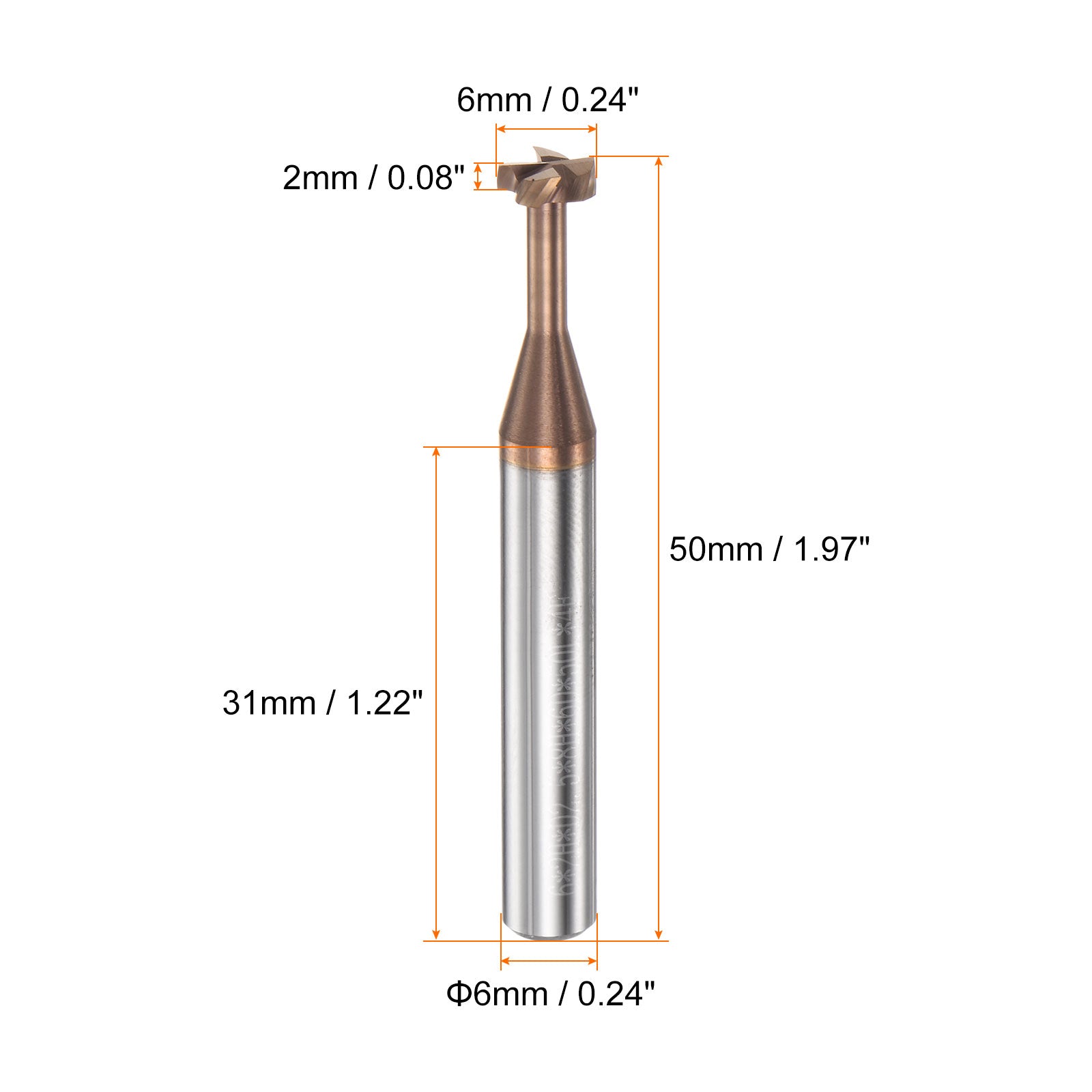

  • Size - Cutting diameter: 6mm / 0.24"; cutting depth: 2mm / 0.08"; shank diameter: 6mm / 0.24"; shank length: 31mm / 1.22"; total length: 50mm / 1.97"; number of flutes: 4 flutes

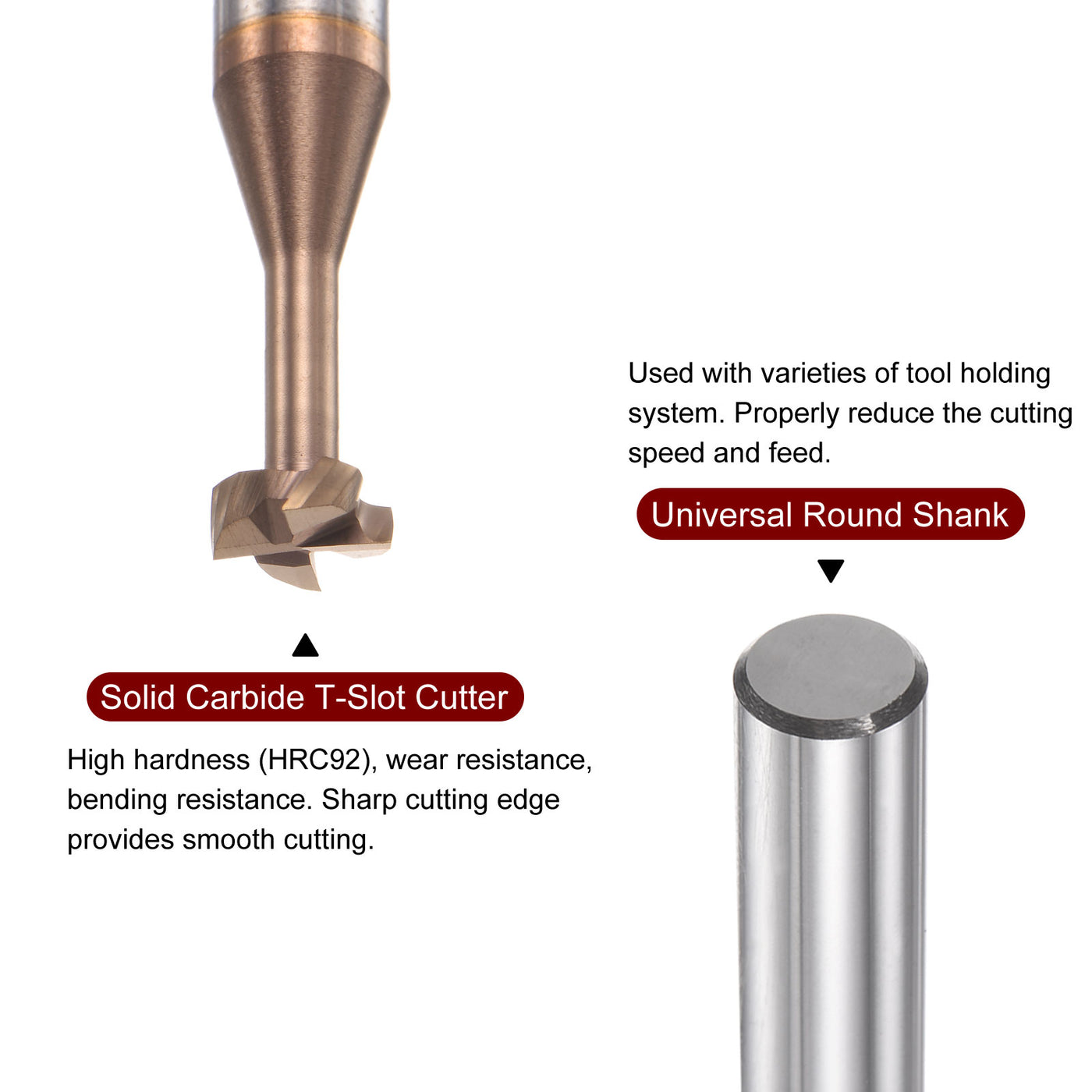

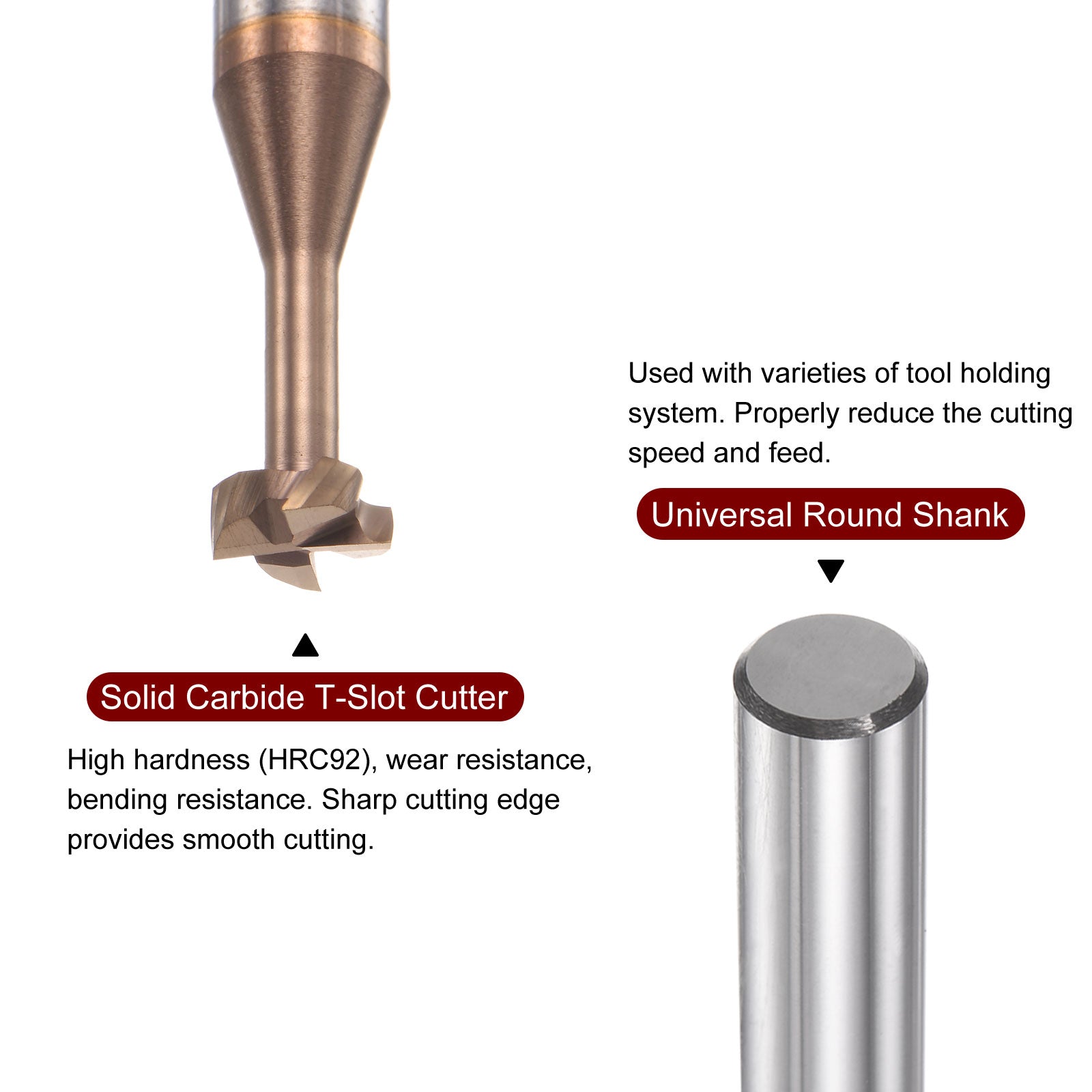

  • Material - The solid carbide T-slot milling cutter has has high hardness (HRC92), good toughness, wear resistance, bending resistance and heat resistance. With good milling and cutting performance, carbide can run at higher speed than other substrates.
  • Features - Sharp cutting edge provides smooth cutting, not easy to break. Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction.

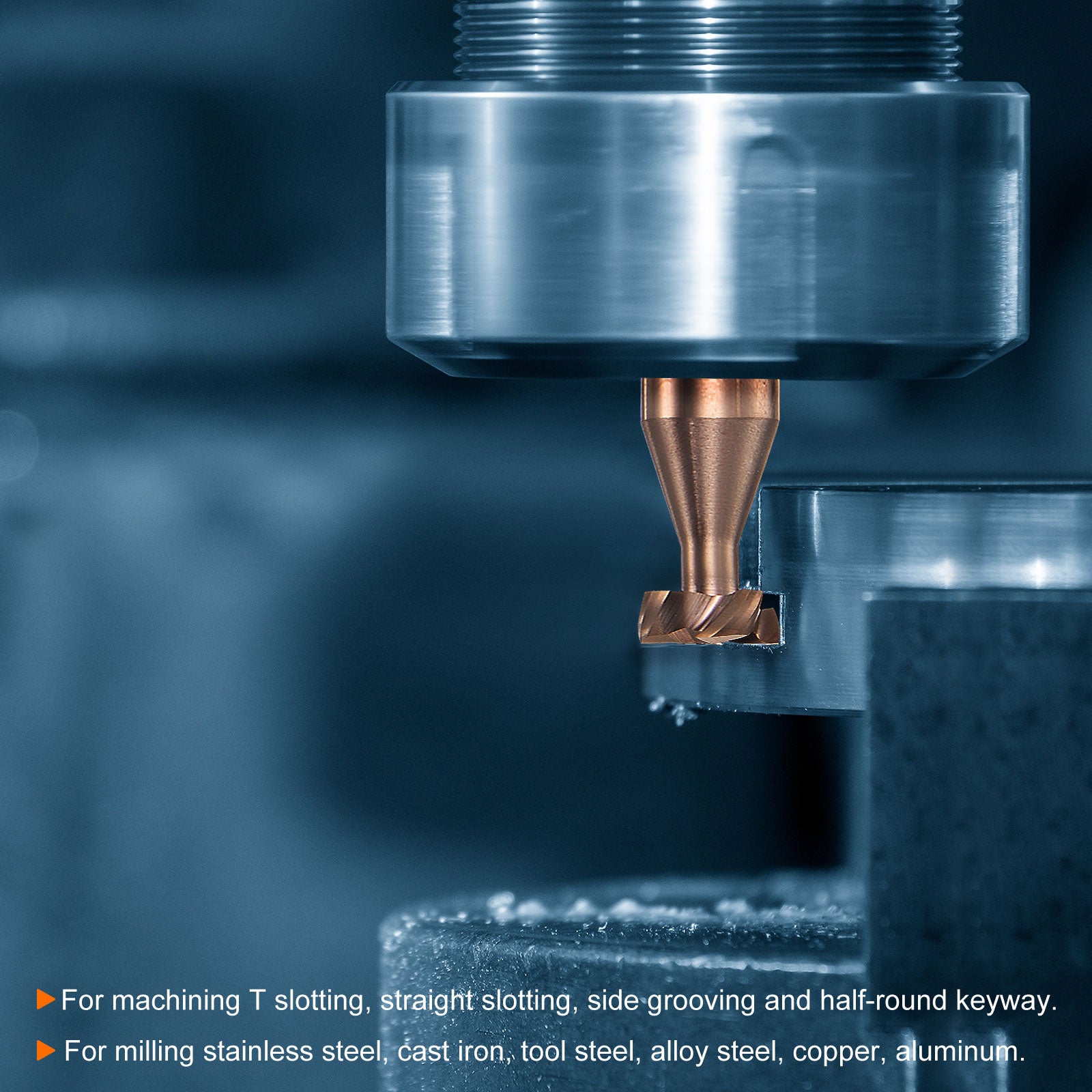

  • Applications - Suitable for machining T slotting, straight slotting, side grooving and half-round keyway on the work piece. Widely used for milling and cutting stainless steel, cast iron, tool steel, alloy steel, copper, aluminum, composite materials, etc.
  • Notes - Used on CNC machining centers, drilling and milling machines, engraving machines. Properly reduce the cutting speed and feed can prolong the life of the milling cutter. Add cutting fluid to protect the cutting edge and make the cutting smoother when working.
About this item
  • Size - Cutting diameter: 6mm / 0.24"; cutting depth: 2mm / 0.08"; shank diameter: 6mm / 0.24"; shank length: 31mm / 1.22"; total length: 50mm / 1.97"; number of flutes: 4 flutes
  • Material - The solid carbide T-slot milling cutter has has high hardness (HRC92), good toughness, wear resistance, bending resistance and heat resistance. With good milling and cutting performance, carbide can run at higher speed than other substrates.
  • Features - Sharp cutting edge provides smooth cutting, not easy to break. Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction.
  • Applications - Suitable for machining T slotting, straight slotting, side grooving and half-round keyway on the work piece. Widely used for milling and cutting stainless steel, cast iron, tool steel, alloy steel, copper, aluminum, composite materials, etc.
  • Notes - Used on CNC machining centers, drilling and milling machines, engraving machines. Properly reduce the cutting speed and feed can prolong the life of the milling cutter. Add cutting fluid to protect the cutting edge and make the cutting smoother when working.
Specification

Specification

SKU
a22101100ux1517
Pkg.Qty
1
Material
Tungsten Carbide,Titanium Plated
Cutting Dia.
6mm
Cutting Depth
2mm
Shank Dia.
6mm
Total Length
50mm
Cutting Flute Quantity
6
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. The solid carbide T-slot milling cutter has has high hardness (HRC92), good toughness, wear resistance, bending resistance and heat resistance. With good milling and cutting performance, carbide can run at higher speed than other substrates.
  2. Sharp cutting edge provides smooth cutting, not easy to break. Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction. Universal round shank can de used with a wide variety of tool holding system.
  3. Suitable for machining T slotting, straight slotting, side grooving and half-round keyway on the work piece. Widely used for milling and cutting stainless steel, cast iron, tool steel, alloy steel, copper, aluminum, composite materials, etc.
  4. Used on CNC machining centers, drilling and milling machines, engraving machines, and precision engraving machines. Properly reduce the cutting speed and feed can prolong the life of the milling cutter. Add cutting fluid to protect the cutting edge and make the cutting smoother when working.
  5. Notice: The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.
US$14.67 US$14.67/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Cutting Dia. Cutting Depth Shank Dia. Total Length Cutting Flute Quantity Material Pkg.Qty ID Price Qty
6mm 2mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341326 US$14.67
Products Cutting Dia. Cutting Depth Shank Dia. Total Length Cutting Flute Quantity Material Pkg.Qty ID Price Qty
6mm 2mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341326 US$14.67
6mm 0.5mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341311 US$14.33
6mm 0.5mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341340 US$13.83
6mm 2.5mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341322 US$13.83
6mm 3mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341325 US$14.67
6mm 3mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341338 US$13.83
6mm 1mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341315 US$13.83
6mm 1mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341316 US$14.33
6mm 2mm 6mm 50mm 6 Tungsten Carbide,Titanium Plated 1 1341341 US$13.83
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

  1. The solid carbide T-slot milling cutter has has high hardness (HRC92), good toughness, wear resistance, bending resistance and heat resistance. With good milling and cutting performance, carbide can run at higher speed than other substrates.
  2. Sharp cutting edge provides smooth cutting, not easy to break. Titanium coating provides excellent corrosion resistance, greatly improves wear resistance and hardness, and reduces the coefficient of friction. Universal round shank can de used with a wide variety of tool holding system.
  3. Suitable for machining T slotting, straight slotting, side grooving and half-round keyway on the work piece. Widely used for milling and cutting stainless steel, cast iron, tool steel, alloy steel, copper, aluminum, composite materials, etc.
  4. Used on CNC machining centers, drilling and milling machines, engraving machines, and precision engraving machines. Properly reduce the cutting speed and feed can prolong the life of the milling cutter. Add cutting fluid to protect the cutting edge and make the cutting smoother when working.
  5. Notice: The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.
