Harfington Flange Ball Bearings

Flange Ball Bearings

ID:1084362
ID:1084362
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+

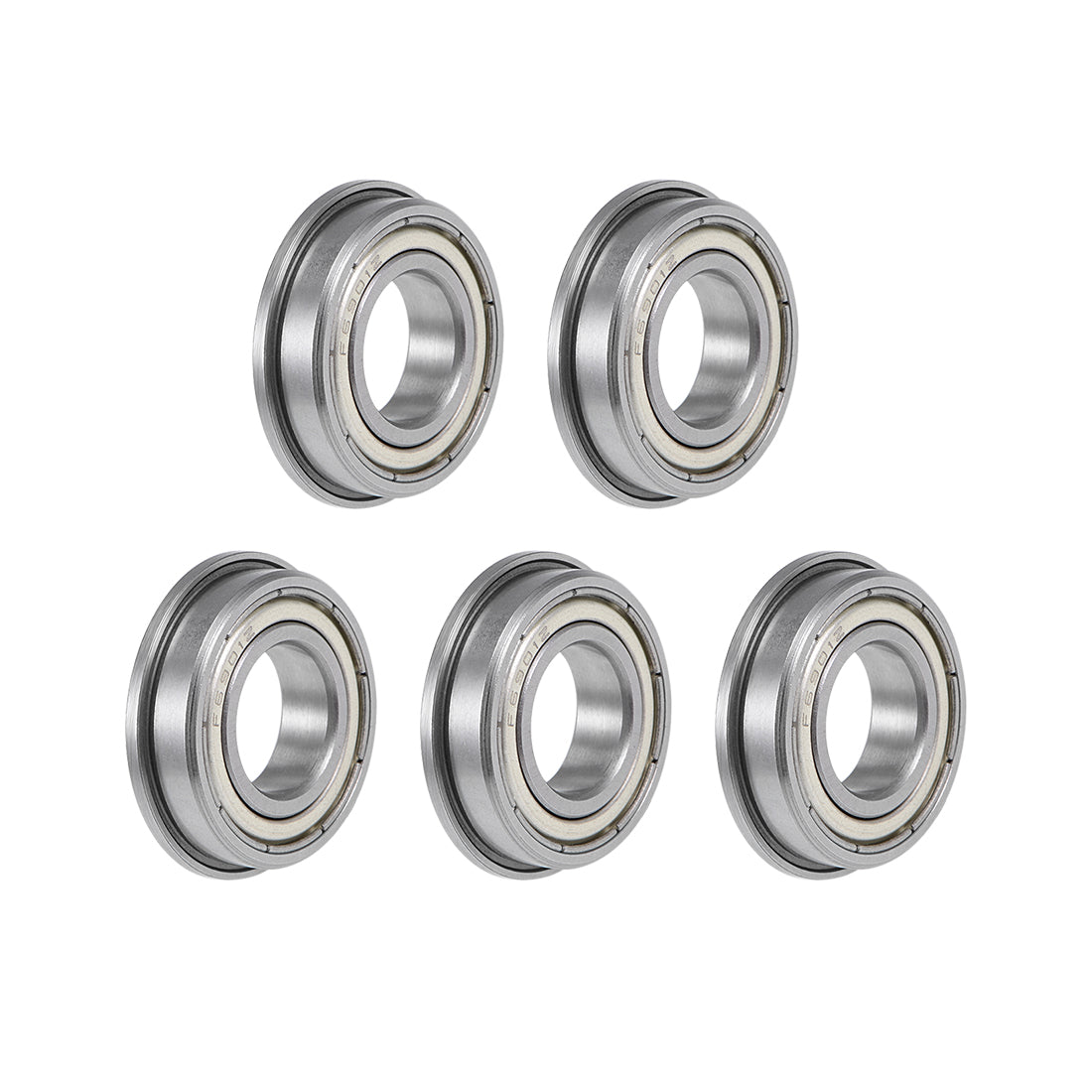

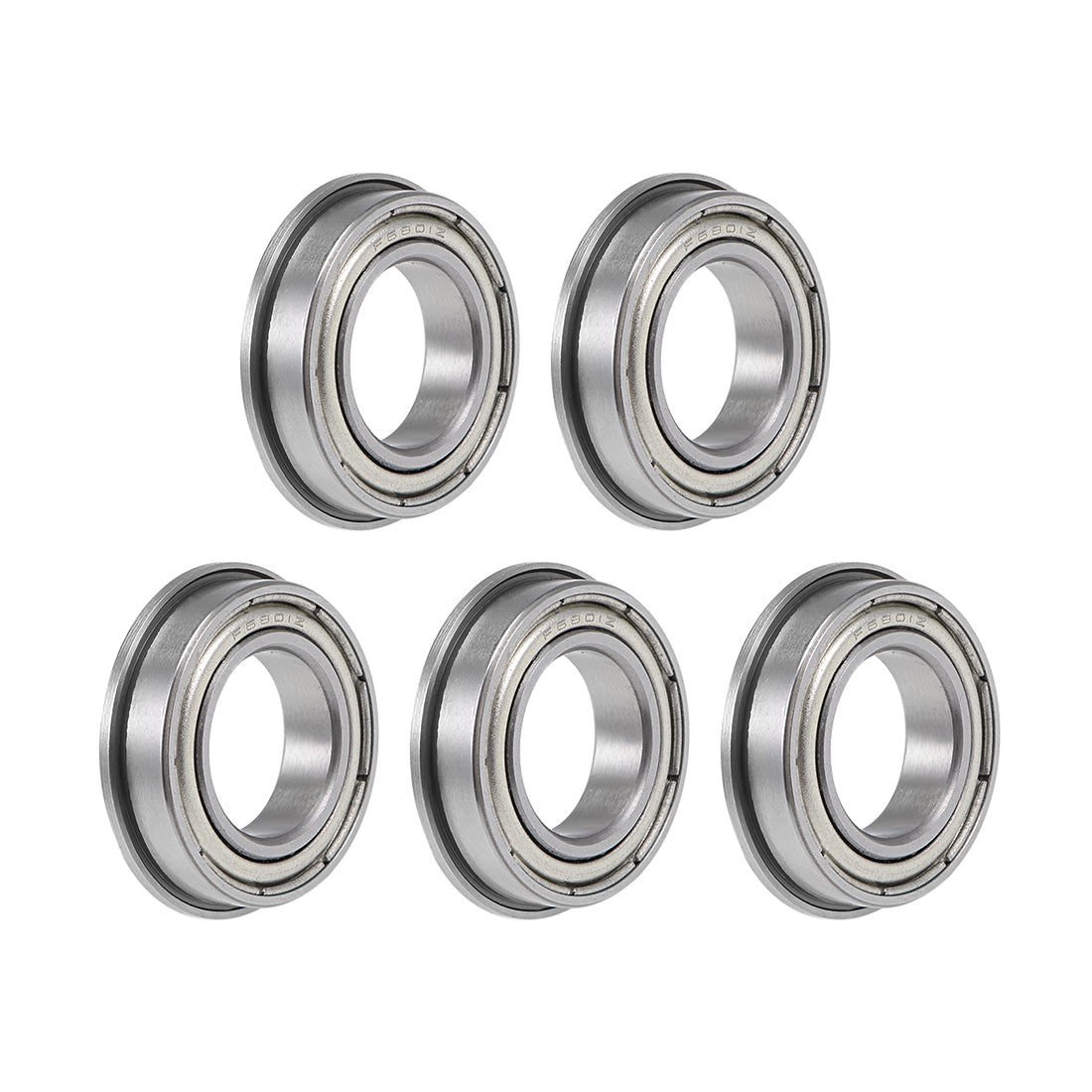

5pcs
Package Content
12x21x5mm
Size
About this item
  • F6801ZZ (I.D.=12mm, O.D.=21mm, Thickness=5mm, Flange Dia.: 23mm)
  • f6801z bearings are shielded on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 1000 newtons and dynamic load rating of 1900 newtons
About this item
  • F6801ZZ (I.D.=12mm, O.D.=21mm, Thickness=5mm, Flange Dia.: 23mm)
  • f6801z bearings are shielded on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 1000 newtons and dynamic load rating of 1900 newtons
Specification

Specification

SKU
a19040300ux0203
Static Load Rating(KN)
1
Model
F6801ZZ
Type
Double Shielded
Flange Dia.(mm)
23
Dynamic Load Rating(KN)
1.9
Static Load Rating((KN)
1
Accuracy Class
ABEC-1
Pkg.Qty.
5
I.D.
12mm
O.D.
21mm
Thickness
5mm
Noise Level
Z1
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

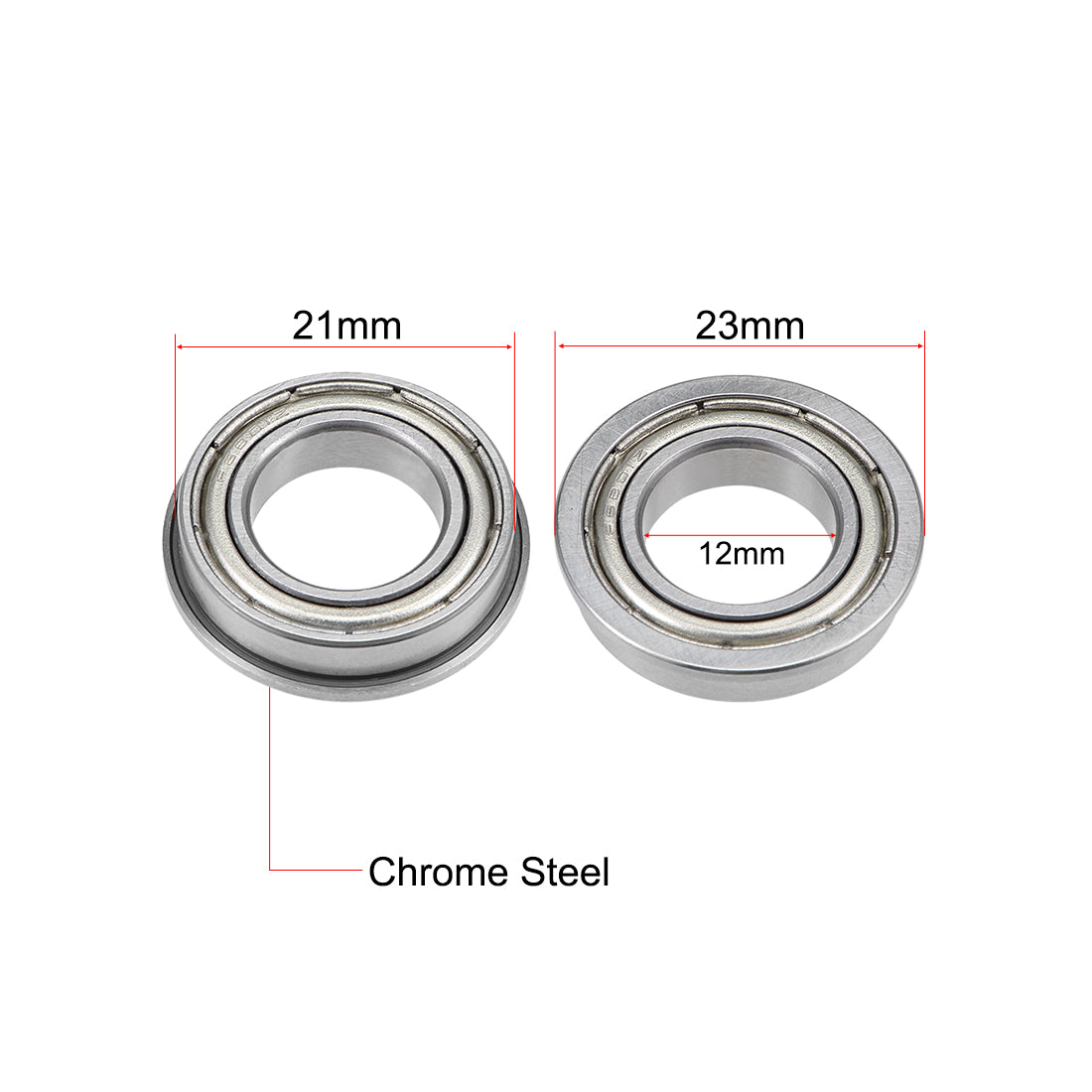

Model: F6801ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 21mm

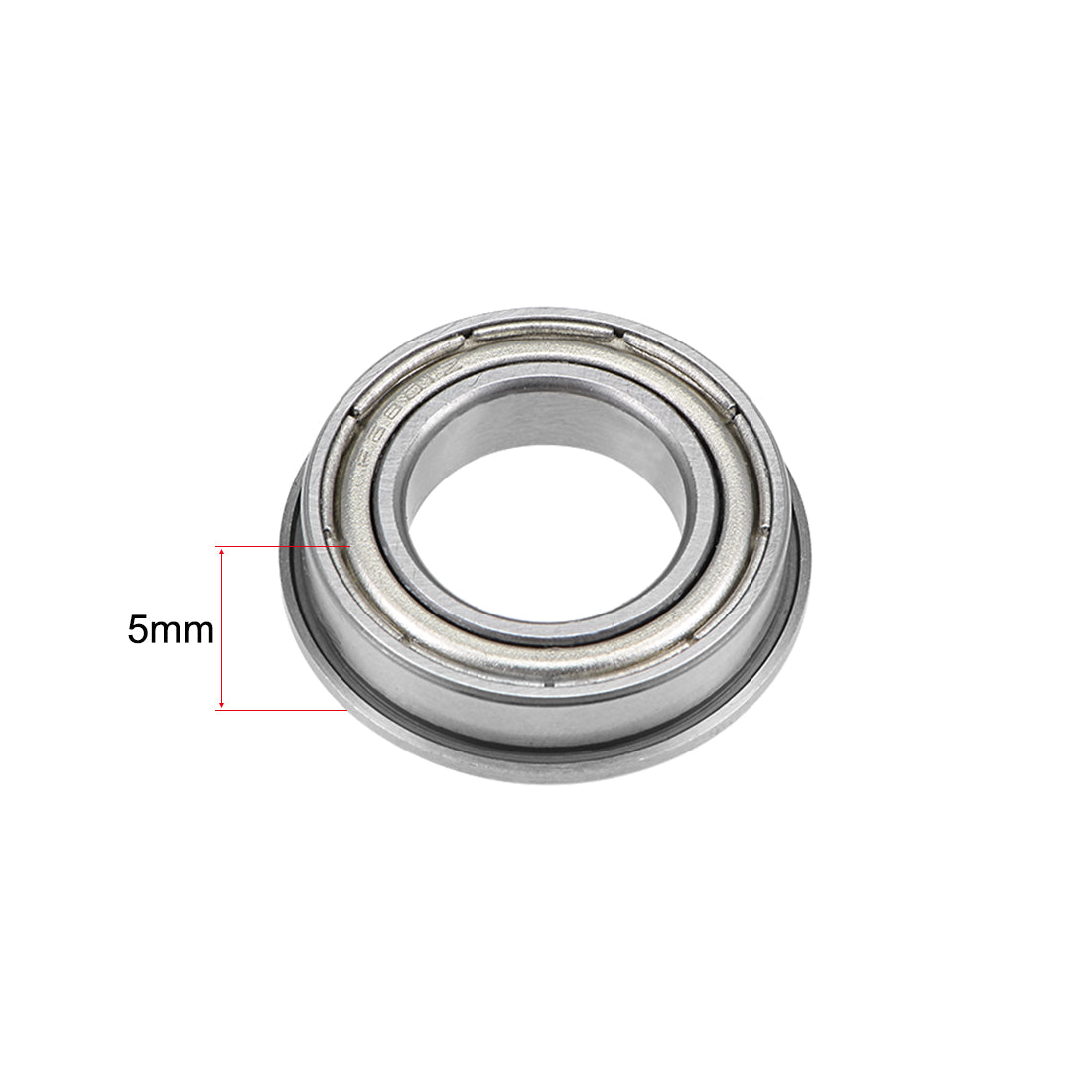

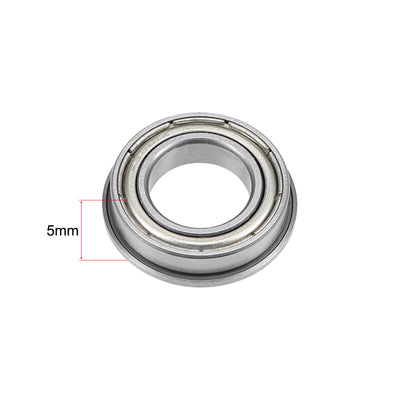

Thickness (B): 5mm

Flange Dia.: 23mm

Flange Thickness: 1mm

Dynamic Load Rating (Cr): 1.9kN

Static Load Rating (Cor): 1kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 5 Pcs

US$7.93 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Model Dynamic Load Rating(KN) Static Load Rating(KN) O.D. I.D. Thickness Flange Dia.(mm) Accuracy Class Noise Level Pkg.Qty. ID Price Qty
F6801ZZ 1.9 1 21mm 12mm 5mm 23 ABEC-1 Z1 5 1084362 US$7.93
Products Model Dynamic Load Rating(KN) Static Load Rating(KN) O.D. I.D. Thickness Flange Dia.(mm) Accuracy Class Noise Level Pkg.Qty. ID Price Qty
F6801ZZ 1.9 1 21mm 12mm 5mm 23 ABEC-1 Z1 5 1084362 US$7.93
FR6ZZ 3.332 1.422 22.225mm 9.525mm 1.575mm 24.511 ABEC-1 Z1 2 1169271 US$6.63
MF128ZZ 0.543 0.274 12mm 8mm 3.5mm 13.6 ABEC-1 Z1 2 1079471 US$5.81
MF128ZZ 0.543 0.274 12mm 8mm 3.5mm 13.6 ABEC-1 Z1 5 1088553 US$6.97
FR188ZZ 1.078 0.441 12.7mm 6.35mm 1.143mm 13.894 ABEC-1 Z1 5 1071781 US$8.49
F6800ZZ 1.7 0.8 19mm 10mm 5mm 21 ABEC-1 Z1 5 1075324 US$7.01
F605ZZ 1.05 0.5 14mm 5mm 5mm 16 ABEC-1 Z1 5 1061828 US$7.05
F605ZZ 1.05 0.5 14mm 5mm 5mm 16 ABEC-1 Z1 2 1061827 US$5.81
F63800ZZ 1.911 1.041 19mm 10mm 7mm 21 ABEC-1 Z1 2 1061831 US$6.24

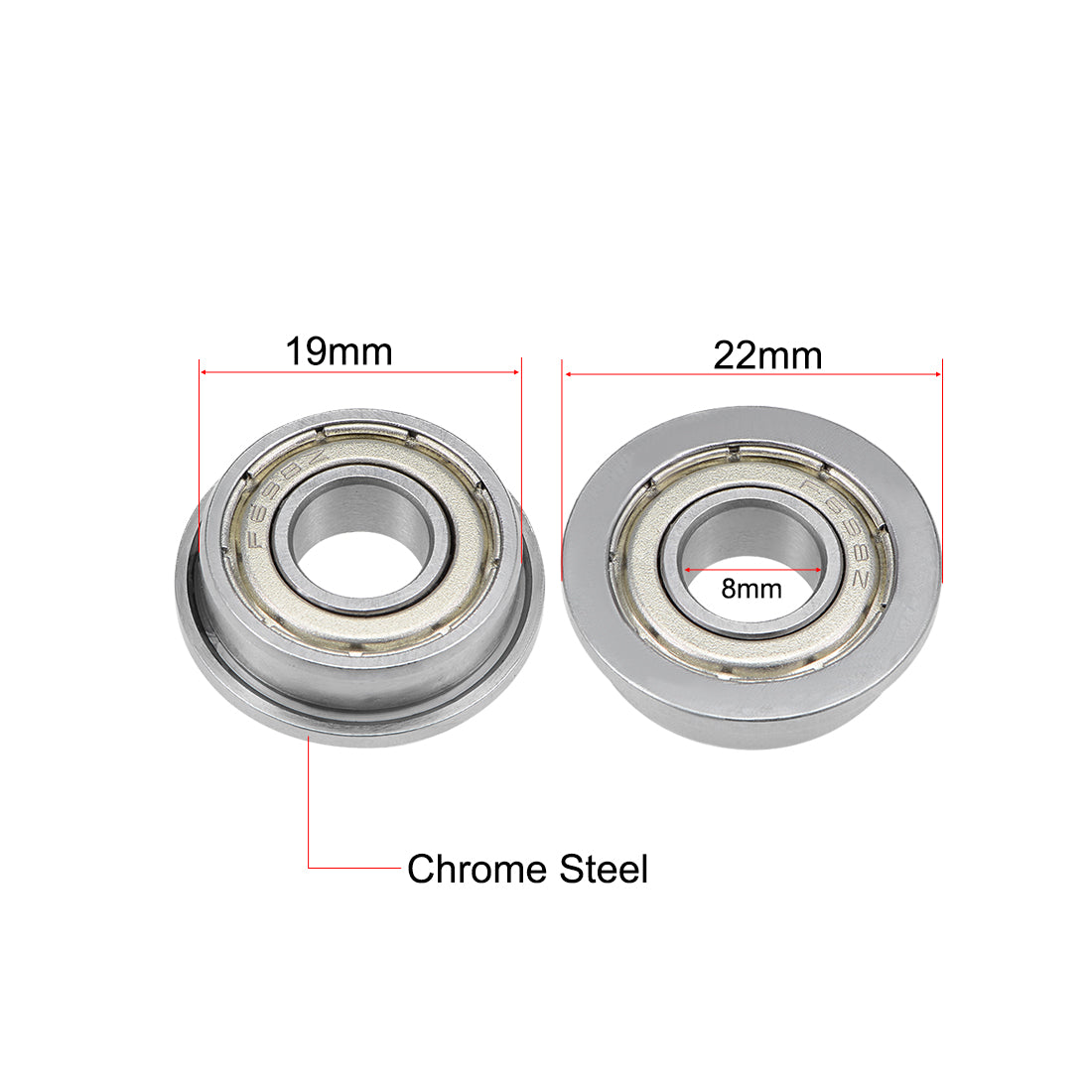

F698ZZ 2.237 0.917 19mm 8mm 6mm 22 ABEC-1 Z1 5 1206043 US$7.27
F698ZZ 2.237 0.917 19mm 8mm 6mm 22 ABEC-1 Z1 2 1083819 US$5.79
FR8ZZ 1.149 0.511 28.575mm 12.7mm 7.938mm 1.575 ABEC-1 Z1 2 1058259 US$6.39

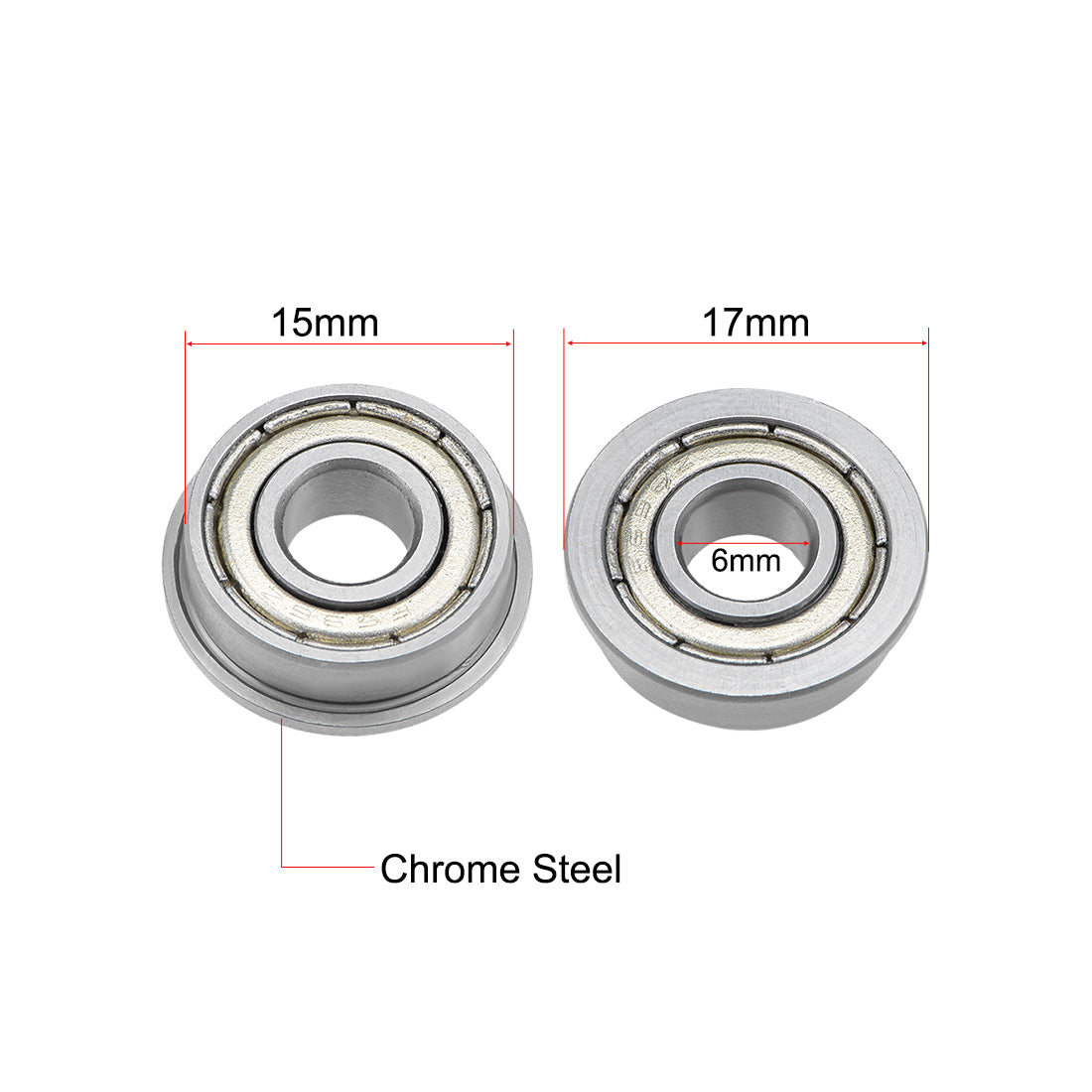

F696ZZ 1.34 0.523 15mm 6mm 5mm 17 ABEC-1 Z1 5 1088555 US$6.97
F696ZZ 1.34 0.523 15mm 6mm 5mm 17 ABEC-1 Z1 2 1138068 US$5.78
MF83ZZ 0.395 0.141 8mm 3mm 3mm 9.2 ABEC-1 Z1 5 1059616 US$7.26
MF126ZZ 0.716 0.295 12mm 6mm 4mm 13.6 ABEC-1 Z1 5 1143398 US$6.97

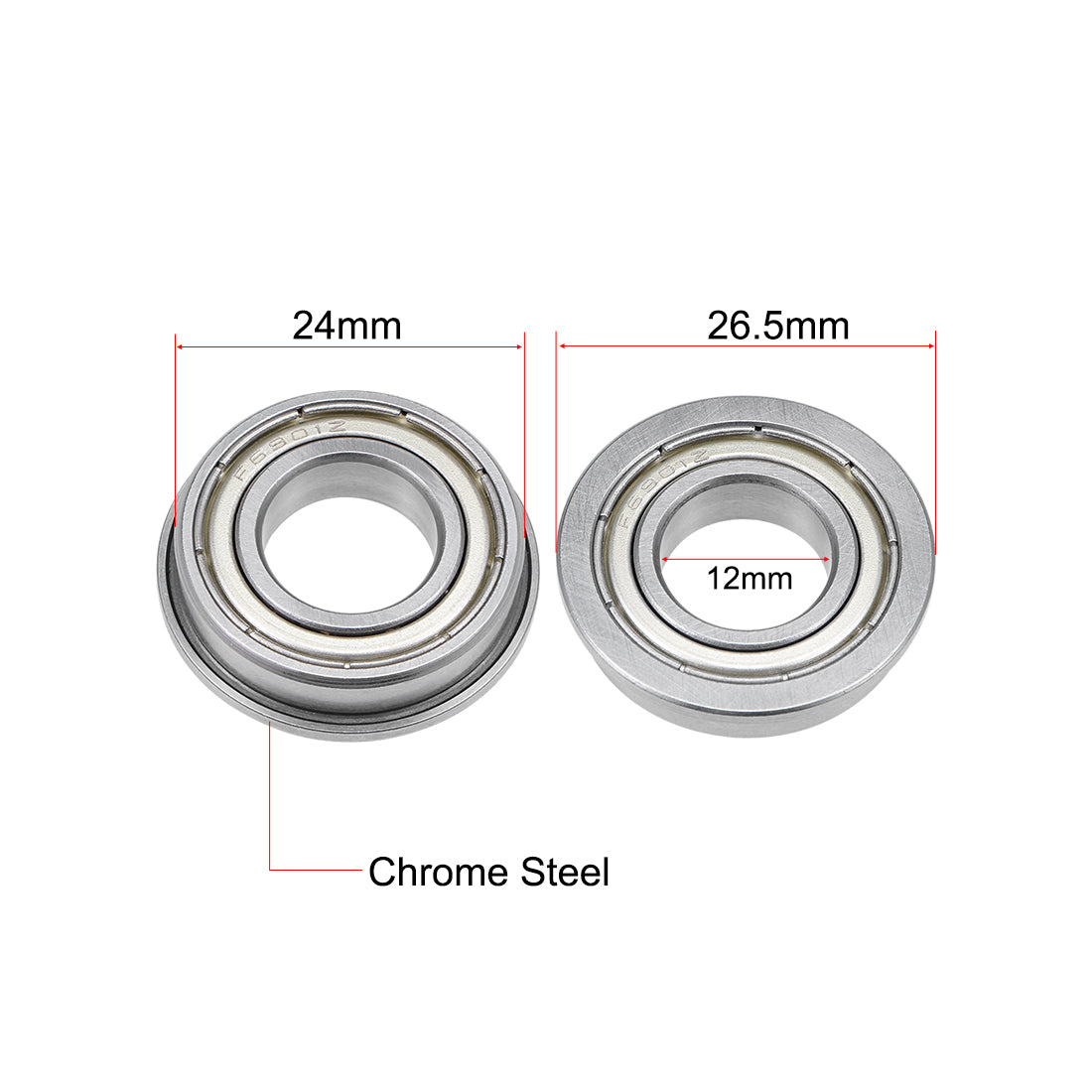

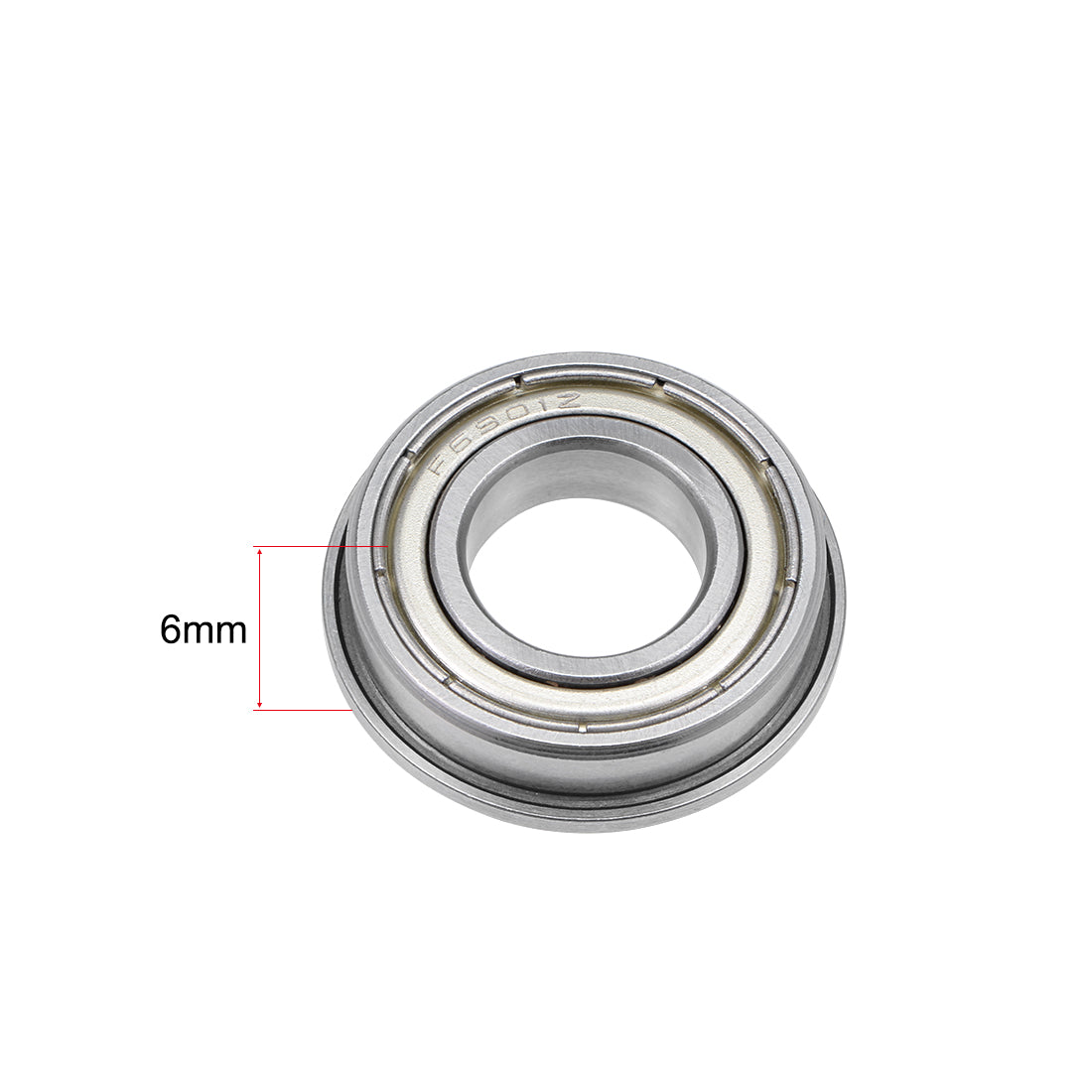

F6901ZZ 2.831 1.411 24mm 12mm 6mm 26.5 ABEC-1 Z1 5 1206042 US$8.39
F695ZZ 1.077 0.432 13mm 5mm 4mm 15 ABEC-1 Z1 5 1084360 US$7.05
MF52ZZ 0.169 0.05 5mm 2mm 2.5mm 6 ABEC-1 Z1 10 1071075 US$7.98
MF148ZZ 0.817 0.386 14mm 8mm 4mm 15.6 ABEC-1 Z1 5 1088551 US$7.26
F606ZZ 1.95 0.72 17mm 6mm 6mm 19 ABEC-1 Z1 5 1059612 US$7.30
F606ZZ 1.95 0.72 17mm 6mm 6mm 19 ABEC-1 Z1 2 1061829 US$5.81
MF95ZZ 0.431 0.169 9mm 5mm 3mm 10.2 ABEC-1 Z1 5 1059617 US$7.17
F6701ZZ 0.922 0.512 18mm 12mm 4mm 19.5 ABEC-1 Z1 2 1079474 US$6.31
F6805ZZ 4.3 2.9 37mm 25mm 7mm 40 ABEC-1 Z1 1 1136172 US$6.59
F6805ZZ 4.3 2.9 37mm 25mm 7mm 40 ABEC-1 Z1 2 1206041 US$8.34
MF63ZZ 0.209 0.074 6mm 3mm 2.5mm 7.2 ABEC-1 Z1 5 1206040 US$7.36
F685ZZ 0.716 0.282 11mm 5mm 5mm 12.5 ABEC-1 Z1 5 1084358 US$7.15
F6700ZZ 8.53 4.31 15mm 10mm 4mm 16.5 ABEC-1 Z1 5 1088552 US$7.36
F6000ZZ 4.58 1.98 26mm 10mm 8mm 28 ABEC-1 Z1 2 1061826 US$6.39
F693ZZ 0.56 0.18 8mm 3mm 4mm 9.5 ABEC-1 Z1 5 1113645 US$7.17
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: F6801ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 21mm

Thickness (B): 5mm

Flange Dia.: 23mm

Flange Thickness: 1mm

Dynamic Load Rating (Cr): 1.9kN

Static Load Rating (Cor): 1kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 5 Pcs
