Harfington Angular Contact Ball Bearing, Single Row, Open, 25° Contact Angle

Angular Contact Ball Bearing, Single Row, Open, 25° Contact Angle

ID:
$10.29 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
1
NumberOfItems
35x62x14mm
SizeName
About this item

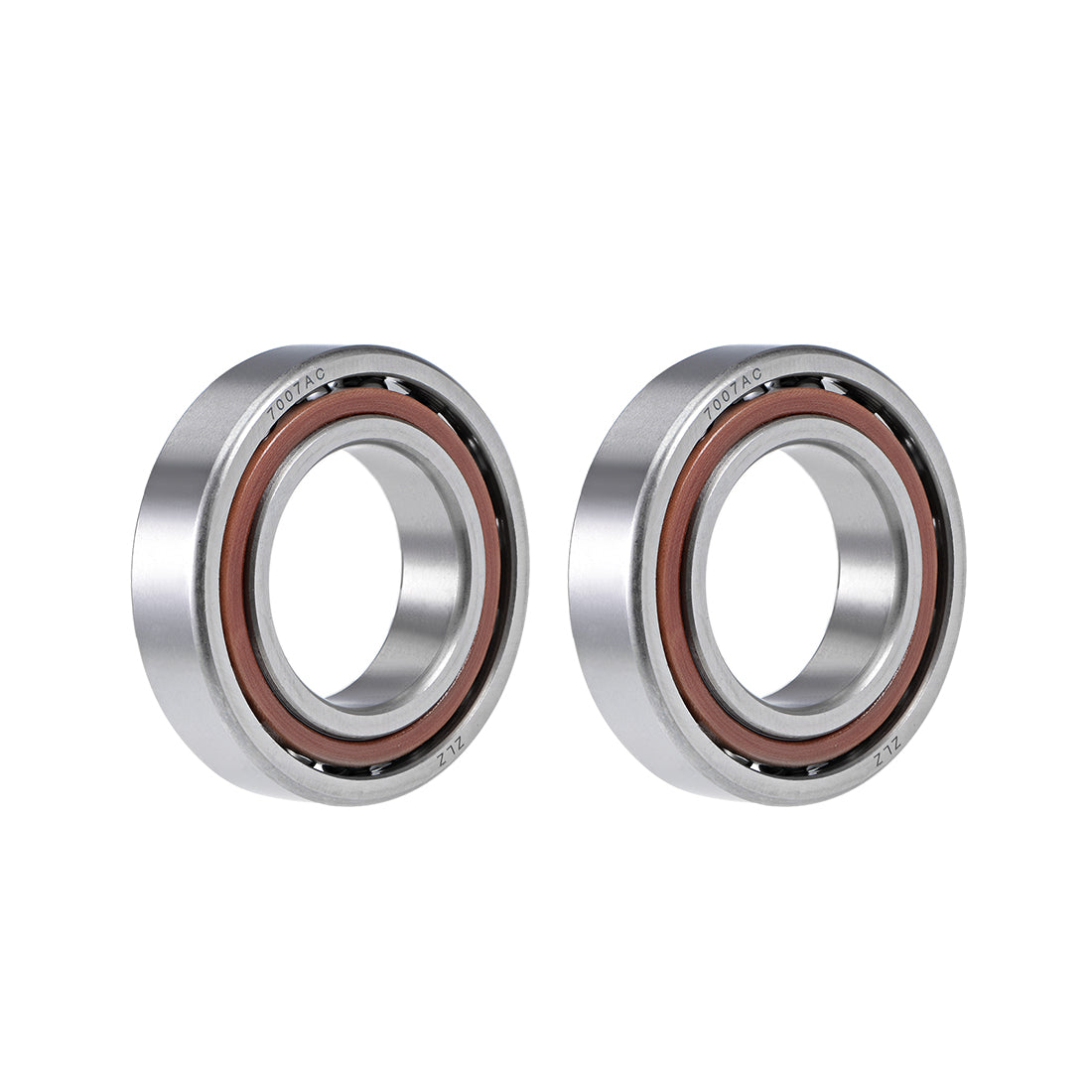

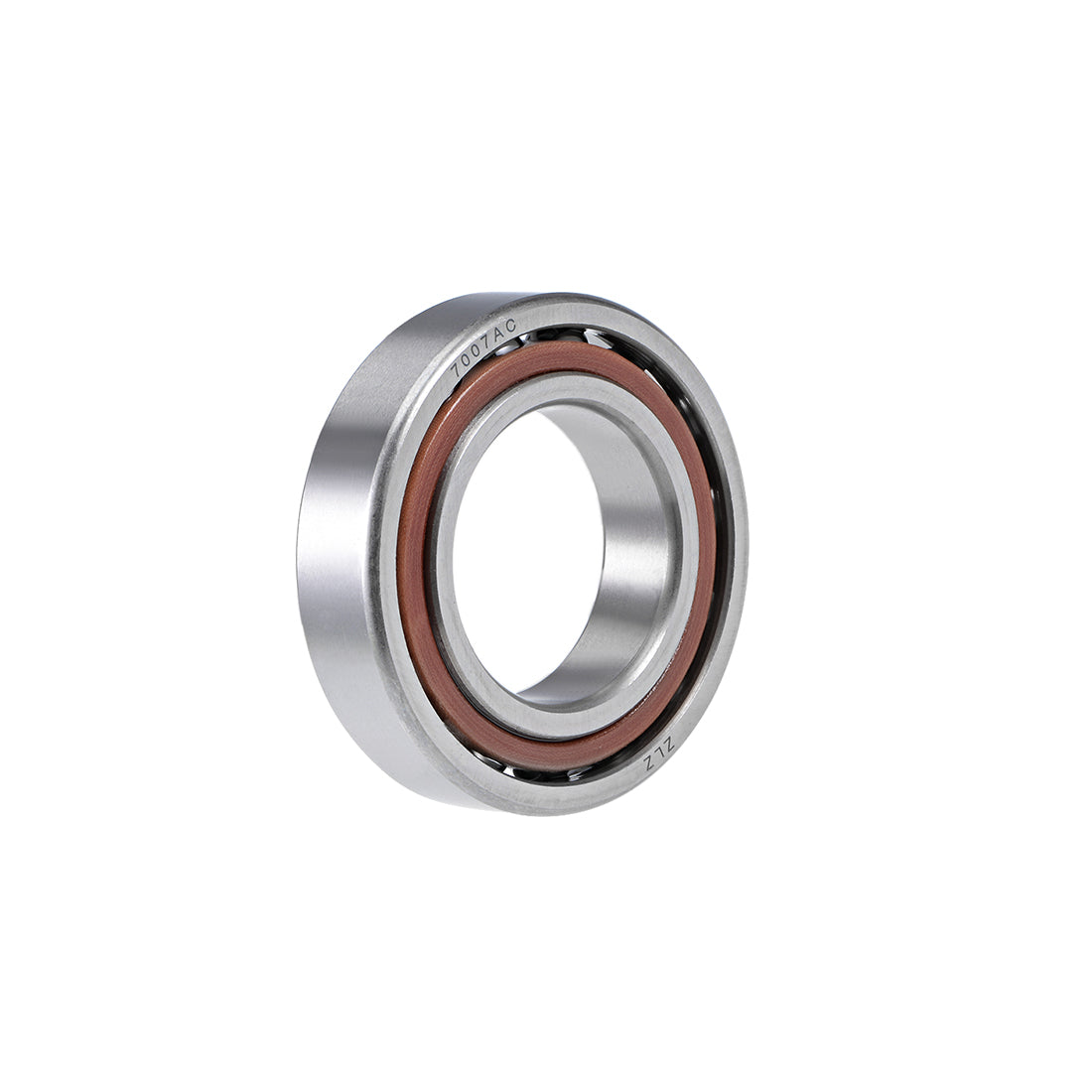

  • 7007AC (I.D.: 35mm, O.D.: 62mm, Width: 14mm)
  • 7007AC bearings are open type for easy lubricating
  • Static load rating of 17500 newtons and dynamic load rating of 12600 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • In stock, ready to ship
Cart
Cart
About this item
  • 7007AC (I.D.: 35mm, O.D.: 62mm, Width: 14mm)
  • 7007AC bearings are open type for easy lubricating
  • Static load rating of 17500 newtons and dynamic load rating of 12600 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Single row angular contact ball bearings are designed to accommodate loads in one direction only.
  • This type of bearing is typically adjusted against a second bearing.
  • Their bearing rings have an upper and a lower shoulder and are non-separable.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 7007AC

Type: Open Type

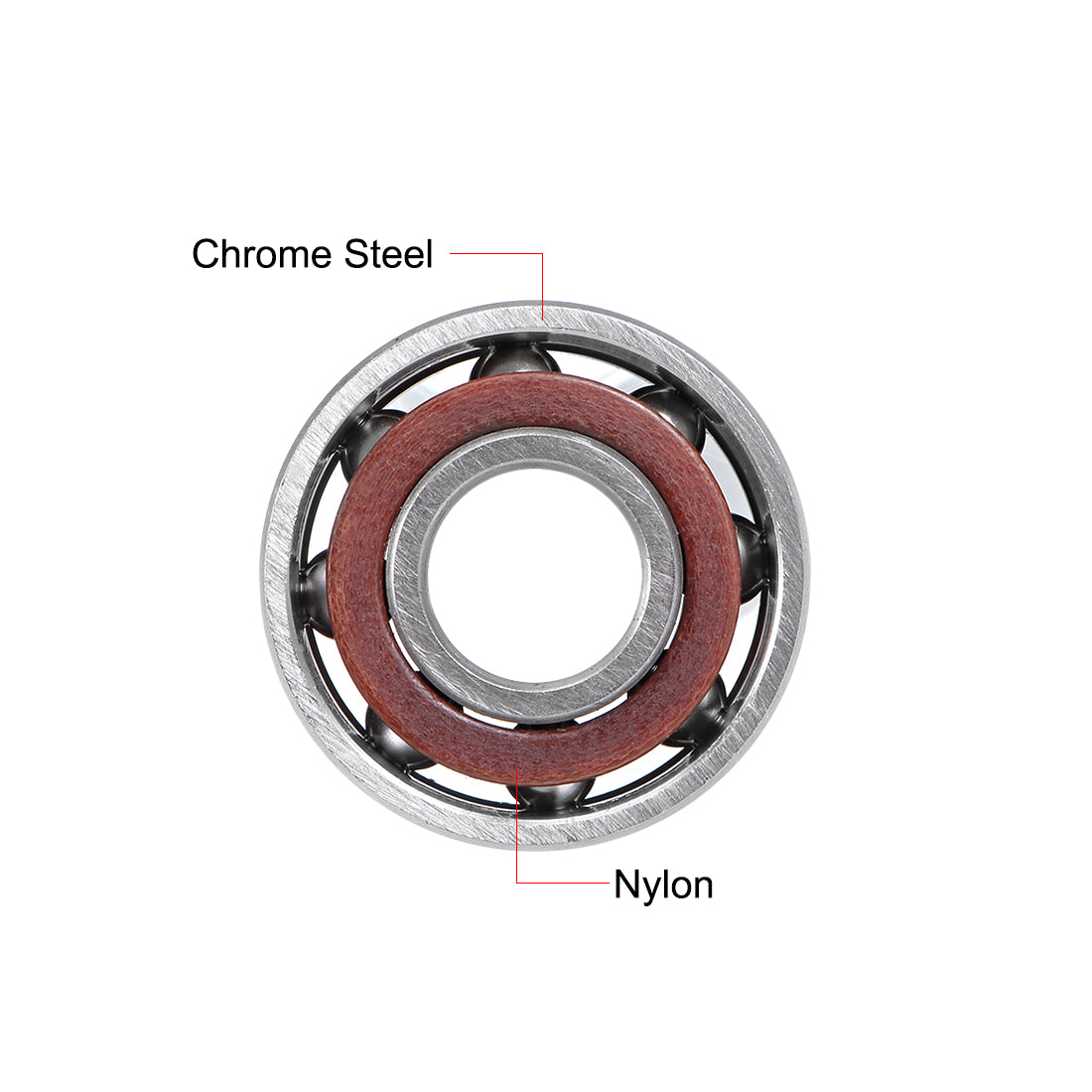

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Nylon

Inner Diameter (d): 35mm

Outer Diameter (D): 62mm

Thickness (B): 14mm

Dynamic Load Rating (Cr): 17.5kN

Static Load Rating (Cor): 12.6kN

Contact Angle: 25°

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$10.29 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Single row angular contact ball bearings are designed to accommodate loads in one direction only.
  • This type of bearing is typically adjusted against a second bearing.
  • Their bearing rings have an upper and a lower shoulder and are non-separable.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 7007AC

Type: Open Type

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Nylon

Inner Diameter (d): 35mm

Outer Diameter (D): 62mm

Thickness (B): 14mm

Dynamic Load Rating (Cr): 17.5kN

Static Load Rating (Cor): 12.6kN

Contact Angle: 25°

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
