Harfington 3200-2RS 3201-2RS Angular Contact Ball Bearing Sealed Bearings 5200-2RS 5201-2RS

3200-2RS 3201-2RS Angular Contact Ball Bearing Sealed Bearings 5200-2RS 5201-2RS

ID:
$10.14 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
10X30X14.3mm
SizeName
2
NumberOfItems
About this item
  • 3200-2RS (I.D.: 10mm, O.D.: 30mm, Width: 14.3mm)
  • 5200-2RS bearings are sealed on BOTH SIDES to keep lubricant in
  • Static load rating of 7350 newtons and dynamic load rating of 5350 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • In stock, ready to ship
Cart
Cart
About this item
  • 3200-2RS (I.D.: 10mm, O.D.: 30mm, Width: 14.3mm)
  • 5200-2RS bearings are sealed on BOTH SIDES to keep lubricant in
  • Static load rating of 7350 newtons and dynamic load rating of 5350 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

  • Double-row, pre-lubricated, normal accuracy.
  • Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
  • The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 3200-2RS (5200-2RS)

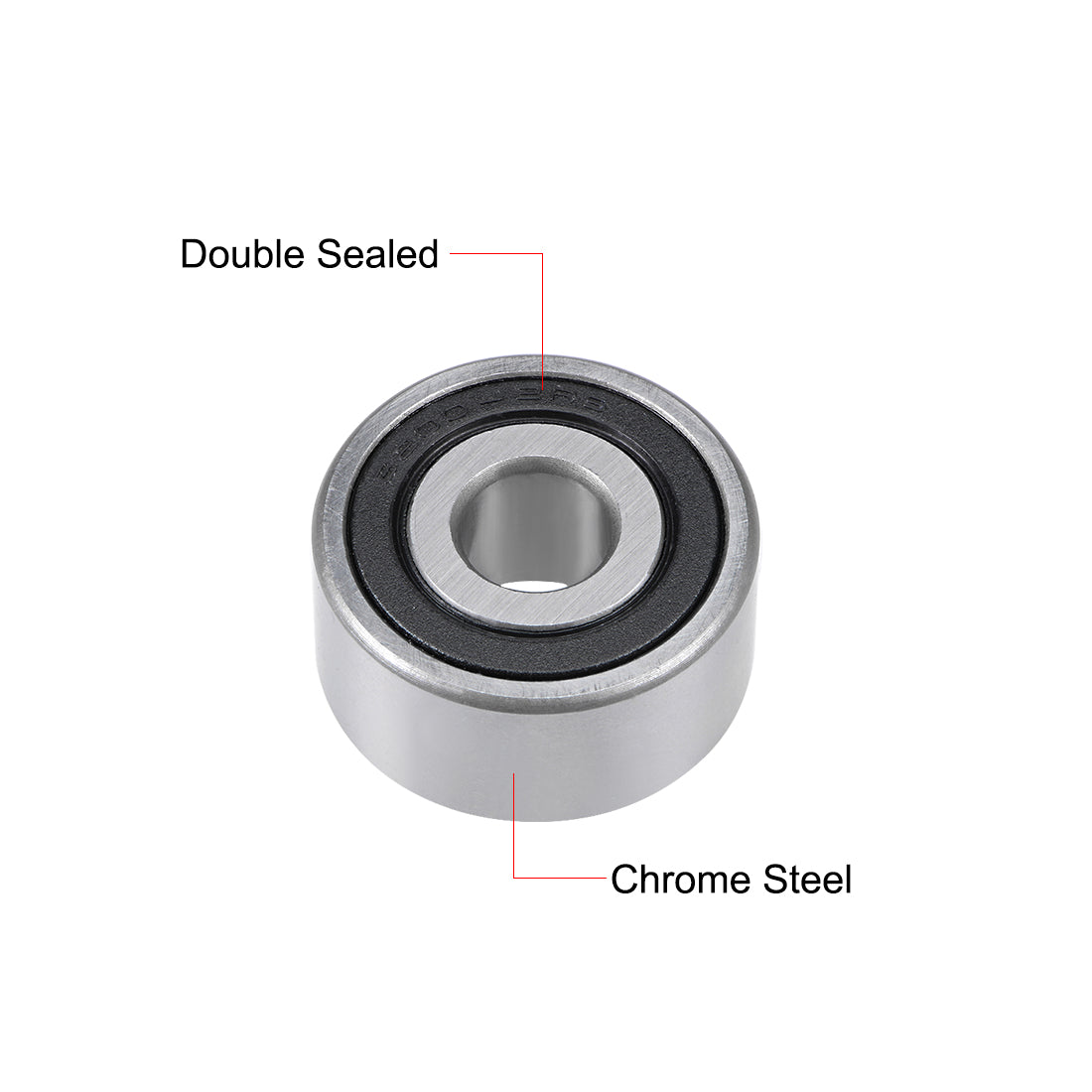

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

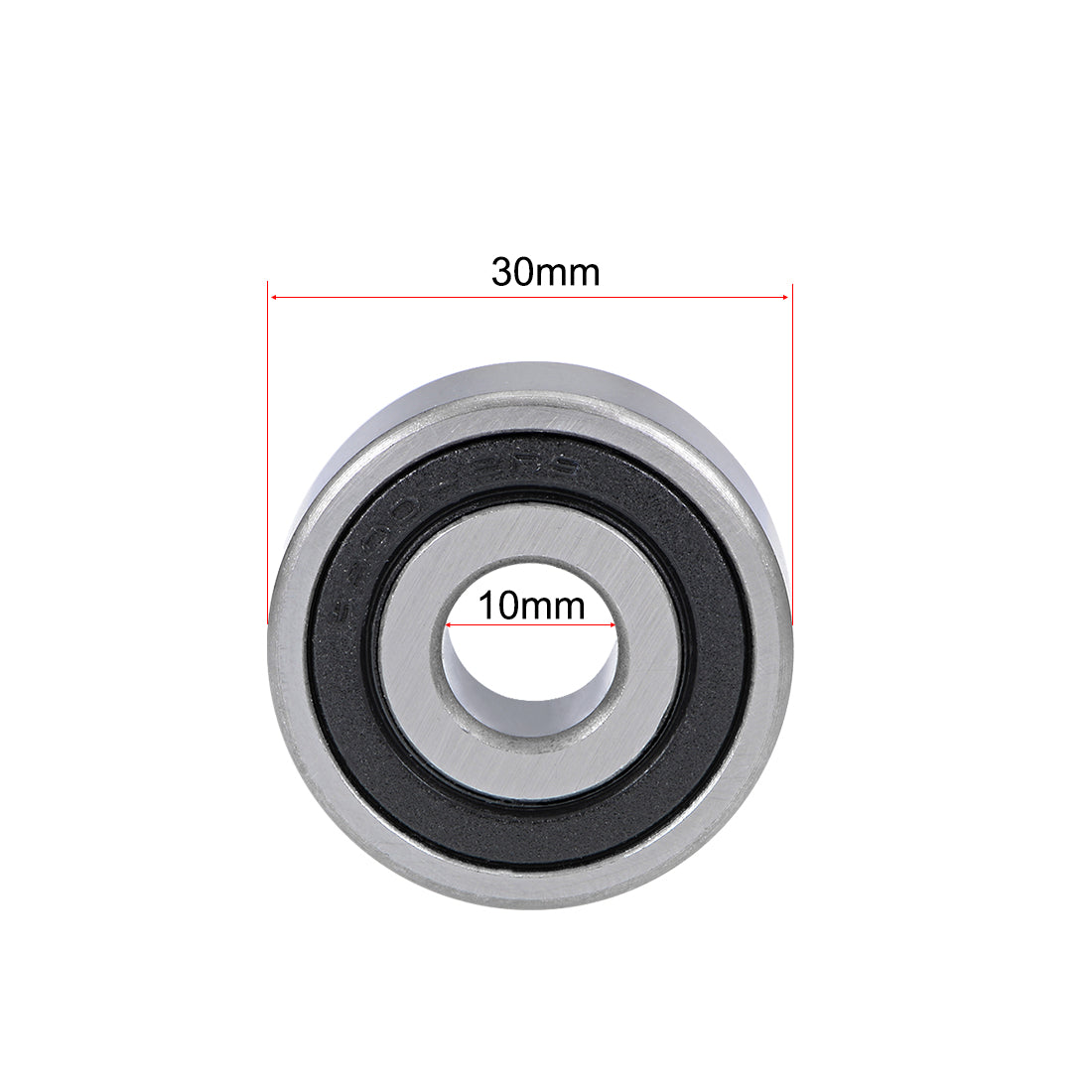

Inner Diameter (d): 10mm

Outer Diameter (D): 30mm

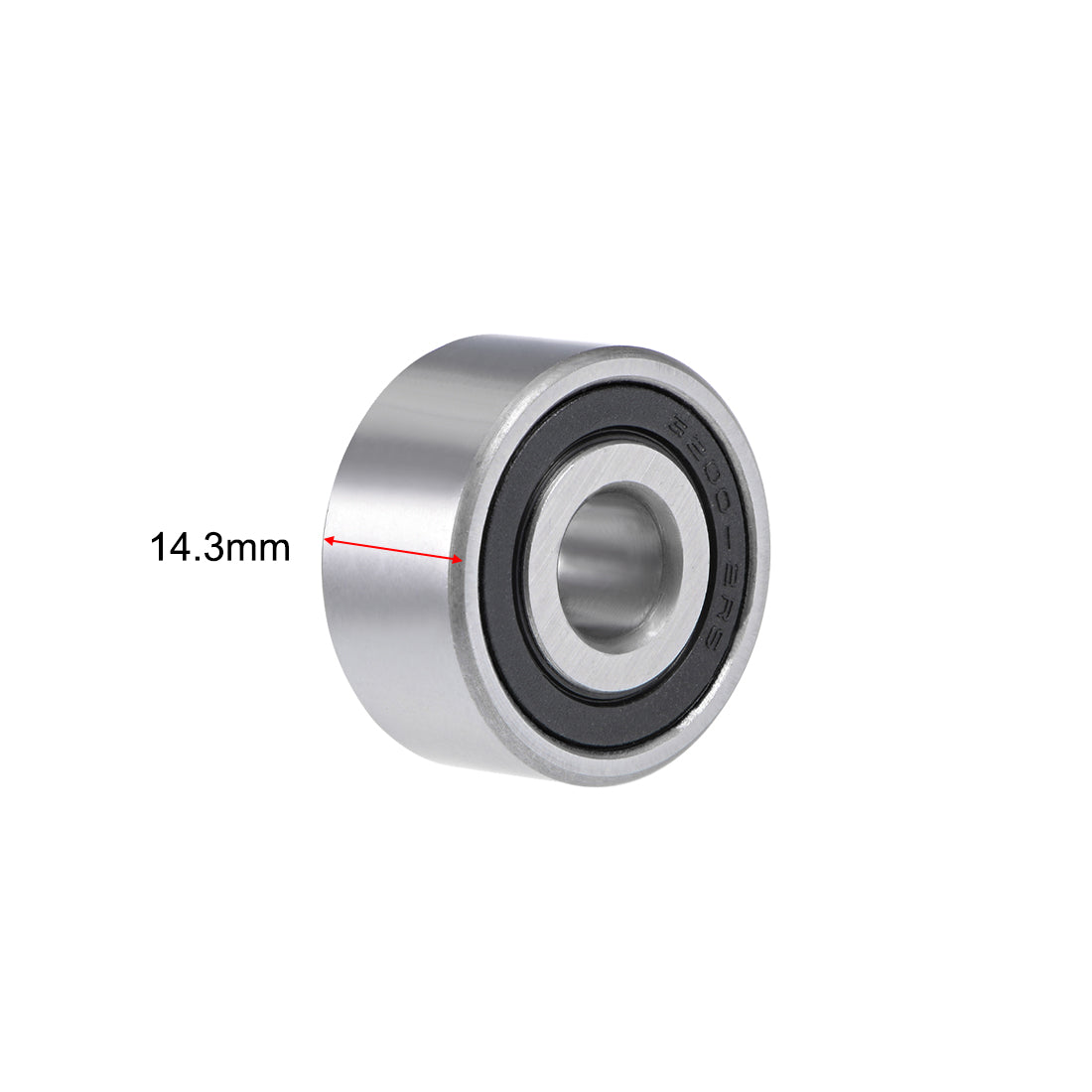

Thickness (B): 14.3mm

Dynamic Load Rating (Cr): 7.35kN

Static Load Rating (Cor): 5.35kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

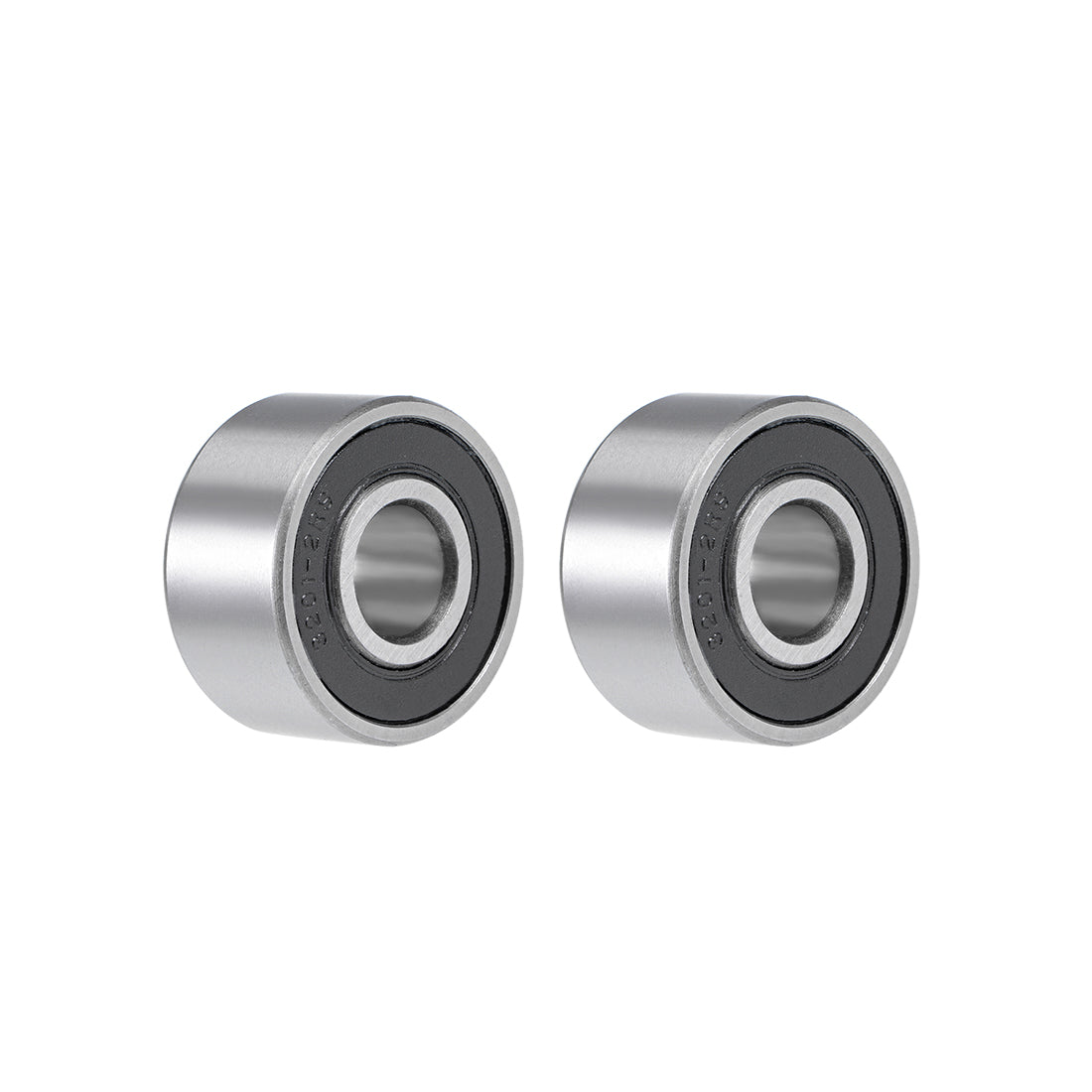

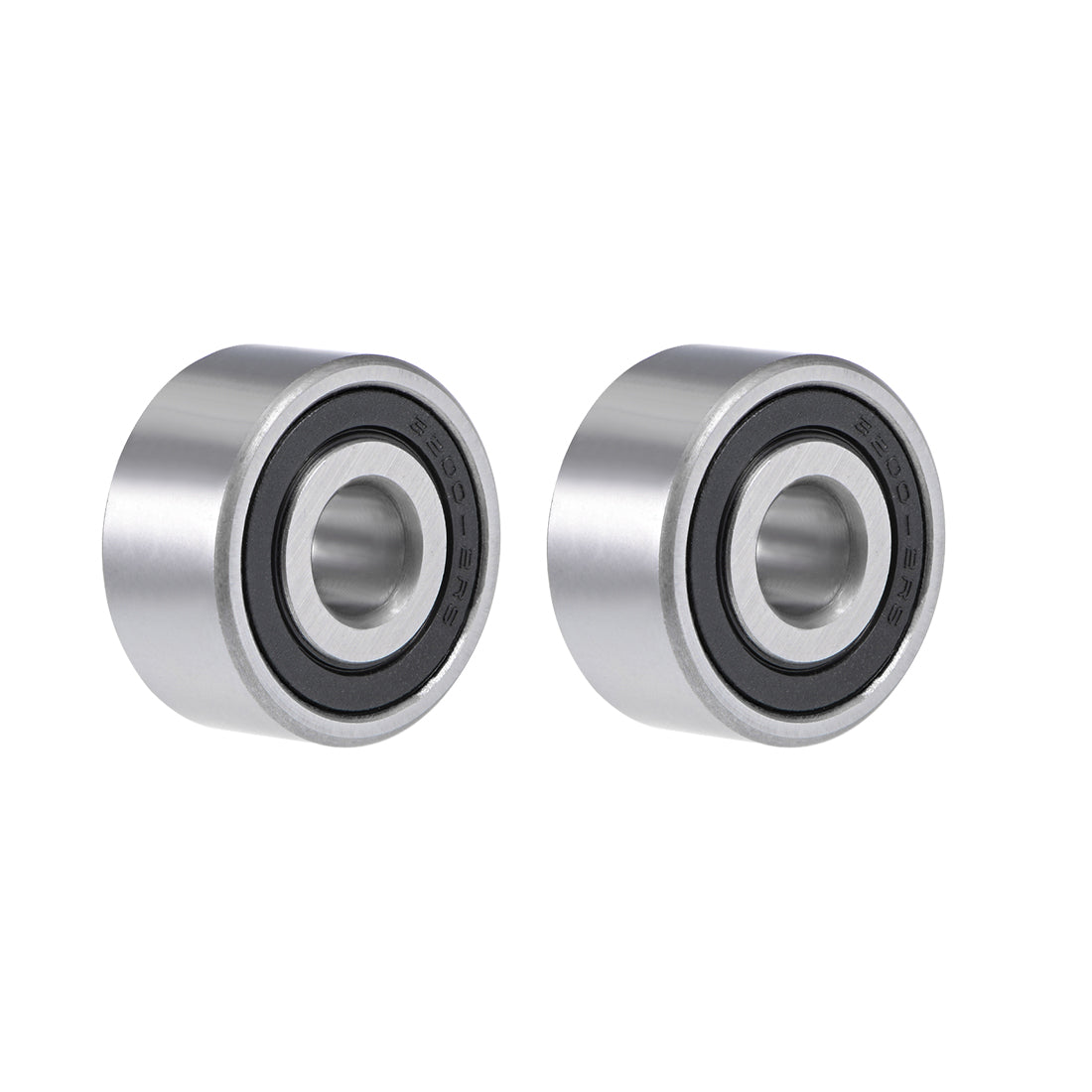

Number of Pack: 2 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$10.14 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • Double-row, pre-lubricated, normal accuracy.
  • Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
  • The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 3200-2RS (5200-2RS)

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 10mm

Outer Diameter (D): 30mm

Thickness (B): 14.3mm

Dynamic Load Rating (Cr): 7.35kN

Static Load Rating (Cor): 5.35kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
