Harfington Uxcell 3206-2RS Angular Contact Ball Bearing 30x62x24mm Sealed Bearings 5206-2RS 2pcs

Uxcell 3206-2RS Angular Contact Ball Bearing 30x62x24mm Sealed Bearings 5206-2RS 2pcs

ID:
$14.29 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
25x52x20.6mm
SizeName
2
NumberOfItems
About This Item
  • 3205-2RS (I.D.: 25mm, O.D.: 52mm, Width: 20.6mm)
  • 5205-2RS bearings are sealed on BOTH SIDES to keep lubricant in
  • Static load rating of 18900 newtons and dynamic load rating of 18200 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • In stock, ready to ship
Cart
Cart
About This Item
  • 3205-2RS (I.D.: 25mm, O.D.: 52mm, Width: 20.6mm)
  • 5205-2RS bearings are sealed on BOTH SIDES to keep lubricant in
  • Static load rating of 18900 newtons and dynamic load rating of 18200 newtons
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • Double-row, pre-lubricated, normal accuracy.
  • Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
  • The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 3205-2RS (5205-2RS)

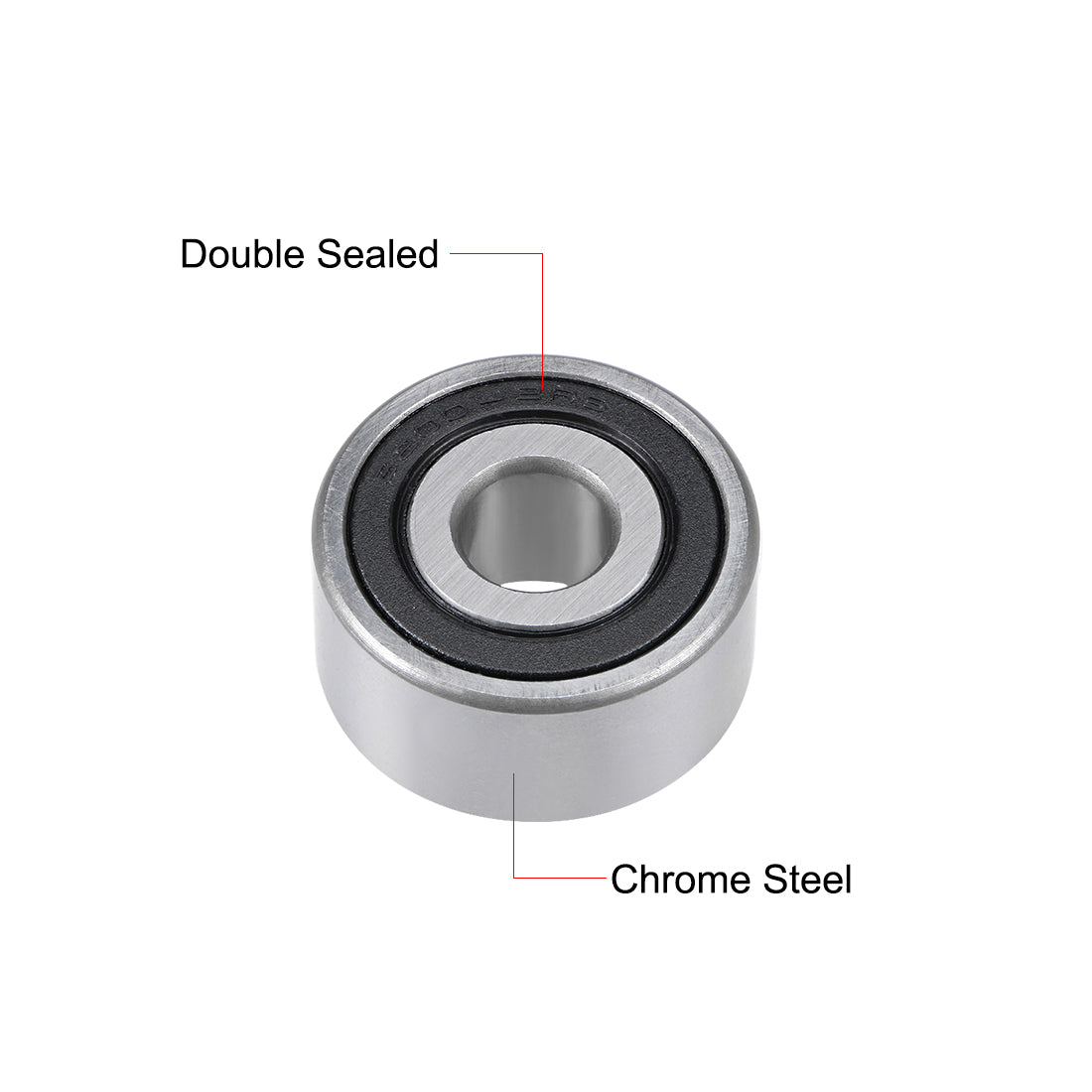

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 25mm

Outer Diameter (D): 52mm

Thickness (B): 20.6mm

Dynamic Load Rating (Cr): 18.9kN

Static Load Rating (Cor): 27kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Description:

  • Double-row, pre-lubricated, normal accuracy.
  • Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction.
  • The load carrying capacity of angular contact ball bearings increases as the contact angle increases.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others.





Specification:

Model: 3205-2RS (5205-2RS)

Seal Type: Double Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 25mm

Outer Diameter (D): 52mm

Thickness (B): 20.6mm

Dynamic Load Rating (Cr): 18.9kN

Static Load Rating (Cor): 27kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
