Harfington U-Groove Ball Bearing NPP KDD Guide Pulley Bearings for Shaft

U-Groove Ball Bearing NPP KDD Guide Pulley Bearings for Shaft

ID:1148738
ID:1148738
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
12x35x15.9mm
SizeName
About this item
  • LFR5201-10 (I.D.=12mm, O.D.=35mm, Thickness=15.9mm)
  • U groove fits for 10mm shaft or wire rope
  • LFR5201-10 traces pulley bearing features wire pulley groove
  • Easy installation and replacement, wide application
  • Specially for linear motion systems such as 3D printer extrude, quadcopter or ship model
About this item
  • LFR5201-10 (I.D.=12mm, O.D.=35mm, Thickness=15.9mm)
  • U groove fits for 10mm shaft or wire rope
  • LFR5201-10 traces pulley bearing features wire pulley groove
  • Easy installation and replacement, wide application
  • Specially for linear motion systems such as 3D printer extrude, quadcopter or ship model
Specification

Specification

SKU
a19010900ux0660
Model
LFR5201-10
Type
Double Sealed
Accuracy Class
ABEC-1
Pkg.Qty.
1

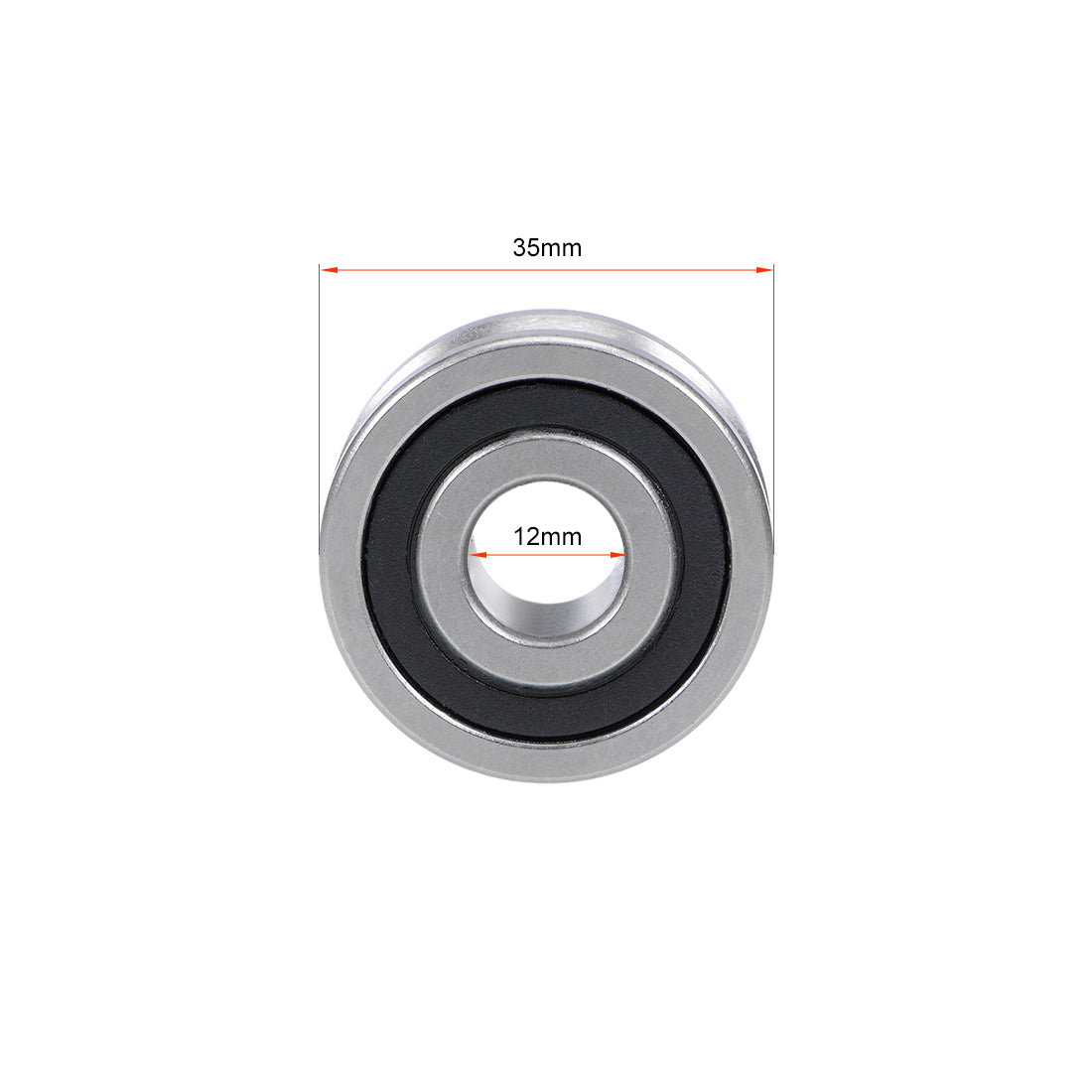

I.D.
12mm
O.D.
35mm

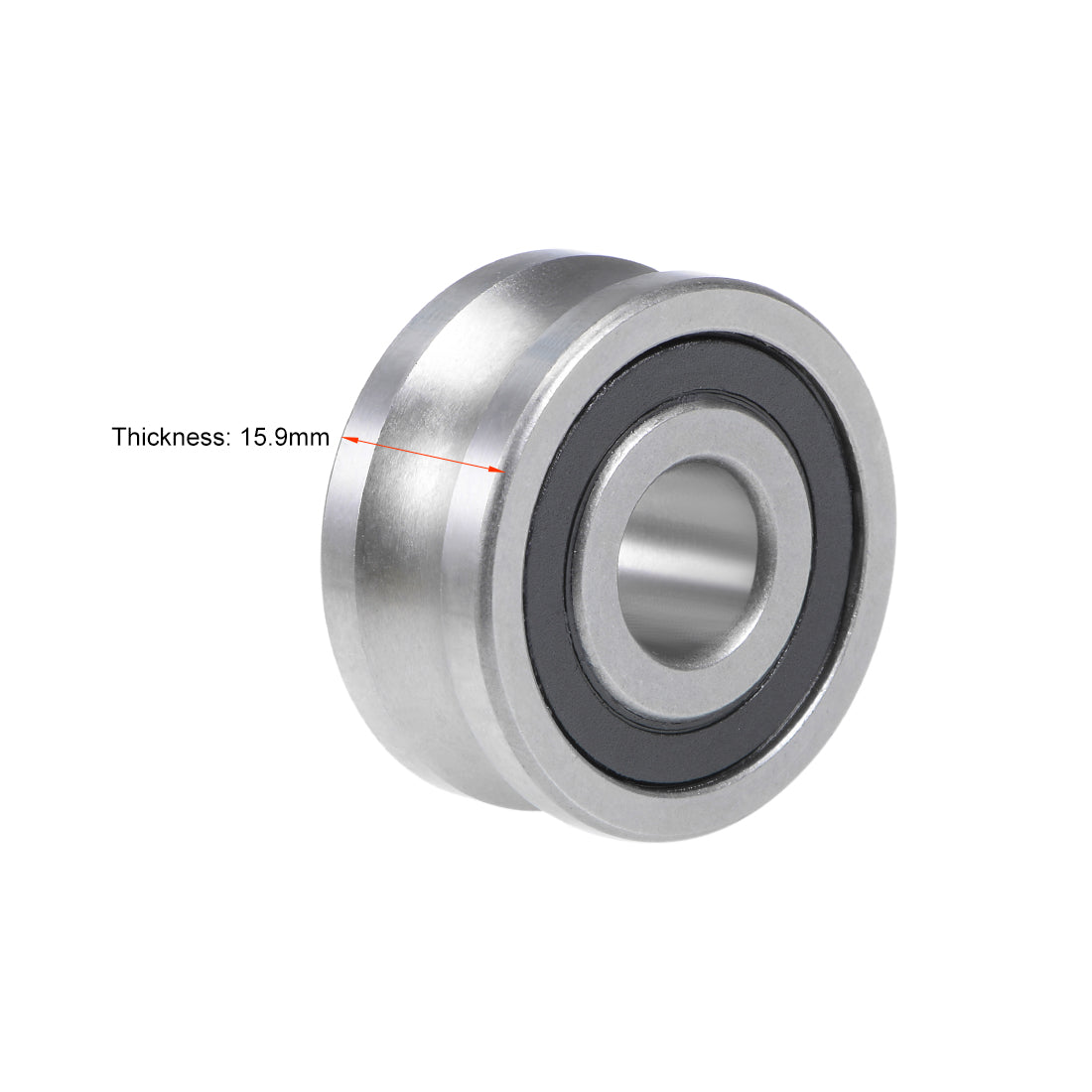

Thickness
15.9mm
Noise Level
Z1
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

  • LFR bearings are specially guide wheel and pulley wheel for 3D printer extrude, textile machine and press machine.
  • Single-row, pre-lubricated, normal accuracy, low noise and smooth.
  • With small friction and high-limit speed, these u groove pulley bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for furniture hardware accessories, mobile doors, glass sliding doors, aluminum doors and windows, shower pulleys and drawers, etc.





Specification:

Model: LFR5201-10

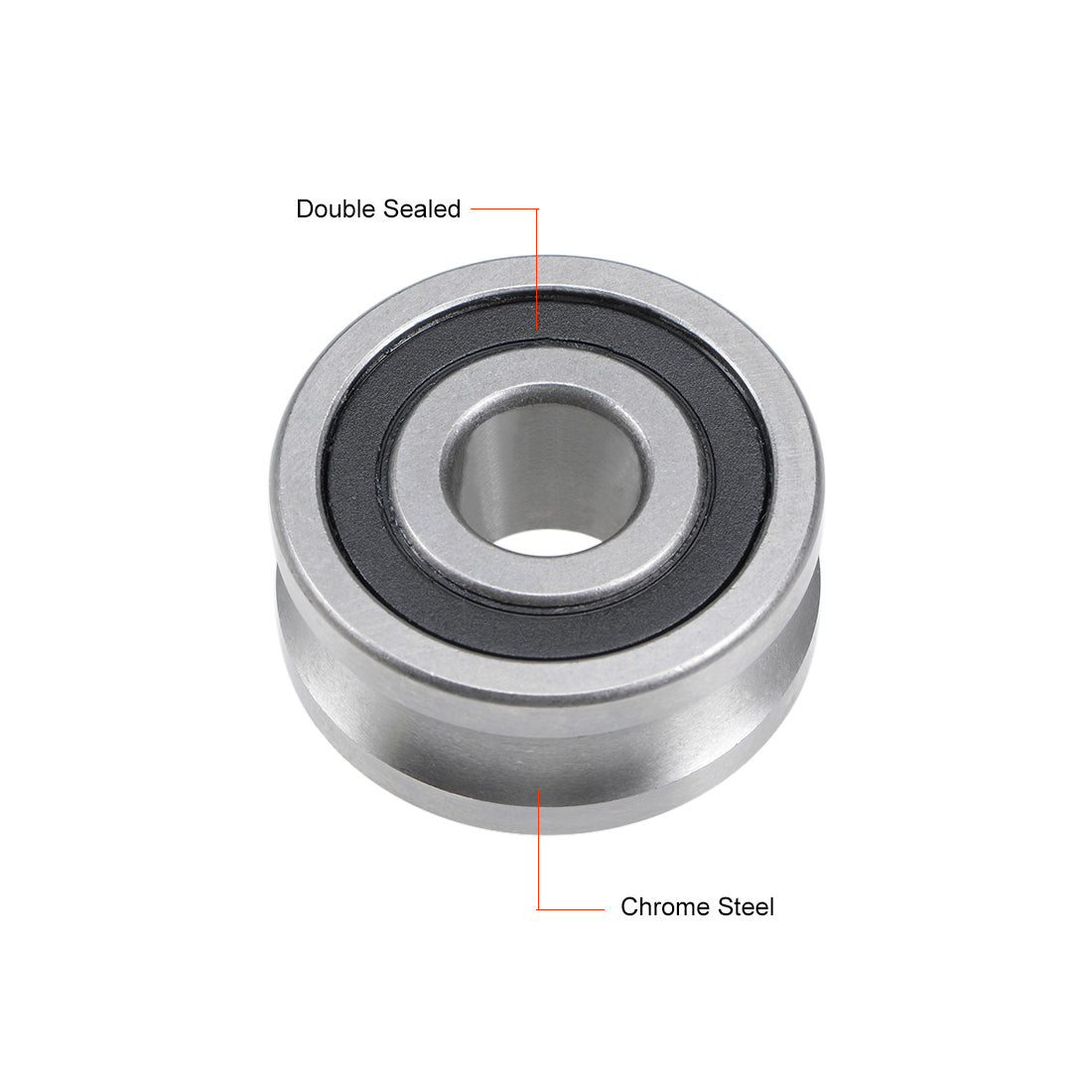

Seal Type: Double Sealed (NPP)

Inner Race/Outer Race Material: Chrome Steel

Cage Material: Steel

Inner Diameter: 12mm

Outer Diameter: 35mm

Thickness: 15.9mm

Fit for Shaft Dia.: 10mm

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs



US$10.51 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Model O.D. I.D. Thickness Accuracy Class Noise Level Pkg.Qty. ID Price Qty
LFR5201-10 35mm 12mm 15.9mm ABEC-1 Z1 1 1148738 US$10.51
Products Model O.D. I.D. Thickness Accuracy Class Noise Level Pkg.Qty. ID Price Qty
LFR5201-10 35mm 12mm 15.9mm ABEC-1 Z1 1 1148738 US$10.51
LFR50/8-6 24mm 8mm 11mm ABEC-1 Z1 1 1148733 US$7.44
SG35 42mm 12mm 22mm ABEC-1 Z1 1 1148741 US$9.52

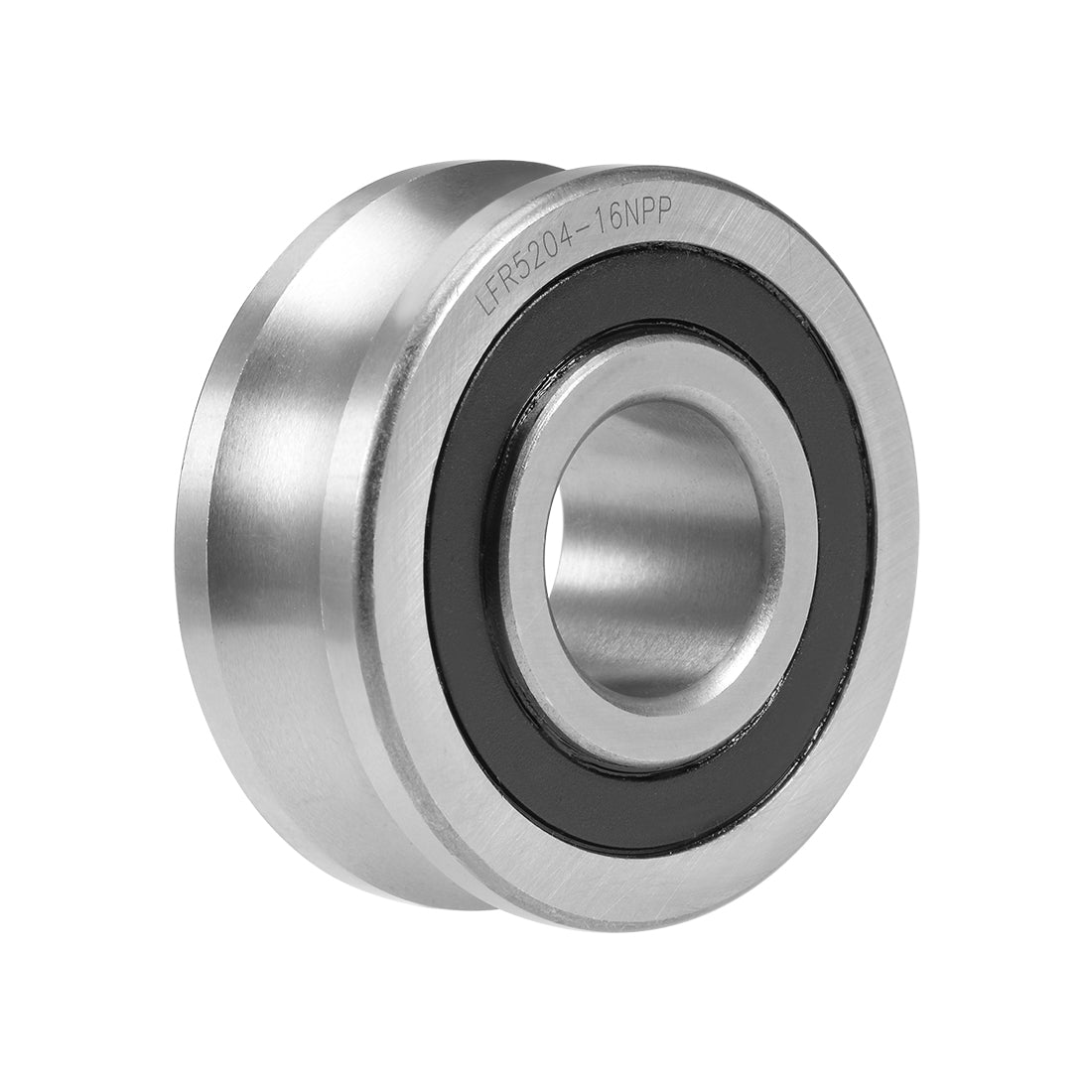

LFR5204-16 52mm 20mm 20.6mm ABEC-1 Z1 1 1172817 US$15.88
SG15 17mm 5mm 9.75mm ABEC-1 Z1 1 1172819 US$6.00
SG15 17mm 5mm 9.75mm ABEC-1 Z1 1 1172818 US$5.80
SG10 13mm 4mm 6.5mm ABEC-1 Z1 1 1140076 US$6.76
SG20 24mm 6mm 12.75mm ABEC-1 Z1 1 1046318 US$7.63
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Description:

  • LFR bearings are specially guide wheel and pulley wheel for 3D printer extrude, textile machine and press machine.
  • Single-row, pre-lubricated, normal accuracy, low noise and smooth.
  • With small friction and high-limit speed, these u groove pulley bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
  • Suitable for furniture hardware accessories, mobile doors, glass sliding doors, aluminum doors and windows, shower pulleys and drawers, etc.





Specification:

Model: LFR5201-10

Seal Type: Double Sealed (NPP)

Inner Race/Outer Race Material: Chrome Steel

Cage Material: Steel

Inner Diameter: 12mm

Outer Diameter: 35mm

Thickness: 15.9mm

Fit for Shaft Dia.: 10mm

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs
