Harfington Hex Shank Straight Flute Machine Screw Thread Milling Tap

Hex Shank Straight Flute Machine Screw Thread Milling Tap

ID:
$8.71 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
M3 x 0.5
Size
About this item
  • ★ Thread Tap Size --- Thread size: M3 x 0.5; hex shank size: 1/4"; thread length: 16mm / 0.63"; overall length: 59mm / 2.32"; accuracy: H2.

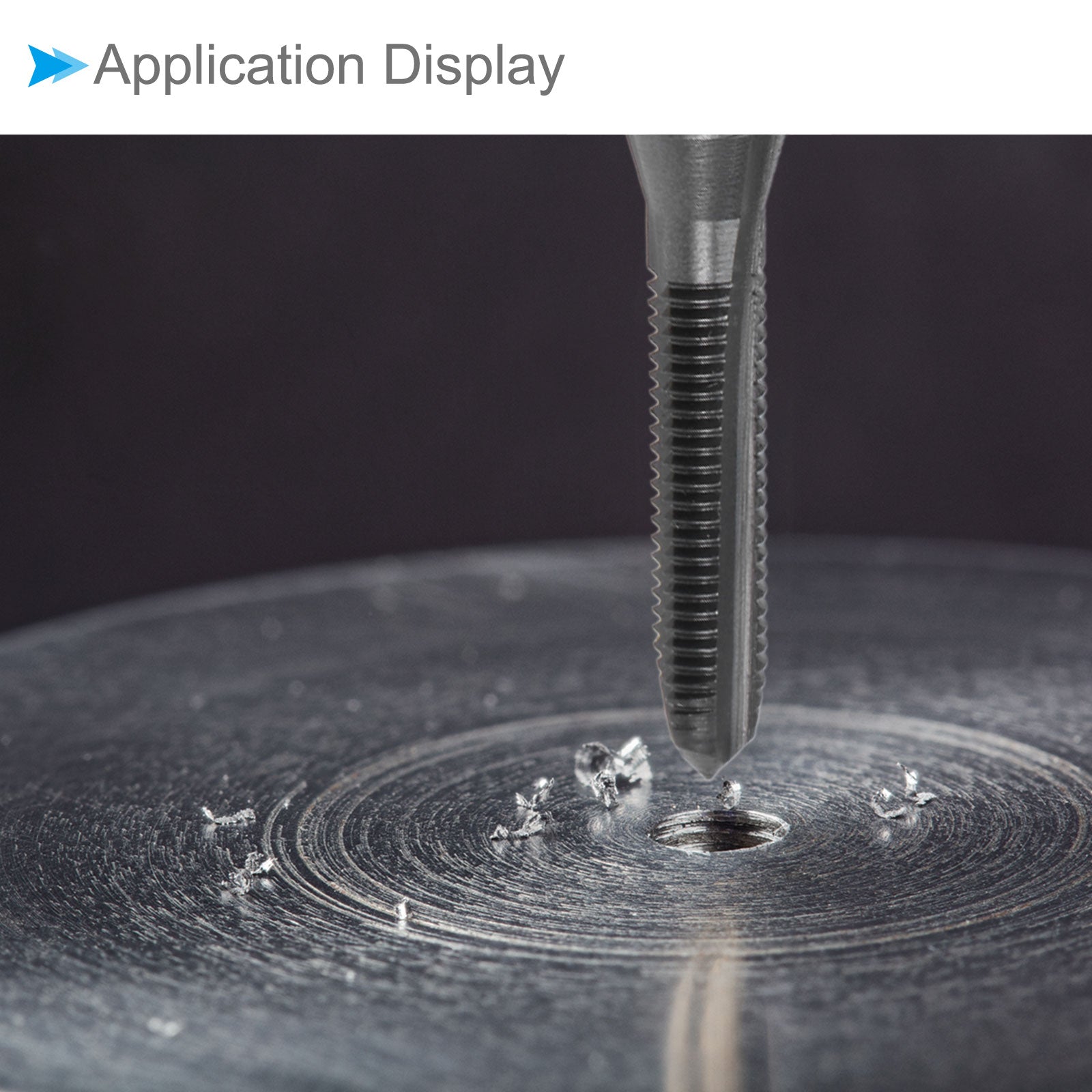

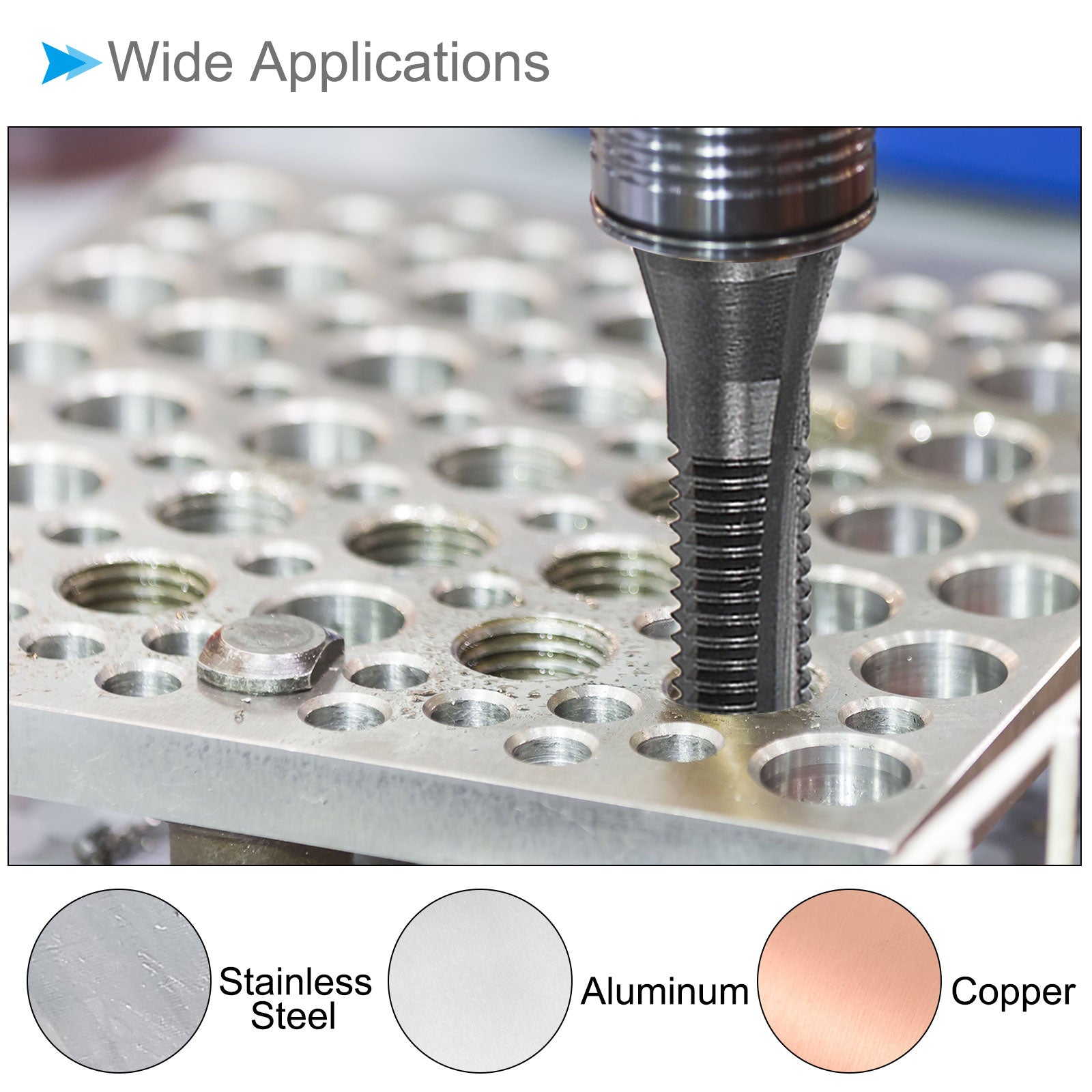

  • ★ Wide Application --- For threading through holes or shallow blind holes. Straight flutes design, rapid downward chip removal. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, plastic.
  • ★ Machine Taps --- Machine taps are used in tapping machines, vertical drilling and milling machines. M1-M3.5 micro taps process wood and soft metals with lower hardness, mainly used in clocks and watches. Drill holes with a twist drill before tapping.
  • ★ High Speed Steel --- High speed steel screw thread taps are high hardness, high strength, good toughness, wear resistance, and heat resistance. Electroless blackening treatment improves the hardness, wear resistance, and rust resistance.
  • ★ Useful Tips --- Add appropriate tapping oil for higher quality internal threads and more durable taps. The tapping angle should be 90 degrees vertical and stable. The higher the hardness, the slower the speed.
  • In stock, ready to ship
Cart
Cart
About this item
  • ★ Thread Tap Size --- Thread size: M3 x 0.5; hex shank size: 1/4"; thread length: 16mm / 0.63"; overall length: 59mm / 2.32"; accuracy: H2.
  • ★ Wide Application --- For threading through holes or shallow blind holes. Straight flutes design, rapid downward chip removal. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, plastic.
  • ★ Machine Taps --- Machine taps are used in tapping machines, vertical drilling and milling machines. M1-M3.5 micro taps process wood and soft metals with lower hardness, mainly used in clocks and watches. Drill holes with a twist drill before tapping.
  • ★ High Speed Steel --- High speed steel screw thread taps are high hardness, high strength, good toughness, wear resistance, and heat resistance. Electroless blackening treatment improves the hardness, wear resistance, and rust resistance.
  • ★ Useful Tips --- Add appropriate tapping oil for higher quality internal threads and more durable taps. The tapping angle should be 90 degrees vertical and stable. The higher the hardness, the slower the speed.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Attributes:

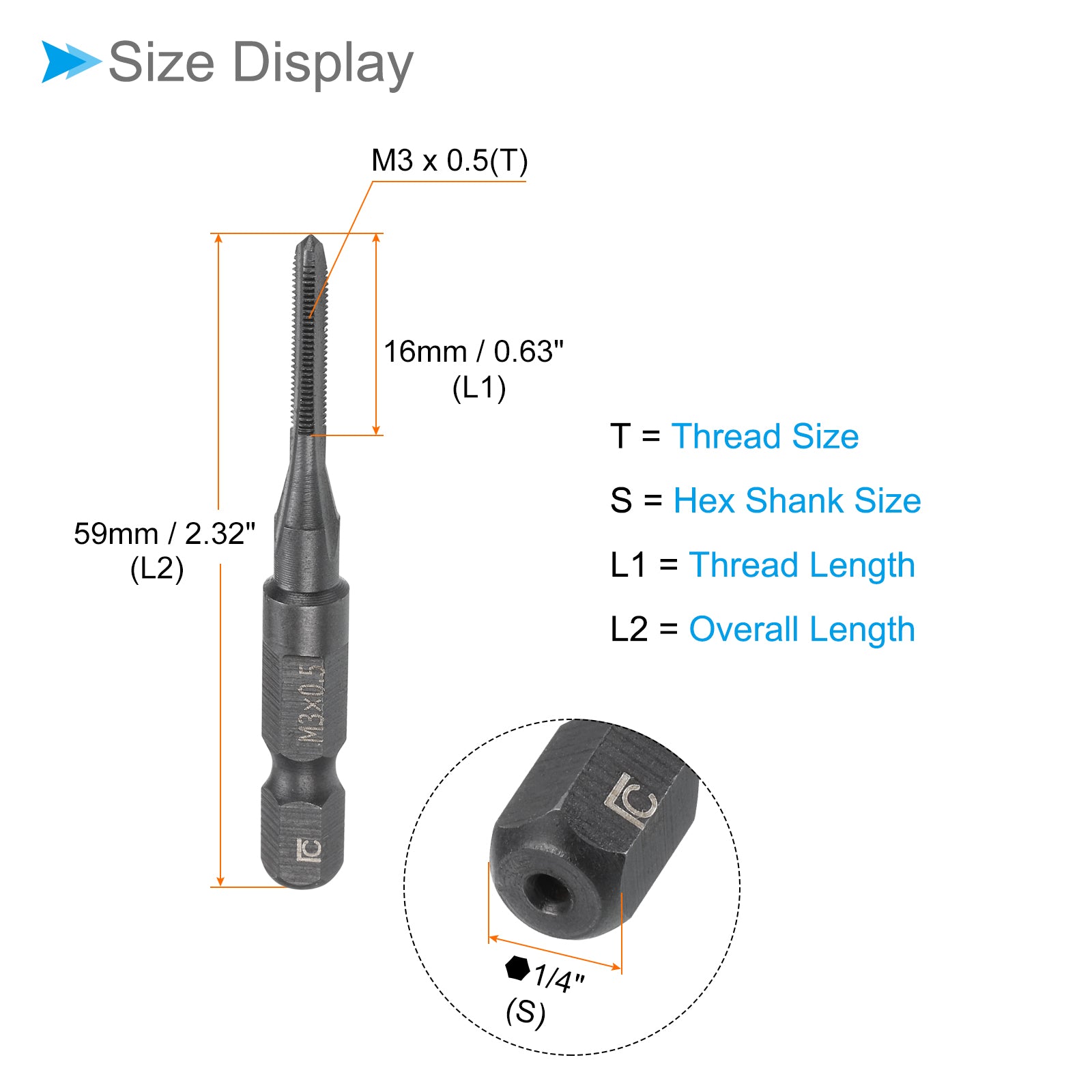

* Thread Size: M3 x 0.5 (Right Hand)
* Hex Shank Size: 1/4"
* Thread Length: 16mm / 0.63"
* Overall Length: 59mm / 2.32"
* Accuracy: H2
* Material: High Speed Steel (HSS)
* Finish: Electroless Blackening

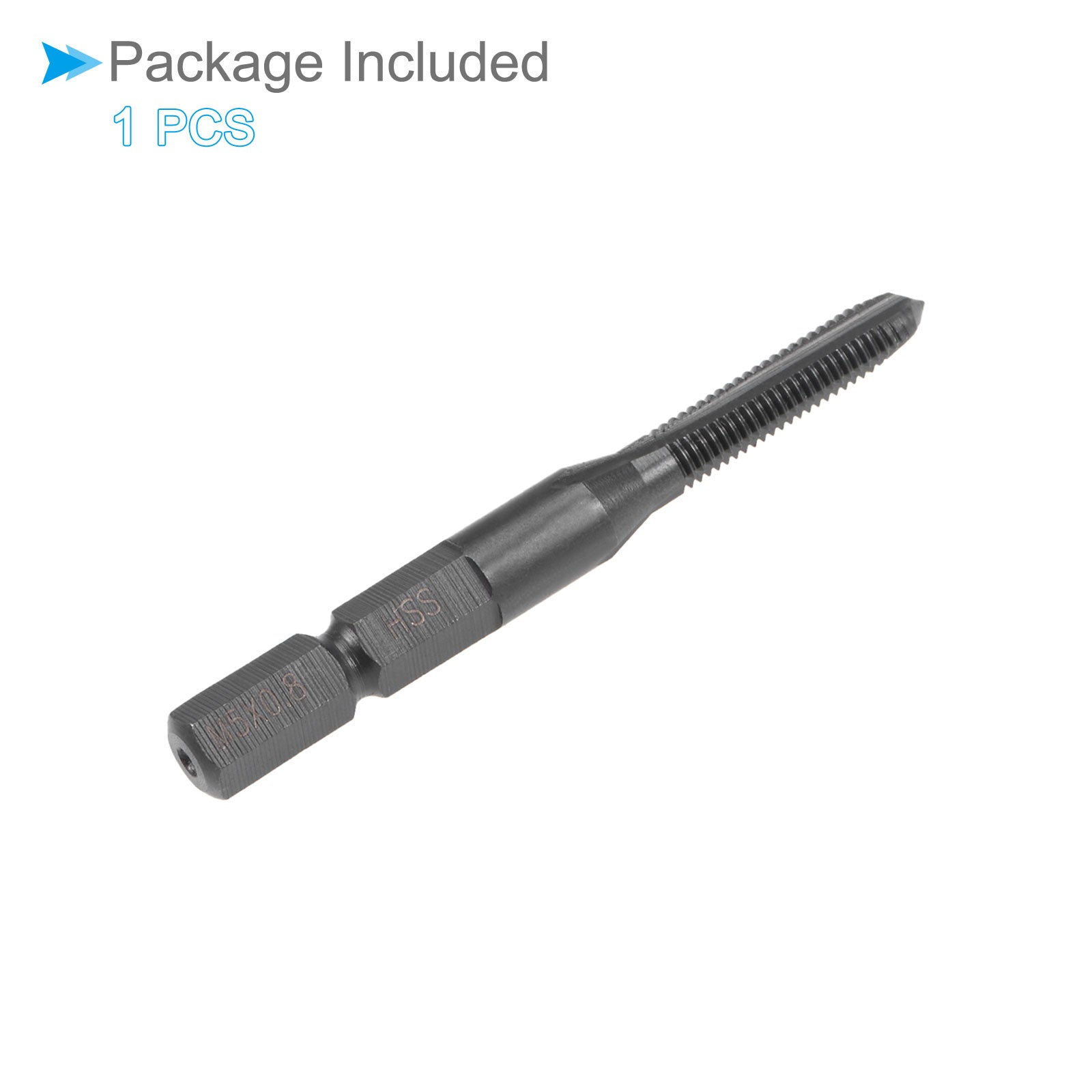

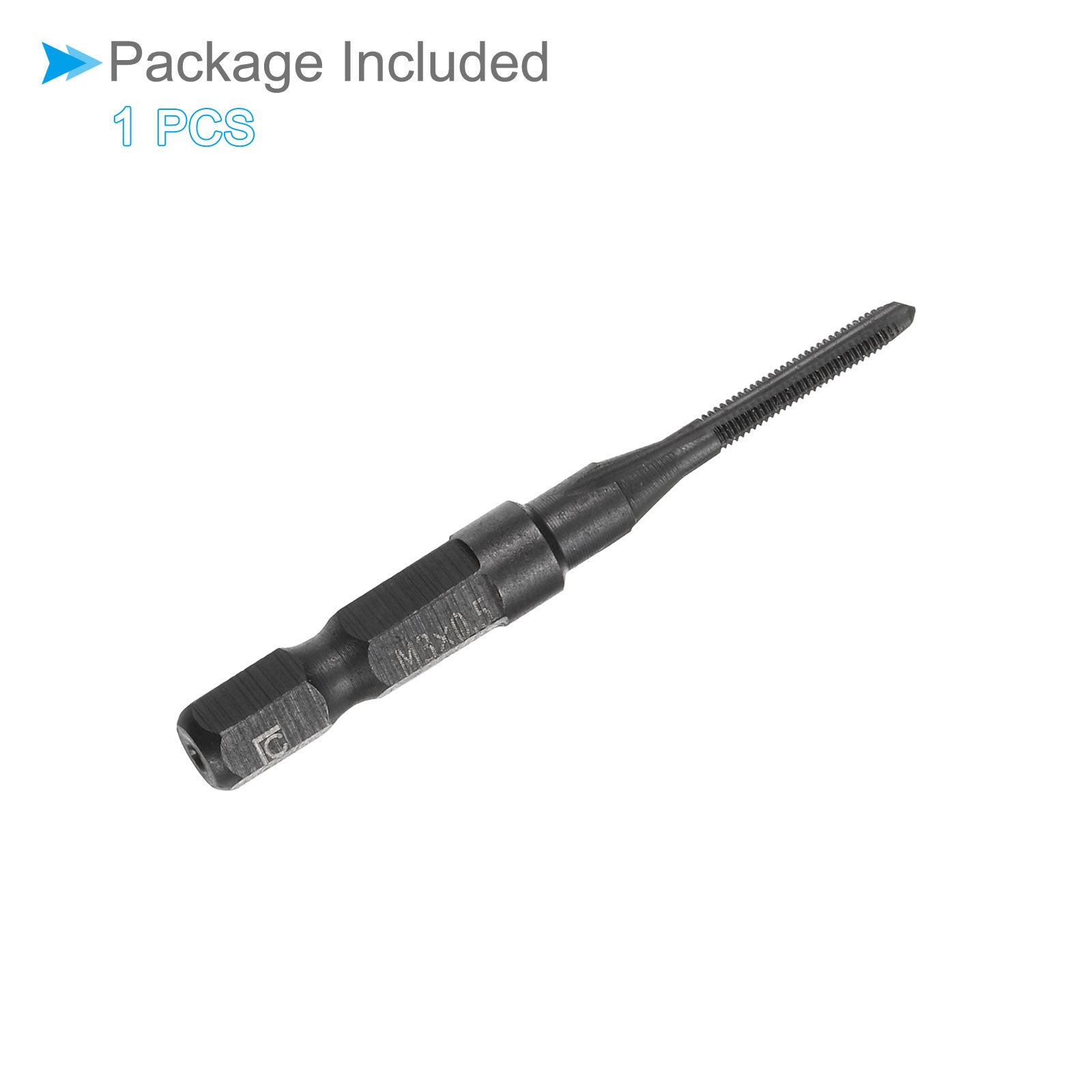

What Is Included:
* 1 Piece x Thread Milling Tap

Applications & Features:

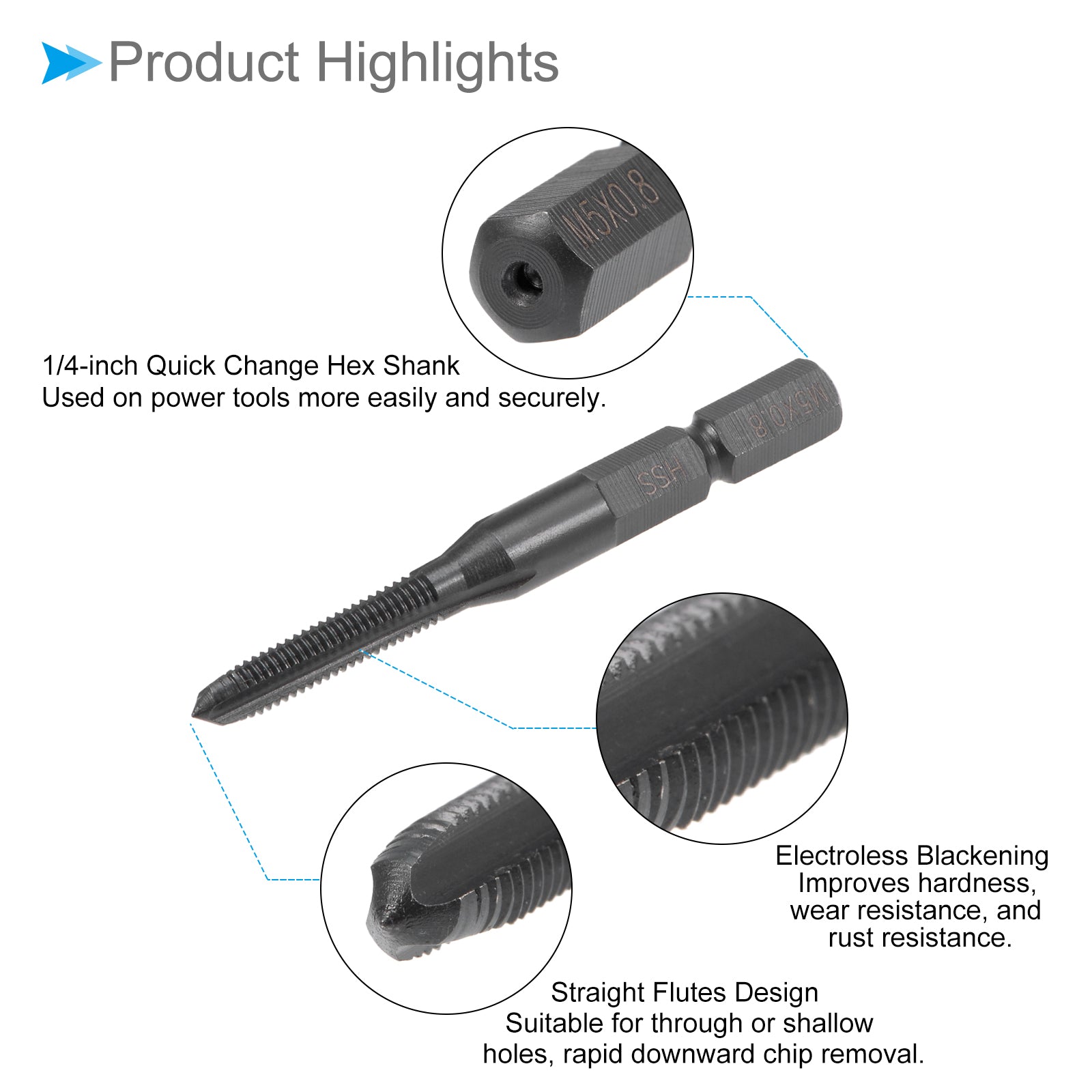

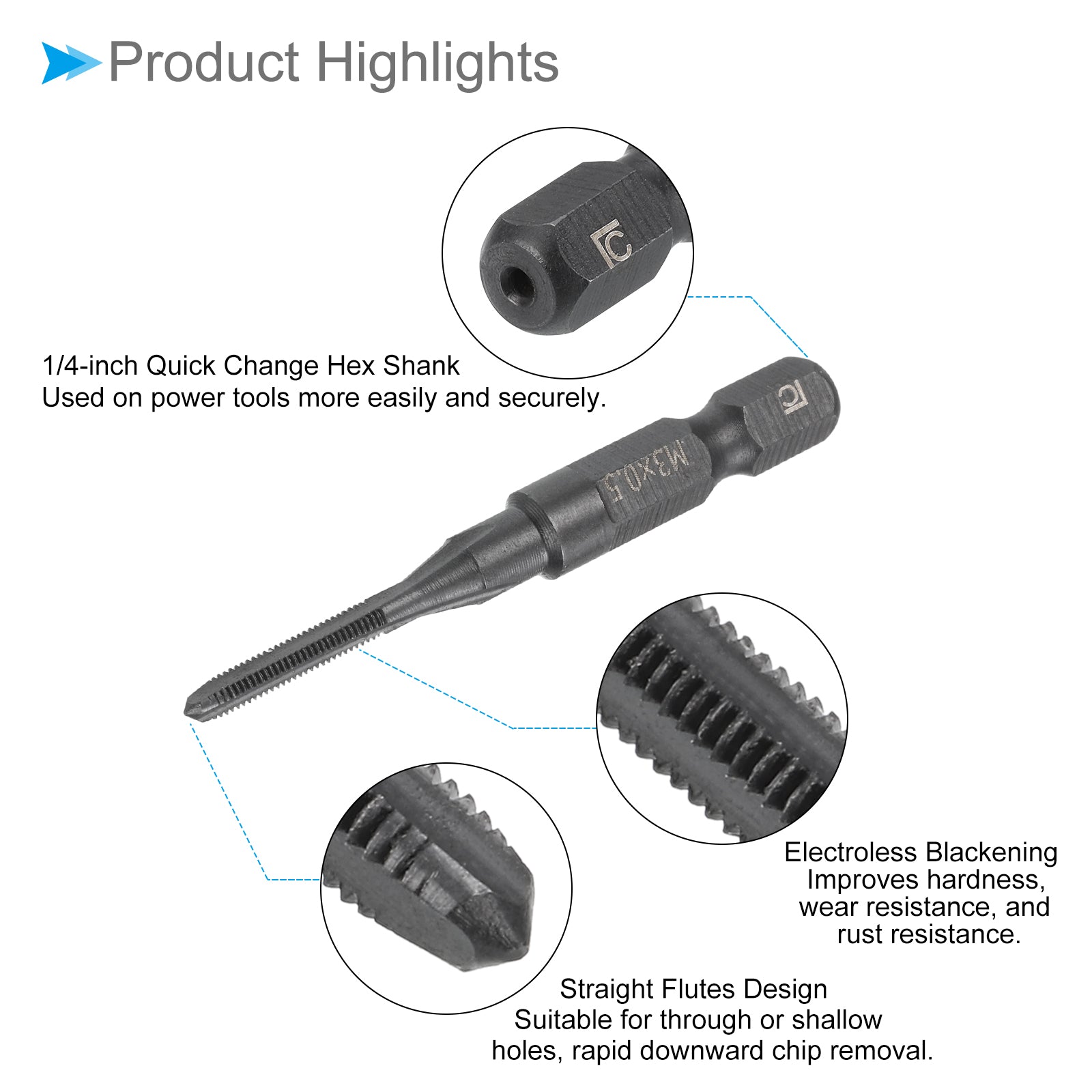

--- Suitable for threading through holes or shallow holes. 3 straight flutes design, rapid downward chip removal. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, hard plastic. Machine taps are used in tapping machines, vertical drilling and milling machines. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. M1-M3.5 micro taps process wood and soft metals with lower hardness, mainly used in clocks and watches.
--- High speed steel screw thread taps are high hardness, high strength, good toughness, wear resistance, and heat resistance. Electroless blackening treatment improves the hardness, wear resistance, and rust resistance. The tapping depth should not be over 1.5 times the diameter (eg: diameter=6mm (M6), maximum tapping depth=9mm). Drill holes with a twist drill before tapping. The tapping angle should be 90 degrees vertical and stable. Add appropriate tapping oil for higher quality internal threads and more durable taps.

Useful Tips:
--- Feed rate (recommended): ordinary steel (copper aluminium alloy): 6-15m/min; hard steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The higher the hardness, the slower the speed. When tapping plastic, add lubricating coolant. For steel, motor oil is generally used, and vegetable oil is used for high requirements. Use No. 30 motor oil for stainless steel.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$8.71 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Attributes:
* Thread Size: M3 x 0.5 (Right Hand)
* Hex Shank Size: 1/4"
* Thread Length: 16mm / 0.63"
* Overall Length: 59mm / 2.32"
* Accuracy: H2
* Material: High Speed Steel (HSS)
* Finish: Electroless Blackening

What Is Included:
* 1 Piece x Thread Milling Tap

Applications & Features:
--- Suitable for threading through holes or shallow holes. 3 straight flutes design, rapid downward chip removal. Make new female threads or re-thread damaged female threads in stainless steel, ordinary steel, copper, aluminum, iron, alloy steel, hard plastic. Machine taps are used in tapping machines, vertical drilling and milling machines. Quick change 1/4-inch hex shank can be used on power tools more easily and securely. M1-M3.5 micro taps process wood and soft metals with lower hardness, mainly used in clocks and watches.
--- High speed steel screw thread taps are high hardness, high strength, good toughness, wear resistance, and heat resistance. Electroless blackening treatment improves the hardness, wear resistance, and rust resistance. The tapping depth should not be over 1.5 times the diameter (eg: diameter=6mm (M6), maximum tapping depth=9mm). Drill holes with a twist drill before tapping. The tapping angle should be 90 degrees vertical and stable. Add appropriate tapping oil for higher quality internal threads and more durable taps.

Useful Tips:
--- Feed rate (recommended): ordinary steel (copper aluminium alloy): 6-15m/min; hard steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The higher the hardness, the slower the speed. When tapping plastic, add lubricating coolant. For steel, motor oil is generally used, and vegetable oil is used for high requirements. Use No. 30 motor oil for stainless steel.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
