Harfington 3P Plastic White 5050 3528 Led Strip Connector

3P Plastic White 5050 3528 Led Strip Connector

ID:
$6.82 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
3 Conductor
Size
5Pcs
Package Content
About this item
  • SOLID SOLDERLESS CONNECTION: Handy tool for a firmly stable connection,no need to solder.
  • FIREPROOF MATERIAL: Made from fireproof material, high temperature resistance. And the plastic is thick and solid, which is hard to be broken.
  • APPLICATION: Fits all 10mm wide 5050 3528 RGB Non-Waterproof LED strips. Perfect for LED tape DIY project.
  • EASY TO USE: The 3 conductor light strip Connector is easy to install.
  • GOOD PERFORMANCE: The led light strip can be locked and connnected very tightly by the connector.
  • In stock, ready to ship
Cart
Cart
About this item
  • SOLID SOLDERLESS CONNECTION: Handy tool for a firmly stable connection,no need to solder.
  • FIREPROOF MATERIAL: Made from fireproof material, high temperature resistance. And the plastic is thick and solid, which is hard to be broken.
  • APPLICATION: Fits all 10mm wide 5050 3528 RGB Non-Waterproof LED strips. Perfect for LED tape DIY project.
  • EASY TO USE: The 3 conductor light strip Connector is easy to install.
  • GOOD PERFORMANCE: The led light strip can be locked and connnected very tightly by the connector.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

1.These connectors for RGB multi-color Non-Waterproof light strips.

2.You can attach it with your light strips directly without any tools or wielding operations.

3.LED Light Strip Connector better than the corner connectors because you do not waste space with the wires that connect them, the two strips literally join together right at this connector.

4.Endless Possibilities. Use it on cabinets, toe-kicks, shelving or displays - in kitchens, bedrooms, living rooms or anywhere else.



Specification:

Product Name: 5050 3528 LED Strip Connector

Material: Plastic

Type: 3P Connector

Fit for: 10mm 5050 3528 RGB LED Strip Connector

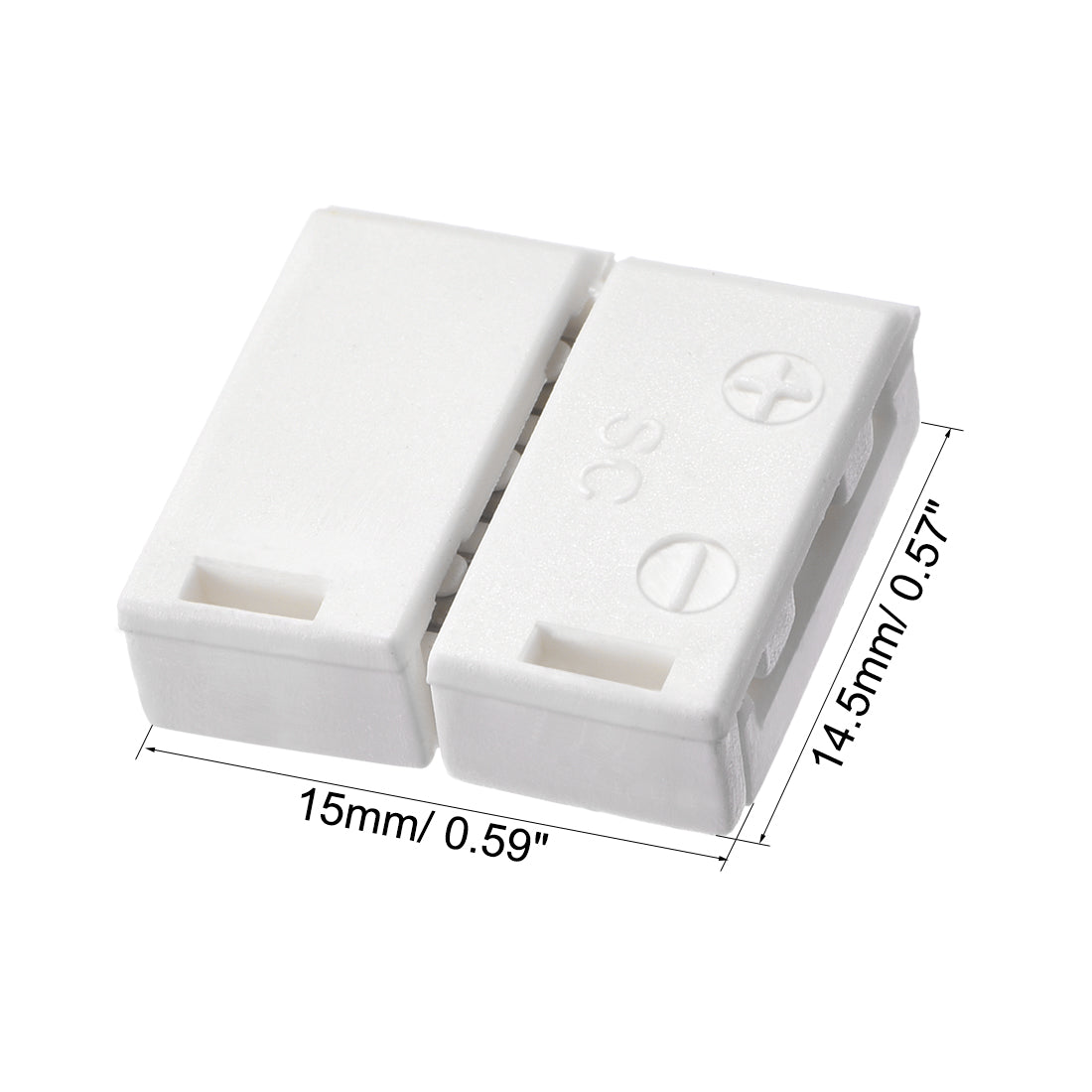

Size: 15 x 14.5 x 5mm / 0.59-inch x 0.57-inch x 0.2-inch (L*W*H)

PIN Pitch: 3.5mm

Color: White

Weight: 4g

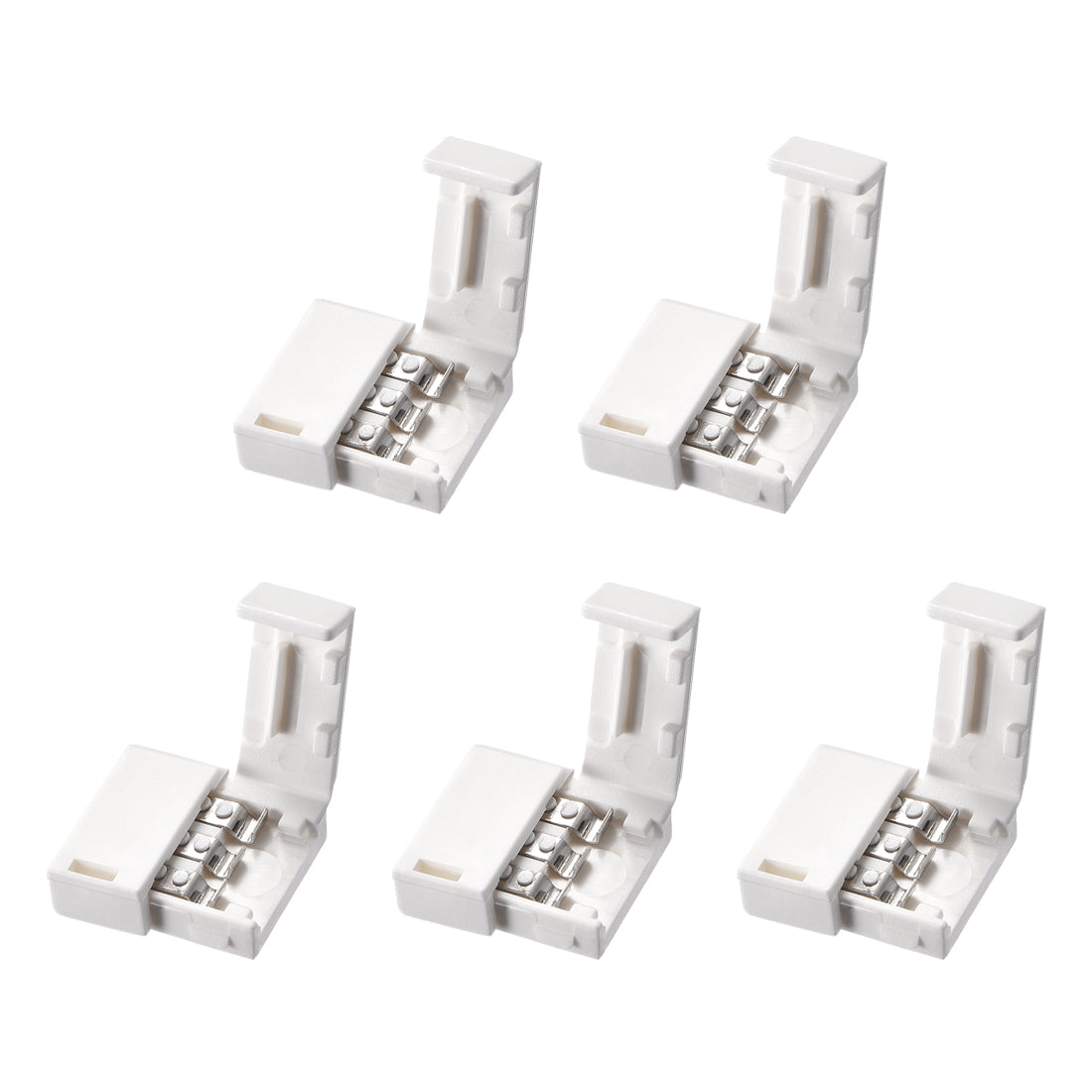

Package Content: 5 Pcs x 5050 3528 LED Strip Connector



Installation Instructions:

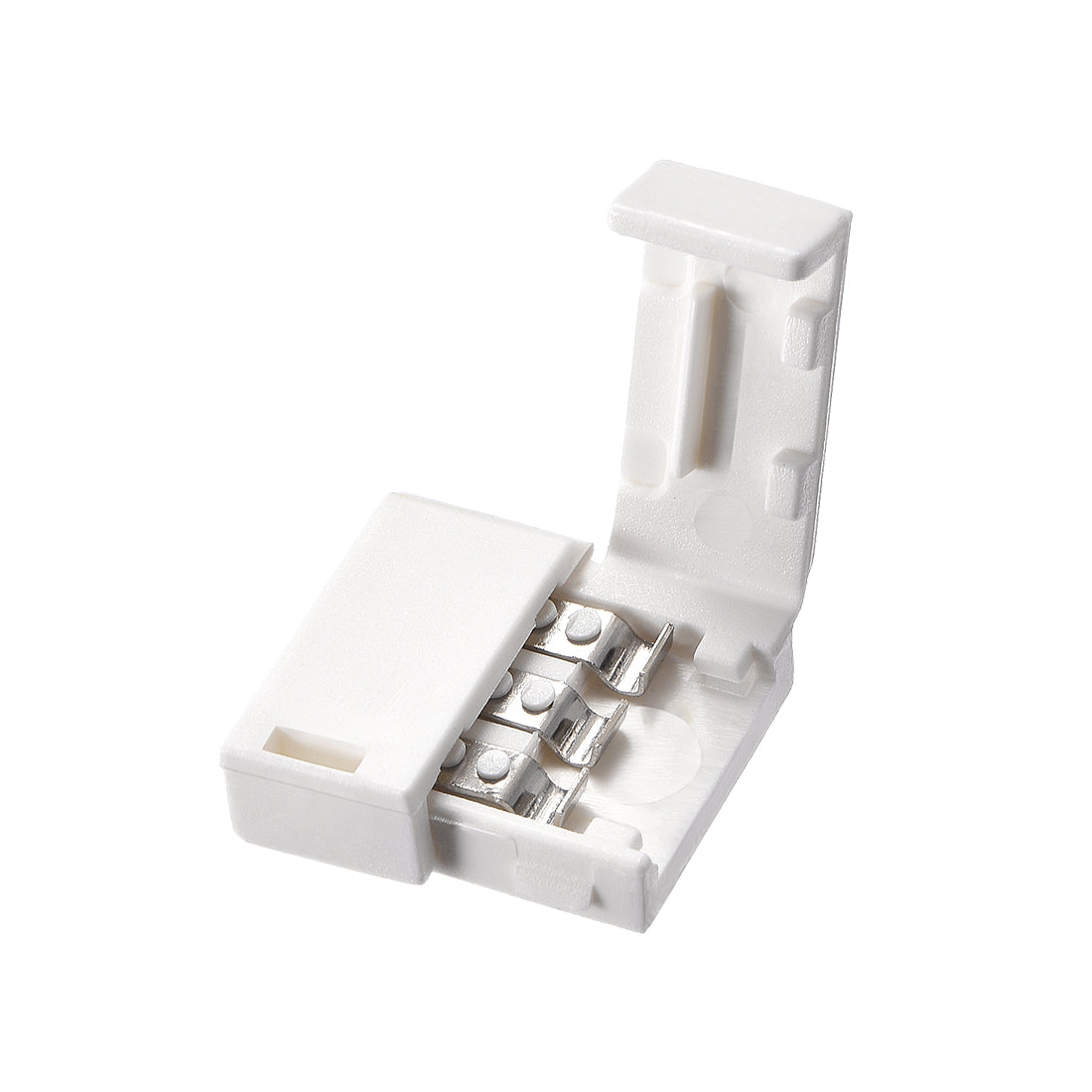

1.Open the clip on the side

2.Slid the LED light strip inside the clip underneath the two contact prongs

3.Make sure the side of the strip aligns with the "+ -" polarity

4.Close the wire clip



Installation Tips:

1.MAKE SURE you put the led strip under the poles and not on top.

2.Also be sure to cut along the suggested line evenly so there is room for a proper connection on each side.
