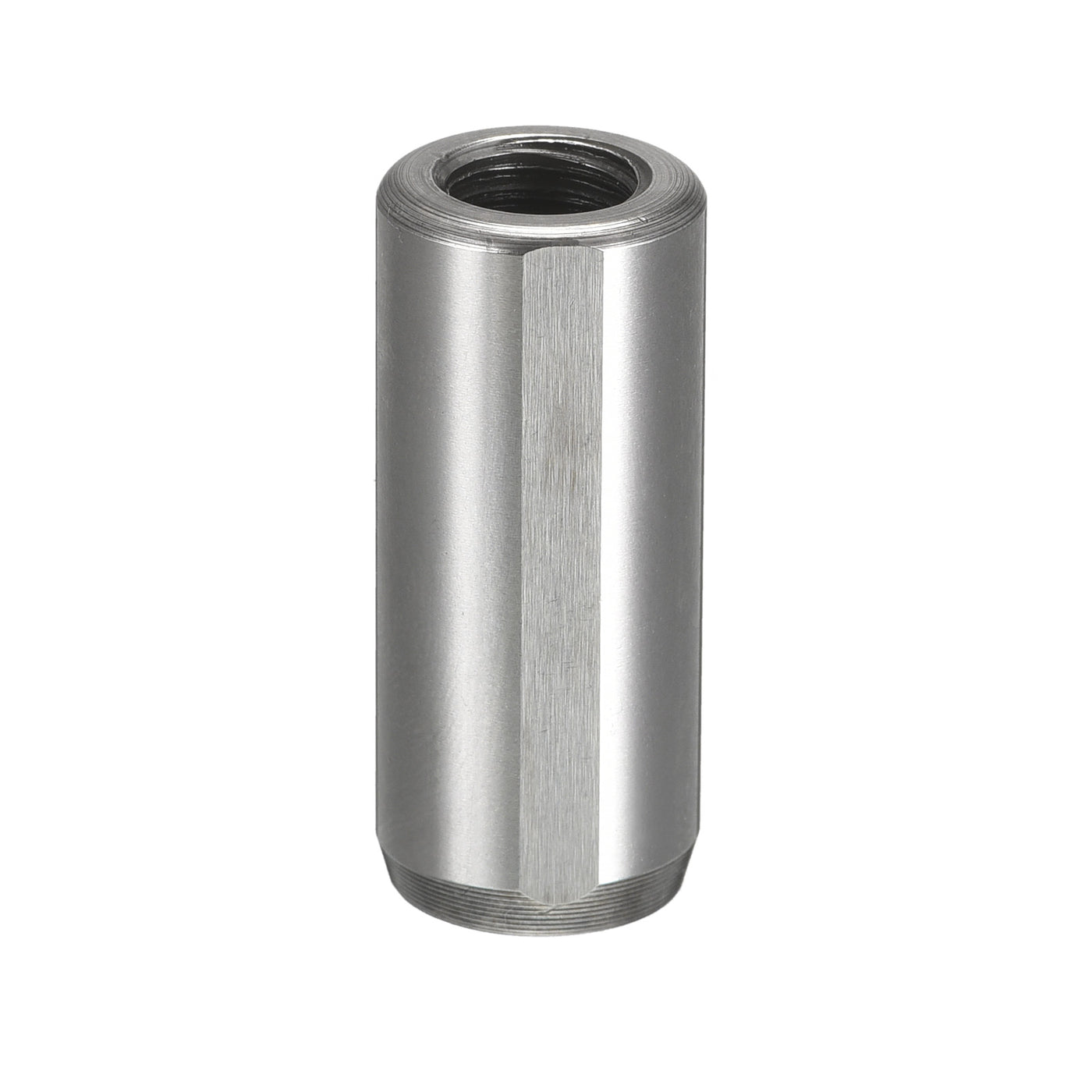

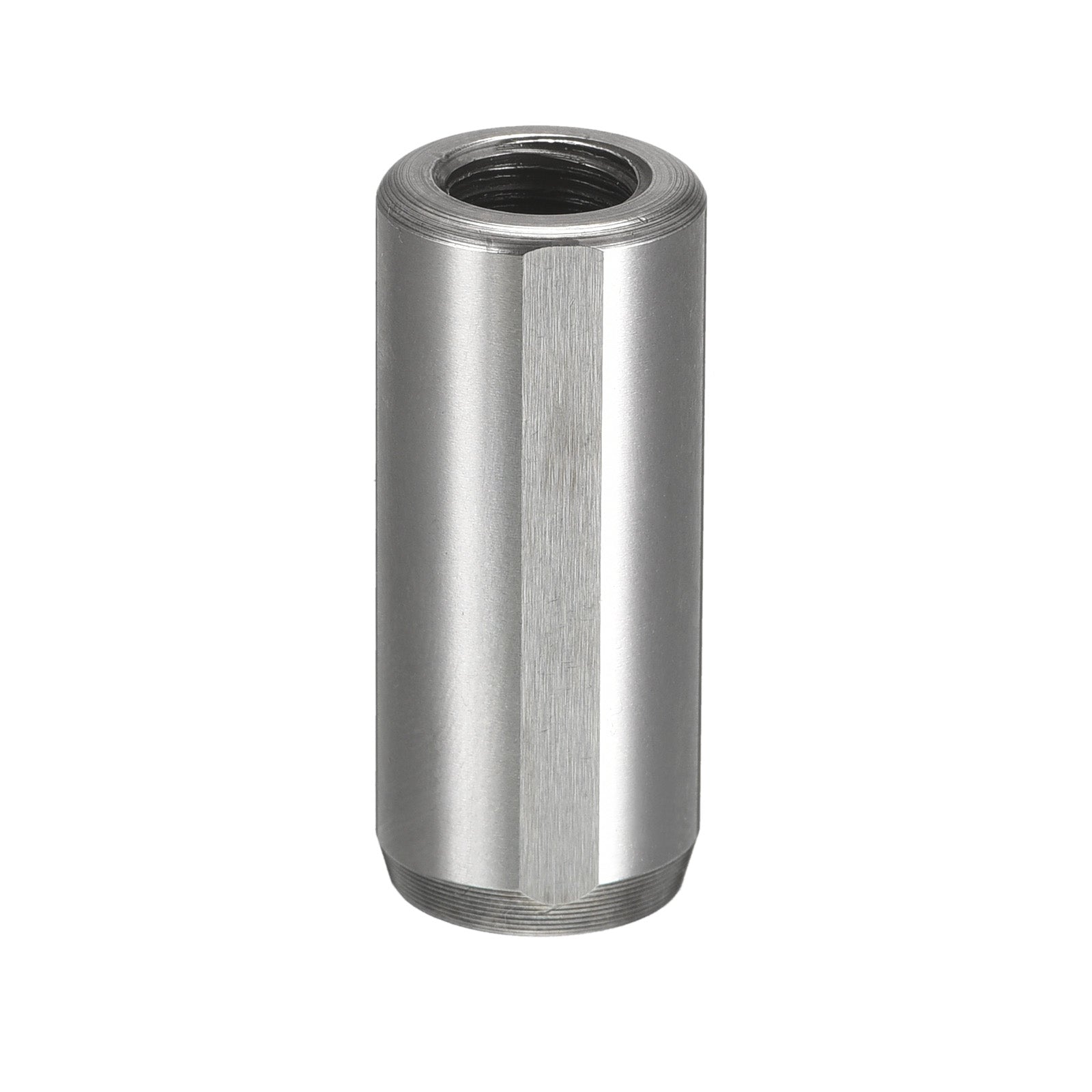

Harfington Uxcell M8 Internal Thread Dowel Pin 13x30mm Chamfering Flat Exhaust Groove Pin

Uxcell M8 Internal Thread Dowel Pin 13x30mm Chamfering Flat Exhaust Groove Pin

ID:1298100
ID:1298100
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Dowel Pin Size: 13x30mm/0.51"x1.18"(D*H); Thread Dowel: M8*1.25; Internal Thread Depth: 10mm/0.39"; Material: SUJ2 Bearing Steel; Style: Chamfering Flat Exhaust Groove; Above Chamfering: 2.5mm; Hardness: HRC55-62
  • These cylindrical pins are made of SUJ2-bearing steel, very smooth surface, anti-rust, anti-corrosion, solid and durable for extended use.
  • Pins are internal threaded cylindrical fasteners, that fix a component's position, join components, or maintain alignment between them, used for positioning and connecting two parts, to make your equipment more stable.

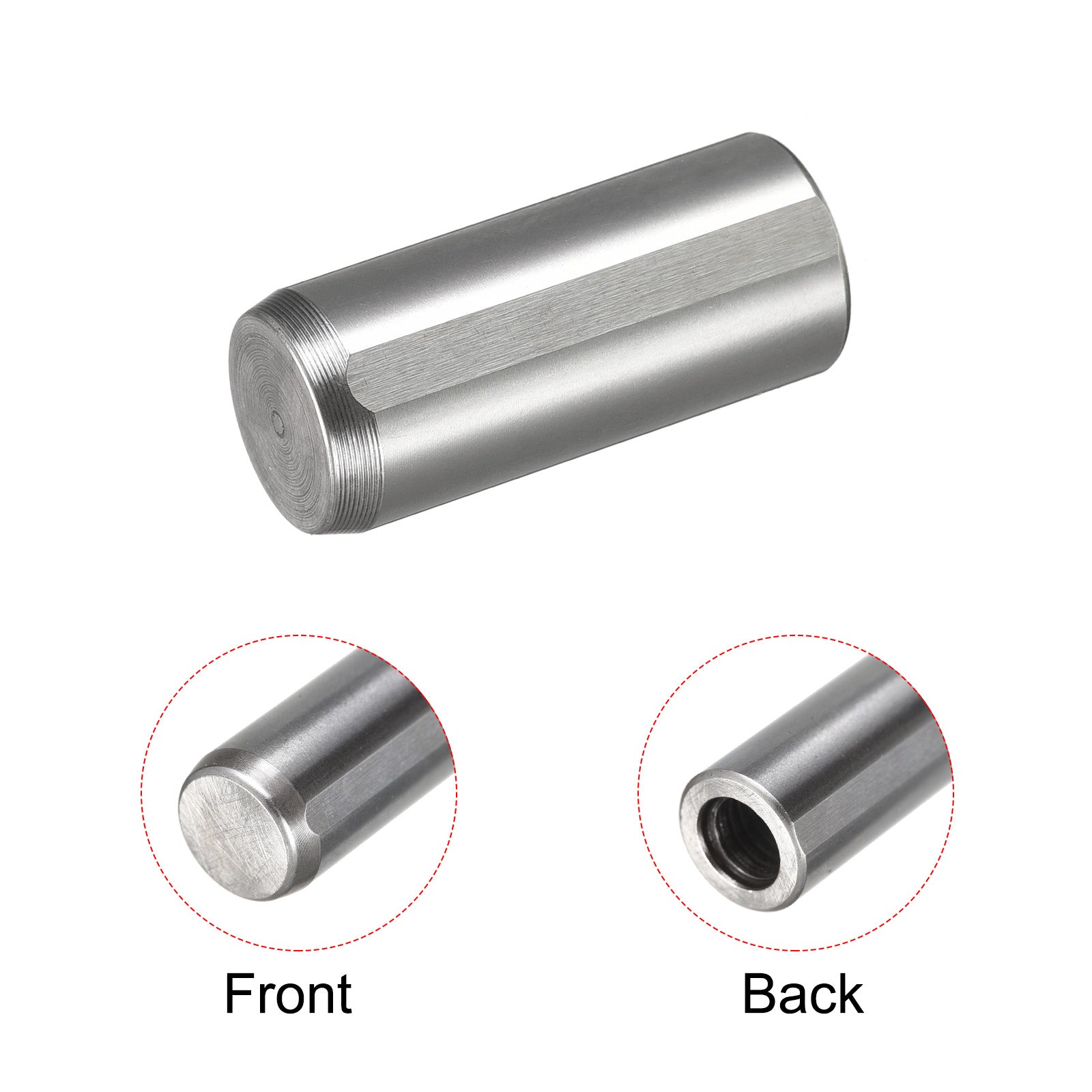

  • Chamfered ends add a hint of detail, and allow for easy insertion of dowel pins into any hole, while also can make installation easier.

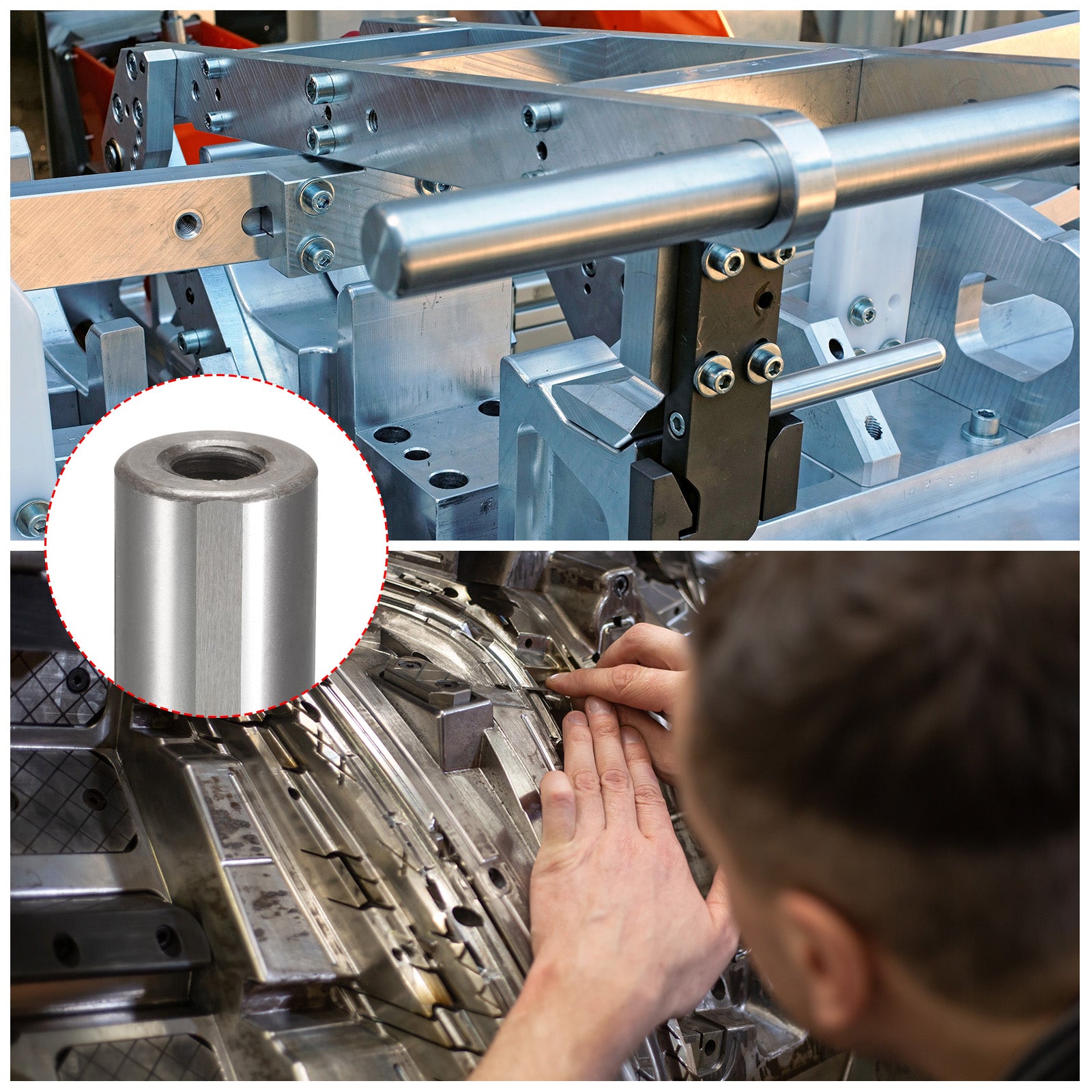

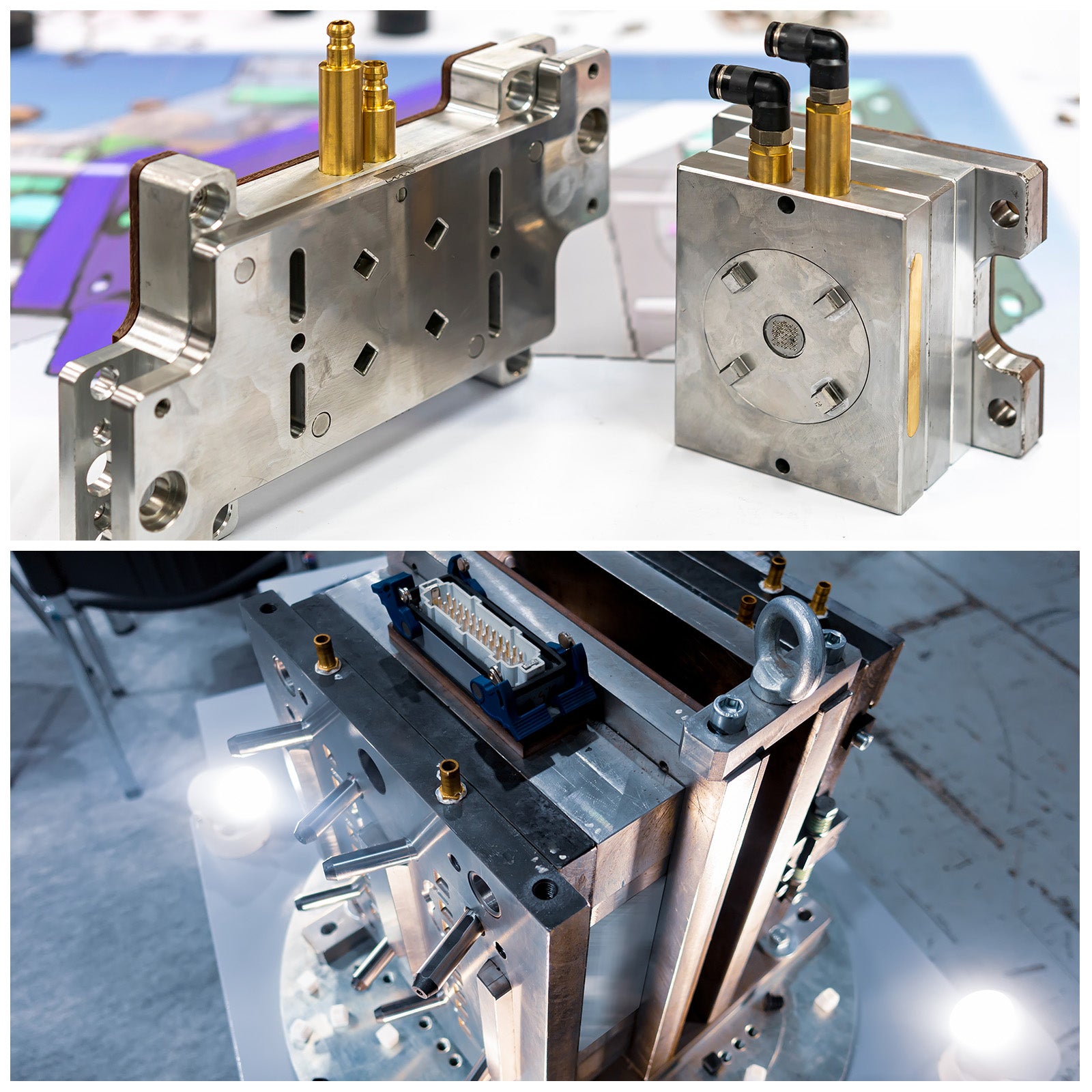

  • Mainly used for wooden products, double bed, bookshelf, shelf, outdoor shade shed, cabinet partition, etc.; metal devices, such as punching punch, industrial, fixture, pin gauge, hinge or shaft fixed application.
About this item
  • Dowel Pin Size: 13x30mm/0.51"x1.18"(D*H); Thread Dowel: M8*1.25; Internal Thread Depth: 10mm/0.39"; Material: SUJ2 Bearing Steel; Style: Chamfering Flat Exhaust Groove; Above Chamfering: 2.5mm; Hardness: HRC55-62
  • These cylindrical pins are made of SUJ2-bearing steel, very smooth surface, anti-rust, anti-corrosion, solid and durable for extended use.
  • Pins are internal threaded cylindrical fasteners, that fix a component's position, join components, or maintain alignment between them, used for positioning and connecting two parts, to make your equipment more stable.
  • Chamfered ends add a hint of detail, and allow for easy insertion of dowel pins into any hole, while also can make installation easier.
  • Mainly used for wooden products, double bed, bookshelf, shelf, outdoor shade shed, cabinet partition, etc.; metal devices, such as punching punch, industrial, fixture, pin gauge, hinge or shaft fixed application.
Specification

Specification

SKU
a22060700ux0372
Brand
Uxcell
Material
SUJ2 Bearing Steel
Color
Silver Tone
Pkg.Qty
1
Female Thread Dia.
M8
Pin Dia.
13mm
Pin Length
30mm
System of Measurement
Metric
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
1. These cylindrical pins are made of SUJ2-bearing steel, very smooth surface, anti-rust, anti-corrosion, solid and durable for extended use.
2. Pins are internal threaded cylindrical fasteners, that fix a component's position, join components, or maintain alignment between them, used for positioning and connecting two parts, to make your equipment more stable.
3. Chamfered ends add a hint of detail, and allow for easy insertion of dowel pins into any hole, while also can make installation easier.

Notice: In order to make dowel pins a tight fit, your hole should be equal to or slightly smaller than the diameter shown (less than or equal to 10 mm)

Specifications:

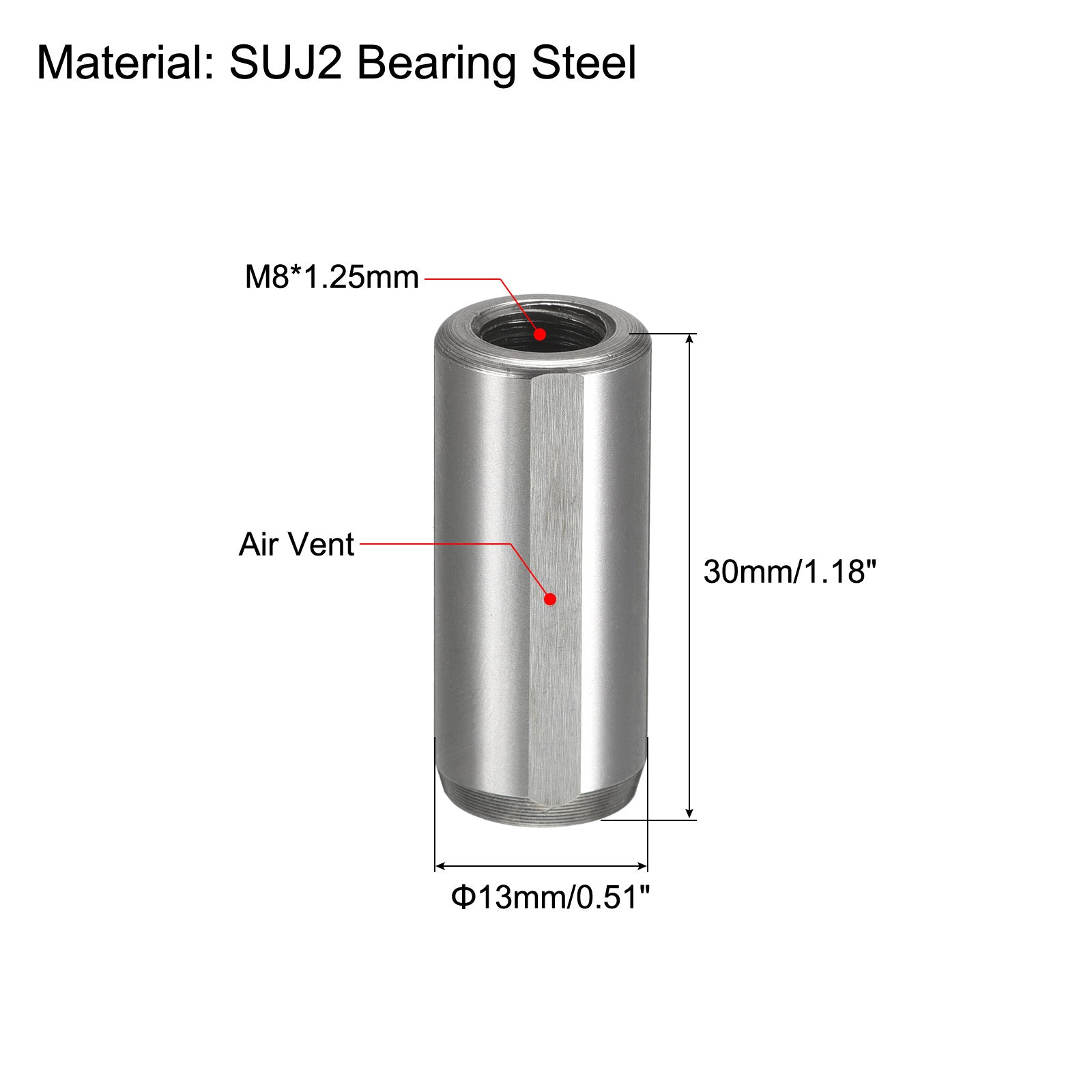

Dowel Pin Size: 13x30mm/0.51"x1.18"(D*H)
Thread Dowel: M8*1.25
Internal Thread Depth: 10mm/0.39"
Material: SUJ2 Bearing Steel
Style: Chamfering Flat Exhaust Groove
Above Chamfering: 2.5mm
Hardness: HRC55-62

Package Includes: 1Pcs x Internal Thread Dowel Pin
US$5.68 US$5.68/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Female Thread Dia. Pin Dia. Pin Length Pkg.Qty ID Price Qty
M8 13mm 30mm 1 1298100 US$5.68
Products Female Thread Dia. Pin Dia. Pin Length Pkg.Qty ID Price Qty
M8 13mm 30mm 1 1298100 US$5.68
M8 13mm 50mm 1 1298056 US$5.94
M8 13mm 70mm 1 1298102 US$6.94
M8 13mm 40mm 1 1298057 US$5.72
M8 16mm 100mm 1 1298104 US$9.97
M8 16mm 30mm 1 1298108 US$6.41
M4 6mm 40mm 4 1298090 US$6.61
M4 6mm 40mm 2 1298095 US$5.72
M4 6mm 50mm 1 1298091 US$5.44
M4 6mm 20mm 4 1298047 US$6.16
M4 6mm 10mm 4 1298026 US$6.68
M4 6mm 10mm 2 1298075 US$5.76
M4 6mm 25mm 4 1298046 US$6.33
M4 6mm 15mm 4 1298080 US$6.45
M4 6mm 30mm 2 1298085 US$5.58
M3 5mm 25mm 2 1298063 US$5.68
M3 5mm 30mm 4 1298066 US$6.53
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Description:
1. These cylindrical pins are made of SUJ2-bearing steel, very smooth surface, anti-rust, anti-corrosion, solid and durable for extended use.
2. Pins are internal threaded cylindrical fasteners, that fix a component's position, join components, or maintain alignment between them, used for positioning and connecting two parts, to make your equipment more stable.
3. Chamfered ends add a hint of detail, and allow for easy insertion of dowel pins into any hole, while also can make installation easier.

Notice: In order to make dowel pins a tight fit, your hole should be equal to or slightly smaller than the diameter shown (less than or equal to 10 mm)

Specifications:
Dowel Pin Size: 13x30mm/0.51"x1.18"(D*H)
Thread Dowel: M8*1.25
Internal Thread Depth: 10mm/0.39"
Material: SUJ2 Bearing Steel
Style: Chamfering Flat Exhaust Groove
Above Chamfering: 2.5mm
Hardness: HRC55-62

Package Includes: 1Pcs x Internal Thread Dowel Pin
