Harfington Uxcell 2 Way Ceramics Terminal Blocks High Temp Porcelain Ceramic Connectors 29.2x21.2x15.2mm for Electrical Wire Cable 5 Pcs

Uxcell 2 Way Ceramics Terminal Blocks High Temp Porcelain Ceramic Connectors 29.2x21.2x15.2mm for Electrical Wire Cable 5 Pcs

ID:
$6.35 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • 【Specification】2 Way 5 Hole 380V 25A, 29.2x21.2x15.2mm(Length, Width, Height)
  • 【Application】For electrical wire cable connection,high temperature resistance.
  • 【How to Use】Insert electrical wire into one half of the terminal hole, press it with screws, and treat the other wire connected with it in the same way to realize the wire connection.
  • 【Advantage】Insulated,high temperature resistance.It can be widely used in household appliances, electrical control, electrical source,etc.
  • 【Please Note】Handle with care, ceramics are fragile
  • In stock, ready to ship
Cart
Cart
About This Item
  • 【Specification】2 Way 5 Hole 380V 25A, 29.2x21.2x15.2mm(Length, Width, Height)
  • 【Application】For electrical wire cable connection,high temperature resistance.
  • 【How to Use】Insert electrical wire into one half of the terminal hole, press it with screws, and treat the other wire connected with it in the same way to realize the wire connection.
  • 【Advantage】Insulated,high temperature resistance.It can be widely used in household appliances, electrical control, electrical source,etc.
  • 【Please Note】Handle with care, ceramics are fragile
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
  • Enclosed Terminals. 2 Way(Pole) for the electrical cables, 4 fine copper connectors ensure a stablility of performance.

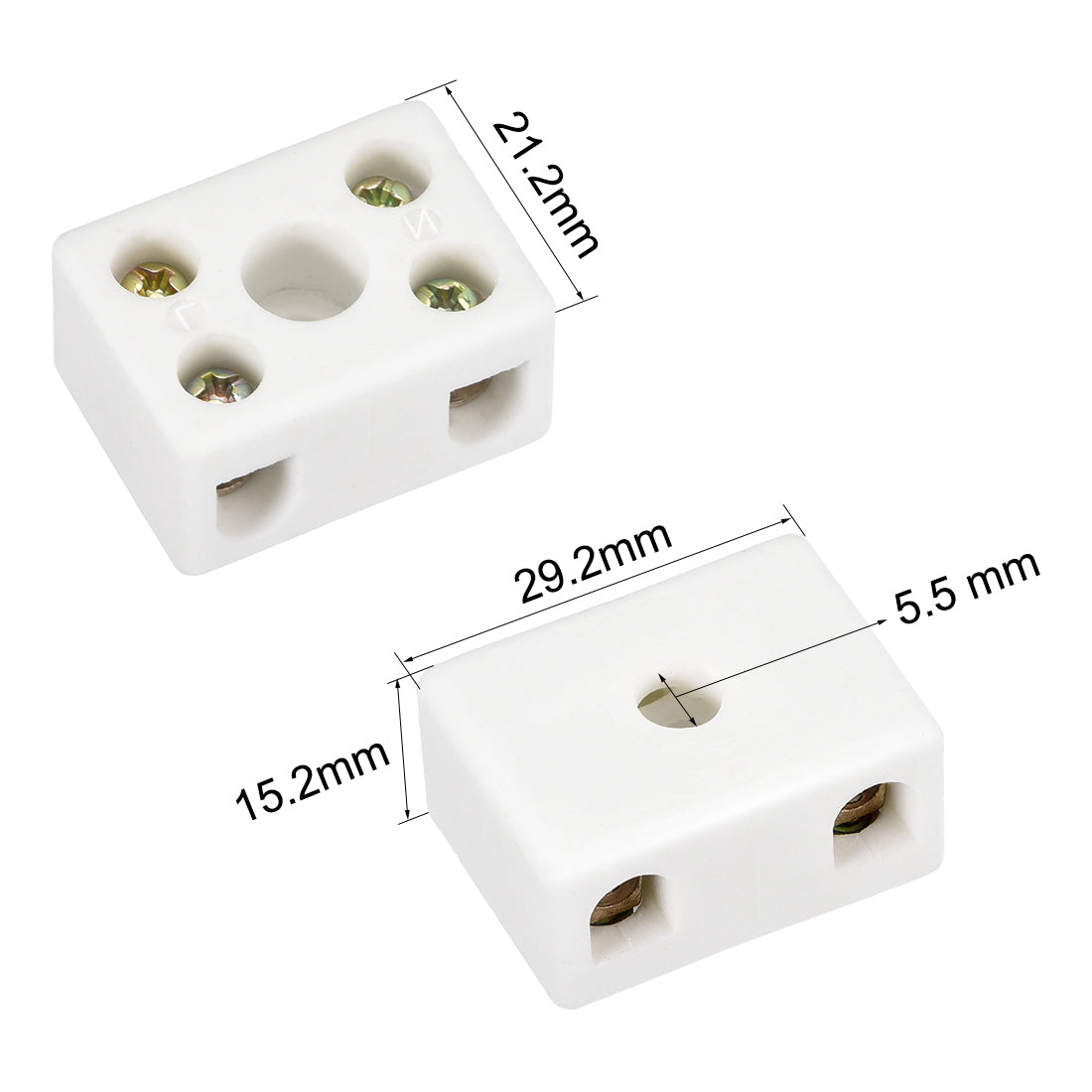

  • Size. 29.2x21.2x15.2mm in the ceramic block, copper pole fits wire up to 3.5 mm. 5.5 mm diameter hole for mounting



2 Way Ceramic Terminals Block

Block Size: 29.2x21.2x15.2mm(Length, Width, Height)

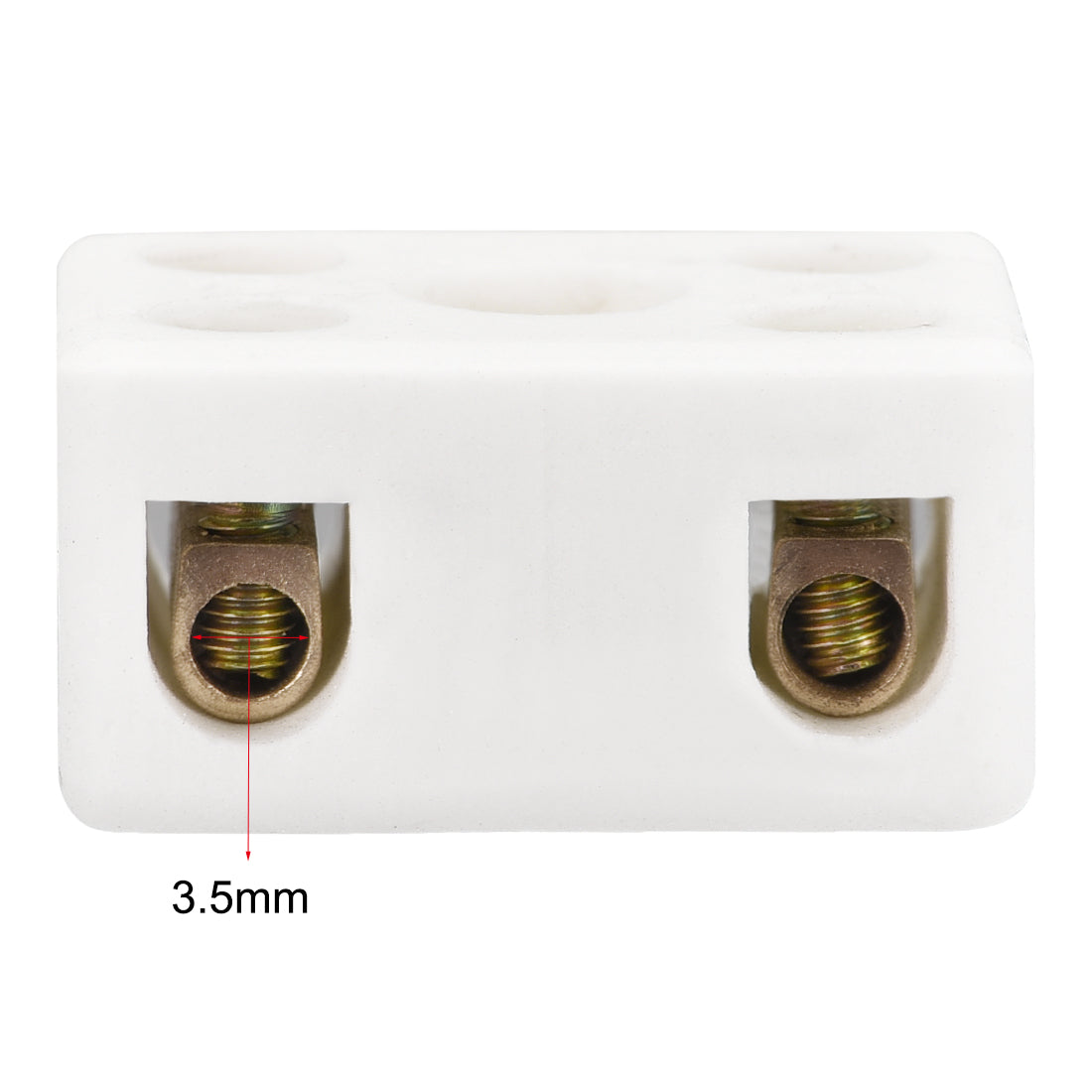

Diameter of the copper hole: 3.5mm

Hole for mounting: 1

Diameter of the mounting hole: 5.5 mm

Materials: Ceramics / Porcelain

Maximum Operating Temp: 800 in Celsius

Rated Voltage/Current: 380V/25A

Screw Materials: Copper with Zinc plated



Package Content:

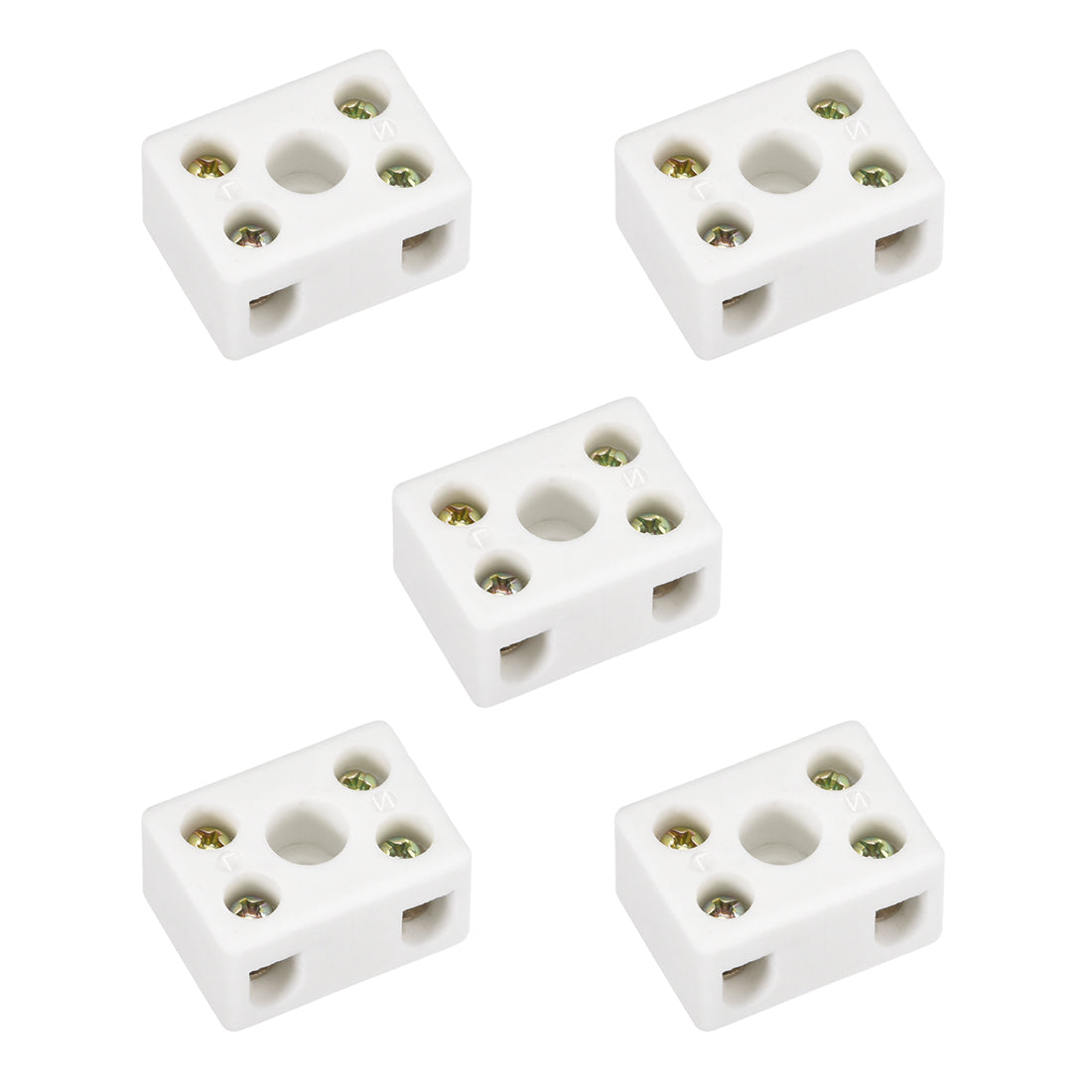

5 pcs 2 Way 5 Hole Ceramic Terminals Block

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

  • Enclosed Terminals. 2 Way(Pole) for the electrical cables, 4 fine copper connectors ensure a stablility of performance.
  • Size. 29.2x21.2x15.2mm in the ceramic block, copper pole fits wire up to 3.5 mm. 5.5 mm diameter hole for mounting



2 Way Ceramic Terminals Block

Block Size: 29.2x21.2x15.2mm(Length, Width, Height)

Diameter of the copper hole: 3.5mm

Hole for mounting: 1

Diameter of the mounting hole: 5.5 mm

Materials: Ceramics / Porcelain

Maximum Operating Temp: 800 in Celsius

Rated Voltage/Current: 380V/25A

Screw Materials: Copper with Zinc plated



Package Content:

5 pcs 2 Way 5 Hole Ceramic Terminals Block

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
