Harfington LED Motion Sensor Switch DC 12-24V 6A PIR Infrared Body Detect Timer Controller for Automatic Lighting Bulbs LED Strips, White

LED Motion Sensor Switch DC 12-24V 6A PIR Infrared Body Detect Timer Controller for Automatic Lighting Bulbs LED Strips, White

ID:
$10.31 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • The led motion sensor switch is an infrared detection controller, which uses infrared detection to control the switch of the load. It can be installed in an appropriate environment according to actual needs, such as a cupboard, cabinet, kitchen, stairs, etc.
  • The LED strip dimmer switch provides here is: Output Current: <6A; Voltage: DC 12-24V; Output Power: <24W(5V), <72W( 12V), <144W(24V); Size: 76x45x34 mm/2.99x1.77x1.34 inchh(L*W*H); Delay time: 1-10min (adjustable); Working temperature: -20-60℃
  • Adjustable delay for activation from 1 to 10 minutes. The on/off function is completely silent. Easy to install, connect the load line first, then the power line.
  • 1. Connect the load line first, and then connect the wires. Before power on, ensure that there is no short circuit between the connecting wires; 2. There is a time-setting knob on the back of the controller. By rotating the knob, the delay off minutes of the switch can be set respectively. When someone is detected, the load lamp will be turned on; When the person leaves for a set number of minutes, the load lamp will automatically turn off.
  • 1. Please don't expose it to direct sunlight, heaters, strong wind, or air conditioners. 2. Please don't fix it at obstacles that infrared rays cannot penetrate. 3. The controller signal output line and input line should be connected correctly. Also, please attention that this is not applicable for LED lights with the modes feature.
  • In stock, ready to ship
Cart
Cart
About this item
  • The led motion sensor switch is an infrared detection controller, which uses infrared detection to control the switch of the load. It can be installed in an appropriate environment according to actual needs, such as a cupboard, cabinet, kitchen, stairs, etc.
  • The LED strip dimmer switch provides here is: Output Current: <6A; Voltage: DC 12-24V; Output Power: <24W(5V), <72W( 12V), <144W(24V); Size: 76x45x34 mm/2.99x1.77x1.34 inchh(L*W*H); Delay time: 1-10min (adjustable); Working temperature: -20-60℃
  • Adjustable delay for activation from 1 to 10 minutes. The on/off function is completely silent. Easy to install, connect the load line first, then the power line.
  • 1. Connect the load line first, and then connect the wires. Before power on, ensure that there is no short circuit between the connecting wires; 2. There is a time-setting knob on the back of the controller. By rotating the knob, the delay off minutes of the switch can be set respectively. When someone is detected, the load lamp will be turned on; When the person leaves for a set number of minutes, the load lamp will automatically turn off.
  • 1. Please don't expose it to direct sunlight, heaters, strong wind, or air conditioners. 2. Please don't fix it at obstacles that infrared rays cannot penetrate. 3. The controller signal output line and input line should be connected correctly. Also, please attention that this is not applicable for LED lights with the modes feature.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
The led motion sensor switch is an infrared detection controller, which uses infrared detection to control the switch of the load. It can be installed in an appropriate environment according to actual needs, such as a cupboard, cabinet, kitchen, stairs, etc.

What will I get?
Product Name: LED Infrared Motion Sensor
Connector Type: DC female with wire
Color: White
Material: Plastic
Output Current: <6A

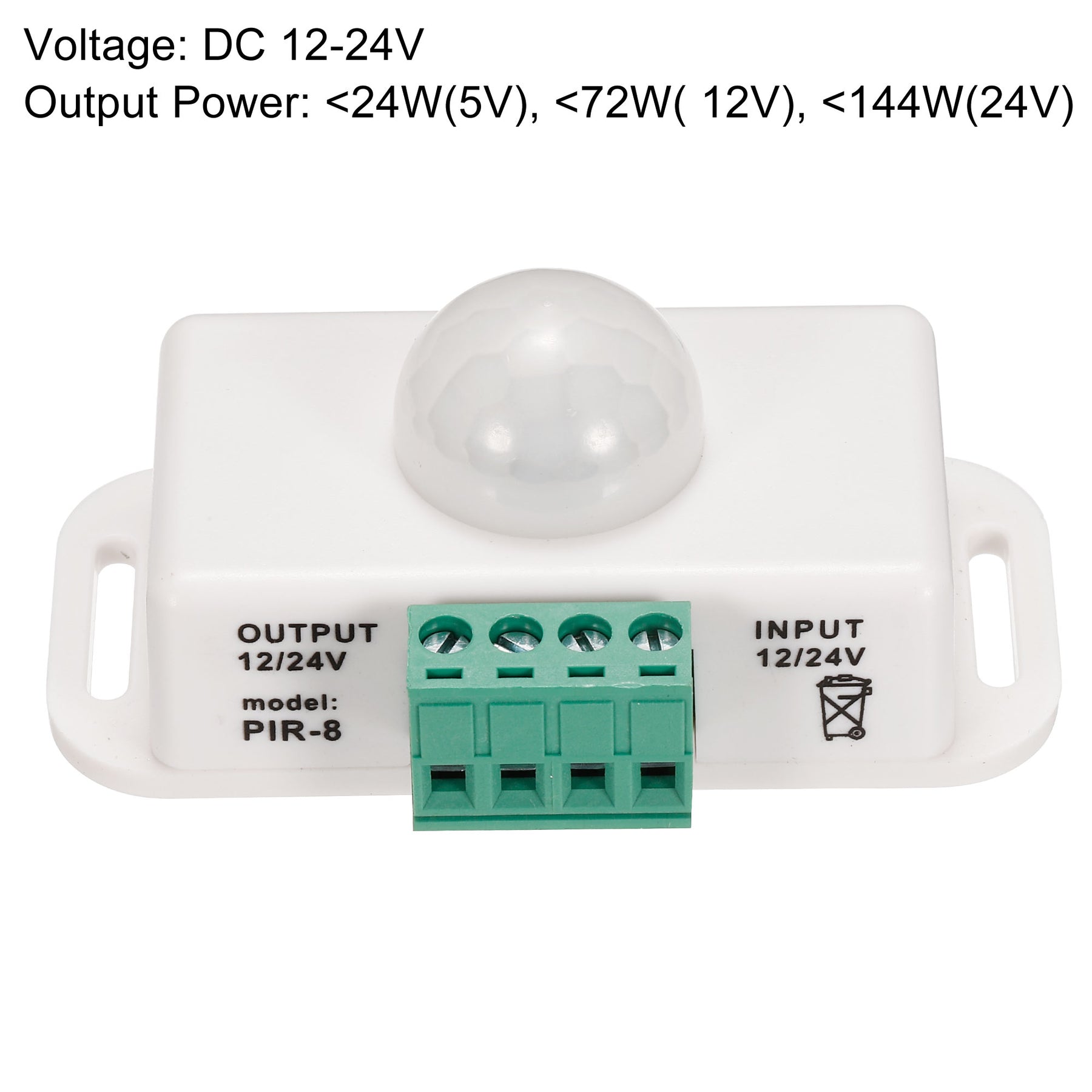

Voltage: DC 12-24V
Output Power: <24W(5V), <72W( 12V), <144W(24V)

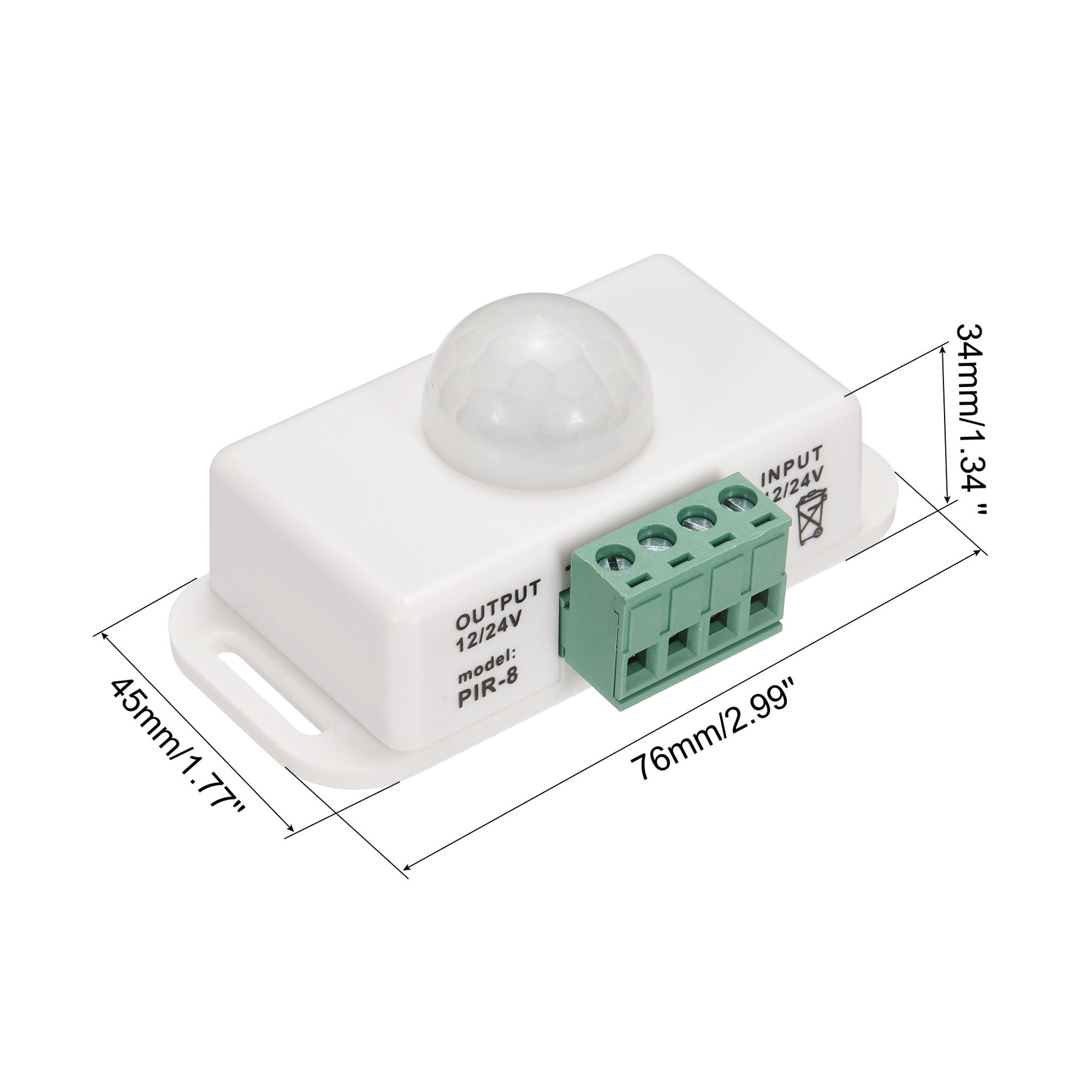

Size: 76x45x34 mm/2.99x1.77x1.34 inch(L*W*H)
Delay time: 1-10min (adjustable)
Working temperature: -20-60
Package Content: 1 x LED Infrared Motion Sensor

Are there any advantages of the product?
Adjustable delay for activation from 1 to 10 minutes.
The on/off function is completely silent.
Easy to install, connect the load line first, then the power line.

How to use it?
1. Connect the load line first, and then connect the wires. Before power on, ensure that there is no short circuit between the connecting wires;

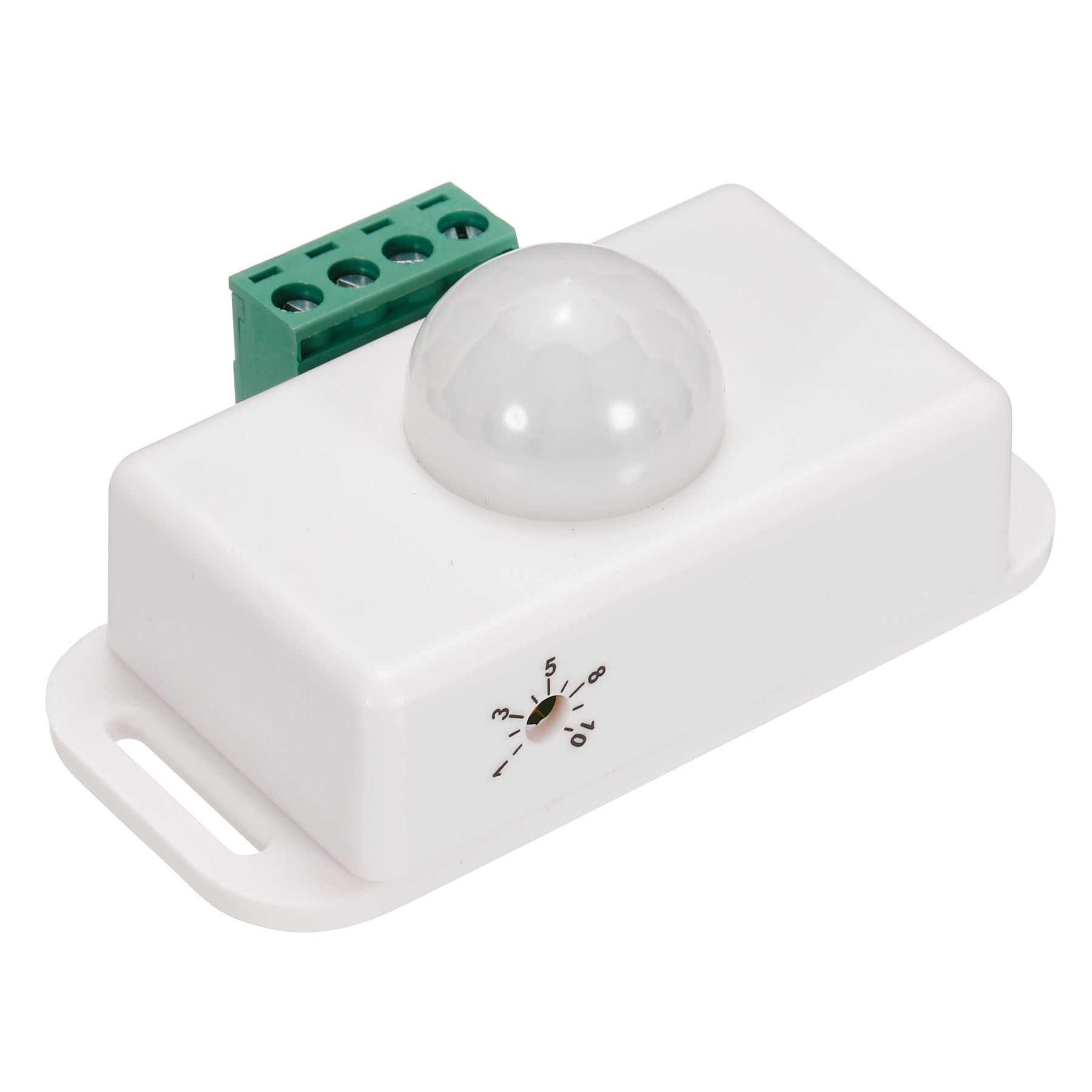

2. There is a time-setting knob on the back of the controller. By rotating the knob, the delay off minutes of the switch can be set respectively. When someone is detected, the load lamp will be turned on; When the person leaves for a set number of minutes, the load lamp will automatically turn off.

What should  I notice?
1. Please don't expose it to direct sunlight, heaters, strong wind, or air conditioners.
2. Please don't fix it at obstacles that infrared rays cannot penetrate.
3. The controller signal output line and input line should be connected correctly. Also, please attention that this is not applicable for LED lights with the modes feature.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$10.31 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

What is this?
The led motion sensor switch is an infrared detection controller, which uses infrared detection to control the switch of the load. It can be installed in an appropriate environment according to actual needs, such as a cupboard, cabinet, kitchen, stairs, etc.

What will I get?
Product Name: LED Infrared Motion Sensor
Connector Type: DC female with wire
Color: White
Material: Plastic
Output Current: <6A
Voltage: DC 12-24V
Output Power: <24W(5V), <72W( 12V), <144W(24V)
Size: 76x45x34 mm/2.99x1.77x1.34 inch(L*W*H)
Delay time: 1-10min (adjustable)
Working temperature: -20-60
Package Content: 1 x LED Infrared Motion Sensor

Are there any advantages of the product?
Adjustable delay for activation from 1 to 10 minutes.
The on/off function is completely silent.
Easy to install, connect the load line first, then the power line.

How to use it?
1. Connect the load line first, and then connect the wires. Before power on, ensure that there is no short circuit between the connecting wires;
2. There is a time-setting knob on the back of the controller. By rotating the knob, the delay off minutes of the switch can be set respectively. When someone is detected, the load lamp will be turned on; When the person leaves for a set number of minutes, the load lamp will automatically turn off.

What should  I notice?
1. Please don't expose it to direct sunlight, heaters, strong wind, or air conditioners.
2. Please don't fix it at obstacles that infrared rays cannot penetrate.
3. The controller signal output line and input line should be connected correctly. Also, please attention that this is not applicable for LED lights with the modes feature.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
