Harfington Uxcell 7/16-20 UNF High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap

Uxcell 7/16-20 UNF High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap

ID:1265095
ID:1265095
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

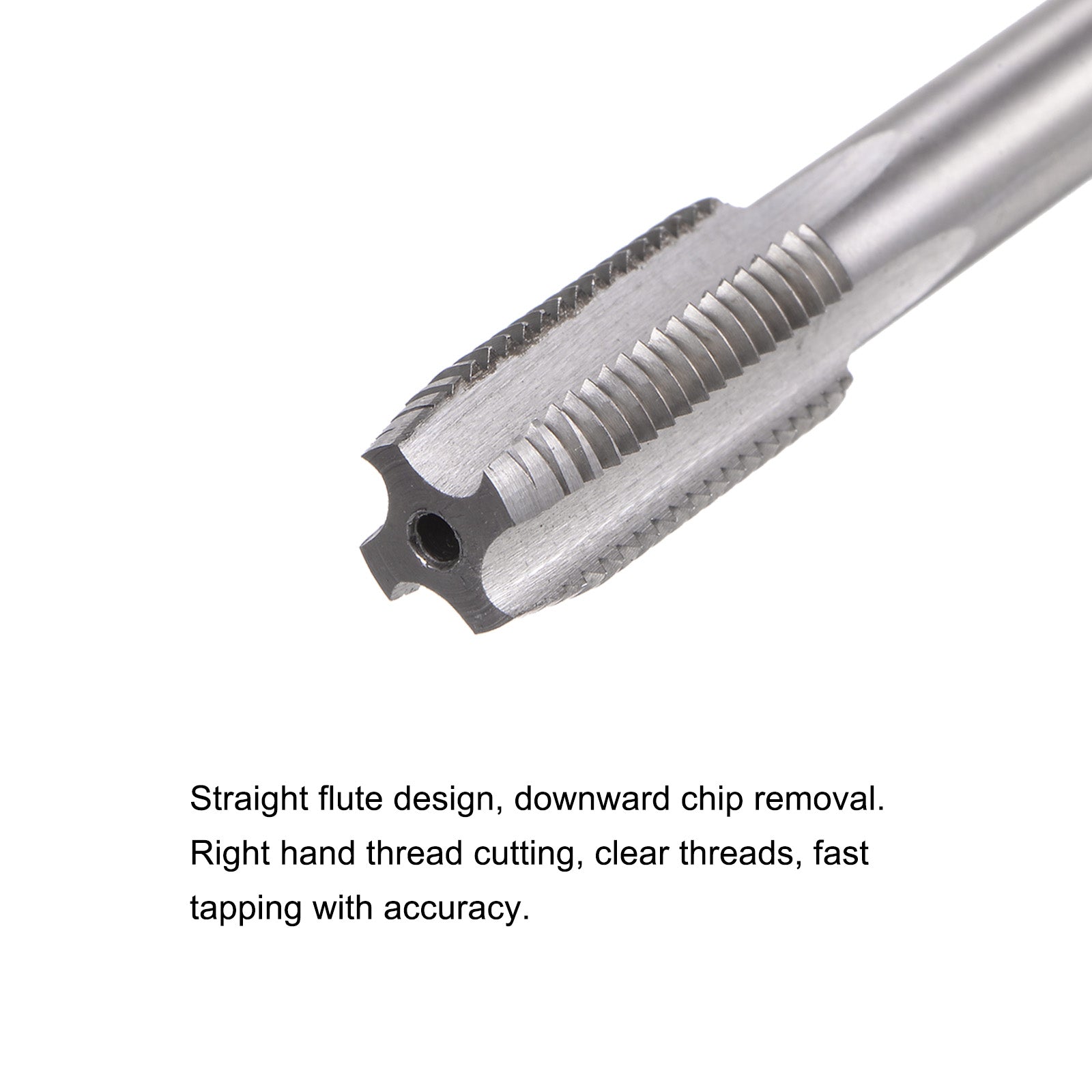

  • Tap Size: Thread size: 7/16-20 UNF; total length: 130mm / 5" (approx.); accuracy class: H2. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.

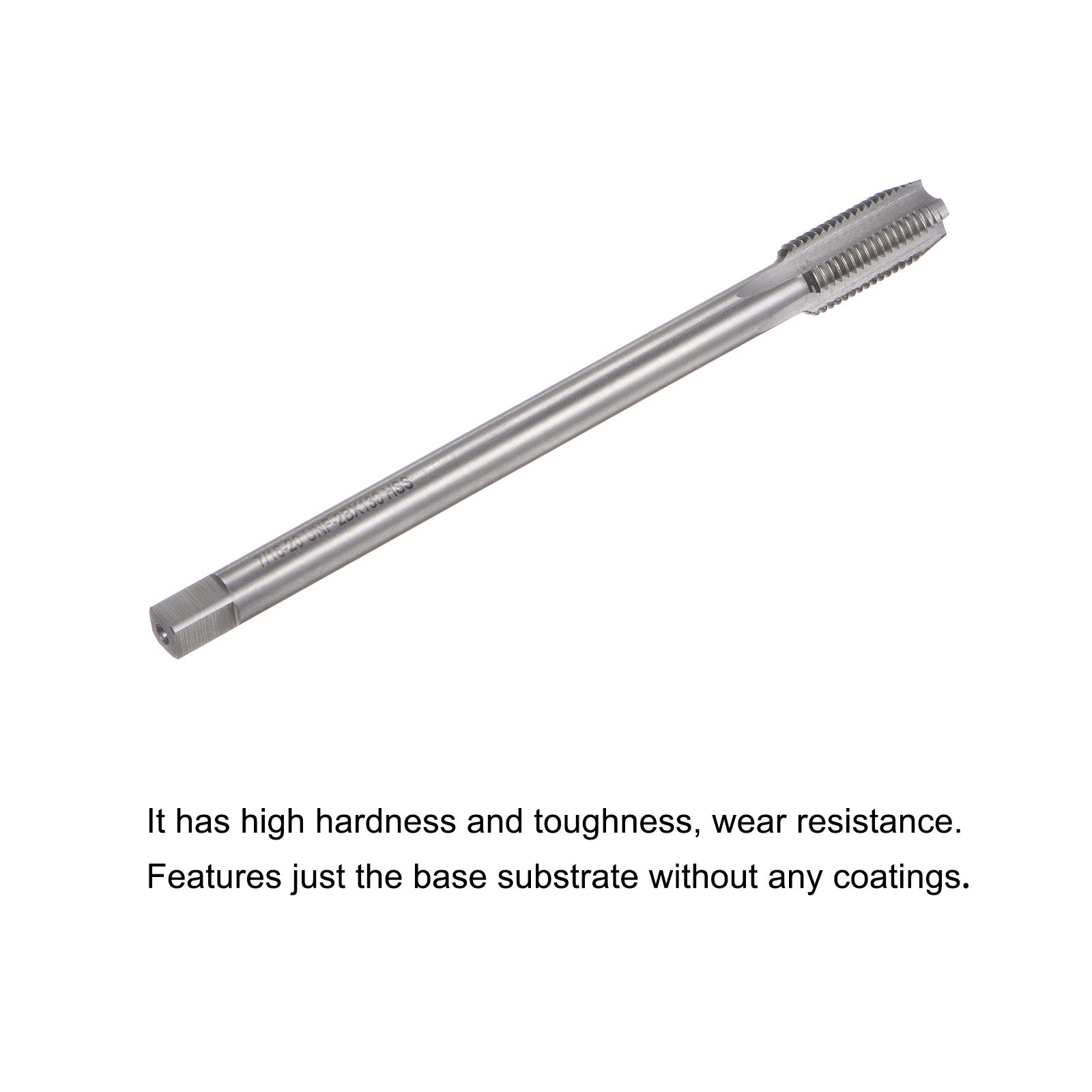

  • High Speed Steel: High speed steel tool has high hardness and toughness, wear resistance, heat resistance. Features just the base substrate without any coatings, good for general purpose thread tapping.

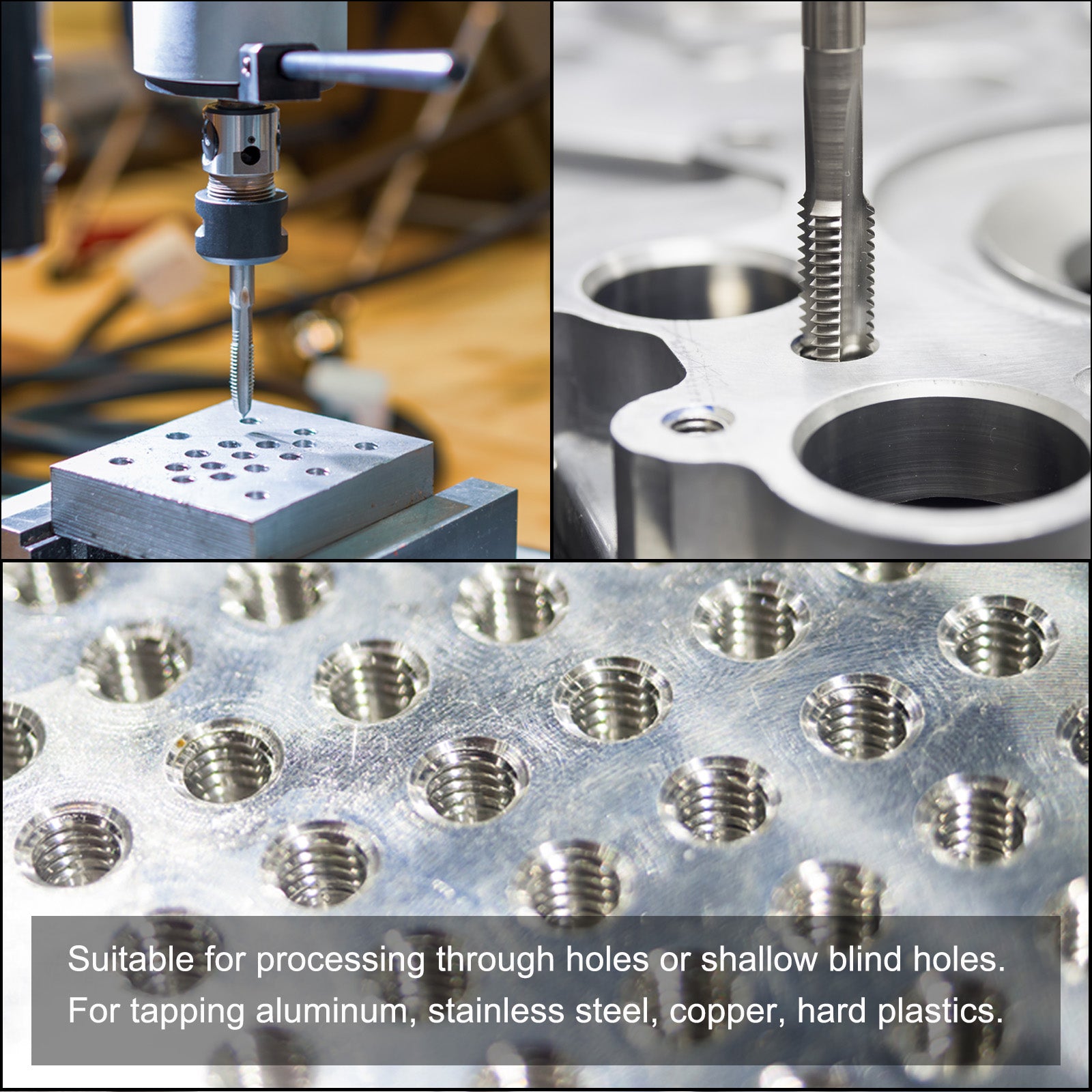

  • Applications: Suitable for processing through holes or shallow blind holes . Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc.. Use with tapping oil to get higher quality threads and more durable taps.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
About this item
  • Tap Size: Thread size: 7/16-20 UNF; total length: 130mm / 5" (approx.); accuracy class: H2. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  • High Speed Steel: High speed steel tool has high hardness and toughness, wear resistance, heat resistance. Features just the base substrate without any coatings, good for general purpose thread tapping.
  • Applications: Suitable for processing through holes or shallow blind holes . Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc.. Use with tapping oil to get higher quality threads and more durable taps.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
  • Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

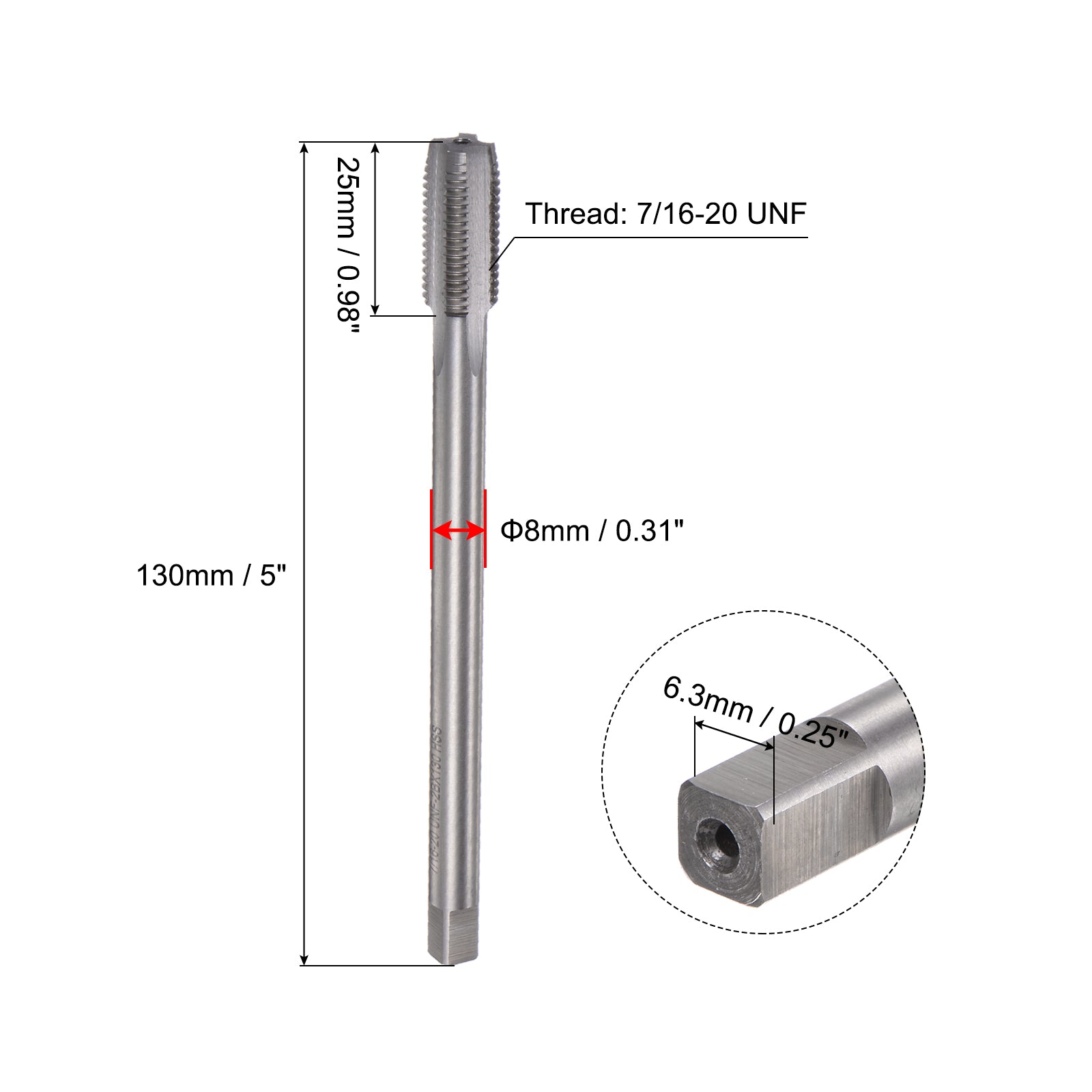

Specifications:
  • Thread Size: 7/16-20 UNF
  • Total Length: 130mm / 5" (approx.)
  • Thread Length: 25mm / 0.98"
  • Square End Size: 6.3mm / 0.25"
  • Round Shank Diameter: 8mm / 0.31"
  • Accuracy Class: H2
  • Cutting Direction: Right Hand
  • Material:  High Speed Steel (HSS)
  • Finish: Uncoated
  • Numbers of Flutes: 4 Flutes
  • Package Content: 1pcs x Thread Tap

Descriptions:
  1. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  2. High speed steel tool has high hardness and toughness, wear resistance, heat resistance. Features just the base substrate without any coatings, good for general purpose thread tapping.
  3. Suitable for processing through holes or shallow holes . Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc.. Use with tapping oil to get higher quality threads and more durable taps.
  4. Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  5. Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is easy to cause breakage to the tap, so it is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
US$11.93 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 7/16-20 UNF High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap 1265095 US$11.93
Products Title ID Price Qty
Uxcell 7/16-20 UNF High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap 1265095 US$11.93
Uxcell #6-32 UNC High Speed Steel 4" Length 3 Straight Flute Machine Screw Thread Tap 1265089 US$7.44
Uxcell 3/8-24 UNS/UNF High Speed Steel 5" Length 3 Straight Flute Machine Thread Tap 1265085 US$11.13
Uxcell 1/2-12 BSW High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap 1265094 US$12.76
Uxcell 7/16-14 UNC High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap 1265092 US$11.86
Uxcell #8-32 UNC High Speed Steel 4" Length 3 Straight Flute Machine Screw Thread Tap 1265087 US$7.44
Uxcell 1/2-13 UNC High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap 1265096 US$12.76
Uxcell Thread Milling Taps, 1/4-20 UNC High Speed Steel (HSS) 3 Straight Flutes Machine Screw Thread Threading Tap, 4" Length (Extra Long) 1265086 US$8.24
Uxcell 9/16-12 UNC High Speed Steel 5" Length 4 Straight Flute Machine Screw Thread Tap 1265099 US$13.12
Uxcell 5/16-18 UNC High Speed Steel 4" Length 3 Straight Flute Machine Screw Thread Tap 1265088 US$8.86
Uxcell 10-32 UNF High Speed Steel 4" Length 3 Straight Flute Machine Screw Thread Tap 1265090 US$7.44
Uxcell 1/4-28 UNF High Speed Steel 4" Length 3 Straight Flute Machine Screw Thread Tap 1265091 US$8.24
Uxcell 5/16-24 UNF High Speed Steel 4" Length 3 Straight Flute Machine Screw Thread Tap 1265097 US$8.50
Uxcell 3/8-16 UNC High Speed Steel 5" Length 3 Straight Flute Machine Screw Thread Tap 1265093 US$10.87
Uxcell 5/8-11UNC High Speed Steel 6.3" Length 4 Straight Flute Machine Screw Thread Tap 1265098 US$14.46
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Specifications:
  • Thread Size: 7/16-20 UNF
  • Total Length: 130mm / 5" (approx.)
  • Thread Length: 25mm / 0.98"
  • Square End Size: 6.3mm / 0.25"
  • Round Shank Diameter: 8mm / 0.31"
  • Accuracy Class: H2
  • Cutting Direction: Right Hand
  • Material:  High Speed Steel (HSS)
  • Finish: Uncoated
  • Numbers of Flutes: 4 Flutes
  • Package Content: 1pcs x Thread Tap

Descriptions:
  1. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  2. High speed steel tool has high hardness and toughness, wear resistance, heat resistance. Features just the base substrate without any coatings, good for general purpose thread tapping.
  3. Suitable for processing through holes or shallow holes . Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc.. Use with tapping oil to get higher quality threads and more durable taps.
  4. Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  5. Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is easy to cause breakage to the tap, so it is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
