Harfington Uxcell M8-1.25x20mm Hex Serrated Flange Bolts 10.9 Grade Carbon Steel Screws 20pcs

Uxcell M8-1.25x20mm Hex Serrated Flange Bolts 10.9 Grade Carbon Steel Screws 20pcs

ID:1231925
ID:1231925
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Material: Made of 10.9 grade carbon steel, black oxide coating finish, high strength, wear-resistant, anti-corrosion.
  • Application: It is widely used in the assembly and maintenance of households, machine tools, construction, and DIY project. Such as the assembly and fixing of guardrails, home appliances, pipeline installations, equipment, steel-framed houses, etc.

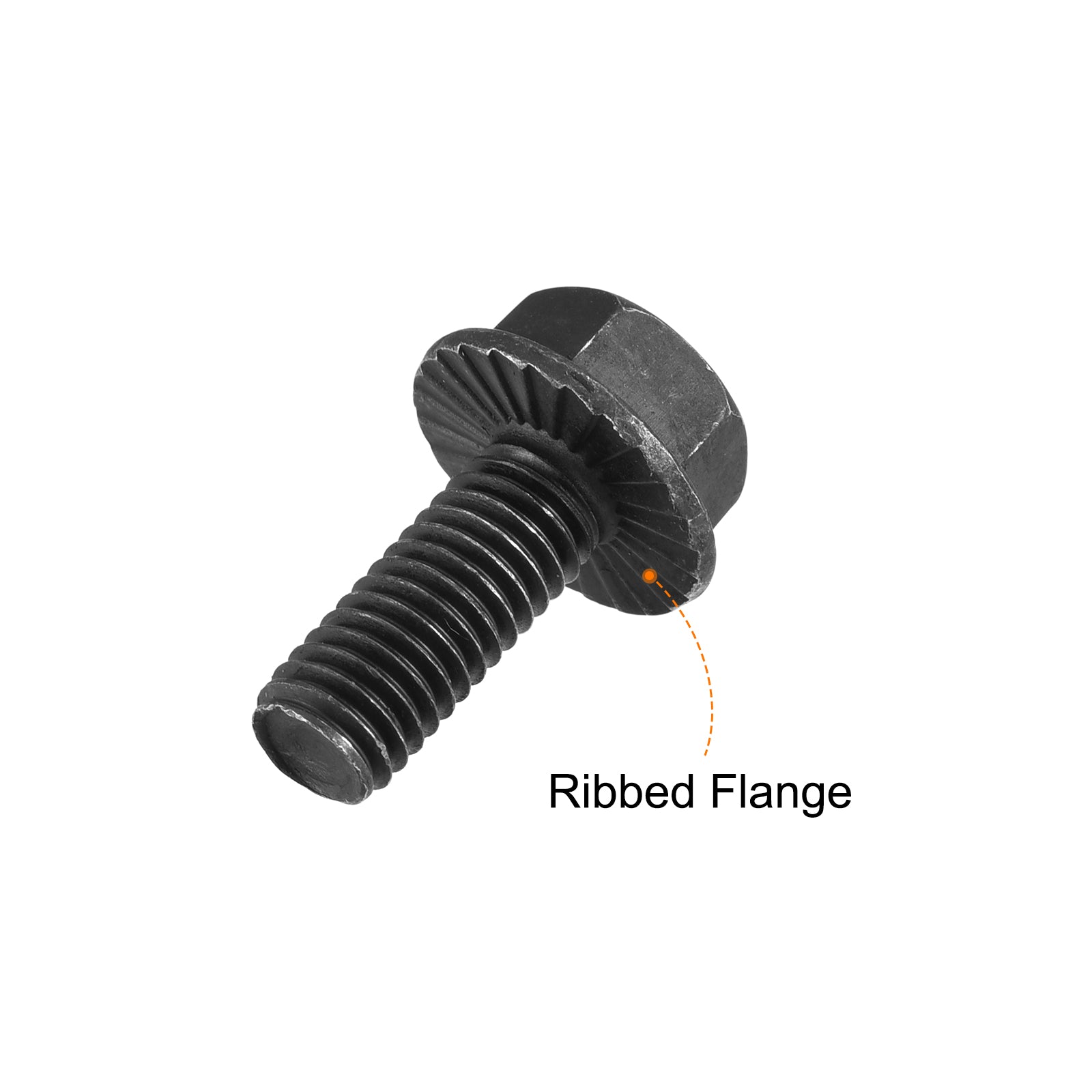

  • Design: There is a circular serrated flange under the head of the flange bolt, which acts as a gasket and has the function of distributing load and preventing loosening.
  • Installation: A wrench is required for installation. Generally, with a hex nut to form a fastener device(Not in the package). It can also be used alone in components with a pre-threaded hole.

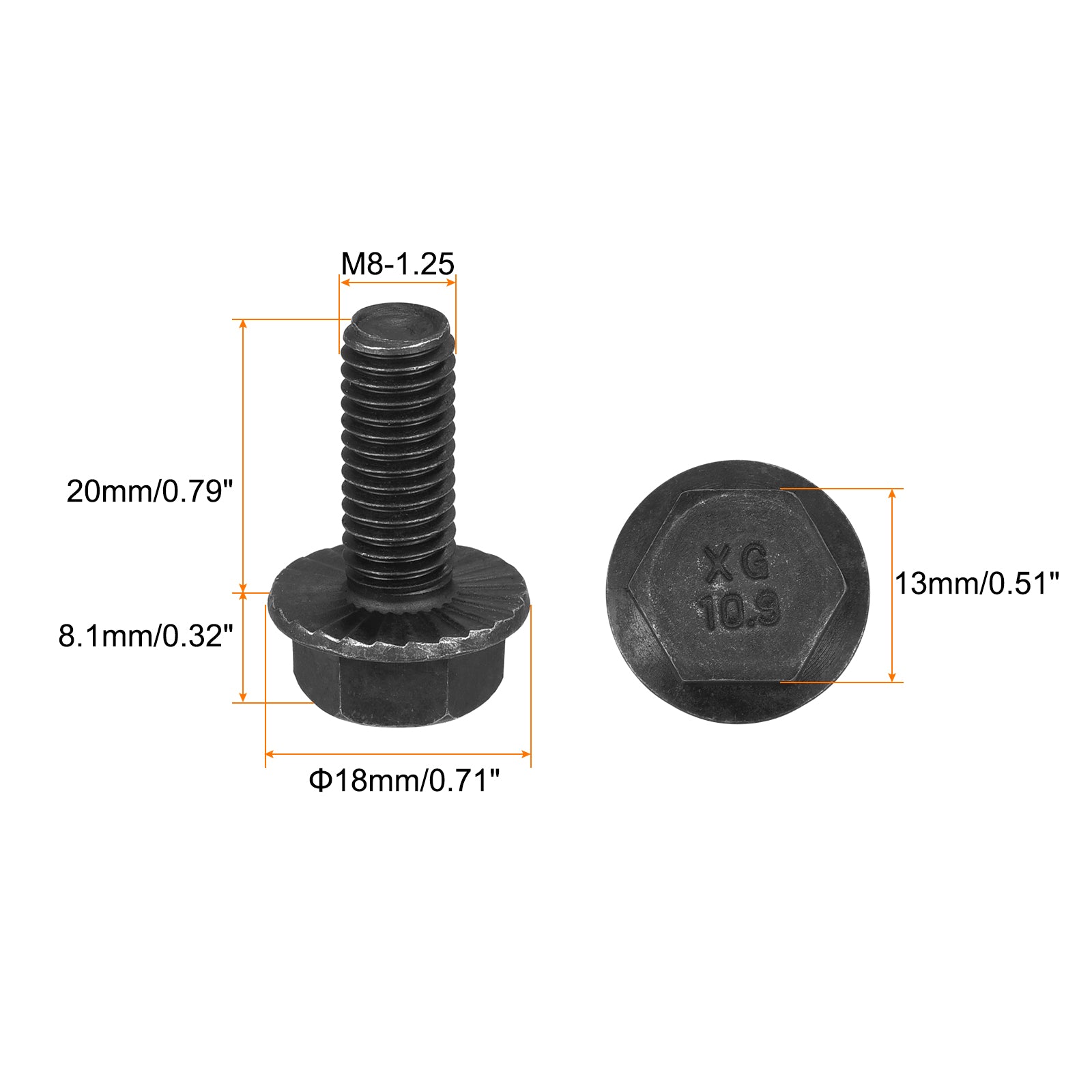

  • Dimension: M8 x 20mm; Rod Length(Under Head): 20mm / 0.79"; Pitch: 1.25mm / 0.049"; Flange Diameter: 18mm / 0.71"; Hex Width: 13mm / 0.51"; Hex Thickness: 8.1mm / 0.32"
About this item
  • Material: Made of 10.9 grade carbon steel, black oxide coating finish, high strength, wear-resistant, anti-corrosion.
  • Application: It is widely used in the assembly and maintenance of households, machine tools, construction, and DIY project. Such as the assembly and fixing of guardrails, home appliances, pipeline installations, equipment, steel-framed houses, etc.
  • Design: There is a circular serrated flange under the head of the flange bolt, which acts as a gasket and has the function of distributing load and preventing loosening.
  • Installation: A wrench is required for installation. Generally, with a hex nut to form a fastener device(Not in the package). It can also be used alone in components with a pre-threaded hole.
  • Dimension: M8 x 20mm; Rod Length(Under Head): 20mm / 0.79"; Pitch: 1.25mm / 0.049"; Flange Diameter: 18mm / 0.71"; Hex Width: 13mm / 0.51"; Hex Thickness: 8.1mm / 0.32"
Specification

Specification

SKU
a22031900ux0094
Brand
Uxcell
System of Measurement
Metric
Pkg.Qty
20
Material
Carbon Steel
Color
Black
Thread Dia.
M8
Thread Length
20mm
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
1. Material: Made of 10.9 grade carbon steel, black oxide coating finish, high strength, wear-resistant, anti-corrosion.
2. Application: It is widely used in the assembly and maintenance of households, machine tools, construction, and DIY project. Such as the assembly and fixing of guardrails, home appliances, pipeline installations, equipment, steel-framed houses, etc.
3. Design: There is a circular serrated flange under the head of the flange bolt, which acts as a gasket and has the function of distributing load and preventing loosening.
4. Installation: A wrench is required for installation. Generally, with a hex nut to form a fastener device(Not in the package). It can also be used alone in components with a pre-threaded hole.

Specification:
Product Name: Hex Flange Bolts
Material: Carbon Steel
Finish: Black Oxide Coating
Performance Grade: 10.9
Thread Type: Fully Thread
Dimension: M8 x 20mm
Rod Length(Under Head): 20mm / 0.79"
Pitch: 1.25mm / 0.049"
Flange Diameter: 18mm / 0.71"
Hex Width: 13mm / 0.51"
Hex Thickness: 8.1mm / 0.32"

Package Content:

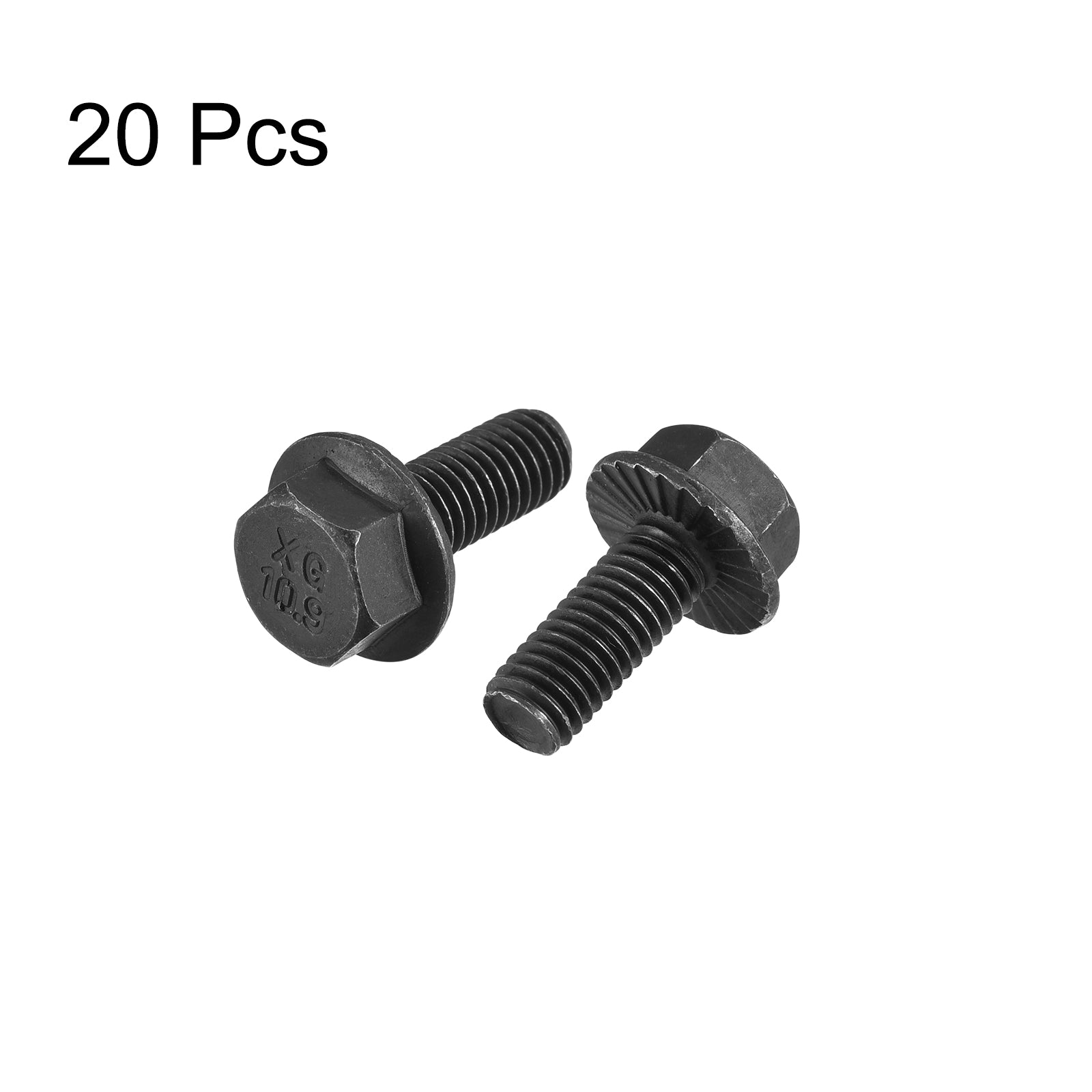

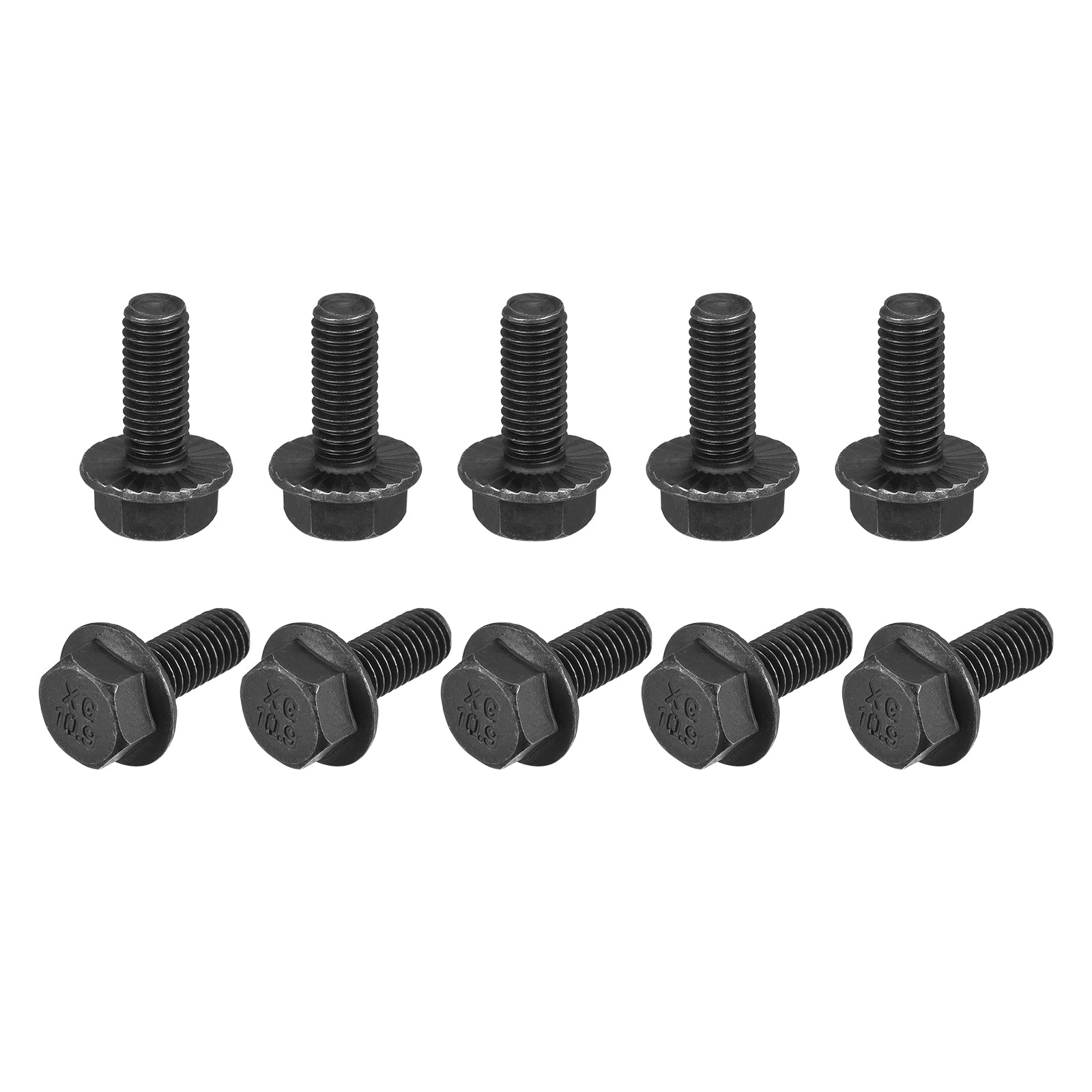

20 x Hex Flange Bolts
US$12.55 US$0.63/eachRegular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Thread Dia. Thread Length Pkg.Qty ID Price Qty
M8 20mm 20 1231925 US$12.55
Products Thread Dia. Thread Length Pkg.Qty ID Price Qty
M8 20mm 20 1231925 US$12.55
M6 20mm 8 1207843 US$6.53
M6 25mm 30 1231906 US$11.62
M6 16mm 10 1254151 US$7.66
M6 16mm 40 1231888 US$12.28
M6 30mm 10 1254153 US$8.23
M6 10mm 40 1231904 US$10.83
M6 45mm 10 1231910 US$8.57
M8 35mm 10 1231895 US$9.48
M8 30mm 10 1254188 US$10.38
M8 45mm 10 1228582 US$10.06
M10 20mm 5 1231907 US$7.47
M10 30mm 10 1231933 US$11.93
M10 30mm 3 1254204 US$7.13
M10 25mm 3 1254184 US$7.41
M10 40mm 6 1254190 US$10.52
M10 40mm 5 1231897 US$8.94
M10 35mm 3 1254193 US$7.21
M14 45mm 4 1231936 US$11.95
M14 40mm 2 1231937 US$8.07
M14 30mm 6 1231950 US$13.62
M16 45mm 2 1231938 US$10.02
M16 35mm 2 1231939 US$9.21
M16 35mm 1 1231959 US$6.75
M16 60mm 2 1254211 US$12.28
M12 25mm 6 1254197 US$12.34
M5 16mm 10 1230876 US$6.61
M5 20mm 10 1230879 US$6.81
M5 20mm 25 1231892 US$9.03
M5 8mm 10 1230891 US$6.11
M5 8mm 25 1230892 US$7.91
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

Description:
1. Material: Made of 10.9 grade carbon steel, black oxide coating finish, high strength, wear-resistant, anti-corrosion.
2. Application: It is widely used in the assembly and maintenance of households, machine tools, construction, and DIY project. Such as the assembly and fixing of guardrails, home appliances, pipeline installations, equipment, steel-framed houses, etc.
3. Design: There is a circular serrated flange under the head of the flange bolt, which acts as a gasket and has the function of distributing load and preventing loosening.
4. Installation: A wrench is required for installation. Generally, with a hex nut to form a fastener device(Not in the package). It can also be used alone in components with a pre-threaded hole.

Specification:
Product Name: Hex Flange Bolts
Material: Carbon Steel
Finish: Black Oxide Coating
Performance Grade: 10.9
Thread Type: Fully Thread
Dimension: M8 x 20mm
Rod Length(Under Head): 20mm / 0.79"
Pitch: 1.25mm / 0.049"
Flange Diameter: 18mm / 0.71"
Hex Width: 13mm / 0.51"
Hex Thickness: 8.1mm / 0.32"

Package Content:
20 x Hex Flange Bolts
