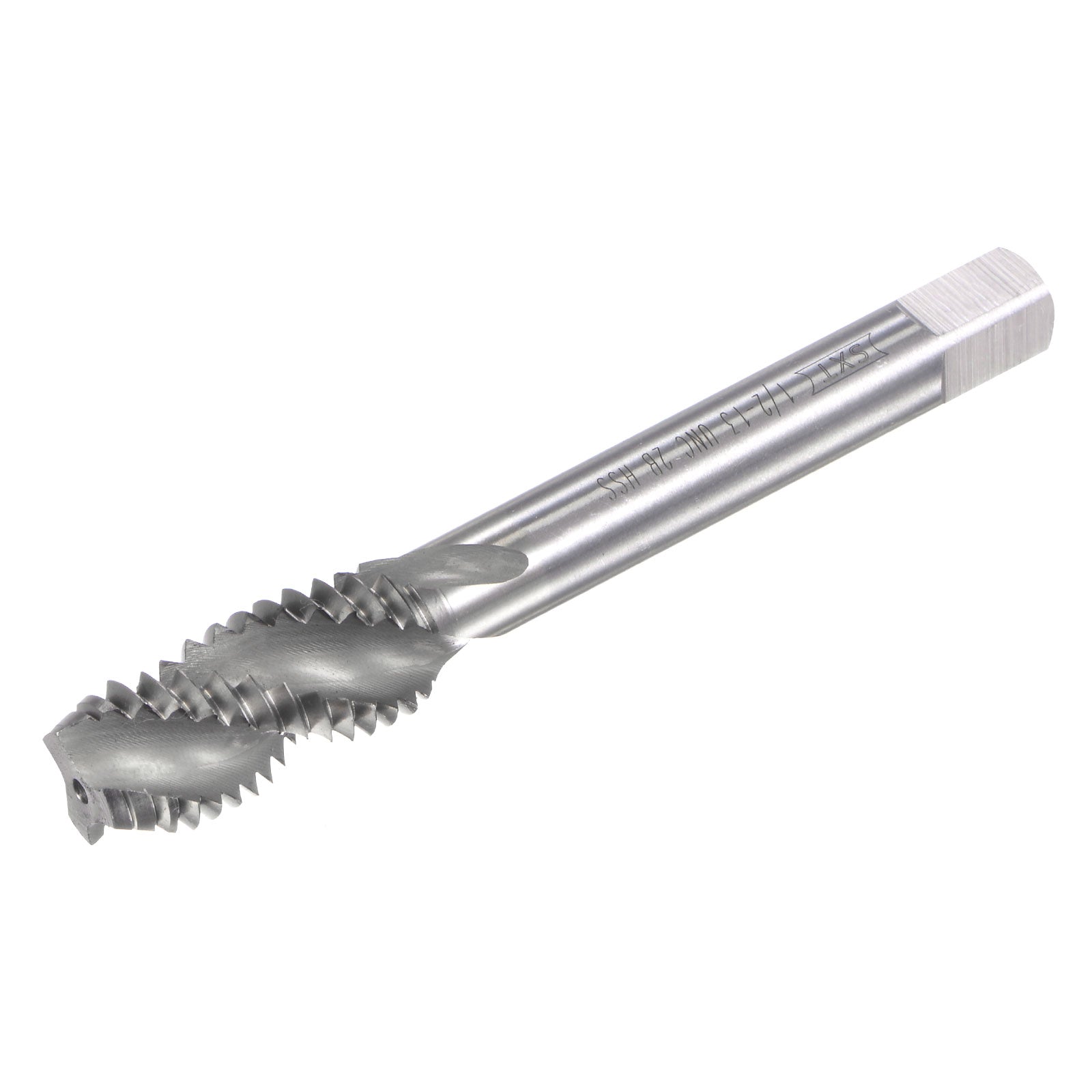

Harfington Uxcell 1/2-13 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap

Uxcell 1/2-13 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap

ID:1222234
ID:1222234
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

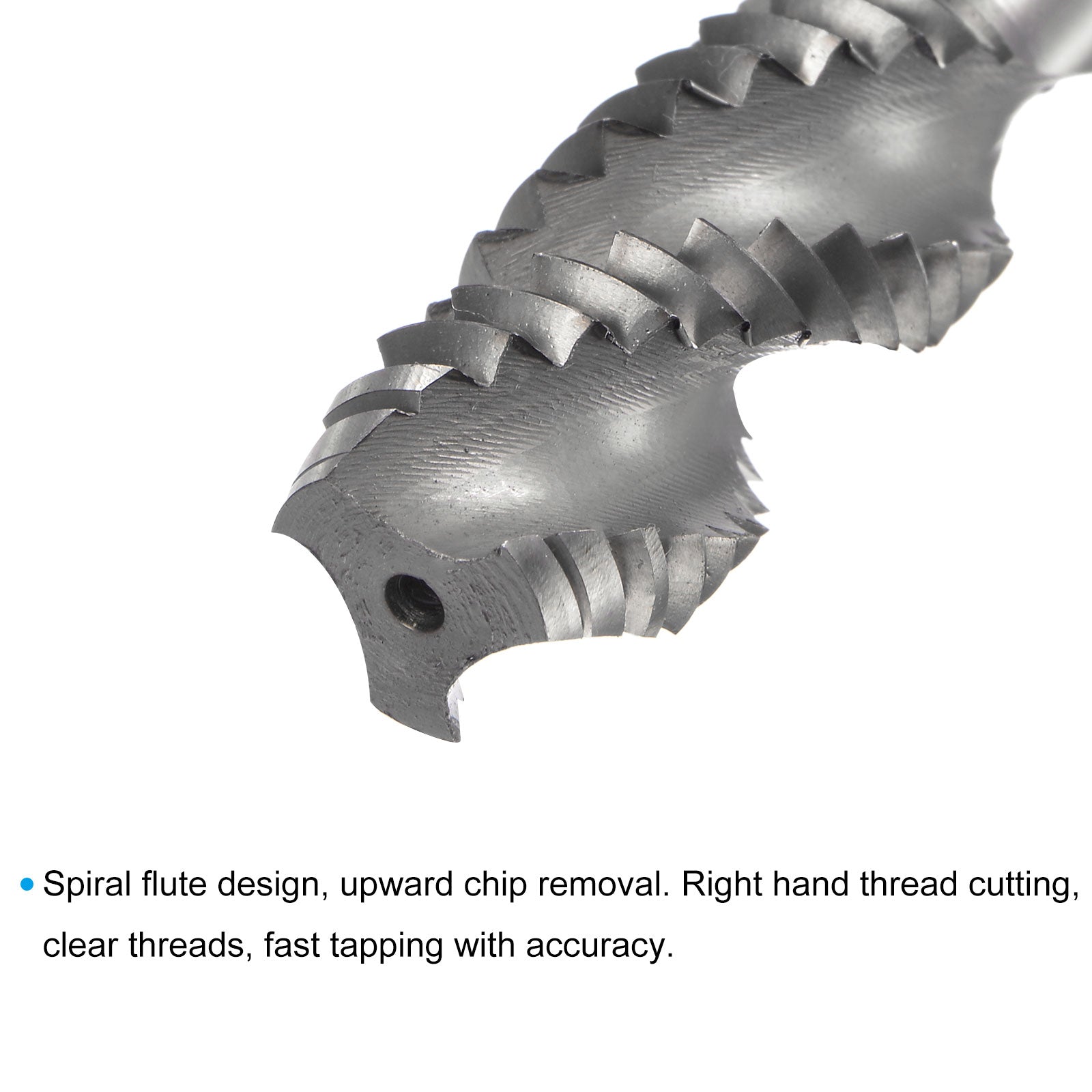

  • Spiral Flute Taps: Thread Size: 1/2-13 UNC; Tolerance Grade: 2B; Square End Size: 7mm / 0.28". Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.

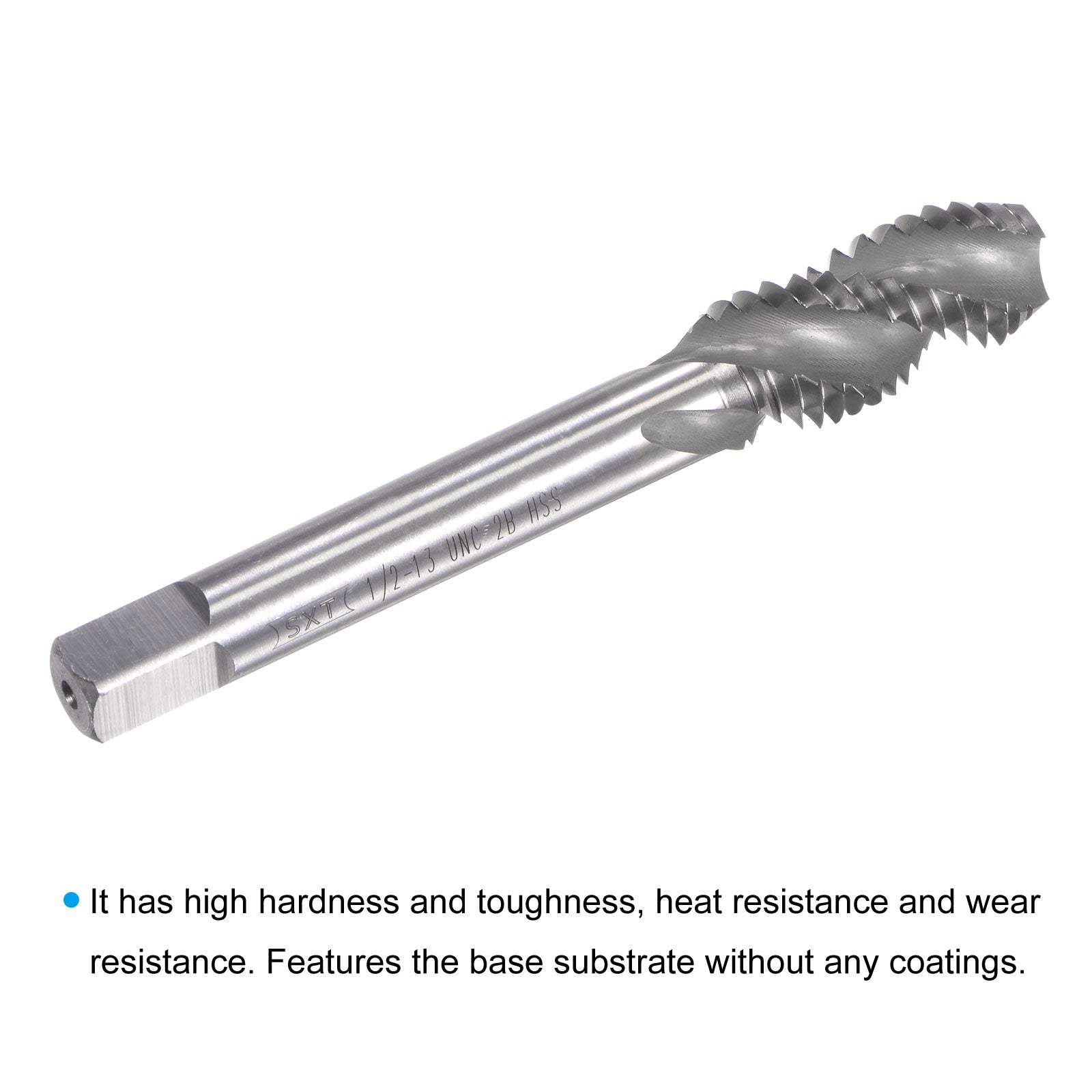

  • High-speed steel tool: High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.

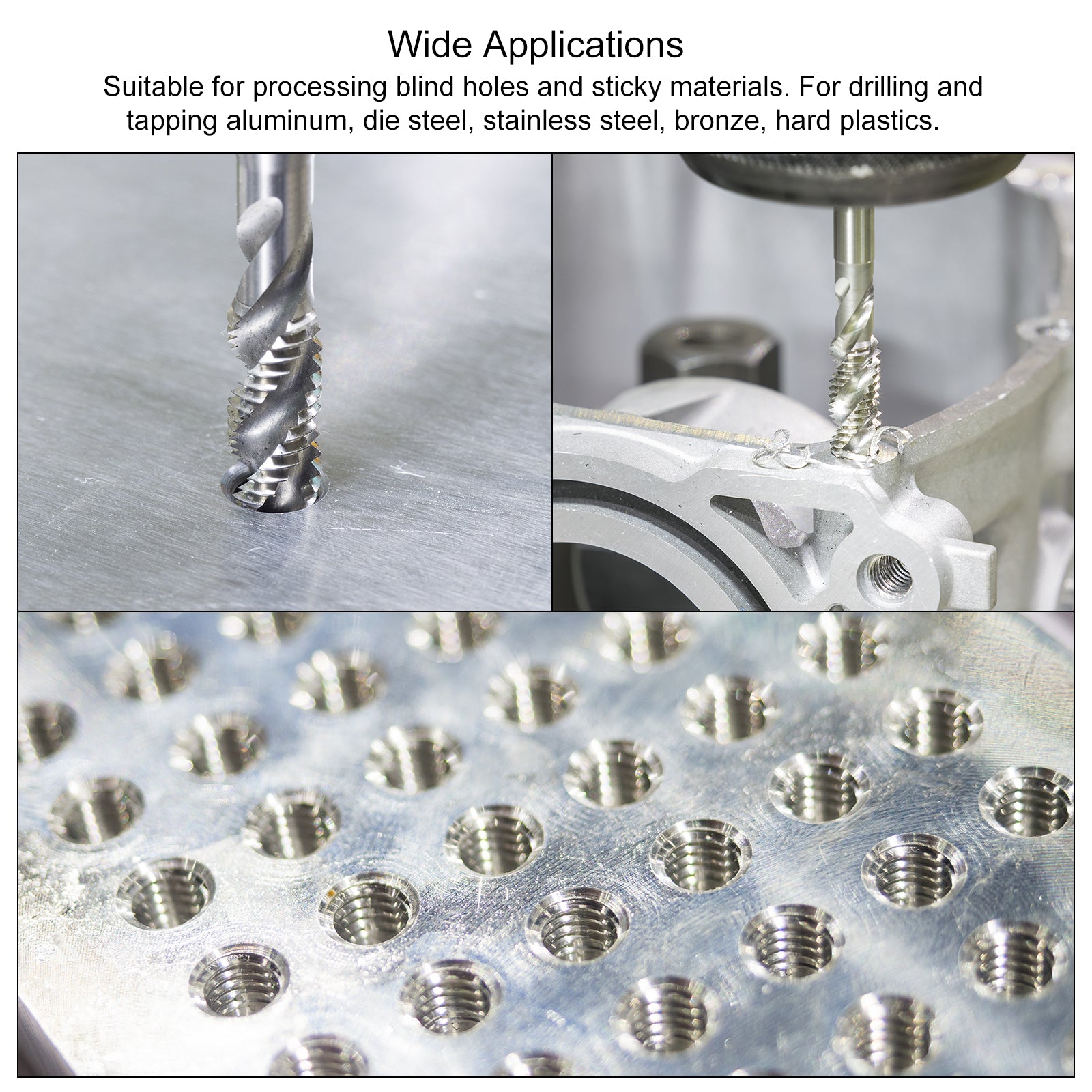

  • Wide Applications: Suitable for processing blind holes and sticky materials. For drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
  • Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
About this item
  • Spiral Flute Taps: Thread Size: 1/2-13 UNC; Tolerance Grade: 2B; Square End Size: 7mm / 0.28". Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
  • High-speed steel tool: High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.
  • Wide Applications: Suitable for processing blind holes and sticky materials. For drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  • Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
  • Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
Specification

Specification

SKU
a22022400ux0720
Thread size
1/2-13 UNC
Thread length
30mm / 1.18 inch
Square end size
7mm / 0.28 inch
Total length
88mm / 3.46 inch
Thread tolerance grade
2B
Material
High Speed Steel (HSS)
Finish
Uncoated
Numbers of flutes
3 Flutes
Cutting direction
Right Hand
Package content
1pcs x Spiral Flute Thread Tap
Harder steel
5-10m/min
Stainless steel
2-7m/min
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

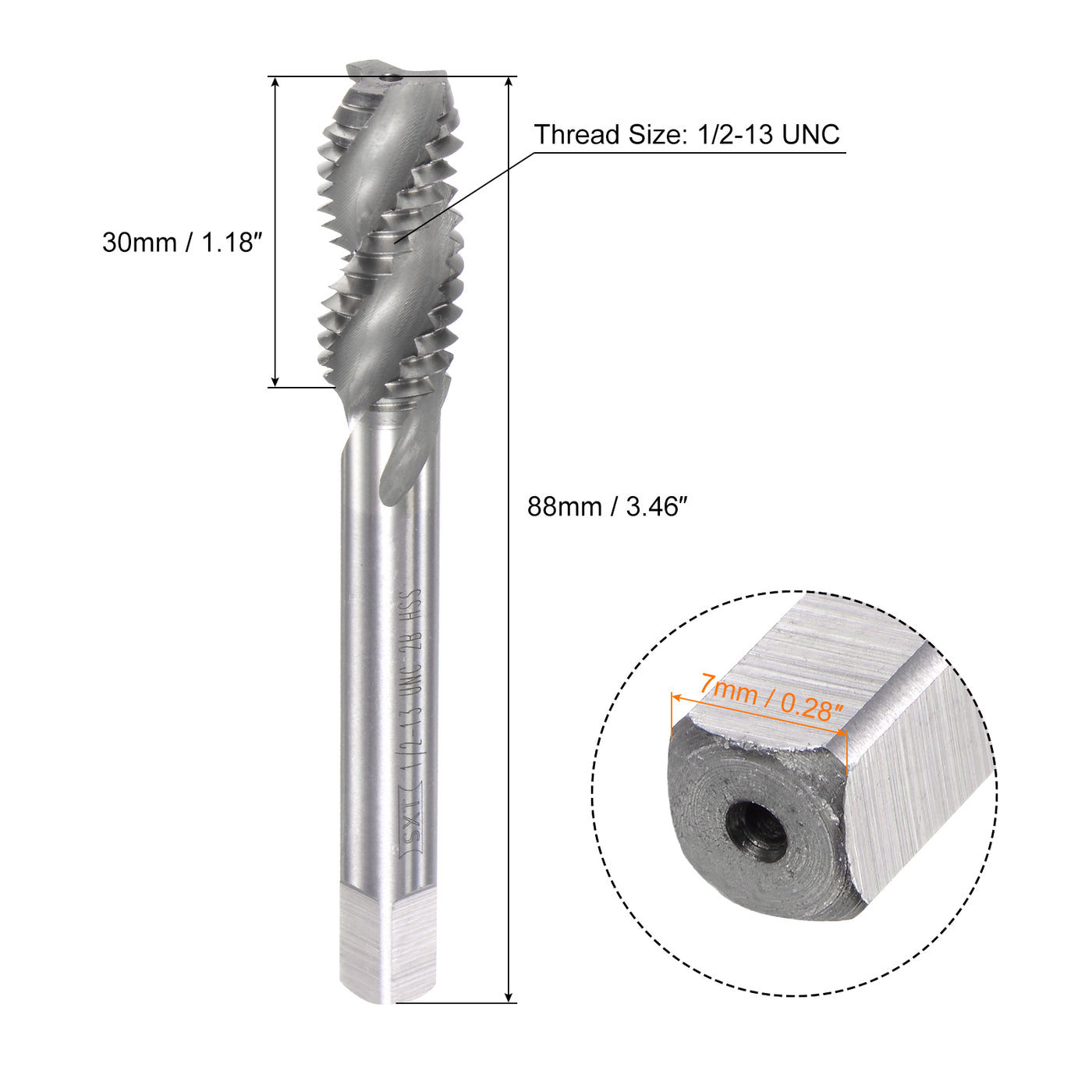

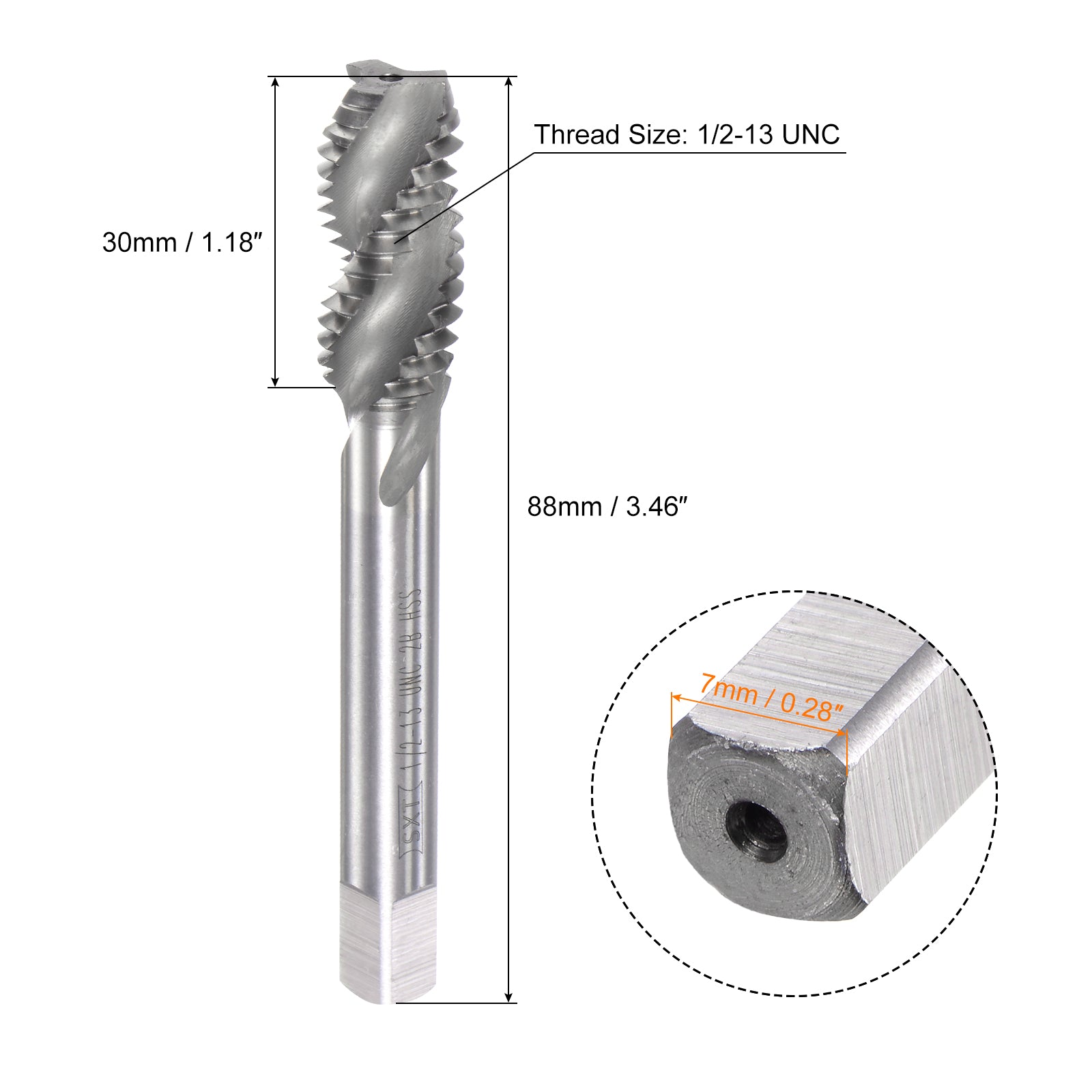

  • Thread Size: 1/2-13 UNC
  • Thread Length: 30mm / 1.18"
  • Square End Size: 7mm / 0.28"
  • Total Length: 88mm / 3.46"
  • Thread Tolerance Grade: 2B
  • Material: High Speed Steel (HSS)
  • Finish: Uncoated
  • Numbers of Flutes: 3 Flutes
  • Cutting Direction: Right Hand
  • Package Content: 1pcs x Spiral Flute Thread Tap

Descriptions:
  1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy. High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.
  2. Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break
  3. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
  4.  Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
US$11.98 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Low stock, 2 items left, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 1/2-13 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222234 US$11.98
Products Title ID Price Qty
Uxcell 1/2-13 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222234 US$11.98
Uxcell 5-40 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 2pcs 1222233 US$8.57
Uxcell 5/8-11 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222240 US$14.28
Uxcell 12-24 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222230 US$6.93
Uxcell 9/16-12 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222235 US$13.54
Uxcell 12-24 UNC 2B High Speed Steel Uncoated Machine Spiral Flute Threading Tap 2pcs 1222231 US$8.57
Uxcell 3/8-16 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222239 US$8.88
Uxcell 1/4-28 UNF 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1227071 US$7.62
Uxcell 1/4-28 UNF 2B High Speed Steel Uncoated Machine Spiral Flute Threading Tap 2pcs 1228593 US$9.81
Uxcell 3/8-24 UNF 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1234624 US$8.86
Uxcell 5/16-24 UNF 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222241 US$8.33
Uxcell 7/16-14 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222238 US$11.07
Uxcell 5/16-18 UNC 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222236 US$8.33
Uxcell 7/16-20 UNF 2B High Speed Steel Uncoated Machine Spiral Flutes Threading Tap 1222243 US$11.09
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Specifications:
  • Thread Size: 1/2-13 UNC
  • Thread Length: 30mm / 1.18"
  • Square End Size: 7mm / 0.28"
  • Total Length: 88mm / 3.46"
  • Thread Tolerance Grade: 2B
  • Material: High Speed Steel (HSS)
  • Finish: Uncoated
  • Numbers of Flutes: 3 Flutes
  • Cutting Direction: Right Hand
  • Package Content: 1pcs x Spiral Flute Thread Tap

Descriptions:
  1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy. High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.
  2. Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break
  3. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
  4.  Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
