Home FabricatingMachiningTapsTaps & Die Set
Harfington Uxcell Tap and Die Set Nitride Coated Spiral Flute Tap with Round Die

Uxcell Tap and Die Set Nitride Coated Spiral Flute Tap with Round Die

ID:
$9.35 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
M6 X 1
Size
1set
Package Content
About this item
  • Wide Applications: Used for processing blind holes and sticky materials. For tapping stainless steel, alloy steel, cast iron, ferrous and non-ferrous materials etc.. Use with tapping oil to get higher quality threads and more durable taps and dies.
  • Features: Spiral flute design, upward chip removal. The tap has high hardness, good toughness, wear resistance. Black nitrogen treatment greatly improve wear resistance, corrosion resistance and high temperature resistance. The round die features good abrasion resistance.
  • Easy to Use: Dies can be used with die wrench (not included). The fastening screws in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines, and suggested to be used with tap collets with overload protection.
  • Tips: Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  • Compatibility: M6 x 1 metric tap and die set are suitable for making or repairing male and female threads. They are both right hand thread cutting, with clear threads, good for general purpose applications.
  • In stock, ready to ship
Cart
Cart
About this item
  • Wide Applications: Used for processing blind holes and sticky materials. For tapping stainless steel, alloy steel, cast iron, ferrous and non-ferrous materials etc.. Use with tapping oil to get higher quality threads and more durable taps and dies.
  • Features: Spiral flute design, upward chip removal. The tap has high hardness, good toughness, wear resistance. Black nitrogen treatment greatly improve wear resistance, corrosion resistance and high temperature resistance. The round die features good abrasion resistance.
  • Easy to Use: Dies can be used with die wrench (not included). The fastening screws in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines, and suggested to be used with tap collets with overload protection.
  • Tips: Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
  • Compatibility: M6 x 1 metric tap and die set are suitable for making or repairing male and female threads. They are both right hand thread cutting, with clear threads, good for general purpose applications.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Spiral Flute Tap:

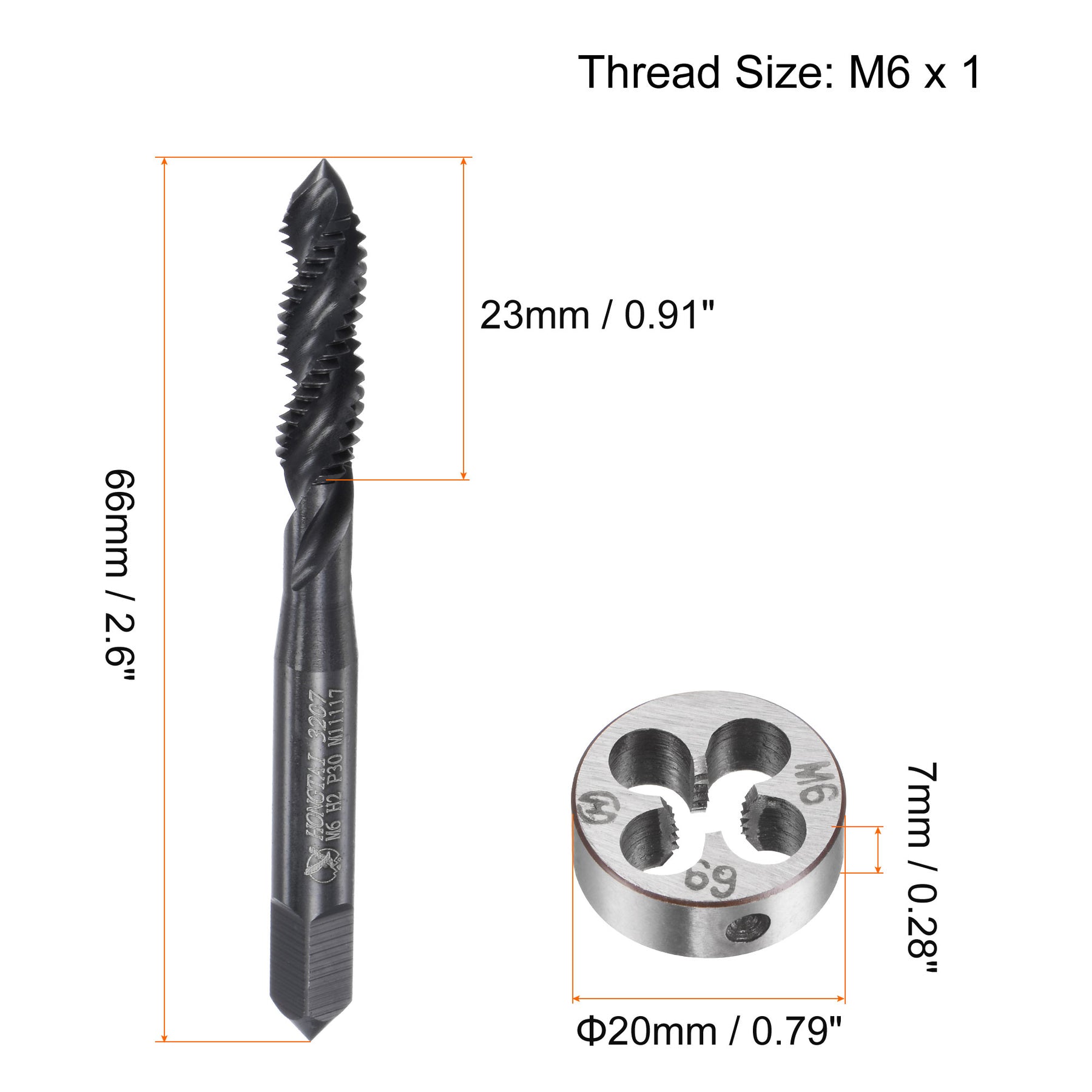

  • Thread Size: M6 x 1; Thread Length: 23mm / 0.91"; Overall Length: 66mm / 2.6"; Square Shank Size: 4mm / 0.16"; Accuracy: H2; Material: High Speed Steel (HSS) 6542; Finish: Nitrogen Treatment; Type: Machine Tap

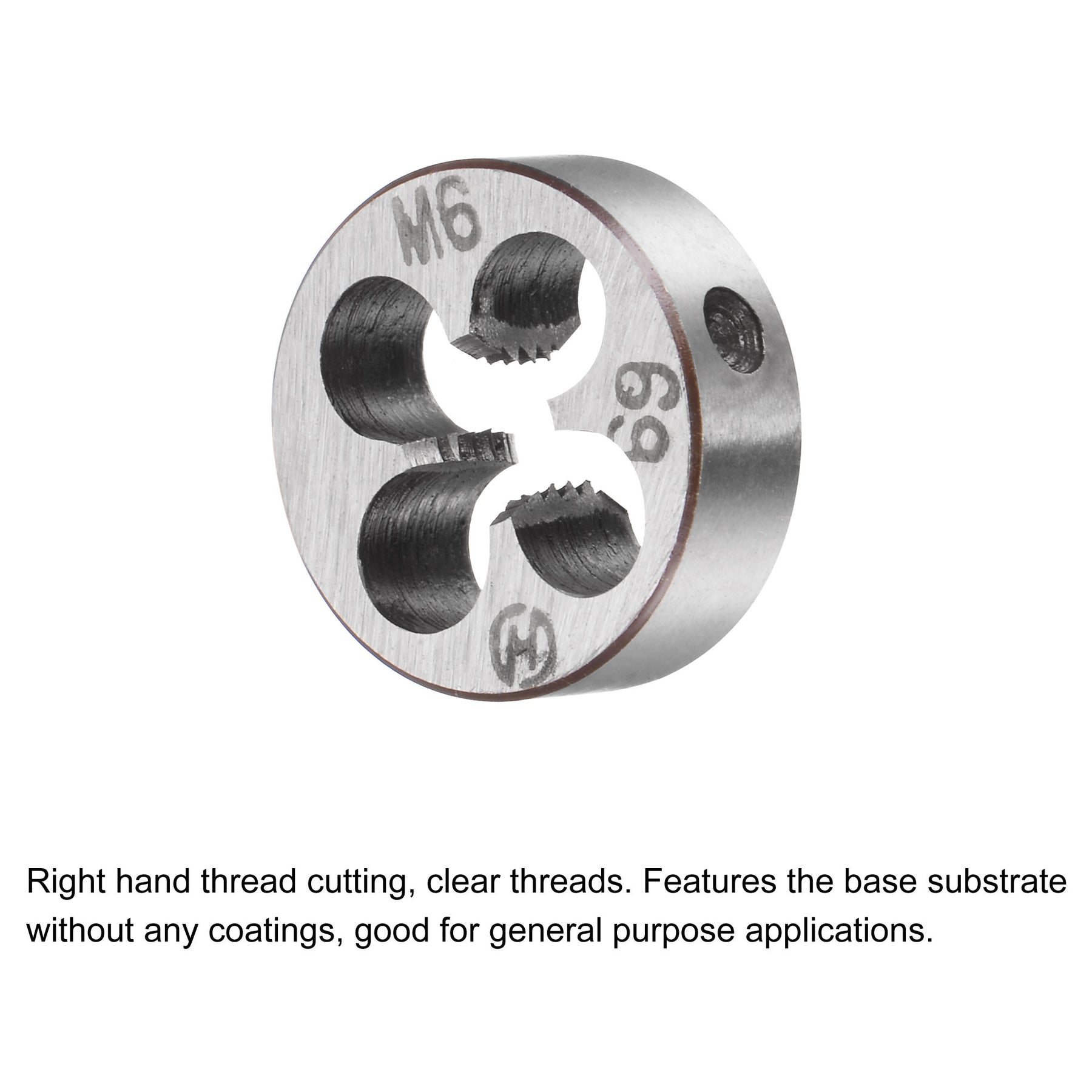

Round Die:
  • Thread Size: M6 x 1; Outside Diameter (OD): 20mm / 0.79"; Thickness: 7mm / 0.28",  Material: Alloy Tool Steel (9CrSi); Finish: Uncoated
Package Included:

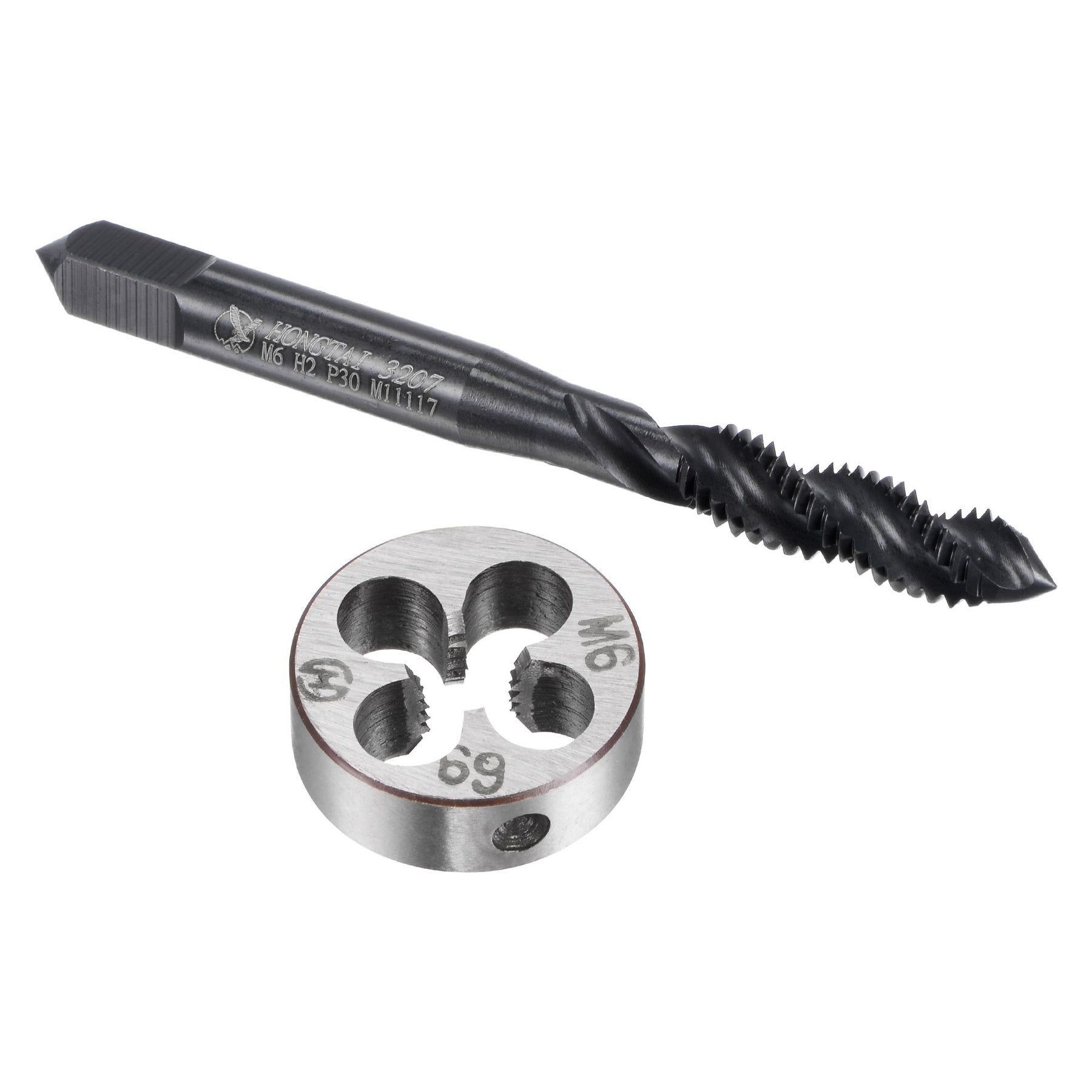

  • 1 x Tap and Die Set (1 x Machine Tap, 1 x Round Die)

Descriptions:

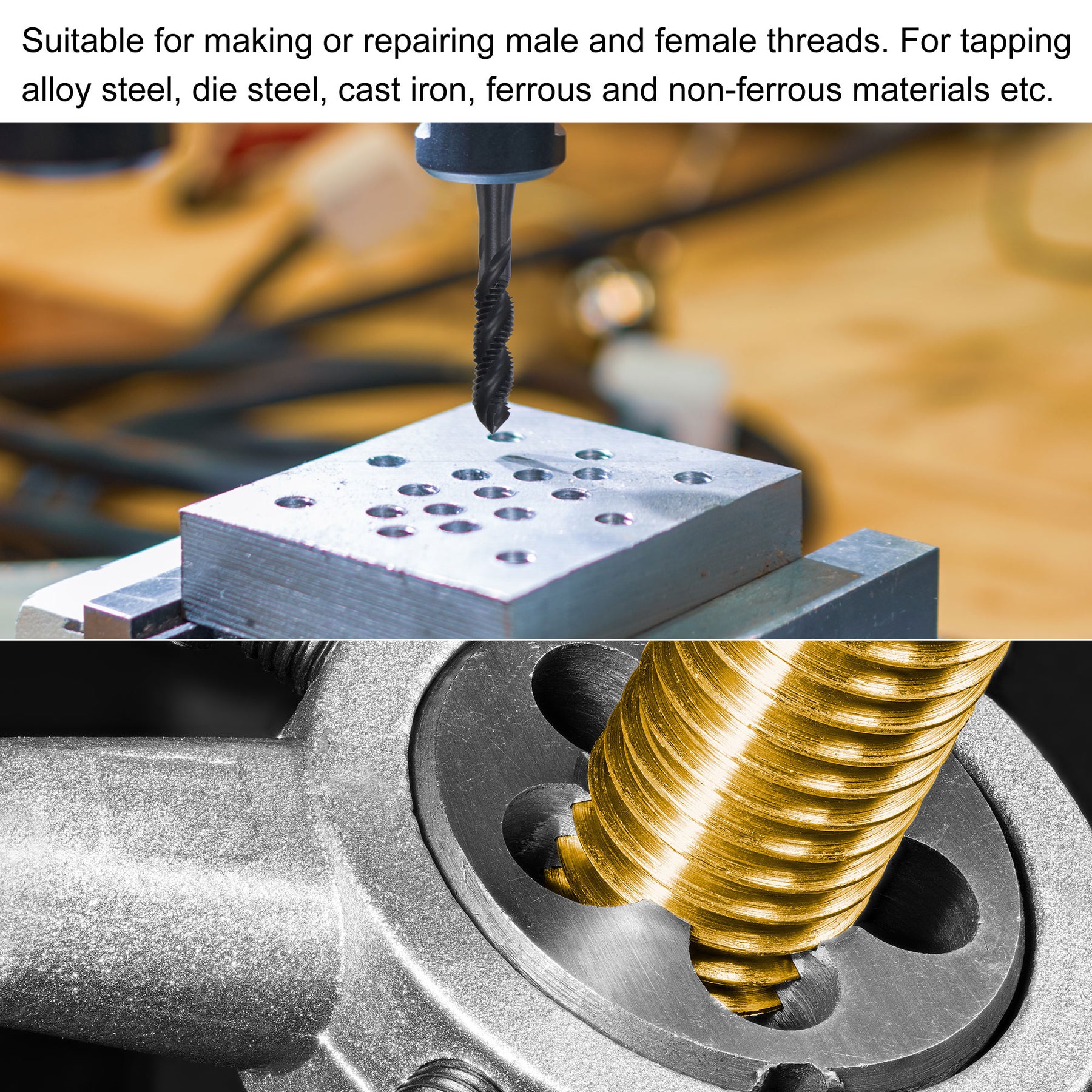

  1. Tap and die set are suitable for making or repairing male and female threads. They are both right hand thread cutting, with clear threads, good for general purpose applications.
  2. Used for processing holes and sticky materials. For tapping stainless steel, alloy steel, cast iron, ferrous and non-ferrous materials etc.. Use with tapping oil to get higher quality threads and more durable taps and dies.

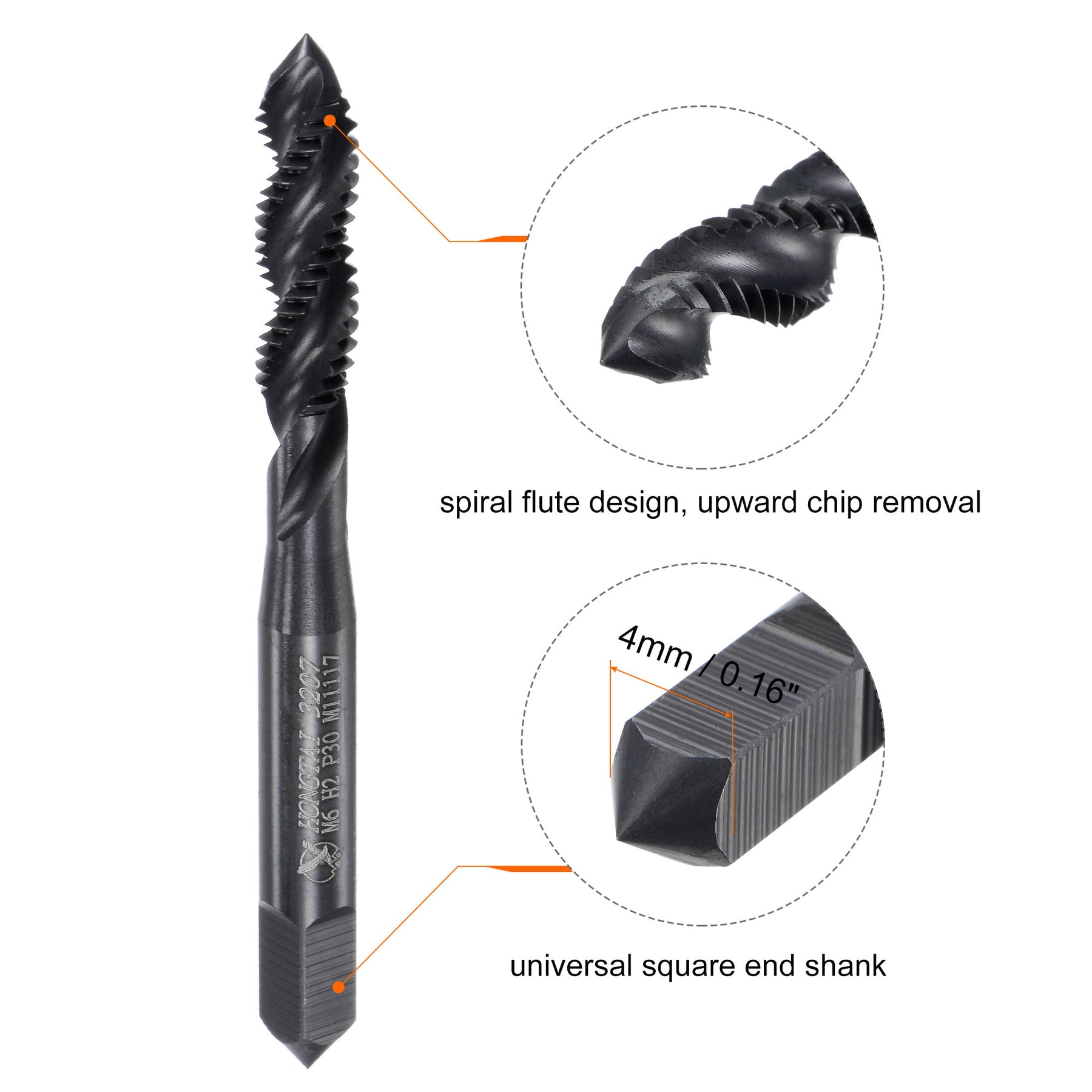

  3. Spiral flute design, upward chip removal.  High speed steel tap has high hardness, good toughness, wear resistance. Black nitrogen treatment greatly improve wear resistance, corrosion resistance and high temperature resistance. The round die features good abrasion resistance.
  4. Round dies can be used with die wrench (not included). The fastening screws in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines, and suggested to be used with tap collets with overload protection.
  5. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$9.35 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Spiral Flute Tap:
  • Thread Size: M6 x 1; Thread Length: 23mm / 0.91"; Overall Length: 66mm / 2.6"; Square Shank Size: 4mm / 0.16"; Accuracy: H2; Material: High Speed Steel (HSS) 6542; Finish: Nitrogen Treatment; Type: Machine Tap
Round Die:
  • Thread Size: M6 x 1; Outside Diameter (OD): 20mm / 0.79"; Thickness: 7mm / 0.28",  Material: Alloy Tool Steel (9CrSi); Finish: Uncoated
Package Included:
  • 1 x Tap and Die Set (1 x Machine Tap, 1 x Round Die)

Descriptions:
  1. Tap and die set are suitable for making or repairing male and female threads. They are both right hand thread cutting, with clear threads, good for general purpose applications.
  2. Used for processing holes and sticky materials. For tapping stainless steel, alloy steel, cast iron, ferrous and non-ferrous materials etc.. Use with tapping oil to get higher quality threads and more durable taps and dies.
  3. Spiral flute design, upward chip removal.  High speed steel tap has high hardness, good toughness, wear resistance. Black nitrogen treatment greatly improve wear resistance, corrosion resistance and high temperature resistance. The round die features good abrasion resistance.
  4. Round dies can be used with die wrench (not included). The fastening screws in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines, and suggested to be used with tap collets with overload protection.
  5. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
