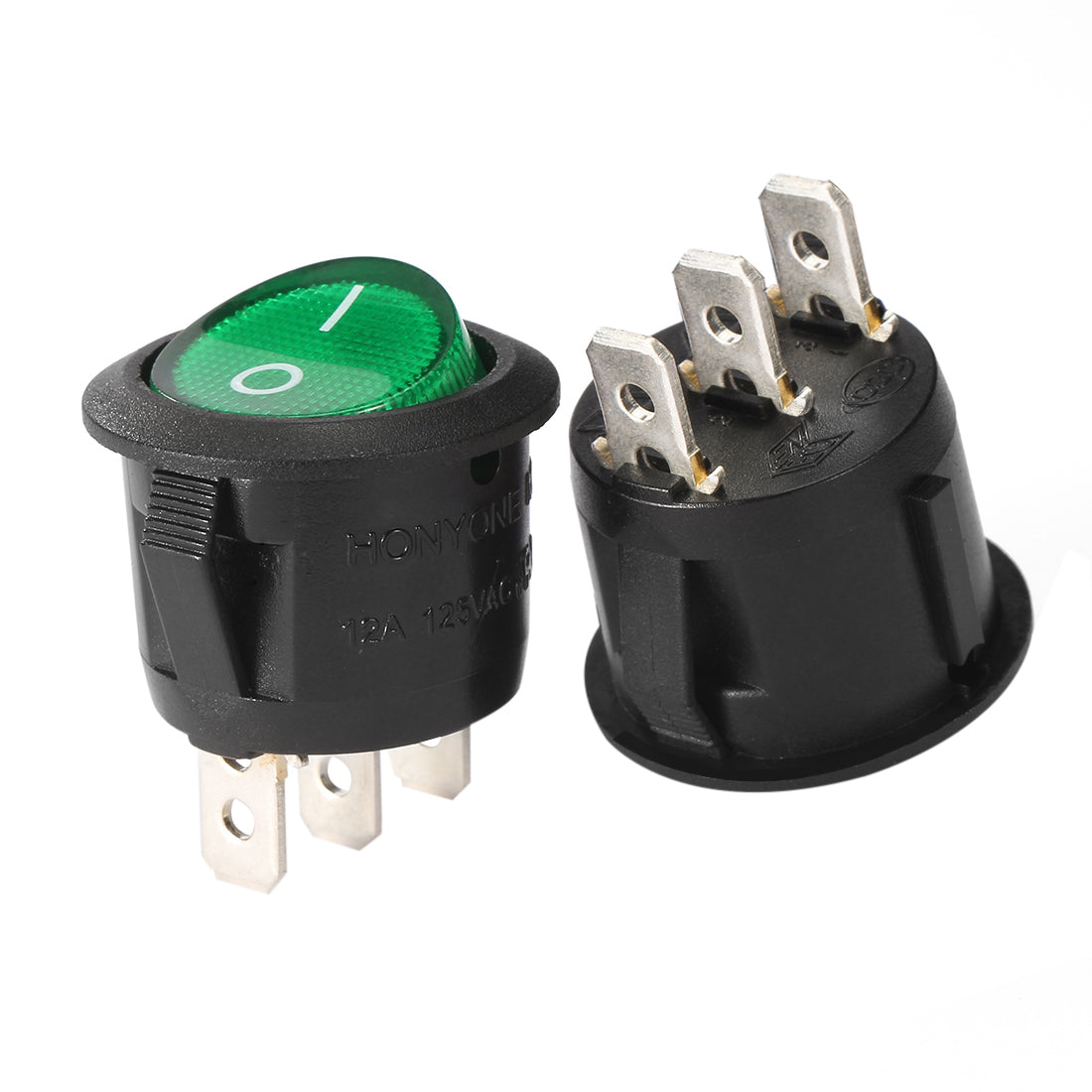

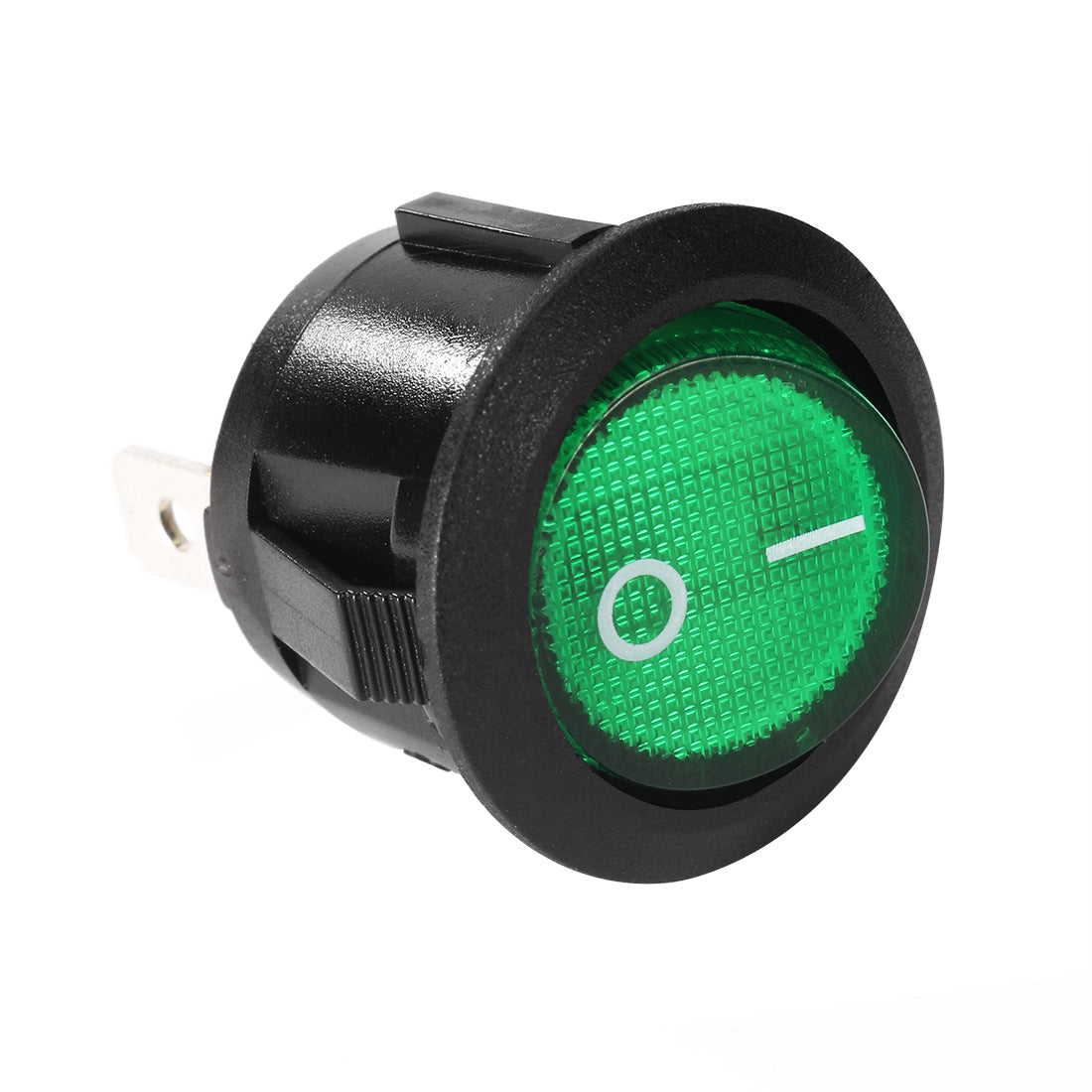

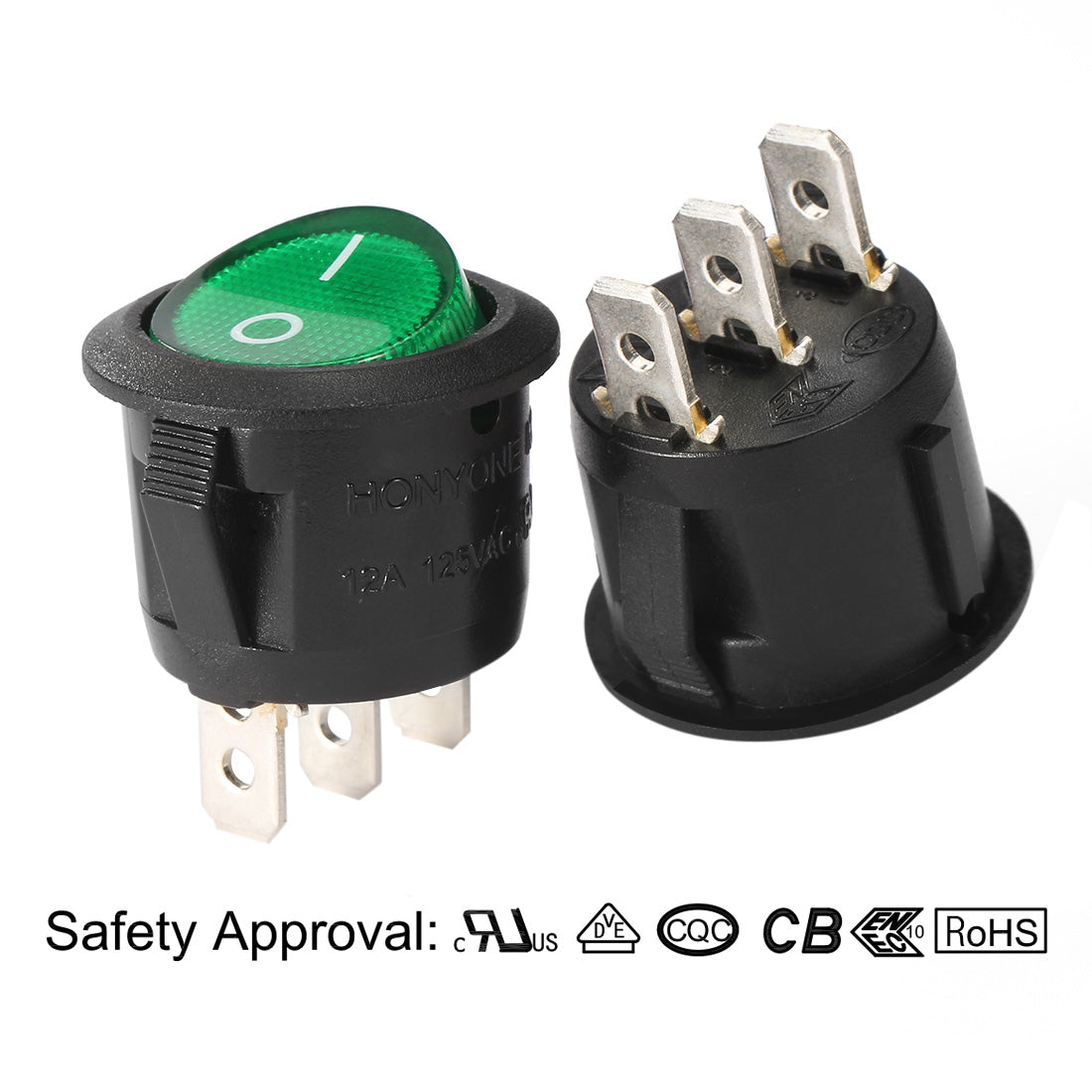

Harfington Uxcell 10Pcs AC 250V/10A 125V/12A Green Lamp 3 Terminal SPST 2 Position Round Push Button On/Off Backlit Rocker Toggle Mini Switch

Uxcell 10Pcs AC 250V/10A 125V/12A Green Lamp 3 Terminal SPST 2 Position Round Push Button On/Off Backlit Rocker Toggle Mini Switch

ID:
$9.61 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 【Wide Application】This mini rocker switch is widely used for various kinds of household appliances and DIY power control ,such as , boat, truck , pannel DIY control, lights, water dispenser, genertor, coffee pot, speaker,TV, conmutador Vacuum Cleaner and breadboard DIY power control.
  • 【Product Specification】AC 250V/10A 125V/12A,3 Terminal, on/off rocker switch with Green light
  • 【DIY As You Like】SPST (Single Pole Single Throw) 3 Pin rocker switch works like a seesaw, easily turning on or off lights.

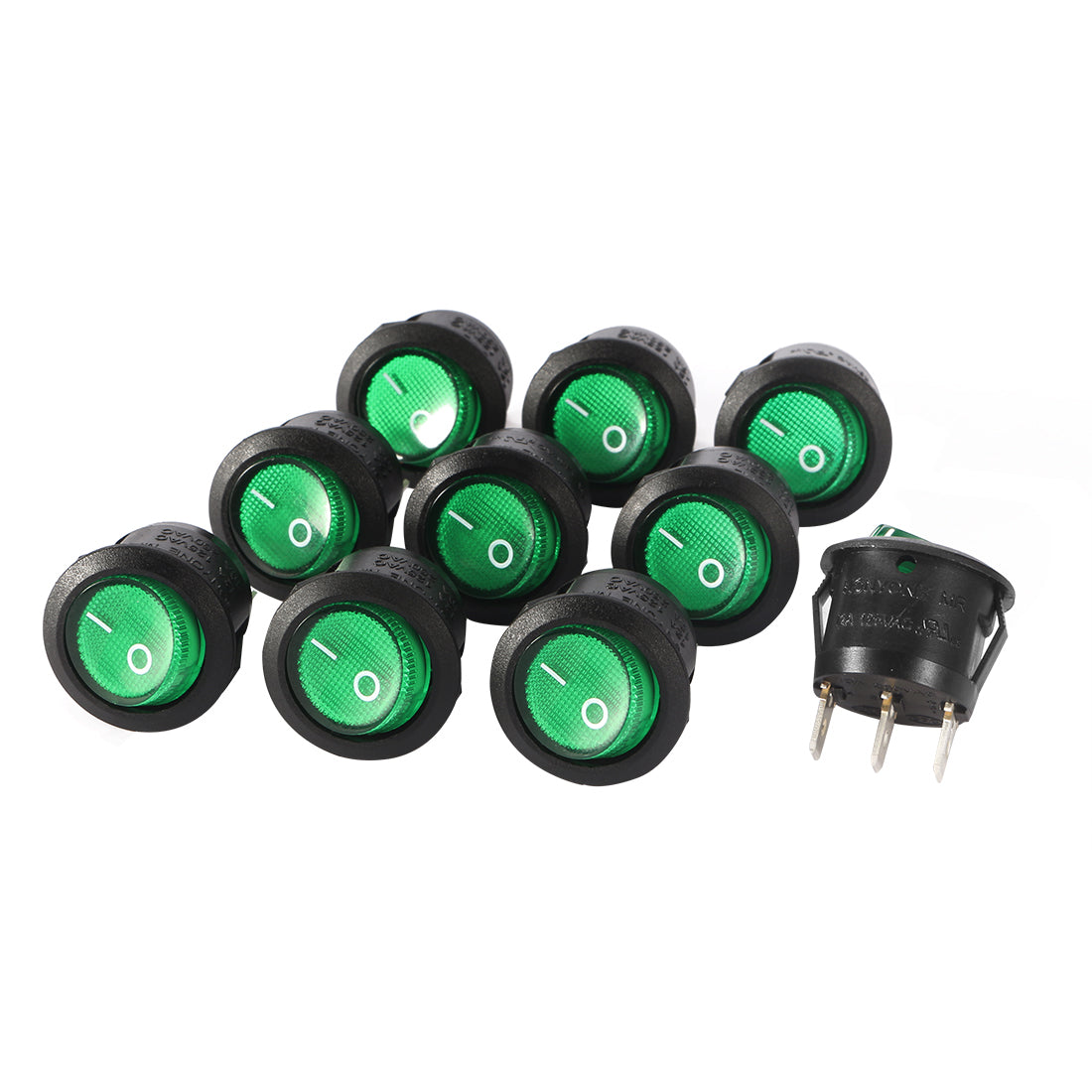

  • 【Parcel contains】10 x Rocker Switch . Easy to install and durable.With our strict quality control system, we test each item and ensure in good condition before we ship.
  • 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【Wide Application】This mini rocker switch is widely used for various kinds of household appliances and DIY power control ,such as , boat, truck , pannel DIY control, lights, water dispenser, genertor, coffee pot, speaker,TV, conmutador Vacuum Cleaner and breadboard DIY power control.
  • 【Product Specification】AC 250V/10A 125V/12A,3 Terminal, on/off rocker switch with Green light
  • 【DIY As You Like】SPST (Single Pole Single Throw) 3 Pin rocker switch works like a seesaw, easily turning on or off lights.
  • 【Parcel contains】10 x Rocker Switch . Easy to install and durable.With our strict quality control system, we test each item and ensure in good condition before we ship.
  • 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

100% Brand New and .

Easy setup, All you need is a 20mm hole and the switch will sit in nicely; no more square cut outs.

Our switch comes with a kyhole slot to prevent unwanted rotation.

SPST 2 pole design (On/Off) 3rd poles with LED to be connected to earth.



Functions:It can be applied as the switches for the additional electronical equipment inside or outside the car. (such as flashing lights, chassis lights, and dome lights).



Note:

AC 250V Current rerating for different loads

Inductive Load: 3.5A

Lamp Load: 1.8A

Motor Load: 2A

Capactive Load: 1.8A



AC125V Current rerating for different loads

Inductive Load: 4.2A

Lamp Load: 2.16A

Motor Load: 2.4A

Capactive Load: 2.16A



Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$9.61 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $30

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

100% Brand New and .

Easy setup, All you need is a 20mm hole and the switch will sit in nicely; no more square cut outs.

Our switch comes with a kyhole slot to prevent unwanted rotation.

SPST 2 pole design (On/Off) 3rd poles with LED to be connected to earth.



Functions:It can be applied as the switches for the additional electronical equipment inside or outside the car. (such as flashing lights, chassis lights, and dome lights).



Note:

AC 250V Current rerating for different loads

Inductive Load: 3.5A

Lamp Load: 1.8A

Motor Load: 2A

Capactive Load: 1.8A



AC125V Current rerating for different loads

Inductive Load: 4.2A

Lamp Load: 2.16A

Motor Load: 2.4A

Capactive Load: 2.16A



Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
