Harfington Uxcell Synchron Motor AC 24V CCW/CW 4W Turntable Gear Box for Microwave Oven

Uxcell Synchron Motor AC 24V CCW/CW 4W Turntable Gear Box for Microwave Oven

ID:1249910
ID:1249910
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
2.5-3RPM
Style
1pcs
Package Content
About this item

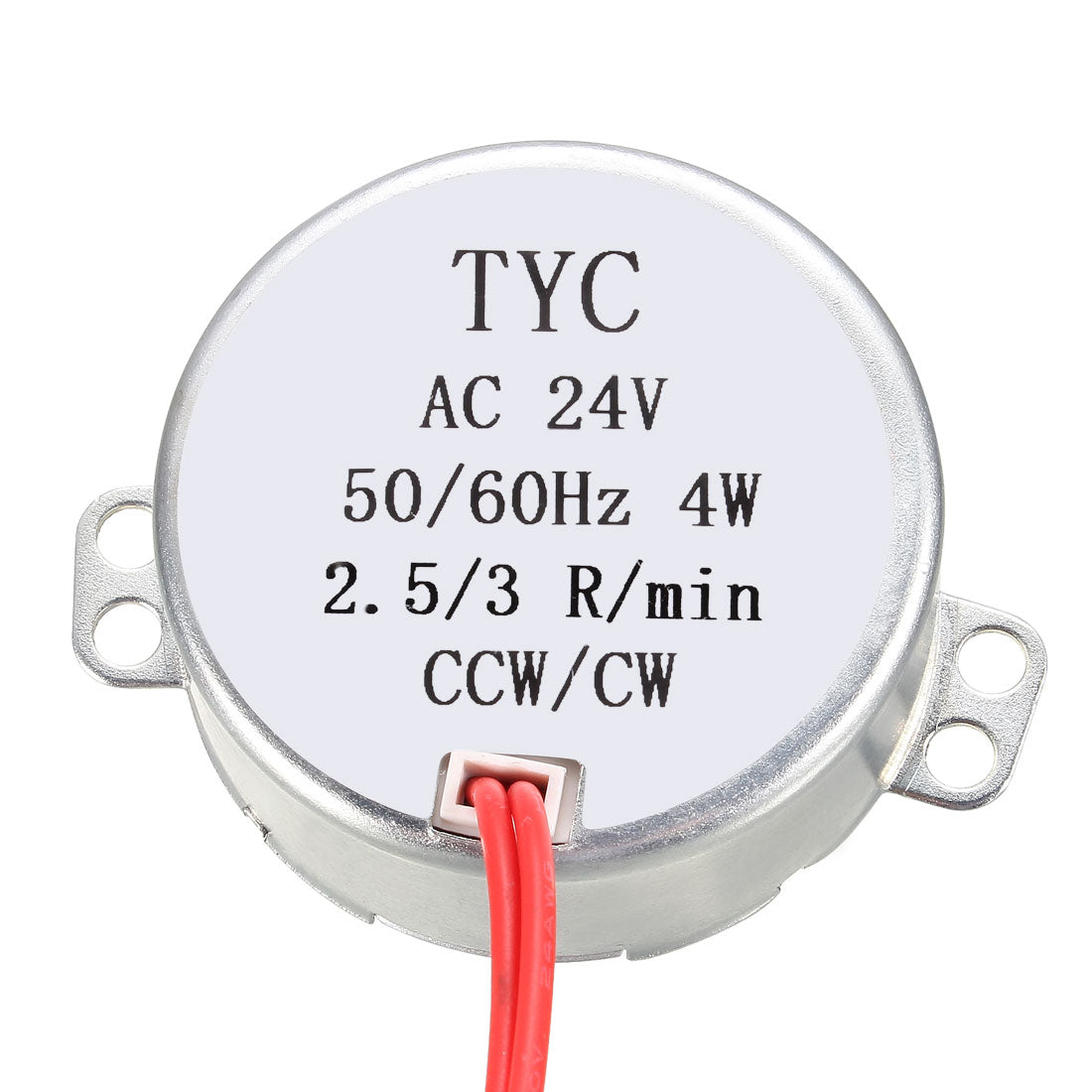

  • [Specification] - Voltage: AC 24V; Speed: 2.5-3RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 8kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
About this item
  • [Specification] - Voltage: AC 24V; Speed: 2.5-3RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 8kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
Specification

Specification

SKU
a19082100ux0950
Motor Color
silver tone
Power Cord Length
400 mm
Rated Speed
2.5 RPM
Rated Voltage
AC24
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description

It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, science and education instruments.

Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive devices.





Specification

Rated Voltage: AC 24V

Power: 4W

Manner of Working: CW/CCW

Rated Frequency: 50-60Hz

Rated Speed: 2.5-3RPM

Torque: 8kgf.cm

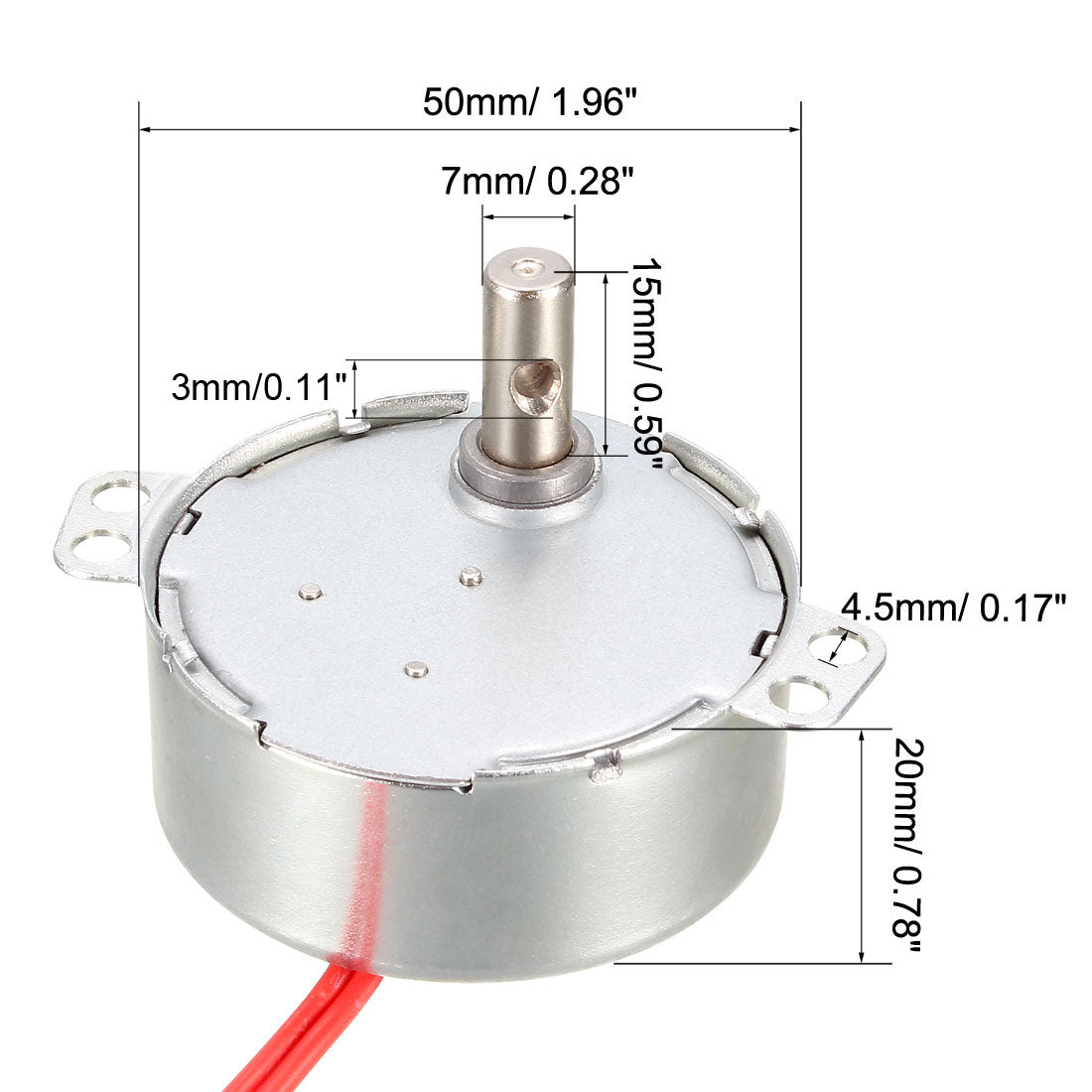

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 15mm/ 0.59 inch

Shaft Hole diameter: 3mm/0.11 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor

US$10.47 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Uxcell Synchronous Motor AC 100-127V 10-12RMP 50-60Hz 4W Double Flat Shaft CW/CCW 1015091 US$10.46
Uxcell Synchronous Motor AC 100-127V 4-5RMP 50-60Hz 4W Double Flat Shaft CW/CCW 1015093 US$10.48
Uxcell Synchronous Motor AC 220-240V 30-36RPM 30-36Hz CCW/CW 4W Turntable Gear Box for Microwave Oven 1211002 US$9.17
Uxcell Synchronous Motor AC 220-240V 60-70RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Microwave Oven 1211197 US$9.05
Uxcell Synchronous Motor AC 100-127V 2-2.4RMP 50-60Hz 4W Double Flat Shaft CW/CCW 1007351 US$10.13
Uxcell Synchronous Gear Motor AC 24V 60-70RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1007352 US$10.54
Uxcell Synchronous Synchron Motor AC 12V 4W 5-6RPM/MIN 50-60Hz CCW for Hand-Made, Model or Guide Motor 1022614 US$9.68
Uxcell Synchronous Synchron Motor Electric Synchron Motor Turntable Motor Cup Turner Motor AC 100-127V 20-24RPM 50-60Hz CCW 4W 1022617 US$9.67
Uxcell Synchronous Synchron Motor Electric Synchron Motor Turntable Motor Cup Turner Motor AC 12V 5-6RPM 50-60Hz 4W 1022630 US$9.22
Uxcell Synchronous Synchron Motor Electric Synchron Motor Turntable Motor Cup Turner Motor AC 100-127V 10-12RPM 50-60Hz CCW 4W 1028265 US$9.68
Uxcell Synchronous Motor AC 12V 0.9-1.1RMP 50-60Hz 4W Double Flat Shaft CW/CCW 1028324 US$10.47
Uxcell Synchronous Motor AC 100-127V 20-24RMP 50-60Hz 4W Double Flat Shaft CW/CCW 1250040 US$10.47
Uxcell Synchronous Gear Motor AC 24V 2.5-3RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1250120 US$10.79
Uxcell Synchronous Gear Motor AC 12V 2-2.4RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1250316 US$11.54
Uxcell Synchronous Synchron Motor Electric Synchron Motor Turntable Motor Cup Turner Motor AC 220-240V 20-24RPM 50-60Hz CCW 4W 1253673 US$9.34
Uxcell Synchronous Motor AC 100-127V 10-12RPM 50-60Hz CCW/CW 4W D Shaft 1007349 US$10.55
Uxcell Electric Motor Turntable Synchronous Motor 100-127 VAC 2.5-3RPM 50/60 Hz 4W CW Direction for Hand-Made, Model or Guide Motor 1028274 US$9.28
Uxcell Synchronous Motor AC 220-240V 20-24RPM 50-60Hz CCW/CW 4W Reduction Gear Motor 1362330 US$9.32
Uxcell Synchronous Gear Motor AC 12V 2.5-3RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1252485 US$11.14
Uxcell Synchronous Gear Motor AC 24V 15-18RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1001037 US$10.56
Uxcell Synchronous Motor AC 24V 5-6RPM 50-60Hz CCW/CW 4W Reduction Gear Motor 1249078 US$11.94
Uxcell Synchronous Gear Motor AC 24V 10-12RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1225805 US$9.35
Uxcell Synchronous Gear Motor AC 12V 20-24RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1007360 US$10.58
Uxcell Synchronous Gear Motor AC 12V 4-5RPM 50-60Hz Electric Motor CCW/CW 4W for Electric Fan 1007362 US$10.12
Uxcell Electric Synchron Motor Turntable Synchronous Motor 100-127 VAC 20-24RPM 50-60 Hz 4W CCW Direction for Hand-Made, Model or Guide Motor 1018566 US$10.05
Uxcell Synchronous Motor AC 100-127V 20-24RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Microwave Oven 1018622 US$10.84
Uxcell Turntable Synchronous Synchron Motor 50-60Hz 12 VAC 4W (5-6RPM) 1022618 US$9.90
Uxcell Synchronous Synchron Motor Electric Synchron Motor Turntable Motor Cup Turner Motor AC 100-127V 2.5-3RPM 50-60Hz CCW 4W 1028270 US$9.75
Uxcell Synchronous Motor AC 12V 8-10RMP 50-60Hz 4W Double Flat Shaft CW/CCW 1028322 US$10.34
Uxcell Synchronous Motor AC 100-127V 60-70RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Hand-Made 1028333 US$12.13
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

Description

It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, science and education instruments.

Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive devices.





Specification

Rated Voltage: AC 24V

Power: 4W

Manner of Working: CW/CCW

Rated Frequency: 50-60Hz

Rated Speed: 2.5-3RPM

Torque: 8kgf.cm

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 15mm/ 0.59 inch

Shaft Hole diameter: 3mm/0.11 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor
