Harfington Uxcell MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White

Uxcell MC-38 Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White

ID:
$5.80 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm
  • [Dimension] - Cable Length: 26cm/10.24"; Total Size: 27 x 14 x 7.8mm / 1.06" x 0.55" x 0.31" (L*W*H)
  • [Material] - The magnetic switch alarm is with durable ABS housing for better rust resistance
  • [Normally Closed] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
  • [Applications] - The Wired Door Sensor is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
  • In stock, ready to ship
Cart
Cart
About This Item
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm
  • [Dimension] - Cable Length: 26cm/10.24"; Total Size: 27 x 14 x 7.8mm / 1.06" x 0.55" x 0.31" (L*W*H)
  • [Material] - The magnetic switch alarm is with durable ABS housing for better rust resistance
  • [Normally Closed] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
  • [Applications] - The Wired Door Sensor is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Description:

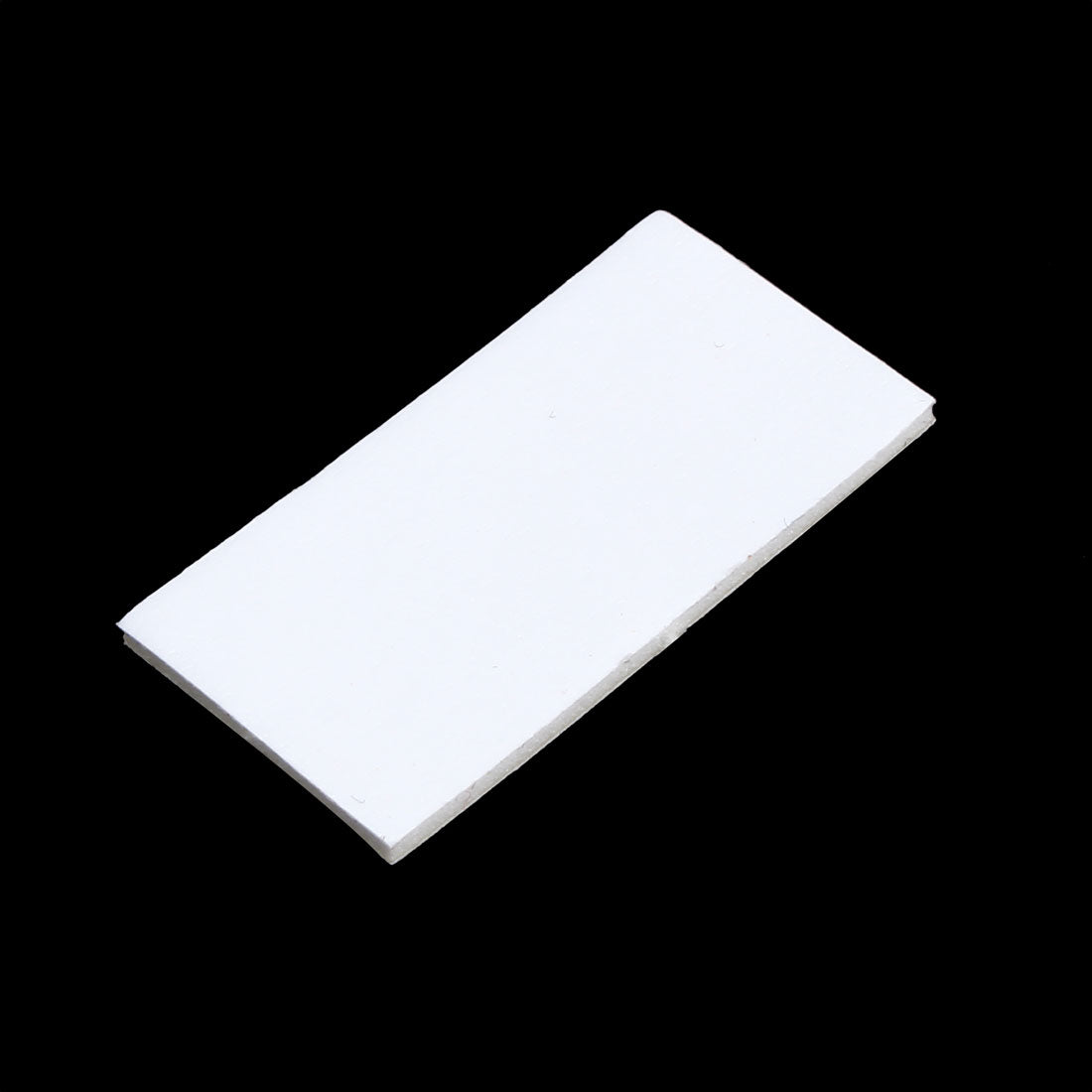

1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.

2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).

3.Work as an anti-theft alarm, perfect for wood door and window.

4.N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )



Specification:

Product Name: Magnetic Door Switch

Model: MC-38

Contact Type: NC (Normally Closed)

Actuation Distance: 10-15mm

Max. Current: 0.5A

Max. Power: 10W

Working Voltage: DC100V

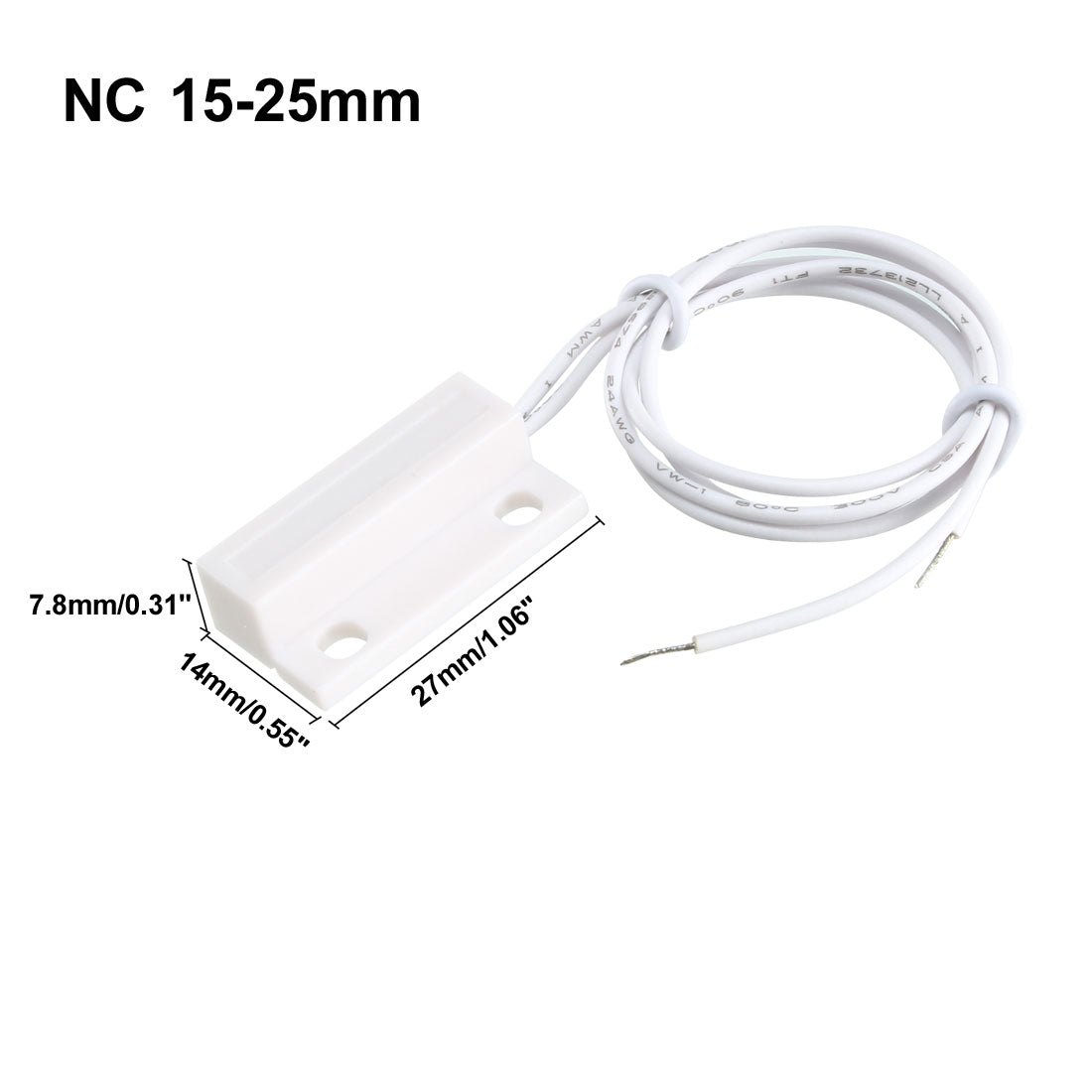

Each Size(Approx): 27 x 14 x 7.8mm / 1.06-inch x 0.55-inch x 0.31-inch (L*W*H)

Mounting Hole Diameter: 4mm/0.16-inch

Cable Length(Each): 26cm / 10.24-inch

Material: ABS (Housing)

Wire Type: 1007UL#24AWG

Color: White

Net Weight: 12g



Package Content:

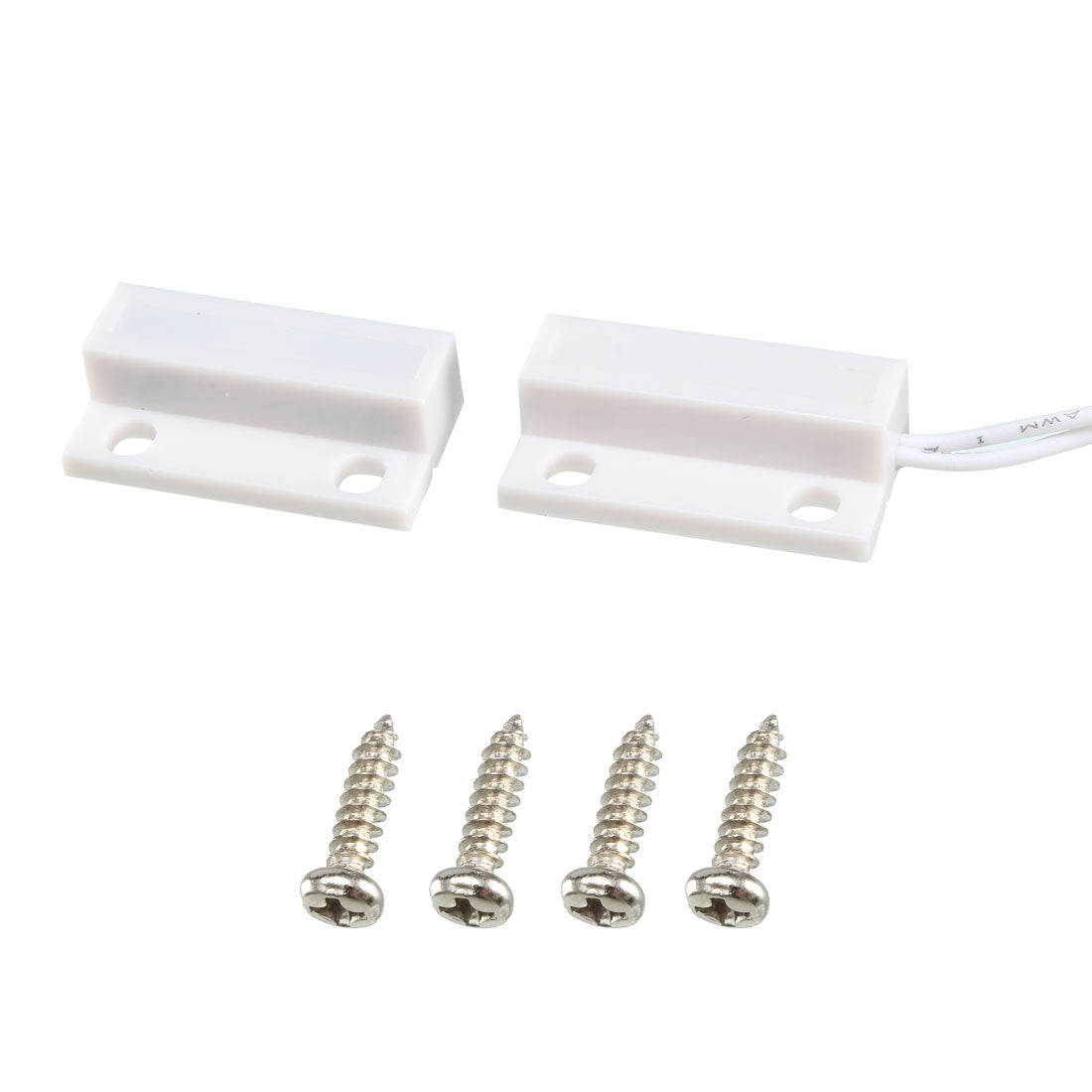

1 x Magnetic Door Switch, Some Install Parts



Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Description:

1.Self-Adhesive Mount, Screw Surface Mount contact, ABS Housing. Long wire lead that can side mounted.

2.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).

3.Work as an anti-theft alarm, perfect for wood door and window.

4.N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )



Specification:

Product Name: Magnetic Door Switch

Model: MC-38

Contact Type: NC (Normally Closed)

Actuation Distance: 10-15mm

Max. Current: 0.5A

Max. Power: 10W

Working Voltage: DC100V

Each Size(Approx): 27 x 14 x 7.8mm / 1.06-inch x 0.55-inch x 0.31-inch (L*W*H)

Mounting Hole Diameter: 4mm/0.16-inch

Cable Length(Each): 26cm / 10.24-inch

Material: ABS (Housing)

Wire Type: 1007UL#24AWG

Color: White

Net Weight: 12g



Package Content:

1 x Magnetic Door Switch, Some Install Parts



Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
