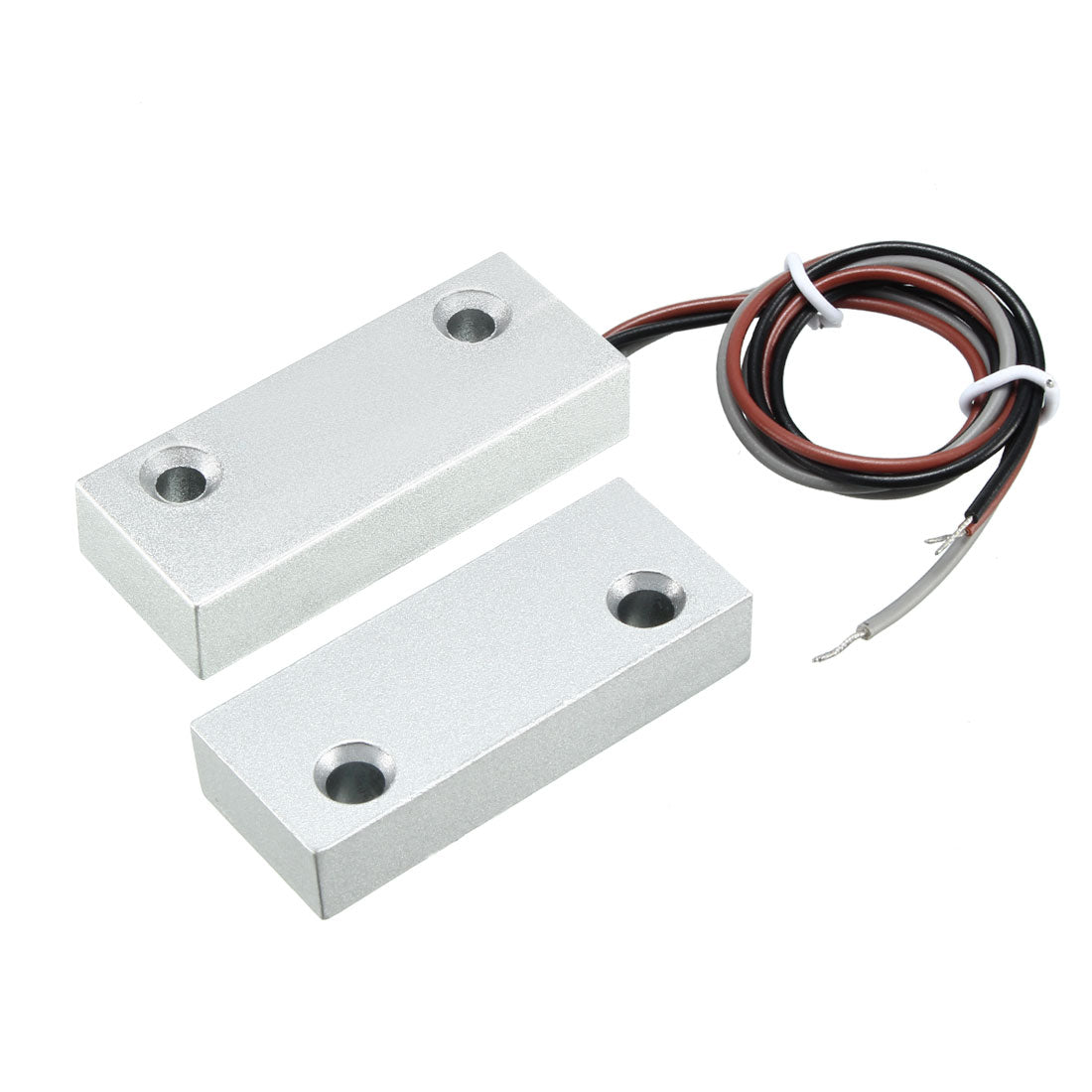

Harfington MC-52 NC+NO Alarm Security Rolling Gate Garage Door Contact Magnetic Reed Switch Silver Gray

MC-52 NC+NO Alarm Security Rolling Gate Garage Door Contact Magnetic Reed Switch Silver Gray

ID:
$12.93 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; MAX Action Distance:25mm
  • [Dimension] - Cable Length: 23cm/9.1"; Total Size: 48.7mm x 19.5mm x 10 mm/1.92 x 0.77 x 0.39 inch (L*W*H)
  • [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
  • [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, please check carefully!
  • [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; MAX Action Distance:25mm
  • [Dimension] - Cable Length: 23cm/9.1"; Total Size: 48.7mm x 19.5mm x 10 mm/1.92 x 0.77 x 0.39 inch (L*W*H)
  • [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
  • [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, please check carefully!
  • [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Applications

The Overhead Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Installation Precautions

1. It must be installed according to the sensing distance;
2. Door magnetic induction can only provide a switch signal to the transmitter, which can not directly load the power, nor directly connect the lamp!

N.O./N.C. Dual-Use

NC means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, please check carefully!

Specification

Current: 0.5A
Voltage: 100V
Power Rating: 10W
MAX Action Distance:25mm
Material: Zinc Alloy (Housing)

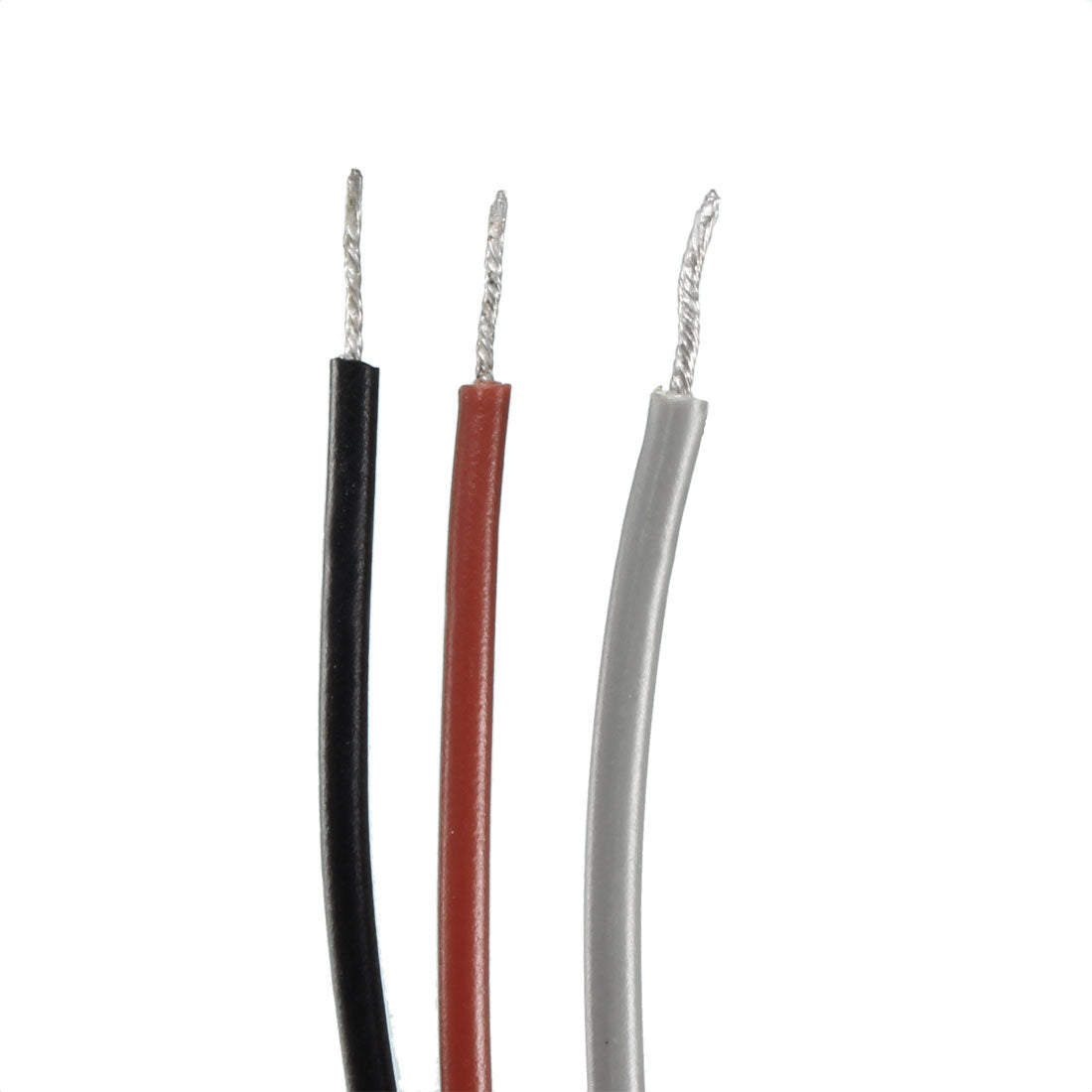

Wire Gauge: 24AWG
Cable Length: 23cm/9.1"

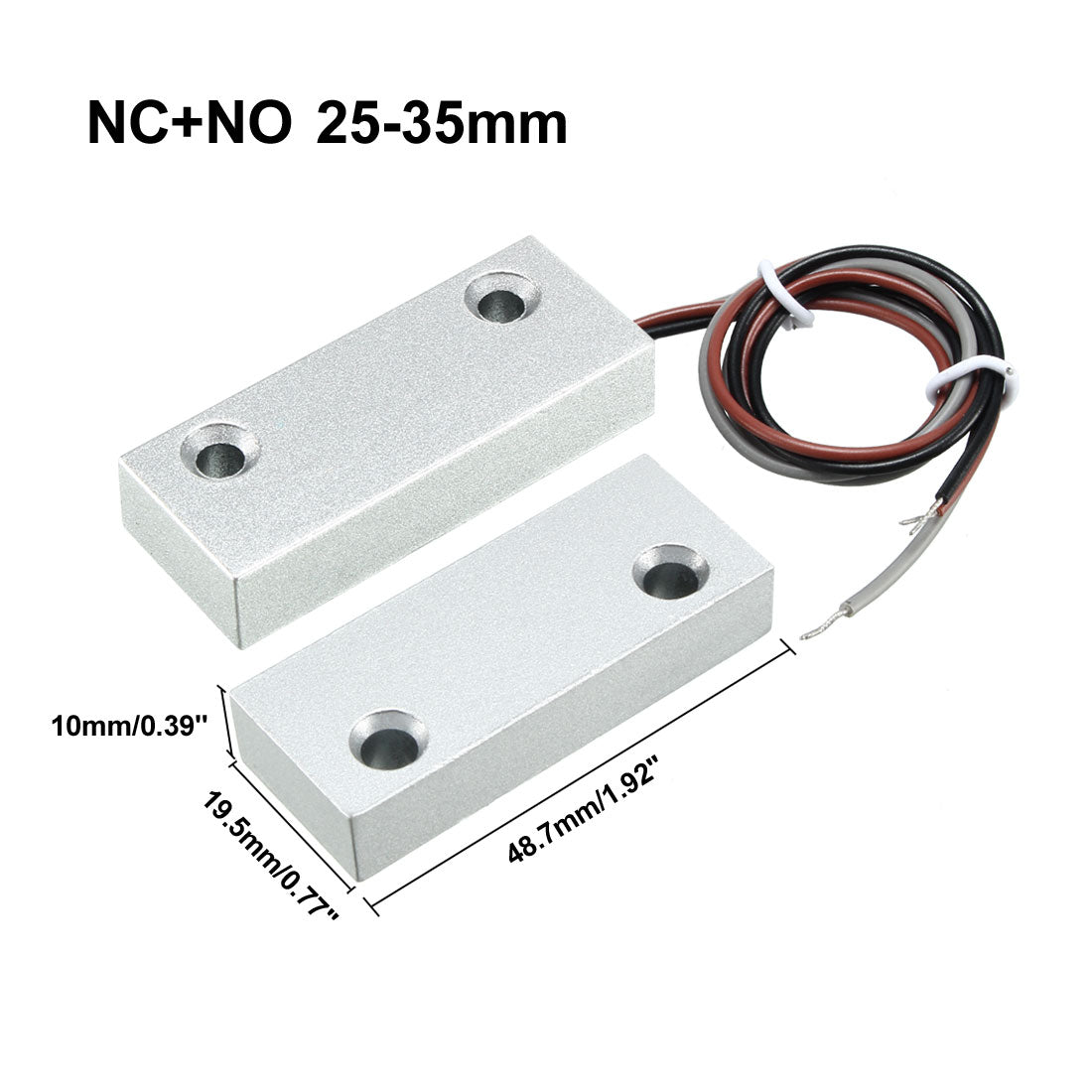

Total Size: 48.7mm x 19.5mm x 10 mm/1.92" x 0.77" x 0.39" (L*W*H)

Package Content:

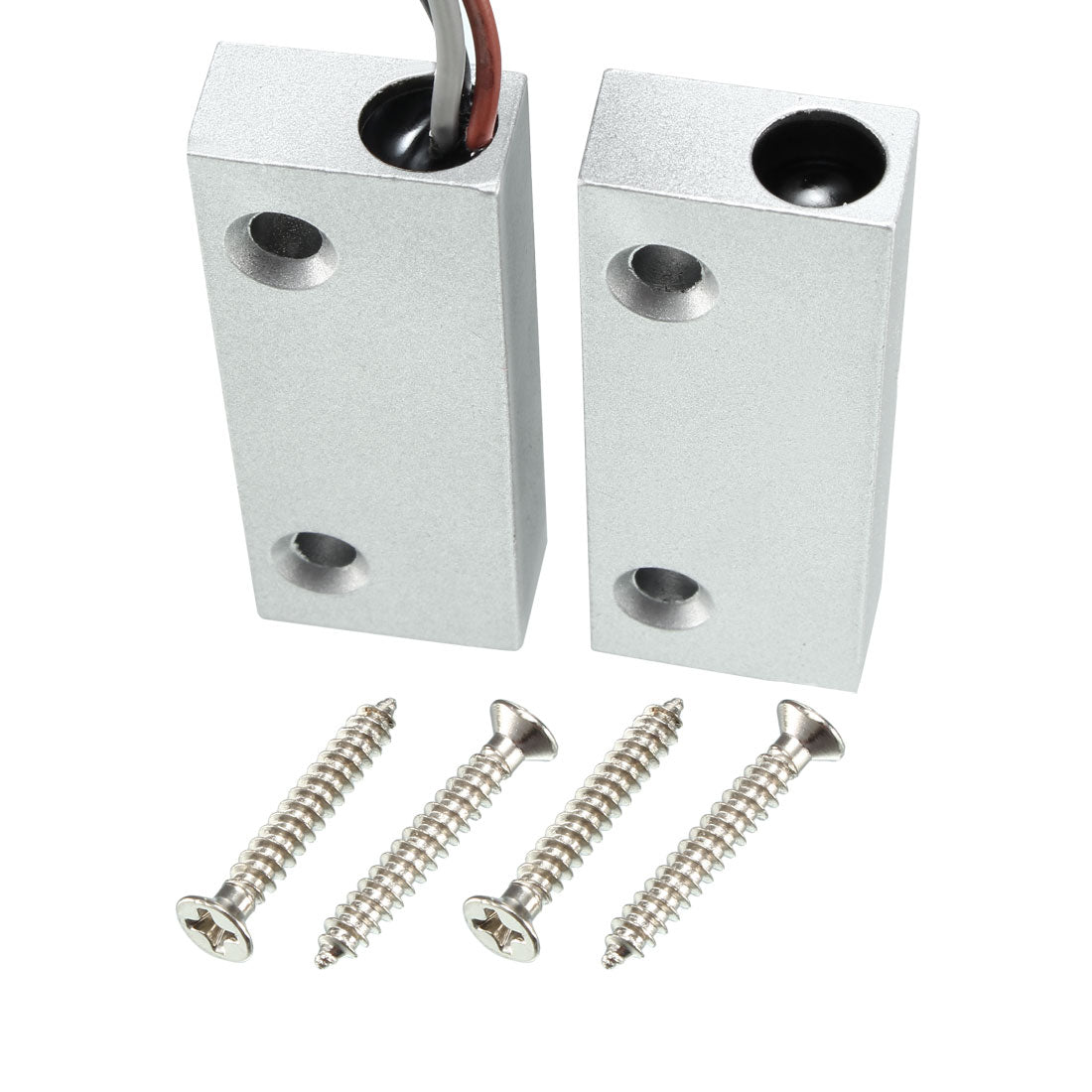

1 x Magnetic Door Switch, 4 x Screws
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$12.93 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Applications

The Overhead Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Installation Precautions

1. It must be installed according to the sensing distance;
2. Door magnetic induction can only provide a switch signal to the transmitter, which can not directly load the power, nor directly connect the lamp!

N.O./N.C. Dual-Use

NC means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, please check carefully!

Specification

Current: 0.5A
Voltage: 100V
Power Rating: 10W
MAX Action Distance:25mm
Material: Zinc Alloy (Housing)
Wire Gauge: 24AWG
Cable Length: 23cm/9.1"
Total Size: 48.7mm x 19.5mm x 10 mm/1.92" x 0.77" x 0.39" (L*W*H)

Package Content:

1 x Magnetic Door Switch, 4 x Screws
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
