Harfington Uxcell JF-1564B DC 12V 2.5A 55N 10mm Push Pull Type Open Frame Linear Motion Solenoid Electromagnet

Uxcell JF-1564B DC 12V 2.5A 55N 10mm Push Pull Type Open Frame Linear Motion Solenoid Electromagnet

ID:1206898
ID:1206898
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 【FEATURE】- DC 12V 2.5A 55N Force 10mm Stroke Push Pull Solenoid Electromagnet
  • 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
  • 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
  • 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 111 seconds.
  • 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
About this item
  • 【FEATURE】- DC 12V 2.5A 55N Force 10mm Stroke Push Pull Solenoid Electromagnet
  • 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
  • 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
  • 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 111 seconds.
  • 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
Specification

Specification

SKU
a18051900ux0050
Material
Metal
Force
55N
Travel
10mm
Cable length
160mm / 6.3 inch
Rated voltage
DC 12V
Current
2.5A
Push bar dia
15mm / 0.59 inch
Total length
102mm / 4.02 inch
Mounting hole dia
2.5mm / 0.1 inch
Size

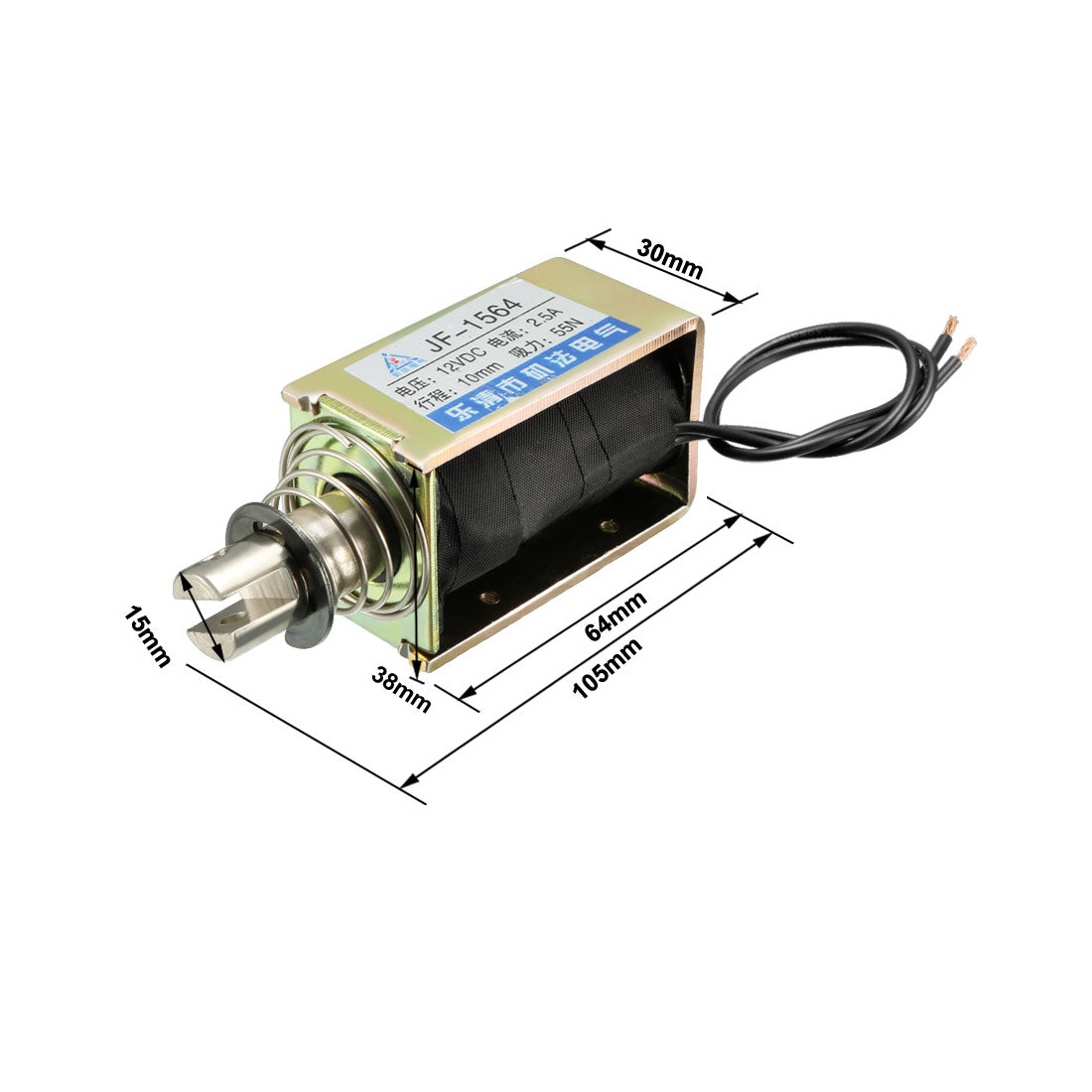

64 x 30 x 38mm / 2.52" x 1.18" x 1.5" (L*W*H)
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

Push Pull Type, linear motion, plunger spring return, DC solenoid electromagnet.

Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.

DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

 Specification:
Material :Metal

Force: 55N;
Travel: 10mm
Cable Length: 160mm / 6.3";
Rated Voltage: DC 12V;
Current: 2.5A
Push Bar Dia: 15mm / 0.59";
Total Length: 102mm / 4.02";
Mounting Hole Dia.: 2.5mm / 0.1"
Size: 64 x 30 x 38mm / 2.52" x 1.18" x 1.5" (L*W*H)

Package Content:

1 x DC Solenoid Electromagnet

Note:

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to damaged the electromagnet.
